Fabric Popped Out Mid-Stitch on a Baby Lock Solaris? Re-Hoop, Re-Align, and Finish Like Nothing Happened

Master Guide: Saving a Ruined Project on Baby Lock Solaris & Brother Luminaire (The Re-Hooping Protocol)

Every embroidery artist, from the hobbyist to the shop owner, has lived this specific nightmare: You step away for "two seconds" to grab a coffee. You hear a sickening snap or a dull thud. You return to find the fabric has yanked free from the hoop, but the machine is still happily stitching into thin air (or worse, bird-nesting into the bobbin case).

Your stomach drops. You see the misalignment immediately. The instinct is to rip it out or throw the garment away.

Here is the calm, professional truth: If you are operating a Baby Lock Solaris or a Brother Luminaire, you possess some of the most advanced recovery avionics in the industry. You can save this project cleanly, but only if you stop guessing and start following a precision protocol.

This guide will walk you through the recovery physics, the "hidden" prep steps, and how to leverage your camera/projector systems to erase the mistake.

When Fabric Pops Out of the Hoop on a Baby Lock Solaris, Don’t Panic—Freeze the Evidence First

The single worst mistake novices make is rushing to unclamp everything. The second worst is guessing where the machine stopped.

In our case study, the design was midway through stitching the alphanumeric code “A1” and the top curve of an “S” when the fabric failed. That partial, ruined stitching is not garbage—it is your forensic map.

Protocol: The "Freeze" Phase Before you touch the hoop screw or the screen:

1. Stop the machine immediately.
2. Do not cut the thread yet. The tension on the thread can sometimes show you exactly how the fabric shifted.
3. Capture the data. Look at the screen. In the scenario, the machine stopped at stitch 682 of 1806. Write this down. Do not trust your memory.


Warning: Mechanical Safety. Keep your hands, hair, and loose sleeves away from the needle bar and presser foot while inspecting the damage. If you attempt to re-hoop while the frame is still attached to the carriage (which we generally advise against for beginners), ensure the machine is locked or powered down to prevent accidental activation. A needle strike at 800 SPM can cause serious injury.

The “Hidden” Prep Pros Do Before Re-Hooping a Standard Screw Hoop (So the Fix Actually Holds)

A re-hoop is only as good as the physics underneath it. If the fabric slipped once, it will slip again—likely faster this time—because the fibers are now stressed and the stabilizer is compromised.

The "Why" Behind the Slip Standard screw-type hoops rely on friction. If your fabric is thick (like denim) or slippery (like performance wear), the inner ring can act like a skate, sliding the fabric out as the needle pounds it.

The Setup Used:

• Fabric: Blue cotton/denim (Woven, stable).
• Stabilizer: White tear-away (Note: For denim, a cut-away is often safer for longevity, but tear-away works for rigid items).
• Hoop: Standard screw-tightened frame.

The Expert's Pre-Flight Check: Before you even think about putting the fabric back in:

1. Check the Stabilizer Integrity: Did the backing tear away when the fabric popped? If the stabilizer is shredded, you must float a new piece of tear-away under the hoop or patch it. You cannot stitch on air.
2. Inspect the Hoop Surface: Run your finger along the inner ring. Is there lint, old spray adhesive buildup, or a nick? These reduce friction. Clean rings grip better.
3. Reduce Drag: Look at your workspace. Did the weight of the hoodie hang off the table? Did the fabric catch on the thread stand? 90% of "pop-outs" are actually "drag-outs."

If you find yourself constantly fighting to tighten screws or experiencing wrist pain, this is a hardware signal. Professional shops often utilize a hooping station for embroidery to ensure the garment is fully supported and the hoop is level during the clamping process. Fighting gravity while tightening a screw is recipe for slippage.

Prep Checklist (Verify OR Fail):

• Stitch Count Recorded: Written down (e.g., Stitch 682).
• Obstruction Cleared: No tools, clips, or thread trash under the hoop arm.
• Backing Secured: Stabilizer is sufficient and attached to the fabric (use temporary spray adhesive if layers have separated).
• Thread Tails Management: Top and bottom threads are pulled clear so they don't get sewn into the restart.


Re-Hooping by “Hoop Burn” on a Standard Embroidery Hoop: The Fastest Physical Reset

The host demonstrates the classic "forensic" recovery: utilizing the "Hoop Burn" (the indented ring left in the fabric) as a guide.

The Tactile Technique:

1. Full Removal: Take the hoop entirely off the machine and remove the inner ring.
2. Sensory alignment: Place the inner ring back onto the fabric. Use your fingers to feel for the ridge where the hoop was previously sitting. It should "click" into the existing groove like a puzzle piece.
3. The Tension Check: When you tighten the screw, you are trying to match the exact tension of the previous hooping.
   • Too Loose: The design will register as "shrunken" and won't line up.
   • Too Tight: The fabric stretches, and your new stitches will pucker when released.
   • The Sweet Spot: It should feel like a drum skin—taut, but not distorted.


The Physics of the Problem This manual re-hooping is where human error creeps in. It is physically impossible to tighten a screw hoop to the exact same PSI (pounds per square inch) twice in a row by hand.

This inconsistency is why many volume embroiderers switch to magnetic embroidery hoops. These tools use the constant force of magnets to clamp the fabric, meaning the tension is identical every single time, regardless of user fatigue. If you had used a magnetic frame here, snapping it back onto the "hoop burn" would be nearly automatic.

The Stitch-Number Lifeline: Record Stitch 682 (Then Reset to Zero Without Losing Your Place)

The workflow on the Solaris/Luminaire is counter-intuitive but brilliant.

The Sequence:

1. You are currently at Stitch 682.
2. Use the +/- keys to navigate back to Stitch 0.

Why go back to zero? The machine’s optical systems (Camera and Projector) align the design relative to its origin point. You cannot align a partial design effectively. You must tell the machine, "Here is where the design starts," align that, and then fast-forward back to the rescue point.

Warning: If you skip the "Write it down" step and just hit "Reset to Beginning," you are flying blind. You will have to guess where stitch 682 was, and you will likely guess wrong, leaving a visible gap or a heavy lump of thread.

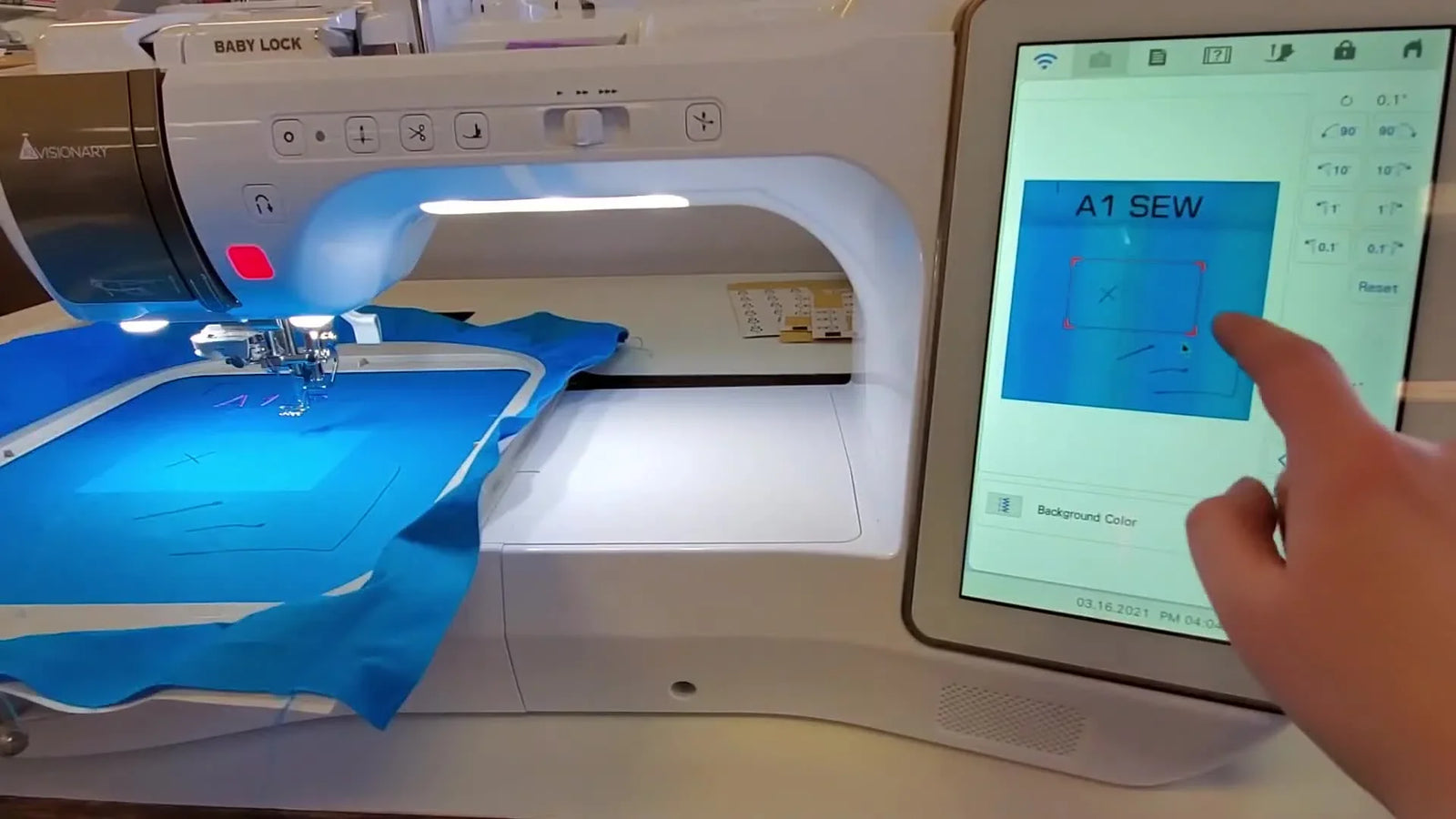

Baby Lock Solaris Camera Scan + Background Image: Re-Align the Design Until the Purple Ghost Disappears

Now we engage the machine's "brain." The built-in camera scan creates a composite reality, overlaying your digital design onto a live photo of the fabric in the hoop.

The Execution:

1. Select Camera Scan. The machine will move the frame and display "Recognizing..."
2. The screen now shows your fabric (with the failed "A1" stitches) as the wallpaper.
3. The digital design (the purple lines) is superimposed over it.




The Visual Alignment (The Purple Ghost):

• Go to Layout -> Move.
• Use the arrow keys to nudge the digital design until it sits directly on top of the physical stitches.
• Success Metric: You are looking for the "Purple Ghost" effect. If you see the purple digital lines separate from the black physical thread, you are misaligned. When they merge into one dark line, you are close.


The 0.1° Rotation Secret: Human hands rarely re-hoop perfectly straight. Your fabric is likely rotated by 1 or 2 degrees.

• Use the Rotate tool.
• Change the increment to 0.1° (Fine).
• Tap until the vertical columns of the "A1" align perfectly with the digital overlay.


This 0.1° capability is what separates professional restoration from amateur patching. If you frequently rely on technology to fix alignment issues, understanding the terms surrounding repositionable embroidery hoop methodology is vital—it essentially means using your hoop and software in tandem to span limits.

The “Overlap Insurance” Trick: Resume a Few Stitches Back So the Join Line Vanishes

You align at Stitch 0. Now you must return to the scene of the crime.

The "Blend" Technique:

1. Use the +/- keys to advance.
2. Do not stop at Stitch 682.
3. Stop at Stitch 675 (or roughly 5-10 stitches early).


Why Overlap? If you start exactly where the thread broke, the machine lacks the tension buildup to lock the stitch immediately. You will get a loose loop or a visible hole. By starting 10 stitches back:

• The machine stitches over the existing thread (acts as a lock stitch).
• The transition becomes invisible to the naked eye.
• Sensory Check: As it starts stitching, it should sound slightly louder ("thump-thump") as it penetrates the existing thread layers. This is good.

The Live Needle Camera View on Baby Lock Solaris: Precise, But Only in the Right Situations

The video demonstrates the Live Needle Cam (a real-time magnified view of the needle drop point).

When to use it:

• Verifying the specific entry point of the needle for extreme precision.
• Checking if the needle is centered on a specific crosshair.

When NOT to use it:

• For broad alignment of a large design. It is too zoomed in. Use the Background Scan discussed above for the "Big Picture" alignment.

Commercial machine operators often lack these cameras and rely on lasers. If you face constant alignment struggles on a multi-needle machine or high-volume items, looking into magnetic hoops for brother luminaire can improve your physical accuracy so you rely less on digital correction.

The Laser Projector on Brother Luminaire / Baby Lock Solaris: The Easiest Way to “See” Placement Before You Stitch

For many users, the Projector is the "Cheat Code." It projects the design shape directly onto the physical cloth in light.

The Workflow:

1. Tap the Projector Icon.
2. A red or blue box (or the actual design image) appears on the fabric.
3. Tactile Control: You can actually touch the fabric surface or use the special stylus to drag the projection box.




The "Larger Hoop" Strategy: The host mentions a critical strategic point: Re-hooping into a larger hoop.

• Scenario: Your design is 4x4 inches. You were using a 4x4 hoop.
• Problem: If you re-hoop crookedly in a 4x4, you have zero margin to rotate the design. The machine will say "Design out of bounds."
• Solution: Re-hoop into a 5x7 or 6x10 hoop. Now, you have inches of empty space to rotate and move the design to match your crooked hooping.


Stop the Slip Before It Starts: Hooping Tension, Stabilizer Choices, and the Fast Decision Tree

Recovery is a crucial skill, but prevention is profit. Why did the fabric pop out? Usually, it's a mismatch between the clamp force and the material density.

Decision Tree: Fabric Type → Stabilizer & Hooping Strategy

1. Stable Woven (Cotton/Denim/Twill):
   • Stabilizer: Tear-away (2 layers if heavy stitch count) or Cut-away.
   • Hoop Strategy: Screw hoop is acceptable, but tighten with a screwdriver, not just fingers.
2. Stretchy Knit (T-Shirts/Performance):
   • Stabilizer: Fusible Poly-mesh Cut-away (Mandatory). The stabilizer must bear the load, not the fabric.
   • Hoop Strategy: Do not stretch the fabric. If screw hoops leave marks ("hoop burn"), upgrade to a magnetic frame to hold without crushing.
3. Bulky/Tubular (Hoodies/Bags/Towels):
   • Stabilizer: Tear-away or Sticky/Adhesive backing.
   • Hoop Strategy: High Risk Zone. The weight of the item pulls it out. You must support the item on a table.
   • Upgrade: This is the #1 scenario for the baby lock magnetic embroidery hoop. The magnetic force penetrates thick layers better than a friction screw.

Setup That Saves Your Sanity: Camera Scan, Layout Nudges, and the 0.1° Rotation Habit

Once you have re-hooped, establish a "Pre-Flight" routine to ensure your digital alignment is perfect.

Setup Checklist (The "Safe-to-Send" Protocol):

• Origin Reset: Machine needle moved to start point, then scanned.
• Visual Overlay: Purple background lines merge with black physical stitches.
• Rotation Dialed: Used 0.1° increments (not 1° or 90°) to match the angle of the fabric.
• Start Point Adjusted: Resuming ~10 stitches prior to the accident site (e.g., Stitch 672, not 682).
• Speed Reduced: Lower machine speed to 350-600 SPM for the first minute to ensure smooth operational resumption.
• Hidden Consumables Check: Do you have a fresh needle? (The pop-out often bends the needle tip). Change it now.

Even with the best camera, if your physical hooping is inconsistent, you will struggle. Consistent shop-floor procedures often involve a dedicated machine embroidery hooping station to standardise placement, ensuring that every re-hoop starts from a place of stability.

Troubleshooting the “Scary” Symptoms: Purple Ghosting, Slight Offset, and Why It Keeps Happening

If you initiate the scan and things still look wrong, verify against this table:

The Upgrade Path That Pays Off: Faster Hooping, Fewer Re-Dos, and Less Wrist Pain

The techniques above—Camera Scan, Projector, and precise Overlay—are the software solutions to a hardware problem. They work wonders, but they take time. In a production environment, or even a busy holiday hobby season, time is your most valuable asset.

If you find yourself using these recovery techniques weekly, your equipment is telling you something.

The Workflow Upgrade Logic:

• The Issue: "I spend 5 minutes fighting to tighten the screw, and I still get hoop burn."
• The Upgrade: A Magnetic Hoop.
  • Why: It snaps the fabric in place in 2 seconds. No twisting, no wrist strain, and critically—no friction burn on delicate velvets or performance wear.
• The Issue: "I want to embroider faster, but I'm limited by hooping time."
• The Upgrade: For Luminaire/Solaris owners, the magnetic hoop for brother ecosystem is the direct path to "Prosumer" efficiency. It allows you to hoop the next garment while the first one stitches.

Warning: Magnet Safety. Magnetic hoops are industrial tools. They carry significant pinch capability. Keep fingers clear of the snapping zone. Crucially, keep them away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives).

Operation Checklist (The Resurrection):

• Speed: Set to low (Start/Stop button held to crawl or slider down).
• Observation: Watch the needle penetrate the existing stitches.
• Sound: Listen for smooth rhythm. A "clunk" means you are hitting the hoop or a knot.
• Support: Hold the weight of the garment so it doesn't drag.
• Success: Once you pass the overlap zone, resume normal speed.

Mastering the re-hoop on a Solaris or Luminaire turns a catastrophic failure into a "secret trick" that only you know happened. But remember: The best repair is the one you never have to make. Secure your foundation, support your fabric, and clamp with confidence.

FAQ

• Q: What is the first thing to do when fabric pops out of the hoop on a Baby Lock Solaris or Brother Luminaire during stitching?
  A: Stop the machine and record the exact stitch number before touching the hoop or screen.
  • Press Stop immediately and keep hands clear of the needle area.
  • Do not cut the thread yet; the thread path can show how the fabric shifted.
  • Write down the stitch count shown on-screen (example from the protocol: Stitch 682 of 1806).
  • Success check: The stitch number is written down and the hoop/fabric position is still “frozen” exactly as found.
  • If it still fails: If the hoop is still attached and you feel unsafe inspecting, power down and remove the hoop fully before proceeding.
• Q: How do I re-hoop a project on a standard screw embroidery hoop using “hoop burn” after a pop-out on a Baby Lock Solaris or Brother Luminaire?
  A: Use the existing hoop burn ridge as a physical “key” to re-seat the inner ring in the exact prior position.
  • Remove the hoop from the machine and take out the inner ring.
  • Feel for the indented ring (hoop burn) and place the inner ring back into that groove.
  • Tighten the screw to match the previous hooping tension—taut like a drum skin, not stretched.
  • Success check: The inner ring “clicks” into the old ridge and the fabric feels taut without visible distortion.
  • If it still fails: If alignment keeps drifting, inspect for drag from the garment weight or consider a consistent clamping method such as a magnetic hoop.
• Q: What “hidden prep” checks should be done before re-hooping after fabric slips on a Baby Lock Solaris or Brother Luminaire?
  A: Verify stabilizer integrity, hoop grip condition, and eliminate fabric drag before restarting.
  • Check the backing: If stabilizer tore/shredded, float/patch a fresh piece under the hoop (do not stitch on air).
  • Clean the hoop rings: Remove lint or adhesive buildup that reduces friction.
  • Support the garment: Keep hoodies/towels from hanging off the table and pulling the fabric out.
  • Success check: Backing is continuous under the stitch area, hoop surfaces feel clean, and the garment is fully supported with no tugging.
  • If it still fails: If the fabric pops out again immediately, treat it as a grip problem (dirty/greasy ring, worn screw/inner ring) and upgrade the holding method.
• Q: How do I use Baby Lock Solaris Camera Scan (background image) to re-align a design after re-hooping on a Brother Luminaire or Baby Lock Solaris?
  A: Reset to Stitch 0 to align at the origin, scan the background, then nudge/rotate until the digital overlay merges with the stitched reality.
  • Navigate from the recorded stitch (example: 682) back to Stitch 0 first.
  • Run Camera Scan so the fabric photo becomes the background with the failed stitches visible.
  • Use Layout > Move to nudge the design until the “purple lines” sit directly over the real stitching; then use Rotate in 0.1° increments for fine angle correction.
  • Success check: The “purple ghost” disappears because the purple overlay and the black stitched lines visually merge into one.
  • If it still fails: If purple ghosting persists, re-hoop again without stretching the fabric (especially on knits) and re-scan.
• Q: Where should I restart stitching after a thread break or pop-out on a Baby Lock Solaris or Brother Luminaire if the machine stopped at Stitch 682?
  A: Resume 5–10 stitches earlier than the stop point to blend the join and prevent a visible gap.
  • Use the +/- stitch navigation to advance back to the recovery zone.
  • Stop around Stitch 675 (about 5–10 stitches before Stitch 682), not exactly at the break.
  • Reduce speed for the first minute and watch the overlap area closely.
  • Success check: The restart line is invisible and the machine sounds slightly heavier (“thump-thump”) as it penetrates existing stitches.
  • If it still fails: If you see a hole/loop at the join, back up a few more stitches and restart again at lower speed.
• Q: Why does a Brother Luminaire or Baby Lock Solaris show “Design out of Hoop” after re-hooping, and what is the fastest fix?
  A: The re-hoop position is too close to the hoop boundary; re-hoop into a larger hoop to regain margin for move/rotate.
  • Switch to a larger hoop size (example strategy: move from 4x4 to 5x7 or 6x10) before aligning.
  • Re-hoop with the design area centered so rotation and nudging stay within bounds.
  • Re-run the alignment (Camera Scan or Projector) after re-hooping.
  • Success check: The machine allows move/rotate without triggering out-of-bounds warnings.
  • If it still fails: If the design still can’t fit after moving/rotating, re-check that the hoop size selected in the machine matches the hoop physically installed.
• Q: What safety steps prevent injury when inspecting a pop-out and re-hooping on a Baby Lock Solaris or Brother Luminaire (needle and carriage safety)?
  A: Treat the needle bar area as live machinery—stop motion first and keep hands clear of the needle/presser-foot zone.
  • Stop the machine immediately and keep hair, sleeves, and fingers away from the needle bar and presser foot.
  • If re-hooping while the frame is still attached feels risky, power down/lock the machine before handling the hoop area.
  • Change the needle if there is any suspicion it was bent during the incident (a safe starting point is to replace it rather than gamble).
  • Success check: Hands never enter the needle path while powered, and the first restart stitches run without a “clunk” or needle strike.
  • If it still fails: If the needle breaks on restart, stop immediately and re-check alignment to ensure the needle is not striking the hoop frame or a dense knot.
