First Day With a Melco Bravo 16-Needle Embroidery Machine: Move It Safely, Thread It Right, and Stop Fighting Those Thumb-Screw Hoops

Upgrading from domestic machines to a commercial head is one of those “I can’t believe I did it” moments—equal parts pride and panic. If you’re staring at a Melco Bravo and thinking, I’m excited… but I have no idea what I’m doing, you’re in the right place.

This post rebuilds the exact first-day realities shown in the video: the road trip, the heavy unload, the stand setup, the first look at the 16-needle head, the threading confusion around the spring/extra holes, and the hoop arm/thumb-screw mystery. I’ll keep the facts anchored to what’s in the video and comments, then add the seasoned “why” that prevents expensive mistakes.

The Calm-Down Moment: A Melco Bravo 16-Needle Embroidery Machine Looks Scarier Than It Is

A 16-needle head can feel intimidating—several commenters said it looks “scary,” and that’s a normal reaction. The truth is: the machine isn’t complicated because it’s trying to trick you; it’s complicated because it’s built for speed, repeatability, and commercial thread handling.

One of the best mindset shifts is to treat your first day as setup day, not production day. In the video, the creator is “bound and determined” to at least get it threaded, while openly admitting confusion. That’s the correct priority: get the fundamentals stable before you chase orders.

If you’re coming from a Brother PE770 world, the jump to a commercial head is less about “more needles” and more about systems—thread delivery, tension stages, hoop mounting hardware, and workflow.

The Road-Trip Reality Check: Transporting a Melco Bravo Without Bending Anything Important

The video shows a long pickup day and the machine riding in the back of an SUV. The key technical detail you must respect is also stated plainly: when moving through narrow doorways, watch the needle case/head so it doesn’t impact door frames.

Here’s the practical way I coach this move so you don’t create a “mystery problem” before you ever stitch:

• Plan the path first. Measure doorways and turns. You need at least 30 inches of clearance. Clear rugs and clutter.
• Move the stand separately. The video brings the heavy metal stand in first. This is crucial because the stand adds unnecessary pendulum weight during the move.
• Two-person lift is not optional. The video uses two people to lift the machine from the trunk. This machine head weighs significantly more than a domestic unit (often 75lbs+), and the weight is unevenly distributed toward the back motor.

Warning: A commercial head is heavy and top-weighted. Pinched fingers, back injuries, and bent reciprocating shafts happen fast when you “just muscle it.” Use two adults, lift with legs, lock the casters on the stand before mounting, and keep hands away from pinch points between the machine base and the stand platform.

Checkpoint: You should be able to set the machine down without any scraping, bumping, or “catching” on door frames.

Expected outcome: The machine sits squarely on the stand with no wobble and no visible contact damage to the needle case connectors.

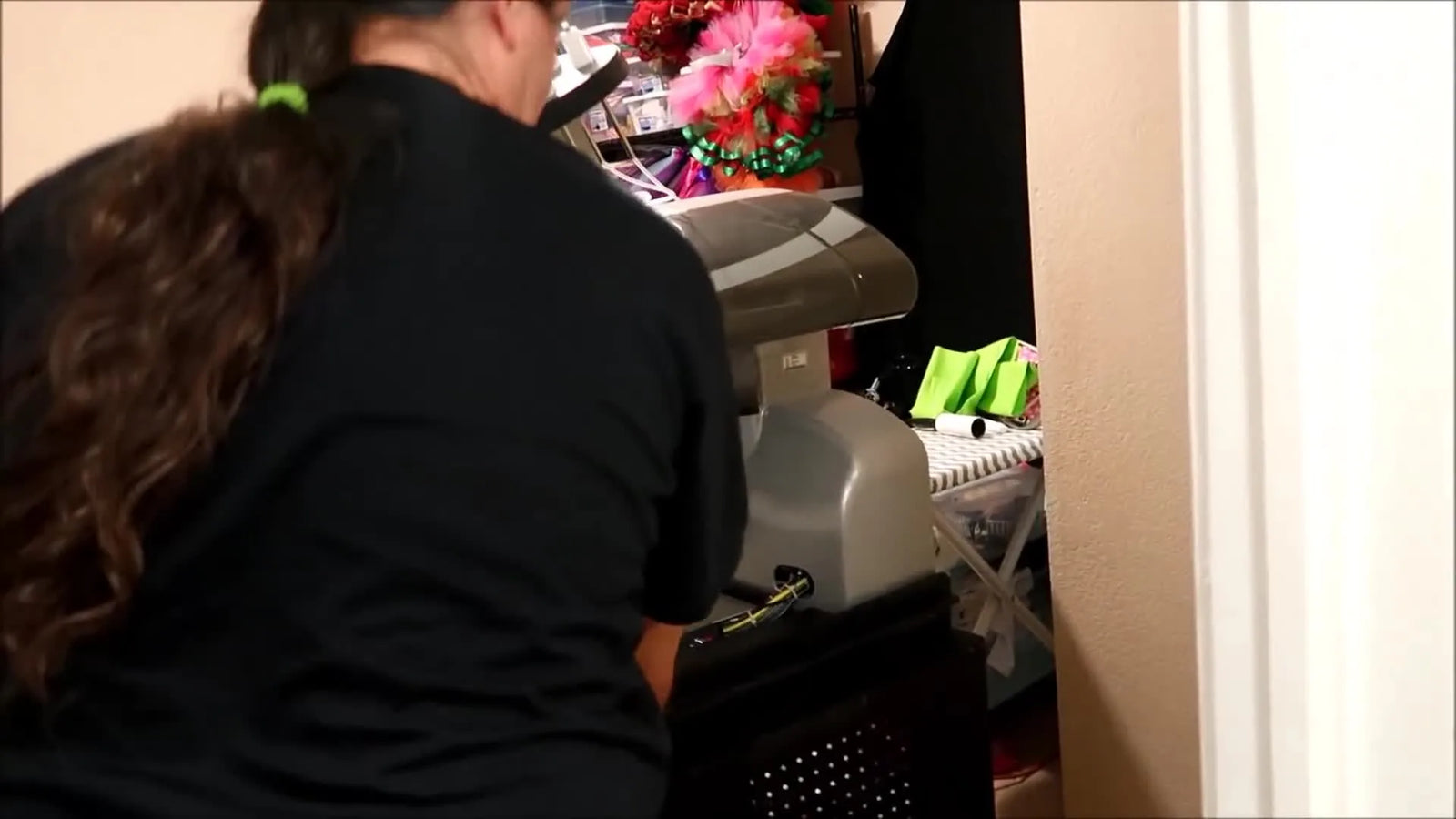

Stand Placement That Doesn’t Wreck Your Week: Setting the Melco Bravo Stand in a Home Studio

The video shows the stand staged in a hallway and then the machine placed on it in the sewing room. That’s a good reminder: placement is not just “where it fits,” it’s where you can flow.

A commercial head changes your studio physics. Unlike a flatbed machine that sits against a wall, a tubular machine needs a 360-degree ecosystem:

• Space behind (12-18 inches): Essential for accessing thread trees and handling cone tangles.
• Space in front (24 inches minimum): Stick out your elbows. You need room to load large hoops or jackets without hitting a wall.
• Space to the side: For the control keypad access and USB connectivity.

If you’re running a home business, your biggest hidden cost is setup friction. Every time you have to drag a chair, twist your wrist awkwardly around a hoop arm, or climb over a box to reach a cone, you lose minutes. In a 50-shirt order, those minutes eat your entire profit margin.

If you’re already feeling cramped, that’s a “tool upgrade path” moment: a more production-minded layout plus faster hooping hardware (like magnetic frames that require less elbow grease) can matter as much as the machine itself.

The “Meet the Beast” Tour: 16 Needles, Pre-Threaded Colors, and the Bravo Control Keypad

In the video’s close-up, the creator points out the 16-needle head and notes pre-threaded needles (white and black on higher numbers). She also identifies the control keypad on the right side.

This is more than a fun tour—this is your first operational habit:

• Know what’s already threaded before you start pulling thread out. Commercial machines often ship with "test thread."
• Label your thread plan immediately. Even if it’s just a sticky note with numbers 1-16, write down your colors so you don't accidentally instruct the machine to sew black text with white thread.

If you’re transitioning from small domestic spools to cones, you’ll notice the thread delivery feels different. Commercial cones feed vertically and rely on the "twist" of the thread to prevent knotting.

One sentence that matters for search and for your sanity: if you’re learning to master a 16 needle embroidery machine, your first win is not speed—it’s consistency. Don't rush to hit 1000 stitches per minute (SPM). Start slow (600-700 SPM) until you trust your threading.

The “Hidden” Prep Before You Thread Needle #16: Cones, Guides, and a No-Drama Workspace

The video shows the creator starting on needle #16 and working backward, using white, black, then tan. She also mentions she has some big spools/cones available and wonders if she can use the small ones.

The Expert Verdict: You can use smaller spools temporarily using spool caps, but commercial heads are engineered for 5000m cones. Small spools often bounce, creating erratic tension spikes that break needles. Before you thread anything, stabilize your variables.

Prep Checklist (Do this before the first cone goes on)

• Check the Thread Tree: Ensure the telescoping thread tree is fully extended. If it's too low, the thread drags; too high, it whips.
• Gather "Hidden" Consumables: locate your tweezers, curved snips, and a small flashlight (essential for seeing into the tension discs).
• Visualize the Path: Ensure you can see the full thread path from cone to needle without twisting your body.
• Hardware containment: Place a magnetic bowl or tray nearby. Thumb screws have a habit of vanishing into carpet.
• Light Source: Aim a light at the check spring assembly. If you can't see the tiny wire loops, you cannot thread them correctly.

Checkpoint: You can point to every stage of the path (cone → rear guide tube → upper pre-tensioner → check spring assembly → take-up lever → needle) without moving the machine.

Expected outcome: Your threading session feels methodical instead of frantic.

Threading Needle #14 on a Melco Bravo: Follow the Path Exactly, Then Use the “Spring” as a Diagnostic Tool

The video gives a clear, traceable threading path for needle #14 (tan thread): from the cone, through the rear guide tube, to the upper pre-tensioner, down through the check spring assembly, up to the take-up lever, and back down to the needle eye.

That’s your foundation. But "following the path" isn't enough—you need to feel it.

The Sensorimotor Check (How it should feel)

1. Upper Pre-Tensioner: When you slide the thread under the metal disk, listen for a tiny click or feel a slight snap. No snap = no tension.
2. The "Flossing" Motion: When passing through guides, pull the thread back and forth like you are flossing teeth. It should glide with smooth resistance, not snag.

The creator points to each guide hole and tension knob while tracing the path, and she specifically calls out confusion about the “spring” and extra holes in the middle.

Here’s the expert “why”:

• The Check Spring is your shock absorber. It eats the slack when the needle goes down and releases it when the needle goes up. If you miss this spring, you get "bird nests" (loops) on the back of your fabric instantly.
• The Take-Up Lever is the timing partner. It pulls the knot tight.

If you’re searching for melco embroidery machine threading help, this rule saves you: Treat every guide as mandatory. Skipping just one "unimportant looking" ceramic eyelet allows the thread to whip around, causing shredding.

The “Extra Holes” Mystery: What to Look For When the Check Spring Area Feels Confusing

In the video, the creator pauses at the check spring area and asks why the spring is there and why there are extra holes. This is the "Bermuda Triangle" of embroidery machines—where most beginners get lost.

Those "extra holes" usually allow for an "S" curve routing.

1. Why? It increases friction slightly and keeps the thread from jumping out of the check spring during high-speed movement (800+ stitches per minute).
2. The Protocol: Don’t improvise. Look at the diagram on your machine or manual.
3. The Mirror Test: Thread two needles side-by-side (e.g., #15 and #14). They should look identical. If #14 has an extra loop or crosses over differently, stop.

Sensory Verification: When you pull the thread gently near the needle, the check spring (the thin wire) should bounce down and spring back up. If it stays static, you missed it.

Setup That Saves You From Re-Threading All Night: Build a “One-Needle Proof” Before You Load 16 Cones

The video shows the creator threading multiple needles (starting at #16 and moving backward). That’s a common beginner move—and it’s also how people waste hours if one routing mistake gets repeated 16 times.

Here’s the production-minded method I recommend: The Golden Needle Strategy.

1. Thread ONE needle completely (e.g., Needle #1).
2. Test run it. Use a scrap piece of fabric.
3. Inspect. Is the tension good? (Look for white bobbin thread showing about 1/3 width on the back).
4. Only after the Golden Needle is proven do you thread the other 15 loops.

This is where a small “tool upgrade path” can help: using high-quality thread cones (like Madeira or Glide) reduces the variables you’re fighting. Cheap thread shreds, making you blame the machine when the machine is fine.

Setup Checklist (Before loading the full color palette)

• Choose your Golden Needle. (The video demonstrates #14/Tan).
• Trace the path with your finger. Cone → Guide → Pre-tension → Tension Disk → Check Spring → Take-up → Needle Eye.
• Check Orientation. Thread must unwind from the cone without catching on the notch at the bottom of the spool.
• Needle Eye Direction. Ensure the eye of the needle is perfectly centered. If it's twisted left or right, you will get skipped stitches.
• Snip the Tail. Leave only 3-4 inches of tail. Long tails get sucked into the bobbin area.

Checkpoint: You can feel the distinct "drag" of the tension wheels when you pull thread through the needle. It feels like pulling a spiderweb, not a loose hair.

Expected outcome: When you press start, the machine sews immediately without a "Check Thread" error.

The Hoop Arm Panic: Melco Tubular Hoops, Thumb Screws, and Why Beginners Lose Their Minds Here

At around the hoop segment, the creator examines the tubular arms/brackets and is confused about how the hoop clips onto the machine arm. She mentions “thumb screws” required for tightening the hoop brackets, and notes the seller sent extra thumb screws—implying they’re easy to lose.

That moment is so common that it deserves a blunt truth: Standard tubular hoops are an ergonomic nightmare.

• The Problem: You have to manually tighten screws while holding a heavy garment.
• The Risk: If you don't tighten them enough, the hoop pops off mid-stitch, destroying the garment. If you tighten them too much, you hurt your wrists.

If you’re doing one item for fun, thumb screws are tolerable. If you’re doing 50 corporate polos, they become a repetitive stress injury waiting to happen. A lot of people searching for hooping for embroidery machine tips are actually struggling with repeatability under pressure.

The Physics of Hooping: Why Fabric Shifts on Commercial Arms (and Why “Tighter” Isn’t Always Better)

Even though the video doesn’t show stitching yet, it shows the exact point where most quality problems begin: hoop attachment and clamping.

Commercial machines operate with vertical needle movement that is violent compared to domestic machines. This causes a phenomenon called "Flagging"—where the fabric bounces up and down with the needle.

• Bad Hooping: The fabric is loose. The needle pushes the fabric down into the throat plate. Result: Bird nesting and holes.
• Good Hooping: The fabric feels like a tuned drum skin.
• The Catch: Getting that "drum skin" tension with standard plastic hoops and thumb screws takes immense hand strength and practice. This is often where "Hoop Burn" (permanent rings on delicate fabric) occurs because you over-tightened the outer ring to compensate for slip.

Pro tip: New users are excited, but nervous. That nervousness leads to "death grip" hooping, which stretches the fabric. When you un-hoop, the fabric shrinks back, and your perfect circle becomes an oval.

A Simple Decision Tree: When to Stick With Tubular Hoops vs. Upgrade to Magnetic Hoops

The video’s “thumb screw” confusion is exactly the scenario where a magnetic frame becomes a practical upgrade—not a luxury. It solves the friction problem.

Use this decision tree to choose your tool:

Decision Tree (Hooping Hardware Choice)

1. Are you stitching difficult materials (thick jackets, zippers, pockets)?
   • Yes: Tubular hoops struggle here. Option: Magnetic Hoops (Level 2).
   • No: Proceed to 2.
2. Are you doing production runs (10+ items) or seeing "Hoop Burn"?
   • Yes: You need speed and fabric protection. Option: SEWTECH Magnetic Hoops (Level 2/3).
   • No: Stick with the included tubular hoops for now.
3. Do you have hand strength issues or wrist pain?
   • Yes: Eliminate the thumb screws immediately. Option: Upgrade to Magnetic.

For home-business owners scaling up, magnetic hoops are the standard "tool upgrade path." They clamp automatically, hold thick martial equally to thin cotton, and eliminate the thumb-screw fiddling. If you’re on a Melco-style workflow and tired of hardware fiddling, comparing options like melco embroidery hoops specifically for magnetic compatibility protects your time.

Warning: Magnetic Force Safety
Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
1. Pinch Hazard: Keep fingers clear of the snapping zone.
2. Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Keep away from credit cards and mechanical hard drives.

The Learning Curve You Can Actually Win: Use the Manual, Use Video, and Don’t Guess Under Stress

In the video, the creator points to the manual as the place she’ll figure out hoop mounting and threading details. That’s the right move.

Here’s how to shorten that learning curve:

• Segment your Learning: Do not try to learn digitizing, hooping, and threading all in one hour. Master threading first. Then master tension. Then master design loading.
• The "2 AM Rule": Never try to learn a new feature or fix a major problem after 10 PM. Fatigue causes mistakes—like hitting the hoop with the needle bar (a $300+ mistake).
• Document the Win: When you get the thread path right, take a photo with your phone. That is your personalized manual.

If you’re considering a melco bravo embroidery machine purchase, remember: your machine is a Ferrari in a school zone. It has power, but you need to learn to drive it slowly first.

“Do You Regret Buying It?” and Other Comment Questions: The Honest Business Angle on Multi-Needle Upgrades

Two comment themes show up repeatedly: Fear (“It looks scary”) and Business Validation (“Do you regret it? Should I buy this instead of a 10-needle Brother?”).

The creator’s answer was essentially: No regret, I love it, the only issue was a tight bobbin case.

The Business Diagnostic:

• Why Upgrade? Domestic machines (single needle) require a thread change for every color stop. A 6-color design = 5 manual interruptions. A 16-needle machine = 0 interruptions.
• The Payoff: It's not just speed; it's Walk-Away Reliability. You hit "Start" and go answer emails.

However, workflow upgrades matter more than pure needle count. Using accessories like the melco fast clamp pro for shoes/bags, or a station like the totally tubular hooping station to ensure alignment, leverages the machine's power. Without good hooping, a $10,000 machine produces $0 garbage.

Operation Habits That Prevent the “Angry for You” Moment: Tiny Parts, Lost Screws, and First-Run Discipline

One commenter joked they still get angry for the creator—because we’ve all watched someone struggle with a preventable snag.

Here are the operational habits that keep your first week from turning into chaos:

• The "Parking" Rule: When you remove a thumb screw or hoop part, it goes in the same tray every time. Never “just on the table.”
• Standardize Loading: Always load needles Left to Right or Right to Left. Don't skip around.
• The Pull Test: Before every run, pull a few inches of thread through the needle. If it feels tight, check the path. If it feels loose, check the commercial knot on the cone.

Warning: Needle Safety
Industrial machines do not stop when you put your finger near the needle. The needle bar moves at 15 impacts per second. Always keep hands outside the hoop area while the machine is live. Use long tweezers to grab stray threads near the foot.

Operation Checklist (End-of-Session Protocol)

• Thread Check: Are any threads tangled at the tree? (Fix now, or they will snap tomorrow).
• Bobbin Check: Clean the bobbin area with a brush. Lint builds up fast on 16-needle runs.
• Park the Machine: Return the head to Needle #1 position (or center) for stability.
• Cover It: Dust is the enemy of optical sensors.
• Parts Audit: Are all thumb screws accounted for?

Checkpoint: You can walk away confident that tomorrow morning starts with "Power On," not "Fix Problem."

Expected outcome: Your anxiety drops, and your production flow stabilizes.

The Upgrade That Actually Pays You Back: From Domestic Spools and Thumb Screws to Production-Grade Workflow

The video is a classic “bringing home the beast” moment: a home-business owner upgrading because demand is high and domestic machines can’t keep up. That’s the exact point where you should think in upgrade layers:

1. Machine Capability: You bought the Melco Bravo for multi-color automation.
2. Consumables: Switch to high-yield cones and stabilized backings (Cutaway for knits, Tearaway for woven).
3. Hooping Efficiency: This is the low-hanging fruit for profit.

If thumb screws are already annoying on day one, don't ignore that signal. In production, hooping is the bottleneck. That’s why Magnetic Hoops are such a frequent next step for growing shops. They don't just hold fabric; they hold your schedule together.

If specialty items like hats are in your future, you’ll look for a melco hat hoop, or if you are doing jacket backs, a melco xl hoop. But the rule is always the same: Don't fight the hardware. If a step hurts or takes too long, there is likely a tool upgrade that solves it.

Now that you are set up, what is your first 16-color project? If you find yourself dreading the hoop-up process, take a serious look at magnetic frames—they might be the best "employee" you ever hire.

FAQ

• Q: How do I transport a Melco Bravo 16-needle embroidery machine through doorways without bending the needle case or head connectors?
  A: Move the Melco Bravo slowly with a pre-planned path and protect the needle case area from any impact.
  • Measure doorways/turns and clear rugs and clutter before lifting.
  • Move the stand separately, then mount the head after the stand is in position.
  • Use two adults to lift and keep hands away from pinch points between the machine base and stand.
  • Success check: The Melco Bravo sits squarely on the stand with no wobble and no visible contact marks near the needle case/connectors.
  • If it still fails: Stop and re-route the path—do not “muscle it” through a tight doorway.
• Q: What is the minimum workspace clearance needed to operate a Melco Bravo tubular embroidery machine comfortably in a home studio?
  A: Give the Melco Bravo enough space to access thread delivery and load hoops without twisting your body.
  • Leave 12–18 inches behind the machine for thread tree access and cone handling.
  • Leave at least 24 inches in front for loading tubular hoops and garments without hitting a wall.
  • Reserve side space for the control keypad access and USB/workflow tasks.
  • Success check: Hoops and garments can be mounted and removed without scraping walls or forcing awkward wrist angles.
  • If it still fails: Reposition the stand for a 360° workflow before attempting production runs.
• Q: What prep items and setup steps should be done before threading a Melco Bravo 16-needle embroidery machine for the first time?
  A: Prep the Melco Bravo workspace first so threading is controlled and repeatable, not frantic.
  • Extend the telescoping thread tree to a stable working height (avoid too low drag or too high whipping).
  • Stage tweezers, curved snips, and a small flashlight to see the tension discs and check spring area.
  • Set a magnetic parts tray/bowl beside the machine for thumb screws and small hardware.
  • Success check: You can point to each stage of the thread path (cone → guides → pre-tension → check spring area → take-up lever → needle) without moving the machine.
  • If it still fails: Improve lighting and body positioning until the check spring area is clearly visible.
• Q: How do I correctly thread a Melco Bravo needle through the check spring and take-up lever to prevent bird nesting on the back?
  A: Follow the full Melco Bravo thread path exactly and use the check spring movement as the proof that it is threaded correctly.
  • Route thread cone → rear guide tube → upper pre-tensioner → check spring assembly → take-up lever → needle eye.
  • “Floss” the thread through each guide so it glides with smooth resistance, not snags.
  • Gently pull near the needle to confirm the thin wire check spring bounces down and springs back up.
  • Success check: The check spring visibly moves when thread is pulled, and the thread feels like smooth, controlled drag—not loose slack.
  • If it still fails: Compare the routing to an adjacent correctly-threaded needle; the paths should look identical with no extra loops or crossings.
• Q: How do I verify embroidery tension on a Melco Bravo test stitch before threading all 16 needles?
  A: Prove one “Golden Needle” on scrap fabric first, then replicate that exact setup across the remaining needles.
  • Thread one needle completely and run a small test on scrap material before loading the full color palette.
  • Inspect the back of the stitch-out for bobbin visibility (a safe starting point is about 1/3 bobbin thread showing on the backside).
  • Keep thread tails short (about 3–4 inches) to reduce tails being pulled into the bobbin area.
  • Success check: The test sews immediately without a “Check Thread” stop, and the backside shows consistent, balanced tension.
  • If it still fails: Re-trace the thread path stage-by-stage and re-check that the thread is seated in the pre-tension/tension points (a missed seating often feels “too loose”).
• Q: How do I reduce hoop burn, fabric shifting, and wrist strain when using Melco Bravo tubular hoops with thumb screws?
  A: Don’t “death-grip” tighten Melco Bravo tubular hoops—focus on stable drum-like hooping and repeatable attachment.
  • Hooping should be firm like a tuned drum skin, not over-crushed to compensate for slipping.
  • Tighten thumb screws enough to prevent hoop pop-off, but avoid over-tightening that leaves rings on delicate fabric.
  • Watch for flagging (fabric bouncing) and correct hooping/stabilization before increasing speed.
  • Success check: The fabric stays stable without visible hoop marks after un-hooping, and the hoop stays mounted without shifting during movement.
  • If it still fails: Consider upgrading hooping hardware to magnetic hoops to reduce screw fiddling and improve repeatability under production pressure.
• Q: What are the safety rules for using magnetic embroidery hoops/frames with commercial embroidery machines, and how do I avoid pinch injuries?
  A: Treat magnetic embroidery hoops as industrial magnets and keep fingers and medical devices safely away from the snap zone.
  • Keep fingers clear when closing the magnetic frame; let the magnets seat without guiding with fingertips.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Keep magnetic hoops away from credit cards and mechanical hard drives.
  • Success check: The magnetic frame closes cleanly without finger contact in the snapping area and holds the material evenly without manual over-tightening.
  • If it still fails: Stop and reposition the material with the frame open—never try to “slide” fingers under a closing magnet.
