Fixing a Misspelled Baby Name Without Starting Over: Embrilliance .BE Files + Safe Hooping on a Brother PR1055X

Personalization work is the ultimate high-wire act of the embroidery business. It is where you win lifetime loyalty, but it is also where one tiny typo can turn a profitable Tuesday into a long, expensive educational experience.

In this case study, we analyze a scenario that keeps shop owners awake at night: Jeanette has to redo an heirloom baby blanket after misspelling the baby’s name. However, instead of panicking, she executes a recovery plan that turns a mistake into a customer-service win.

The real lesson here isn't just about "how to stitch a blanket." It is a masterclass in building a Fault-Tolerant Workflow. We will deconstruct how to fix errors fast, how to hoop thick quilts without "hoop burn," and how to utilize tools like magnetic embroidery hoops and multi-needle machines to remove the friction from your production line.

The “Name Panic” Moment: How to Fix a Misspelled Personalization Without Rebuilding the Whole Design

A misspelled name is a gut-punch moment. It feels physical—a drop in your stomach—especially when the item is thick, expensive, and time-consuming to stitch. Your immediatereaction might be to rush, but rushing causes the second mistake.

Jeanette’s recovery plan is professional and calculated:

1. She absorbs the friction: She does not ask the customer to facilitate the return.
2. She absorbs the cost: She replaces the blanket immediately.
3. She over-delivers: She adds a bonus item (a pillow cover) to restore trust.

This approach protects your reputation, but it is only financially viable if your production workflow allows you to correct the file in seconds, not hours.

This brings us to the "Golden Rule of Digitizing": The Working File.

If you are running a personalization shop, treating your software files with the same respect as your hardware is non-negotiable. Productivity isn't just about fast machines; it's about file discipline that prevents you from re-digitizing your layout every time a name changes.

The “Working File Insurance Policy”: Saving .BE + Stitch Files So Text Edits Take Minutes, Not Hours

Novices save one file. Pros save two.

Jeanette demonstrates the industry standard for file hygiene. She opens her original Embrilliance working file and fixes the name by selecting the text object and changing a single letter. She does not have to re-import the safari animals, re-measure the spacing, or guess the arc radius.

The Cognitive Distinction: BE vs. PES

• The Working File (.BE / .EMB): This is your "source code." Text remains text. You can change spelling, fonts, and density without quality loss.
• The Stitch File (.PES / .DST): This is "machine code." It is just coordinate data (X, Y movements). If you open this to change a letter, the software treats it as a shape, not text, often leading to ugly, distorted stitches.

Jeanette uses the menu option “Save As… (Stitch and Working)” so both files are created simultaneously.

Why This Matters (The "3 AM" Test)

When you don't have the working file, a simple correction forces you to rebuild the design from zero. You risk misalignment and introduce new variables. With the working file, you preserve the exact geometry of the design.

If you find yourself constantly rebuilding layouts, your software workflow is the bottleneck. Just as hoopmaster station workflows standardize the physical placement, saving working files standardizes your digital prep.

The “Hidden” Prep Pros Do Before Hooping a Thick Heirloom Blanket (So It Doesn’t Shift Mid-Stitch)

Thick quilted blankets are deceptive. They look stable, but the internal batting creates "drag," and the weight exerts gravity on your pantograph. If you treat a quilt like a t-shirt, you will get registration errors (gaps between outlines and fill).

Jeanette quietly demonstrates pro habits that act as "invisible stabilizers":

• Thread Staging: She organizes spools in sequential order. Sensory Check: Do you have to hunt for a color mid-stitch? If yes, you are breaking your rhythm.
• Bobbin Status: She confirms the bobbin is full before the hoop snaps in. Running out of bobbin thread on a thick quilt is a nightmare because re-aligning the needle after a bobbin change on lofty fabric can leave a visible "seam" in your satin stitch.
• The Branding Plan: She decides where her label goes before the item is handled, keeping it away from the stitch field.

Prep Checklist: The "Pre-Flight" Protocol

• Spelling Verify: Triple-check the work order against the screen. Read it backward to catch typos your brain might auto-correct.
• File Integrity: Open the working file (.BE) to ensure the text is editable.
• Dual Save: Execute "Save As (Stitch and Working)" to generate fresh logic.
• Thread Lineup: Stage colors physically in order (Left to Right) on your workspace.
• Bobbin Capacity: For quilts, enforce the "80% Rule"—if the bobbin is less than 80% full, swap it now. Use a fresh one.
• Clearing the Deck: Create a 2-foot "Landing Zone" around the machine. Thick quilts need space to move; if they hit a coffee mug or a pair of scissors, the hoop will jerk, and your design will shift.

Hooping a Thick Quilt Without Hoop Burn: Using an 8x13 Magnetic Hoop + Hooping Station the Right Way

This is where the battle for quality is won or lost.

Traditional screw clamps work by friction. On a thick quilt, you have to tighten the screw so hard that it crushes the batting, leaving a permanent "hoop burn" ring (shiny, compressed fabric) that steaming often cannot remove.

Jeanette uses an 8x13 magnetic hoop. This is not just a convenience; it affects the physics of the stitch.

She places the bottom bracket into the station fixture and lays tearaway stabilizer directly over the magnets.

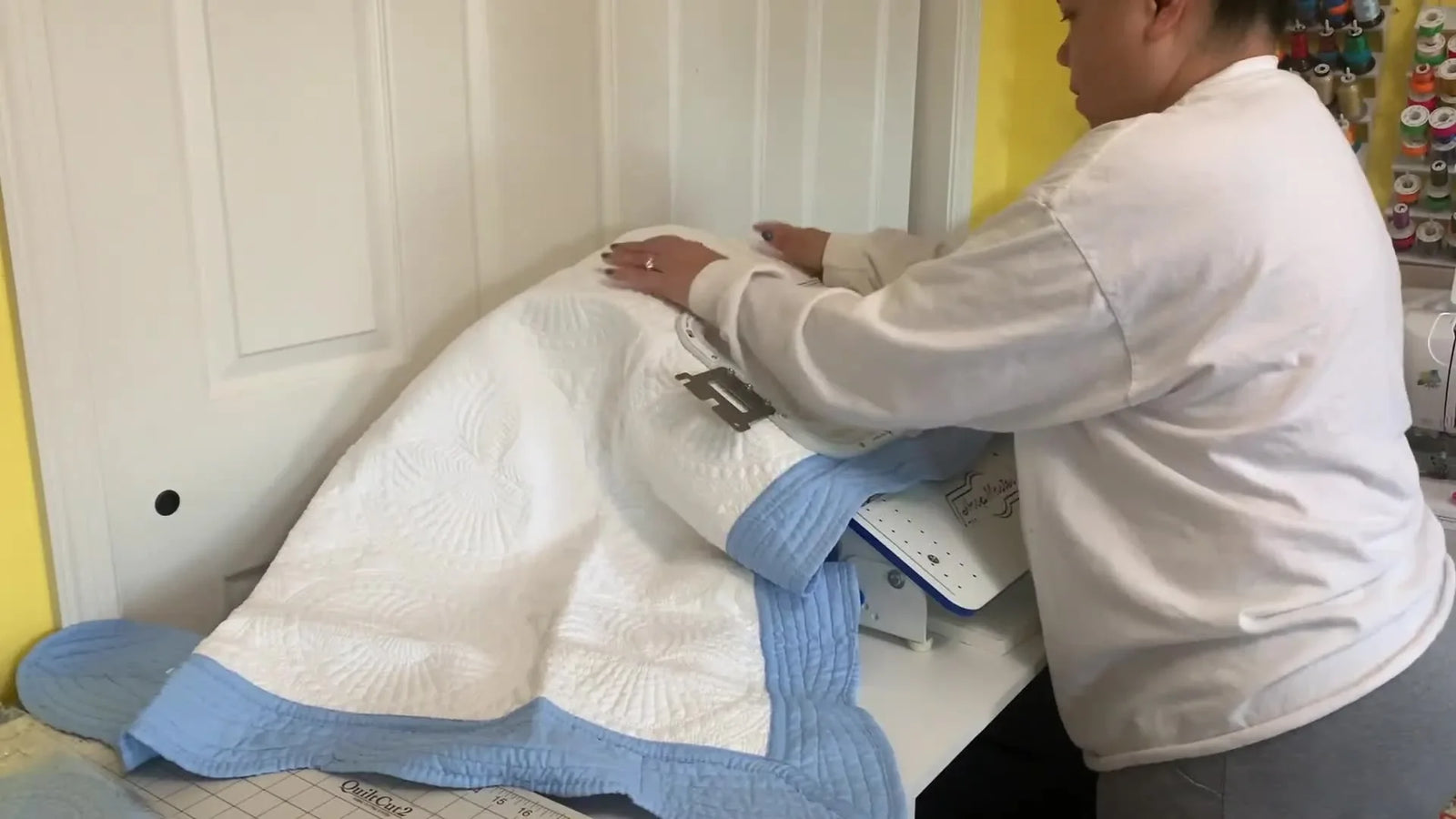

Next, she drapes the quilt. The Hooping Station ensures the fabric is square to the hoop, engaging the grid lines for alignment.

Then comes the "Snap." She takes the top magnetic frame (warning label up) and lets it engage.

Sensory Check: The "Drum Skin" Test

When the magnet snaps, listen for a sharp, confident CLACK. If it sounds muffled or weak, fabric might be bunched over the edge of the magnet. Run your finger along the inside perimeter. It should feel smooth. The quilt should happen to be taut, sounding like a dull drum when tapped, but not stretched so tight that the quilt texture is distorted.

The "Hoop Burn" Solution

If you struggle with hoop marks on delicate or thick items, upgrading to a magnetic hoop is the definitive hardware solution. Magnets apply vertical pressure (clamping down) rather than the lateral dragging friction of inner/outer rings. This eliminates the abrasion that causes hoop burn.

Warning: Magnetic Pinch Hazard
Magnetic hoops use industrial neodymium magnets. They are incredibly powerful.
* The Pinch: Keep fingers clear of the mating surfaces. A snap-shut can cause blood blisters or pinched skin instantly.
The Pull: Keep scissors, needles, and tweezers at least 12 inches away during hooping. The magnets will* pull sharp metal objects into the fabric, potentially burying them under the hoop.
* Medical Safety: Operators with pacemakers should consult their device manual regarding safe distances from strong magnetic fields.

The Wide-Table Trick on a Brother PR1055X: Stop the Blanket From Dragging the Pantograph

Before loading the hoop, Jeanette installs the wide quilting table. This is critical physics, not just an accessory.

She loosens the thumb screws, slides the table into the grooves, and tightens it.

The Why: A queen-size quilt or heavy baby blanket can weigh several pounds. If that weight hangs off the front of your machine, gravity pulls the hoop downward. This creates Drag.

• Symptom: Your design outlines don't line up (registration issues).
• Symptom: Your machine motor sounds like it is straining (a groaning noise).
• Symptom: Needle deflection (broken needles).

If you are running a brother pr1055x or any commercial multi-needle machine like the SEWTECH series, the wide table is mandatory for any garment heavier than a hoodie. You must support the weight so the pantograph only handles X/Y movement, not vertical load.

Loading the Hoop Like a Production Tech: Prevent Snags Before You Hit “Start”

Jeanette slides the hoop arms into the carriage. But she doesn't stop there. She pushes the bulk of the blanket back, away from the control panel and needle bars.

Setup Checklist: The Mechanical Safety Check

• The "Click": Ensure hoop arms are fully seated. Give the hoop a gentle tug—it should not budge.
• Weight Management: Ensure the bulk of the quilt is resting on the table, not hanging off the edge like a cliff.
• Clearance Scan: Check the "Throat" of the machine. Is the rolled-up quilt touching the back of the machine body? If it touches, it will restrict movement.
• Thread Path: Ensure no thread tails are caught under the hoop frame.
• Needle Check: Use a Ballpoint Needle (75/11) for this quilt. Sharp needles can cut the knit fibers of the quilt top; ballpoints slide between them.
• (Hidden Consumable): Keep a spare needles pack taped to the side of the machine. If you hit a thick seam and bend a needle, you want to swap it in 30 seconds, not go searching.

The Scan + Trace Ritual: Using Brother InnovEye to Catch Bunching, Misalignment, and Hoop Collisions

Confidence in embroidery comes from verification. Jeanette uses the camera scan to see the fabric on-screen.

Then, she initiates the Trace. The needle bar moves around the design perimeter.

CRITICAL MOMENT: She notices the needle path is dangerously close to the plastic edge of the magnetic hoop.

If you are using brother pr1055x hoops or aftermarket equivalents, never trust the digital grid 100%. The physical bulk of a quilt can push the fabric "up" slightly, narrowing your clearance. Always assume the "Kill Zone" (the hoop edge) is 2mm closer than it looks.

The On-Screen Resize Save: Shrinking the Design to Avoid a Needle Strike on the Hoop Edge

Jeanette spots the risk and acts immediately. She goes to Edit > Size and reduces the design slightly (1-3%). Then she traces again.

That second trace is the difference between a successful job and a broken machine.

Warning: The Needle Strike
Never "hope" it will clear. If the needle strikes the metal or hard plastic of the hoop frame:
1. Explosion: The needle effectively explodes, sending shrapnel into your face (wear glasses!) or down into the bobbin case.
2. Timing: The impact can knock the hook timing out, requiring a service call.
3. Damage: It can burr the hook assembly, causing shredded thread on every future job.
Rule of Thumb: If you cannot slide your pinky finger between the presser foot and the hoop frame during the trace, you are too close. Resize or re-hoop.

Running the Stitch-Out: What the Machine Screen Tells You About Time, Risk, and Planning

On the screen, we see:

• Speed: 800 SPM (Stitches Per Minute)
• Stitch Count: ~35k
• Color Changes: 10

Expert Speed Advice: For a thick, lofty quilt, do not run at 1000 SPM. The high speed creates vibration that can cause the layers to shift.

• Beginner Sweet Spot: 600 SPM.
• Pro Sweet Spot: 800 SPM (only if stabilized perfectly).

The Upgrade Path: Jeanette notes she uses 10 colors. On a single-needle machine, that is 10 physical stops, 10 thread changes, and 10 re-threadings. That is roughly 15-20 minutes of labor added to the 87-minute run time.

On a multi-needle machine, those changes are automatic. You press start and walk away.

• Pain Point: Are you tethered to your machine, changing thread every 5 minutes?
• Solution Level 1: Optimize color sorts in software.
• Solution Level 2: Upgrade to a commercial multi-needle platform (like SEWTECH or Brother PR series) to reclaim your time.

Finishing the Back Cleanly: Removing Tearaway Stabilizer Without Overworking the Quilt

After the run, Jeanette removes the hoop and tears the stabilizer.

She skips the "Tender Touch" (fusible backing) cover. Why? The item is a quilt, not a garment worn against bare skin. The back is tearaway, and small remnants will dissolve or soften in the wash. Over-stabilizing can make the embroidery feel like a stiff patch of cardboard, ruining the drape of the blanket.

Operation Checklist: Post-Stitch Protocol

• Safe Release: Remove the hoop before tearing stabilizer. Tearing while hooped puts stress on the machine's carriage arms.
• The "Floss" Test: Check the back. Is the bobbin thread tension even? It should look like 1/3 white thread in the center of the satin columns.
• Gentle Tear: Support the stitches with your thumb while tearing the stabilizer with your other hand to prevent distorting the design.
• Thread Trim: Snip any jump stitches flush to the fabric.
• Lint Roll: Use a sticky roller to remove stabilizer dust—it looks professional.

A Simple Stabilizer Decision Tree for Quilted Baby Blankets

Beginners often ask: "Cutaway or Tearaway?" Use this logical framework for quilts.

Decision Tree: Fabric + Stretch + Loft → Stabilizer Choice

1. Is the embroidery field stretchy (Knit binding, Jersey cotton)?
   • YES: Use Cutaway. (Stabilizer must sustain the fabric structure forever).
   • NO: Go to step 2.
2. Is the item thick/stable (Quilted layers, Woven cotton front)?
   • YES: Tearaway is usually sufficient. The quilt batting acts as a stabilizer itself.
   • NO: (If it's a thin single layer): Use Cutaway.
3. Does simplicity matter?
   • Use 8x13 mighty hoop style magnetic frames. Their clamping force is so uniform that it often allows you to use lighter stabilizer than a screw hoop would require.

Comment-Driven Pro Tips: Needles, Threads, and Ergonomics

Jeanette addresses viewer questions that reveal industry truths:

• Needles: She used a Ballpoint. Tip: Change your needle every 8 hours of stitching or after every major thick project. A $0.50 needle protects a $50 garment.
• Thread Brands: She mixes Madeira, Glide, and Simthread. Tip: Your machine will "tell" you what it likes. Listen to the sound. smooth purring is good; rattling or shredding means that specific brand might not like your current tension or speed.
• Ergonomics: "Neatness" is efficiency. Putting spools back prevents errors. Furthermore, using magnetic hoops drastically reduces wrist strain compared to tightening screws all day.

The Customer-Service Upgrade That Protects Your Reviews

Jeanette adds a bonus pillow cover with an initial.

This is the "Service Recovery Paradox": Customers often rate a company higher after a mistake is fixed excellently than if no mistake happened at all.

The "Tool Upgrade" Logic

If you find yourself dreading these thick blanket orders, diagnose your pain:

1. Pain: Hooping is slow/painful. Rx: Upgrade to Magnetic Hoops.
2. Pain: Changing thread is boring. Rx: Upgrade to a Multi-Needle Machine.
3. Pain: Fear of ruining items. Rx: Upgrade your "Pre-Flight" Checklists (Scan & Trace).

The Real Takeaway: Build a Workflow That Makes Mistakes Recoverable

This case study proves that the difference between an amateur and a pro isn't that pros don't make mistakes—it's that pros have a workflow for recovery.

• Keep the Working File.
• Respect the Physics (Wide table, Magnet clamping).
• Verify with Scan + Trace.
• Start slow (600-800 SPM).

Adopting these habits today costs nothing, but they will save you hundreds of dollars in ruined inventory tomorrow.

FAQ

• Q: How do I prevent permanent hoop burn when hooping a thick quilt or heirloom baby blanket with a traditional screw hoop?
  A: Reduce friction and over-tightening—on thick quilts, a magnetic hoop is the most reliable way to stop hoop burn.
  • Loosen: Stop cranking screw hoops “as tight as possible”; excessive compression crushes batting and leaves shiny rings.
  • Support: Keep the quilt bulk supported on a wide table so weight is not pulling the hoop downward.
  • Switch: Use a magnetic hoop for vertical clamping pressure instead of inner/outer-ring abrasion.
  • Success check: Fabric feels taut like a dull drum when tapped, with no crushed “ring” imprint after unhooping.
  • If it still fails: Re-hoop and make sure fabric is not bunched over the hoop edge; bunched edges reduce hold and force over-tightening.
• Q: What is the correct way to save Embrilliance files so misspelled personalization text can be fixed in minutes instead of re-digitizing?
  A: Always save both the working file and the stitch file so text stays editable for fast corrections.
  • Edit: Open the Embrilliance working file and change the text object (do not edit letters as shapes from the stitch file).
  • Save: Use “Save As (Stitch and Working)” so both file types are created together each time.
  • Verify: Re-open the working file briefly to confirm the text is still editable before sending to the machine.
  • Success check: The name remains selectable as a text object (not broken into stitch shapes).
  • If it still fails: If only a stitch file exists, re-create the text in the software layout rather than forcing edits on the stitch-only data.
• Q: How full should the bobbin be before embroidering a thick quilted baby blanket to avoid visible “seams” after a bobbin change?
  A: Start with a fresh bobbin—on thick quilts, replace any bobbin that is under about 80% full.
  • Check: Inspect bobbin amount before hooping so the job is not interrupted mid-satin column.
  • Swap: Install a fresh bobbin if the current one is below the “80% rule.”
  • Plan: Keep extra bobbins ready so recovery time stays short on long runs.
  • Success check: No mid-design bobbin runout, and the back shows consistent bobbin coverage through satin areas.
  • If it still fails: Reduce speed and re-check tension consistency; frequent runouts on long designs may require stricter bobbin discipline.
• Q: How can Brother PR1055X wide table setup prevent quilt drag, registration issues, and needle deflection on heavy blankets?
  A: Use the wide quilting table to support the blanket weight so the pantograph only moves X/Y, not vertical load.
  • Install: Slide the wide table into the grooves and tighten the thumb screws before loading the hoop.
  • Manage: Push the bulk of the blanket back onto the table, not hanging off the front edge.
  • Clear: Ensure the rolled quilt is not touching the back of the machine throat area.
  • Success check: The machine runs without groaning/straining sounds and outlines line up cleanly (no registration gaps).
  • If it still fails: Reposition the blanket mass again—any hanging weight can pull the hoop and shift stitch placement.
• Q: How do I avoid a needle strike on the edge of a magnetic hoop when using Brother PR1055X InnovEye Scan + Trace?
  A: Always run Trace and treat the hoop edge as closer than it looks; resize or re-hoop immediately if clearance is tight.
  • Scan: Use InnovEye to view placement on-screen, then run Trace to confirm the real needle path.
  • Assume: Treat the hoop “kill zone” as about 2 mm closer than expected on thick lofted items.
  • Resize: If clearance looks tight, reduce the design slightly (about 1–3%) and Trace again.
  • Success check: During Trace, there is safe clearance—if a pinky cannot fit between presser foot and hoop frame, it is too close.
  • If it still fails: Re-hoop for a better center position rather than trying to “hope it clears.”
• Q: What safety precautions should embroidery operators follow to avoid injury or damage when using powerful magnetic embroidery hoops?
  A: Treat magnetic hoops as pinch hazards and control nearby metal tools to prevent sudden snap-shut or tool pull-in.
  • Keep clear: Keep fingers away from mating surfaces when letting the top frame snap into place.
  • Remove metal: Keep scissors, tweezers, needles, and other metal tools at least 12 inches away during hooping.
  • Pause: Stop and re-seat fabric if the snap feels weak or muffled—bunched fabric can cause an uneven grab.
  • Success check: The hoop closes with a sharp, confident “clack,” and the inside perimeter feels smooth with no fabric bunching at the edge.
  • If it still fails: Re-hoop with fabric smoothed over the magnet edge; never force closure with hands in the pinch zone.
• Q: What embroidery speed should be used for a 35,000-stitch, multi-color design on a thick quilt to reduce vibration and layer shifting?
  A: Run slower on lofty quilts—a safe starting point is 600 SPM, and 800 SPM may work only when stabilization and support are excellent.
  • Start: Choose 600 SPM if consistency is the priority on thick, heavy quilts.
  • Increase: Move toward 800 SPM only after stable results are repeatable (good hooping, table support, clean trace clearance).
  • Watch: Monitor for vibration-related symptoms like shifting outlines or a straining motor sound.
  • Success check: Outlines and fills stay registered with no visible gaps as the job progresses.
  • If it still fails: Drop speed again and re-check weight support on the table; shifting often comes from drag, not just speed.
