Flip Sequin at 1000 RPM: What the Lejia Multi-Head Sequin Embroidery Machine Demo Really Teaches (and What It Doesn’t)

Reversible (flip) sequin embroidery looks like magic to customers—but to a production manager, it’s a controlled feeding-and-tacking system running at punishing speed.

This Lejia multi-head demo is short, but it shows the full industrial story: the control panel speed change (800 → 1000 RPM), the sequin tape path from top reels through guides, the pneumatic sequin device cutting/placing sequins, and the final “brush test” that proves the flip effect.

If you run an embroidery floor (or you’re planning to), read this like a checklist you can hand to an operator.

Don’t Panic When You See 1000 RPM on the Lejia Control Panel—Panic When You Don’t Know What “Normal” Looks Like

The first frames are pure reality: the control panel shows the dinosaur preview and the machine running at 800 RPM, then it’s pushed up to 1000 RPM. That’s not just a number—it’s a stress test for every weak link in your setup.

In the world of standard embroidery coverage, 1000 stitches per minute (SPM) is standard. But with sequins? That is the "Red Zone." At that speed, the sequin device has milliseconds to feed, cut, and position a plastic disc before the needle descends.

At higher RPM, small issues stop being “minor.” A slightly misrouted tape, a sticky guide, or a marginal needle can turn into:

• Sequin mis-placement: Ugly gaps where the fabric shows through.
• Tape jams: The dreaded "bird's nest" of plastic tape cluttering the head.
• Needle strikes: When the needle hits the hard plastic of a misfed sequin, it can shatter, sending shrapnel into the garment or your face.
• Inconsistent flip direction: The sequins lock up and won't brush smooth, leading to customer complaints.

If you’re comparing brands like barudan embroidery machine for reliability, the real comparison point isn’t the brochure—it’s how stable your feeding system stays when you push speed. Reliability isn't about top speed; it's about recovery when things go wrong.

The “Hidden” Prep Before Sequin Runs: Tape, Backing Roll, and the Two-Minute Head Check That Saves Hours

This demo is running on a large industrial frame / continuous roll table with roll stabilizer/backing and sequin tape supplied from the top rack. That’s a production-friendly setup—if you treat prep like a ritual.

Most beginners fail here because they trust the machine too much. They press "Start" and hope. Professionals "clear the runway" first.

Here’s what experienced operators do before the first stitch (even when the design is already proven):

Hidden Consumables: The Kit You Need Nearby

Before you start, ensure you have these often-forgotten items within arm's reach:

• Tweezers (Long-nose): For threading tape through the tiny device guides.
• Silicone Spray: Occasionally needed to lubricate the tape path (check manual first!).
• Spare Sequin Needles: You will break one. Have them ready.
• Double-sided Tape: For splicing sequin reels on the fly.

Prep Checklist (do this before you thread a single head)

• Tape Inspection: Confirm you have the correct reversible sequin tape colors (blue/green/gold in the demo). Look for "cupping"—if the sequins are bent in the reel, they will jam in the feeder.
• The "Floss Test": Pull 30–60 cm of tape off the reel by hand. It should pull smoothly. If you feel resistance similar to tight dental floss, your guides are dirty or too tight.
• Backing Roll Alignment: Verify the backing roll feeds flat with no telescoping edges (a wandering roll can shift registration over long runs). For sequin work, use a heavy cutaway stabilizer to support the weight.
• Debris Check: Check the sequin device area for leftover cut pieces (shard) from the previous job. One tiny piece of plastic can wedge the cutter mechanism.
• Needle Audit: Do a quick needle condition check. Run your fingernail down the needle tip. If it catches, change it. A burred needle will snag the sequin thread.

Pro tip (from the kind of question operators always ask): If one head is “always the problem head,” don’t keep chasing tension first—start by checking that head’s tape path and device cleanliness. One contaminated guide can mimic a tension issue.

Read the Lejia Multi-Head Layout Like a Production Manager: Heads, Thread Rack, and Where Problems Multiply

The wide shots show a long row of embroidery heads and a substantial thread/tape supply system. Multi-head production is a multiplier: it multiplies output, but it also multiplies the cost of a small mistake.

A practical mindset shift:

• Hobby mindset: “If it fails, I’ll fix it and restart.”
• Production mindset: “If it fails, how many heads stopped, how much material is wasted, and how fast can I isolate the cause?”

If you’re shopping multi needle embroidery machines for sale for scaling, build your workflow around repeatability—not just maximum head count. A 6-head machine that stops every 5 minutes produces less than a single-head machine that runs for an hour straight.

The Sequin Tape Feeding Path: Why Tension Guides Matter More Than People Think

The demo clearly shows the sequin tape reels on the upper rack, then the tape traveling down through guides/tension arms toward the head.

This is where most “mystery” sequin problems are born. Unlike thread, which is flexible, sequin tape is rigid and prone to "memory" (wanting to curl back to its reel shape).

What the video shows (and what to watch for)

• Tape comes off large reels.
• Tape passes through tension guides/arms.
• Tape enters the pneumatic sequin device mounted next to the needle bar.

In practice, those guides are doing two jobs at once:

1. Stabilizing feed rate so the device receives tape consistently.
2. Preventing tape whip at high speed. "Whip" is when the tape slaps against the machine body. This vibration travels down the line and shakes the sequin out of position right before the needle strikes.

Expert insight (physics, simplified): At 1000 RPM, the system is sensitive to micro-variations in drag. If one guide adds intermittent friction, the tape feed becomes “pulse-y,” and the device timing can drift just enough to place a sequin slightly off center.

If you’re used to a tajima embroidery machine running standard thread-only fills, sequins add a second material feed system—so your “normal” tension instincts need an upgrade. You aren't just managing thread tension; you are managing tape drag.

Inside the Pneumatic Sequin Device: Cutting, Positioning, and the Needle’s One Job—Secure Without Striking

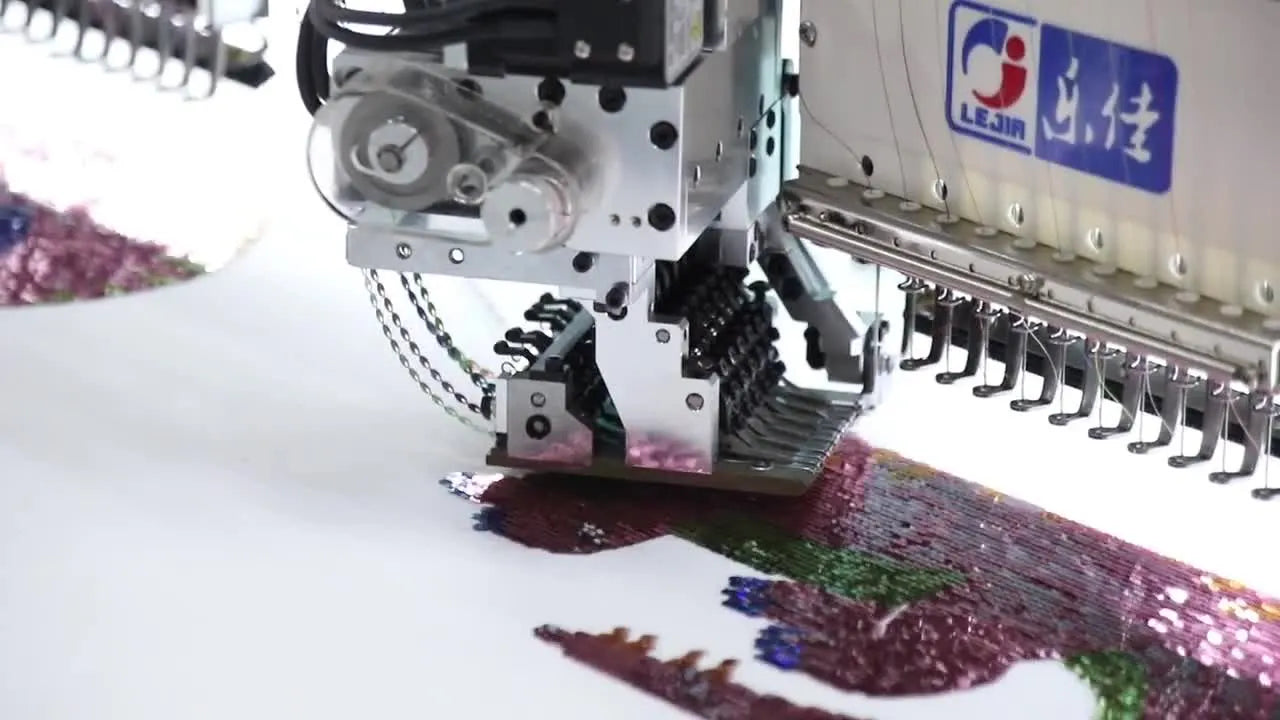

The close-up of the attachment shows the sequin device hardware (including the pneumatic action). In this workflow, the device must:

• advance tape
• cut or separate a single sequin
• position it precisely
• present it so the needle can tack it down

Then the needle comes down fast—over and over.

Warning: Mechanical Hazard. Sequin devices are needle-strike magnets. The needle moves faster than the eye can see. Never put your fingers near the sequin device while the machine is enabled. If a needle hits the metal device or hard plastic, it can shatter. Use safety glasses when observing high-speed sequin runs.

What “good” looks like while running:

• Tape advances smoothly with no jerks.
• You don’t see tape twisting as it enters the device.
• The device action looks rhythmic, not hesitant.

What “bad” looks like:

• Tape shudders or snaps forward.
• Sequins land slightly rotated or inconsistent.
• You hear a sharper “tick” that repeats (often a sign of contact or near-contact).

The 1000 RPM Sequin Stitching Moment: How Multi-Head Timing and X/Y Motion Create That “Scale” Fill

The macro shot shows the needle stitching sequins down as the dinosaur shape builds. The video also shows the machine coordinating X/Y pantograph movement with the Z-axis needle bar and the sequin drop.

At speed, the system is basically doing “place → tack → move → repeat,” across multiple heads.

Setup Checklist (before you commit to full speed)

• The "Baby Steps" Rule: Start at the lower speed shown in the demo (800 RPM—or even 600 RPM for beginners) and confirm stable placement.
• Listen for "The Hum": Increase to 1000 RPM only after you hear a consistent hum. If the sound changes pitch irregularly, back off. Speed is nothing without accuracy.
• Check the First 100 Stitches: Watch the first dense area of the design. Fills reveal feed problems faster than outlines because the device has to fire rapidly without pause.
• Monitor the Color Sequence: Confirm the color/sequence display matches the job plan on the panel. A sequin job with the wrong color order is usually unfixable.

A lot of shops try to brute-force speed to hit deadlines. My advice: speed is earned. If your feed path isn’t stable, 1000 RPM just helps you fail faster.

“Head #2” Monitoring: The Small Indicator That Teaches a Big Lesson About Isolation

The demo briefly shows an individual head control unit indicating active head number 2.

In production, this matters because you need a clean way to isolate issues. If you hear a strange noise, how do you know which of the 4, 6, or 12 heads is causing it?

• If one head is misplacing sequins, you don’t want to stop the entire line longer than necessary.
• You want to identify the head, check its tape path, and verify device action.

Practical habit: Keep a simple log: head number, issue type, time, fix. Patterns show up fast. If Head #2 jams every time you use Gold sequins, investigation shows it might be a burr in Head #2's feeder, not the tape itself.

The Half-Finished Dinosaur Check: Density, Coverage, and Why Under-Thread Choices Matter

The mid-run shot shows the dinosaur half finished, with dense sequin coverage.

When you see density like this, you’re looking at two quality risks:

1. Coverage consistency (no bald spots, no random gaps)
2. Stability (the base must hold the weight and motion of sequins)

The video notes thread colors like white/black for underlay. In general, under-structure choices can affect how flat the sequin field sits.

Material science note (general): Sequins add significant weight and stiffness to the fabric.

• Too Soft: If the backing is too light (like tearaway), the sequin field will sag and ripple.
• Too Rigid: If the backing is too thick, the needles will deflect, causing breaks.
• The Sweet Spot: Usually 2 layers of medium-weight cutaway stabilizer works best for dense sequin fills.

The “Listen With Your Hands” Rule: Sensory Checks That Catch Problems Before They Become Downtime

The rear wide shot shows the scale of the thread rack and sequin reel system.

On a floor, you don’t have time to stare at every head. You learn to use sensory feedback. I train my operators to "listen with their hands" and ears:

• Auditory Anchor: A clean run sounds like a consistent "hummm-thud-hummm." A bad run has a syncopated "click-click... click" sound. That click is usually the needle hitting the sequin edge.
• Tactile Anchor: Lightly touch the machine table (away from moving parts). A smooth vibration is fine. A jarring, rhythmic thump indicates a mechanical bind or a hoop hitting the limit.
• Visual Anchor: Look at the bobbin thread on the back of the fabric. You should see 1/3 white bobbin thread. If you see only top color, your tension is too loose, and the sequins won't flip properly.

This is the kind of operator skill that separates “we run machines” from “we run production.”

High-Speed Tail Fill: Where Sequin Jams and Misfeeds Usually Show Up First

The action shot of the head filling the tail at speed is exactly where I’d watch hardest.

Why? Tails, curves, and tight direction changes often demand more frequent X/Y acceleration changes. That can expose marginal tape feed stability.

Structured Troubleshooting: Symptom → Cause → Fix

Before you call a technician, run this logic flow. Always start with the cheapest fix.

If you’re coming from melco embroidery machines or other platforms, don’t assume your old “thread-only” troubleshooting order applies—sequins change the failure tree completely. You must check the tape before you check the thread.

The Near-Completion Check: What “Production-Ready” Sequin Work Looks Like Before You Even Touch It

The near-finished shot shows a fully covered dinosaur field.

Before the hand test, I want you to perform a visual scan:

• Uniform lay direction: All sequins should be lying flat in the "primary" direction.
• Consistent edge coverage: Look at the borders. Are there thin spots?
• No lifted corners: "Lifted corners" are the enemy. They catch on everything and will peel off in the wash.

This is also where you decide whether your speed was appropriate. If you see small placement errors repeating, that’s usually a process issue, not “bad luck.”

The Brush Test That Sells the Product: Verifying the Reversible Sequin Effect Without Damaging the Work

The operator presses and swipes firmly against the grain of the sequins to flip them and reveal the contrasting color.

This is the moment customers love—and the moment you should standardize. If the sequins are too tight, they won't flip. If they are too loose, they will fall off.

Operation Checklist (how to test without creating returns)

• The "Palm Swipe": Use the flat of your palm, not your fingernails. Swipe firmly against the grain.
• The Rebound: Swipe them back. Do they return to the original color smoothly? Or do some get stuck? Stuck sequins usually mean the stitch density is too high or the sequin overlap is wrong in the digitizing.
• The Edge Check: Check edges and tight corners first (they fail first).
• Stop on Snag: If you feel snagging, stop immediately. Inspect for a bent sequin or a loose thread loop.

Finishing insight (general): For products that will be handled a lot, clean edges and secure tacks matter more than perfect speed. A slightly slower run that reduces lifted sequins often pays for itself in fewer complaints.

Scaling the Result: When Hooping Time Becomes the Real Bottleneck (and the Upgrade Path That Actually Makes Sense)

The final shot shows multiple finished dinosaur designs on the continuous line—this is what industrial output looks like.

Here’s the uncomfortable truth: once your stitch cycle is optimized, your bottleneck often shifts to loading/unloading and handling—especially when you move from roll-based production to finished garments, bags, or caps.

If you are fighting to get thick items hooped, or if your wrists hurt after an hour, it is time to look at your tools.

Decision Tree: Roll frame vs hoops vs magnetic hoops

Choose your holding method based on your production volume and pain points:

1. Are you stitching continuous fabric rolls?
   • Yes: Stick with the Large Sash Frame (like the demo). Focus on tape feed.
   • No: Proceed to 2.
2. Are you stitching finished garments (Polos, Hoodies, Jackets)?
   • Yes: Traditional tubular hoops are standard, but they cause "hoop burn" (shiny marks) and are slow to frame.
   • Solution: Consider a hooping station for embroidery to standardize placement.
3. Are you struggling with thick fabrics, hoop burn, or wrist fatigue?
   • Yes: This is the trigger for Magnetic Hoops.
   • Solution: A magnetic hooping station paired with high-strength magnetic hoops eliminates the need to force inner and outer rings together. They clamp automatically, reducing loading time by 30-40% and saving your wrists.

Warning: Magnetic Safety. Magnetic hoops contain extremely strong industrial magnets.
* Pinch Hazard: They snap together with force. Keep fingers clear of the mating surface.
* Medical Risk: Keep them at least 6 inches away from pacemakers or implanted medical devices.
* Electronics: Keep away from credit cards, phones, and hard drives.

The practical “tool upgrade” path (no hype—just logic)

• Stage 1 (Stability): Use quality SEWTECH embroidery thread and the right backing (Cutaway for knits!) so your machine isn’t compensating for weak materials.
• Stage 2 (Repeatability): Add fixtures that reduce operator variability—hooping stations, templates, consistent QC.
• Stage 3 (Throughput): When orders justify it, move into higher-output equipment. If you’re comparing ecosystems like ricoma embroidery machines for capacity planning, run the math on labor minutes saved per piece—not just machine price.
• Stage 4 (Efficiency): Switch to SEWTECH Magnetic Hoops. The ROI usually happens within the first 500 shirts simply due to faster loading times and zero hoop burn rejects.

And if you’re doing long-run hooping workflows, don’t ignore ergonomics. Wrist strain and slow hooping are silent profit killers; magnetic frames can be a real relief when used correctly.

A final operator’s note

This Lejia demo proves the concept: stable tape feed, controlled speed increase, clean multi-head action, and a simple hand test that validates the reversible effect. Your job is to turn that into a repeatable SOP—because in sequin production, consistency is the real “special effect.”

FAQ

• Q: What is a safe starting RPM on a Lejia multi-head embroidery machine for reversible (flip) sequin embroidery runs?
  A: Start at 800 RPM (or even 600 RPM for beginners) and only move toward 1000 RPM after the sequin tape feed looks stable.
  • Begin slow and watch the first dense area before increasing speed.
  • Increase RPM in steps and stop increasing if the sound pitch becomes irregular.
  • Verify the control panel job sequence/color order before committing to full speed.
  • Success check: the run sounds like a consistent “hum,” and sequin placement stays centered with no jerks in the tape.
  • If it still fails, reduce RPM and troubleshoot tape drag, guide friction, or device cleanliness before touching thread tension.
• Q: What “hidden consumables” should be kept next to a Lejia sequin embroidery station to prevent tape jams and needle breaks?
  A: Keep the small support tools within arm’s reach because most sequin downtime starts with threading, debris, or emergency splices.
  • Stage tweezers (long-nose) for threading sequin tape through small guides.
  • Keep spare sequin needles ready because needle strikes and breaks are common in sequin work.
  • Prepare double-sided tape for quick reel splices during production.
  • Use silicone spray only if the machine manual allows it, and only when tape drag is confirmed.
  • Success check: the operator can re-thread or clear a minor issue without leaving the machine for supplies.
  • If it still fails, run a short “by-hand pull” tape test and clean/inspect the entire tape path before restarting.
• Q: How do operators check the sequin tape path tension guides on a Lejia multi-head sequin setup to stop “pulse-y” feeding at high RPM?
  A: Reduce intermittent friction in the guides because small drag changes can cause tape whip, timing drift, and mis-placement at 1000 RPM.
  • Pull 30–60 cm of tape by hand; stop and investigate if it feels like tight dental floss.
  • Clean tape guides/arms (often with alcohol) and confirm the reel spins freely without sticking.
  • Re-thread the tape to ensure flat, untwisted entry into the pneumatic sequin device.
  • Success check: tape advances smoothly with no visible shuddering, snapping, or twisting as it enters the device.
  • If it still fails, replace worn tension components (like springs) or schedule mechanical alignment of the feeder/device.
• Q: What does correct bobbin tension look like on the back of reversible sequin embroidery when flip performance is inconsistent?
  A: Use the back-of-fabric bobbin ratio as a fast field check because loose top tension can reduce secure tacks and hurt flipping consistency.
  • Inspect the back of the fabric while running, not after the whole job is done.
  • Aim to see about 1/3 bobbin thread showing (as a practical visual target mentioned in the workflow).
  • Stop and correct if only top thread color shows heavily on the back (often indicates the top is too loose).
  • Success check: the reverse side shows a consistent bobbin presence, and sequins brush-flip smoothly without “locked” spots.
  • If it still fails, check tape placement/overlap and device timing first—sequins often fail from tape issues before thread issues.
• Q: How can a production team safely observe a pneumatic sequin device on a Lejia multi-head embroidery machine without risking needle-strike injuries?
  A: Treat the sequin device area as a needle-strike hazard zone and keep hands away while the machine is enabled.
  • Never place fingers near the sequin device during operation; use tweezers for debris removal when the machine is safely stopped.
  • Wear safety glasses when observing high-speed sequin runs because broken needles can eject fragments.
  • Listen for a repeating sharp “tick” that can indicate contact or near-contact.
  • Success check: the device motion looks rhythmic (not hesitant) and the sound stays smooth without sharp, repeating ticks.
  • If it still fails, stop immediately and inspect for misfed sequins, device height/contact points, and any plastic shards wedged in the cutter area.
• Q: How do you troubleshoot “random missing sequins” on a Lejia reversible sequin embroidery run before calling a technician?
  A: Treat random missing sequins as a tape-drag problem first—clean and normalize the tape feed before changing thread settings.
  • Clean tape guides with alcohol and remove any accumulated residue.
  • Check reel spin and the full tape path for intermittent sticking points.
  • Confirm no plastic shard debris is lodged in or near the device from the previous job.
  • Success check: missing sequins stop appearing in the first dense fill area after cleaning and re-threading.
  • If it still fails, replace worn tension parts (like springs) or inspect the feeder for burrs/rough spots that add intermittent friction.
• Q: When hooping finished garments becomes the bottleneck after sequin stitch time is optimized, how should a shop choose between traditional hoops, magnetic hoops, and upgrading to SEWTECH multi-needle embroidery machines?
  A: Use a staged upgrade path: fix stability first, then reduce operator variability, then scale throughput only when labor minutes—not just RPM—are the constraint.
  • Level 1 (technique/materials): Use quality embroidery thread and the correct backing (often heavy cutaway for sequin weight; commonly 2 layers of medium-weight cutaway for dense fills).
  • Level 2 (tools): Add hooping stations/templates to standardize placement; move to magnetic hoops if hoop burn, thick fabrics, or wrist fatigue are recurring triggers.
  • Level 3 (capacity): Upgrade to a multi-head/multi-needle platform like SEWTECH machines when consistent demand justifies higher output and fewer stop-start cycles.
  • Success check: loading/unloading time drops and rejects from hoop burn or inconsistent placement decrease measurably.
  • If it still fails, time a full job from hooping to unload and identify whether the true constraint is hooping, tape feed stability, or frequent head stoppages.
• Q: What are the key safety rules for using industrial magnetic hoops in garment embroidery workflows to reduce hoop burn and wrist fatigue?
  A: Magnetic hoops are effective but must be handled like strong industrial magnets because pinch injuries and device interference risks are real.
  • Keep fingers clear of mating surfaces—magnetic rings can snap together hard.
  • Keep magnetic hoops at least 6 inches away from pacemakers or implanted medical devices.
  • Keep magnetic hoops away from phones, credit cards, and sensitive storage devices.
  • Success check: operators can load garments faster without forcing rings together, and no shiny hoop-burn marks appear on finished garments.
  • If it still fails, slow down loading technique and add a hooping station to control placement and reduce rushed handling errors.
