Float a Knit T-Shirt on a Bernina B590 Without Stretching It: Clean Placement, Zero “Sewed-It-Shut” Panic

Mastering t-shirt embroidery is a rite of passage. It is the moment you move from "stitching on stiff canvas" into the world of "live" fabrics that stretch, shift, and seemingly fight back.

Use this guide not just as a tutorial, but as standard operating procedure (SOP) for your studio. We will break down Pam Hayes’ "Floating" method into a fail-safe workflow, reinforced with the sensory checks and safety margins that separate hobbyists from professionals.

The Physics of Failure: Why We Don't Hoop T-Shirts

If you have ever hooped a knit t-shirt tightly and ended up with a design that looks puckered or warped, you were fighting physics—and physics won.

The Problem: Knit fabric is a series of interlocking loops. When you force it into a traditional inner/outer ring hoop, you stretch those loops open. You stitch your design on the stretched fabric. When you un-hoop it, the fabric relaxes back to its natural state, collapsing your beautiful design into a wrinkled mess.

The Solution: Floating. We hoop the stabilizer (which doesn’t stretch) as tight as a drum, and we secure the shirt on top in its relaxed state. This ensures the fabric loops aren't distorted before the needle ever drops.

This concept—stabilizing the foundation, not the garment—is why many advanced users eventually research a floating embroidery hoop setup. They aren't looking for a magic wand; they are looking for tension control.

Phase 1: Preparation & The "Hidden" Consumables

Before you power on the machine, you must gather the right chemistry and hardware. Skipping this results in thread breaks and frustration.

The Hardware: Needle Selection

• The Myth: "Any sharp needle works."
• The Reality: Sharp needles can cut the knit fibers, leading to runs in the fabric (like a ladder in nylon stockings).
• The Fix: Use a 75/11 Ballpoint Needle. The rounded tip parts the fibers rather than piercing them.
• Sensory Check: Run your fingernail over the tip. It should not catch or scratch deeply; it should feel microscopically rounded.

The Chemistry: Stabilizer & Adhesives

• Stabilizer: You cannot use tear-away. Knits need permanent support. Use Mesh Cut-Away (like Sulky Soft ’n Sheer).
  • Pro Rule: If your design has high stitch density (>15,000 stitches), use two layers.
• Adhesive: 505 Temporary Spray.
• Topper: Water-soluble film (Solvy). This prevents the stitches from sinking into the soft cotton.


Prep Checklist (The "Pre-Flight" Inspection)

• Fresh Needle: Install a new 75/11 Ballpoint needle. (If you can't remember when you changed it, change it now).
• Bobbin Check: Ensure you have a full bobbin. Running out mid-shirt often causes alignment shifts.
• Marking: Mark your design center on the shirt with a water-soluble pen or chalk crosshair.
• Inventory: Have your seam ripper and precision scissors within arm's reach.
• Design Check: Confirm design size fits the hoop. (Pam’s example: 2.3 x 2.5 inch).

Warning: Safety First. When changing needles or clearing thread nests, always keep your feet away from the foot pedal or engage the machine's "Lock" mode. A needle driven through a finger is the most common industry injury.

Phase 2: Hooping the Foundation

This is the most critical step for stability.

Step 1: Hoop the Stabilizer. Place your two layers of Mesh Cut-Away into the standard hoop. Tighten the screw. Sensory Check: Tap the stabilizer with your finger. It should sound like a drum (thump-thump). If it sounds loose or flabby, re-hoop it. It must be taut.

Step 2: Apply the "Tack." Lightly spray the stabilizer with 505 spray. The "Sticky Note" Rule: Do not mist the shirt. Mist the stabilizer. Touch it—it should feel tacky like a Post-It note, not wet or gummy.

Commercial Insight: If you find yourself struggling to get that "drum-tight" tension without hurting your wrists, or if you are leaving "hoop burn" (crushed fibers) on delicate fabrics, this is the trigger point to upgrade. Professional shops solve this by switching from standard hooping for embroidery machine rings to magnetic embroidery hoops. The magnets snap the stabilizer flat instantly without the friction-burn of traditional rings.

Phase 3: Positioning the Fabric (The "Relaxed" Drop)

Pam uses a clever visual aid here: a plastic grid template.

1. Insert the Grid: Slide the plastic grid inside the shirt.
2. Align: This gives you a rigid surface to help you line up your crosshairs without stretching the fabric.
3. The Drop: Smooth the shirt onto the sticky stabilizer.
   • Crucial: Do not pull or stretch the shirt to make the lines match. Pat it down. If you stretch it now, it will pucker later.


Phase 4: Loading the "Sack" (Risk Mitigation)

The single most expensive mistake in t-shirt embroidery is sewing the front of the shirt to the back.

The Maneuver: Slide the hoop onto the machine arm. Immediately perform the "Tuck and Sweep":

1. Roll the excess fabric of the shirt (the back and sleeves).
2. Tuck it under the hoop and around the machine arm.
3. Use clips (like Wonder Clips) or tape if the shirt is unruly.


Warning: The "Under-Sweep" Rule. Before pressing the green start button, physically run your hand under the hoop. Ensure there is only one layer of fabric and stabilizer. If you feel two layers, STOP.

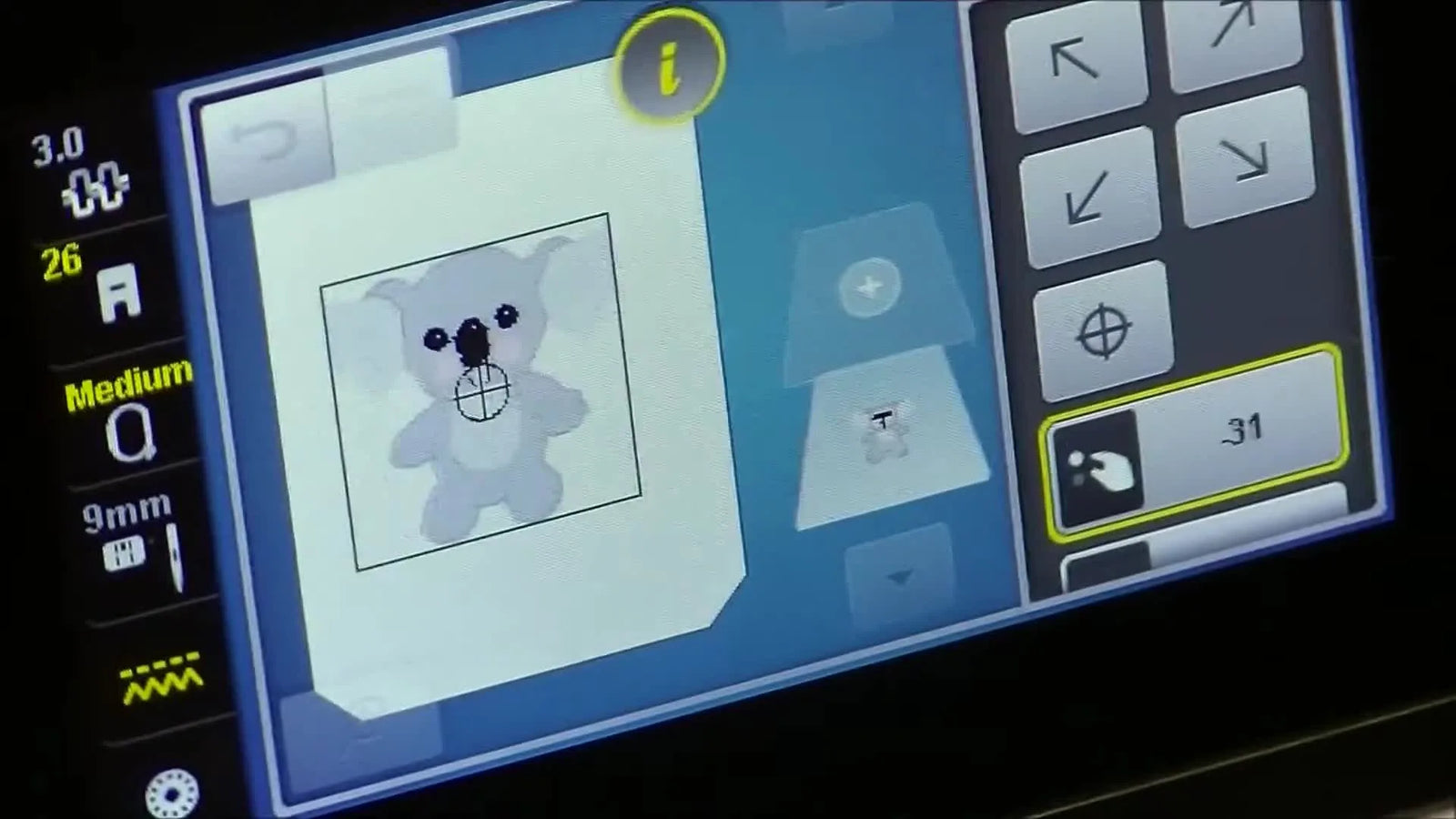

Phase 5: Precision Alignment (The Digital Nudge)

You do not need to hoop perfectly on center if you know how to use your machine's brain. Pam demonstrates this on the Bernina B590.

1. Engage "Check" Mode: Use the machine's trace or check feature.
2. Bullseye Check: Lower the needle (hand-crank the wheel slightly) to see exactly where the tip lands relative to your chalk crosshair.
3. Micro-Adjust: Do not move the fabric. Use the screen arrows (X and Y axis) to move the needle until it aligns perfectly with your mark.

Note: If you are producing batches (e.g., 50 company shirts), manual adjustment kills your profit margin. Consistency is key. A dedicated hooping station ensures every shirt is placed in the exact same spot on the stabilizer, eliminating the need for digital adjustments on every single unit.

Phase 6: The "Seatbelt" (Basting & Topper)

Before stitching the design, we need to lock the sandwich together.

1. Apply Topper: Lay a square of Solvy (water-soluble film) over the stitch area.
   • Why: This keeps the stitches sitting on top of the knit fuzz, rather than sinking in.
2. Run the Basting Box: Activate your machine's "Basting" or "Fix" function.
   • Action: The machine stitches a long, loose rectangle around the design.
   • Physics: This acts as a staple, holding the Solvy down and preventing the shirt from shifting during high-speed stitching.

Speed Limit: For t-shirts on a single-needle machine, reduce your speed to 600 SPM (Stitches Per Minute). The lower speed reduces friction and thread breaks on stretchy material.

Setup Checklist (Ready to Stitch)

• Hardware: Hoop is locked in.
• Safety: "Under-sweep" check confirms back of shirt is clear.
• Alignment: Needle point verified against crosshair mark.
• Topper: Solvy is placed.
• Stability: Basting box has been stitched.
• Speed: Machine set to moderate speed (approx. 600 SPM).

Decision Tree: Fabric vs. Stabilizer Logic

Stop guessing. Use this logic flow to choose your materials.

Q1: Is the fabric stretchy (Jersey Knit, Spandex, Dri-Fit)?

• YES: Use Meshed Cut-Away.
  • Heavy Design? Use 2 layers.
  • Light Design? Use 1 layer.
• NO (Denim, Canvas, Woven): Tear-away is acceptable (but Cut-Away is always softer against skin).

Q2: Is the fabric textured (Pique Polo, Fuzzy Cotton)?

• YES: You MUST use a Water Soluble Topper (Solvy).
• NO: Topper is optional, but recommended for crisp text.

Phase 7: Finishing

The job isn't done until the stabilizer is trimmed.

1. Remove Basting: Use your seam ripper to pop the long basting stitches.
2. Remove Topper: Tear away the excess Solvy. Remove small bits with a damp Q-tip or a steamer.
3. Trim Stabilizer: Turn the shirt inside out.
   • Technique: Hold the shirt fabric up/away from the scissors. Cut the stabilizer roughly 1/4" to 1/2" from the design.
   • Shape: Cut in a circle or rounded shape. Sharp corners on stabilizer can scratch the wearer's skin.








Troubleshooting: The "Why Did This Happen?" Guide

The Commercial Upgrade Path: From Hobby to Production

If you are doing one shirt for a grandchild, the floating method above is perfect. However, if you are attempting to fulfill an order for 20+ shirts (or thick hoodies), physical limitations will set in.

Identify Your Bottleneck:

1. Pain Point: Wrist Pain & Hoop Burn
   • The Upgrade: magnetic hooping station sets.
   • Benefit: Eliminates the physical force needed to tighten screws. The magnets clamp thick fabrics (like Carhartt jackets) or delicate knits instantly without abrasion.
2. Pain Point: Speed & Color Changes
   • The Upgrade: If you are tired of re-threading for every color change, this is the transition point to a multi-needle machine.
   • Benefit: A machine like the SEWTECH multi-needle series allows you to set up 10+ colors once. It also offers a "Free Arm" structure that naturally prevents sewing the shirt shut, eliminating the need for the dangerous "Tuck and Sweep" maneuver used on flatbed machines.

Warning: Magnet Safety. SEWTECH and similar embroidery hoops magnetic systems use industrial strength Neodymium magnets. They can pinch skin severely. Keep them away from pacemakers, insulin pumps, and magnetic storage media. Never let two magnets snap together without a buffer layer.

Operation Checklist (Post-Stitch)

• Inspection: Check for any skipped stitches before un-hooping.
• Cleanup: Remove all jump stitches.
• Stabilizer: Trimmed with rounded corners (no sharp edges).
• Residue: Any Solvy residue removed with water/steam.
• Documentation: Note down the settings (Speed, Tension, Stabilizer used) for the next time you stitch this fabric.

By strictly following the "Float," "Stabilize," and "Ballpoint" rules, you turn a terrifying t-shirt project into a predictable, repeatable success.

FAQ

• Q: For knit t-shirt embroidery on a Bernina B590, why should Bernina users avoid hooping the t-shirt fabric directly in a standard inner/outer ring hoop?
  A: Hoop only the mesh cut-away stabilizer “drum tight” and float the relaxed t-shirt on top to prevent distortion and puckering after unhooping.
  • Hoop: Tighten the hoop on mesh cut-away (use 2 layers for high stitch count designs) until it is very taut.
  • Spray: Mist 505 on the stabilizer (not the shirt) until it feels lightly tacky.
  • Place: Smooth/pat the shirt onto the stabilizer without stretching to match marks.
  • Success check: Tap the hooped stabilizer— it should sound like a drum (“thump-thump”), not loose or flabby.
  • If it still fails: Add a basting box and slow down the machine speed (a safe starting point is about 600 SPM on single-needle machines, then adjust per the machine manual).
• Q: For t-shirt embroidery, what needle should a single-needle embroidery machine use to prevent holes around stitches on knit cotton?
  A: Switch to a 75/11 ballpoint needle to part knit loops instead of cutting them.
  • Replace: Install a fresh 75/11 ballpoint needle before starting if needle age is unknown.
  • Inspect: Feel the needle tip carefully— it should feel microscopically rounded rather than sharp.
  • Stitch: Run a small test if possible before committing to the full design.
  • Success check: After stitching, the stitch area shows no “laddering” runs or pierced holes around satin edges.
  • If it still fails: Re-check fabric stabilization (mesh cut-away, drum tight) and reduce speed to lower friction.
• Q: How can Bernina embroidery users prevent sewing the front and back of a t-shirt together when loading a hoop onto a flatbed embroidery machine?
  A: Use the “Tuck and Sweep” maneuver every time, then do a physical under-hoop hand check before pressing Start.
  • Roll: Roll up the excess shirt (back panel and sleeves).
  • Tuck: Tuck the rolled fabric under the hoop and around the machine arm.
  • Clip: Secure loose fabric with clips or tape so it cannot drift under the hoop.
  • Success check: Run a hand under the hoop and feel only one layer of fabric plus stabilizer— never two layers.
  • If it still fails: Stop immediately and re-load the garment; continuing even a few stitches can permanently trap layers.
• Q: On a Bernina B590, how do embroidery users align a floated t-shirt design precisely without re-hooping the shirt?
  A: Use the machine’s trace/check feature and the on-screen X/Y arrows to move the needle position, not the fabric.
  • Mark: Draw a clear center crosshair on the shirt with a water-soluble pen or chalk.
  • Trace: Engage Check/Trace and lower the needle slightly (hand-wheel) to confirm needle landing point.
  • Nudge: Use X/Y screen arrows to bring the needle tip exactly onto the crosshair.
  • Success check: The needle tip lands dead-center on the crosshair without pulling or stretching the shirt.
  • If it still fails: Re-check that the shirt was patted down relaxed (not stretched) and that stabilizer tension is drum-tight.
• Q: For fuzzy cotton t-shirts and textured knits, when should embroidery users add a water-soluble topper (Solvy), and how should it be secured?
  A: Use a water-soluble topper whenever the fabric is fuzzy/ textured, and lock it down with a basting box before stitching.
  • Place: Lay a square of Solvy over the design area after the shirt is positioned.
  • Baste: Run the machine’s Basting/Fix function to stitch a loose rectangle around the design.
  • Stitch: Reduce speed on stretchy shirts (a safe starting point is about 600 SPM on single-needle machines).
  • Success check: Stitches sit on top of the fabric fuzz and small text stays crisp instead of “sinking in.”
  • If it still fails: Add stability (e.g., an extra cut-away layer for dense designs) and verify the fabric did not shift before basting.
• Q: What is the fastest way to fix a “bird’s nest” thread tangle under the needle plate on a single-needle embroidery machine during t-shirt embroidery?
  A: Completely rethread the top thread with the presser foot lifted so the thread seats into the tension discs.
  • Stop: Remove the hoop/garment carefully and clear the thread nest before restarting.
  • Lift: Raise the presser foot, then rethread the upper path from spool to needle.
  • Confirm: Make sure the thread snaps into the tension discs (don’t just lay it in).
  • Success check: The next test stitches form cleanly with no new loops building underneath the fabric.
  • If it still fails: Check bobbin area for lint buildup and verify the machine was not started with fabric accidentally caught (do the under-sweep rule).
• Q: What safety steps should single-needle embroidery machine users follow when changing needles or clearing a thread jam to prevent needle injury?
  A: Prevent accidental starts by keeping feet off the foot pedal or using the machine’s Lock mode before hands go near the needle area.
  • Lock: Engage Lock mode (if available) before changing needles or removing a thread nest.
  • Remove: Keep your foot away from the pedal until the needle area is fully clear and tools are put down.
  • Clear: Use a seam ripper/scissors carefully— never pull jammed threads while the needle can move.
  • Success check: The needle does not move when hands are in the needle/bobbin zone, and the machine only runs when intentionally re-enabled.
  • If it still fails: Pause and follow the machine manual’s jam-clearing procedure— forcing parts can cause damage.
• Q: When should embroidery users upgrade from standard ring hoops to magnetic embroidery hoops or a multi-needle machine for t-shirt production work?
  A: Upgrade when hoop burn/wrist strain or repeated manual setup is limiting output— first improve technique, then change tools, then change capacity.
  • Level 1 (Technique): Float the shirt on drum-tight hooped mesh cut-away, add basting, and slow speed for knits.
  • Level 2 (Tool): Use magnetic hoops to clamp stabilizer/fabric without screw-tightening force and to reduce hoop burn on delicate knits.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent color changes and batch consistency are killing time; a free-arm style can also reduce the risk of sewing shirts shut.
  • Success check: Setup becomes repeatable (less re-hooping/re-aligning) and hoop marks decrease while registration stays consistent.
  • If it still fails: Review whether stabilizer tension and garment “under-sweep” checks are being done every time before investing further.
