Float-Embroider a Knitted Beanie on the Janome 550E (Without Hoop Burn, Stretch, or Sewing the Hat Shut)

Knitted beanies are one of those projects that look deceptively “easy” right up until the moment the ribbing stretches, the outline sinks into the knit valleys, or—worst of all—you accidentally stitch the hat shut.

The good news: the floating method shown in this Janome 550E beanie project is a reliable, repeatable way to get clean line-art embroidery on ribbed knit while avoiding hoop burn and distortion. If you’ve ever had that sinking feeling thinking, “I should’ve researched before trying first,” you’re not alone. This guide is designed to replace that anxiety with engineering-level confidence.

Below is a masterclass on executing this project, calibrated with specific data points and safety checks to ensure your first attempt is a success.

The Beanie Panic Is Real: Why the Floating Method Works on a Ribbed Knit Beanie

To master beanie embroidery, you must first understand the physics of your canvas. A ribbed knit beanie behaves differently than woven fabric (like denim or cotton). It compresses, stretches, and rebounds.

When you force a thick, stretchy beanie into a traditional inner/outer ring hoop, you create two major problems:

1. Hoop Burn: The compression crushes the acrylic fibers, often leaving a permanent shiny ring or "bruise" that won't steam out.
2. Distortion: Starching the ribs open to fit the hoop means that when you unhoop it, the fabric snaps back, and your perfect circle design turns into a wavy oval.

In the video, the solution is the "Floating Method." You hoop only the stabilizer, then secure the beanie on top. That’s the heart of using a floating embroidery hoop technique—you are stabilizing the stitch field without crushing the knit.

From a technician’s perspective, here’s what is happening physically:

• Hooping pressure is a clamp. On ribbed knit, that clamp is the enemy.
• Floating shifts the foundation. The stability comes from the drum-tight backing and the adhesive (spray), not the hoop walls.
• The "Sandwich" Logic: The beanie is held by tack (spray) + perimeter control (pins), allowing the ribs to sit naturally rather than stretched open.

If you’re planning to do beanies for kids’ teams, fan gear, or small-batch gifts, this method is a strong baseline you can scale.

Supplies for a Janome 550E Knitted Beanie (What Matters, What’s Optional)

The video utilizes a standard setup: a child-size purple ribbed beanie, a standard 5x7 hoop (RE20b or similar), tear-away backing, Odif 505 temporary adhesive spray, pins, tape, water-soluble topping, scissors, and two thread colors.

However, to move from "hobbyist guessing" to "pro results," we need to refine this list. Here are the "20-years-in" specific recommendations:

• The Needle (Crucial): Use a 75/11 Ballpoint Needle. Sharp needles can cut the knit fibers, causing runs in the beanie over time. Ballpoints slide between fibers.
• The Stabilizer: Tear-away backing is chosen here because the design is light (line art) and prevents "bulletproof" stiffness. If your design was a dense filled circle, you would need Cut-away mesh.
• Adhesive: Odif 505 provides shear strength (resistance to sliding) without permanently bonding the knit.
• Perimeter Control: Appliqué Pins (short) or T-pins are preferred over long quilting pins to avoid hitting the machine throat.
• Topping: Water-soluble topping (like Solvy) is not a luxury on ribbed knit; it acts as a suspension bridge for your thread.
• Hidden Consumable: Keep a lighter nearby to gently singe verify thread ends, and tweezers for picking bits of topping out of tight spots.


The Hidden Prep Before You Hoop: Marking Orientation So You Don’t Stitch Upside-Down

Orientation mistakes are the most common cause of wasted blanks. The creator uses a small tape sticker with an arrow on the beanie to keep orientation consistent. This is one of those deceptively small habits that prevents expensive mistakes.

She also mentions turning the hat inside out while using that sticker so the direction stays obvious during placement.

Pro tip (Sensory Check): When you place your arrow tape, press it firmly. Visualize the beanie on a head. Is the arrow pointing to the sky? Good. Now, when you float it on the hoop, that arrow must point away from the machine operator (towards the back of the machine) for standard orientation.

Prep Checklist (Do this PRE-HOOPING)

• Structure Check: Confirm the beanie is double-layer. This will dictate your "clearance check" later so you don't sew the layers together.
• Orientation: Apply a tape arrow marker pointing to the "top" of the hat.
• Placement Measurment: Decide the vertical placement. Standard adult placement is bottom of design sits 1.5" to 2" up from the cuff edge.
• Thread Load: Choose thread colors and load them nearby (the video uses neon green/yellow first, then deep pink).
• Needle Swap: Ensure a fresh Ballpoint 75/11 is installed.
• Workspace: Keep scissors and pins within reach so you’re not reaching over the hoop mid-setup.


Hooping Tear-Away Stabilizer Drum-Tight (This Is the Real Foundation)

In the video, she hoops a single layer of tear-away stabilizer tightly in the standard frame and emphasizes "drum-tight" tension.

This is the non-negotiable step. Since the hoop isn't holding the fabric, the stabilizer is doing 100% of the work.

The Sensory Test:

1. Sight: The stabilizer should be smooth, with no wrinkles.
2. Sound: Tap it with your finger. It should make a sharp "thump-thump" sound, like a snare drum. If it sounds thuddy or soft, tighten the screw and pull (gently) again.
3. Touch: It should feel rigid. Using a "wobbly" stabilizer foundation will cause your outlines to misalign (registration errors).

If you struggle with hand strength or find the stabilizer slipping, using a dedicated hooping station for machine embroidery can provide the leverage needed to lock the hoop screw tight without hurting your wrists. It’s a quality-of-life upgrade that ensures your "canvas" is perfectly taught every time.

Odif 505 + Pinning: Securing a Floating Beanie Without Distorting the Knit

The video lightly sprays Odif 505 directly onto the hooped stabilizer to create a tacky surface, then aligns the beanie using the tape arrow marker and pins around the perimeter.

The "Light Spray" Technique: Hold the can 8-10 inches away. fast sweeping motion. You want the surface to feel tacky (like a Post-it note), not wet. If it's wet, it will gum up your needle.

Pinning Strategy: The goal is "Perimeter Control." Place pins at the 12, 3, 6, and 9 o'clock positions, aiming them away from the center.

Warning: Mechanical Hazard. Pins and embroidery needles are a catastrophic combination. If the embroidery foot or needle strikes a pin at 700 stitches per minute, the needle can shatter, potentially sending metal shards towards your face or damaging the machine's timing. Pins must be at least 1 inch outside the stitch field.

Setup Checklist (Ready to Mount)

• Tension Check: Tear-away stabilizer is hooped smooth and drum-tight.
• Adhesion: Odif 505 is applied lightly (tacky to touch, not soaking).
• Alignment: Beanie is aligned straight using the tape arrow marker and centered left-to-right.
• Fabric State: The ribs are resting naturally, not stretched open or distorted by your hands.
• Safety Zone: Pins are placed around the perimeter and visually confirmed to be outside the design field.


The Clearance Check on the Janome 550E: Don’t Accidentally Sew the Hat Shut

This is the critical "Go/No-Go" step that separates successful beanie embroidery from a ruined "pouch."

In the video, she mounts the hoop on the Janome 550E and then manipulates the back layer of the beanie underneath the hoop so it can glide and stay out of the way.

The "Glide Test" (Sensory Check): Once the hoop is clicked into the machine, reach underneath the hoop. Feel the back layer of the beanie. Slide your hand between the machine bed and the hoop.

• Does the fabric move freely?
• Is there any bunched material directly under the needle plate?

Action: Fold the excess back of the beanie under the hoop brackets or clip it with a binder clip to the side (ensure clips don't hit the machine arm). You must create a tunnel for the machine arm to operate inside the hat.

Janome 550E Screen Check: Speed, Stitch Count, and Why Knits Prefer a Calm Pace

The video displays the Janome 550E screen. Let's analyze the physics of these settings:

• Speed: 700 spm (Stitches Per Minute)
• Stitch count: 2206 stitches
• Estimated time: 7 minutes

Why 700 SPM? (The Sweet Spot): While the Janome 550E can run faster (up to 860 SPM), running at max speed on knits increases "Flagging"—where the fabric bounces up and down with the needle. This causes tangles and poor registration. For beanies, slowing down to 600-700 SPM reduces friction and vibration, resulting in cleaner text and lines.

If you are new to this machine and searching for a janome 550e hat hoop, understand that while specialized cap hoops exist, this "floating flat" method often produces better results for beanies because it causes less distortion than the dedicated cap driver systems on single-needle machines.

Water-Soluble Topping on Ribbed Knit: The “Non-Negotiable” Layer for Clean Outlines

After tracing placement, the creator places a sheet of clear water-soluble stabilizer (topping/film) over the stitch area and tapes it down.

She calls it out clearly: water-soluble topping is very important.

The Physics of Loft: Think of the ribbing on a beanie like a series of hills and valleys. Without topping, your thread (especially thin running stitches) will sink into the valleys, disappearing from view or looking jagged.

• Topping acts as a suspension bridge. It keeps the stitches sitting on top of the "hills" until the design forms a cohesive structure.
• Result: Crisp, professional lines that look like they are sitting on the fabric, not buried in it.


Trace Before You Stitch: Placement Confidence Without Guesswork

The video runs a trace (the machine moves the hoop without stitching) to check placement near the brim.

Tracing is your Physical Insurance Policy. Do not rely on the screen alone. Watch the needle (or LED pointer) as it traces the outer box of your design.

Look for:

1. Centering: Is it truly in the middle of the hat?
2. Brim Distance: Does the bottom of the design clear the cuff/brim by at least 15mm? (Sewing too close to the thick brim causes the foot to drag/snag).
3. Topping Coverage: Does the trace stay fully inside the square of water-soluble topping you taped down?
4. Pin Clearance: Does the needle ever come dangerously close (<10mm) to a perimeter pin?


Stitching the Two-Color Line Art on the Janome 550E (and What to Watch While It Runs)

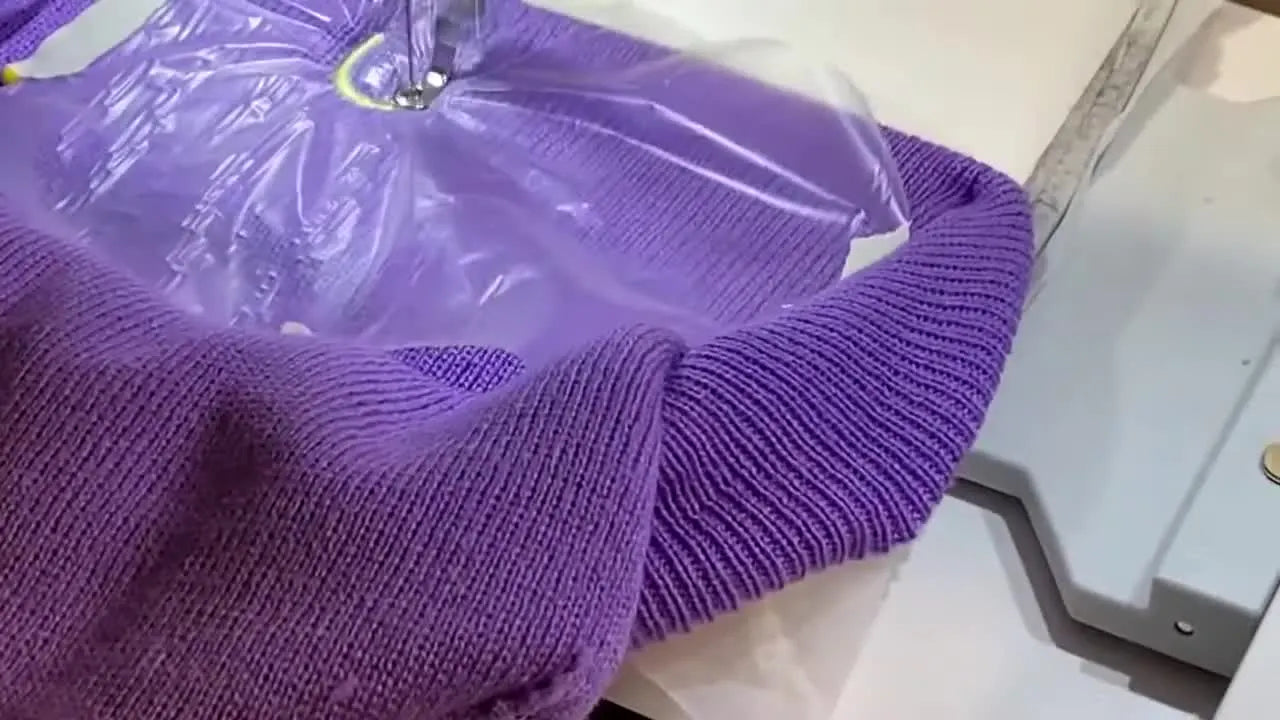

The machine stitches the first outline (green dog), then changes to deep pink.

During stitching, she notices the fabric looked like it was starting to bunch, and she had to "fiddle with it." This is a critical learning moment.

Active Monitoring Protocol: Never walk away from a beanie while it stitches.

• Watch for "The Wave": If a wave of loose fabric starts building up in front of the presser foot, PAUSE immediately.
• The Fix: Gently redistribute the fabric. Do not pull it tight (that distorts design); just smooth it flat against the stabilizer.

The Friction Factor: Knits want to stick to the presser foot. If you find yourself constantly fighting bunching, or if using pins feels risky and slow, this is the trigger point to consider tools that eliminate this friction. A magnetic embroidery hoop clamps the beanie top-and-bottom with magnets, holding the thick fabric significantly flatter than pins ever can, preventing that "wave" from forming in the first place.

Warning: Keep your fingers away from the needle bar! When "fiddling" or smoothing fabric, keep hands at the outer edge of the hoop. If you need to touch near the needle, STOP the machine first.

Finishing Without Pulling Stitches: The Safe Order for Pins, Jump Threads, and Stabilizers

The finish is just as important as the start. A sloppy cleanup can ruin a perfect stitch-out.

The "Do No Harm" Removal Sequence:

1. Remove Hoop: Take the hoop off the machine. Place it on a flat table.
2. Pins First: Remove all pins before you tear anything. Tearing backing with a pin still inserted creates a hole in the hat.
3. Trim Jumps (Front): Trim any jump threads on the front.
4. Topping Removal: Gently tear away the water-soluble topping. If small bits remain, do not dig at them—use a damp Q-tip or a wet paper towel to dissolve them later.
5. Backing Removal: Turn the hoop over. Support the stitches with your thumb while you tear the stabilizer away. Do not yank! Yanking distorts the stitches you just made.

Operation Checklist (The Finish Line)

• Support: Hoop is removed and beanie is supported so the weight doesn't stretch the warm stitches.
• Pin Safety: All pins are counted and removed (don't leave one inside the hat!).
• Trim First: Jump threads are trimmed on the front before removing topping (prevents snagging).
• Gentle Tear: Water-soluble topping is torn away gently/dissolved.
• Stabilizer Release: Tear-away backing is removed cleanly without distorting the knit structure.


Troubleshooting Knit Beanie Bunching: Symptom → Cause → Fix

Structured troubleshooting helps you fix problems without panic.

Stabilizer Decision Tree for Knitted Beanies (So You Stop Guessing)

Use this logic to choose the right foundation for your project.

1) Is the design light line-art (low stitch count, open space)?

• Yes: Start with Tear-away backing + Water-soluble topping (Video Method).
• No (Heavy density/Solid fill): Go to #2.

2) Is the knit very smooth, thin, or insanely stretchy?

• Yes: Use Cut-away Mesh (No Show Mesh). Tear-away will disintegrate under heavy stitching on stretchy fabric, causing gaps.
• No: Go to #3.

3) Is the knit heavily textured (Deep rib/Cable knit)?

• Yes: Heavy-weight Water Insoluble Topping is mandatory. You may need a magnetic hoop to hold the thickness without crushing the ribs.
• No: Standard procedure applies.

Note: For the beanie in the video, stick to Path #1.

When to Upgrade Your Hooping Method: From Hobby Beanies to Batch Production

If you are making one beanie for a child, pins and adhesive spray are perfectly workable. But if you have an order for 20 beanies for a local sports team, the "floating with pins" method will destroy your wrists and your schedule.

The Pain Points of Scale:

• Hoop Burn: Frequent clamping ruins potential inventory.
• Time: Pinning takes 2-3 minutes per hat.
• Consistency: Manual pinning varies from hat to hat.

The Solution Ladder:

1. Level 1 (Technique): Use Spray + Floating (as shown) to stop hoop burn.
2. Level 2 (Tool Upgrade): If pinning hurts or is too slow, a embroidery magnetic hoop (like the MaggieFrame) is the industry standard solution. It uses strong magnets to clamp the beanie fabric automatically without crushing the ribs. It holds even thick cable knits securely without the "wave" effect, reducing needle breaks and increasing speed.
3. Level 3 (Production Upgrade): If you are doing 50+ hats, a single-needle machine is the bottleneck. Moving to a SEWTECH Multi-Needle machine with a dedicated cap driver allows for 360-degree embroidery, higher speeds (1000 SPM), and auto-color changes, turning a weekend of work into an afternoon.

Warning: Magnetic Safety. Magnetic hoops contain powerful Neodymium magnets.
* Pinch Hazard: They snap shut with immense force—keep fingers clear of the edges.
* Medical Device Safety: Keep at least 6 inches away from Pacemakers and ICDs.

The “Looks Easy” Moment: Building Muscle Memory

The finished beanie in the video looks clean because the fundamentals were respected, not because of luck.

The Recipe for Success:

1. Foundation: Drum-tight stabilizer.
2. Surface: Water-soluble topping for lift.
3. Security: Proper tack and perimeter checks.
4. Physics: Slow speed (700 SPM) and Ballpoint needles.

If you want to repeat this with a sports logo or a name, keep the same structure and only change one variable at a time. Do not fear the machine; respect the physics of the fabric, use the checklists above, and your first beanie will look like your fiftieth.

FAQ

• Q: What needle should be used for a ribbed knit beanie embroidery project on a Janome 550E to prevent runs and skipped damage?
  A: Use a fresh 75/11 ballpoint needle as the safe default for ribbed knit beanies.
  • Install: Swap in a new 75/11 ballpoint needle before hooping and stitching.
  • Avoid: Do not use a sharp needle on knit beanies because it can cut fibers and create runs over time.
  • Success check: The needle penetrates smoothly and the knit shows no snagging or “picked” fibers around the stitches.
  • If it still fails: Slow the machine to the 600–700 SPM range and re-check that the beanie is not being stretched during setup.
• Q: How can Janome 550E users confirm tear-away stabilizer is hooped “drum-tight” for the floating method on a knitted beanie?
  A: Hoop only the tear-away stabilizer and tighten until it passes the sight–sound–touch drum-tight test.
  • Smooth: Re-seat stabilizer until there are no wrinkles or ripples in the hooped area.
  • Tighten: Tighten the hoop screw and gently pull the stabilizer edges to remove slack.
  • Success check: Tap the hooped stabilizer and listen for a sharp “thump-thump” sound (not a soft, dull thud).
  • If it still fails: Use a hooping station for extra leverage and repeat the tension test before spraying adhesive.
• Q: How should Odif 505 temporary adhesive spray be applied for floating a ribbed knit beanie on a Janome 550E without gumming the needle?
  A: Apply Odif 505 as a light, dry tack layer—tacky like a Post-it note, never wet.
  • Spray: Hold the can 8–10 inches away and use a fast sweeping motion across the hooped stabilizer.
  • Wait: Pause briefly and touch-test; the surface should feel tacky, not damp.
  • Success check: The beanie stays positioned when lightly nudged, but the surface does not feel wet or slippery.
  • If it still fails: If the surface feels wet, reduce spray amount next attempt and re-hoop stabilizer drum-tight to prevent shifting.
• Q: How can Janome 550E users prevent accidentally stitching a double-layer knitted beanie shut during embroidery?
  A: Perform a clearance “glide test” after mounting the hoop to ensure the back layer moves freely under the stitch area.
  • Reach: Slide a hand under the hoop and feel for any bunched fabric under the needle plate area.
  • Fold: Fold excess beanie fabric under the hoop brackets or secure it to the side so the machine arm runs inside a clear “tunnel.”
  • Success check: The back layer glides freely and nothing is trapped directly under the stitching path.
  • If it still fails: Stop, unmount the hoop, re-position the beanie layers, and repeat the glide test before restarting.
• Q: What pin placement is safe when floating a beanie for embroidery on a Janome 550E to avoid needle strikes and breakage?
  A: Keep all pins at least 1 inch outside the stitch field and aim pin points away from the design area.
  • Place: Pin at perimeter control points (12, 3, 6, 9 o’clock) only after the beanie is aligned.
  • Verify: Visually confirm the design boundary and ensure no pin is within the embroidery travel zone.
  • Success check: A trace run completes with clear clearance—no near-misses within about 10 mm of any pin.
  • If it still fails: Remove perimeter pins entirely and switch to a non-pin holding method (adhesive + better perimeter control) before stitching.
• Q: Why should Janome 550E users run 600–700 SPM for ribbed knit beanie embroidery, and how can speed reduce bunching and registration issues?
  A: Use a calmer pace (around 600–700 SPM) because knits can flag and bounce at higher speeds, causing tangles and misalignment.
  • Set: Reduce speed from maximum and start around 700 SPM for line-art beanie designs.
  • Watch: Monitor for fabric “wave” buildup in front of the presser foot and pause immediately if it starts.
  • Success check: The fabric stays flatter with less bounce, and outlines stitch clean without shifting.
  • If it still fails: Re-check stabilizer drum-tightness and topping use, then pause-and-smooth rather than pulling the knit tight.
• Q: When should beanie embroiderers upgrade from the floating-with-pins method to a magnetic embroidery hoop or a SEWTECH multi-needle machine?
  A: Upgrade when pain points show up: pinning time, wrist strain, inconsistency, or repeated bunching—scale changes the best solution.
  • Diagnose: If pinning takes 2–3 minutes per hat or results vary hat-to-hat, the process is becoming the bottleneck.
  • Option (Level 1): Keep floating + light spray + topping for occasional beanies to avoid hoop burn and distortion.
  • Option (Level 2): Use a magnetic embroidery hoop when pinning feels risky/slow or the beanie keeps forming a “wave” under the foot.
  • Option (Level 3): Move to a SEWTECH multi-needle machine when doing larger batches (commonly 50+ hats) and needing faster production with auto color changes.
  • Success check: Setup becomes repeatable and the beanie surface stays flatter with fewer pauses for smoothing.
  • If it still fails: Review magnet safety (pinch hazard and medical device distance) and confirm the design density matches the stabilizer choice.
