Floriani FTC-U Fill Stitch Properties That Actually Stitch Clean: Angle Lines, Underlay, Gradients, and Push/Pull Without the Guesswork

When a fill stitch stitches out "ugly"—creating gaps, bulletproof stiffness, or puckered fabric—most novices instinctively blame the machine. They adjust the tension knob, change the needle, or simply give up.

After 20 years in this industry, I will tell you the uncomfortable truth: Physics always wins.

Fills usually fail because the digitized file is asking the machine to do something physically impossible on a flexible medium like fabric. This FTC-U lesson is a masterclass in separating "screen logic" from "fiber reality." To move from amateur to pro, you must stop picking patterns and start controlling stitch flow, structural integrity, and fabric compensation.

Don’t Panic: FTC-U Fill Stitches Are Fixable (Even When the Preview Looks “Fine”)

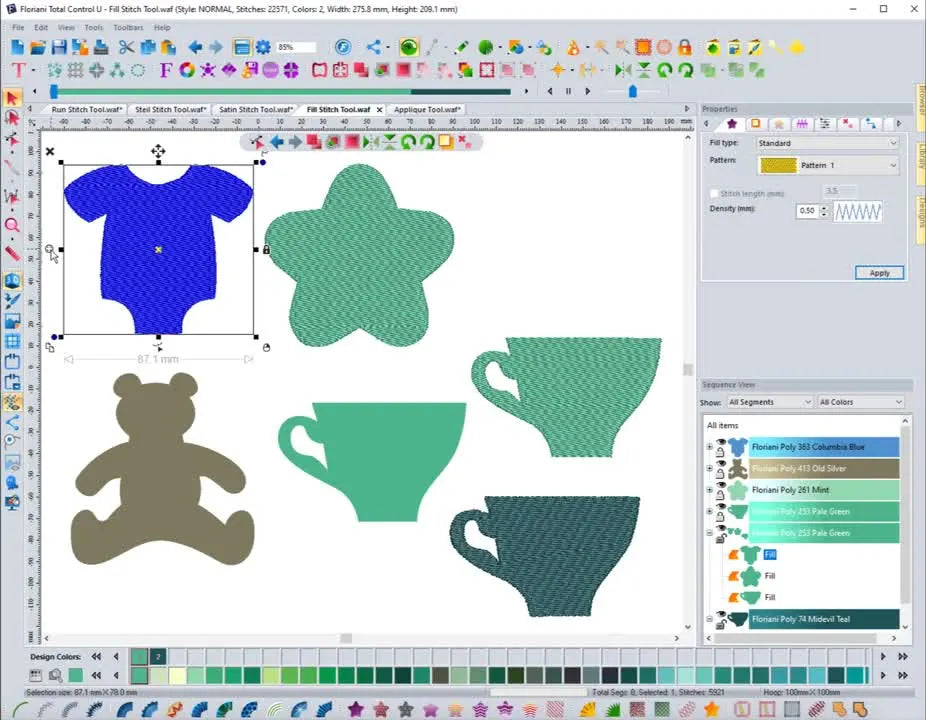

Fill stitches in Floriani Total Control U (FTC-U) are deceptively simple. Unlike satin stitches, which clearly show their path, fills can hide a multitude of sins until the needle starts moving. A design that looks pristine on your monitor can result in:

• Jumpy Travel Lines: The machine constantly trims and jumps, leaving a "bird's nest" of thread underneath (especially on single-needle machines).
• The "Bulletproof" Patch: An area so stiff it creates "hoop burn" or stands off the chest like cardboard.
• The "Gap" Effect: White fabric showing between the outline and the color fill.

The Mindset Shift: The simulator on your screen is a geometry preview, not a physics simulation. It does not know that your cotton t-shirt stretches or that thread has thickness. We use FTC-U settings to "pre-correct" these physical realities.

If you are seeing chaotic travel lines or heavy density in the preview, stop. Do not send that file to the machine.

The Quiet Prep Pros Do First: Pick a Test Shape, Then Decide What You’re Optimizing

Before you touch a single property setting, you need a strategy. Professional digitizers do not just "fill" a shape; they optimize for a specific outcome based on the job.

Ask yourself: What is the priority for this specific logo?

1. Efficiency: Minimize trims and jumps (Crucial for production speed).
2. Coverage: Hiding the fabric color completely (Crucial for dark fabrics).
3. Hand/Drape: Keeping the embroidery soft (Crucial for babywear or thin knits).
4. Stability: preventing distortion on stretchy items.

For learning, the instructor recommends—and I insist upon—practicing on simple circles or squares. Complex shapes introduce too many variables (backtracking, split fills) when you are trying to understand the fundamentals of push and pull.

Essential Hidden Consumable: Before you start testing, ensure you have the correct stabilizer (backing). A perfect fill on a t-shirt will still pucker if you use tear-away instead of cut-away.

Phase 1: Prep Checklist (The "Measure Twice" Phase)

• Select the correct object: ensure you aren't applying fill settings to an outline.
• Define the Goal: Is this for a flexible polo shirt (needs drape) or a stiff cap (needs coverage)?
• Isolate the Variable: If testing gradients, use a simple primitive shape (circle/square).
• Reset the View: Turn on strictly the 3D view to check aesthetics, then switch to strict specific view to check travel lines.
• Prepare your notes: Write down your starting values so you can adjust systematically, not randomly.

Make the Machine Stop “Dancing”: Edit Shape + Stitch Angle + Start/End Points in FTC-U

If your machine sounds like it is stuttering—stopping, trimming, moving, and starting again—you have an efficiency problem. This is the "low hanging fruit" of digitizing.

In FTC-U, you control the machine's movement logic via:

• The Angle Line: Direction the thread lays down.
• Green Dot: Start point.
• Red Dot: End point.

The Golden Rule of Flow: You want the machine to sweep across the design like painting a wall, not coloring by numbers randomly.

The Workflow

1. Select the object.
2. Enter "Edit Shape" mode.
3. Set the Angle: Right-click the angle line. Stick to standard math: 0°, 45°, 90°, or 135°. 45° is often the most visually pleasing and provides good structural stability.
4. Drag the Points: Move the Green (Start) and Red (End) dots to opposite sides of the shape relative to the angle.

If your angle is 45° (diagonal), placing the start at the bottom-left and the end at the top-right forces the machine to sew a continuous path. If you place them on the same side, the machine must travel under the stitching to get back, creating lumps or unnecessary needle penetrations.

Pro Tip: If you are running production on a 6 or 10-needle commercial machine, inefficient paths cost you seconds per shirt. On a run of 100 shirts, that's lost money. On a hobby single-needle machine, it costs you sanity as you sit there clipping jump threads.

Warning: Mechanical Safety
When you are trimming test stitch-outs at the machine, never put your fingers near the needle bar while the machine is "red light" active. If you are frustrated by a jump thread, pause the machine first. Needle punctures are the most common injury in our trade.

Keep It Simple (Until You Need Fancy): FTC-U Fill Pattern + Stitch Length That Stitches Smooth

In the Fill tab, avoid the temptation to get creative immediately.

• Type: Standard
• Pattern: Pattern 1 (The industry workhorse).

The "Loft" Secret: Stitch Length

The instructor sets the stitch length manually to 4.0mm. Default settings are often 3.0mm or 3.5mm. Why go to 4.0mm?

• Physics: Longer stitches reflect more light (more sheen).
• Coverage: Longer stitches sit "fluffier" (more loft) on the fabric, covering better with fewer needle penetrations.
• Feel: Fewer needle holes mean a softer embroidery.

The Sweet Spot Density: A standard density is 0.40mm. If you go lower (e.g., 0.30mm), you are cramming more thread into the same space, creating a "bulletproof" patch. If you go higher (e.g., 0.50mm), you risk fabric showing through.

Expert Reality Check: A 4.0mm stitch is safe for most logos. However, if you are stitching on baby clothes or items that undergo heavy washing, be careful going beyond 5.0mm, as long loops can snag on fingers or zippers.

Underlay That Supports (Not Armor): Contour + Perpendicular, and How to Avoid “Bulletproof” Lattice

Underlay is the foundation of your house. Without it, the "roof" (top stitching) collapses into the basement (the fabric). But pour too much concrete, and the house becomes a bunker.

The Reliable Combo:

1. Contour: Runs a stitch around the inside edge. This anchors the fabric and prevents the edges from pulling in (saw-toothing).
2. Perpendicular: Runs stitches opposite to the top fill. This lifts the top thread up.

The video explicitly advises against Parallel underlay for standard fills, as it can sink into the same grooves as the top stitch.

The Danger of Full Lattice

Full Lattice creates a cross-hatch net (45° and 135°). It provides maximum stability but comes at a high cost: Stiffness.

The Fix: If you must use Full Lattice (e.g., on a very unstable pique knit or towel), do not leave it at default density. Reduce the density to 3.0mm or 4.0mm. This creates a light net rather than a heavy carpet.

• Sensory Check: If your machine sounds "angry" or thumps loudly when sewing over an area, you likely have too much underlay density combined with top stitching.

Gradients That Don’t Fight You: Use Simple Shapes and Extreme Start/End Points

Gradients (blending colors or densities) are advanced visual effects. The Trap: Applying gradients to complex, winding shapes (like a snake or a letter 'S').

The instructor demonstrates that gradients behave predictably on primitives (circles/squares).

The Method:

1. Use a simple Circle.
2. Set Start and End points at extreme opposites (e.g., 12 o'clock and 6 o'clock).
3. Choose Linear or Convex gradients.




Visual Reality: In the simulator, a gradient looks like stripes. This is normal. In the real world, the thread spreads slightly, and the eye blends the colors. Trust the math, not the pixel stripes.

The Two Settings That Save Stitch-Outs: Push and Pull Compensation in FTC-U

This is where beginners fail and pros succeed. Fabric is fluid; it distorts under tension.

• Pull: Stitches pull the fabric inward toward the center (making the design narrow).
• Push: The accumulation of thread pushes the fabric outward in the direction of the stitch (making the design taller/longer).

The Solution: Cheat the Geometry.

Pull Compensation (Result: Widen the design)

The instructor advises using Absolute values.

• Setting: 0.5 mm.
• Meaning: The machine will stitch 0.5mm outside the vector line on the sides to counteract the fabric pulling in.


Push Compensation (Result: Shorten the design)

• Setting: Remove lines (By Line).
• Value: 2 lines (approx 0.4 mm).
• Meaning: The machine stops shorter than the vector line, knowing the thread bulk will push it to the correct edge.




Contextual Nuance:

• Stable Fabric (Demim/Canvas): 0.3mm Pull / 1 line Push might be enough.
• Unstable Fabric (Performance Knits): 0.5mm+ Pull is mandatory.

Commercial Pivot: Even the best Push/Pull settings will fail if your hooping is loose. If you struggle with outlines not matching fills (registration errors), consider your hardware. Terms like magnetic embroidery hoop are your gateways to understanding efficient production; these tools grip fabric evenly without the "tug-of-war" distortion common with standard hoops.

Lock It Down Without a Visible Blob: Tie-Ins, Tie-Offs, and the Tie-Off Style to Avoid

Tie-offs prevent your embroidery from unraveling in the wash. However, not all knots are created equal.

• Tie-In: Basic.
• Tie-Off: Basic.
• AVOID: The "Triangle" Tie-Off style.


Visual Check: The Triangle style stitches a small, dense wedge to lock the thread. On a smooth fill, this looks like a mistake—a visible "pimple" on your design. The Basic tie-off hides the lock stitches inline.

Edge Types That Don’t Surprise You: Chiseled vs Square (and When Square Is Actually Okay)

How does the machine treat the jagged edges of a fill?

• Chiseled (Default): The machine creates a saw-tooth edge to distribute tension. This is usually best for coverage.
• Square: The machine forces a straight line.

The Trap: If you use "Square" edges at normal high density (0.40mm), the heavy needle penetrations in a straight line can cut your fabric (like a perforation stamp).

The Exception: Square edges are excellent for low density (1.5mm - 2.0mm) fills where you want to see the background fabric, creating a sketch-like or vintage effect.

Setup Checklist: My “Before You Export” FTC-U Fill Stitch Sanity Pass

Run this checklist before you save to USB. It prevents 90% of trash-can moments.

Phase 2: The Pre-Flight Checklist

• Movement: Are Angle lines set to standard degrees (45/90)?
• Flow: Are Start/End points placed to minimize backtracking?
• Texture: Is Stitch Length set to 3.5mm-4.0mm for proper loft?
• Foundation: Is Underlay set to Contour + Perpendicular? (No heavy Lattice).
• Physics: Is Pull Comp set (~0.4-0.5mm) to widen the sides?
• Physics: Is Push Comp set (remove 1-2 lines) to shorten the ends?
• Finish: Is Tie-Off set to "Basic" (No Triangle lumps)?
• Hardware: Do you have the correct needle (e.g., 75/11 Ballpoint for knits)?

When the Stitch-Out Still Looks Wrong: Symptoms → Likely Cause → Fix

If you followed the rules and it still looks bad, use this diagnostic table. Always troubleshoot in this order: Hardware -> Hooping -> Software.

A Decision Tree That Prevents 80% of “Why Did It Stitch Like That?” Moments

Start Here:

1. Is the fabric stretchy (T-shirt/Polo/Beanie)?

• YES: Use Cut-away stabilizer. Use 0.5mm Pull Comp. Use Ballpoint Needle.
• NO (Denim/Twill): Use Tear-away stabilizer. Use 0.3mm Pull Comp. Use Sharp Needle.

2. Is the design large (> 4 inches)?

• YES: Reduce density slightly (to 0.45mm) to prevent "armor plate" feel. Ensure Start/End points allow continuous sewing.
• NO: Standard settings apply.

3. Is it a high-pile fabric (Towel/Fleece)?

• YES: You need a Topping (water soluble film) on top, or the stitches will sink and disappear. Increase underlay to build a platform.

The Upgrade Path: When “Better Digitizing” Still Needs Better Hooping and Production Tools

You can optimize your FTC-U file to perfection, but if your physical setup is flawed, you will still fail.

The Hooping Bottleneck: If you notice that your fills are perfect on one shirt but distorted on the next, the variable is human error in hooping. Traditional hoops force you to pull fabric, creating uneven tension.

• Level 1 Diagnostic: If you have "hoop burn" (shiny rings on fabric), your hoop is too tight or you are scrubbing the fabric.
• Level 2 Solution: Moving to magnetic embroidery hoops drastically reduces hoop burn and strain on your wrists. They snap the fabric in place without forcing you to tug and pull, preserving the fabric's original grain.
• Level 3 Production: For shops doing volume, a hoop master embroidery hooping station ensures the design is in the exact same spot on every shirt.

Many professionals search for how to use magnetic embroidery hoop when they encounter hoop burn issues, realizing that the solution is mechanical, not digital. If you are serious about scale, pairing consistent hoopmaster placement with magnetic frames is the industry standard for repeatability.

Warning: Magnet Safety
If you utilize modern magnetic hoops, be aware they use powerful Neodymium magnets. Do not place them near cardiac pacemakers. Watch your fingers—they can snap together with enough force to cause blood blisters (pinching hazard).

Operation Checklist: What to Watch During the First Real Sew-Out (So You Don’t Waste a Whole Garment)

Do not walk away to get coffee during the first test sew.

Phase 3: The Operation Checklist

• The Sound: Listen for a rhythmic "chug-chug-chug." If you hear "CLACK-whir-CLACK," your travel paths are bad.
• The First Layer: Watch the underlay. Does it lay flat, or pull the fabric? If it puckers now, the top stitch is doomed. Abort and check stabilizer.
• The Registration: Watch the border element sew out. If it lands outside the fill at the top/bottom, you need more Push Comp. If it lands inside the fill on the sides, you need more Pull Comp.
• The Bobbin: Turn the garment over. You should see 1/3 white bobbin thread down the center of the column.

The 7 FTC-U Fill Settings Worth Memorizing (Because They Solve Real Problems)

To summarize 20 years of trial and error into a "Cheatsheet" for your next project:

1. Angle: Keep it standard (45° is safest).
2. Length: 4.0mm for luxury loft and coverage.
3. Density: 0.40mm (Do not go denser unless necessary).
4. Underlay: Contour + Perpendicular (Avoid heavy Lattice).
5. Pull Comp: 0.5mm (Widen against the squeeze).
6. Push Comp: Remove 2 lines (Shorten against the push).
7. Tie-Off: Basic (Invisible lock).

If you’re building a production workflow, the real win is consistency: consistent digitizing defaults + consistent hooping tension. If you find hooping tedious or inconsistent, embroidery magnetic hoops and a magnetic hooping station are your most valuable investments to reclaim your time and sanity.

Stop fighting the physics. Calibrate your file, secure your fabric, and let the machine do the work.

FAQ

• Q: In Floriani Total Control U (FTC-U), how can FTC-U fill stitch Start/End points and stitch angle be set to reduce trims, jumps, and “dancing” travel lines on a single-needle embroidery machine?
  A: Set a simple stitch angle (often 45°) and place the FTC-U Green Start point and Red End point on opposite sides of the shape to force one continuous sweep.
  • Enter Edit Shape, then right-click and set the Angle Line to a standard angle (0°, 45°, 90°, 135°).
  • Drag the Green (Start) and Red (End) dots to opposite sides relative to the angle (avoid placing both on the same side).
  • Re-check travel lines before exporting; if travel looks chaotic, do not stitch yet.
  • Success check: The machine sews with fewer stops/trim cycles, and the sew sound becomes more continuous (less “stop-start” stuttering).
  • If it still fails… simplify the object (test on a circle/square) and re-place Start/End points again before changing thread tension.
• Q: In Floriani Total Control U (FTC-U), what fill stitch density and stitch length settings help prevent a “bulletproof” stiff patch while still keeping good coverage?
  A: Use a safe starting point of 4.0 mm stitch length with about 0.40 mm density, then adjust only if the fabric shows or feels too stiff.
  • Set Fill Type: Standard and Pattern: Pattern 1 before experimenting with decorative fills.
  • Keep Density around 0.40 mm; going denser (like 0.30 mm) can create stiffness and hoop burn.
  • Keep Stitch Length around 3.5–4.0 mm for loft/coverage with fewer needle penetrations.
  • Success check: The fill covers evenly without cardboard stiffness, and the fabric still drapes instead of standing off like a patch.
  • If it still fails… reduce density slightly (for example toward 0.45 mm) and re-check underlay choice before blaming the machine.
• Q: In Floriani Total Control U (FTC-U), which underlay combination prevents fill stitch edge distortion without creating “armor” stiffness, and how should Full Lattice be adjusted when it is necessary?
  A: Start with Contour + Perpendicular underlay, and only use Full Lattice when needed—then reduce Full Lattice spacing to keep it from becoming too stiff.
  • Choose Contour to anchor edges and reduce pull-in/saw-toothing.
  • Add Perpendicular to lift the top fill; avoid relying on heavy crosshatch by default.
  • If Full Lattice is required for very unstable/high-pile jobs, reduce Lattice density/spacing to about 3.0–4.0 mm (lighter net, not carpet).
  • Success check: The machine sound is smoother (less loud “thumping”), and the design feels supportive but not rigid.
  • If it still fails… remove heavy lattice first and retest on the same fabric with correct stabilizer before changing multiple settings at once.
• Q: In Floriani Total Control U (FTC-U), what Pull Compensation and Push Compensation settings fix fill-to-outline gaps and registration mismatch on stretchy performance knits?
  A: Use Pull Compensation (Absolute) around 0.5 mm to widen against squeeze and use Push Compensation by removing about 2 lines (~0.4 mm) to prevent overshoot at the ends.
  • Increase Pull Comp (Absolute) when white fabric shows on the sides between outline and fill.
  • Use Push Comp (By Line) and remove 1–2 lines when top/bottom alignment is drifting due to thread bulk pushing forward.
  • Test on a simple shape first so the compensation effect is obvious and repeatable.
  • Success check: The border/outline lands where expected—no side gaps, and the top/bottom edges don’t overshoot after stitching.
  • If it still fails… check hooping tightness and stabilizer choice next, because loose hooping can defeat correct push/pull values.
• Q: For T-shirt and polo embroidery, which stabilizer choice prevents puckering even when Floriani Total Control U (FTC-U) fill settings look correct on screen?
  A: Use cut-away stabilizer on stretchy garments; tear-away commonly leads to puckering even with “perfect” digitizing.
  • Identify fabric behavior first: if the garment stretches (T-shirt/polo/beanie), treat it as unstable.
  • Switch backing to cut-away for stretch; reserve tear-away for stable fabrics like denim/twill.
  • Watch the underlay layer during the first sew-out—if puckering starts there, stop and change stabilizer before wasting a garment.
  • Success check: After stitching, the fabric around the design stays flat instead of gathering or rippling.
  • If it still fails… reduce overall density slightly and confirm hooping is even (uneven tension can mimic stabilizer failure).
• Q: What is the correct bobbin-thread “balance” visual check during a first stitch-out on an embroidery machine to confirm tension is acceptable?
  A: A practical field check is seeing roughly one-third bobbin thread visible down the center of stitched columns on the back of the garment.
  • Flip the garment and inspect the stitching underside immediately after the test segment.
  • Look for a consistent line of bobbin showing through the middle rather than bobbin dominating the entire width or disappearing completely.
  • Combine the visual check with sound: steady “chug-chug” is healthier than harsh “CLACK-whir-CLACK” during travel-heavy areas.
  • Success check: The backside shows a stable bobbin presence (about 1/3) and the front looks clean without excessive looping.
  • If it still fails… fix travel/jumps in the file (Start/End points) and verify hooping/stabilizer before making aggressive tension changes.
• Q: What needle-bar safety steps should be followed when trimming jump threads or cleaning up during an embroidery machine run?
  A: Pause the embroidery machine before putting hands near the needle bar; trimming jump threads while the machine is active is a common cause of needle puncture injuries.
  • Stop the machine first anytime hands need to enter the needle area (especially during test stitch-outs).
  • Trim jump threads only when the needle is fully stopped and the machine is not actively cycling.
  • Keep focus during the first sew-out; don’t “reach in” out of frustration when you see a jump thread.
  • Success check: Jump threads are removed without any near-miss contact with the moving needle bar.
  • If it still fails… address the cause of jumps in software (angle + Start/End flow) so the machine creates fewer jump threads to begin with.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops to reduce hoop burn and improve hooping consistency?
  A: Treat magnetic embroidery hoops as powerful tools: keep them away from cardiac pacemakers and protect fingers from pinch injuries when magnets snap together.
  • Keep magnetic hoops away from anyone with a cardiac pacemaker and avoid placing magnets near sensitive medical devices.
  • Separate and assemble magnets deliberately; do not let halves “snap” together uncontrolled.
  • Handle over a stable surface and keep fingertips out of the closing path to prevent blood blisters/pinches.
  • Success check: The fabric is held evenly with less hoop burn and no hand strain or pinched fingers during setup.
  • If it still fails… reassess hooping technique and garment thickness; magnetic frames help consistency, but correct stabilizer and digitizing physics still matter.
