Floriani Total Control U Redwork from Line Art: Fix the PNG “Black Box” Fast, Then Export a Clean PES

If you’ve ever imported a “perfect” line-art PNG into Floriani Total Control U and watched it turn into a giant black square, you know the sinking feeling. It starts with confusion, shifts to panic, and ends with you blaming the software.

But you aren't crazy, and your file isn't "broken." As a digitizer with two decades of battling software quirks, I can tell you this is a standard "translation error" between modern web images and embroidery logic.

In this workflow guide, we won't just fix the glitch. We will take a raw line-art bird, navigate the transparency trap, auto-digitize it into professional Redwork, patch manual details, and export a production-ready PES file.

Don’t Panic When Floriani Total Control U Shows a Black Square—It’s Usually PNG Transparency, Not “Corrupt Art”

The "Black Box of Death" is a classic novice hurdle. The image looks pristine in your browser, but the moment you use the Backdrop Tool in Floriani, it renders as a solid black block.

Here is the sensory anchor to look for: Before you even download the image, look at the background in Google Images. Do you see a grey-and-white checkerboard pattern?

That checkerboard isn't a design choice; it is the universal symbol for Alpha Channel Transparency. While your web browser loves transparency, many embroidery software engines struggle to interpret "nothingness," so they default to rendering it as "all black."

The Industry Reality: The fix isn't to re-import the same file ten times. The fix is to "flatten" the image file format.

The “Hidden” Prep Pros Do First: Pick Line Art That Will Actually Auto-Digitize Cleanly

Before you click a single tool, you are making a choice that determines 80% of your success. Redwork (single-line running stitch) is unforgiving. Unlike fill stitches, Redwork cannot hide wobbly lines or poor pathing.

In the tutorial, the instructor selects a bird with clear, single-weight lines. This is crucial.

My Filtering Criteria for Redwork:

• Uniform Line Weight: Look for drawings that look like they were drawn with a fine-tip marker, not a calligraphy brush. Thick-to-thin variations confuse auto-digitizers.
• Hard Edges: Avoid "fuzzy" or airbrushed edges. The software needs a hard "STOP" sign to place a node.
• Closed Loops: If a shape (like a beak) has a tiny gap in the drawing, the auto-tool will likely skip it or fail to close the stitch path.

Prep Checklist (Do this BEFORE opening software)

• Visual Check: Is the line art high-contrast (Black on White/Transparent)?
• Transparency Check: Does it have the checkerboard background? (If yes, expect the Black Square).
• Hard Drive Hygiene: Download the image to a standardized folder, not just "Downloads."
• Goal Setting: Determine your target hoop size (e.g., 5x7 or 4x4) so you don't scale the bitmap too drastically later.
• Backup: Duplicate the file. Never edit your only copy.

The Fastest Fix: Convert a Transparent PNG to JPEG in Microsoft Paint (Yes, Really)

You don't need Photoshop to fix this. We need to strip the alpha channel, and Microsoft Paint is the fastest "sledgehammer" for this job.

The Action Plan:

1. Right-click your downloaded PNG and select Open with > Paint.
2. Go to File > Save As.
3. Crucial Step: Select JPEG picture from the list.
4. Confirm the Warning: Paint will warn you that "transparency will be lost." Click OK. This is exactly what we want.




By saving as a JPEG, you force the computer to fill that transparent background with white pixels. Floriani generally loves white backgrounds and hates transparent ones.

Warning: Be extremely careful not to hit generic "Save" (Ctrl+S). This might overwrite your original PNG without fixing the file type. Always use "Save As" to create a new, safe version (e.g., bird_flattened.jpg).

Import the JPEG with the Floriani Backdrop Tool, Then Zoom Like You Mean It

Now, return to Floriani Total Control U.

1. Clear the Deck: File > New.
2. Select Tool: Click the Backdrop Tool (icon usually looks like a picture frame).
3. Load: Navigate to your file.
4. The "Pre-Flight" Check: Hover over the file. Verify that the file type says JPEG Image, not PNG.

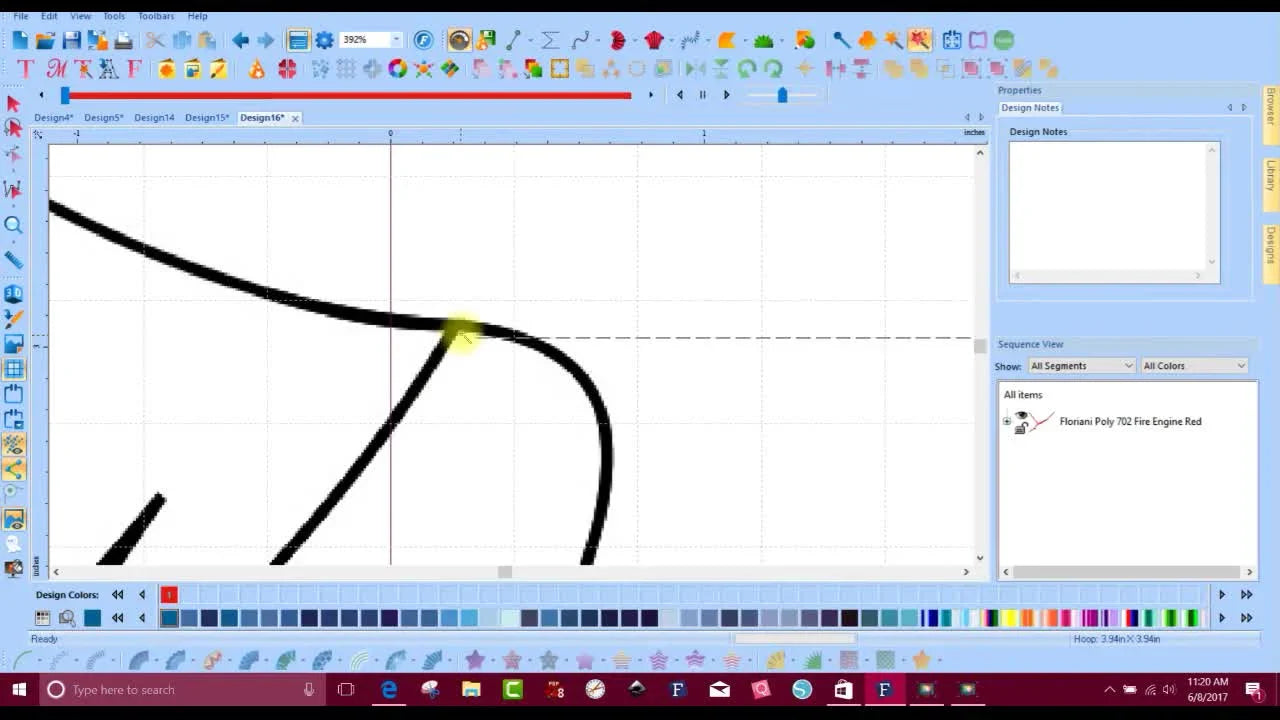

The Expert's Standard: Once imported, grab the Magnifying Glass and zoom in until the artwork fills your screen. Digitizing is a game of millimeters. If you work at 100% zoom, you will miss small gaps that turn into thread breaks later.

Data Check: The video shows a design size of 6.12" x 5.61". This fits comfortably in a standard 5x7 hoop (130x180mm). If your imported art is 12 inches wide, resize the backdrop now, before you add stitches. Stitches calculated at huge sizes often degrade when shrunk later.

Click Once, Get Stitches: Using the Floriani Redwork Tool Without Creating a Mess

This is the "magic wand" moment, but we need to manage expectations.

1. Select the Redwork Tool.
2. Click once on the black outline of the bird.
3. Hide the Backdrop: Locate the Backdrop visibility icon (often an eye or a bitmap icon) and toggle it off.




You should now see the pink running stitch path.

The "Sweet Spot" for Stitch Length: The video defaults to a 3.0mm run stitch.

• Expert Adjustment: For smooth curves, 3.0mm is fine. However, if your design has tight little curls (like typical Redwork), 3.0mm might look "boxy" or angular.
• Recommendation: Check your Properties panel. For detailed Redwork, a stitch length between 2.0mm and 2.5mm usually provides a smoother curve without chopping your fabric to pieces.

Patch What Auto-Digitizing Misses: Add the Bird’s Eye with the Circle Shape Tool

Auto-digitizers are notoriously bad at recognizing "islands"—small enclosed shapes inside larger ones, like an eye inside a head. In the video, the bird is missing its eye.

Instead of fighting the auto-tool, use the manual override:

1. Select the Shape Tool.
2. Choose Circle.
3. draw the circle over the eye.
4. Convert to Run Stitch: Ensure this shape is set to "Run" properties, not "Fill."




Sensory Check: Look at the start and stop points of this new circle. Does it have a "jump line" (a dotted line) connecting it to the bird's body?

• Yes: You will need to trim this manually after stitching.
• Expert Tip: If you are advanced, move the start/stop points closer to the main body to minimize the jump.

Safety Warning: When stitching small isolated elements like this eye, your machine will move fast. Keep fingers away from the needle zone. If you need to trim a thread tail mid-print, STOP the machine completely. Do not attempt to snip threads while the needle is reciprocating.

Save Like a Pro: WAF First, Then Export PES for the Embroidery Machine

Novices save once. Pros save twice.

1. First Save: File > Save As > .WAF (Floriani Working File).
   • Why: This file keeps the "math" of the shapes. You can resize it, change densities, and edit nodes later.
2. Second Save: File > Save As > .PES (Machine Format).
   • Why: This is a "dumb" file. It only knows coordinate points. If you resize a PES file by 20%, you ruin the stitch density.


Finally, use the Stitch Simulator (Slow Draw). Drag the speed slider. Watch the "needle" on screen.

• Visual Check: Does the needle jump erratically from the beak to the tail, then back to the wing?
• Efficiency: If the pathing is chaotic, your machine will take longer and have more potential for thread breaks.


The “Why” Behind the Black Box Bug—and How to Avoid It Next Time

Understanding the root cause removes the fear.

• The Cause: Floriani's Backdrop Tool (like many legacy architecture tools) does not natively support Alpha Transparency rendering. It interprets "Alpha 0" (Transparent) as "Color #000000" (Black).
• The Prevention: Always standardizing your inputs.
• The Workflow: Download -> Check for Checkerboard -> Convert to JPEG -> Import.

When Your Redwork Looks Rough: Quick Symptom-to-Fix Troubleshooting

Even with a clean file, Redwork is physically demanding on fabric. Here is your diagnostic table.

The Real-World Upgrade Path: Great Digitizing Still Needs Great Hooping

You can digitize the perfect file, but if your hooping is loose, Redwork will ruin your day. Because Redwork is a single, unforgiving line, if your fabric shifts even 1mm, the start and end points won't meet. The result? A bird with a disconnected beak.

The "Hoop Burn" Dilemma: To keep Redwork crisp, you need tight hooping ("drum tight," as the old manual says). But tight hooping in standard plastic frames often leaves "hoop burn" (white friction marks) that won't iron out of delicate dark fabrics.

This is the friction point where upgrading your hardware solves what software cannot.

Decision Tree: Choose a Hooping Setup Based on Fabric + Volume

1. The Hobbyist (Low Volume / Stable Fabric)

• Scenario: You are stitching this bird on a denim jacket or canvas tote.
• Solution: Standard plastic hoops are fine. Use a heavy needle (75/11 or 90/14).

2. The Boutique Owner (Medium Volume / Placement Matters)

• Scenario: You are stitching 20 tote bags and need the bird in the exact same spot every time.
• Solution: Manual hooping is slow and inaccurate. A hooping station for embroidery allows you to pre-measure and replicate placement instantly, reducing mental fatigue.

3. The Professional (High Volume / Delicate Fabric)

• Scenario: You are stitching on performance polos or knits. You hate "hoop burn" and hand strain.
• Solution: This is where magnetic embroidery hoops shine. Instead of crushing the fabric fibers between plastic rings, magnets clamp the fabric flat. This prevents hoop burn and allows for faster re-hooping.

4. The Production House (Scaling Up)

• Scenario: You have multiple brother embroidery machines running simultaneously.
• Solution: Integrate a machine embroidery hooping station with magnetic hooping station attachments. This standardizes the process so any employee can hoop perfectly in under 30 seconds.

Warning: Magnetic Safety is Serious. Strong magnetic hoops can pinch fingers severely (blood blister risk). They can also interfere with pacemakers. Keep them at least 6 inches away from medical devices and electronic screens.

Setup Checklist (Pre-Stitch)

• Stabilizer Choice: Do not use Tearaway for Redwork on t-shirts. Use Cutaway or Poly-mesh to prevent the "pucker tunnel" effect.
• Needle Check: Is your needle sharp? Redwork requires thousands of clean penetrations. Install a fresh 75/11 sharp needle.
• Bobbin Check: Ensure you have enough bobbin thread to finish the bird. Redwork doesn't allow for easy tie-offs in the middle of a line.
• Consumables: Have your small curved snips ready for that jump stitch on the eye.

Operation Checklist (During Stitching)

• The "Thump" Test: Before starting, tap the fabric in the hoop. It should sound like a dull drum. If it's loose, re-hoop.
• Watch Section 1: Watch the first 30 seconds (the underlay). If the fabric pushes a "wave" in front of the foot, stop immediately. Your stabilization is insufficient.
• Trim Safety: Wait for the machine to completely stop and the foot to lift before reaching in to trim the eye jump stitch.

Redwork is the ultimate test of "garbage in, garbage out." By stripping the transparency from your image and securing your fabric with the right hoop, you turn a frustrating black square into a crisp, professional embroidery. Happy stitching!

FAQ

• Q: Why does the Floriani Total Control U Backdrop Tool import a line-art PNG as a solid black square?
  A: This is usually caused by PNG alpha transparency, not corrupted artwork—flatten the file to a non-transparent format.
  • Open the PNG in Microsoft Paint and use File > Save As > JPEG picture (do not use Ctrl+S).
  • Re-import the new JPEG using the Backdrop Tool and confirm the file type shows JPEG Image before loading.
  • Success check: the backdrop shows black lines on a white background (no solid black block).
  • If it still fails: re-check the original download for a checkerboard background (transparency) and re-save as a fresh JPEG with a new filename.
• Q: How do I choose line art that will auto-digitize cleanly with the Floriani Total Control U Redwork Tool?
  A: Pick simple, high-contrast, uniform-weight line art because Redwork auto-digitizing misses gaps and variable strokes.
  • Select art with uniform line weight, hard edges, and closed loops (no tiny breaks in outlines).
  • Set the target hoop size early (for example, 5x7) to avoid extreme bitmap scaling later.
  • Success check: after one click with the Redwork Tool, the run path follows the full outline without missing segments.
  • If it still fails: replace the artwork with cleaner line art instead of trying to “force” the auto-tool to interpret fuzzy edges.
• Q: What run stitch length should be used for Floriani Total Control U Redwork when curves look boxy?
  A: Reduce the run stitch length from 3.0 mm to about 2.0–2.5 mm for smoother Redwork curves.
  • Open the Properties panel and lower the run stitch length (a safe starting point is 2.2–2.5 mm).
  • Zoom in before editing so small curls and tight turns are clearly visible.
  • Success check: curves look rounder in the on-screen stitch path instead of angular “corners.”
  • If it still fails: inspect the source line art for sharp pixel steps or uneven stroke thickness that can force angular nodes.
• Q: How do I add a missing bird eye after Floriani Total Control U auto-digitizing skips small details in Redwork?
  A: Manually draw the eye with the Circle/Shape tool and set it to Run Stitch instead of fighting the auto-tool.
  • Use Shape Tool > Circle and draw the eye where it belongs.
  • Convert/set the circle to Run properties (not Fill).
  • Success check: the eye appears as a clean run-stitch circle, and any connecting jump line is visible so it can be managed.
  • If it still fails: move start/stop points closer to the main stitching (advanced) or plan to trim the jump stitch after the machine fully stops.
• Q: How do I stop thread loops and birdnesting on Redwork outlines when stitching a Floriani Total Control U design?
  A: Re-thread with the presser foot UP so the thread seats in the tension discs; loose top tension commonly causes loops and birdnesting.
  • Lift the presser foot fully, then re-thread the upper path from spool to needle.
  • Listen/feel for the thread seating into the tension area (often a subtle “click” or firm engagement).
  • Success check: stitches lock cleanly with no looping on the surface and no thread wad forming under the fabric at startup.
  • If it still fails: stop immediately, remove the nest, and re-check that the bobbin thread is being caught correctly before restarting.
• Q: What stabilizer should be used to prevent puckering when stitching Redwork on soft fabrics in Floriani Total Control U designs?
  A: Use cutaway (or poly-mesh for softer knits) instead of tearaway to prevent the “pucker tunnel” effect on Redwork.
  • Choose Cutaway stabilizer for soft fabrics; avoid Tearaway on T-shirts and similar knits.
  • Watch the first section as it stitches; stop if the fabric forms a “wave” in front of the presser foot.
  • Success check: the fabric stays flat during stitching and the finished outline does not tunnel or ripple.
  • If it still fails: re-hoop to increase firmness and verify the fabric passes the “drum” feel test before restarting.
• Q: What are the safety rules for trimming jump stitches and working near the needle on a multi-needle embroidery machine during Redwork?
  A: Keep hands out of the needle zone and only trim threads when the machine is completely stopped and the foot lifts.
  • Stop the machine fully before reaching in to trim the jump stitch (especially on small isolated elements like an eye).
  • Keep fingers away from the needle area during high-speed moves between objects.
  • Success check: trimming happens with zero needle movement and clear visibility of the thread tail (no risk of snagging into the stitch path).
  • If it still fails: slow down workflow—pause earlier, confirm the machine has stopped, and reposition hands/tools before trimming.
