Floriani Total Control U View Tools: Zoom, 3D True View, Stitch Ends, and Hoop Boundaries (So Your Design Stitches Right the First Time)

If you’ve ever stared at a design on-screen thinking “Looks fine,” then watched it stitch out with surprise trims, awkward start points, or a design that suddenly feels bigger than you expected—you’re not alone. This is the difference between "screen reality" and "physical reality."

In Floriani Total Control U (and most pro-grade software), the View Tools aren’t just “nice-to-have” features. They are your Pre-Flight Inspection. Used correctly, they catch the silent killers of embroidery: density that breaks needles, outlines that drift, and hoop boundaries that jeopardize your safety margin.

This guide rebuilds the workflow shown in the video (Zoom, Pan, 3D, Grid, Stitches, Stitch Ends, Hoop, Commands), but we are adding the Senior Operator context: why these views matter, the sensory checks you need to perform, and how to avoid the mistakes that ruin garments.

Calm the Panic: View Tools Won’t Break Your Design—They Reveal the Truth

The best part about View Tools is also the most misunderstood part: they do not alter your digitizing objects or stitches. They only change how you see them.

Beginners often avoid “clicking around” out of fear they’ll drag a node out of place. In this toolbar, you are safe. Your job here is to diagnose before you perform surgery.

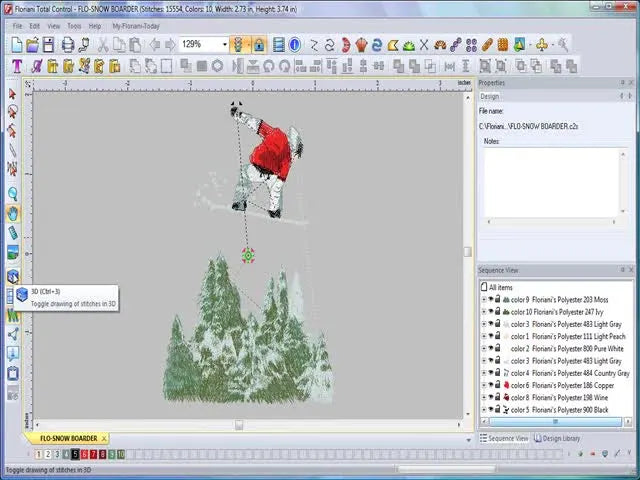

In the example file, the status bar shows 15,554 stitches, 10 colors, and a design size of 2.79 in × 3.74 in.

• Experience Check: For a design this size (roughly 3x4 inches), 15k stitches is dense. Experienced operators immediately know this will require a sturdy Stabilizer (like Cutaway) rather than a simple Tearaway.


The “Hidden” Prep Pros Do First: Calibrate Your Eyes

Before you start zooming into tiny details, do two quick prep moves to frame your mindset:

1. Calibrate Scale: Click 1:1. The screen often deceives you. A 400% zoom makes a satin stitch look like a plank of wood; 1:1 shows you the thread reality.
2. Define the Mission: Are you checking alignment (use Grid), density (use Stitch Ends), or production safety (use Hoop)?

Hidden Consumables Alert: Before checking the software, ensure your physical station is ready. Beginners often forget Temporary Adhesive Spray (like 505) and extra Topstitch 75/11 Needles. No amount of software checking fixes a dull needle.

Prep Checklist (Do this before deep editing)

• Check Stats: Confirm stitch count and dimensions in the status bar.
• Visual Calibration: Switch to 1:1 to ground your sense of scale.
• Mission Control: Decide if you are checking Geometry (Shape) or Physics (Stitch points).
• Consumables Check: Do you have the right weight stabilizer for this stitch count?


Make Zoom Behave: Navigating Without Getting Lost

The video demonstrates the Zoom dropdown in the View toolbar:

• To Fit: Fits the whole design in the window.
• To Selection: Zooms directly to a highlighted object.
• 1:1: Actual physical size.

The Veteran Tip: Use “To Fit” as your panic button. When you have zoomed so deep you are looking at individual pixels and lose orientation, "To Fit" resets your perspective instantly. Use “To Selection” for surgical edits—highlight the object first, then zoom to it. This prevents the classic mistake of editing the wrong underlay because you couldn't see the border.

Box Zoom Like a Surgeon: Targeted Inspection

The instructor uses the manual Zoom Tool (magnifying glass):

1. Click the Zoom Tool.
2. Left-click and drag a box around the detail.
3. Release to zoom in.

This is critical for checking Tie-ins and Tie-offs.

• Sensory Check: If you don't see small locking stitches at the start/end of an object, your thread will unravel in the wash.

Warning: When zoomed in tight (400%+), mouse movements are exaggerated. It is very easy to accidentally nudge a node or stitch point. If you are just looking, consider hitting Esc to exit the selection tool to prevent accidental drags.

Stop Fighting the Screen: The Pan Tool

The video switches to Pan (Hand icon or ‘P’ key).

• Left-click and hold to drag the canvas.

Why this matters: In production editing, you must maintain continuity. You inspect one letter, Pan to the next, then the next, keeping the same zoom level. If you Zoom Out -> Move -> Zoom In for every letter, your eye fatigues and you will miss errors.

3D True View: The Reality Check (and the Lie)

The instructor clicks the 3D icon to toggle True View.

What 3D is good for:

• Visualizing layer order (what sits on top of what).
• Selling the design to a customer (looks like thread).

What 3D cannot do:

• It cannot show fabric pull. A circle on screen often stitches as an oval on knit fabric.
• It cannot show puckering. Code doesn't wrinkle; fabric does.

Mental Adjustment: Treat 3D as an aesthetic preview, not an engineering blueprint.

Grid Discipline: Engineering Your Alignment

The video toggles the Grid (set to 1.5mm here).

Grid usage separates hobbyists from pros.

• Alignment: When placing text, use the grid to ensure visual centering.
• Measurement: If your grid is 10mm (1cm), you can instantly estimate if a logo is too wide for a pocket just by counting squares.


The Clean Outline View: X-Ray Vision

The instructor clicks the Stitches icon to turn stitch rendering OFF. You now see only wireframes (outlines).

Why turn stitches off? Stitches are "visual noise." They hide the skeleton of your design. By viewing only outlines, you can see:

• Gaps: Objects that don't overlap enough (will cause gaps on fabric).
• Cross-overs: Outlines that twist over themselves (will confuse the machine).

Stitch Ends: The Density Diagnostic Tool

This is the most critical technical view. The video turns on Stitch Ends, displaying small dots for every needle penetration.

The "Crunchy" Test

Embroidery is physical. Needle penetrations are holes.

• Visual Warning: If you see a solid black mass of dots at a corner or center point, you have dangerous density.
• Auditory Anchor: If you hear a loud, rhythmic THUMP-THUMP-THUMP while stitching, or a "crunching" sound, your needle is hammering a spot that is too dense.
• The Fix: Seeing this in "Stitch Ends" view allows you to reduce density or move start/stop points before you break a needle.

Warning (Physical Safety): High-density areas can deflect needles, causing them to snap. Broken needle shards can fly toward your eyes. Always wear safety glasses when testing a new, dense design.

Hoop Boundaries: Software Theory vs. Hooping Reality

The video simulates using Hoop > Suggest to find a frame that fits.

This is where beginners experience the most pain: Hopping Difficulties. The software tells you the design fits, but it doesn't tell you how hard it is to hoop a thick hoodie into that space.

The "Hoop Burn" Problem

Traditional plastic hoops rely on friction and friction alone. To hold a design secure, you must tighten them severely.

• Pain Point: This leaves "hoop burn" (permanent rings) on delicate fabrics like velvet or performance wear.
• Solution Level 1 (Skill): Use "floating" techniques (hooping stabilizer only, spraying adhesive, laying fabric on top).
• Solution Level 2 (Tool Upgrade): Introduce a magnetic embroidery hoop. Magnetic frames clamp fabric without friction, eliminating hoop burn and significantly reducing strain on your wrists.

Decision Tree: Matching Hoops to Production

• Design just fits the line?
  • Risk: High. Fabric shift may hit the rim. Move up one hoop size.
• Stitching on difficult items (Bags/Pockets)?
  • Risk: Impossible to clamp. A standardized hooping station for embroidery helps align these tricky items, but often you need specialized clamp frames.
• Running a business batch (50 shirts)?
  • Efficiency: Manual plastic hooping is slow. For Brother/Baby Lock multi-needle machines, professionals often switch to brother embroidery hoops that are magnetic to double their speed.

Warning (Magnet Safety): Strong magnetic hoops can pinch fingers severely. Keep them away from pacemakers, credit cards, and sensitive electronics. Slide the magnets apart; do not pry them.

Commands View: Examining the Machine's Path

Finally, toggle Commands to see Trims (Scissors), Stops (Stop Sign), and Start/End points.

Efficiency Check:

• Trims: Each trim takes 7-10 seconds of machine time (slow down, cut, speed up). 50 unnecessary trims = 8 minutes of lost production per hour.
• Start/End: Ensure your start point allows the machine to accelerate smoothly, and your end point doesn't leave a tail in the middle of a letter.

The Production Workflow: From Screen to Profit

Reviewing files is about protecting your machine and your time. If you struggle with physical alignment despite perfect software settings, the issue is likely your physical workflow.

Serious hobbyists and commercial shops use a specific "Pre-Flight" checklist to bridge this gap.

Operation Checklist (The 60-Second Scan)

1. Reset: View To Fit, then 1:1.
2. Geometry: Toggle Stitches OFF. Are outlines clean? Any weird gaps?
3. Density: Toggle Stitch Ends ON. Look for black clusters (danger zones).
4. Hardware Match: Turn Hoop on. Is there a safety margin (at least 10mm) from the edge?
5. Efficiency: Toggle Commands. Are there 100 trims? (If so, optimize entry/exit points).
6. Physical Setup: Select the correct needle (e.g., 75/11 BP for knits) and Stabilizer (Cutaway for knits).

Tools for Growth

If you find yourself spending more time fighting the hoop than stitching:

• Look into a hoopmaster hooping station or similar alignment jigs. These ensure that "Center Chest" is actually in the center, every single time.
• For those with compatible machines, a baby lock magnetic embroidery hoop or the equivalent for your brand changes the game from "wrestling fabric" to "click and go."
• When managing different machines, standardizing your hoops for embroidery machines allows you to move projects between stations without re-hooping.

Final Thought: The software shows you the ideal path. Your tools (stabilizers, needles, hoops) create the stability to make that path a reality. Use the views to catch the errors, and use the right tools to guarantee the result. Or, as we say in the industry: Inspect twice, stitch once.

FAQ

• Q: In Floriani Total Control U View Tools, will clicking Zoom, Pan, 3D True View, Grid, Stitches, Stitch Ends, Hoop, or Commands change stitches or ruin the design file?
  A: No—Floriani Total Control U View Tools only change what you see, not the underlying objects or stitches.
  • Use To Fit as a “panic reset” when you get lost at high zoom.
  • Switch to 1:1 before judging satin width, spacing, and overall size.
  • Toggle views one at a time (Stitches OFF, then Stitch Ends ON, then Hoop/Commands) to diagnose instead of guessing.
  • Success check: After toggling views, the design’s stitch count/dimensions in the status bar remain the same and only the display changes.
  • If it still fails: If edits happen accidentally while zoomed in, exit the active tool (Esc) before panning/inspecting.
• Q: In Floriani Total Control U, how do I use 1:1 view to stop designs from stitching “bigger than expected” compared with the on-screen preview?
  A: Set Floriani Total Control U to 1:1 before making any final size decisions, because heavy zoom can fool the eye.
  • Click 1:1 to calibrate “thread reality” before evaluating satin widths and spacing.
  • Compare the status bar design dimensions to the real placement area on the garment/hoop plan.
  • Use Grid to sanity-check scale and placement when fitting to pockets or tight areas.
  • Success check: At 1:1, the design looks proportionate (not “cartoon thick”), and the listed dimensions match the intended real-world space.
  • If it still fails: Re-check the chosen hoop boundary view to confirm there is a safe margin around the design.
• Q: In Floriani Total Control U, how do I diagnose dangerous stitch density before stitching when corners look “crunchy” or needles break?
  A: Turn on Stitch Ends and hunt for solid black clusters of dots—those are high-risk density zones.
  • Toggle Stitch Ends ON to display every needle penetration as a dot.
  • Zoom into corners/centers where dots pile up into a dark mass and flag those areas for density reduction or start/stop changes.
  • Listen during test runs for loud rhythmic “THUMP-THUMP-THUMP” or crunching—this often matches what Stitch Ends warned you about.
  • Success check: Stitch Ends view shows distinct dots (not a packed black blob) in corners, and test stitching sounds smooth instead of “hammering.”
  • If it still fails: Stop the test run and revise density/start-stop placement before continuing—needle deflection and snapping can happen in dense spots.
• Q: What needle safety steps should operators follow when testing a new high-density embroidery design that may snap needles?
  A: Treat high-density tests as a safety-risk run—wear eye protection and stop immediately if the needle starts deflecting or snapping.
  • Wear safety glasses when running a new, dense file.
  • Watch and listen for warning signs (hard thumping/crunching, repeated hits in one spot).
  • Pause the run and inspect density using Stitch Ends before attempting another sew-out.
  • Success check: No needle deflection/snaps occur during the test segment, and the machine sound remains steady rather than harsh and repetitive.
  • If it still fails: Reduce density or relocate entry/exit points in the design before another attempt.
• Q: In Floriani Total Control U, why does “Hoop > Suggest” say a design fits, but the real garment is still hard to hoop (especially thick hoodies), and what should I do next?
  A: Hoop suggestion checks size on-screen, not real-world hooping difficulty—leave extra margin and use a staged approach for tough garments.
  • Turn Hoop boundary ON and ensure a safety margin (commonly at least 10 mm) between design and hoop edge.
  • If the design “just fits the line,” choose the next hoop size up to reduce rim-strike and shifting risk.
  • Use a Level 1 workaround: hoop stabilizer only, apply temporary adhesive spray, and lay fabric on top (“float”) to reduce hoop stress.
  • Success check: The design stays clearly inside the hoop boundary with margin, and the fabric sits stable without fighting the hoop ring.
  • If it still fails: Consider a magnetic embroidery hoop to clamp without friction and reduce hoop burn/hooping strain.
• Q: How do I prevent hoop burn on velvet or performance fabric when using traditional plastic embroidery hoops, and when does a magnetic embroidery hoop make sense?
  A: Reduce friction-based clamping first, then consider a magnetic embroidery hoop if hoop marks and wrist strain keep happening.
  • Float the garment: hoop stabilizer only, use temporary adhesive spray, and smooth fabric onto the hooped stabilizer.
  • Avoid overtightening: clamp only as much as needed to prevent shifting.
  • Upgrade the tool when needed: magnetic embroidery hoops clamp fabric without the same friction pressure that causes hoop burn.
  • Success check: After stitching, the fabric shows no permanent ring marks and the garment surface recovers without visible crushing.
  • If it still fails: Re-check hoop boundary margin and fabric stability—designs too close to the rim and fabric shift can force overtightening.
• Q: What magnetic hoop safety rules should operators follow to avoid finger pinches and interference with electronics or pacemakers?
  A: Handle magnetic hoops like strong clamps—slide magnets apart and keep them away from medical devices and sensitive items.
  • Slide magnets apart; do not pry them open where fingers can get trapped.
  • Keep magnetic hoops away from pacemakers, credit cards, and sensitive electronics.
  • Set a clear, consistent placement routine so hands are never between mating magnet surfaces.
  • Success check: The hoop closes without sudden snapping, no pinched fingers occur, and the hoop is stored away from restricted items.
  • If it still fails: Stop and retrain the handling motion—most injuries happen from rushing the close/open action.
• Q: In Floriani Total Control U Commands view, how do I reduce unnecessary trims and improve production efficiency when a file shows too many scissors icons?
  A: Use Commands view to spot trim overload, because each trim costs machine time—then optimize the path before stitching batches.
  • Toggle Commands ON and count where trims (scissors), stops, and start/end points occur.
  • Treat trims as time loss: each trim can take 7–10 seconds, so many trims can quietly drain output.
  • Adjust the design strategy by minimizing avoidable trims and ensuring start/end points won’t leave a tail in the middle of letters.
  • Success check: Commands view shows fewer unnecessary trims, and the run stitches with less stop-start behavior.
  • If it still fails: Run the 60-second scan (Stitches OFF, Stitch Ends ON, Hoop ON, Commands ON) to confirm density and hoop margin aren’t forcing extra stops or thread issues.
