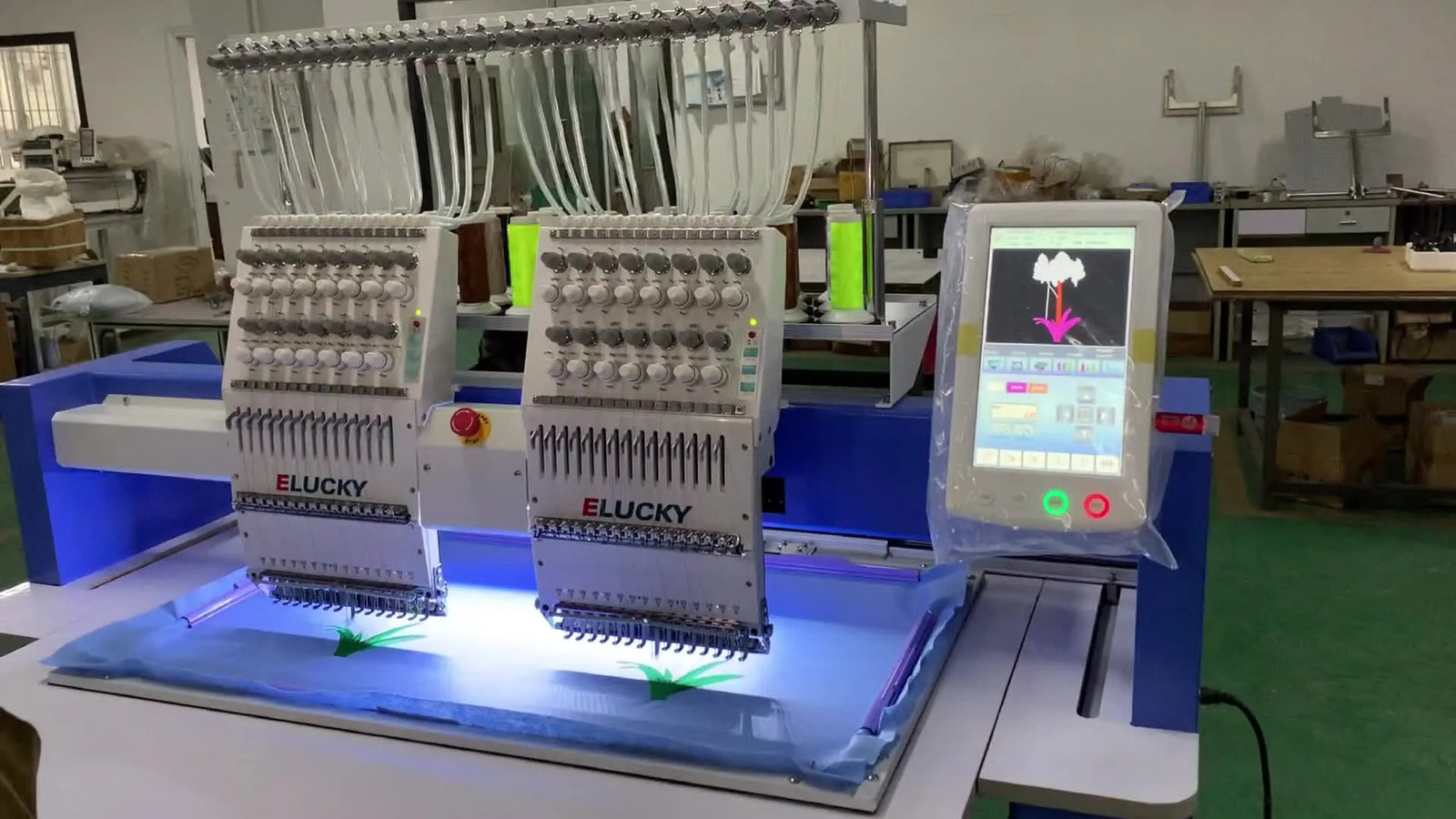

From Caps to Flat in 10 Minutes: Converting an ELUCKY 2-Head Machine Without Loose Screws, Wobbly Tables, or Ruined Runs

Switching a commercial machine from caps to flat embroidery should feel routine—but the first time you do it, the fear is real. You worry about stripping a screw, mounting the table crooked, or watching a large frame wobble itself into a registration nightmare.

This ELUCKY 2-head conversion guide changes the narrative. It’s not just a mechanical swap; it’s a precision protocol. We will treat this like a pilot’s pre-flight check: hardware first, stability second, and a strictly defined "safe zone" for your RPM.

The “Don’t Panic” Primer: What Changes When You Convert an ELUCKY Cap Driver to Flat Embroidery

On a multi-head machine, the "Cap Driver" is the cylindrical unit that rotates your hat. To switch to flats, we must surgically remove that rotation and replace it with a stable X-Y plane—the "Flat Table."

The confusing part for beginners is usually the Pantograph (the moving beam). You aren't changing the beam itself; you are changing the connectors attached to it.

The Golden Rule: Stability is the only metric that matters. Even a 1mm gap in your table leveling will translate to gaps in your embroidery design.

The “Hidden” Prep Pros Do First: Tools, Screws, and a Stability Mindset Before You Touch the Machine

Amateurs rush to loosen screws. Pros stage their environment first. If you don't have the right tools within arm's reach, you will cut corners, and that’s when accidents happen.

Your "Surgical" Tray Needs:

• T-handle Allen Key (Metric): Usually 3mm or 4mm. T-handles offer better torque control than L-keys.
• Open-Ended Wrench: For leveling the table feet (usually 10mm or 12mm).
• The "Hidden" Consumables:
  • Machine Oil: A drop on the rail before mounting the table helps it slide.
  • Masking Tape: To label your "Top" vs "Bottom" screws (they often look identical but wear differently).
• The Hardware: The flat table attachment, the large aluminum sash frame, and the purple retaining clips.

Ergonomics Note: Clipping a sash frame requires significant grip strength. If you are doing this daily, consider a dedicated hooping station for machine embroidery to save your wrists and keep the fabric clean.

Warning: Mechanical Hazard. Always power down the machine or engage the "Emergency Stop" before putting your hands near the needle bar or pantograph. A sudden sensor trigger can move the frame with enough force to crush fingers.

Prep Checklist (Do NOT skip)

• Power Protocol: Machine is in a safe state (E-Stop engaged).
• Tool Staging: T-handle and wrench are on a side cart, not the floor.
• Floor Check: Is the floor debris-free? A single thread spool under a table leg ruins stability.
• Hardware Count: Confirm you have all sash frame brackets (left and right) for both heads.


The Clean Removal: Taking Off the ELUCKY Cap Driver Attachment Without Losing Alignment

The video demonstrates removing the cap driver. This unit is heavy and precision-aligned.

The 3-Screw Protocol:

1. Identify the Two Top Screws and One Bottom Screw holding the driver to the rail.
2. Loosen, Don't Remove: Use your T-handle key to loosen them about 3-4 turns. You want the driver to slide, not fall.
   • Sensory Check: You should feel the driver become "loose" in your hand.
3. The Slide: Gently pull the driver unit straight off the rail.

Why we don't fully remove screws: Dropping a screw into the machine chassis is a 2-hour nightmare. Keep them in the driver unit if possible, or place them immediately in a magnetic bowl.

The Flat Table That Doesn’t Rock: Installing and Leveling the ELUCKY Flat Table Attachment

Slide the large flat table into position under the sewing heads. This is your foundation. If this table rocks, your needles will break.

The Leveling Procedure:

1. Tighten the main mounting knobs to secure the table to the machine body.
2. The "Shake Test": Grab the front corners of the table and try to shake it.
   • Auditory/Tactile Check: If you hear a "clunk-clunk" or feel the table tip, it is not safe to stitch.
3. Precision Adjustment: Use your wrench on the threaded feet. Extend them until they press firmly against the floor, then lock the nut.


Checkpoint: The table must be dead silent when you lean on it.

Expected Outcome: The table feels like a solid extension of the machine chassis.

Common Mistake: Beginners often level the table before tightening the main body knobs. Always tighten to the machine first, then level to the floor.

Hooping a Large Aluminum Sash Frame With Purple Clips—Fast, Even, and Without Wrinkles

The "Sash Frame" is the large aluminum rectangle that allows you to embroider huge designs (like jacket backs or flags).

The Challenge: Traditional clips rely on friction. If the fabric is loose, you get "flagging" (bouncing fabric), which causes birdnests.

The "Star Pattern" Technique:

1. Lay your backing and fabric over the frame.
2. Don't clip one entire side at once. This pulls the fabric off-center.
3. Place one clip on the Top (Center), then one on the Bottom (Center).
4. Pull the fabric taut—like stretching a canvas—and clip the Left (Center) and Right (Center).
5. Work your way out to the corners.

Sensory Anchor: When finished, tap the fabric with your finger. It should sound like a tambourine or a low drum. If it sounds like a loose sheet, re-hoop.

If you are researching hooping for embroidery machine techniques because your hands hurt, know that this physical strain is the #1 reason shops eventually upgrade to magnetic frames.

Checkpoint: Fabric is drum-tight with no "waves" near the edges.

Decision Tree: Fabric Support Strategy

Use this logical flow to choose your stabilizer (backing).

• Scenario A: Stretchy Fabric (T-shirt, Polo, Performance Knit)
  • Action: Use Cutaway stabilizer (2.5oz or 3.0oz).
  • Adhesive: Use temporary spray adhesive to bond fabric to stabilizer.
  • Why: Knits stretch. If you strictly use tearaway, the design will distort.
• Scenario B: Stable Woven (Denim, Twill, Canvas)
  • Action: Tearaway is usually sufficient (use 2 layers for density >10k stitches).
  • Why: The fabric supports itself; the backing just anchors the stitch.
• Scenario C: Slippery/Thin (Silk, Satin)
  • Action: Cutaway + Soluble Topping.
  • Why: Topping prevents stitches from sinking; cutaway prevents puckering.


Locking the Sash Frame to the Pantograph: The “No Drift” Mounting Method on an ELUCKY 2-Head

This is the moment of truth. You are connecting the frame to the machine's "brain" (the X-Y motor).

1. Slide the sash frame brackets under the pantograph bar.
2. Align the holes with the same mounting points used for the cap driver.
3. Torque Control: Use the T-handle. Tighten firmly.
   • Sensory Check: You want "white knuckle" tightness here. The frame is heavy; momentum will try to loosen these screws.


Checkpoint: Grab the frame and wiggle it gently. The entire machine beam should move with it. There should be zero independent play in the bracket.

Pro Tip: If you see "double outlining" in your final embroidery, 90% of the time it is because these screws loosened up during the run.

Touchscreen Boundaries First: Selecting ELUCKY Frame “F” So the Machine Knows Its Limits

Hardware is done. Now, software. You must tell the machine, "I am no longer wearing a hat; I am wearing a giant rectangle."

1. Go to the Frame Selection Menu.
2. Select Frame "F" (The largest square icon).
   • Data: This typically sets the field to approx 500mm × 350mm (model dependent).
3. Confirm.

If you skip this, the machine might think it's still in "Cap Mode" (Y-axis flip) or a smaller hoop, leading to a frame collision that can snap a needle bar.

USB Import Done Right: Loading the Design File on the ELUCKY Control Panel Without Guesswork

1. Insert USB.
2. Press the USB icon on the panel.
3. Select your file (DST or DSB format is standard).
4. Visual Check: Does the design preview look correct? Is it rotated correctly?

Note: Always keep your filenames short (under 8 characters) and alphanumeric to avoid file reading errors on industrial panels.

The 8-Color Reality Check: Assigning Needle Numbers to Match Your Thread Cones

Commercial machines don't know that "Needle 1" is "Red." You have to tell it.

• The Task: Map the design's color stops (1, 2, 3...) to the physical needles (1-12 or 1-15).
• The Workflow: Look at your thread stand. If Red is on Needle 5, assign Needle 5 to the corresponding stop in the design.

Correct needle assignment prevents the dreaded "wrong color" mistake that ruins an expensive jacket back. When evaluating embroidery machine hoops and setups, remember that color setup time is just as critical as hooping time.

The Border Trace That Prevents Collisions: “Check Border” Before You Press Start

Never press Start without tracing.

1. Press the Check Border (or Trace) icon.
2. Watch the Needle: The machine will outline the square area of the design.
3. Safety Buffer: Ensure the needle stays at least 1.5 cm (0.5 inch) away from the plastic frame clips at all times.


The Green Button Moment: Starting Flat Embroidery at Safe Speeds

The video mentions 850 RPM. For an experienced operator, this is fine.

Expert Advice for Beginners: Do not start at 850 RPM. Start at 600 RPM.

• Why? At 600 RPM, you can visually see if the thread is fraying or if loops are forming.
• Once the first 500 stitches are smooth, ramp up to 750 or 800 RPM.
• Listen: The machine should hum rhythmically. A loud "Clack-Clack" means the table isn't level or the bobbin is loose.

If you find yourself constantly switching between caps and flats, consider keeping a dedicated cap hoop for embroidery machine assembly on a separate cart to speed up the transition.

Operation Checklist (The "Pre-Flight")

• Frame Selection: set to Frame "F" on screen.
• Trace: Completed successfully (No collisions).
• Bobbin: Check that you have a full bobbin (don't run out mid-jacket).
• Speed: Set to 600-700 RPM for start.
• Clearance: Are the sleeves/shirt tails tucked away so they don't get sewn to the table?


Why Big Frames Misbehave: The Physics of Hooping Tension, Table Level, and Pantograph Leverage

Large frames act like sails—they catch every vibration.

1. Hoop Burn: Those purple clips hold tight, but they can crush the nap of velvet or leave shiny marks on dark poly-cotton.
2. Hand Fatigue: Clipping 50 jackets with sash frames is exhausting.

The Solution (Level 2 Upgrade): This is why professionals often switch to magnetic embroidery hoops. They snap on automatically, holding thick garments (like Carhartt jackets) firmly without the physical struggle of clips. They solve the "Hoop Burn" issue and drastically reduce setup time.

Warning: Magnetic Safety. MaggieFrame and other industrial magnetic hoops utilize N52 Neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can crush fingers instantly if mismatched.
* Medical Device: Keep at least 6 inches away from pacemakers.

Troubleshooting the Two Problems That Kill Flat Conversions: Wobble and Instability

If your design has jagged edges or gaps, use this lookup table:

Symptom A: "The design outline doesn't match the fill" (Registration Loss)

• Likely Cause: The Table is vibrating, or the Sash Frame screws are not tight.
• The Fix: Re-do the "Shake Test" on the table. Tighten the pantograph screws with the T-handle until immovable.

Symptom B: "Thread breaks every 2 minutes"

• Likely Cause: "Flagging." The fabric is bouncing because it's too loose in the frame.
• The Fix: Re-hoop. It must sound like a drum. Add a layer of backing.

If you are looking for a commercial embroidery machine for sale, prioritize machines like SEWTECH that feature heavy-duty bridge structures—mass dampens vibration, which is the enemy of large flat embroidery.

The Upgrade Path That Actually Saves Time: From Clip Frames to Magnetic Hoops, and From Hobby Runs to Production Runs

The ELUCKY 2-head conversion shown here is the industry standard baseline. It works, but it is manual and labor-intensive.

How to Scale Your Business:

1. Level 1 (Technique): Master the "Drum Skin" hooping and Table Leveling described above.
2. Level 2 (Tooling): Upgrade to Magnetic Hoops. This eliminates clipper fatigue and creates cleaner results on difficult fabrics.
3. Level 3 (Capacity): When you are running 50+ item orders, a single 2-head machine might be your bottleneck. High-efficiency/High-speed machines from SEWTECH are designed to run these large embroidery frame jobs with less vibration and higher maintained speeds.

Setup/Teardown Checklist (Post-Job)

• Park: Move pantograph to "Park" position (usually Center).
• Unload: Remove Frame "F" and store vertically (to avoid bending).
• Hardware: If removing the table, place screws back into the holes so they don't get lost.
• Clean: Wipe oil/dust from the rail before reinstalling the cap driver.

FAQ

• Q: How do I safely remove the ELUCKY 2-head cap driver attachment without dropping screws or losing alignment?
  A: Power down or engage E-Stop first, then loosen (do not remove) the two top screws and one bottom screw so the cap driver can slide off under control.
  • Engage: Press Emergency Stop before hands go near the needle bar or pantograph.
  • Loosen: Back each of the 3 screws out about 3–4 turns so the unit becomes “loose,” but still captured.
  • Slide: Pull the cap driver straight off the rail—no twisting.
  • Success check: The cap driver comes off smoothly without “falling,” and all screws stay with the unit or go straight into a magnetic bowl.
  • If it still fails: Stop and re-check that the correct 3 screws are loosened (2 top + 1 bottom) and the unit is being pulled straight, not at an angle.
• Q: How do I level the ELUCKY flat table attachment so the flat table does not rock or cause needle breaks?
  A: Tighten the table to the machine body first, then level the threaded feet to the floor until the table is dead silent during a shake test.
  • Tighten: Secure the main mounting knobs to lock the table to the machine.
  • Test: Grab both front corners and perform the “Shake Test.”
  • Adjust: Use an open-ended wrench on the threaded feet; extend to press firmly on the floor, then lock the nut.
  • Success check: No “clunk-clunk” sound and no tipping when leaning on the table—zero rock.
  • If it still fails: Re-tighten the main body knobs (many beginners level too early), then repeat the shake test and foot adjustment.
• Q: How do I hoop a large aluminum sash frame with purple retaining clips without wrinkles or fabric flagging on an ELUCKY flat embroidery setup?
  A: Clip in a star pattern (center top/bottom/left/right first) and re-hoop until the fabric sounds like a drum when tapped.
  • Place: Lay stabilizer and fabric over the sash frame.
  • Clip: Start at Top center, Bottom center, Left center, Right center, then work outward toward corners.
  • Tension: Pull fabric taut like stretching a canvas before adding each next clip.
  • Success check: Tap the fabric—it should sound like a tambourine/low drum and show no “waves” near edges.
  • If it still fails: Add a layer of backing and re-clip; persistent bouncing usually means the fabric is not tight enough in the frame.
• Q: What stabilizer choice should be used for ELUCKY large flat embroidery when switching between stretchy knits, stable wovens, and slippery thin fabrics?
  A: Match stabilizer to fabric behavior: cutaway for knits, tearaway for stable wovens, and cutaway plus soluble topping for slippery/thin fabrics.
  • Use: Cutaway (2.5oz or 3.0oz) for T-shirts/polos/performance knits; add temporary spray adhesive to bond fabric to stabilizer.
  • Use: Tearaway for denim/twill/canvas; add a second layer when stitch density is high (e.g., over 10k stitches).
  • Use: Cutaway + soluble topping for silk/satin to prevent sinking and puckering.
  • Success check: The design stitches without visible distortion on knits and without puckering or sinking on thin/slippery fabrics.
  • If it still fails: Re-hoop to drum-tight first—many “stabilizer problems” are actually hooping-tension problems.
• Q: How do I lock an ELUCKY 2-head sash frame to the pantograph so the sash frame brackets do not drift and cause double outlining?
  A: Mount the sash frame brackets to the same points as the cap driver and tighten firmly with a T-handle so there is zero independent play.
  • Align: Slide brackets under the pantograph bar and line up holes with the cap-driver mounting points.
  • Tighten: Use a T-handle Allen key and torque firmly (the heavy frame’s momentum will work screws loose).
  • Verify: Grab the frame and gently wiggle to check for any looseness.
  • Success check: The entire machine beam moves when the frame is wiggled—no separate bracket movement.
  • If it still fails: Stop the run and re-torque the bracket screws; registration loss is very often loose sash frame screws or table vibration.
• Q: Why must ELUCKY embroidery operators select Frame “F” and run “Check Border/Trace” before starting a large flat design?
  A: Select Frame “F” so the machine knows the large field, then trace to confirm clearance and prevent frame collisions.
  • Select: Open the Frame Selection menu and choose Frame “F” (the largest square icon; field size is model dependent).
  • Trace: Run Check Border/Trace and watch the needle path around the design boundary.
  • Clear: Keep at least 1.5 cm (0.5 inch) away from plastic frame clips during tracing.
  • Success check: The traced border clears all clips and hardware with a visible safety buffer the entire loop.
  • If it still fails: Reposition the design or re-hoop and trace again before pressing Start—do not “try anyway” on large frames.
• Q: What is a safe starting RPM for ELUCKY flat embroidery after a cap-to-flat conversion, and what sounds indicate instability?
  A: Start beginners at about 600 RPM, then only ramp up after the first ~500 stitches run smoothly; loud clacking usually means a leveling or bobbin issue.
  • Set: Begin at 600–700 RPM so thread behavior is easy to monitor.
  • Observe: Watch the first 500 stitches for fraying, loops, or instability before increasing to 750–800 RPM (experienced operators may run higher).
  • Listen: A steady hum is normal; a loud “clack-clack” points to table not level or bobbin loose.
  • Success check: The machine runs with a rhythmic hum and the stitch formation stays consistent through the first 500 stitches.
  • If it still fails: Re-do the table shake test and re-check bobbin setup; reduce speed again until stability is confirmed.
