From Coloring Book to Stitches on a Baby Lock Destiny: Scan, Crop, and Color in IQ Designer (Without the Usual Headaches)

If you’ve ever watched someone scan a drawing into a Baby Lock Destiny and thought, “That looks easy… until I try it,” you’re not alone. The machine is a powerhouse, but it often feels like flying a spaceship when you just want to drive to the grocery store.

The good news: the workflow really is simple—if you respect a few non-obvious rules that experienced embroiderers usually learn through trial and error (and wasted stabilizers).

In this tutorial, we analyze how Meadow demonstrates taking a coloring book page (Elsa-style line art), securing it in the Baby Lock Scanning Frame using specific magnetic anchors, scanning it into IQ Designer, and transforming it into a stitchable design.

But we are going to go deeper than just "push this button." We are going to look at the tactile cues, the safety checks, and the professional habits that ensure your first scan is a success, not a frustration.

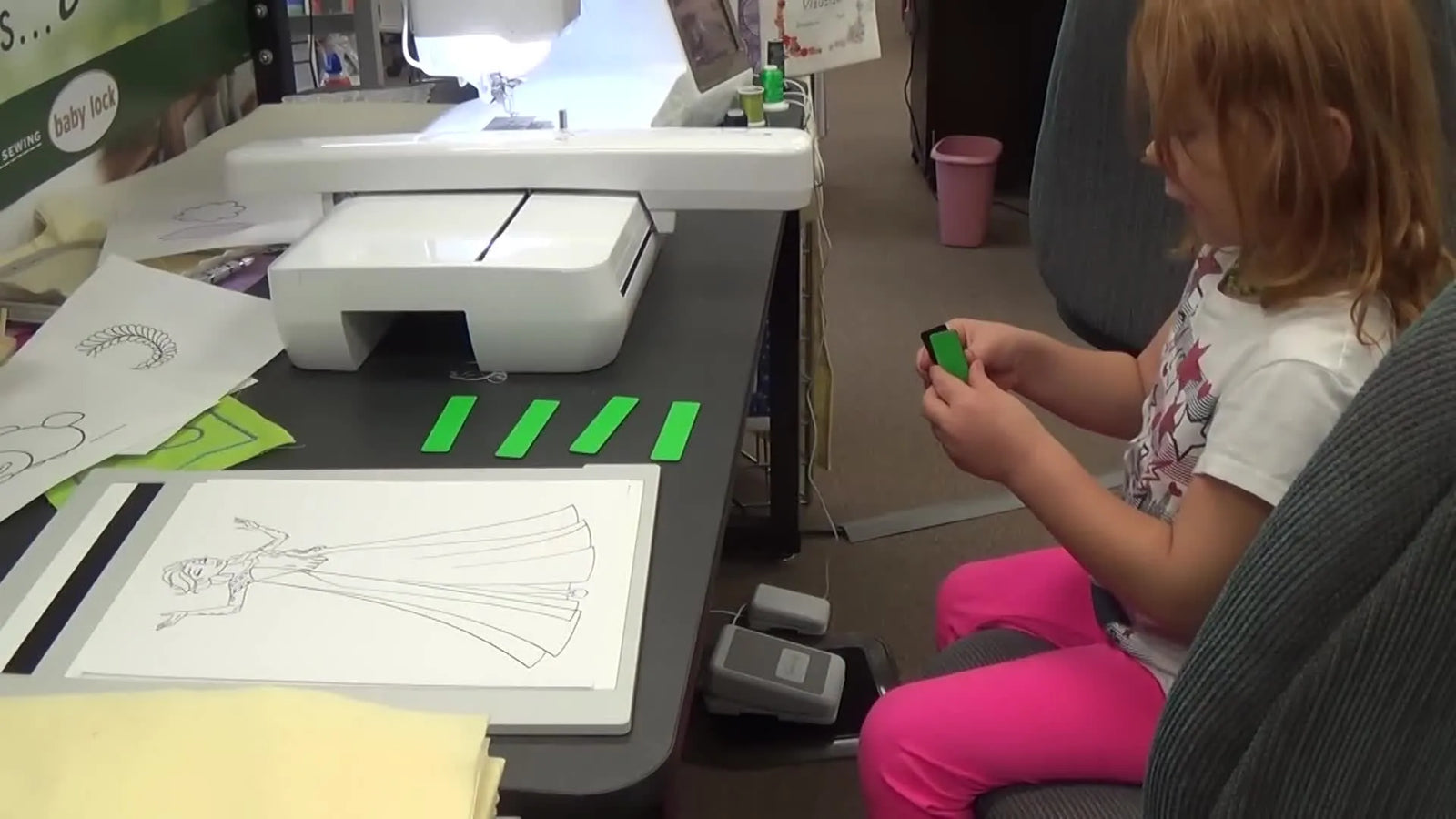

The Baby Lock Destiny Scanning Frame + Green Magnets: the “flat and square” rule that makes or breaks your scan

The Scanning Frame is essentially your camera stage. It holds the paper at a precise focal distance. If you treat this step casually, your digital output will be distorted before you even begin.

Meadow’s key habit is the one I wish every beginner copied: keep the paper flat and keep the frame’s black-and-white stripes unobstructed.

The Anatomy of the Frame

Those zebra stripes on the side are not decoration—they are fiducial markers (visual reference points). The machine needs to "see" them to orient itself.

• The Error: If you cover even a sliver of these stripes with your thumb or the magnet, the scanner gets confused. You’ll get a "Recognition Failed" error or a skewed image.
• The Fix: Always verify a clear line of sight along the frame edges.

If you are researching efficient workflows, you might see professionals discussing the magnetic frame for embroidery machine. While the scanning frame uses simple strip magnets, the concept is identical to the pro-grade magnetic hoops used for stitching: even pressure equals zero distortion. Unlike clips or tape, which pull at specific points, magnets hold the material flat, preventing the "bowing" that causes shadows and blurry scans.

Warning: Respect the Magnets. Even the scanning magnets can snap together surprisingly fast. Be careful not to pinch your skin between them. Furthermore, keep all strong embroidery magnets at least 6 inches away from pacemakers, insulin pumps, and computerized machine screens/hard drives to avoid interference or data corruption.

The “Hidden” Prep on Baby Lock Destiny IQ Designer: set yourself up so the digitizing is clean, not frustrating

Meadow starts with a simple choice: use a photocopy or a coloring book page placed on the white scanning board.

Here is the veteran add-on: your scan quality is 90% decided before you touch the LCD screen. IQ Designer is powerful, but it cannot fix a bad source image without tedious editing.

• Contrast is King: Dark, thick markers on bright white paper work best. The machine looks for high contrast to define edges. Pencil sketches are often too gray and will result in broken lines.
• The Shadow Enemy: Avoid wrinkled paper. A wrinkle casts a tiny shadow. The scanner interprets that shadow as a line, creating "noise" in your design that you'll have to erase manually.
• The "Sweet Spot" Placement: Center your art. You don't need a ruler, but visualization helps. If the art is centered, you maximize the usable stitch field.

Pro Tip: If using a coloring book page, tear it out carefully. The ragged edge from the binding can sometimes lift the paper, creating shadows. Trim it straight with scissors first.

Prep Checklist (before you touch the machine)

• Source Material: High-contrast line art (photocopy or coloring book) selected.
• Page Condition: Paper is smooth, unwrinkled, and trimmed of ragged edges.
• Placement: Centered on the white board; magnets placed top and bottom, parallel to the edge.
• Marker Check: Visual confirmation that no magnet or paper corner is covering the black-and-white frame stripes.
• Tool Check: Stylus is in hand (fingers are too clumsy for the next steps).


Loading the Scanning Frame into the Baby Lock Destiny embroidery module: the click + lever routine

This is a physical, sensory step. Meadow slides the scanning frame into the embroidery module slot.

The Auditory Cue: Push gently until you hear a distinct "Click." The Tactile Cue: The frame should lock into place. It should not wiggle looser.

Once seated, she lowers the lever. This locks the carriage. On the screen, she selects IQ Designer > Scan. The machine will display a prompt warning that the frame will move.

Machine Health Reality Check: If you feel resistance when inserting the frame—STOP. Do not force it. Plastic gears are expensive to replace. Pull it out, check for thread nests or dust in the slot, and try again. The motion should be smooth like a drawer on ball bearings.

Warning: Keep Hands Clear. Once you press "Scan," the carriage will move the frame rapidly to position it under the built-in camera. Keep fingers, loose hair, jewelry, and curious children away from the needle and carriage area. Never reach into the operational zone while the machine is in motion.

Choosing “Create Line Image” vs “Create Fill Image” in IQ Designer: pick the path that matches your artwork

Meadow shows the scan menu where you must choose your processing algorithm: Create Line Image vs. Create Fill Image. This choice confuses many beginners.

Here is the logic filter:

1. Create Line Image (The Skeleton):
   • Best for: Coloring book pages, line drawings, handwriting.
   • Result: The software detects the outlines and lets you fill the insides later (just like Microsoft Paint). This is what Meadow uses here.
2. Create Fill Image (The Blob):
   • Best for: Solid logos, silhouettes, or art that is already colored.
   • Result: The software tries to convert colored patches into stitch blocks. It is much more sensitive to "noise" (shadows on the paper).

Expert Advice: If you are unsure, default to Line Image. It gives you more control over the digitizing process. You can always add fills manually, but removing messy auto-fills is a headache.

Cropping on the Baby Lock Destiny screen: tighten the red box so your design doesn’t waste hoop space

After the camera fires, you will see your image on the screen. Meadow uses the red arrow handles to crop.

Do not skip this. Beginners often leave the crop box wide. This is a mistake because:

1. Processing Speed: The machine has to "think" about the empty white space.
2. Stitch Field: If you leave a massive margin, the machine calculates the design center based on that margin, potentially offsetting your actual embroidery.

The Action: Drag the red arrows until they effectively "hug" your design, leaving just a few millimeters of breathing room. Meadow confirms with "Okay/Looks good," and the machine processes the line art.

Filling regions with the IQ Designer “bucket” tool: how Meadow assigns thread colors without overthinking it

Now we enter the creative phase. Meadow selects the Fill Bucket icon (Region Property).

• Action: Select a color (e.g., Light Blue #019).
• Action: Tap inside the enclosed area (the dress).

This functions exactly like the "Paint Bucket" tool in basic graphic software. However, in IQ Designer, you are assigning stitch instructions, not just pixels. When you tap "Blue," you are telling the machine: "Please calculate a tatami (fill) stitch here with 45-degree angles in this specific color."

If you eventually upgrade your tools, you will find that a magnetic hoops for babylock embroidery machines setup effectively mirrors this "region-based" logic in the physical world—keeping distinct fabric areas equally tensioned so the stitches land exactly where you envisioned them on the screen.

The zoom trick Meadow uses for tiny details: prevent “missed fills” and ugly gaps

Meadow encounters a common issue: small areas are hard to hit. Her solution is the Magnifying Glass (Zoom) tool.

The Mechanics of Failure: If you try to fill a tiny area (like an eye or a jewel) at 100% zoom and your stylus misses by 1mm:

• Scenario A: You hit the black line. The machine turns the outline blue.
• Scenario B: You hit the white space outside. The background turns blue.
• Scenario C: You hit the area, but the outline has a microscopic gap. The "paint" spills out and fills the whole screen.

The Sensory Check: When you fill an area, look for a clean, contained texturing of that specific shape. If the color "leaks," hit Undo, Zoom in further (200% or 400%), and try again. The Zoom tool is your precision instrument—use it early and often.

Building a clean color plan on-screen: Meadow’s “light first, then dark” rhythm

Meadow fills the hair yellow, adds highlights, and then moves to skin tones. Notice a pattern? She generally works from background to foreground, or light to dark.

While IQ Designer allows you to click anywhere, adopting a systematic rhythm helps your brain keep track of what has been digitized.

• Layering Logic: In actual embroidery usage, lighter colors often form the base, while darker colors provide contrast/outline.
• Commercial Mindset: If you plan to sell this design (e.g., a localized school mascot), save the "base" file. You can reopen it later and just change the jersey color from blue to red for a different customer, saving you 20 minutes of scanning time.








The part nobody tells you: scanning is “tension management,” just not the thread kind

You might think scanning is purely digital, but it is actually a physical discipline. The quality of the scan relies on the tension of the paper.

• Loose Paper: Creates shadows -> Creates digital noise.
• Tight Paper: Creates crisp lines -> Creates clean stitches.

This is the exact same physics principle that applies to actual embroidery. Hooping is everything. Beginners often blame the machine or the thread when a design puckers, but 80% of the time, the fabric moved in the hoop.

Traditional screw-hoops rely on friction and hand strength (which can fade after the 10th t-shirt). This is why professionals gravitate toward magnetic systems. They clamp the material vertically with consistent force, eliminating the "tug-of-war" that distorts fabric grain. If you master the "flat and stable" rule here with scanning paper, apply that same rigor to your fabric.

Fabric-to-stabilizer decision tree (so your scanned design stitches cleanly later)

Meadow’s video covers the software, but the stitches have to land on something. A dense fill stitch (like the one created by the bucket tool) has a high "pull" factor. Without the right support, your fabric will pucker.

Use this decision tree before you press "Stitch":

Q1: Is the fabric stretchy (T-shirt, Hoodie, Knit)?

• YES: MUST USE Cutaway Stabilizer.
  • Why: Knits stretch. Tearaway stabilizer eventually disintegrates, leaving the stitches unsupported. Cutaway stays forever and fights the stretch.
  • Hoop: Do not stretch the fabric; lay it neutral.

Q2: Is the fabric stable (Denim, Canvas, Twill)?

• YES: Use Tearaway (Middle/Heavy Weight).
  • Why: The fabric supports itself. The stabilizer is just for temporary rigidity.

Q3: Does the fabric have "fluff" or pile (Towels, Velvet, Fleece)?

• YES: Use a Water Soluble Topper (Solvy) AND Cutaway Backing.
  • Why: Without a topper, the stitches will sink into the fluff and disappear. The topper keeps the thread floating on top.

Q4: Is the design very dense (lots of solid drilled areas)?

• YES: Upgrade your stabilizer by one weight class (e.g., use 2.5oz cutaway instead of 2.0oz) or float an extra layer of tearaway under the hoop.

Setup details that save time later: crop tight, then resize with purpose

Meadow mentions resizing. The golden rule of digitizing is: Crop first, Modify second.

If you resize the image before cropping, you are asking the processor to calculate math for the white empty space, which induces lag. Crop tightly to define the object's boundaries, then scale it to fit your intended hoop (e.g., 5x7 or 8x12).

Setup Checklist (before you start filling colors)

• Scan Review: Image is captured; noise/shadows are minimal.
• Boundary Definition: Crop box is tightened to within <5mm of the design edge.
• Scale: Design is resized to fit your target embroidery hoop (check size in mm).
• Tool Readiness: Stylus is active; Zoom function is located.
• Consumables Check: Do you have the thread colors you are selecting on screen? (Don't pick colors you don't own!).

Troubleshooting the common “why won’t it fill?” moments (and the fastest fixes)

In the video, it looks seamless. Using real-world variables, things happen.

The upgrade path when you outgrow “one-off fun”: faster hooping, less fatigue, more repeatability

Meadow’s demo proves you can turn a coloring page into a patch in minutes. Ideally, you do this for one grandchild's birthday shirt.

But what happens when the whole soccer team wants one? Or you get an order for 50 company polos?

Your bottleneck shifts from Digitizing (Creation) to Production (Repetition).

1. The Pain: "My wrists hurt from tightening the screw hoop 50 times," or "I can't get the logo straight on every shirt."
   • The Diagnosis: Mechanical friction hoops are slow and physically taxing. They also leave "hoop burn" (shiny rings) on sensitive fabrics.
   • The Rx (Level 1): Use a baby lock magnetic embroidery hoops system. You slide the magnet on, it snaps (audible click!), and you are done. No screwing, no wrist torque, no hoop burn.
2. The Pain: "I spend more time changing thread colors than running the machine." (The Destiny is a single-needle machine).
   • The Diagnosis: Single-needle machines require human intervention for every color change. A 6-color design = 5 stops.
   • The Rx (Level 2): High-volume embroiderers utilize SEWTECH multi-needle machines. Use your Destiny for the specialized IQ Designer stuff, but move the bulk production to a machine that holds 10-15 needles at once and runs automatically.
3. The Pain: "It takes me 5 minutes to hoop and 1 minute to sew."
   • The Rx (Level 3): Look into hooping stations. These assure your placement is mathematically identical every time, reducing the "eyeball and error" time.

Operation wrap-up: Meadow’s exact workflow, written so you can repeat it without guessing

This is the flight plan. Print this out and keep it by your Destiny.

1. Prep: Place the coloring book page centered on the scanning board.
2. Secure: Apply green magnets top and bottom (Listen for the snap). Check for visual clearance of the black-and-white frame markers.
3. Load: Insert frame into embroidery unit until it Clicks. Lower the lever.
4. Initiate: Select IQ Designer > Scan > Line Design. Keep hands clear of the moving carriage.
5. Edit: Crop loosely first, then tighten the red box handles close to the art. Confirm.
6. Create: Select the Fill Bucket (Region Property). Choose your thread color.
7. Refine: Zoom in (Magnifying Glass) to at least 200%. Tap precisely to fill regions.
8. Verify: Check for "spills" or missed pixel islands.
9. Output: Press Next to generate stitch data, then Set to move it to the embroidery screen.

Whether you are looking for magnetic frames for embroidery machine hardware to speed up your workflow or just trying to get through your first Coloring-Book-to-Quilt-Block project, the secret remains the same: Control the variables. Flat paper, clear markers, and zoom-in precision will give you master-level results on your first try.

Operation Checklist (so your first attempt actually feels “easy”)

• Frame lever is down; carriage path is clear.
• "Create Line Image" selected for coloring book art.
• Crop box is tight (no wasted white space).
• Zoom tool used for all fills smaller than a dime.
• Correct Stabilizer selected for the target fabric (Use the Decision Tree!).
• Needle Check: A fresh 75/11 embroidery needle installed before stitching.

FAQ

• Q: How do I prevent “Recognition Failed” when scanning with the Baby Lock Destiny Scanning Frame in IQ Designer?
  A: Keep the Scanning Frame black-and-white stripes fully visible—blocked markers are the #1 cause.
  • Reposition hands so fingers never overlap the striped edges during scanning.
  • Move the green magnets so they clamp only the paper, not the striped frame markers.
  • Wipe/inspect the striped edges so the camera has a clear view.
  • Success check: The scan starts and the captured image appears without a “Recognition Failed” message and without obvious skew.
  • If it still fails… Re-seat the paper flatter and re-scan, watching for even a tiny sliver of stripe being covered.
• Q: How do I keep a Baby Lock Destiny IQ Designer scan from looking gray/foggy when scanning a coloring book page?
  A: Use smooth, flat, high-contrast artwork—wrinkles and shadows often create the “foggy” look.
  • Switch to dark, thick marker lines on bright white paper (pencil lines often scan too light).
  • Smooth the page and trim ragged binding edges so the paper cannot lift and cast shadows.
  • Re-seat the paper with magnets so it stays flat across the whole board.
  • Success check: The on-screen scan shows crisp, dark outlines with minimal background “haze.”
  • If it still fails… Re-scan after eliminating any shadow sources (paper lift and wrinkling are the usual culprits).
• Q: In Baby Lock Destiny IQ Designer, should I choose “Create Line Image” or “Create Fill Image” for coloring book line art?
  A: Choose “Create Line Image” for coloring book pages and outlines; it’s the safest starting point for clean control.
  • Select “Create Line Image” when the art is mainly outlines/handwriting.
  • Avoid “Create Fill Image” for shadow-prone paper scans because it is more sensitive to noise.
  • Default to Line Image if unsure, then add fills intentionally with the bucket tool.
  • Success check: IQ Designer detects clear outlines that you can fill without large messy auto-filled areas.
  • If it still fails… Improve contrast (darken lines) and re-scan so the outlines are continuous.
• Q: Why does the Baby Lock Destiny IQ Designer Fill Bucket not fill an area after scanning a line drawing?
  A: Zoom in and tap inside the enclosed white region—most “no fill” problems are a mis-tap on the outline.
  • Tap the Zoom tool (often 200% or more) before filling small regions.
  • Tap clearly inside the bounded area, not on the black outline.
  • Undo and retry if the wrong element changes color.
  • Success check: Only the intended shape gains a contained fill texture/color, not the outline or background.
  • If it still fails… Close tiny outline gaps using IQ Designer line tools or re-scan with darker, unbroken lines.
• Q: Why does Baby Lock Destiny IQ Designer “paint” spill and fill the whole screen when using the Fill Bucket?
  A: The outline is not fully closed—any tiny gap lets the fill leak into the background.
  • Zoom in and inspect the border where the spill started (look for a break in the line).
  • Use the IQ Designer line drawing tools to close the gap, then fill again.
  • Re-scan after darkening the original art if multiple breaks exist.
  • Success check: The fill stays trapped inside the shape with clean boundaries.
  • If it still fails… Replace wrinkled/lifted paper and re-scan, because shadow “noise” can create false openings.
• Q: What is the correct way to insert the Baby Lock Destiny Scanning Frame into the embroidery module without damaging gears?
  A: Insert gently until it clicks and locks—never force the Scanning Frame if there is resistance.
  • Slide the frame in smoothly like a drawer until you hear a distinct “click.”
  • Confirm the frame feels seated and does not wiggle loosely.
  • Lower the lever to lock the carriage before scanning.
  • Success check: Audible click + stable seated feel + lever lowers normally with no grinding or binding.
  • If it still fails… Remove the frame and check the slot for thread nests or dust, then try again without forcing.
• Q: What safety steps should I follow when scanning on the Baby Lock Destiny IQ Designer and handling the green scanning magnets?
  A: Keep hands clear during carriage movement and treat the magnets like pinch hazards.
  • Keep fingers, hair, jewelry, and children away from the needle/carriage zone after pressing “Scan.”
  • Separate and place magnets carefully—scanning magnets can snap together fast and pinch skin.
  • Keep strong embroidery magnets at least 6 inches away from pacemakers, insulin pumps, and computerized screens/hard drives.
  • Success check: The scan completes with no contact near the moving carriage and no magnet pinches during placement.
  • If it still fails… Pause, reset your work area (clear clutter), and only restart scanning when the path is fully clear.
• Q: If hooping is slow and causes hoop burn on repeat jobs, what is a practical upgrade path from screw hoops for Baby Lock-style embroidery workflows?
  A: Start by optimizing technique, then consider magnetic hoops for faster, consistent clamping; scale production with multi-needle only when repetition becomes the bottleneck.
  • Level 1 (Technique): Reduce wasted time by cropping tight, working light-to-dark, and using zoom for precision fills so you don’t rework designs.
  • Level 2 (Tool): Switch from screw hoops to magnetic hoops to reduce wrist torque, speed up hooping, and often reduce hoop-burn rings on sensitive fabrics.
  • Level 3 (Capacity): If thread-change stops dominate (single-needle workflow), move repeat production to a multi-needle machine while keeping the Baby Lock Destiny for IQ Designer creation.
  • Success check: Hooping time drops and placement becomes more repeatable job-to-job without fighting the hoop screw.
  • If it still fails… Add a hooping station for consistent placement when “eyeballing” alignment is the remaining time sink.
