From Coloring Page to PES in PE-Design 11: A Clean Running-Stitch Cow Key Fob (and the Two Mistakes That Ruin It)

If you have ever clicked on a tutorial promising to “turn a coloring page into an embroidery file” and felt a wave of confusion wash over you within the first minute, you are not alone. That specific frustration—the gap between a flat image on a screen and a textured, 3D object under a needle—is the single biggest barrier for embroidery novices.

Real machine embroidery isn't just about software; it is a physical discipline that involves tension, friction, and structural engineering. This guide reconstructs the workflow of creating a vinyl cow patch/key fob, but with a critical difference: we are stripping away the guesswork. We will apply industrial logic to this hobbyist project, ensuring you don't just "try" it, but actually "master" it.

Below, we convert a messy trial-and-error process into a reliable roadmap, specifically optimized for users of Brother PE-Design 11 and similar digitizing platforms.

Don’t Panic: PE-Design 11 “Opens a File” Because Your Coloring Page Must Become Line Art First

The video begins inside PE-Design 11, immediately opening a vector-style cow file. For a beginner, this feels like a magic trick—where did the sketch go?

Here is the cognitive shift you need to make: Embroidery software is a translator, not an artist. It requires clear, mathematical instructions (vector lines) to generate needle coordinates. It simply cannot "read" a shaded, fuzzy photograph or a raw pencil sketch directly without creating a chaotic mess of stitches.

In this workflow, the "coloring page" was merely the reference. It was traced and simplified in Procreate (an iPad illustration app) first. Only that cleaned-up, high-contrast line art was imported into PE-Design 11.

If you are researching hooping for embroidery machine workflows, understanding this digital preparation is as vital as the physical hoop. The "file" you open is not the end result; it is the blueprint. Your first job is to be the architect, ensuring the blueprint is clean before the machine (the builder) lays a single brick.

The “Hidden” Prep Pros Do Before Digitizing: Simplify the Art So It Can Actually Stitch

The creator admits this project took hours of tweaking. Why? Because paper is forgiving; thread is not. When you draw two lines close together on paper, they look detailed. When you place two running stitches 0.5mm apart on vinyl, you create a perforation line that will tear the material.

Before you open your digitizing software, you must perform "triage" on your artwork.

What to Simplify (The "Perforation Rule")

• Isolate Touching Elements: If the eyes touch the nose in your drawing, separate them slightly. In embroidery, regions that touch often look like a blob unless separated by stitch direction or a deliberate gap.
• Remove "Texture" Lines: Tiny hatching or shading lines on paper will turn into a thread knot (bird's nest) on the back of your fabric. Delete them.
• Simplify Curves: A jagged, hand-drawn line requires the machine to slow down and speed up constantly. Smooth lines create a rhythmic, consistent stitch-out.

Expert Insight: The Physics of Vinyl

Unlike woven cotton, vinyl does not "heal." Every needle penetration is permanent. Therefore, your design philosophy must be "Low Density, High Impact." You want fewer needle holes, but arranged so perfectly that they create a complete image.

Warning: Mechanical Safety Check. Before starting any digitization for thick materials like vinyl, inspect your physical workspace. Scissors and needles are a brutal combo when you’re tired or frustrated. Ensure your rotary cutter is closed when not in use, and never try to trim a jump thread while the machine is in active motion. A split-second slip can result in a pierced finger or a destroyed garment.

Prep Checklist (Pre-Digitizing Phase)

• Trace the Art: Convert your raster image (JPG/PNG) to vector lines using Procreate, Adobe Illustrator, or Inkscape.
• The "1mm Test": Zoom in. Are any two lines closer than 1mm? If yes, merge them or move them apart.
• Pupil Check: Ensure small interior shapes (like pupils) are physically separated from their outlines to prevent "bleeding" when the thread expands.
• Substrate Decision: Decide now that this is for vinyl. This dictates that you will use running stitches rather than heavy satins.
• Hidden Consumable Check: Do you have a fresh 75/11 or 80/12 Sharp Needle? Ballpoint needles struggle to pierce vinyl cleanly; sharp needles are essential for crisp lines.


Convert PE-Design 11’s Default Satin Look into Running Stitch Outlines (So the Cow Stays “Line Art Cute”)

By default, when you import shapes into PE-Design 11 (or similar software), it often assumes you want "Satin Stitches" (the thick, column-like borders). For a small vinyl patch, satin stitches are often too heavy—they look bulky and can perforate the material to the point of tearing.

To maintain the "sketch" aesthetic, you must override the software.

The Action Plan

1. Select All Objects: Use your mouse to draw a box around your imported vector shape.
2. Open Attributes: Look for the "Line Sew" or "Outline" tab.
3. Force Conversion: Change the stitch type from Satin/Zigzag to Running Stitch.

This change transforms the design from a heavy patch into a delicate line drawing. It reduces the stitch count by 50-70% and drastically reduces the risk of the needle chopping your vinyl in half.

The 2.5 mm “Sweet Spot” for Vinyl Outlines: Run Pitch + Passes That Actually Show Up

Here, we move from theory to hard empirical data. The creator mentions testing 3.0mm stitches versus 2.5mm stitches. This is not a trivial detail; it is the difference between a professional finish and a sloppy one.

The Golden Ratio for Vinyl Outlines:

• Run Pitch (Stitch Length): 2.5 mm (Range: 2.2mm – 2.8mm)
• Run Times (Passes): 2 Passes (often called a "Double Run" or "Back-and-Forth")

Why This Specific Combo Works

A standard running stitch (single pass) is too thin; it disappears into the texture of the vinyl. A satin stitch is too thick. A Double Run at 2.5mm provides the perfect middle ground:

1. Visual Weight: It mimics the look of a bold pen line.
2. Cornering: 2.5mm is short enough to handle the curves of the cow’s ear without looking jagged (which happens at 3.0mm+), but long enough to keep the machine running smoothly.

For Micro-Details: For tiny elements like nose wrinkles, reduce the settings to 1 Pass. This creates visual hierarchy—the main outline is bold, the details are fine.

If you ignore these numbers and use the default (often 2.0mm single pass), your design will look anemic. If you utilize brother 4x4 embroidery hoop constraints correctly, these settings ensure even small designs pop with high visibility.

Add a Key Fob Tab in PE-Design 11 Without Stitching Over the Cow’s Hair

The project isn't just a picture; it's a functional object. The creator adds a tab to the top of the cow's head to hold a key ring.

The "Welding" Technique

1. Draw the Tab: Use the Rounded Rectangle tool.
2. Overlap: Place the rectangle so it overlaps the top of the cow's head.
3. Remove Intersections: Use the "Modify Overlap" or "Remove Overlap" tool (often called the Applique Wizard or Weld tool in other software).

Why This Matters: If you simply place a rectangle over the cow, the machine will stitch the cow's head outline through the tab, and then stitch the tab outline over the cow. This creates a messy "double line" that ruins the illusion of a single shape. You must mathematically merge the shapes so the outline flows continuously from the ear, up the tab, and back down.

Expert Tip: The Neck Width

Ensure your tab is at least 0.5 to 0.75 inches wide. Vinyl can stretch; if the tab is too narrow, the weight of the keys will eventually tear it.

Size It for a 4x4 Hoop: Rotate the Design So It Stitches Bigger (Without Breaking the Border)

Most entry-level machines map to a 100mm x 100mm (4x4 inch) grid. If your cow design is taller than it is wide (due to the tab), you will hit the ceiling of the hoop quickly.

The 45-Degree Hack: If your design barely fits, don't just shrink it. Rotate it 45 degrees. The diagonal of a 4x4 square is approximately 5.6 inches. By placing the design diagonally, you can often gain an extra 0.5 to 1 inch of usable length.

Setup Checklist (The "Pre-Flight" Check)

• Virtual Walk-Through: Use the "Stitch Simulator" in your software. Watch the needle path. Does it jump wildly? If so, optimize entry/exit points.
• Hoop Check: Is the design centered? If you rotated it, ensure no corner touches the grey "safety zone" of the software grid.
• Pass Verification: Click on the main outline. Does it say 2 passes? Click the nose wrinkles. Do they say 1 pass?
• Bobbin Check: Do you have enough bobbin thread? Running out of bobbin thread on a vinyl project is catastrophic because you cannot "hide" the tie-off knot easily.

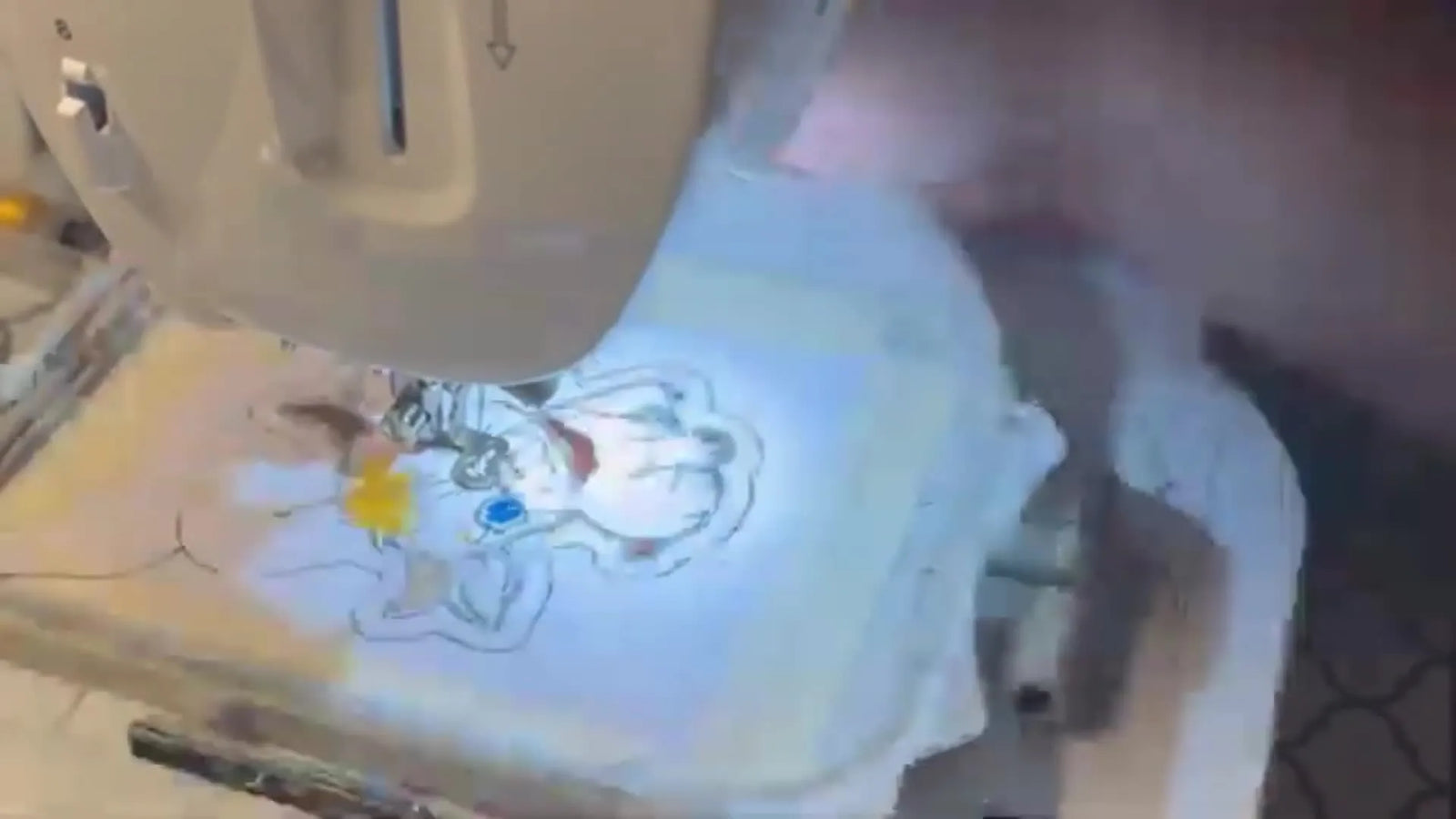

Stitching on White Vinyl with Tear-Away Stabilizer: The “Float on Top” Method That Saves Hoop Marks

Step 7 reveals a classic production struggle: How do you hold slippery, thick vinyl? The creator uses the "Float" method:

1. Hoop only the Tear-Away Stabilizer.
2. Spray a light mist of temporary adhesive (like 505 Spray) or use painter's tape.
3. Place the vinyl on top of the hoop (floating), rather than clamping it inside the rings.

The "Hoop Burn" Problem Vinyl has "memory." If you clamp it tightly in a traditional plastic hoop, the rings will leave a permanent circular indentation (hoop burn) that cannot be ironed out. This is why many beginners embrace "floating."

The Hidden Risk of Floating While floating saves the finish, it sacrifices stability. The vinyl sits loosely. As the needle impacts, the vinyl can "flag" (bounce up and down), causing skipped stitches or misaligned outlines.

The Professional Solution: Magnetic Hoops If you find yourself constantly fighting with tape or adhesive residue, this is the trigger to upgrade. A high-quality Magnetic Hoop allows you to clamp the vinyl firmly without the crushing force of a thumbscrew mechanism.

• Trigger: You see hoop marks on your final product, or your floating vinyl shifts mid-stitch.
• Criteria: Are you making sellable items?
• Option: Search for magnetic hoops for brother machines. These tools hold the material flat across the entire surface using magnetic force, providing the stability of a traditional hoop with the gentleness required for vinyl.

Warning: Magnet Safety. Magnetic hoops use powerful N52 industrial magnets. They can snap together with crushing force. Pinch Hazard: Keep fingers clear of the mating surfaces. Device Safety: Keep these hoops at least 6 inches away from pace-makers, insulin pumps, credit cards, and smartphones to avoid magnetic interference.

Thread Changes and Color Fills: Keep the Design Simple, Then Let the Final Outline “Unify” Everything

The stitching process involves manual color changes: Yellow (hair), Brown (horns), Blue (eyes).

Expert Note on Tension: Vinyl has high friction. The needle heats up as it pierces the plastic.

• Auditory Check: Listen to your machine. A rhythmic thump-thump is normal on vinyl. A sharp slap-slap usually means the thread tension is too loose, and the thread is whipping around.
• Visual Check: Look at the top stitching. If you see loops, tighten your top tension slightly. If the bobbin thread is pulled to the top (creating white dots), loosen the top tension.

The creator’s strategy is sound: Use simple fills for color, but rely on that final double-pass outline to cover the raw edges where the fills meet the white vinyl background. The outline acts as the "caulk" that hides imperfect alignment.

The Stitch-Order Trap: Why the Eyebrows Disappeared (and How to Fix It in PE-Design 11)

During the stitch-out, the creator encountered a classic "Layering Fail": The eyebrows stitched before the yellow hair tuft.

• Result: The machine stitched the black eyebrows, then immediately stitched a solid block of yellow thread right over them. The eyebrows vanished.

The "Bottom-Up" Rule Embroidery is a physical stack of thread. You must think like a painter:

1. Backgrounds First: Large fills, base colors.
2. Mid-Ground: Secondary elements (hair, horns).
3. Foreground: Top details (eyes, mouth, nose).
4. Final Polish: The main black outline.

Immediate Fix: In your software, find the "Stitch Order" or "Sewing Order" panel. Drag the eyebrow object to the bottom of the list (which means it stitches last). This ensures it sits on top of the yellow hair.

The Final Black Outline Pass: The One Move That Makes Beginner Digitizing Look Professional

The video culminates with the final black running stitch. This is the "magic moment."

• It covers the start/stop knots of the color fills.
• It sharpens the contrast.
• It defines the cartoon style.

Stability Alert: This outline loops the entire design. If your vinyl shifted during the previous 10 minutes of stitching, this outline will be off-center (the "shift of shame"). This is another reason why stability tools are critical. If you are using a magnetic hoop for brother pe800, the strong, even clamping force prevents the vinyl from creeping inward, ensuring this final outline lands exactly where it should—right on the edge of the color blocks.

The Eyelet Disaster: Don’t Cut the Tab Hole with Scissors—Plan the Hole Like a Pro

The creator’s final error was heartbreaking: while trying to cut a small hole in the tab for the keyring hardware, she used scissors and accidentally sliced through the beautifully stitched edge. Game over.

The "Hardware First" Rule: Never guess where the hole goes. Measure your key ring hardware (usually an eyelet or rivet uses a 3mm or 4mm hole).

How to avoid the "Scissor Slip":

1. Digitize a Guide: In your software, add a tiny running stitch circle (3mm wide) exactly where the hole should range. This gives you a target.
2. Use the Right Tool: Never use scissors for holes. Use a Leather Hole Punch or a Crop-A-Dile. These tools remove a clean plug of vinyl without stressing the surrounding stitches.
3. Seal the Deal: If your vinyl has a fabric backing that frays, drop a tiny dot of Fray Check liquid inside the punched hole before adding the metal rivet.

Operation Checklist (The Finishing Sequence)

• Wait: Do not remove the hoop until the screen says "Finished."
• Rough Cut: Remove the material from the stabilizer. Trim jump threads before cutting the vinyl shape out.
• Precision Cut: Use sharp appliqué scissors to cut around the cow, leaving a consistent 2-3mm border of white vinyl (the "offset").
• Punch: Align your hole punch tool visually. Squeeze firmly.
• Inspect: Check the tab neck. If you nicked a stitch, apply Fray Check immediately or discard the piece.


Decision Tree: Vinyl + 4x4 Hoop + Key Fob Tab—Choose Stabilizer and Hooping Method Without Guessing

Struggling to decide how to setup? Follow this logic path.

1. Based on Fabric Type:

• Standard Vinyl (Marine/Faux Leather):
  • Method: Float on Tear-Away Stabilizer.
  • Upgrade: Use a Magnetic Hoop to prevent hoop burn.
• Stretchy Vinyl (Thin garment vinyl):
  • Method: Must use Cut-Away Stabilizer. Tear-away will allow the vinyl to distort.
  • Fix: Hoop the stabilizer AND the vinyl if possible, or use heavy temporary adhesive.
• Felt:
  • Method: Float on Tear-Away. Felt is forgiving and grabs the friction of the stabilizer well.

2. Based on Production Volume:

• Making 1-5 units: Floating with tape/spray is acceptable.
• Making 50+ units: Spray and tape will gum up your needle and slow you down. Move to a mechanical solution (Magnetic Frame) to speed up loading/unloading time.

The Upgrade Conversation (Without the Hype): Where Your Time Actually Goes on Projects Like This

Beginners often think they need a faster machine to save time. The reality? You lose time in Prep and Mistakes.

In this video, the creator lost time to:

1. Correcting artwork (Skill Gap).
2. Fixing stitch order (Software Gap).
3. Floating/taping vinyl (Hardware Gap).
4. Ruining the final piece with scissors (Tooling Gap).

The Logic of Tool Upgrades: If you are doing this for fun, manual floating is fine. But if you value your time (or your sanity), identify the bottleneck.

• If Hooping takes longer than stitching: A brother pe800 magnetic hoop pays for itself by reducing setup time from 3 minutes to 30 seconds per unit.
• If Trimming is ruining pieces: A $15 set of proper leather punches saves you from ruining a $20 finished product.
• If Design is the issue: Investing time in learning vector simplification prevents hours of stitching "bird's nests."

Quick Troubleshooting Table (Based on the Video’s Real Problems)

Final Word: Your First “Good Enough” File Is a Win—Just Make It Repeatable

The creator of the video was honest about her struggle, and that is where the value lies. Digitizing is not a magical talent; it is an engineering sequence.

Your first attempt might have a jump thread you missed or a slightly wobbly eye. That is acceptable. What is not acceptable is making the same mistake twice because you didn't have a system.

By standardizing your parameters—2.5mm double run, correct layering order, and safe hooping methods—you transform a "scary experiment" into a repeatable product. Now, go open that "coloring page" file, but this time, look at it with the eyes of an engineer.

FAQ

• Q: In Brother PE-Design 11 digitizing for vinyl patches, why does importing a “coloring page” image create messy stitches instead of clean outlines?
  A: Brother PE-Design 11 needs clean, high-contrast line art (vector-like paths), so a shaded or fuzzy raster image usually converts into chaotic stitch instructions.
  • Trace and simplify the coloring page in an art app first (the coloring page is the reference, not the stitch-ready file).
  • Apply the “1mm test”: zoom in and move/merge any lines closer than 1mm to avoid perforation and blobs.
  • Delete tiny texture/hatching lines that will turn into thread knots on the back.
  • Success check: the imported artwork looks like smooth, separated outlines (not noisy shading), and the stitch preview shows clean paths instead of dense scribbling.
  • If it still fails… re-trace with fewer nodes and smoother curves before re-importing.
• Q: In Brother PE-Design 11, how do I change default satin/zigzag outlines to running stitch for a small vinyl key fob patch?
  A: Convert the outline stitch type to Running Stitch so the vinyl doesn’t get bulky or perforated.
  • Select all outline objects in the design.
  • Open the Attributes/Line Sew/Outline settings and switch from Satin/Zigzag to Running Stitch.
  • Keep the “sketch” look by avoiding heavy satin borders on small vinyl.
  • Success check: the preview shows a single-line style outline (not a wide satin column), and the stitch count drops noticeably.
  • If it still fails… verify you selected the correct objects (outlines vs fills) and re-check the object properties panel.
• Q: What running stitch settings are a safe starting point for vinyl outlines in Brother PE-Design 11 to avoid jagged lines and weak visibility?
  A: A reliable starting point for vinyl outlines is a Double Run at about 2.5 mm stitch length (run pitch), with small details reduced to a single pass.
  • Set Run Pitch (stitch length) to 2.5 mm (often workable in the 2.2–2.8 mm range).
  • Set Run Times/Passes to 2 for the main outline (double run/back-and-forth).
  • Reduce tiny details (like small wrinkles) to 1 pass for cleaner hierarchy.
  • Success check: the outline reads like a bold pen line and curves don’t look “polygon/jagged” (common at 3.0 mm+).
  • If it still fails… shorten the pitch slightly for tight curves, or simplify the curve nodes in the artwork.
• Q: When floating white vinyl on tear-away stabilizer, how do I prevent hoop burn marks and vinyl shifting during stitching on a Brother single-needle machine?
  A: Float the vinyl on hooped tear-away to avoid permanent hoop burn, but increase surface hold so the vinyl doesn’t “flag” and shift.
  • Hoop only the tear-away stabilizer, then place vinyl on top (do not clamp vinyl in a standard hoop if hoop marks are a problem).
  • Secure the vinyl with a light mist of temporary adhesive or tape to reduce bouncing.
  • Watch for “flagging” (vinyl bouncing up/down) and stop early if outlines begin misaligning.
  • Success check: no ring indentation on the finished vinyl, and long outline runs land consistently on the edges without drifting.
  • If it still fails… move to a magnetic hoop/frame style hold-down to clamp evenly without crushing the vinyl.
• Q: What are the magnet safety rules when using N52 magnetic hoops/frames for machine embroidery on vinyl?
  A: Treat N52 magnetic hoops/frames as pinch hazards and keep them away from sensitive devices.
  • Keep fingers clear when bringing the magnets together; let them close slowly and deliberately.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, credit cards, and smartphones.
  • Store magnets separated/secured so they cannot snap together unexpectedly.
  • Success check: loading feels controlled (no sudden slam), and there are no finger pinch incidents during repeated hooping.
  • If it still fails… change your handling routine (set one side down first, then lower the mating side) and reduce distractions while hooping.
• Q: In Brother PE-Design 11, how do I fix embroidery details like eyebrows disappearing because fill stitches sew over them?
  A: Change the stitch order so background fills sew first and small details (like eyebrows) sew later, before the final outline.
  • Open the Sewing Order/Stitch Order panel in Brother PE-Design 11.
  • Drag the eyebrow object later in the sequence so it stitches on top of the hair/fill.
  • Follow the “bottom-up rule”: large fills → secondary elements → small facial details → final outline.
  • Success check: in the stitch simulator, the eyebrow stitches appear after the yellow hair block, and they remain visible in the final sew-out.
  • If it still fails… confirm the eyebrow is not duplicated underneath another object and re-run the simulator before exporting.
• Q: For a vinyl key fob tab, how do I avoid ruining the stitched edge when making the key ring hole after embroidery?
  A: Plan the hole location in the file and punch the hole with a proper tool—do not cut the hole with scissors.
  • Digitize a small running-stitch guide circle where the hole should go (match the hardware size you measured, commonly 3–4 mm).
  • Use a leather hole punch or Crop-A-Dile to remove a clean plug of vinyl.
  • Add a tiny dot of Fray Check inside the punched hole if the vinyl backing can fray.
  • Success check: the hole is centered on the stitched guide, the outline stitches remain uncut, and the tab edge stays intact under light pulling.
  • If it still fails… widen the tab neck in the design (a narrow neck can tear over time) and re-test on a scrap before production.
