From Crate to Production: Unboxing and Assembling a YunFu Multi-Needle Embroidery Machine (Without the Costly Stand Mistakes)

Unboxing a multi-needle industrial embroidery machine is a high-stakes moment. You are transitioning from "hobbyist" to "producer," and the excitement is palpable. However, in my 20 years of shop experience, I’ve seen this excitement turn into dread within minutes because of a pinched cable, a twisted stand, or a missing cap driver.

Getting the best results from a machine like the YunFu/SEWTECH isn't just about assembly; it's about establishing a Zero-Vibration Foundation. A wobbly stand means wobbly registration at 1000 stitches per minute (SPM).

This guide rebuilds the standard unboxing process into a professional "Pre-Flight" workflow. We will move past the manual to cover the hidden physics of machine stability, ensuring your first stitch is as perfect as your millionth.

The Calm-Down Check: Inventory Verification & Hidden Consumables

The video begins with a fundamental truth: Chaos is the enemy of calibration. Before you touch a screwdriver, you must verify your assets. We aren't just checking if parts exist; we are checking if they are ready for production life.

Phase 1: The "spread" layout

1. Open the crate: Use leverage away from your body.
2. Lay out components: Place everything on the floor. Do not stack metal on metal.
3. Visual Audit: Verify the finish quality. Rough edges on hoops can snag delicate knits later.


Accessories Inventory (The "Must-Haves")

Verify these specific items are present:

• Support Structure: Flight table, Standard table, T-shirt frame supporter, Stand parts (legs/crossbars).
• Hooping Assets:
  • 2x Standard T-shirt frames (Small).
  • 1x Large T-shirt frame.
  • 1x Flat frame (Sash frame).
  • Cap System: Cap station (driver) + Cap hoop.
• Hardware: Tool box (Yellow), Allen keys, Wrenches.

The "Hidden Consumables" (What the manual forgets)

To run a smooth shop, you should immediately check for these items (often hidden in the toolbox or needing separate purchase):

• Machine Oil: Clear white sewing oil (verify the bottle isn't leaking).
• Needle Stock: Check the size (usually 75/11). If you plan on doing heavy canvas or caps, insure you have 90/14 needles ready.
• Bobbin Case: Check the tension spring. It should feel tight—like pulling a floss string through teeth—not loose.

Warning (Personal Safety): Crates are riddled with nails and staples. Wear heavy-duty gloves during the teardown. Do not risk a hand injury that puts you out of commission before you even start.

The "Hidden" Prep Pros Do: Categorization Before Torque

The video moves to the yellow toolbox. Novices dump screws into a pile; professionals sort them by thread pitch and length. This is your first test of organization.

Action Steps

1. Open the Tool Box: Separate the hex bolts from the Phillips head screws.
2. Identify the Feet: Locate the four plastic base cups.
3. Stage the Area: Remove plastic wrap now. Plastic trapped in a metal joint compresses over time, causing "phantom wobble" weeks later.


Why this matters

Industrial embroidery relies on rigid physics. If you grab a screw that is 2mm too long, it will bottom out before the joint is tight. The frame will look solid, but under the vibration of a 1000 SPM design, it will loosen.

This organization habit extends to your workflow. Just as you stage screws, you should stage your backing and garments. In high-volume shops, this logic is why an embroidery hooping station is often the first major upgrade—it organizes the chaos of placement into a repeatable system.

The Loose-First Rule: The Geometry of Stability

Most wobble problems originate here. The video demonstrates the critical "Loose-First" technique.

The Procedure

1. Connect Side Legs: Slot the crossbars into the legs.
2. Finger Tighten Only: Insert screws and turn them until they just catch threads. Do not create resistance.
3. Mirror: Repeat for the opposite side.
4. Build Front to Back: Give yourself room to work.


The Physics: Why "Loose" is King

Metal frames have manufacturing tolerances. If you torque the front-left corner to 100% tightness immediately, you twist the metal slightly. By the time you get to the back-right corner, the bolt holes won't align perfectly. You end up forcing the bolt in, locking tension (and twist) into the frame.

The Goal: The skeleton should stand on its own, but all joints should "float" slightly.

Bottom Supports and The "Square It Up" Moment

Now we add the lower support beams. This provides the rigidity required to prevent the machine from "walking" across the floor during heavy satin stitching.

Action Steps

1. Attach Lower Beams: Connect the horizontal supports near the floor.
2. Loose Fit: Again, tighten screws only 50%.
3. The "Square" Test: Step back. Does the frame look twisted? Rock it gently. All four corners should touch the floor.


If the frame rocks, nudge it gently until it settles flat. This is your "alignment window."

The "Now You Earn It" Step: Final Torque Sequence

Only now, when the structure is complete and sitting flat, do we lock it down.

The "Star Pattern" Tightening Method

Don't tighten in a circle. Use a "Star Pattern" (Top-Left -> Bottom-Right -> Top-Right -> Bottom-Left) to distribute stress evenly.

1. Engage: Use the Allen key to tighten until you feel a hard stop.
2. The Quarter Turn: Give it one final 1/4 turn to lock the washer (if equipped).
3. Sensory Check: Shake the stand vigorously. It should feel like a single solid piece of steel, not a collection of rattling parts.

Table Top + Plastic Base Cups: The Interface

This step marries the table to the steel frame.

Action Steps

1. Place the Table: Align the pre-drilled holes with the frame.
2. Select Hardware: Use the long screws identified during your prep.


3. Install Base Cups: Place the plastic cups under the table corners. These cups are the vibration dampeners for the machine head itself.
4. Secure: Drive the long screw through the table and into the cup.




📝 PREP CHECKLIST: Committing to the Lift

Before you bring the machine head over, verify these Go/No-Go criteria:

• Fastener Integrity: All stand bolts are torqued and re-checked.
• Level Ground: The stand does not rock on the floor.
• Cup Placement: All 4 plastic cups are tightly secured to the table top.
• Clear Path: Walk the path from the crate to the stand. Remove tripping hazards.
• Manpower: Two adults are present. Do not attempt a solo lift.

The Shipping-Bracket Trap: Critical Release

This is the most dangerous step for the machine's internal mechanics if skipped.

Action Steps

1. Locate Wooden Blocks: Find the stabilizing timber screwed into the machine base.
2. Remove: Unscrew and discard.

These blocks transfer shock to the chassis during shipping. If you leave them on, the machine cannot sit in the dampening cups, and your noise levels will be unbearable.

Warning (Pinch Hazard): When the last screw leaves the wood block, the machine weight will shift. Keep fingers completely clear of the gap between the block and the metal base.

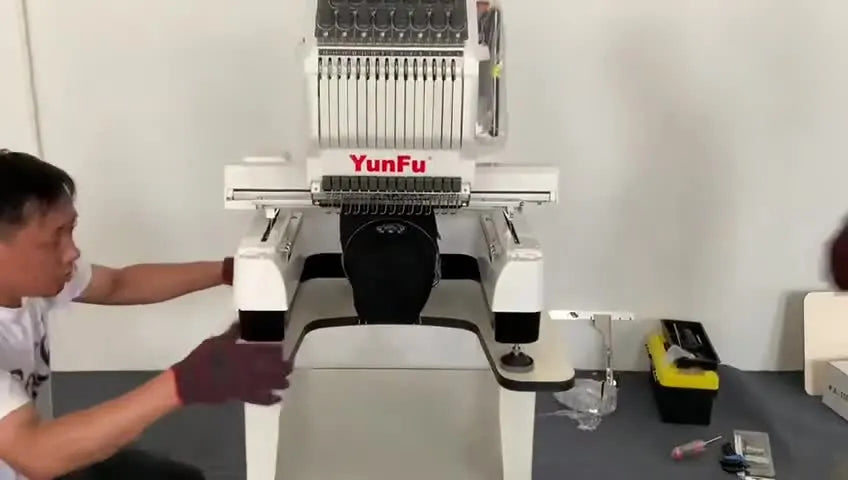

The Two-Person Lift: Docking the Mothership

Now comes the transfer.

The Protocol (1-2-3-Lift)

1. Proper Grip: Lift from the structural metal base, not plastic covers or tension knob assemblies.
2. Synchronize: Lift on a count of three.
3. Visual Docking: One person guides the rubber feet into the plastic cups while the other bears the weight.

Sensory Confirmation

• Tactile: The machine should "thud" securely into the cups.
• Visual: There should be no gap between the machine feet and the plastic cups.


📝 SETUP CHECKLIST: Ready for Power

• Seating: Machine feet are 100% inside the plastic cups.
• Stability: Pushing on the machine head does not cause the table to tip.
• Clearance: X-carriage arm moves freely without hitting the wall or obstacles.
• Voltage: Verify your local voltage matches the machine label (110V vs 220V).

Troubleshooting Stability: The 80/20 Rule

If your machine is vibrating excessively or "walking," it is rarely a motor issue. It is almost always a mechanical foundation issue.

Symptom: Stand Misalignment / Rocking

• Likely Cause: You tightened one leg fully before assembling the rest (violating the Loose-First Rule).
• Quick Fix: Loosen all bolts 3 turns. Shake the table to let it settle (Square it up). Re-tighten in a Star Pattern.
• Prevention: Use a bubble level on the table surface during final placement.

The "Production Mindset" Upgrade: Hoops, Pain, and Profit

The video shows standard tubular hoops. These are industry standard, but they have limitations: they can cause "hoop burn" (shiny rings on fabric) and cause repetitive strain injury (RSI) to your wrists over time.

The Problem: The Bottleneck is You

The machine stitches faster than you can hoop. If you are struggling to frame a thick hoodie or slippery performance wear, your machine sits idle. Idle machines burn money.

The Solution Hierarchy

How do you solve the hooping bottleneck?

Level 1: Better Technique (Zero Cost)

Use proper backing. For a standard pique polo, use one layer of Cutaway (2.5oz). Don't just rely on tearaway; it lacks the stability for dense logos.

Level 2: Tool Upgrade (Magnetic Systems)

Many professionals eventually switch to magnetic embroidery hoops.

• Why: They use magnets to clamp fabric instantly without screws. This eliminates the "tug-and-screw" motion that kills wrists.
• Result: Hooping takes 5 seconds instead of 45 seconds. No hoop burn on delicate fabrics.

Warning (Magnetic Safety): magnetic embroidery frame systems use industrial Neodymium magnets. They create massive pinch force. Never place fingers between the magnets. Keep them at least 6 inches away from pacemakers.

Level 3: Workflow Systems

If you are scaling to 50+ shirts a day, you might look at dedicated workstations. Terms like hoop master embroidery hooping station or hoopmaster hooping station are often searched by pros looking for consistency. These are systems (jigs) that ensure every logo is placed in the exact same spot on every shirt, regardless of operator fatigue.

🌳 Decision Tree: When should you upgrade?

• Scenario A: 1-5 items/week (Hobby).
  • Sln: Stick to standard hoops. Use temporary spray adhesive for stability.
• Scenario B: 50 items/order (Production).
  • Sln: Upgrade to magnetic embroidery hoops. The time savings (40 sec/shirt) pays for the hoop in two orders.
• Scenario C: Thick Carhartt Jackets / Leather.
  • Sln: Standard hoops will pop open. You must use Magnetic Hoops or clamp systems to hold the thickness securely.
• Scenario D: Caps
  • Sln: Use the included Cap Station. Do not try to flat-hoop a finished cap.

📝 OPERATION CHECKLIST: First Run

• Oil: Add one drop of oil to the rotary hook raceway (consult manual).
• Bobbin: Ensure bobbin protects thread (white) shows 1/3 in the center of a satin column (I-Test).
• Path: Ensure thread path is not caught on the tree / antenna.
• Safety: Keep hands away from the needle bar area during operation.

Proper assembly is the difference between a machine that fights you and a machine that prints money. Take the time to settle the stand, organize your tools, and consider how embroidery machine hoops options can save your hands in the long run. Welcome to professional embroidery.

FAQ

• Q: During YunFu/SEWTECH multi-needle embroidery machine stand assembly, what causes stand rocking after tightening the bolts?
  A: Stand rocking is usually caused by tightening one corner fully before the frame is fully assembled (violating the “Loose-First” rule).
  • Loosen all stand bolts about 3 turns so the joints can “float.”
  • Shake/rock the stand gently, then nudge it until all four corners sit flat on the floor.
  • Re-tighten using a Star Pattern (Top-Left → Bottom-Right → Top-Right → Bottom-Left).
  • Success check: Pushing the stand from the side does not rock, and it feels like one solid piece of steel.
  • If it still fails: Re-check that no plastic wrap is trapped in any metal joint and repeat the square-up step.
• Q: How do YunFu/SEWTECH users correctly remove the wooden shipping blocks before placing the machine head onto the plastic base cups?
  A: Remove and discard the wooden shipping blocks before docking the machine head, or the machine cannot seat into the dampening cups properly.
  • Locate the stabilizing timber blocks screwed into the machine base.
  • Unscrew each block while keeping fingers completely clear of the gap (the machine weight can shift).
  • Dock the machine feet into the plastic cups only after the blocks are removed.
  • Success check: The machine “thuds” into the cups with no visible gap between machine feet and plastic cups.
  • If it still fails: Stop and re-check for any remaining screws/blocks under the base before applying power.
• Q: What “hidden consumables” should be verified during YunFu/SEWTECH multi-needle embroidery machine unboxing before the first run?
  A: Verify machine oil, needle stock, and bobbin case tension right away, because missing/weak consumables cause avoidable first-day problems.
  • Find and inspect clear white sewing oil (confirm the bottle is not leaking).
  • Confirm needle size on hand (often 75/11); stage 90/14 if planning heavy canvas or caps.
  • Check the bobbin case tension spring; it should feel tight, not loose.
  • Success check: The shop can run a test without pausing for “missing basics” or unstable bobbin handling.
  • If it still fails: Compare the included items against the accessories list and contact support before forcing setup.
• Q: How can YunFu/SEWTECH operators use the “I-Test” to judge bobbin coverage before production embroidery?
  A: Use the I-Test as the quick visual standard: bobbin thread (white) should show about 1/3 in the center of a satin column.
  • Stitch an I-shaped satin test on stable fabric with appropriate backing.
  • Inspect the satin column for bobbin showing in the center, not dominating the edges.
  • Adjust only after confirming threading and bobbin installation are correct.
  • Success check: The satin column looks balanced, with bobbin visible in the center area rather than pulling to one side.
  • If it still fails: Re-check thread path is not caught on the tree/antenna and re-seat the bobbin case.
• Q: What is the correct safety protocol for lifting a YunFu/SEWTECH multi-needle embroidery machine head onto the stand?
  A: Always use a two-person lift and lift from the structural metal base—never from plastic covers or tension knob assemblies.
  • Clear the walk path from crate to stand and remove tripping hazards before lifting.
  • Count “1-2-3-lift” so both people move in sync.
  • Guide the rubber feet into the plastic cups while the other person bears the weight.
  • Success check: All machine feet are 100% inside the cups, and pushing on the machine head does not tip the table.
  • If it still fails: Stop and confirm all four plastic cups are installed tightly and the stand does not rock before attempting again.
• Q: How should YunFu/SEWTECH users troubleshoot excessive vibration or “machine walking” during high-speed embroidery?
  A: Excessive vibration is usually a foundation issue, not a motor issue—re-square the stand and re-torque correctly.
  • Loosen all stand bolts, let the frame settle flat, then re-tighten in a Star Pattern.
  • Confirm the stand does not rock and all four corners contact the floor.
  • Verify the machine feet are fully seated in the plastic base cups.
  • Success check: The stand feels stable under a vigorous shake, and the machine no longer “walks” during stitching.
  • If it still fails: Use a bubble level on the table surface during final placement and re-check for any trapped plastic in joints.
• Q: When should YunFu/SEWTECH shop owners upgrade from standard tubular hoops to magnetic embroidery hoops to reduce hoop burn and increase throughput?
  A: Upgrade to magnetic embroidery hoops when hooping time and fabric marking become the bottleneck, especially on thick or slippery garments.
  • Level 1 (Technique): Use proper backing; for a standard pique polo, use one layer of 2.5oz cutaway rather than relying only on tearaway for dense logos.
  • Level 2 (Tool): Switch to magnetic hoops to clamp fabric quickly and reduce hoop burn and wrist strain from tug-and-screw hooping.
  • Level 3 (System): For repeated placement at scale, move to dedicated placement/workstation systems for consistent positioning.
  • Success check: Hooping becomes fast and repeatable (seconds instead of constant re-tugging), with fewer shiny hoop rings on delicate fabric.
  • If it still fails: Re-evaluate garment thickness (e.g., heavy jackets/leather may require magnetic/clamp holding) and confirm the cap station is used for caps instead of flat-hooping.
• Q: What is the key pinch-hazard safety rule when using magnetic embroidery frames with industrial Neodymium magnets?
  A: Never place fingers between the magnets, because magnetic embroidery frames can generate massive pinch force.
  • Handle magnets by the edges and keep hands out of the closing path.
  • Keep magnets at least 6 inches away from pacemakers.
  • Stage fabric first, then bring the magnetic ring down in a controlled way.
  • Success check: The fabric is clamped securely with no finger contact near the mating surfaces during closure.
  • If it still fails: Stop immediately and change the handling method (do not “fight” magnets); re-position with hands fully clear before re-clamping.
