From FCM to a Clean Raw-Edge Appliqué: Building a Brother Luminaire XP1 Custom Hoop File in Simply Appliqué (Without the Usual Sequencing Mistakes)

Mastering Simply Appliqué: From Digital FCM to Flawless Physical Stitch-Out

If you have ever opened a .FCM file from Brother Canvas Workspace and felt a wave of anxiety thinking, "Okay… this looks like a vector, but how do I turn this into a stitchable appliqué file without destroying my fabric?"—you are not alone.

Machine embroidery is an "experience science." Software is only half the battle; the rest is physics—tension, fabric movement, and hoop mechanics. This guide bridge the gap between the digital clicks in Simply Appliqué and the physical reality of your machine.

This workflow is software-heavy (involving file formats, sequencing, and offsets), but the payoff is immense: once you build a clean "section" file correctly, you create a master template. You can stack additional sections later without redoing the heavy mental lifting.

Calm the Panic: Simply Appliqué’s Ribbon UI Looks Busy, but It’s Predictable

Simply Appliqué opens with a classic Windows-style ribbon interface. For a beginner, this density of buttons can trigger "cockpit paralysis."

The Expert Perspective: You do not need to memorize every button. The interface is forgiving.

• Redundancy is key: There is usually more than one way to trigger an action (e.g., "New" appears in multiple menus).
• The "Oops" Factor: If you accidentally drag a window or create an extra box on the workspace, don't panic. The fix is simple: look for the "X" on that specific pane to close it.

Action Step: Before you start, locate the Help/PDF reference (often found in the Help menu or on the installation media). Keep this open. You don’t need to memorize the manual; you just need to know where to look when you hit a wall.

The Hoop Boundary Is Your Contract: Create the Brother Luminaire XP1 10.5" x 16" Custom Hoop First

In embroidery, the hoop boundary on your screen is not a suggestion—it is a rigid physical contract. If you design outside of it, your machine will refuse the file, or worse, you risk a needle strike against the frame.

The video demonstrates building a custom hoop profile so every placement decision is made against a "real" boundary.

The Setup Protocol:

1. Open the Hoop Selection menu.
2. Click New.
3. Enter Hoop Width = 10.5 inches.
4. Enter Hoop Height = 16 inches.
5. Name it clearly (e.g., “XP1 Large Hoop”).
6. Click Apply.

Expert Nuance: While the instructor notes the "real" physical size is 10 and 5/8 inches, entering 10.5 creates a Safety Buffer. In production environments, we love safety buffers. It prevents you from pushing elements to the absolute bleeding edge where one millimeter of fabric shift could cause an error.

Two Veteran Rules:

1. Context: The on-screen hoop represents only the current hooping, not necessarily the entire final project size. This mindset shift is required for multi-hooping.
2. Chapter Logic: Treat each hoop file like a chapter in a book. Save them separately. Do not try to jam the whole novel into one page.


Prep Checklist: The "Pre-Flight" Safety Check

Do not touch the sequencing tools until you have checked these five boxes.

• Hoop Visualization: Is your custom hoop profile active? (You must see the hard boundary line on the grid).
• Analog Reference: Do you have the paper pattern or a PDF printout beside you? (You will need this to identify which abstract shape is a "Leg" vs. a "Paw").
• Finish Strategy: Decide your stitch look now. Are you doing a Satin Stitch (full coverage) or a raw-edge Run Stitch? (This guide focuses on the specific raw-edge look).
• File Hygiene: Create a dedicated folder on your drives (e.g., Client_Name_Project_01). Do not save to the Desktop; outlines and exports get mixed easily.
• Naming Convention: Write down your nomenclature. (e.g., Section1_Body, Section2_Ears).

Import the Brother Canvas Workspace FCM and Don’t “Drag the Whole World” by Accident

The video imports the source file from Brother Canvas Workspace using the top-left A menu (the Application menu).

The Steps:

• Click the A menu icon.
• Scroll to Import FCM.
• Navigate to your file and open it.

The "Sticky Hand" Trap: Once imported, you will see all parts scattered. Be hyper-aware of your cursor. When it turns into a little hand icon, it effectively grabs the entire canvas. This is useful for panning, but dangerous if you think you are selecting one object. Novices often accidentally shift the entire design relative to the center without realizing it.

Sensory Check: Watch the rulers on the side. If you click and drag, do the numbers on the ruler move (panning) or do the objects move relative to the grid (editing)? You want the latter only when intended.

Center the Body with Arrange > Center, or You’ll Chase Hoop Limits All Day

Embroidery is a game of concentric alignment. The instructor begins assembly by grabbing the main body piece—the largest element—and locking it to the center.

The Action:

1. Select the main body part.
2. Go to the Arrange menu.
3. Click Center.

Why This Matters: This isn't just about making it look nice. It is a Boundary Management tactic. If your anchor piece is off-center by 1 inch, you might run out of room when you try to attach the legs or tail later. Centering the largest mass gives you the maximum available radius for peripheral parts.

Rename Every Artwork Layer in Sequence View—Future You Is the One Paying for Messy Labels

By default, the software is lazy. It labels everything "Artwork," "Artwork (1)," "Artwork (2)." In a complex appliqué, this is a recipe for disaster.

The Discipline:

• In the left Sequence Pane, right-click the generic "Artwork" label.
• Choose Rename.
• Type a descriptive name (e.g., Body, Back_Leg_L, Paw_Front_R).

The Commercial Value: This step separates "Hobby Clicking" from "Production Building." When you are standing at the machine, staring at a small LCD screen, trying to figure out if Color Stop #4 is the back leg or the front ear, these names (which often transfer to the machine preview or tech sheet) are your lifeline.

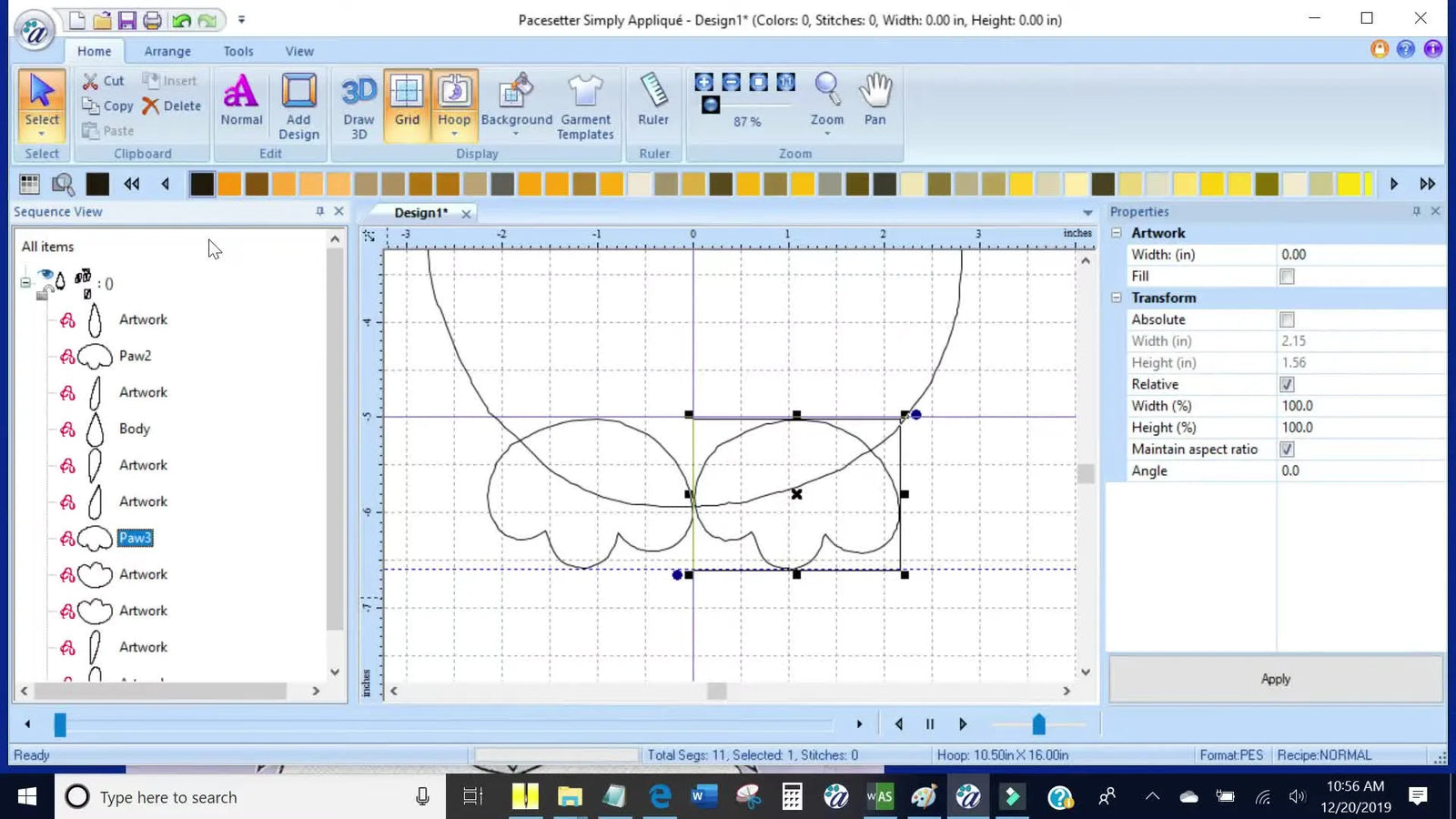

Rotate and Level the Paws Using the Blue Handle (and Use the Ruler Bar Like a Pro)

Digital alignment requires visual aids. The video demonstrates aligning the paws using two distinct tools.

1. The Blue Rotation Handle: Use this to level the object.
   • Visual Cue: Watch the bounding box lines. They should run parallel to your grid lines.
2. The Drag-Down Ruler: Click inside the top ruler bar and drag down. This pulls a temporary Guide Line onto the screen.
   • Usage: Place the guide line at the base of the feet. This ensures all paws are standing on the same "floor."




Pro Workflow Tip: In many vector programs, you can select multiple objects (hold Ctrl + Click) and use an "Align Bottoms" command. While the instructor manually levels them here, always look for Group Alignment tools in your software version. It saves seconds per object, which adds up to hours over a year.

Stitch Order Is Physical Reality: Re-Sequence Body → Legs → Paws So Layers Stack Cleanly

This is the most critical step for Appliqué. Stitch Order = Physical Layering.

If the software stitches the Paws (top layer) first, and the Body (bottom layer) second, you will have a physical mess. You cannot tuck the body fabric under the already-stitched paws without distortion.

The Logic: Build from the ground up, like constructing a house. Foundation first, then roof.

1. Body (Background)
2. Front Legs (Mid-ground)
3. Back Legs
4. Paws (Foreground)

The Manual Move: In the Sequence View, drag the layers into this logical order.

• Why? Less repositioning. If the machine stitches logically, you place fabric once, trim once, and move on. If the order is chaotic, you are constantly stopping, trimming, and risking fabric misalignment.


Setup Checklist: The "Logic Check"

Before converting vectors to actual stitches, verify the logic.

• Nomenclature: Are all "Artwork" generic labels gone?
• Centering: Is the main body locked to the center $(0,0)$ of the hoop?
• Visual Overlap: Do the paws overlap the legs slightly? (Gaps in digital files become massive craters in physical fabric).
• Layering Physics: Does the Sequence Pane order match the physical reality of stacking fabric?
• Hoop Capacity: Do all elements fit inside the safety margin? (If not, see the next section).

When Parts Don’t Fit the Hoop: Delete the Ears and Plan a Separate Hooping (Don’t Force It)

The video encounters a common production reality: The ears stick out past the 16-inch height.

The Amateur Mistake: Trying to shrink the design or scoot it dangerously close to the edge to make it fit. The Professional Solution: Split the design.

The Protocol:

1. Identify the "overflow" parts (the Ears).
2. Delete them from this specific "Body" file.
3. Save the file.
4. Open a new file, import the ears, and save that as "Section 2 - Ears."

Reliability over Heroics: It is faster to hoop twice with 100% confidence than to hoop once, hit the frame with your needle, break a $5 needle, and ruin a $20 garment.

Save a Clean Outline Section First (BRF), Because This File Is Your Master Template

Stop! Before you convert lines to stitches, save your work.

• Format: .BRF (This is the native editable format for Simply Appliqué).
• Concept: This is your "Master Negative."
• Why: Once you convert to stitch data, it is harder to edit the shapes. If you need to change the size of a leg later, you want this BRF file, not the stitch file.

Convert Vectors to Appliqué in Simply Appliqué, Then Switch to Run Stitch for a Raw-Edge Look

Now we execute the magic trick: turning lines into machine instructions.

1. Select All components (Ctrl + A).
2. Navigate to Tools → Convert to Appliqué.

The software will generate three standard layers for every object:

1. Placement Line: "Put fabric here."
2. Tackdown Line: "Hold fabric down."
3. Cover Stitch: "Make the edge pretty (Satin)."


Stylistic Decision: For this specific project, the instructor chooses a Raw Edge look.

• We want a Run Stitch (simple line).
• We will Skip the final cover stitch on the machine.

Dial in the Exact Offsets: -3.5mm Placement and -2.5mm Tackdown (and Why Negative Matters)

Physics dictates that fabric frays and shifts. We need to account for this using Offsets.

In the Properties Panel, apply these settings:

• Stitch Type: Run.
• Stitch Length: 2.0mm (Standard tight run).
• Placement Offset: -3.5mm.
• Tackdown Offset: -2.5mm.

The "Why" Behind the Numbers: Notice the Negative (-) sign.

• A negative offset pulls the stitch inside the vector shape.
• We pull the Placement line (-3.5mm) deep inside so it is completely hidden by the fabric.
• We pull the Tackdown line (-2.5mm) slightly less deep so it catches the raw edge of the fabric securely.




Empirical Reality Check: These numbers are a starting point.

• Thick Canvas/Denim: You may need to ease off the negative (e.g., -2.0mm) to prevent the edge from rolling.
• Thin Cotton: These settings are aggressive and tight.
• Action: Always test these offsets on a scrap piece of your actual project fabric.

Warning: Finger Safety. When using raw-edge appliqué, you will be trimming fabric close to the needle. Keep your fingers well away from the "Danger Zone" if you accidentally hit the start button. Most embroidery injuries happen during trimming steps.

Export the Stitch File Correctly: Brother/Baby Lock PES v10 (and Don’t Let It Default Back to FCM)

You cannot feed a vector file to an embroidery machine. You need a stitch file.

1. Go to File → Save As.
2. Crucial Step: Change the "Save as type" dropdown.
3. Select Brother/Baby Lock PES v10.
4. Name it clearly (e.g., BodyLegsPaws_StitchFile).

The Trap: The simplistic "Save" icon might default back to .FCM or .BRF. You must explicitly "Save As" a machine format (.PES, .DST, etc.) for the machine to read it.

Compatibility Note: The video showcases PES v10. If you are running an older machine (e.g., an original Brother PR600 or an older home machine), v10 might be too new. If your machine can't read the file, try saving as PES v6.

Send the PES Wirelessly with Embrilliance (or Use USB if You Don’t Have the Luminaire Workflow)

If you are in the Brother ecosystem (Luminaire/Solaris), you can transfer wirelessly.

1. Open Embrilliance (acting as the bridge).
2. Drag your new .PES file into the window.
3. Use Utility → Send to Solaris / XP1.






The Universal Backup: If you lack the wireless setup, the USB Stick is the industry standard. Save the .PES file to a USB drive (formatted FAT32, usually <32GB is safest), plug it into your machine, and load.

Janome/Other Users: Simply Appliqué is Windows-based. While it can export .JEF (Janome) files, always verify your machine's accepted format.

The “Hidden” Production Prep Nobody Mentions: Stabilizer, Hooping, and Why Software Accuracy Still Fails Without Them

You can have the most perfect software file with -3.5mm offsets, but if your physical hooping is sloppy, your design will fail.

The Reality of "Hoop Burn": Traditional friction hoops require you to jam inner and outer rings together. This causes two massive problems:

1. Hoop Burn: Permanent rings marked on delicate fabrics (velvet, performance wear).
2. Wrist Fatigue: Trying to tighten screws on thick items like Carhartt jackets or quilts.

This is where the "Tool Upgrade Logic" applies. You cannot code your way out of physical fatigue.

The Solution: If you are struggling to clamp thick items or delicate framing, industry professionals switch to Magnetic Hoops.

• For the machine demonstrated, the brother luminaire magnetic hoop eliminates the need for screwing and forcing rings together. The magnets simply snap the fabric into place.
• This ensures consistent tension across the entire field, preventing the "fabric pull" that ruins appliqué alignment.
• Many studios standardize their workflow by using magnetic hoops for brother luminaire across all machines to ensure every operator hoops with the same pressure.

Warning: Magnetic Pinch Hazard. These are not fridge magnets; they are industrial neodymium magnets. They snap together with immense force. Keep fingers clear of the mating surfaces and keep them away from pacemakers or sensitive electronics.

Decision Tree: Choose Stabilizer + Hooping Method Based on Fabric

Use this logic flow to ensure your calculated offsets behave correctly.

1) What is the Fabric Stability?

• High Stability (Denim, Canvas, Twill):
  • Stabilizer: Tearaway (Medium).
  • Hooping: Standard hoop is acceptable, but verify tightness.
• Medium Stability (Quilting Cotton):
  • Stabilizer: Cutaway (Mesh) or heavy Tearaway.
  • Hooping: Needs tight drum-like tension.
• Low Stability (T-Shirts, Jersey, Spandex):
  • Stabilizer: Fusible No-Show Mesh (Cutaway) is mandatory.
  • Hooping: Do not stretch the fabric! Use a hooping station for machine embroidery to keep it neutral. If you see shifting, this is the prime use case for magnetic frames.

2) Are you Hooping One Item or 50?

• One-off: Take 10 minutes to hoop perfectly with a standard hoop.
• Production Run (50+): You need speed. A how to use magnetic embroidery hoop setup significantly reduces load time and wrist strain.

Troubleshooting the Two Most Common “Why Is This Happening?” Moments

Symptom: The layout looked centered, but the machine says "Out of Hoop."

• Refinement Cause: Your "Custom Hoop" in software didn't account for the machine's presser foot safe zones.
• Quick Fix: In the machine, trace the design. If it hits the limit, use the machine's on-screen edit to nudge it 1-2mm.
• Prevention: Increase your software safety margins by 5mm on all sides.

Symptom: The final Green Stitch (Cover) is sewing, but I wanted Raw Edge!

• Refinement Cause: Simply Appliqué generates the cover stitch layer by default.
• Quick Fix: On your machine screen, simply Skip the final color stop.
• Prevention: Delete the cover stitch layer in the software sequence view before exporting if you never intend to use it.

Symptom: White bobbin thread is pulling up to the top (showing on your appliqué).

• Likely Cause: Top tension is too tight, or the hoop is loose.
• Diagnosis: Pull on the fabric in the hoop. Does it feel like a loose drum?
• Fix: Re-hoop tighter. Check your "I-Test" (the back of the embroidery should show 1/3 white bobbin thread in the center).

The Upgrade Path That Actually Makes Sense: Speed Up Hooping Before You Buy Another Machine

Once you master the Simply Appliqué software, the bottleneck moves from your computer to your hands.

If you are doing repeated appliqué jobs (like team jerseys or patches), the biggest profit killers are:

1. Hooping time.
2. Inconsistent tension causing rejects.

This is why many shops move toward magnetic embroidery hoops for repeat work. It is cleaner, faster, and leaves no marks.

If you are running a high-end machine like the Dream Machine and want a similar workflow improvement, a magnetic hoop for brother dream machine can be a practical step when hooping becomes the bottleneck.

The "Scale" Upgrade: Eventually, even the best hoop cannot solve the speed limit of a single-needle machine. If you are scaling beyond hobby volume, the commercial leap is Batching on a multi-needle platform. In that setup, consistent hooping tools—like hooping for embroidery machine stations—ensure that the 100th shirt looks exactly like the 1st shirt.

Operation Checklist: The Final Countdown

Do this right before you press the green button.

• Format Verification: Is the file .PES (not FCM)?
• Hidden Consumables: Do you have a fresh needle (75/11 is standard)? Do you have sharp appliqué scissors (curved tip)?
• Stop Sequence: Preview the color steps on the screen. Identify exactly which number is the "Final Cover Stitch" so you know when to stop.
• Safety Zone: Clear the area around the hoop arm.
• Test Drive: Stitch a small test on scrap fabric if this is a new material combination.

Hidden Consumables Idea: Keep a can of spray adhesive (temporary bond) and a water-soluble marking pen near your station. These are the unsung heroes of appliqué alignment.

FAQ

• Q: In Simply Appliqué, how do you create a Brother Luminaire XP1 custom hoop size of 10.5" × 16" so the design does not stitch outside the hoop boundary?
  A: Create and activate the custom hoop first, because the on-screen hoop boundary is a physical limit your machine will enforce.
  • Open Hoop Selection → click New.
  • Enter Hoop Width = 10.5 in and Hoop Height = 16 in, name it (for example, “XP1 Large Hoop”), then click Apply.
  • Keep a safety buffer and avoid pushing objects to the extreme edge of the boundary.
  • Success check: A hard boundary line is visible on the grid, and every design element sits inside that line with margin.
  • If it still fails: Increase the safety margin (leave more space) and use the machine’s trace/preview to confirm the needle path clears the safe zones.
• Q: In Simply Appliqué, how do you stop accidental whole-canvas shifting after importing a Brother Canvas Workspace .FCM file (the “sticky hand” pan problem)?
  A: Treat the hand cursor as “pan mode” and verify movement using the rulers so the design does not drift off center.
  • Import via the A menu → Import FCM, then pause before dragging anything.
  • Watch the cursor: when it becomes a hand, avoid dragging unless you intentionally want to pan.
  • Use the side rulers as the telltale indicator while you click-drag.
  • Success check: When you drag to move an object, the object shifts relative to the grid (not the entire view/rulers sliding).
  • If it still fails: Re-center the main body part using Arrange → Center to re-establish a reliable anchor point.
• Q: In Simply Appliqué, what stitch order should be used for raw-edge appliqué so the Body, Legs, and Paws layer cleanly during the physical stitch-out?
  A: Re-sequence the layers to match real fabric stacking: stitch background first and top layers last.
  • Rename each item in the Sequence Pane (Body, Front Legs, Back Legs, Paws) so the order is unambiguous on-screen and at the machine.
  • Drag layers into this order: Body → Front Legs → Back Legs → Paws.
  • Confirm slight overlaps where needed so gaps do not open in fabric.
  • Success check: The Sequence Pane reads in the same order you would physically place fabric from bottom to top.
  • If it still fails: Stop and split the project into separate sections/hoopings rather than forcing a crowded layout.
• Q: In Simply Appliqué, what are the safe starting offsets for raw-edge run-stitch appliqué (Placement -3.5mm and Tackdown -2.5mm), and what does the negative sign mean?
  A: Use Placement Offset -3.5mm and Tackdown Offset -2.5mm as a safe starting point because negative offsets pull stitches inside the shape to hide and secure edges.
  • Set stitch type to Run and set Stitch Length = 2.0mm.
  • Apply Placement Offset = -3.5mm and Tackdown Offset = -2.5mm in the Properties Panel.
  • Test on scrap of the same fabric, because thick canvas/denim often may need less negative offset to prevent edge rolling.
  • Success check: Placement stitches are hidden under the fabric, and tackdown stitches catch the raw edge without exposing the placement line.
  • If it still fails: Adjust offsets in small steps and re-test on the exact fabric/stabilizer combination.
• Q: In Simply Appliqué, how do you export a stitch file as Brother/Baby Lock PES v10 so the machine does not receive an .FCM or .BRF file by mistake?
  A: Always use Save As and explicitly choose a machine stitch format (PES), because “Save” may keep the file as FCM/BRF.
  • Go to File → Save As and change the Save as type dropdown to Brother/Baby Lock PES v10.
  • Name the file clearly (for example, BodyLegsPaws_StitchFile) so the stitch-out file is not confused with the editable master.
  • If the machine is older, try saving as PES v6 if the newer version is not recognized.
  • Success check: The exported file extension is .PES and the design loads on the machine without format errors.
  • If it still fails: Transfer via USB (FAT32, typically under 32GB) and confirm the machine’s supported PES version in the machine manual.
• Q: During Simply Appliqué raw-edge appliqué stitch-out, how do you stop white bobbin thread from pulling up to the top, and what is the “I-Test” success standard?
  A: Re-hoop tighter first and then verify tension, because a loose hoop and/or overly tight top tension commonly pulls bobbin thread to the surface.
  • Pull on the fabric in the hoop and evaluate tightness before changing settings.
  • Re-hoop to a tighter, drum-like feel (do not distort stretchy fabric).
  • Check the “I-Test” on the back: the bobbin thread should show about 1/3 in the center of the stitch formation.
  • Success check: The top surface shows clean top thread coverage, and the back shows a balanced “1/3 bobbin in the center” look.
  • If it still fails: Re-check stabilizer choice and hooping method, because fabric movement can mimic tension problems.
• Q: What are the key safety risks during raw-edge appliqué trimming near the needle, and what are the magnetic hoop pinch hazards when using magnetic embroidery hoops?
  A: Keep hands out of the needle danger zone during trimming, and treat magnetic hoops as industrial-strength magnets that can pinch hard.
  • Stop the machine before trimming and keep fingers well away from the needle area.
  • Use proper appliqué scissors (curved tip) so trimming control does not require fingers near the needle.
  • Keep fingers clear when closing magnetic frames; magnets can snap together with high force.
  • Success check: Trimming is done with the machine stopped, fingers never pass under/near the needle path, and magnetic frame closure is controlled without sudden snapping.
  • If it still fails: Slow the workflow down and reorganize the station so tools are within reach and hands are not tempted into unsafe positions.
• Q: For repeated appliqué jobs, how do you decide between Level 1 technique fixes, Level 2 upgrading to magnetic hoops, and Level 3 moving to a multi-needle platform like SEWTECH machines when hooping becomes the bottleneck?
  A: Start by stabilizing hooping and file logic (Level 1), then upgrade hooping hardware if hoop burn/wrist fatigue or inconsistency persists (Level 2), and only then consider production scaling (Level 3).
  • Level 1 (Technique): Re-check custom hoop boundary, centering (Arrange → Center), stitch order, stabilizer choice, and drum-tight hooping consistency.
  • Level 2 (Tool): Switch to magnetic hoops when hoop burn, clamping difficulty on thick items, or operator-to-operator inconsistency is causing rejects or slow load times.
  • Level 3 (Capacity): Move to a multi-needle workflow when the limiting factor is no longer file quality but throughput (frequent repeats, batching, and minimizing downtime).
  • Success check: Hooping time drops, rejects from shifting reduce, and stitch-outs match from the 1st item to the 50th.
  • If it still fails: Run a controlled test batch on the same fabric/stabilizer with one hooping method and document results before changing multiple variables at once.
