From Google Silhouette to Brother PES: A Sew Art 64 Workflow That Actually Stitches Clean (Without the Usual Beginner Traps)

If you are staring at your machine with a mix of excitement and "what-did-I-get-myself-into" dread, stop. Take a deep breath. You are not alone. Most beginners can click their way to a stitch file in software like Sew Art 64, but the actual stitch-out is where the "why is there a box?", "why are there dots?", and "why did my fabric bunch up?" panic begins.

Embroidery is an experience science. It is not just about pixels on a screen; it is about physics—tension, friction, and fiber structure.

This guide rebuilds the exact workflow shown in the video—copy/paste a silhouette, reduce colors, resize, auto-sew, and transfer to a Brother machine—but it adds the "20-year veteran" layer. I will walk you through the shop-floor details, the sensory checks, and the safety protocols that keep your result clean and your expensive equipment safe.

Calm the Panic: Managing Expectations for Auto-Digitizing

Sew Art 64 is a fantastic entry point, but it operates on a "garbage in, garbage out" principle. It excels when you feed it a clean, high-contrast silhouette. It struggles when you feed it messy photos.

Two mental anchors to set before you begin:

1. The "Stencils not Paintings" Rule: Sew Art converts shapes into needle commands. It cannot "see" a flower; it only sees mathematical contrast. If your image looks like a stencil, it will stitch well.
2. The "Good Enough" Sweet Spot: Auto-digitizing is excellent for hobby projects. However, it often creates "jump stitches" (where the machine travels without sewing) or odd start points. We will direct you on how to minimize these during the prep stage.

If your goal is a quick gift for family on a brother embroidery machine, this workflow is the repeatable routine that keeps you out of the repair shop.

The "Hidden" Prep Pros Do First: Image Choice & Workspace

Before you even open the software, we must secure your assets. 80% of embroidery failures happen before the needle moves.

Pick the Right Image (The High-Contrast Rule)

In the video, the creator searches for a flower silhouette. This is the correct instinct.

Pro Criteria for Success:

• Solid Logic: Look for solid black shapes on a stark white background.
• Minimal Internal Detail: Thin lines (under 1mm) will often create "bird nesting" (tangled thread) underneath the fabric.
• No Gradients: Shadows confuse the software. It tries to turn a gray shadow into a thousand tiny stitches, which creates a bulletproof stiffness you don't want.

A Note on Copyright (The Legal Reality)

The video mentions removing watermarks by reducing colors. Technically, this works. Legally and ethically, it is a risk. Watermarks exist for a reason. For personal practice, use what you like. But if you intend to sell your work, using watermarked images is a ticking time bomb. Use public domain vectors or purchase licensed art—it is cheaper than a lawsuit.

Set Your Grid (Mental Calibration)

The video highlights toggling between metric (mm) and imperial (inches).

• My Advice: Even if you live in the US, learn to think in millimeters for embroidery.
• Why? Most machine hoops are standard metric sizes (100x100mm, 200x300mm). Thinking in mm prevents the heartbreaking error of creating a design that is 0.1 inches too big for your hoop.


Prep Checklist (Pre-Flight):

• Unit Check: Is Sew Art set to your preferred unit (Metric recommended)?
• Hoop Check: Know your limit (e.g., 100x100mm). Target a design size 10% smaller than the total limit for safety.
• Consumables: Do you have your stabilizer, temporary adhesive (like 505 spray), and a fresh needle (size 75/11 is a good standard start)?
• File Name: Create a folder named "Embroidery_Staging" rather than dumping files on your desktop.

Importing the Image: The Copy/Paste Trap

The video uses a fast method: Right-click > "Copy Image" > Paste into Sew Art.

The Expert Caveat: Web images are often 72 DPI (low resolution). When you paste them, the edges might look jagged. These "jaggies" turn into messy stitches.

• The Fix: If the pasted image looks fuzzy, try to find a "large" version in Google Images, save it to your computer, and use the File > Open command. This usually preserves data better than the clipboard.

The 2-Color Trick: Using "Reduce Colors" to Purify the Signal

In the video, the creator reduces the image to 2 colors, causing a watermark to vanish.

Here is the "Why" behind the magic: Digital images are made of thousands of colors. Even a "black" pixel might actually be "dark grey." Your sewing machine needs binary instructions: "Stitch here" or "Don't stitch here." By forcing the image into 2 buckets (Black and White), you eliminate the confused gray pixels that cause the machine to stutter.

Sensory Check: Zoom in on your image after reducing colors. Do you see tiny stray specks of black in the white area?

• Yes: These will become "trim commands" or tiny knots in your fabric. Use the eraser tool to remove them now.
• No: You have a clean signal. Proceed.

Lock in the Size: The Physics of Density

The video inputs 40 mm × 40 mm. This is a safe, manageable size.

The Physics Warning: If you take a complex image meant for a jacket back (300mm) and shrink it to a chest logo (80mm) without adjusting the stitch count, you increase the density.

• Result: The needle will hammer the same spot repeatedly, potentially cutting a hole in your fabric or breaking the needle.
• Rule of Thumb: For Sew Art auto-digitizing, resize your image before converting to stitches. This allows the software to calculate the correct density for the new size.

Warning: Mechanical Hazard. During the stitch-out, never place your hands near the needle bar to clear a thread while the machine is active. A sewing machine needle moves faster than human reaction time. Always stop the machine completely first.

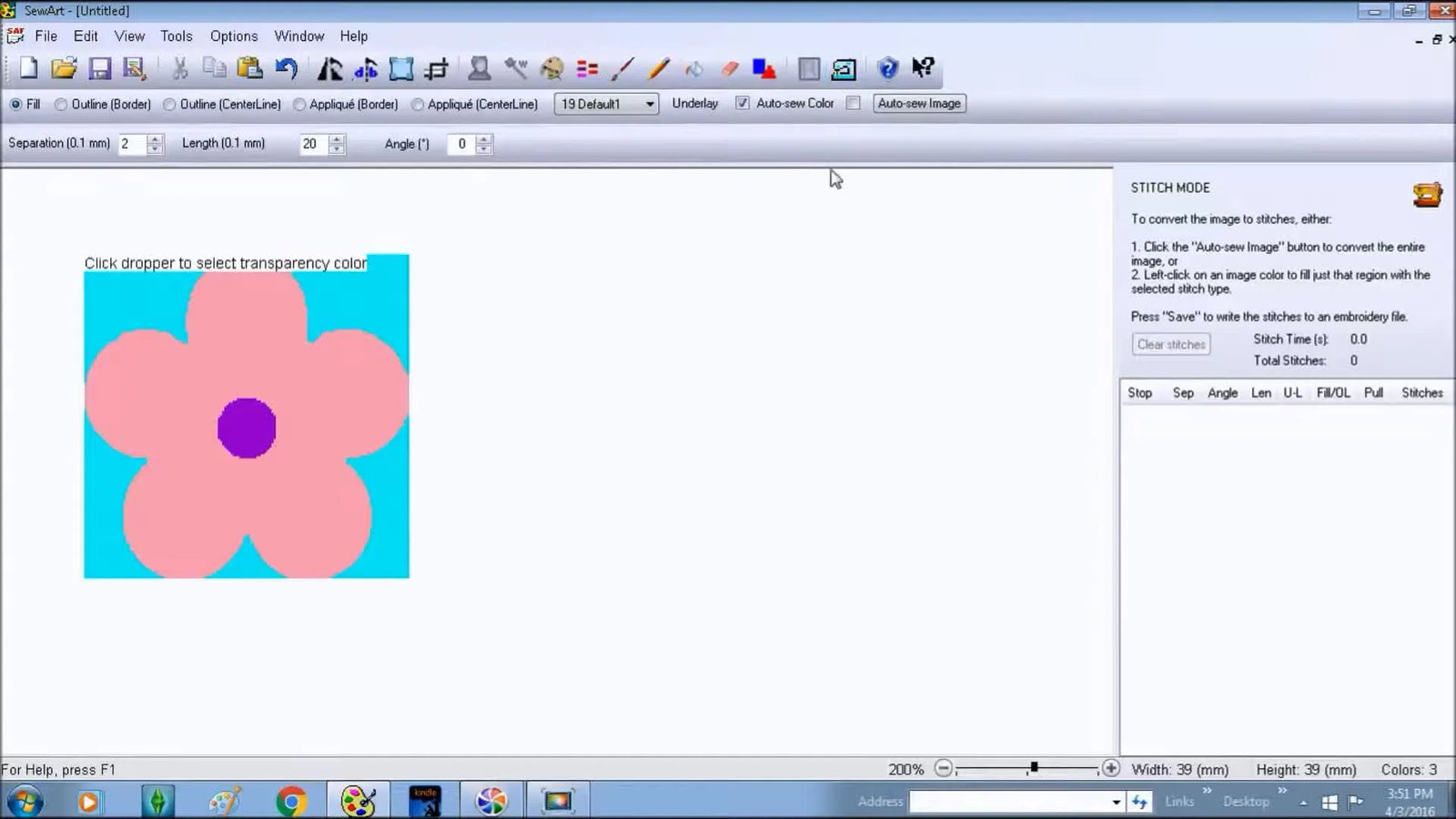

The "Make It Stitch" Moment: Auto-Sew & Transparency

This is the critical transformation phase.

The video demonstrates:

1. Fill Patterns: Changing the texture of the stitches (Apples, Stars, etc.). Advice: Stick to default "Fill" or "Satin" for your first 10 projects. Novelty fills add stress to the fabric.
2. Transparent Color: Clicking the background area to ensure it doesn't stitch.


The "Black Shield" Error

A user in the comments noted their machine showed a "black shield" instead of a flower.

• The Cause: The background color (White) was treated as a "stitching color" rather than a "transparent" one. The machine thinks you want to sew a white square with a black flower on top.
• The Fix: In the "Auto-Sew" dialog, ensure you click the background surface so the checkerboard pattern (transparency representation) appears. If it looks solid color, it will sew solid thread.

Saving Like a Pro: File Hygiene

The video saves a JPG (visual reference) and a PES file (machine data).

The Naming Convention: Do not name your file "flower.pes". You will have 50 files named "flower" in a month. Use this format: DesignName_Size_FabricType_Version.pes

• Example: Rose_40mm_Felt_v1.pes

If you are building a library compatible with various embroidery hoops for brother machines, having the size in the filename prevents you from loading a 5x7 design into a 4x4 hoop—a common error that freezes the machine.

USB Transfer: The "Safe Eject" Rule

The video shows dragging the file to the "Removable Disk."

Critical Step: Always "Eject" or "Safely Remove" the USB drive from Windows before pulling it out. Embroidery files are fragile. Yanking the drive can corrupt the header of the file. You won't know it's broken until you plug it into the machine and it crashes.

The Stitch-Out: Floating, Stabilizers, and Physics

The video shows the machine stitching on yellow felt.

The creator mentions the felt is "floating"—meaning it is not clamped in the hoop rings. It is resting on top of a hooped stabilizer. This brings us to a major dividing line in embroidery technique: Hooping vs. Floating.

What is Floating & Why Do It?

Floating is used to avoid "Hoop Burn"—the ring marks left on delicate fabrics by the clamp. It is also used when an item is too small to hoop. You hoop a piece of stabilizer (like a drum skin), spray it with temporary adhesive, and stick the felt on top.

The Risk: Without the mechanical clamp, the fabric can shift. The needle pushes and pulls the fabric. If the adhesive isn't strong enough, your outline will not match your fill (Registration Error).

The Solution: Terms like floating embroidery hoop techniques often lead users to discover better tools. If you float because you hate hooping, you are a prime candidate for magnetic frames (discussed in the upgrade section).

Warning: Magnetic Safety. If you choose to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. They can pinch skin severely. Keep them away from pacemakers and sensitive electronics.

Decision Tree: Stabilizer & Hooping Strategy

Do not guess. Use this logic flow to determine your setup.

Start Here: 1. Is the fabric stretchy (T-shirts, Knits, Spandex)?

• YES: You MUST use Cutaway Stabilizer. Tearaway will fail, and the stitches will distort.
• NO: Go to step 2.

2. Is the fabric "stable" but soft (Cotton, Linen)?

• YES: Use Tearaway Stabilizer.
• NO: Go to step 3.

3. Is the fabric thick/dense (Felt, Canvas, Denim)?

• YES: You can likely use Tearaway, or even "Float" it on a sticky stabilizer.

4. The Hooping Question:

• Can I hoop it without crushing it?
  • Yes: Hoop the fabric and stabilizer together (Sandwich method). This is the most stable.
  • No (Velvet, thick towels): Float it. Use 505 spray or a basting stitch box to hold it.

Setup Habits: The Ritual of Success

Professional embroiderers don't cross their fingers; they check their gear.

Hidden Consumables you need:

• Curved Scissors: For snipping jump threads close to the fabric.
• Isopropyl Alcohol: To clean adhesive residue off your needles.
• Machine Oil: One drop in the bobbin race (consult manual) every 8 hours of run time.

Setup Checklist (The "Do Not Touch Start Yet" List):

• Bobbin Check: Is the bobbin full? Running out halfway is a nightmare.
• Thread Path: Rethread the top thread. Ensure the foot is UP when threading (to open tension disks) and DOWN when sewing.
• Clearance: Rotate the handwheel manually for one rotation to ensure the needle doesn't hit the hoop.
• The "Click": Listen for the frame to click securely into the machine carriage.

Troubleshooting: Symptoms & Cures

If things go wrong, do not blame the software first. Blame physics.

The Upgrade Path: Moving from Frustration to Production

As you master the basics, you will identify specific pain points. Do not upgrade randomly; upgrade to solve a problem.

1. The Pain: "My hands hurt / My hoops leave marks"

The Diagnosis: Traditional screw-clamp hoops require significant wrist strength and can crush fabric texture (hoop burn). The Upgrade: Magnetic Hoops. Magnetic hoops clamp the fabric using force from the top rather than friction from the side. This eliminates hoop burn and is significantly faster. Many users searching for a reliable magnetic hoop for brother find that this single change doubles their enjoyment of the hobby.

2. The Pain: "I spend more time changing thread than sewing"

The Diagnosis: Single-needle machines require you to baby-sit every color change. The Upgrade: Multi-Needle Machines. If you find yourself making 20 caps or 50 patches, a single-needle machine stops being a tool and starts being a bottleneck. Moving to a platform like the SEWTECH multi-needle system allows you to set up 10+ colors and walk away.

3. The Pain: "I can't get my logos straight"

The Diagnosis: Human error in alignment. The Upgrade: Hooping Stations. A hooping station for embroidery ensures every shirt is hooped in the exact same spot, every time. This is essential for uniforms or team gear.

Final Operation Checklist (Post-Stitch):

• Trim: Cut jump stitches immediately.
• Inspect: Check the back. Is the bobbin thread visible as a center 1/3 channel? (This indicates perfect tension).
• Clean: Brush lint from the bobbin area.
• Catalog: If it worked, save the file to a "Proven" folder. If it failed, delete it or rename "NEEDS FIX."

Embroidery is a journey of managing variables. By locking down your image prep, respecting the physics of hoops and stabilizers, and upgrading your tools when the volume demands it, you move from "hoping it works" to "knowing it will." Now, go press start.

FAQ

• Q: What consumables and pre-flight checks should a Brother embroidery machine beginner do before stitching a Sew Art 64 auto-digitized PES file?
  A: Use a simple pre-flight routine: correct units/hoop size, correct stabilizer, fresh needle, and a clean file path—this prevents most first-run failures.
  • Confirm units (metric recommended) and set design size about 10% smaller than the hoop limit.
  • Prepare stabilizer, temporary adhesive (such as 505 spray), and a fresh 75/11 needle as a safe starting point.
  • Create a dedicated folder (for example, “Embroidery_Staging”) and save both a JPG preview and the PES file.
  • Success check: the design size clearly fits inside the hoop boundary before transferring, and the machine runs the first minute without sudden thread tangles.
  • If it still fails, re-check image cleanliness (stray pixels) and re-run auto-sew with the correct transparent background.
• Q: How can a Brother embroidery machine user prevent the Sew Art 64 “black shield” (solid block) problem when stitching an auto-sewn design?
  A: Set the background to transparent in Sew Art 64 so the machine does not stitch the background as a solid fill.
  • Open the Auto-Sew dialog and click the background area until it shows the checkerboard transparency.
  • Preview the color blocks and confirm the background is not treated as a sewing color.
  • Re-save the PES file with a clear name that includes the size (for example, Design_40mm_v1.pes) and transfer again.
  • Success check: the Brother screen preview shows the flower shape without a solid square behind it.
  • If it still fails, re-import a cleaner silhouette (high-contrast, no gradients) and reduce colors to 2 before auto-sew.
• Q: How do I stop bird nesting (thread tangles under the throat plate) on a Brother embroidery machine during a Sew Art 64 stitch-out?
  A: Rethread the top thread correctly with the presser foot UP—bird nesting is often caused by the top thread not seated in the tension disks.
  • Stop the machine completely and remove the tangled thread safely.
  • Raise the presser foot, completely rethread the top path, then lower the presser foot before sewing.
  • Start again and watch the first stitches; don’t “power through” a forming nest.
  • Success check: the underside shows controlled stitches rather than a growing ball of thread, and the machine sound becomes steady instead of “thumping.”
  • If it still fails, inspect the bobbin area for incorrect bobbin seating and clean lint before the next run.
• Q: What is the best stabilizer choice and hooping method for floating embroidery on felt vs. hooping fabric normally on a Brother embroidery machine?
  A: Choose stabilizer by fabric behavior first, then decide hooping vs. floating based on whether clamping will damage the fabric surface.
  • Use cutaway stabilizer for stretchy knits/T-shirts; use tearaway for stable cotton/linen; thick felt/canvas/denim often works with tearaway and may be floated on sticky stabilizer.
  • Hoop fabric + stabilizer together (“sandwich”) when possible for maximum registration stability.
  • Float only when hooping would crush the fabric (hoop burn) or the item is too small to hoop; use temporary adhesive spray or a basting stitch box to reduce shifting.
  • Success check: outlines and fills stay registered (no gapping) from start to finish.
  • If it still fails, strengthen stabilization (stronger adhesive, better hoop hold) or move to a magnetic hoop solution to reduce slippage.
• Q: What is the correct success standard for thread tension on a Brother embroidery machine after stitching an auto-digitized Sew Art 64 design?
  A: Use the back of the embroidery as the primary tension indicator: bobbin thread should appear as a centered channel, not flooding the top or disappearing completely.
  • Inspect the back immediately after stitching and look for the bobbin thread as a clean, centered “one-third” channel through the stitch columns.
  • If white bobbin thread is showing on top, check top tension and confirm the bobbin is seated with thread in the bobbin tension spring.
  • Rethread the top path before changing settings, because misthreading often mimics tension problems.
  • Success check: the top thread coverage looks smooth on the front, and the back shows consistent, even tension across the design.
  • If it still fails, test on a scrap with the same stabilizer/fabric stack and confirm the bobbin case is installed correctly per the machine manual.
• Q: What needle-bar safety rule should Brother embroidery machine users follow when clearing thread or adjusting fabric during a stitch-out?
  A: Never put fingers near the needle bar while the machine is running—stop the machine completely before clearing thread or repositioning material.
  • Press stop and wait for the needle to fully stop moving before reaching into the needle area.
  • Use proper tools (like curved scissors) to trim jump stitches instead of pulling near the needle.
  • Rotate the handwheel manually for one full rotation during setup to confirm the needle will not hit the hoop.
  • Success check: hands never enter the needle zone until the machine is fully stopped, and the first manual rotation clears the hoop without contact.
  • If it still fails, pause and re-check frame installation and clearance before restarting.
• Q: What magnetic hoop safety precautions should be followed when upgrading a Brother embroidery machine workflow to magnetic embroidery hoops?
  A: Treat magnetic hoops as high-force tools: prevent pinches, keep magnets away from pacemakers, and control placement deliberately.
  • Separate and re-attach the magnetic ring slowly to avoid sudden snapping and skin pinches.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Store magnetic hoop parts so they cannot slam together or attract metal objects unexpectedly.
  • Success check: the hoop closes in a controlled way without snapping, and fabric is held evenly without clamp marks (reduced hoop burn).
  • If it still fails, reassess whether floating with adhesive or a different stabilization method is safer for the specific item.
• Q: When should a Brother embroidery machine user upgrade from technique fixes to magnetic hoops, and then to a SEWTECH multi-needle embroidery machine for production work?
  A: Upgrade only to solve a specific bottleneck: technique first, then magnetic hoops for hooping pain/marks, then multi-needle when color changes become the limiting factor.
  • Level 1 (technique): clean the image (2-color reduce, erase stray pixels), set transparency correctly, and stabilize/hoop properly to stop gapping and nesting.
  • Level 2 (tooling): move to magnetic hoops when traditional hoops cause hoop burn, require too much wrist force, or floating keeps shifting and ruining registration.
  • Level 3 (capacity): move to a SEWTECH multi-needle system when single-needle color changes consume more time than stitching (common with batches like caps, patches, or repeated logos).
  • Success check: downtime drops—less re-hooping, fewer restarts, and consistent registration across repeated items.
  • If it still fails, add a hooping station when straight, repeatable placement (logo alignment) is the main remaining error source.
