From Hatch to a Brother PE800/SE1900 Stitch-Out: The Clean USB Export, the Fleece Hoop “Sandwich,” and the Fix for That Annoying Oval Circle

You’re not alone if the “software-to-machine” transition feels scarier than the stitching itself. Machine embroidery is an unforgiving blend of digital precision and analog physics. Beginners rarely ruin projects because they lack artistic talent; they fail because of mechanical variables: the file exported with the wrong parameters, the soft fleece shifting 2mm under the foot, or a thread path that missed a single tension disc.

As someone who has trained thousands of operators, I view this workflow (Hatch → USB → Brother PE800/SE1900 → Fleece) not just as a tutorial, but as a reliable Standard Operating Procedure (SOP). We are going to strip away the guesswork. I will explain the why behind every step, introduce you to the sensory cues (what it should sound and feel like), and show you exactly when to upgrade your tools to stop fighting your materials.

Get the Hatch Embroidery 3 design “machine-ready” before you ever touch the USB drive

In the video source, the workflow begins with three critical checks inside the software. We call this "Pre-Flight Validation." If the data is bad here, no amount of stabilizer will save you later.

What to do in Hatch (The Digital Hygiene Check):

1. Sequence Audit: Open your design and confirm the stitch sequence (color order) is logical. You want to minimize color changes to save time, and ensure background layers stitch before foreground details.
2. Dimensional Check: Double-check the design size. The example uses a 2.5" x 2.5" design. Note: Ensure this fits within the sewing field of your hoop, not just the outer physical dimensions of the hoop frame.
3. The "Format" Handshake: Export the design for the machine. In Hatch, Export creates the machine language file.

The "Why" Matters: Beginners often confuse "Saving" (keeping the .EMB or working file) with "Exporting" (creating the stitch file). You must do both.

• The Save: Keep your .EMB file safe. This is your "source code." It allows you to resize or edit density later.
• The Export: For Brother machines (PE800, SE1900, etc.), the native language is .PES. If you are using a commercial machine or a different brand, .DST is the universal standard (though it loses color data).

One sentence that will save you heartbreak: Never rescale a stitching file (.PES) by more than 10-20% on your machine screen. Always resize in the software so the stitch count recalculates. If you shrink a design on the machine, the density increases, and you will break needles.

The “Hidden” prep that prevents 80% of beginner failures: fleece, stabilizers, and a realistic plan

Fleece is a deceptive material. It looks solid, but under the microscope, it is a sponge. It compresses under the presser foot and stretches when hooped. To combat this, we use the "Sandwich Method" shown in the workflow:

• Bottom Layer (The Foundation): Tear-away stabilizer.
  • Expert Context: For a simple patch, tear-away is acceptable. However, if this were a sweatshirt you intended to wash 50 times, I would recommend a Cutaway stabilizer. Cutaway provides permanent support to the soft fibers of the fleece.
• Middle Layer (The Substrate): Anti-pill fleece.
• Top Layer (The Surface Tension): Water-soluble topper film (often called Solvy).

The Role of the Topper: The topper is non-negotiable on fleece. Without it, the thread sinks deep into the fabric pile. The stitches disappear, the edges look jagged, and the final result looks "cheap." The topper keeps the stitches floating on top of the nap for that crisp, commercial look.

The Commercial Reality: If you are doing one-off hobby projects, manually cutting and layering these sheets is fine. But if you are running a shop, this step is your biggest bottleneck. The time spent cutting, aligning, and trying to keep layers from sliding is "dead time."

This is where the conversation regarding tools like an embroidery hooping station becomes relevant. These stations aren't just "fancy accessories"; they act as detailed jigs that hold your bottom stabilizer and garment in perfect alignment while you hoop. They reduce human variability, which is the primary cause of crooked embroidery.

Prep Checklist (Do NOT proceed until these are ticked)

• Stabilizer Choice: Tear-away (for patches) or Cutaway (for wearables) cut to size.
• Topper: Water-soluble film cut large enough to cover the entire travel of the needle, not just the design.
• Adhesion (Hidden Consumable): A light mist of Temporary Spray Adhesive (like Odif 505) on the stabilizer is highly recommended to prevent the fleece from sliding.
• Sharp Scissor/Snips: Within arm's reach for trimming jump stitches.
• USB Integrity: Drive is empty of non-embroidery files and formatted to FAT32 (crucial for older Brother machines).
• Backup Secure: The editable working file is saved on your PC, not just the USB.

Hoop anti-pill fleece in a Brother 4x4 hoop without warping the design

The video utilizes a standard 4x4 hoop. Hooping fleece in a standard "inner-outer ring" mechanism is tricky because of "Hoop Burn"—the permanent crush mark left on the fabric by the rings.

If you are using a standard brother 4x4 embroidery hoop, do not force the inner ring in like a cookie cutter. That friction drags the fabric and distorts it.

The "Frictionless" Hooping Technique:

1. Loosen the outer hoop screw significantly—more than you think you need to.
2. Place your "Sandwich" (Stabilizer + Fleece + Topper) over the outer hoop.
3. Gently press the inner ring down. It should seat with a firm push, but you shouldn't have to put your body weight on it.
4. The Tactile Check: Tighten the screw. Then, run your finger along the inside edge of the hoop. The fabric should feel smooth.
5. Stop Tugging: Once the hoop is tight, do not yank the fabric edges to make it tighter. On fleece, this stretches the fibers. When you un-hoop later, the fibers snap back, and your perfect circle becomes an oval.

The physics that explains the “oval circle” problem (and how to prevent it)

Fleece has a "grainline." It usually stretches East-West (across the body) but is stable North-South. The host correctly identifies that stretch is the enemy of geometry.

When the needle penetrates the fabric, it pushes fibers apart. If the fabric is stretched tight like a drum before sewing, the added tension of thousands of stitches will distort it further.

Practical Prevention:

• The "Drum Skin" Myth: For fleece, you want the fabric "taut," not "drum tight." It should be held firmly but not stretched out of shape.
• Float Method: Some pros prefer to hoop only the stabilizer and then use spray adhesive to stick the fleece on top ("floating"). This prevents all hoop burn, but requires practiced adhesive management.

The Tool Upgrade: If you find yourself constantly fighting hoop burn or struggling to close the hoop on thick fleece, this is the exact moment a magnetic embroidery hoop moves from a wish-list item to a necessary asset. Magnetic hoops use vertical force (clamping down) rather than horizontal friction (pushing a ring inside another). This eliminates the "drag" that stretches fleece, and significantly reduces the unsightly crush marks on delicate naps.

Export to USB the right way in Hatch, then eject like you actually care about your files

The export process is simple but fragile. In the video, the host selects the USB drive, names the file ("smile"), chooses PES, and saves.

Then, she performs the most ignored step in digital embroidery: Safe Ejection.

Why this matters: Stitch files are tiny streams of coordinate data (X, Y movements). If you pull the drive while the computer is "caching" or "indexing," you might corrupt the header of the file. The machine might see the file name but crash when you hit "Sew."

Pro Tip: Create a folder structure on your USB drive. Do not dump 500 files into the root directory. Brother machines have a limit on how many files they can display per screen/folder. A folder named "Fleece_Projects" keeps your workflow sane.

Load the design on a Brother PE800 and use on-screen positioning to save fabric (without guessing)

On the Brother PE800/SE1900 interface:

1. Tap the USB Icon.
2. Select the file.
3. Tap Set.

The "Test Patch" Economy: The host moves the design up on the Y-axis. This is smart shop economics. If you center every test design, you ruin a whole sheet of stabilizer and fabric for one logo. By moving firmly to the corners, you can fit 4-5 test stitch-outs on a single hooping of stabilizer (if using the "float" method) or maximize your scrap fabric usage.

The "Trace" Button: Before you commit, locate the button that looks like a dotted box or needle moving around a square. Press it. The hoop will move to trace the outer edges of the design. Watch the needle bar. Does it hit the plastic edge of the hoop? Does it fall off the edge of your fabric patch? This 10-second check prevents broken needles.

Mount the hoop on the Brother embroidery arm cleanly—misalignment here causes chaos later

The video shows attaching the hoop to the carriage. This connection must be mechanical and positive.

The Auditory Anchor: When you slide the hoop connector into the embroidery arm, listen for a distinct "Click" or feel the solid engagement of the lock mechanism. If the hoop is slightly loose, the momentum of the rapid Y-axis movements will cause the hoop to wiggle. A 1mm wiggle at the bracket equals a 5mm misalignment at the needle.

This mounting step is also where repeated stress occurs. Fighting with the attachment mechanism on every shirt leads to operator fatigue. This is another reason high-volume shops favor magnetic embroidery hoops for brother. The magnetic attachment to the garment is separate from the machine arm, but the ease of loading the garment means less wrestling with the machine overall.

Thread the Brother SE1900 like a technician, not like you’re “hoping it works”

Threading is where 90% of "tension issues" actually live. The host follows the numbered path 1–7.

The "Floss" Technique (Crucial Step): At Step 3 (The Tension Discs), don't just lay the thread in. Hold the thread spool with your right hand to create resistance, and pull the thread down through the channel with your left hand. You should feel a slight "pop" or consistent drag as the thread seats deep between the tension plates. If the thread floats on top, you will have zero tension, and the bobbin thread will be pulled to the top (looking like a straight line).

The Take-Up Lever: At Step 5, ensure the thread is fully inside the eye of the take-up lever (the metal arm that goes up and down). If it slips out, the thread creates a loop and snaps immediately.

Warning: Safety First
Keep long hair tied back. Remove hoodie drawstrings. Keep fingers away from the needle zone while the machine is running. A machine moving at 600 stitches per minute (SPM) does not stop instantly. If a needle breaks, it can fly at high velocity—protective eyewear is recommended.

Setup Checklist (The "Go/No-Go" Gauge)

• Hoop Security: Hoop is locked onto the embroidery arm. Wiggle test passed (no movement).
• Positioning: "Trace" function run to confirm needle won't hit the frame.
• Threading: Upper thread seated in tension discs ("Floss Test" passed). Bobbin is seated correctly in the raceway.
• Presser Foot: MUST BE DOWN. (If you thread with the foot down, tension is engaged/locked—bad. If you sew with the foot up, bird's nest ensues—bad).
• Clearance: No fabric bunches behind the hoop that could get sewn to the back of the project.

Start the stitch-out on fleece and do the one trim that prevents a bird’s nest

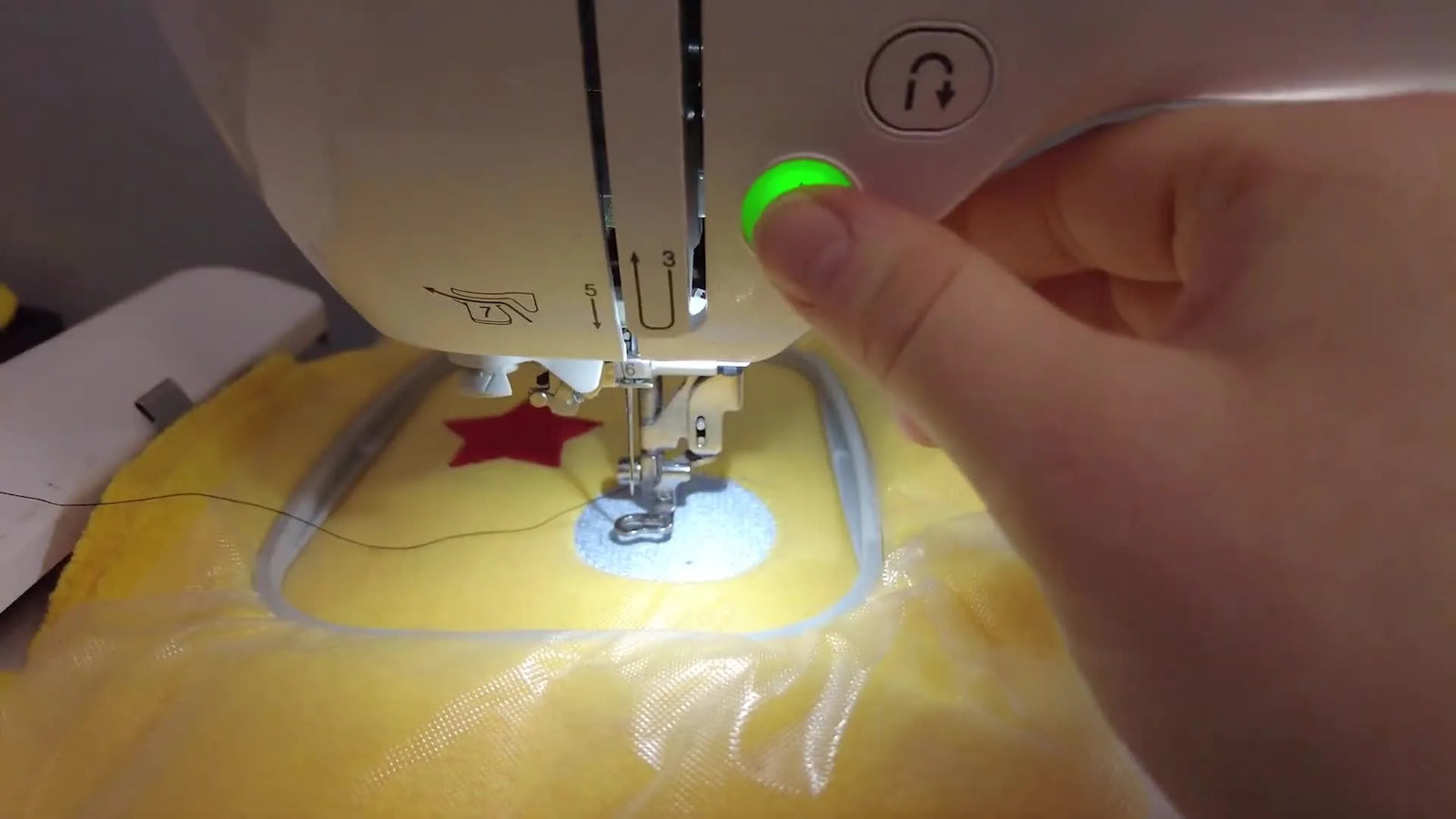

The host lowers the presser foot (button turns green), presses Start, scrapes out a few stitches, then Pauses.

The "Tail Trim" Protocol: She trims the starting thread tail. Do not skip this. If that long tail is left loose, the needle will eventually catch it, pull it down into the bobbin case, and create a "bird's nest"—a tangled ball of thread that locks your project to the machine throat plate.

Speed Management: On a Brother SE1900, you have a speed slider. For fleece, do not run at Max Speed.

• Beginner Sweet Spot: Set speed to roughly mid-range (approx 400-500 SPM).
• Why: High speed creates friction. Friction heats the needle. A hot needle can melt synthesis fleece or the accumulator adhesive, causing thread snaps.


Monitoring the "Pulse": Listen to your machine.

• Rhythmic, soft thumping: Good.
• Loud, sharp clacking: Bad. Change the needle.
• Grinding: Stop immediately.

The screen estimates:

• Total stitches: 4,345
• Blue layer: 9 mins
• Black layer: 1 min






Operation Checklist (Active Monitoring)

• Start/Stop: Machine paused after 5-10 stitches to trim the start tail.
• Topper Watch: actively watching to ensure the water-soluble film doesn't tear or fold over under the foot.
• Sound Check: Listening for rhythmic stitching.
• Bobbin Awareness: Keep an eye on the "low bobbin" warning. Do not let it run completely empty.

Fix the “my circle turned into an oval” distortion on fleece—without blaming the machine

The video notes the circle looks oval. This is Push/Pull Physics.

• Pull: Stitches pull the fabric in the direction of the stitch angle (making it shorter).
• Push: The bulk of the thread pushes the fabric out perpendicular to the stitch (making it wider).

The Solution Hierarchy:

1. Level 1 (Stabilization): Use a Cutaway stabilizer instead of tear-away. Secure the fabric to the stabilizer with spray adhesive.
2. Level 2 (Hardware): Upgrade to a clamped system. A magnetic hoop for brother pe800 holds the fabric firmly on all sides without the "stretching" action of an inner ring, keeping the grainline neutral.
3. Level 3 (Software): In Hatch, use "Pull Compensation." Increasing this setting (e.g., to 0.40mm) tells the software to "overstitch" slightly to account for the fabric shrinking.

If you are consistently fighting distortion on thick materials, it’s rarely the machine's fault—it’s a battle between your stabilization method and the specific elasticity of the fabric.

Clean up jump stitches and ugly start/stop points so your patch looks professional

Finishing is what separates "Homemade" from "Handmade."

• Jump Stitches: The lines of thread connecting different objects. Carefully snip these flush with the fabric.
• Topper Removal: Tear away the large chunks of water-soluble film. For the tiny bits trapped in the stitches, use a Q-tip dipped in water, or a steam iron (hovering, not pressing) to melt them away.

The Fire Test: Can you tell where the embroidery started and stopped? If you can see a messy knot, use a "fray check" liquid on the back and trim carefully.

A simple stabilizer decision tree for fleece (and when to change your plan)

Stop guessing. Use this logic flow to determine your setup.

Decision Tree (Fabric → Action Plan):

1. Is the Fleece Stretchy (Wearable/Hoodie)?
   • YES: Use Cutaway Stabilizer (Mesh or Medium Weight). Stick fabric to stabilizer with spray. Hoop Strategy: Magnetic Hoop preferred to avoid burn marks.
   • NO (Structured/Rigid Fleece): Tear-away Stabilizer is acceptable.
2. Is the Design Dense (Full Fill Stitches)?
   • YES: Increase Pull Compensation in software. Use a heavier stabilizer.
   • NO (Line Art/Text): Standard settings apply.
3. Does the Fabric have a Deep Pile (Fluffy)?
   • YES: You MUST use a Water-Soluble Topper.
   • NO: You can skip the topper.

The upgrade path that actually makes sense: fix the bottleneck you’re feeling today

Don't buy gear just to buy gear. Upgrade to solve a specific pain point that is costing you money or sanity.

Scenario A: The "Hoop Burn" Hater

• Symptom: You spend 10 minutes steaming "rings" out of your sweatshirts after embroidery.
• The Fix: Magnetic Frames. Terms like magnetic embroidery hoop are your gateways to understanding damage-free holding. By clamping the fabric instead of jamming it into a ring, you eliminate the friction marks entirely.

Scenario B: The "Wrist Pain" Operator

• Symptom: Your wrists hurt from tightening hoop screws 50 times a day for a team order.
• The Fix: Speed hoops. Learning how to use magnetic embroidery hoop systems can reduce hooping time from 2 minutes to 15 seconds per garment. This is an ergonomic investment as much as a productivity one.

Scenario C: The "Scale" Problem

• Symptom: You are turning down orders because you can't re-thread colors fast enough on a single-needle machine.
• The Fix: This is when you graduate from the SE1900. Look at SEWTECH's Multi-Needle Machines. They stitch faster, hold 10-15 colors at once, and allow you to hoop the next garment while the current one is stitching.

Warning: Magnetic Field Safety
Magnetic hoops use powerful Neodymium magnets.
1. Pacemakers: Keep these hoops at least 6 inches away from implanted medical devices.
2. Pinch Hazard: Do not place your fingers between the magnets. They snap together with enough force to cause blood blisters or severe pinching. Always slide them apart; do not try to pull them straight off.

Finally, compatibility is key. If you own a sewing/embroidery combo, search specifically for brother se1900 hoops or hoops compatible with your specific mounting bracket. A hoop for a multi-needle commercial machine will not fit a home single-needle machine.

Final note from the shop floor

The video’s workflow works because it respects the variables. Export correctly (Data), hoop with intention (Physics), thread with discipline (Mechanics), and test on scrap (Insurance). Do that, and your Brother machine stops being a source of fear and becomes the profit-generating tool it was designed to be.

FAQ

• Q: How do I export a Hatch Embroidery 3 design to a Brother PE800 or Brother SE1900 without corrupting the PES file on the USB drive?
  A: Export as .PES from Hatch and always Safely Eject the USB drive before unplugging.
  • Export: Use Export (not just Save) and select PES for Brother PE800/SE1900.
  • Organize: Create a project folder (for example, “Fleece_Projects”) instead of dumping files in the USB root.
  • Eject: Use the computer’s Safe Removal/Eject function every time.
  • Success check: Brother PE800/SE1900 loads the design and starts sewing without freezing when you press Sew.
  • If it still fails: Reformat the USB drive to FAT32 (especially for older Brother models) and re-export the file from Hatch.
• Q: What is the safest resizing rule for PES embroidery files on a Brother PE800 or Brother SE1900 screen to avoid needle breaks?
  A: Do not resize a .PES stitch file on the Brother PE800/SE1900 screen by more than 10–20%; resize in Hatch instead.
  • Resize: Change the design size in Hatch so stitch density recalculates correctly.
  • Keep: Save the editable .EMB file as the “source” so you can adjust later.
  • Avoid: Large on-machine shrinking, which can increase density and stress needles.
  • Success check: The design sews without frequent needle breaks and the fill areas do not look overly tight or “bulletproof.”
  • If it still fails: Re-check the exported design size versus the actual sewing field of the chosen hoop.
• Q: How do I hoop anti-pill fleece in a Brother 4x4 hoop to prevent hoop burn and the “circle turns into an oval” distortion?
  A: Hoop fleece taut, not drum-tight, and avoid dragging fabric by loosening the outer hoop screw more than usual before seating the inner ring.
  • Loosen: Back off the outer hoop screw so the inner ring drops in without forcing.
  • Press: Seat the inner ring with a firm push, not body weight, then tighten the screw.
  • Stop: Do not tug the fabric edges after tightening (tugging stretches fleece and rebounds into distortion).
  • Success check: The fabric feels smooth along the inside hoop edge and the stitched circle stays round instead of oval.
  • If it still fails: Consider floating fleece on hooped stabilizer with temporary spray adhesive, or move to a magnetic hoop to reduce ring drag and crush marks.
• Q: What stabilizer and topper combination prevents stitches sinking into anti-pill fleece on a Brother PE800 or Brother SE1900?
  A: Use a “sandwich” with stabilizer under fleece and a water-soluble topper film on top; the topper is non-negotiable for fleece.
  • Choose: Use tear-away for simple patches; use cutaway for wearables that need long-term support.
  • Add: Place water-soluble topper over the fleece to keep stitches from disappearing into the pile.
  • Secure: Lightly mist temporary spray adhesive on stabilizer to prevent shifting.
  • Success check: Satin edges look crisp and thread sits on top of the fleece instead of sinking and looking jagged.
  • If it still fails: Switch from tear-away to cutaway and reduce fabric movement (better adhesion or a clamping-style hoop).
• Q: How do I thread a Brother SE1900 correctly to prevent “fake tension problems” like bobbin thread showing on top?
  A: Seat the upper thread firmly into the tension discs using the “floss” technique, and confirm the thread is inside the take-up lever.
  • Floss: At the tension discs step, hold the spool for resistance and pull the thread down so it seats with a slight “pop”/drag.
  • Verify: Make sure the thread is fully in the take-up lever eye; a miss here can cause instant looping and snapping.
  • Confirm: Keep the presser foot handling correct (threading with foot up is generally safer; sewing with foot up causes nesting).
  • Success check: Stitching shows balanced tension without bobbin thread laying like a straight line on the top surface.
  • If it still fails: Rethread from the start and re-seat the bobbin correctly in the raceway before changing settings.
• Q: How do I stop a bird’s nest on a Brother PE800 or Brother SE1900 at the start of embroidery on fleece?
  A: Pause after the first 5–10 stitches and trim the starting thread tail so it cannot get pulled into the bobbin area.
  • Start: Begin stitching, then Pause quickly after a few stitches.
  • Trim: Cut the upper thread tail close to the fabric surface.
  • Slow: Run fleece at mid speed (about 400–500 SPM on the Brother speed slider) to reduce heat and snapping.
  • Success check: No tangled thread ball forms under the hoop and stitching continues smoothly after the pause.
  • If it still fails: Confirm the presser foot is down while sewing and re-check that the upper thread is seated in the tension discs.
• Q: What safety rules prevent injuries from broken needles on a Brother SE1900 and pinch hazards from magnetic embroidery hoops?
  A: Treat embroidery as a fast-moving machine operation: keep hands clear of the needle zone, secure hair/strings, and handle magnets by sliding—never pulling straight apart.
  • Secure: Tie back long hair and remove hoodie drawstrings; keep fingers away from the needle area while running.
  • Protect: Wear protective eyewear if needle breaks are a concern; needles can eject at high speed.
  • Handle magnets: Keep magnetic hoops at least 6 inches from pacemakers/implanted medical devices, and slide magnets apart to avoid pinching.
  • Success check: No hands enter the needle zone during stitching, and magnets are separated without finger pinches or snapped impacts.
  • If it still fails: Stop the machine immediately when something sounds wrong (grinding or sharp clacking) and reset the setup before restarting.
