From Paper Pattern to Perfect Appliqué: ScanNCut FCM + Simply Applique + a Faster Stitch-Out (Without the Usual Headaches)

Appliqué is supposed to feel like a shortcut—fewer stitches than a full fill, more personality than a plain satin run. Ideally, it’s the bridge between quilting and embroidery. But if you’ve ever tried to “wing it” from a paper pattern, you already know the specific texture of that frustration: mismatched sizes, wobbly hand-cut edges, and that sinking feeling when the cover stitch lands next to the fabric instead of on it.

This workflow (Paper Pattern → ScanNCut → FCM → Simply Applique → PES → Stitch-out) is one of the cleanest, most industrial-grade ways I’ve seen to keep your fabric pieces and your embroidery file speaking the same language. Once you master the sensory details of this process, it transitions from a "project" to a reliable production line.

The Calm-Down Moment: Why ScanNCut + Simply Applique Works When Hand-Tracing Fails

If you’re coming from quilting or traditional appliqué, you’re likely used to dotted lines, lightboxes, and the mantra "trace this piece onto another sheet." That works fine for hand-sewing, where you can micro-adjust as you go. But embroidery machines are blind; they go exactly where the X-Y coordinates tell them to go. If your fabric cut is 2mm off, the machine won't know—it will just stitch a gap.

Here’s the core concept: The ScanNCut creates an FCM vector file directly from your paper shapes. Simply Applique then takes that exact mathematical shape and converts it into an appliqué embroidery file (placement, tack-down, cover stitch). Because the physical cut pieces and the digital stitch lines originate from the same vector source, your registration can be shockingly precise—almost magnetic.

The only way to break this chain of perfection is human error during the resizing phase.

One more reassurance before we start: This process isn’t locked to one brand. While the demo uses Brother equipment, the logic applies universally. The software can save in multiple formats, though we will focus on the PES export here.

The “Hidden” Prep That Prevents 80% of Mistakes: Mats, Fusible Web, and a Clean Scan

Before you touch a screen, set yourself up like a production stitcher—not like someone experimenting at midnight. 80% of embroidery failures happen before the "Start" button is pressed.

What you need (The Pro Kit)

• Brother ScanNCut 650 Wireless (or equivalent scanning cutter).
• Scanning mat (Non-sticky) with the plastic overlay sleeve. Sensory check: It feels smooth, like a page protector.
• Standard cutting mat (Sticky). Sensory check: It should feel tacky enough to hold cardstock.
• Paper pattern pieces (Example: A stocking decomposed into 3 parts: toe, heel, cuff).
• HeatnBond Soft Stretch Lite. Warning: Do not use "Ultra Hold" if you plan to stitch through it; it gums up needles.
• Irons: A standard iron for prep, and a mini-iron for precision in-hoop work.
• simply Applique (Pacesetter) software on PC.
• USB stick (2GB - 8GB is the sweet spot; larger drives sometimes confuse older machines).
• Consumables: Fresh 75/11 embroidery needles, Tearaway stabilizer.
• Hoop: Set to 240×360mm (or your machine’s large hoop equivalent).

Why the prep matters (The Physics of the Cut)

Scanning is brutally honest. It will pick up paper edges, dust, eraser crumbs, and stray marks. Every "garbage line" you leave creates friction later.

More importantly, let's talk about fabric physics. A cutting blade doesn't just slice; it pushes against the material. If your fabric has no structural integrity (body), it will bunch up, stretch, or shift under the blade pressure. That is why the demo insists on ironing HeatnBond Soft Stretch Lite to the back of the fabric before cutting. It turns floppy cotton into something that behaves more like cardstock—stiff, stable, and cut-friendly.

If you are looking to streamline your workspace, terms like hooping for embroidery machine often refer to the physical act of securing fabric. However, true efficiency comes from preparing the fabric before it ever reaches the hoop.

Prep Checklist: The "Pre-Flight" Inspection

• Mat ID Check: Confirm you have the Scanning Mat (Black/White header, plastic sleeve, non-sticky) and the Cutting Mat (Grid, sticky surface). Do not mix them up.
• Lens Clean: Wipe the scanner glass (if applicable) and the scanning mat sleeve. Dust becomes vector noise.
• Pattern Prep: Ensure your paper pattern lines are dark and connected. Faint pencil lines scan poorly.
• Fabric Fusion: Iron HeatnBond to the wrong side of your fabric scraps. Test: Let it cool, then try to peel a corner. It should be fused solid.
• Quadrant Planning: Decide which fabric scrap is for the heel, toe, etc., so you can place them in separate zones on the mat later.


ScanNCut Scanning Mat vs Cutting Mat: Scan the Paper Pattern the Right Way (So You Don’t Chase “Garbage Lines”)

On the ScanNCut, the scanning mat is not sticky. It uses a clear plastic overlay sheet to sandwich your document.

1. Load the Document: Slide your paper pattern pieces under the plastic sleeve. Smooth out any air bubbles; shadows create false lines.
2. Insert the Mat: Load the scanning mat into the ScanNCut. Sensory Anchor: Listen for the rollers to engage evenly on both sides.
3. Execute: Select "Scan to Cut Data" and start.

You will hear the mechanical whir of the scanner head moving across the bed.

Pro Tip on Consumables: In the demo, the operator mentions using a “fabric support sheet.” This is a common point of confusion. A support sheet is a high-tack adhesive sheet you apply to a worn-out standard mat to give it a second life. It is an extra grip layer, effectively turning a standard mat into a fabric mat. If your standard mat is brand new and very sticky, you might not need the support sheet yet—but have one on hand.

Clean the ScanNCut Vector Data Like a Pro: Delete Noise First, Then Save the FCM

After scanning, your screen will likely look a bit messy. The scanner is high-contrast; it sees the shadow of the paper edge, the texture of the mat, and lint.

1. Isolation: Touch and drag the shapes you actually want (the stocking parts) to the center of the screen.
2. Purge: Use the selection tool to draw a box around the remaining "noise" (specks, lines at the header/footer) and hit Delete.
3. Visual Audit: Zoom in. Look for open paths or jagged nodes. A clean vector equals a clean satin stitch later.
4. Export: Save the cleaned design to your USB stick as an FCM file.

This is where beginners often do "double work"—cleaning once here, and then again in the software. Clean it here. It is safer to import a pristine file into Simply Applique than to try and fix broken nodes on a PC monitor later.

Efficiency Note: If you are running a business, save two versions now: one "Appliqué Orientation" (original) and one "Cut File" (mirrored). This saves you from forgetting step #5 later.

Mirror Image on ScanNCut: The One Tap That Saves Your Fabric (Because It’s Face Down)

This step is the "silent killer" of appliqué projects. It is non-negotiable in this specific workflow.

The Logic: You prepared your fabric with HeatnBond on the back. To cut it cleanly, you must place the fabric Pretty Side Down / Glue Side Up on the sticky mat.

• Because the fabric is upside down, the cut file must be MIRRORED (flipped horizontally).

1. Select All objects on the ScanNCut screen.
2. Tap "Mirror Image" (usually an icon with two triangles or an 'R' flipping).
3. Verify: Visually confirm the toe of the stocking is pointing the opposite way from your paper pattern.

If you skip this, your fabric patch will be the "Evil Twin" of your stitch placement line—perfect shape, wrong direction.

Cut HeatnBond-Backed Fabric on the Sticky Mat: Quadrants, Blade Depth 4, and Clean Ejection

Now we switch physical modes from "Scanning" to "Cutting."

1. load the Sticky Mat: Place your HeatnBond-backed fabric pieces Glue Side Up.
2. Map the Terrain: On the screen, drag your vector shapes to match exactly where you placed the fabric scraps. If the red fabric is in the top-left corner, move the stocking shape to the top-left.
3. Blade Setup:
   • Auto-Blade users: Let the machine detect.
   • Standard Blade users: For cotton + fusible, a depth of 3.5 to 4 is the industry standard sweet spot. Pressure: 0 (default).
4. Cut: Press Start.
5. Retrieval: Unload the mat. Sensory Check: Use a spatula tool to lift the edge. The fabric should peel off cleanly. If it tears or leaves threads attached, your blade is too dull or too shallow.

Expected Outcome: You should hold a piece of fabric that looks like a die-cut sticker—crisp edges, no fraying.

Why fabric shifts (and how to stop it)

• Adhesion Failure: The mat isn't sticky enough. (Fix: Use a high-tack support sheet or masking tape on corners).
• Drag Force: The blade is dull, dragging fabric instead of slicing. (Fix: New blade).

Warning: Physical Safety.
Keep fingers clear of the mat loading path. More importantly, when lifting cut pieces, use a spatula/tweezers. The edges of heat-bonded fabric can be surprisingly sharp (paper cut territory), and accidentally touching the sticky mat with sweaty fingers ruins the adhesive instantly.

Simply Applique Hoop Size and “Don’t Resize” Rule: Import the FCM and Lock the Scale

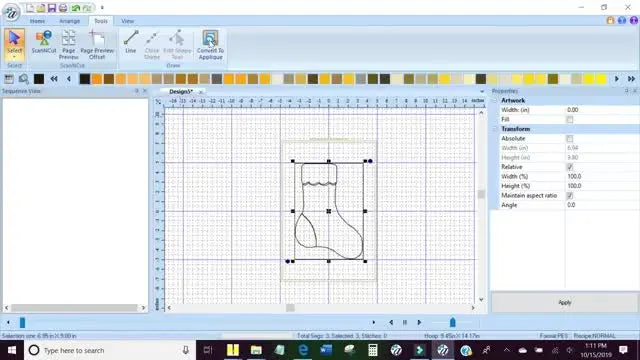

Move to your PC. Open Simply Applique.

1. Define Reality: Set your hoop size first. In the demo, we use the 240×360mm (Jumbo) hoop.
2. Import: Bring in the FCM file from your USB.
3. Cleanup (Final Pass): If any stray nodes survived the ScanNCut deletion, kill them now.

The Golden Rule of Engineering: Do NOT resize the object in Simply Applique. The physical die-cut is already made. It exists in the real world. If you shrink the digital design by even 5%, your embroidery machine will stitch a box that is smaller than your fabric patch. The scale is now locked.

If you find yourself constantly battling hooping alignment or resizing issues, a dedicated hooping station for embroidery can help visualize the final output, but in this workflow, software discipline is your best tool.

Convert to Appliqué in Simply Applique: Blanket Stitch, Width 2.5, and Correct Stitch Order

Simply Applique is powerful because it automates the tedious part.

1. Select All vector shapes.
2. Action: Click "Convert to Applique". The software instantly generates three layers for each shape:
   • Placement Line (Straight stitch)
   • Material/Tack-down (Straight stitch)
   • Cover Stitch (Satin or Blanket)
3. Parameter Tuning: The default is often a heavy Satin stitch. For a modern, hand-made look (as per the demo), change this to Blanket Stitch.
   • Width: 2.5mm (Safe beginner setting).
   • Density: Leave default or slightly loosen to 2.0mm spacing.
4. Sequencing: Correct the stitch order. Logic tells us the Stocking Body must be stitched before the Heel and Cuff so the overlaps look natural. Drag and drop in the object list to reorder.

Pro Tip: Viewers often ask about "Motif Stitches." While technically available, Motif stitches (stars, hearts) as cover stitches are risky for appliqué because they often lack a solid edge to prevent fraying. Stick to Satin, Blanket, or E-Stitch for durability.

Save as PES (Version Choices Included): Export the Embroidery File to USB

1. File > Save As.
2. Format: Select PES.
3. Version Control:
   • New Machines (last 5 years): Default version (usually v10 or v11) is fine.
   • Old Machines: If you stitch on a vintage workhorse, save as v6 or v7. Newer versions contain data (like font metadata) that older processors can't read, causing file corruption errors.


Stitch the Placement Line on Tearaway Stabilizer: The Registration Checkpoint You Should Never Skip

Move to the embroidery station.

1. Hooping: Hoop a medium-weight Tearaway Stabilizer with your base fabric. The drum-tight rule applies here: tap the fabric, it should sound like a dull thud.
2. Load & stitch: Run Color #1 (The Placement Line).

The Checkpoint: Stop. Look at the outline stitched on your fabric. This is your "source of truth." If this outline is distorted (football shaped instead of round), your hooping tension is uneven.

• Correction: If you struggle with "hoop burn" or uneven tension, this is where professional shops upgrade to generic hooping stations or specific magnetic embroidery hoops. The latter allows for tension adjustments without the distortion caused by inner rings.


Skip the Tack-Down Stitch Safely: Fuse the Fabric on the Placement Line, Then Jump One Color

The demo uses a "Speed Method" that bypasses the tack-down stitch. This relies entirely on the quality of your HeatnBond.

1. Peel: Remove the paper backing from your pre-cut fabric piece.
2. Place: Fit the fabric exactly inside the stitched placement line. It should fit like a puzzle piece.
3. Fuse: Use a hot mini-iron.
   • Technique: PRESS, DO NOT RUB. If you rub back and forth, you will shove the fabric out of alignment. Press down, hold for 3 seconds, lift, move.
4. Skip: Since the glue is holding the fabric, we don't need the tack-down stitch (which often pokes ugly holes in the raw edge).
   • Action: Use your machine's +/- Thread button to jump forward one color stop.
5. Sew: Run the final Blanket Stitch cover.

Warning: Heat Safety & Equipment.
Using irons near embroidery machines requires extreme caution. Do not touch the plastic bezel of your machine or the hoop itself with the iron.
* Tip: If you upgrade to magnetic hoops for brother machines, be aware that while the metal frame tolerates heat well, the magnets can demagnetize if exposed to extreme heat (over 176°F/80°C) for prolonged periods. Quick pressing is fine; prolonged baking is not.

Overlap vs “Remove Underlying Stitches”: How to Avoid Double Stitch Lines on Layered Appliqué

A common rookie mistake: The Heel is stitched on top of the Stocking, but you can see the Stocking's stitches underneath the Heel fabric. It looks messy/bulky.

Two Schools of Thought:

1. Software Removal: simply Applique has a "Remove Underlying Stitches" feature.
   • Verdict: Great for Satin stitches, unreliable for Blanket stitches. The software often leaves gaps where the lines meet.
2. Physical Overlap (The Demo Method): Let the pieces overlap slightly (2-3mm). Since we are using Blanket stitch, the bulk is minimal. The key is to ensure the Stitch Order (Step 8) places the top layers (Heel/Cuff) last.

Material Science: If your fabric is thick (like corduroy or velvet), overlapping creates a "speed bump" that can deflect the needle. In those cases, you must trim the underlying layer manually.

Troubleshooting the Three Most Common Failures: Shifting Fabric, Messy Scans, and Layout Collisions

When this workflow fails, it is usually mechanical, not digital.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Cleaner Results, and Scaling Beyond One-Off Gifts

Once you nail the "Paper to PES" workflow, your only bottleneck is physical speed. How fast can you hoop? How fast can you re-thread?

Level 1: The Stability Upgrade (Solves Hoop Burn & Pain)

If you are doing production runs or working with delicate fabrics (velvet, performance wear) where traditional hoops leave permanent "burn" marks, professionals switch to magnetic embroidery hoops.

• Why? They clamp automatically without needing to unscrew/tighten. The tension is uniform.
• Compatibility: You can find specific magnetic hoops for brother machines that snap directly into your existing arm.

Warning: Magnetic Field Safety
hoopmaster hooping station and magnetic hoops use powerful industrial magnets.
* pinch Hazard: They snap together with force. Keep fingers clear.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not rest your phone or credit cards on the frame.

Level 2: The Production Upgrade (Solves Time)

This workflow relies on single-needle color changes (stop, trim, re-thread). If you start getting orders for "50 Team Stockings," a single-needle machine will crush your soul.

• The Pivot: This is when you look at SEWTECH Multi-Needle Machines. Being able to set up 12-15 colors and let the machine run the Placement -> Tack -> Cover sequence automatically (even pausing for appliqué placement) changes this from a hobby to a business.

Decision Tree: Optimizing Your Setup

Use this logic to avoid wasted materials:

• Scenario A: Standard Cotton, One Layer.
  • Stabilizer: Tearaway (Medium).
  • Hoop: Standard or Magnetic.
  • Result: Crisp, flat.
• Scenario B: Stretchy Knit (T-Shirt) Base.
  • Stabilizer: Cutaway (Mandatory—Tearaway will distort).
  • Adhesion: Use temporary spray adhesive + floating method.
  • Hoop: Magnetic Hoop is highly recommended to avoid stretching the knit while hooping.
• Scenario C: High Pile (Towel/Fleece).
  • Stabilizer: Tearaway back + Water Soluble Topping (to keep stitches from sinking).
  • Cut: Appliqué pieces need HeatnBond to prevent fraying on the textured surface.

Operation Checklist: The Final "Go/No-Go"

• Hoop Check: Is the hoop attached firmly? Is the carriage clear?
• Outline Verification: Did the placement stitch look geometric and true?
• Ironing Technique: Press straight down. Did the fabric shift? If yes, lift and reposition before stitching.
• Clearance: Is the mini-iron cord clear of the moving pantograph?
• Color Stop: Did you jump the tack-down stitch (if using the fuse method)?

By respecting the physics of the fabric and the precision of the vector file, you turn appliqué into a process of assembly, not anxiety.

FAQ

• Q: Why do Brother ScanNCut appliqué scans create “garbage lines” when exporting an FCM file for Simply Applique?
  A: Clean the scan source and delete noise on the ScanNCut screen before saving the FCM to prevent stray cut/stitch paths.
  • Wipe the scanner area and the scanning mat plastic sleeve so dust does not become vector “specks.”
  • Darken and connect paper pattern lines so the scanner does not “guess” broken edges.
  • Box-select and delete leftover header/footer lines and random dots on the ScanNCut edit screen before exporting FCM.
  • Success check: Zoom in and see only the intended shapes with smooth, continuous edges (no stray dots/lines).
  • If it still fails: Re-scan with the paper flattened under the sleeve (no bubbles/shadows) and repeat the delete-noise step.
• Q: How do I tell Brother ScanNCut Scanning Mat vs Standard Cutting Mat apart to avoid ruined appliqué scans and cuts?
  A: Use the non-sticky scanning mat with the clear overlay for paper scanning, and use the sticky grid cutting mat for fabric cutting.
  • Confirm the scanning mat feels smooth and uses a plastic sleeve to “sandwich” the paper pattern.
  • Confirm the cutting mat feels tacky and is meant to hold fabric or cardstock in place during cutting.
  • Load paper patterns only on the scanning mat, and load HeatnBond-backed fabric only on the sticky cutting mat.
  • Success check: Paper lies flat under the scanning sleeve without sliding; fabric stays put on the sticky mat without lifting at corners.
  • If it still fails: Stop and re-check mat type before pressing Start—mixing mats is a common beginner mistake.
• Q: Why must Brother ScanNCut appliqué cut files be mirrored when cutting HeatnBond-backed fabric for Simply Applique placement stitches?
  A: Mirror the design because HeatnBond-backed fabric is placed pretty-side down/glue-side up on the sticky mat, which flips the fabric orientation.
  • Place fabric Pretty Side Down / Glue Side Up on the cutting mat for clean cutting.
  • Select all objects on the ScanNCut screen and tap “Mirror Image” (horizontal flip) before cutting.
  • Visually verify the shape direction is reversed (for example, the stocking toe points the opposite way from the paper pattern).
  • Success check: The cut fabric piece fits the stitched placement outline like a puzzle piece with no “evil twin” reversal.
  • If it still fails: Re-cut after mirroring—do not try to “force” a reversed piece into the placement line.
• Q: What Brother ScanNCut blade depth should I use to cut cotton with HeatnBond Soft Stretch Lite for appliqué pieces without tearing?
  A: For cotton + fusible on a standard blade, a depth of 3.5–4 with default pressure is a safe starting point, then adjust only if the peel test fails.
  • Iron HeatnBond Soft Stretch Lite to the wrong side of the fabric before cutting so the fabric behaves more like cardstock.
  • Set standard blade depth to 3.5–4 (auto-blade users can let the machine detect).
  • Peel the cut piece using a spatula tool to avoid stretching and to protect the mat adhesive.
  • Success check: The piece lifts like a die-cut sticker—crisp edge, no fraying, no threads “hanging on.”
  • If it still fails: Replace a dull blade if the cut drags, or improve mat grip with a support sheet or corner tape if the fabric shifts.
• Q: Why does Simply Applique appliqué stitching land off the fabric after importing a Brother ScanNCut FCM file and saving to PES?
  A: Do not resize the artwork in Simply Applique after the fabric has already been cut—the physical piece locks the scale.
  • Set the target hoop size first (example shown: 240×360mm) before importing the FCM.
  • Import the FCM and do only minor cleanup (remove stray nodes), then keep the object size unchanged.
  • Stitch the placement line first and stop to verify alignment before committing to cover stitches.
  • Success check: The placement outline looks geometrically true and the fabric piece sits exactly inside the outline with even margin.
  • If it still fails: Re-check for hooping distortion (uneven tension can warp the placement line) and confirm the design was not resized in software.
• Q: How do I safely skip the Brother embroidery machine appliqué tack-down stitch when using HeatnBond Soft Stretch Lite and a mini iron?
  A: Fuse the pre-cut appliqué fabric onto the stitched placement line, then jump forward one color stop so the blanket/satin cover stitch becomes the first stitch on the fabric.
  • Stitch Color #1 placement line on hooped stabilizer and base fabric, then stop and inspect.
  • Peel the HeatnBond paper backing, place the fabric precisely inside the placement outline, and press (do not rub) with a mini iron.
  • Use the machine’s +/- thread (color advance) to skip the tack-down color stop, then stitch the final blanket cover.
  • Success check: After pressing, the fabric does not shift when lightly tapped, and the cover stitch lands centered on the fabric edge.
  • If it still fails: Re-press using straight-down “press and lift” motions—rubbing often shoves the piece out of registration.
• Q: What safety rules should I follow when using magnetic embroidery hoops and mini irons during appliqué production?
  A: Treat magnets and heat as pinch-and-burn hazards: keep fingers clear during hoop closure and keep strong magnets away from medical devices and sensitive items.
  • Keep fingers out of the closing path—magnetic frames can snap together with force (pinch hazard).
  • Keep magnetic frames at least 6 inches away from pacemakers, and do not rest phones or credit cards on the frame.
  • Use a mini iron carefully around the hoop and machine body; press briefly and avoid prolonged heat near magnets.
  • Success check: The hoop closes without trapping skin, and the fabric stays aligned after quick pressing (no drifting from heat/rubbing).
  • If it still fails: Stop and reposition with tools (spatula/tweezers) rather than fingers, and reduce pressing time while maintaining firm downward pressure.
• Q: When appliqué orders increase, how should a Brother single-needle embroidery workflow scale from hooping technique changes to magnetic hoops to a SEWTECH multi-needle machine?
  A: Diagnose the bottleneck first—fix technique, then upgrade hooping speed/consistency, then upgrade needle capacity when color-change stops become the limiting factor.
  • Level 1 (Technique): Standardize prep—HeatnBond before cutting, mirror cut files, never resize after cutting, and always verify the placement line.
  • Level 2 (Tool): Switch to magnetic embroidery hoops when hoop burn, uneven tension, or slow hooping is causing distortions and rework.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when repeated re-threading and color changes make “50-piece” runs impractical on a single-needle setup.
  • Success check: You can run placement → fuse → cover stitch repeatedly with consistent registration and without re-hooping failures.
  • If it still fails: Track exactly where time is lost (hooping vs re-threading vs re-cuts) and upgrade only the step that is actually limiting output.
