From Punch Cards to Wireless Tajima: The Real Economics of Commercial Embroidery Machines (and the Bottlenecks That Still Kill Profit)

The Unspoken Rules of Commercial Embroidery: A 20-Year Veteran’s Field Guide to Profit and Process

Commercial embroidery attracts people for one simple reason: it looks like a machine doing all the work while you collect the profit.

Then reality hits. Thread breaks every 500 stitches. Tension puckers your expensive jackets. Hooping takes three times longer than the actual sewing. And one bad placement can crash a frame into the machine, costing you thousands in repairs.

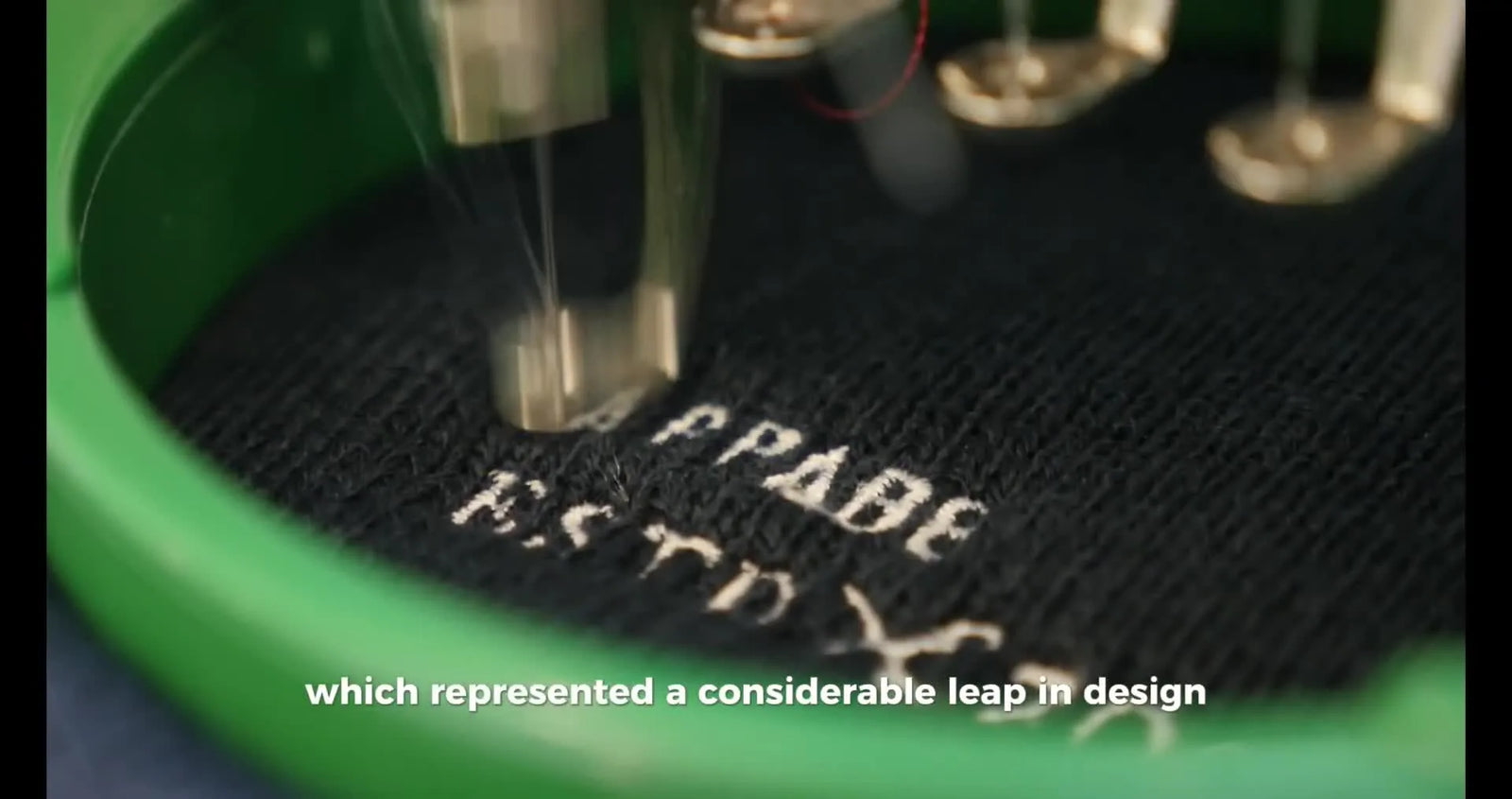

The video you watched provides a fast, documentary-style sweep through our industry’s evolution: from archaic punch cards to today’s cloud-based wireless transfer, and the stark 2023 price reality ($6,000 entry-level vs. $50,000+ for advanced multi-heads). I’m going to keep that structural foundation intact—but I used to run a shop floor, and now I teach others how to do it. I’m going to fill in the missing "shop-floor truth" that determines whether your machine becomes a revenue-generating asset or the world’s most expensive coat rack.

Don’t Panic—Commercial Embroidery Technology Has Always Been About Removing Bottlenecks

Early embroidery automation wasn’t "plug-and-play." The punch card era required operators to physically create cards with holes representing stitch coordinates. It was precision work that demanded high technical skill. That historical context matters today because the goal of commercial embroidery machines hasn't changed: reduce operator skill dependency and reduce time lost between stitches.

In modern shops, the bottlenecks have shifted from "how do I stitch this?" to "how do I stitch 50 of these without stopping?"

The Four Frictions That Kill Profit

1. Design Transfer Friction: Getting the right file to the right machine without version errors.
2. Downtime Friction: Thread breaks, bobbin run-outs, and "chasing tension" ghosts.
3. Placement Friction: The fear of hooping crooked or crashing a frame.
4. Consistency Friction: Keeping stitch quality stable from the first shirt to the fiftieth.

The Golden Rule: You buy machinery for throughput (speed), but you protect your profits with process (consistency).

The Storage Timeline: From Physical Tethers to Cloud Velocity

The video walks through the evolution of design transfer. To a novice, this looks like a history lesson. To a pro, it’s a lesson in risk management.

1. Punch Cards: High skill, zero flexibility.
2. Floppy Disks: Fragile magnetic media that frequently corrupted data.
3. Memory Cards: The first step toward reliability.
4. USB Drives: The current standard for many, but still requires physical walking.
5. Wireless/Cloud: The "no tether" era—designs move from digitizer to needle instantly.

Why This Matters: Every time you physically touch a storage media, you risk mounting the wrong file. Wireless isn't just cool; it prevents the "oops, I stitched the v1_draft file instead of v2_final" disaster.

The Price Reality: What You Are Actually Buying ($6k vs. $50k)

The video gives a clear 2023 financial bracket: around $6,000 for entry-level commercial models (like single-head multi-needles) and $50,000+ for heavy iron brand-name multi-heads.

When you look at a tajima 6 head embroidery machine or similar industrial equipment, you aren't just paying for more needles. you are buying a bundle of time-savers.

The Trade-Off Matrix

Expert Insight: If you are a startup, machines like the SEWTECH multi-needle series offer a "middle path"—providing the 12-15 needle productivity and robust build needed for business, without the massive capital outlay of the legacy giants.

The "Hidden" Prep Pros Use Before They Trust a Production Run

The video B-roll shows thread spools, bobbins, stabilizers, needles, and scissors. These aren't just props. They are the variables you must lock down.

Cognitive Anchor: Think of your machine like a high-performance chef. It can only cook what you feed it. If you feed it cheap thread and wrong backing, you get a mess.

The "Pre-Flight" Prep Checklist

Do not touch the "Start" button until these are checked.

• Needle Integrity: Run your fingernail down the needle tip. If you feel a "click" or snag, the needle is burred. Replace it immediately. A burred needle shreds thread.
• Bobbin Check: Is the bobbin tension correct?
  • The Yo-Yo Test: Hold the bobbin case by the thread. It should hang still. Flick your wrist gently—it should drop 1-2 inches and stop. If it drops to the floor, it's too loose.
• Oil Level: Has the rotary hook been oiled today? (1 drop only).
• Consumables Staged: Do you have your temporary adhesive spray (spray adhesive) and embroidery scissors ready?
• Hidden Consumable: New Needles. Professional shops change needles every 8–10 hours of running time. Don't wait for a break.

Warning: Mechanical Safety
Never place magnetic tools, scissors, or fingers near the needle bar area while the machine is powered on. A servo motor moves faster than your reflexes. If a needle breaks at 1000 RPM, it can shatter into shrapnel—always wear eye protection.

Stabilizer Decisions: The Physics of "Why"

In real shops, 80% of "tension problems" are actually stabilization failures. If your fabric shifts 1mm while the needle is moving, the thread loop collapses, and you get a birding nest.

You cannot memorize every fabric, but you can understand the physics: Stabilizer stops the fabric from distorting under the needle's impact.

The Decision Tree: Fabric → Stabilizer Strategy

Q1: Is the fabric stretchy? (T-shirts, Polos, Hoodies, Knits)

• YES: You MUST use Cut-Away stabilizer.
  • Why: Knits have no structural integrity. If you verify by pulling the fabric, it stretches. Tear-away will disintegrate after 500 stitches, leaving your design to warp. Cut-away provides a permanent skeleton.
• NO: (Denim, Canvas, Towels, Caps)**
  • Action: You can use Tear-Away.
  • Why: The fabric supports itself. The stabilizer just helps float it during the process.

Q2: Does it have a "pile" or texture? (Towels, Velvet, Fleece)

• YES: Add a Water Soluble Topper (Solvy) context.
  • Why: Without a topper, stitches sink into the fuzz and disappear. The topper keeps stitches sitting high and proud.

Q3: Is it slippery/hard to hoop? (Performance wear, Silks)

• Action: Use Fusible (Iron-on) Stabilizer or Temporary Spray Adhesive.
  • Technique: Stick the fabric to the stabilizer before hooping to prevent "flagging" (fabric bouncing up and down).


Cap Production: Where Money is Made (and Lost)

Caps are profitable because clients pay $25-$30 for a custom hat. But caps are curved, stiff, and unforgiving.

When working with a tajima cap frame, you are fighting geometry. The needle plate is curved, and the space is tight.

The Sensory Check for Cap Hooping

1. The Sound: When you lock the cap onto the driver, you should hear a solid metal-on-metal click. If it feels mushy, it’s not locked.
2. The Feel: Run your hand over the front panel. It must be tight against the gauge. If there is an air gap (a "bubble") between the cap and the backing, the needle will deflect and break.
3. The Strap: That metal strap (or heavy rubber band) isn't decoration. It must pin the bill back securely. If the bill rubs the machine arm, you lose registration.

If you struggle here, investigate a dedicated cap hoop for embroidery machine station to pre-shape the hats before they go near the needles.

Automatic Threading: A Downtime Weapon

The video highlights automatic threading. In a hobby setting, re-threading is annoying. In production, it's a leak in your bank account.

Ideally, a commercial tajima embroidery machine or equivalent modern multi-needle handles color changes instantly. But "Automatic Threading" features usually refer to the color change mechanism or air-threading on sergers. In embroidery, we look for Automatic Needle Threaders and Thread Break Sensors.

The ROI of Sensors: A good sensor stops the machine immediately (within 3-5 stitches) when a thread breaks. This allows you to back up and repair the seam invisible. Cheap sensors let the machine run for 200 stitches without thread, ruining the garment.

The Tension Truth: Physics Over Knobs

The video mentions "Automatic Tension Adjustment." High-end machines measure material thickness and feed the exact amount of thread needed.

However, machines can’t fix bad hooping. If you hoop loosely, the machine thinks the fabric is thicker or moving, and feed gets erratic.

The "Drum Skin" Standard

How tight should a hoop be?

• Wrong: "Tight as possible" (This stretches fabric and causes puckering later).
• Right: Taut and neutral.
• The Test: Tap the fabric in the hoop. It should sound like a dull drum (thump-thump). It should not ripple.
• The Pull: Gently tug the fabric corners. It should not move. If it slides, adjust your tajima embroidery hoop screw or add a layer of gripping backing.


Design Tracing: The 10-Second Insurance Policy

"Tracing" is when the machine moves the frame to show you the outer boundary of the design before stitching.

Never Skip the Trace.

• Visual Check: Does the presser foot come dangerously close to the plastic hoop clips?
• Clearance Check: On hats, does the design hit the bill?

Using tajima hat hoops requires hyper-vigilance because the margin of error is millimeters. A collision here doesn't just break a needle; it can knock your reciprocating bar out of timing, requiring a technician visit ($300+).

The Production Floor Reality: Syncing Man and Machine

The video shows rows of multi-head machines. This is the goal: Batch Processing.

The Trap: Buying a 6-head machine when you can only hoop one shirt every 5 minutes. The machine sits idle for 80% of the time.

The Solution: Upgrade Your Workflow, Then Your Gear.

1. Level 1 (Technique): Learn to hoop faster. Mark centers on shirts with chalk or lasers.
2. Level 2 (Tools): Buy a second set of hoops. Hoop the next run while the current run is stitching.
3. Level 3 (Machine): If you are running 50+ item orders on a single-needle home machine, you are bleeding money. This is the specific trigger to upgrade to a SEWTECH multi-needle machine. It allows you to set up 12-15 colors at once, eliminating the manual thread-change bottleneck completely.


The Magnetic Evolution: Solving "Hoop Burn" and Wrist Pain

Traditional screw-tightened hoops (tubular hoops) leave circular "burn marks" (crushed fibers) on delicate fabrics like velvet or performance polos. They also require significant hand strength to tighten all day.

This is where magnetic embroidery hoops have revolutionized the industry.

Why Upgrade to Magnets?

• Speed: Clamp on, clamp off. No screws to twist.
• Safety: No hoop burn. The magnets hold fabric flat without crushing the fibers against a plastic ridge.
• Consistency: The tension is uniform every single time.

User Scenario:

• For Home Users: Magnetic Frames for Single Needle Machines solve the struggle of hooping thick items like towels or quilt sandwiches.
• For Pros: magnetic hoops for tajima embroidery machines allow for rapid production of heavy jackets and bags that are impossible to hoop with standard plastic tubulars.

Warning: Magnetic Safety
Commercial magnetic hoops use industrial-grade neodymium magnets with massive clamping force.
* Pinch Hazard: Keep fingers clear of the snapping zone. They can break nails or bruise skin.
* Electronics: Keep them away from pacemakers, credit cards, and machine LCD screens.

Setup Checklist: The "Calm Operator" Routine

Execute this sequence for every new job to eliminate 90% of errors.

• Design Orientation: Is the design rotated correctly? (Double-check: Tops of letters should face the machine head).
• Color Sequence: Does Needle #1 actually have Red thread? Does the screen match the rack?
• Hoop Selection: Tell the machine which hoop is attached (e.g., Hoop E).
• Trace: Run the trace. Verify safe clearance.
• Speed Limit: Set max speed.
  • Beginner Safe Zone: 600-700 SPM.
  • Pro Zone: 900-1000 SPM (only if floor is stable).
• Start: Watch the first 100 stitches.


Troubleshooting Guide: Logic Over Guesswork

The video lists three common issues. Here is the structured breakdown of how to fix them efficiently.

1. Inconsistent Stitch Quality (Looping/Messy)

• Low Cost Fix: Re-thread the top thread. Ensure the thread is deeply seated in the tension discs. (Floss it in).
• Medium Cost Fix: Change the needle.
• High Cost Fix: Adjust tension knobs. (Only do this last).

2. Thread Breaks (Downtime)

• Likely Cause: Old thread, burred needle, or "path obstruction" (thread caught on a rough spool edge).
• The "Click" Test: Listen to the machine. A rhythmic click-click-click often means the needle is hitting the needle plate (bent needle) or a burr is catching the thread.

3. Collisions (Crashes)

• Prevention: Always Trace.
• Fix: If you crash, stop immediately. Check if the needle is bent. Re-calibrate the hoop center.


Operation Checklist: Active Monitoring

Don’t walk away effectively until you are sure the run is stable.

• Sound Check: Listen for the smooth hum. A change in pitch usually indicates the bobbin is running low.
• Bobbin Check: Pause after 500 stitches. Look at the back. It should happen 1/3 white bobbin thread in the center column.
  • If all top thread: Tension too loose up top (or tight below).
  • If all bobbin thread: Tension too tight up top (or loose below).
• Vibration: Ensure the table isn't walking. Vibration ruins registration on fine details.


The Upgrade Path: Buy Back Your Time

The video’s core message is true: commercial embroidery is about scale. But you don't jump from a $500 machine to a $50,000 machine in one day.

Your Rational Growth Strategy:

1. Phase 1: Master the consumables (Needles, Backing, Threads). Get consistent results.
2. Phase 2: Upgrade the tooling. Switch to Magnetic Hoops to stop hurting your wrists and save 30 seconds per shirt.
3. Phase 3: Upgrade the engine. When you are turning away orders because you can't stitch fast enough, invest in a dedicated multi-needle machine like SEWTECH. The ability to load 15 colors and press "Start" once will double your daily output compared to a single-needle setup.

The best shops don’t win because they have the most expensive machine. They win because they mastered the process, respected the physics, and upgraded their tools at the exact moment the pain became too expensive to ignore.

FAQ

• Q: On a SEWTECH multi-needle embroidery machine, how do I know the embroidery bobbin tension is correct using the Yo-Yo Test?
  A: Use the Yo-Yo Test on the bobbin case before the run; it should drop slightly and stop, not free-fall.
  • Hold the bobbin case by the bobbin thread and let it hang still.
  • Flick your wrist gently and watch the drop distance.
  • Success check: The bobbin case drops about 1–2 inches and stops; if it drops to the floor, the bobbin tension is too loose.
  • If it still fails: Re-thread the bobbin correctly and re-test; only then consider a small bobbin-case tension adjustment per the machine manual.
• Q: On a commercial multi-needle embroidery machine, what is the “drum skin” standard for hooping fabric to prevent puckering and registration issues?
  A: Hoop fabric taut and neutral (not overstretched) so it taps like a dull drum and does not slide.
  • Tap the hooped fabric and listen for a dull “thump-thump,” not a ripple.
  • Tug the fabric corners gently to confirm the fabric does not creep in the hoop.
  • Success check: The fabric stays flat with no ripples and no movement when lightly pulled.
  • If it still fails: Tighten the hoop screw slightly or add a gripping layer/backing to increase hold without stretching the garment.
• Q: For embroidery on T-shirts, polos, hoodies, and other knits, why does tear-away stabilizer fail, and what stabilizer should be used instead?
  A: Use cut-away stabilizer on stretchy knits because tear-away often breaks down mid-design and allows the knit to distort.
  • Confirm the fabric is stretchy by gently pulling it and watching it elongate.
  • Switch the backing to cut-away to give the design a permanent “skeleton.”
  • Success check: The design stays square (no waviness) after stitching, and the fabric does not tunnel or ripple around the fill.
  • If it still fails: Add better fabric control (fusible stabilizer or temporary spray adhesive) to reduce fabric shifting during stitching.
• Q: On towels, fleece, velvet, or other high-pile fabrics, what causes stitches to “sink,” and how do I prevent it with a water-soluble topper?
  A: Add a water-soluble topper to keep stitches sitting on top of the pile instead of disappearing into the fuzz.
  • Lay the topper smoothly over the fabric surface before stitching.
  • Hoop securely so the topper and fabric stay stable together.
  • Success check: Satin stitches and small lettering remain crisp and visible instead of looking buried.
  • If it still fails: Re-check hoop stability and stabilization; shifting fabric is a common reason details still get lost.
• Q: On a commercial embroidery machine, what is the safest routine to avoid hoop/frame collisions using “design tracing” before stitching?
  A: Always run a trace before stitching to confirm the presser foot and needle path clear clips, bills, and frame edges.
  • Start the trace and watch the full boundary travel without looking away.
  • Check the closest approach points near hoop clips and tight areas (especially on hats).
  • Success check: The traced boundary completes with visible clearance and no near-contact “almost hits.”
  • If it still fails: Stop immediately and re-center/re-calibrate hoop position before restarting; do not “try it anyway.”
• Q: On a SEWTECH commercial embroidery machine, what should I check first when stitch quality becomes inconsistent (looping or messy stitches)?
  A: Re-thread the top thread first and make sure the thread is fully seated in the tension discs before touching tension knobs.
  • Remove the top thread and re-thread the entire path carefully.
  • “Floss” the thread into the tension discs so it seats deeply, not riding on the edge.
  • Success check: The stitch formation stabilizes quickly and the back of the design looks balanced (not wildly loopy).
  • If it still fails: Change the needle next; only adjust tension knobs as a last step.
• Q: On a commercial multi-needle embroidery machine, what should I do when thread breaks repeatedly every few hundred stitches?
  A: Treat repeated thread breaks as a path/needle problem first: replace the needle, check thread quality, and remove any snag points.
  • Run a fingernail down the needle tip; replace immediately if you feel a “click” or snag (burr).
  • Inspect the thread path for obstructions (rough spool edge, catches, guides with wear).
  • Listen for a rhythmic “click-click-click,” which often indicates a bent needle or contact issue.
  • Success check: The machine runs a longer segment without breaks and the sound returns to a smooth, steady hum.
  • If it still fails: Slow the speed temporarily and re-check threading and stabilization; tension adjustments should come after these basics.
• Q: What safety rules should operators follow when using commercial magnetic embroidery hoops to prevent pinch injuries and protect electronics?
  A: Handle magnetic embroidery hoops like industrial clamps: keep fingers out of the snap zone and keep magnets away from sensitive items.
  • Separate and close magnets slowly with a controlled grip; do not let them slam together.
  • Keep magnets away from pacemakers, credit cards, and machine LCD areas.
  • Success check: The hoop closes without finger contact in the clamping gap, and the fabric is held flat without crushed “burn” rings.
  • If it still fails: Stop and reposition calmly; if the magnets feel unmanageable, use a safer handling routine and follow the hoop supplier’s guidance for your setup.
