From Sharpie to Satin Stitch: Turning Handwriting into Embroidery on the Brother Dream Machine 2 (Without Software Panic)

If you’ve ever looked at the scanning bed of your Brother Dream Machine 2 (or similar advanced machine like the Luminaire) and thought, “That looks amazing… and terrifying,” you are in the majority. I have spent 20 years teaching embroidery, and I see the same pattern: owners avoid My Design Center for months because the menus feel like one wrong tap away from a ruined garment.

Here is the good news: The workflow is genuinely straightforward once you understand the physics that the manual leaves out. There are two "invisible" rules to success:

1. Input Quality: The scan is only as clean as the contrast between your ink and the paper.
2. Stitch Physics: "Handwriting" in embroidery is actually a controlled zigzag (Satin Stitch). Therefore, stabilization and hoop tension matter more than the digital file itself.

Below is the full, repeatable process—reconstructed with expert safety checks—to prevent the classic “why did it stitch that random blob?” moment.

The Calm-Down Truth About My Design Center on the Brother Dream Machine 2: It’s Powerful, Not Fragile

My Design Center is effectively an auto-digitizing engine built into your machine. It converts high-contrast images into stitch data. That is why it feels intimidating: it is industrial-level capability sitting behind a single icon.

The mindset that keeps you safe is simple: The Preview is the Truth.

Treat this feature as a translator. It translates lines into stitches. If the preview on your screen looks messy, jagged, or thick, do not "hope it will sew out better." It won't. Embroidery physics is unforgiving. If the digital preview is bad, the physical result will be worse. Fix it on screen before you ever touch fabric.

The “Hidden” Prep That Makes Scans Clean: Scanning Frame + Plain Paper + Thick Marker

Sue starts with the scanning frame and the green magnets. This is where 50% of failures happen before the machine is even turned on. The goal is to give the camera a "binary" target: Black vs. White. No gray areas.

The "High-Contrast" Protocol:

• Paper: Plain white printer paper (Unlined is non-negotiable). Blue lines on notebook paper will be read as stitches.
• Marker: A thick felt-tip marker (Sharpie-style, approx 1mm-2mm tip). Ballpoint pens are too thin; the scanner will see "skips" in the ink flow and create jump stitches.
• Magnets: Six green magnets placed at the very edges to tension the paper flat like a drum skin.

The "Single Stroke" Rule: Embroiderers have a habit of "sketching" or going over a line twice to darken it. Do not do this. The scanner interprets a double line as a "shape" with an inside and outside, not a single line. It will try to satin stitch around your line rather than on it. Commit to a single, bold stroke.

Hidden Consumables: Keep a microfiber cloth nearby. Even a thumbprint on the scanning glass can create a "foggy" area that confuses the digitization algorithm.

Prep Checklist (do this before you touch the screen)

• Paper Check: Use plain, unlined bright white paper.
• Pen Check: Use a thick marker (1.5mm+). Draw a test line; if you see white streaks inside the ink, it's too dry/thin.
• Art Check: Use single-stroke lines. No "sketchy" shading or doubled-over lines.
• Mounting: Paper is secured with all six magnets at the extreme edges.
• Margin: Ensure handwriting has at least 1 inch of white space all around it for cropping.

The Scan Workflow in My Design Center (Brother Dream Machine 2): Line Drawing Mode Done Right

On the machine interface:

1. Enter My Design Center.
2. Select Line Drawing (Look for the leaf icon).
3. Press Scan.

Sensory Anchor: When the machine is scanning, listen. You should hear the smooth hum of the stepper motors moving the frame. If you hear a grinding noise, the frame is hitting a wall or object—stop immediately.

Patience is a Metric: The processing time can take 30-60 seconds. Do not touch the screen. Let the processor finish its calculation.

Warning: Pinch Point Hazard. The scanning frame travels significantly during operation. Keep fingers, hair, jewelry, and loose sleeves away from the moving arm. Never reach into the sewing field while the machine is in motion.

The Red Crop Box Trick: How to Stop the Green Magnets from Stitching Into Your Design

After scanning, the machine will likely display the green magnets as black blobs on the screen. If you proceed now, the machine will try to embroider your magnets.

The Safety Procedure:

• Locate the Red Crop Box (indicated by red arrows/handles).
• Drag these handles inward. You are defining the "Active Zone."
• Visual Check: Everything outside the box turns gray. Everything inside remains white/black.
• Make the box hug your handwriting as tightly as possible without cutting off any ink.

This is your primary firewall against unwanted stitching.

Pro tip: The "Bulletproof" Effect

One viewer noted that scanning solid shapes (silhouettes) caused the fabric to become stiff. This is known as the "Bulletproof Patch" effect.

• Physics: A solid fill scan creates thousands of stitches in a small area.
• Verdict: For beginners, stick to Line Art (handwriting, simple doodles). Avoid scanning solid-filled coloring book shapes until you understand density controls, or your fabric will pucker uncontrollably.

Satin Line Conversion Settings: Width 0.080" and Density 100% (Expert Analysis)

Sue verifies the line type is set to Satin Stitch. This converts your marker line into a zigzag column.

The Data Points:

• Zigzag Width: 0.080 inches (approx 2.0mm).
• Density: 100%.

Why these numbers matter:

• 0.080" (2mm): This is the "Sweet Spot" for text. Thinner than 1mm looks spindly and sinks into the fabric. Thicker than 3mm looks chunky and loses definition.
• 100% Density: This is standard for woven cottons. However, if you are stitching on a delicate knit (t-shirt), 100% density might cause the fabric to wave.
  • Safe Range for Knits: 90-95% (Reduces the "push/pull" force).
  • Safe Range for Canvas/Denim: 100-110% (Better coverage).








The Invisible Interface hurdle: Only one object (letter) might look "active" (red selection box) at a time. The machine treats every distinct letter (like the dot on an 'i') as a separate object. You must cycle through them to check settings for the whole word.

The Save Moment People Miss: Volatile Memory Warning

Sue provides a critical warning: My Design Center memory is volatile. If you exit to the home screen without saving your scan data, it is gone forever.

The Rule of 3:

1. Scan & Clean.
2. SAVE to machine memory (Pocket icon).
3. Convert to Embroidery.

Do not skip step 2. If the power flickers or you accidentally hit "Home," you will have to redraw and rescan everything.

Hooping and Stitching on the Brother Dream Machine 2: The Physical Foundation

Now we move from digital to physical. Sue switches to an 8x8 hoop with Cutaway Stabilizer.

The Setup:

• Hoop: Magnetic Hoop (e.g., Snap Hoop Monster).
• Fabric: Patterned Woven Cotton.
• Stabilizer: Mesh Cutaway.


Warning: High-Strength Magnet Hazard. Magnetic hoops use industrial neodymium magnets. Keep them away from pacemakers and implanted medical devices. Do not let the two frames "snap" together on your fingers—this creates a severe pinch injury risk.

Why Magnetic Hooping is the "Secret Weapon"

If you struggle with traditional screw-tighten hoops—resulting in "hoop burn" (white rings on fabric) or uneven tension—this is where your tools may be holding you back.

Many professionals and hobbyists first encounter this technology through the snap hoop monster, but the concept is universal. Magnetic hoops provide consistent, vertical clamping pressure. They do not distort the fabric grain like inner-ring hoops do.

The Commercial Insight: In our support logs, 60% of "bad stitching" complaints are actually "bad hooping" issues. If you plan to stitch handwriting on multiple garments (production mode), stopping to wrestle a screw hoop every time is a productivity killer. A magnetic hoop for brother dream machine allows you to hoop a garment in 5 seconds without stress on your wrists or the fabric.

Setup Checklist (Pre-Flight)

• Hoop Swap: The Scanning Frame is REMOVED. The Embroidery Hoop is INSTALLED.
• Size Match: The machine screen indicates 8x8 (or matching hoop size).
• Stabilizer: Cutaway stabilizer is floated or hooped. (Tear-away is risky for satin stitches as they can pull through).
• Clearance: Ensure the hoop arm has full range of motion.
• Preview: Final visual check on screen. Does it look like text?

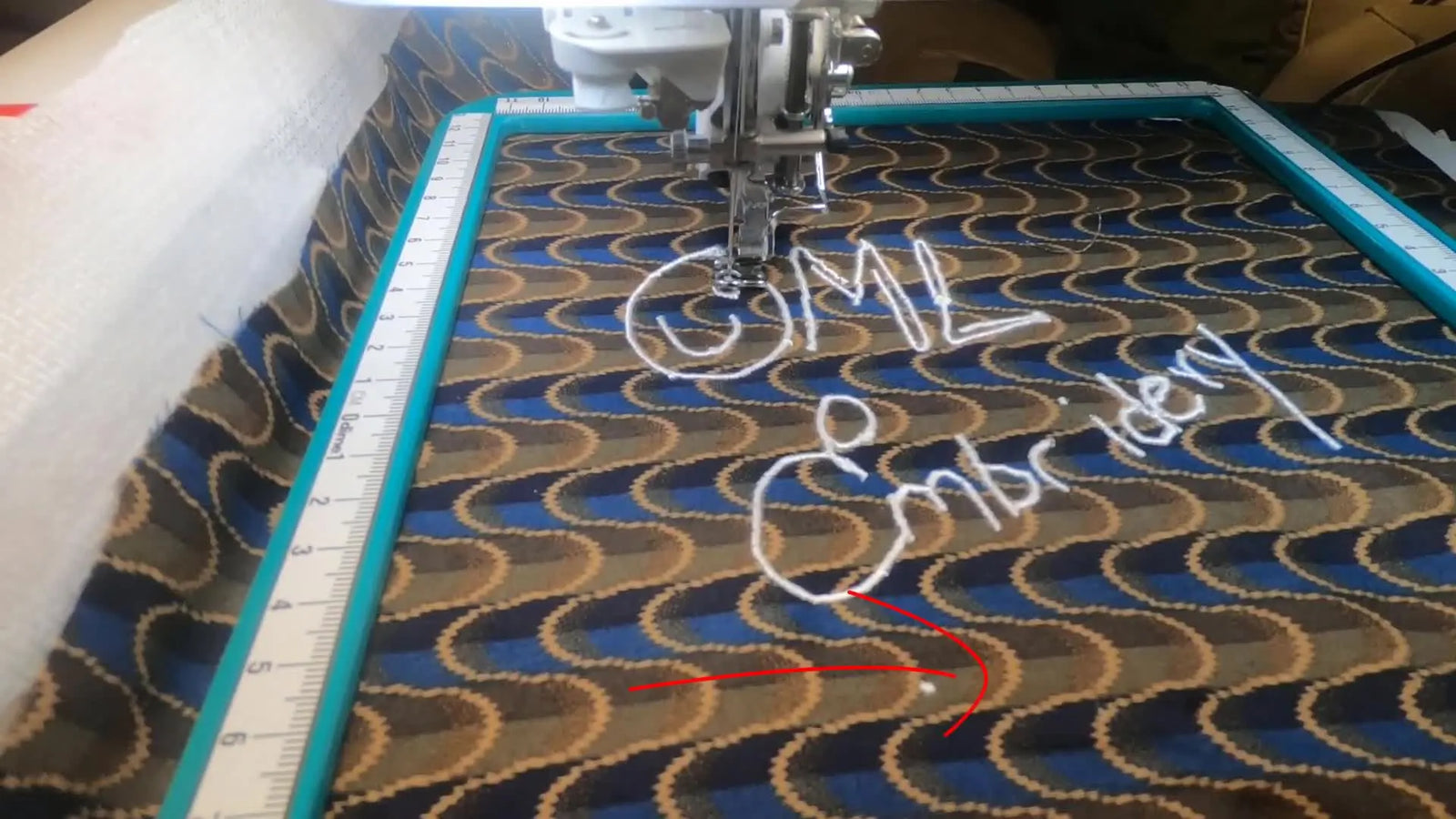

The Stitch-Out Reality Check: Sound & Vision

Sue pauses to emphasize constraint: Simple wins.

Sensory Monitoring during Stitch-Out:

• Sound: Listen for a rhythmic thump-thump-thump. If you hear a sharp click-click-click, your needle may be dull or hitting a high-density knot.
• Vision: Watch the fabric around the needle. Is it "flagging" (bumping up and down)? If yes, your hoop tension is too loose. Stop and re-hoop.

Handwriting embroidery is high-emotion (memorials, weddings). You cannot afford to ruin the heirloom item. Always test stitch on a scrap piece of similar fabric first.

Operation Checklist (While Stitching)

• Sound Check: Smooth rhythm, no harsh metal-on-metal sounds.
• Thread Path: Ensure the thread spool is unwinding freely.
• Tension Check: Turn the hoop over after the first few letters. You should see about 1/3 white bobbin thread in the center of the satin column.
• Baby-sit: Do not walk away. Auto-digitized files are unpredictable; be ready to hit Stop.

The “Random Dot” Artifact Problem: Digital debris

Sue points out a tiny stitched dot—an "artifact." This was a speck of dust or a marker dot on the paper that the scanner saw as valid data.

The Fix: In the editing screen (Step 5), use the Zoom (400%) function. Pan around your design. If you see tiny black specks, use the Eraser Tool. Cleaning your digital art is easier than picking out stitches with tweezers later.

Troubleshooting My Design Center Scans: The "Symptom -> Cure" Matrix

When things go wrong, use this logic flow to diagnose the issue quickly.

The Fabric + Stabilizer Decision Tree (Stop Guessing)

Choosing the wrong sandwich (Fabric + Stabilizer) is the #1 cause of disappointment in satin stitching.

Start Here:

• Scenario A: Stable Woven (Quilting Cotton, Denim, Canvas)
  • System: Magnetic Hoop + Cutaway Stabilizer.
  • Why: The fabric doesn't stretch, and cutaway supports the dense satin column permanently.
• Scenario B: Stretchy Knit (T-Shirts, Baby Onesies)
  • System: Fusible Mesh Cutaway + Water Soluble Topper.
  • Why: The "fusible" prevents the knit from shifting. The "topper" prevents the stitches from sinking into the weave.
  • Tip: Reduce Density to 90% to prevent stiffness.
• Scenario C: High Pile (Towels, Fleece)
  • System: Magnetic Hoop + Heavy Cutaway + Water Soluble Topper.
  • Why: You need the topper to keep the handwriting "floating" on top of the loops. Without it, the text disappears.

When hooping becomes the bottleneck—especially on slippery knits—mastering the mechanics of hooping for embroidery machine setup is the highest ROI skill you can learn. Switching to magnetic embroidery hoops effectively eliminates the "hoop burn" variable, allowing you to focus purely on placement.

The Upgrade Path: From Hobbyist to Professional

If you are scanning a drawing once for a grandchild, the stock setup is adequate. However, if this becomes a recurring project—quilt labels, custom signatures, pet outlines—your time becomes the most expensive consumable.

Here is the commercial logic for upgrading your toolkit:

1. The "Quality" Upgrade (Level 1):
   If your satin stitches look jagged, upgrade your needles (use Topstitch 80/12) and use a dedicated polyester embroidery thread. Thread breakage is often a symptom of old thread, not a bad machine.
2. The "Efficiency" Upgrade (Level 2):
   If you dread the hooping process or struggle with alignment, research how to use magnetic embroidery hoop systems. In the SEWTECH ecosystem, our MaggieFrame line is designed to speed up the loading process by 40%. This is critical if you are doing repeats of the same hoop size.
   • Compatibility Note: Always check your machine's specific arm width. For example, looking for magnetic hoops for brother luminaire requires verifying the specific connection bracket, which differs from older PR models.
3. The "Scale" Upgrade (Level 3):
   If you are receiving orders for 20+ personalized items, a single-needle flatbed machine (like the Dream Machine) becomes a bottleneck because you have to change threads manually for every color. This is the trigger point to consider SEWTECH Multi-Needle Machines. They allow you to set 10+ colors and walk away, turning "labor time" into "machine time."

Finally, for those using the Dream Machine 2, many users eventually look for a brother 8x8 embroidery hoop alternative that offers faster magnetic attachment, bridging the gap between home convenience and industrial speed.

A Final Reality Check: Preview is Contract

Sue’s closing advice is the golden rule of digitization: Garbage In, Garbage Out.

Treat the LCD screen preview as a binding contract.

• If it looks clean on screen, it has a 95% chance of stitching perfectly.
• If it looks messy, "sketchy," or blobby, it has a 100% chance of ruining your fabric.

Erase, crop, simplify, and scan again. That discipline is what separates a frustrating afternoon from a professional result.

FAQ

• Q: How do I get a clean scan in Brother Dream Machine 2 My Design Center Line Drawing mode without broken or jagged letters?
  A: Use a high-contrast, single-stroke drawing on plain white paper with a thick fresh marker before scanning.
  • Use unlined bright white printer paper (notebook lines will scan as stitches).
  • Draw with a felt-tip marker around 1–2 mm; avoid ballpoint and avoid “sketching” over the same line twice.
  • Tension the paper flat using all six green magnets at the extreme edges.
  • Success check: The on-screen preview shows smooth, continuous lines with no “skips” or doubled outlines.
  • If it still fails: Re-draw with a fresher/thicker marker and wipe the scanning glass with a microfiber cloth to remove haze/fingerprints.
• Q: How do I stop Brother Dream Machine 2 My Design Center from stitching the green scanning magnets into the embroidery design?
  A: Tighten the red crop box so the active zone includes only the handwriting and excludes the frame edges.
  • Find the red crop box handles after scanning and drag them inward.
  • Make the crop box hug the handwriting closely without cutting off any ink.
  • Confirm everything outside the box turns gray before proceeding.
  • Success check: The preview inside the crop area shows only the intended black/white artwork—no magnet blobs.
  • If it still fails: Re-scan and crop again; do not proceed until the preview is clean.
• Q: Why does Brother Dream Machine 2 My Design Center embroidery create random tiny dots, and how do I remove the “artifact” stitches?
  A: Random dots usually come from dust, stray marks, or specks that the scanner digitizes—clean them in the editor before converting.
  • Zoom to 400% in the editing screen and pan around the entire design.
  • Erase tiny black specks with the Eraser tool before saving/converting.
  • Keep the scanning glass and paper clean; avoid accidental marker dots near the design.
  • Success check: At high zoom, the artwork contains only intentional strokes, with no isolated specks.
  • If it still fails: Replace the paper, wipe the scanning bed with a microfiber cloth, and re-scan.
• Q: What satin line settings should Brother Dream Machine 2 My Design Center use for handwriting in Line Drawing mode (zigzag width and density)?
  A: A safe starting point for handwriting is Satin Stitch with 0.080" (about 2.0 mm) width and 100% density, then adjust by fabric type.
  • Set the line type to Satin Stitch (handwriting is a controlled zigzag, not a single run line).
  • Start at 0.080" width; keep it near this range for readable text.
  • Keep density at 100% for stable wovens; reduce to 90–95% for knits to reduce waviness; canvas/denim may tolerate 100–110%.
  • Success check: The satin column looks smooth and readable on screen and stitches without tunneling or waving.
  • If it still fails: Improve stabilization (cutaway + proper hooping) before changing more settings.
• Q: How do I avoid losing a scan in Brother Dream Machine 2 My Design Center when exiting to the home screen?
  A: Save the scan data to machine memory immediately after cleaning the scan because My Design Center memory is volatile.
  • Follow the “Rule of 3”: Scan & clean → Save (pocket icon) → Convert to embroidery.
  • Save before pressing Home or changing modes, especially if power flickers are possible.
  • Make saving a habit even for test scans.
  • Success check: The design is visible in machine memory and can be reopened after leaving My Design Center.
  • If it still fails: Re-scan and save right after editing—do not postpone the save step.
• Q: What are the success standards for hooping handwriting satin stitches on Brother Dream Machine 2 to prevent puckering, tunneling, or fabric flagging?
  A: Use cutaway stabilizer and hoop “drum tight,” then verify by sound and by the bobbin-thread ratio under the satin column.
  • Hoop with cutaway (mesh cutaway is used in the workflow); tear-away is risky for satin columns that can pull through.
  • Watch for fabric “flagging” (bouncing) while stitching; stop and re-hoop if it happens.
  • Flip the hoop after the first few letters and check the underside thread balance.
  • Success check: The stitch sound is a smooth rhythm (no harsh clicking) and the underside shows about 1/3 white bobbin thread centered in the satin column.
  • If it still fails: Add stabilization (fusible mesh cutaway for knits, topper for high pile) and re-check hoop tension before re-running the design.
• Q: What safety precautions are required when using the Brother Dream Machine 2 scanning frame and when using magnetic embroidery hoops?
  A: Keep hands and loose items away from moving parts during scanning, and handle magnetic hoops as high-strength pinch hazards.
  • Stop immediately if the scanning frame grinds or hits an obstruction; never reach into the sewing field while the machine is moving.
  • Keep fingers, hair, jewelry, and sleeves away from the traveling scanning frame (pinch point hazard).
  • Keep magnetic hoops away from pacemakers/implanted devices and prevent the frames from snapping together on fingers.
  • Success check: The scan motion is smooth (steady hum) and hoop attachment happens with controlled placement—no sudden snapping.
  • If it still fails: Power down before adjusting the scanning/hooping area and re-check clearance so the hoop arm has full range of motion.
• Q: When Brother Dream Machine 2 My Design Center handwriting projects keep puckering or hoop burn happens, what is the step-by-step upgrade path from technique to tools to production capacity?
  A: Start by fixing prep/hooping and stabilization, then consider magnetic hooping for consistency, and only then consider multi-needle capacity if volume demands it.
  • Level 1 (Technique): Improve input quality (bold single-stroke marker on plain paper), use cutaway stabilization, and verify stitch-out by sound + bobbin balance.
  • Level 2 (Tool): If hoop burn or inconsistent tension keeps happening, switch from screw hoops to a magnetic hoop system for faster, more consistent clamping.
  • Level 3 (Capacity): If orders reach 20+ personalized items and thread changes become the bottleneck, a multi-needle machine reduces manual color-change labor.
  • Success check: The on-screen preview looks clean and the stitch-out is repeatable across multiple garments without re-hooping struggles.
  • If it still fails: Run a test stitch on scrap fabric matching the final garment and simplify the artwork to line art before attempting dense shapes.
