From Sketch to Stitch Without the Guesswork: A Digitizer’s Dream Workshop Breakdown (Plus the Magnetic Hoop Reality Check)

The Digitizer's Reality Check: Bridging the Gap Between Software Theory and Physical Stitch-Outs

You’re staring at a ruined blank hoodie. The design cost $15, the hoodie cost $25, and your time is priceless—yet the result is puckered, the outline is misaligned, and there’s a bird’s nest of thread underneath the throat plate.

We have all been there. In my 20 years on the production floor, I’ve learned that embroidery is an unforgiving mix of art and engineering. You can have the most expensive software in the world, but if you don't understand the physical interaction between needle, thread, and fabric, you are just guessing.

This guide rebuilds the key lessons from the John Deere (Embroidery Legacy) "Digitizer's Dream Workshop" promo, but helps you look at it through the lens of a production veteran. We will move beyond the sales pitch and dive into the tactile, sensory, and mechanical realities of creating designs that actually work—and the tools that keep your sanity intact.

The “Blank Hoodie Panic”: Why Buying Designs Is a Gamble

The video opens with a universal scene: frustration. Why does a "professionally digitized" file fail on your machine?

Here is the industry secret: Every design is a set of frozen decisions. When you buy a stock file, you are buying the digitizer’s decisions on:

• Density: How close the stitches are (usually 0.40mm, but often too dense for knits).
• Pull Compensation: The intentional distortion to fight fabric stretch.
• Underlay: The "foundation" stitches you don't see.

If the digitizer assumed you were stitching on stiff denim (stable) and you stitch on a soft hoodie (unstable), the design will fail. The "panic" sets in because you don't know how to read the file's DNA.

The Fix: You must view digitizing not as "drawing," but as "programming structure."

The Core Promise: Principles Over Software

The workshop described offers a roadmap from zero to "Day 1 Design." The critical takeaway here—and this applies whether you use Wilcom, Hatch, or Embird—is that software is just a calculator.

You don't need to be artistic; you need to be logical. If you are tech-averse, take comfort in this: Embroidery is physics.

• Push and Pull: Stitches push fabric in the direction of the grain and pull it in the direction of the stitch.
• Friction: The stabilizer provides the resistance.

Your goal isn't to master every button in the interface. It's to master the logic of how thread interacts with fabric.

The “Mind’s Eye” Habit: Pre-Visualizing Placement

Before you touch a mouse, look at your physical garment. In production, we don't guess placement; we measure.

Standard Placement Sweet Spots (Adult M-XL):

• Left Chest: 7.5" to 9" down from the shoulder seam, centered between the placket and side seam.
• Jacket Back: 8" to 10" down from the neck seam.
• Cuff: 1" to 1.25" up from the edge.

Sensory Check: Run your hand over the fabric. Is it textured (pique polo)? Is it fluffy (fleece)?

• If textured: You need a stronger underlay (Tatami or Edge Run) to create a smooth platform.
• If simple cotton: A light Center Run underlay is sufficient.


The “Hidden” Prep: Fabric, Stabilizer, and Hooping Strategy

The video glosses over prep, but this is where 90% of beginners fail. You cannot digitize your way out of bad hooping.

The "Hoop Burn" Dilemma: Traditional screw-tight hoops rely on friction. To hold a thick hoodie, you often have to torque the screw so tight it crushes the fabric fibers, leaving a permanent "hoop ring" or "burn." Conversely, if you don't tighten enough, the fabric slips, and your outline malfunctions.

This is why many professionals search for terms like magnetic hooping station—not just for speed, but to solve the mechanics of tension. A magnetic system clamps vertically, avoiding the "tug-of-war" distortion inherent in pushing an inner ring into an outer ring.

Prep Checklist (The "Pre-Flight" Safety Protocol)

• [ ] Needle Inspection: Run your fingernail down the needle tip. If you feel a snag/click, replace it. (Use 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
• [ ] Bobbin Tension: Hold the bobbin case by the thread (like a yo-yo). It should slide down slowly when you jerk your wrist, not free-fall.
• [ ] Stabilizer Match:
  • Stretchy/Knits: Cutaway (Absolute requirement. Must support stitches for the life of the garment).
  • Stable/Wovens: Tearaway (Fine for towels/denim).
• [ ] Hooping Tension: Tap the hooped fabric. It should sound like a dull thud (like a ripe watermelon), NOT a high-pitched snare drum. Over-stretching causes puckering when removed.


Day 1 Reality: The "Two-Stitch" Rule

The promo suggests you can create a design on Day 1. My advice? Yes, but lower your stakes.

The Golden Rule of Testing: A design is not "done" until it has been stitched twice.

1. Test 1: Reveals the errors (density too high, underlay missing).
2. Test 2: Confirms the corrections.

Psychological Safety: Do not test on the final garment. Buy a yard of similar fabric (e.g., fleece yardage from a craft store) and degrade it with tests. It is cheaper to ruin a $5 swatch than a $40 jacket.

Decoding Experience: Why Fundamentals Matter

John Deere’s background highlights years of manual drafting. The lesson here is that basic rules haven't changed in 50 years.

The Big Four Fundamentals:

1. Underlay: Tacks the fabric to the stabilizer before the "pretty" stitches land.
2. Density: Standard is 0.40mm. For metallic thread, loosen to 0.45mm. For fine detail, tighten to 0.35mm.
3. Compensation: Adding 0.2mm - 0.4mm to the ends of satin columns to account for "pull."
4. Tie-ins/Tie-offs: Locking stitches so the design doesn't unravel in the wash.


The Portfolio Test: Training Your Eye

When looking at the montage of awards, look closer. Train your eye to spot "Quality."

What does a "Bad" file look like?

• Tunneling: A gap between the fill and the border. (Cause: Not enough Pull Compensation).
• Bulletproof: The patch feels like rigid cardboard. (Cause: Density too high, too many layers).
• Bird-nesting: Loops of thread on top found. (Cause: Top tension too loose).


The Pucker Prevention Protocol

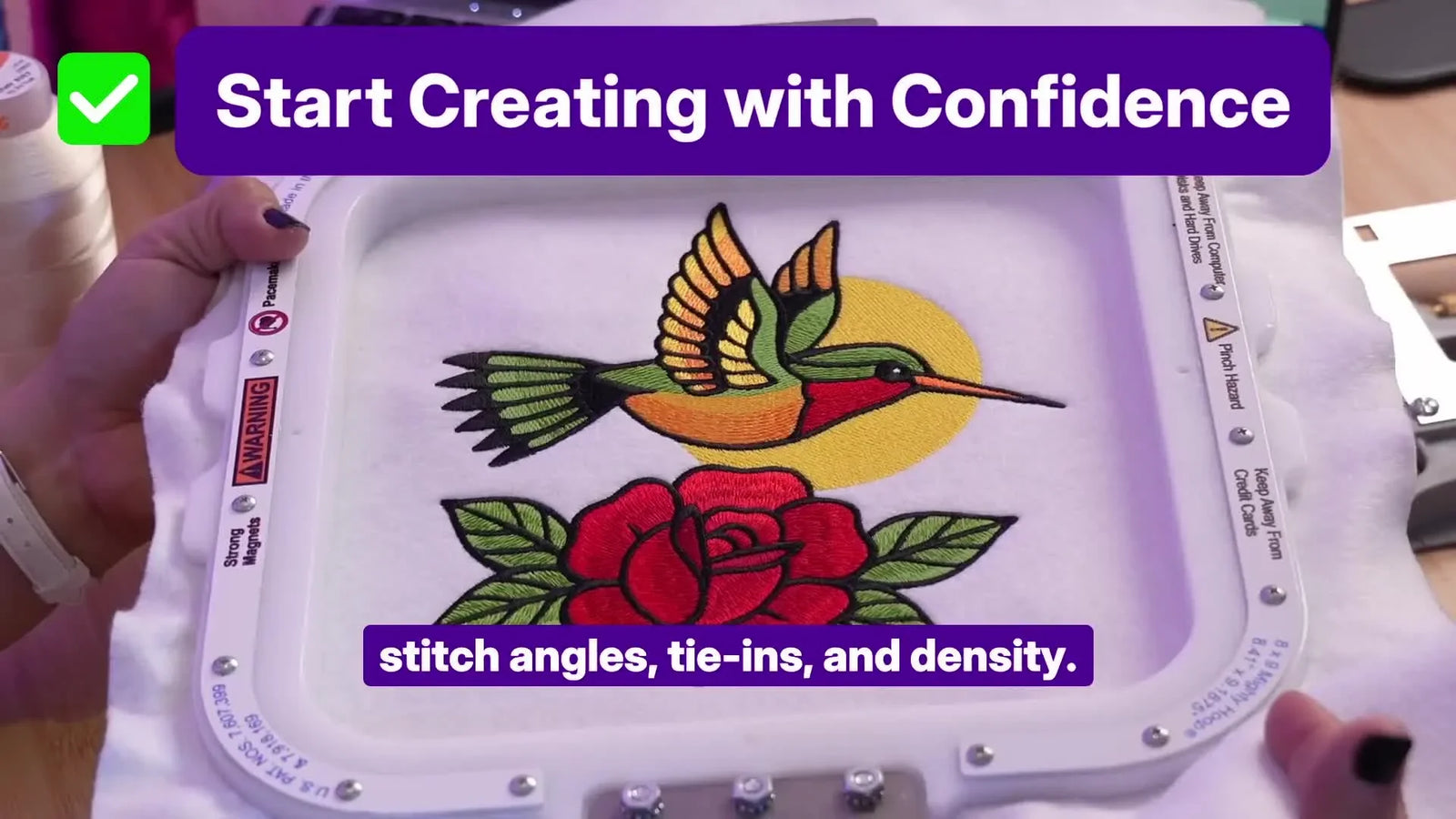

The hummingbird on the hoodie is the holy grail: High stitch count on soft fabric with zero wrinkles.

How is this achieved?

1. Stabilizer: Heavy Cutaway (2.5oz or 3.0oz).
2. Adhesion: Use temporary spray adhesive (like 505 spray) to bond fabric to stabilizer. This creates a "plywood" effect.
3. Hooping: The fabric must be neutral—held firmly, but not stretched.

This is a specific scenario where magnetic embroidery hoops excel. Because strong magnets (aim for 8+ contact points or continuous rims) clamp straight down, they trap the fabric and stabilizer sandwich without distorting the grain. If you struggle with puckering on perfectly digitized files, your hoop is likely the culprit.

Warning: Mechanical Safety. Never stick your hands near the needle bar while the machine is running. A generic 1000 SPM (Stitches Per Minute) machine moves the needle 16 times per second. It will stitch through your finger before your brain registers pain.

The Learning Loop: "See, Do, Stitch, Fail"

The video shows a student watching and working. This is the only way to learn.

The "Notebook" Method: Don't just watch. For every lesson:

1. Digitize the shape.
2. Stitch it on scrap.
3. Feel it. Is it stiff? Rub the back—is it scratchy?
4. Write the settings in a notebook (e.g., "Tatami fill, 0.40mm density, woven fabric = too stiff. Next time try 0.45mm.").


The Celtic Knot: Mastering Under-Pathing

Complex designs like Internet-famous Celtic knots require planning your "Pathing."

The Logic: You must stitch from the center out or bottom up. If you stitching the outer border first, then fill the middle, the fabric will push outward and create a bubble. Always push the fabric away from the center of the hoop toward the edges.

Software Workflow: It’s All Translation

Whether you use the EL software, Wilcom, or generic brands, the workflow is universal.

The "Object" Mindset: Don't think "I'm drawing a flower." Think:

• Object 1: Stem (Satin Stitch, Angle 90°).
• Object 2: Petal Base (Tatami Fill, Angle 45°).
• Object 3: Petal Border (Satin Stitch, Angle 45°).

If you are learning this workflow, you want to minimize physical variables. Many students search for how to use magnetic embroidery hoop videos alongside software tutorials because they want to ensure that if a design fails, it’s the software's fault, not a loose hoop. Minimizing variables is the scientific method of embroidery.

The Sketch: Paper is Cheaper than Thread

The video emphasizes sketching. This is critical for "Pathing." Draw a line on paper representing your needle. Can you trace the whole design without lifting your pen?

• If yes: Your machine will run smooth and fast.
• If no: Every time you lift the pen, your machine has to trim (cut thread) and jump. Too many trims = messy backs and increased thread break risk.


Hooping Strategy: The Hidden Production Bottleneck

At 03:15, the video shows a square magnetic frame. This is pivotal.

If you are a hobbyist doing one shirt a week, standard hoops are fine. But if you are doing 20 shirts for a local team, standard hoops are a nightmare of wrist fatigue and "hoop burn" marks.

Benefits of Magnetic Systems:

• Speed: Pop, Click, Done. No unscrewing.
• Safety: No friction burn on velvet, corduroy, or performance wear.
• Consistency: The magnet pressure is identical every time.

Home Machine Compatibility: Users of Baby Lock or Brother machines often struggle with the limitations of the included plastic hoops. Finding a compatible magnetic hoop for brother (or your specific brand) is often the first "hardware upgrade" a user makes before buying a larger machine. It bridges the gap between frustration and production.

Warning: Magnet Safety. Modern magnetic hoops use industrial-grade Neodymium magnets. They snap together with enough force to pinch skin severely or damage mechanical watches/credit cards. PACE MAKER WARNING: Keep magnets at least 6 inches away from cardiac devices.

Decision Tree: Fabric → Stabilizer → Hoop Strategy

Sequence View: Reading the Matrix

The "Sequence View" is your X-Ray vision.

What to look for:

1. Color Changes: Are there 15 color changes for a 3-color design? (Bad pathing).
2. Trims: Are there 50 trims? (Machine will slow down constantly).
3. Layering: Are bold dark colors stitching under light colors? (They might bleed through).


Troubleshooting the "Big Three" Failures

The video names them; here is how to fix them using the Symptom → Likely Cause → Fix logic.

1. Puckering

• Symptom: Fabric ripples around the digitized shape.
• Likely Cause: Fabric moving during stitching or inadequate Pull Compensation.
• The Fix:
  • Software: Increase Pull Comp to 0.4mm. Switch underlay to "Edge Run" + "Tatami."
  • Hardware: Use spray adhesive. Upgrade to magnetic hoops for embroidery machines to stop varying tension.

2. Thread Breaks

• Symptom: Thread shreds or snaps repeatedly.
• Likely Cause: "Eye of Needle" (too many stitches in one spot) or Tension too tight.
• The Fix:
  • Physical: Check needle orientation. Thread path clear?
  • Software: Check for small stitches (under 1mm) and remove them. Limit max density.

3. Bulletproof Designs

• Symptom: You can knock on the embroidery. It's thick and uncomfortable.
• Likely Cause: Overlapping full-density fills.
• The Fix: "Remove Overlaps" in software. Use lighter density (0.45mm) for background layers.

Setup That Saves Hours: The "Production Station"

Whether you have a single-needle home machine or a 15-needle beast, your workstation dictates your success.

Setup Checklist

• [ ] Hidden Consumables: Do you have 505 Spray, Curved Trimming Scissors, and Seam Ripper (the "eraser")?
• [ ] Lighting: You need bright, focused LED light on the needle bar area.
• [ ] Hooping Station: Clear a flat 2x2 foot area.
• [ ] Thread Path: Ensure no thread cones are vibrating off the stand.

If you find yourself constantly fighting alignment, investing in a properly sized magnetic embroidery frames set can act as a portable station, keeping your work square and flat without the physical struggle.

Operation: The Stitch-Out Checkpoints

Don't walk away from the machine. Listen.

• Sound Check: A happy machine sounds like a rhythmic, smooth sewing machine. A machine in trouble makes a "thump-thump-thump" sound (needle blunt) or a grinding noise (bird's nest forming).

Operation Checklist

• [ ] Watch Layer 1: Does the underlay lay flat? If it bubbles, hit STOP immediately. Hoop tighter/better.
• [ ] Watch the Outline: Does the satin border land on the color, or is there a gap (white fabric showing)? If gap = need more Pull Comp.
• [ ] Inspect the Back: The bobbin thread (usually white) should be visible as a center strip, occupying 1/3 of the width of satin columns.
  • All Top Color on back: Top tension too loose.
  • No Bobbin on back: Top tension too tight.

The Upgrade Path: Knowing When to Scale

The video promotes a workshop, but eventually, your skills will outgrow your hardware.

1. Level 1 (Optimization): You master digitizing, use quality commercial thread, and use correct stabilizers.
2. Level 2 (Workflow): You upgrade to Magnetic Hoops to stop hurting your hands and to hoop garments 50% faster.
3. Level 3 (Scale): You move from a single-needle flatbed to a Multi-Needle Machine (like SEWTECH or similar commercial platforms). This allows you to stitch caps properly, hold 15 colors at once, and run at higher speeds (850-1000 SPM) reliably.

Final Thought: Embroidery is a tactile craft digitized by computers. Master the software, but respect the physics. When you combine clean files with solid hooping mechanics and the right machine, the frustration vanishes, and you are left with the "Dream" workflow the workshop promises.

FAQ

• Q: For a soft hoodie knit, how can a digitizer prevent puckering when a “professionally digitized” design stitches out wrinkled?
  A: Start by stopping fabric movement first (hooping + stabilizer), then adjust digitizing settings.
  • Use heavy cutaway stabilizer (2.5oz or 3.0oz) for hoodies, and add temporary spray adhesive to bond fabric to stabilizer.
  • Hoop the fabric neutral (held firm, not stretched); avoid “snare drum tight” hooping that rebounds into puckers after unhooping.
  • Increase Pull Compensation as a correction step (the blog calls out up to 0.4 mm for puckering cases) and strengthen underlay (e.g., Edge Run + Tatami).
  • Success check: after stitch-out, the fabric around the design stays flat with no ripples, and the shape is not distorted.
  • If it still fails, run the two-stitch test on scrap fleece and adjust one variable at a time (stabilizer/hoop first, then software).
• Q: On a single-needle home embroidery machine bobbin case, how can a beginner set bobbin tension using the “yo-yo” test to avoid bird-nesting?
  A: Set bobbin tension so the bobbin case slides down slowly—not a free-fall—when the thread is jerked.
  • Hold the bobbin case by the thread like a yo-yo and give a small wrist jerk.
  • Aim for a controlled, slow slide downward rather than dropping quickly.
  • Pair the test with a quick back-of-design inspection during stitching.
  • Success check: satin columns show bobbin thread as a center strip about 1/3 of the column width on the back.
  • If it still fails, re-check the thread path and needle condition before chasing top tension.
• Q: For knits vs. wovens, which needle type and size is a safe starting point to reduce skipped stitches and fabric damage during embroidery?
  A: Use 75/11 Ballpoint for knits and 75/11 Sharp for wovens, and replace any needle that feels nicked.
  • Inspect the needle by running a fingernail down the tip; replace immediately if a snag/click is felt.
  • Choose 75/11 Ballpoint when stitching stretchy knit garments (like hoodies and tees).
  • Choose 75/11 Sharp when stitching stable woven fabrics.
  • Success check: stitching sounds smooth (no “thump-thump”), and thread runs without shredding or repeated breaks.
  • If it still fails, look for design issues such as too many tiny stitches (under 1 mm) or excessive density in one spot.
• Q: When hooping a garment, what is the correct fabric hooping tension “sound test” to prevent puckering after removing the hoop?
  A: Hoop firmly but never over-stretch—use the tap test to avoid “snare drum” tightness.
  • Tap the hooped fabric and listen for a dull thud (like a ripe watermelon), not a high-pitched drum sound.
  • Stop pulling the fabric to make it “tight”; let the hoop hold it flat and neutral.
  • Confirm stabilizer is matched to fabric (the blog notes cutaway is an absolute requirement for knits).
  • Success check: after unhooping, the fabric does not rebound into waves, and outlines remain aligned.
  • If it still fails, add spray adhesive to reduce shifting and re-check underlay/pull compensation in the file.
• Q: During stitching, how can an operator judge top tension vs. bobbin tension by inspecting the embroidery back to prevent looping and nesting?
  A: Use the back-of-satin “1/3 rule” as the quickest tension indicator while the job is still running.
  • Pause and inspect the back: bobbin thread should appear as a center strip in satin columns.
  • If the back shows all top color, top tension is likely too loose.
  • If the back shows no bobbin, top tension is likely too tight.
  • Success check: the machine runs with a steady rhythm and the underside looks consistent, not messy or looped.
  • If it still fails, stop and check for a developing bird’s nest and confirm the needle is not blunt or damaged.
• Q: What is the safest practice to avoid needle-bar injury on a 1000 SPM embroidery machine when clearing thread jams or checking stitch quality?
  A: Keep hands away from the needle area anytime the machine can move, and stop the machine before reaching in.
  • Hit STOP immediately if underlay bubbles, a nest starts forming, or the sound changes to grinding/thumping.
  • Wait until the machine is fully stopped before touching the throat plate/needle area.
  • Watch the first layer and outline instead of “fixing while running.”
  • Success check: troubleshooting actions happen only when the machine is stationary, and stitch-outs restart cleanly without new jams.
  • If it still fails, reduce variables by testing on scrap and verifying hooping/tension before re-running the final garment.
• Q: What are the key magnetic embroidery hoop safety rules for neodymium magnetic frames, especially around watches, credit cards, and pacemakers?
  A: Treat magnetic hoops like industrial clamps: avoid pinch points and keep them away from sensitive devices.
  • Keep fingers clear when the magnets snap together; pinch injuries are common.
  • Keep magnets away from mechanical watches and credit cards that can be damaged.
  • Follow the pacemaker precaution: keep magnetic hoops at least 6 inches away from cardiac devices.
  • Success check: hooping is controlled (no sudden snapping onto skin), and the workspace stays clear of sensitive items.
  • If it still fails, slow down the hooping motion and stage the frame on a flat station so the magnets meet squarely.
• Q: If a shop is losing time to hoop burn, wrist fatigue, and inconsistent hooping tension, what is a practical upgrade path from process tweaks to magnetic hoops to a multi-needle machine (SEWTECH-class)?
  A: Fix fundamentals first, then upgrade the bottleneck: technique → hooping system → machine capacity.
  • Level 1 (Optimization): standardize needle checks, bobbin tension, stabilizer matching, and the two-stitch testing rule before blaming digitizing.
  • Level 2 (Workflow): switch to magnetic hoops when hoop burn and inconsistent clamping are causing distortion or slow loading.
  • Level 3 (Scale): move to a multi-needle platform when production needs exceed single-needle efficiency (fewer stops for color changes; higher reliable speed).
  • Success check: designs become repeatable—less re-hooping, fewer ruined garments, and consistent outlines from run to run.
  • If it still fails, document one job in a notebook (fabric, stabilizer, underlay, density, results) and change only one variable per test.
