From Stitch-Out to Wall Art: Mounting an 8x10 Embroidered Canvas on a Stretched Frame Without Crooked Staples or Bulky Corners

You did the hard part—the digitizing is clean, the machine didn’t eat the thread, and the design looks pristine. Now, you are staring at a wooden 8x10 canvas frame with a staple gun in your hand, thinking, “Please don’t let me ruin this at the finish line.”

In my 20 years of running embroidery floors, I’ve seen more projects ruined during the mounting phase than by thread breaks. A crooked mount turns a masterwork into a discount bin item. The tension is real, but the heavy breathing is unnecessary.

This guide transforms a “craft hack” into a standardized operating procedure. We will use a lightweight staple gun, a clever leveling trick, and specific geometry to ensure your embroidery is drumming-tight and perfectly centered. Whether you are framing a single keepsake or setting up a run of ten for a boutique, this is your safety protocol.

The Calm-Down Primer: Why an 8x10 Canvas Art Frame Can Make Your Embroidery Look Crooked (Even When It Isn’t)

A pre-stretched 8x10 canvas art frame is unforgiving. Unlike a hoop that allows for adjustment, wood is static. If you pull only perfectly vertical or horizontal, you are fine. But if you pull with torque (twisting force), the weave of the fabric distorts.

Result? The design looks tilted, even if the measurements are technically correct.

To avoid this, we don’t rely on “eyeballing it.” We rely on physics and geometry. The method detailed here uses a standard lightweight staple gun (low impact, high control) to achieve what we call "Radial Tension"—tension that spreads evenly from the center out, rather than dragging the fabric from one side to the other.

1. True Center Alignment: We map the invisible geometric center.
2. Balanced Tension: We staple in a "Lug Nut" pattern (north, south, east, west).


The “Hidden” Prep Pros Do First: Crosshairs, Contrast, and a Clean Back Before You Touch the Frame

Amateurs measure from the edge of the fabric. Pros measure from the center of the design.

The "Ghost" Crosshair Issue

Most embroidery files stitch a crosshair on the stabilizer/backing to help with centering. However, after 20,000 stitches of density, that crosshair is often buried under bobbin thread.

The Action Step:

1. Flip your embroidered piece face down.
2. Locate the faint indentation or bobbin lines of the original center crosshair.
3. Extend these lines with a ruler and a pen all the way to the edge of the stabilizer.

Why? You cannot align a wooden frame to a mark that is covered by wood. You need the lines visible outside the frame’s footprint.

Pro Tip: In my shop, for framing projects, used a contrasting bobbin thread (e.g., neon yellow) for just the crosshair placement stitch. It saves seconds of squinting later.

Prep Checklist (The "Pre-Flight" Safety Check)

• Surface: Is your table clear of thread snips and oil spots? (Canvas absorbs oil instantly).
• Dimensions: Confirm your frame is actually 8x10 (wood varies).
• Visibility: Have you extended the crosshairs using a high-contrast pen on the backing?
• Ironing: Has the fabric been pressed? Do not mount wrinkled fabric expecting the staples to pull it smooth. They won’t.
• Consumables: Do you have your staple gun, extra staples, and a fabric marking pen ready?

Centering the 8x10 Canvas Frame: The 5-Inch and 4-Inch Marks That Save the Whole Project

Here is the math. The frame is 10 inches by 8 inches. To find the center of the frame, we divide by two.

The Procedure:

1. Lay the wooden frame face down.
2. On the 10-inch side, measure exactly 5 inches and make a mark on the wood. Do this for both long sides.
3. On the 8-inch side, measure exactly 4 inches and make a mark. Do this for both short sides.
4. Place the frame onto the back of your embroidery.
5. Align the marks. Match the marks on the wood to the extended crosshair lines on your stabilizer.

This creates a mechanical lock. If your marks align, your design must be centered. This is the same logic used when we set up an embroidery frame on a commercial machine—we trust the coordinates, not our eyes.

Trace the Frame With Disappearing Ink: Your “No-Regrets” Box for Cutting and Wrapping

Once the frame is locked in position, do not move it. You need to create a "Safe Zone" map.

The Action:

• Hold the frame firmly with your non-dominant hand.
• Using a disappearing ink pen (or heat-erasable pen), trace the exact outer perimeter of the wooden frame onto the back of the canvas.

This rectangle is your "Ground Zero." Everything inside stays; everything outside gets processed.

Warning: Mechanical Safety
Staple guns are not toys. Even lightweight craft staplers can pierce skin or shoot a staple across the room if they slip.
1. Never place your hand directly opposite the stapler head on the other side of the frame rail.
2. Ensure your finger is off the trigger until the staples are fully seated against the wood.

Trim Only the Stabilizer on the Outline: Reduce Bulk Without Weakening the Canvas

This is the step 90% of beginners skip, resulting in lumpy framing.

The Problem: Stabilizer + Canvas + Folded Corner = Too much bulk. The frame won’t sit flush against the wall.

The Fix:

1. Lift the stabilizer (backing) gently, separating it from the fabric.
2. Cut the stabilizer only along the line you just traced.
3. Remove the excess stabilizer from the perimeter.

You want the stabilizer to support the stitches inside the frame, but you want raw canvas under the wooden rails.

The 1 1/4-Inch Wrap Allowance: Mark It Evenly or You’ll Fight Ripples Forever

How much fabric do you need to wrap around the back? Too little, and you can’t grip it to pull tension. Too much, and it bunches up.

The "Goldilocks" Measurement: 1 1/4 Inches.

The Procedure:

1. Place your ruler on the traced frame line.
2. Measure outward 1.25 inches.
3. Draw a second, larger rectangle around the first one.


Setup Checklist (Before You Cut Fabric)

• The Inner Box: Is the frame outline clearly traced?
• The Outer Box: Have you measured 1.25" evenly on all four sides?
• The Tool: Are your scissors sharp? Dull scissors chew canvas and leave fraying edges that are hard to staple.
• The Mindset: Take a breath. Once you cut, there is no undo button.

Cut the Canvas on the Outer Line: Clean Edges Make Clean Tension

Commit to the cut.

The Action:

• Cut through the canvas fabric along the outer (1.25") line.
• Discard the scrap.

You should now have a cross-shaped canvas distinct from the excess fabric, with the frame outline clearly visible in the center.

The Corner-Bulk Fix: Snip the Tiny Triangles So Your “Gift Wrap” Fold Lays Flat

Corners are the enemy of a clean mount. If you fold canvas three times, it becomes thick and rigid. We need to "de-bulk" the geometry.

The Geometry Trick:

1. Look at the corner where your cut edge meets.
2. Visualize a triangle from the inner corner (frame corner) to the outer edge.
3. Snip off that triangle.

By removing this wedge of fabric, you allow the sides to fold in without overlapping heavily.

Expert Note: Don’t cut exactly to the frame corner. Leave about 1/8th of an inch clearance so you don’t accidentally expose the bare wood corner when you fold.

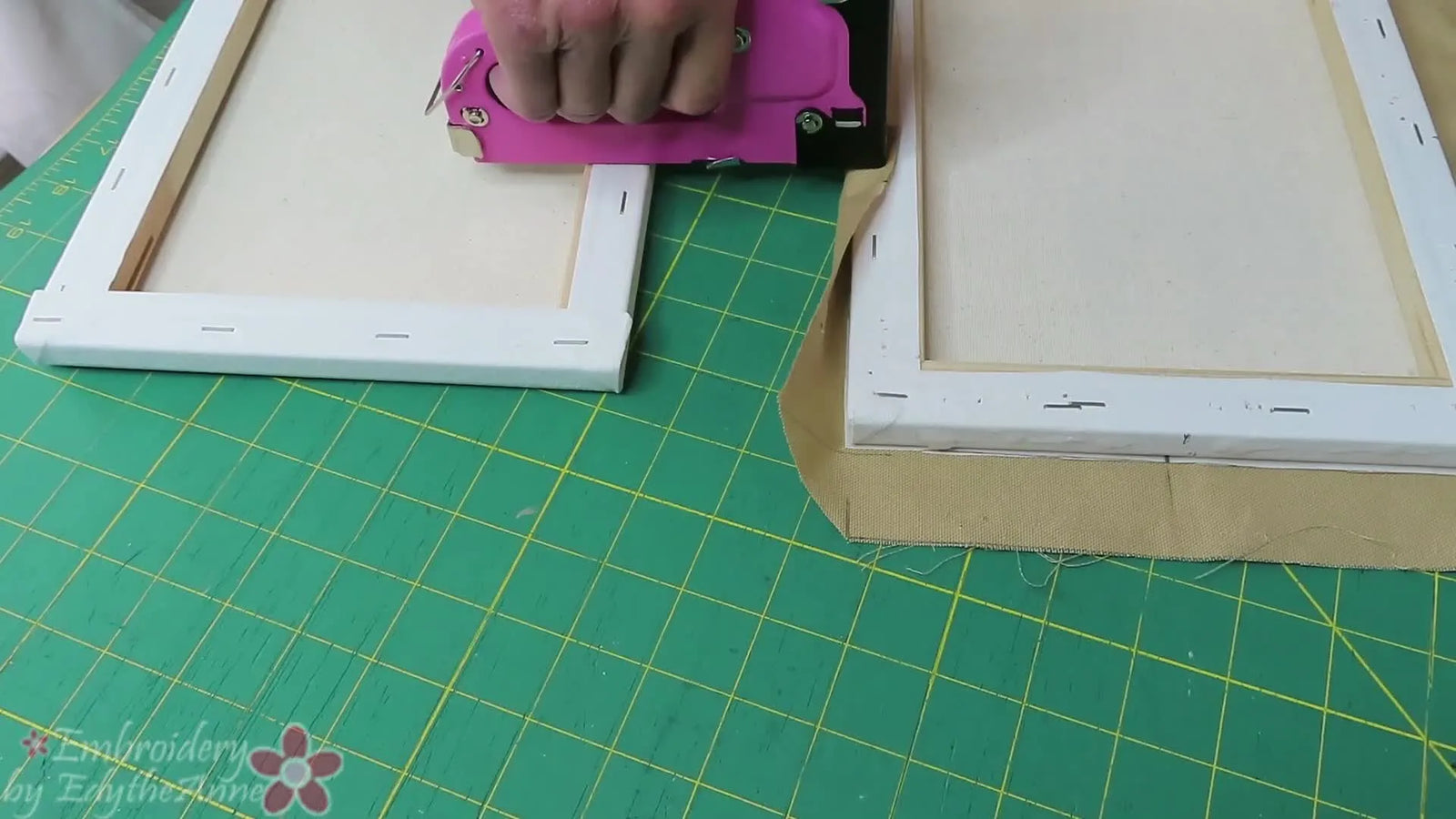

The Stapling Trick That Stops Crooked Staples: Use a Second Canvas Frame as a Level Platform

This is the most valuable tip in the entire workflow.

Staple guns are top-heavy. When you are balancing over the edge of a frame, gravity wants to tilt the gun. A tilted gun drives the staple in at an angle, which tears the canvas or leaves the staple sticking up (a "shiner").

The Solution:

1. Get a spare 8x10 frame (or a book of the same thickness).
2. Place it directly next to the frame you are working on.
3. Rest the heel of the staple gun on the spare frame while the nose sits on your active project.
4. Fire the staple.

This creates a bridge, keeping the gun perfectly horizontal.

In professional manufacturing, we use jigs for this. If you were looking to standardize this in a high-volume shop, you might look at a hooping station for machine embroidery to stabilize your initial hooping. Here, the "spare frame" is your makeshift station for the finishing process.

Staple in the Center First: The Tension Sequence That Keeps the Design Centered

Do not start at the corners. I repeat: Do not start at the corners.

If you staple the corners first, you trap any loose fabric in the middle, creating a bubble. We want to push the air out.

The "North-South-East-West" Protocol:

1. Top Center: Pull the fabric gently over the top rail. Align the trace line to the wood edge. Fire one staple in the center.
2. Bottom Center: Maintain tension. Pull the opposite side. Fire one staple in the center.
   • Sensory Check: Tap the canvas front. It should sound like a low drum thud, not a papery rattle.
3. Left/Right Centers: Repeat the process for the sides.


Operation Checklist (Mid-Stream Verification)

• The Drum Test: tap the center. Is it taut?
• The Line Check: Look at the back. Is your traced line sitting exactly on the edge of the wood? If it drifted, pull the staples and fix it now.
• No "Smile" Lines: Flip to the front. Do you see drag lines (stress wrinkles) pointing toward the staples? If yes, you pulled too hard. Remove staple and re-set with less aggression.

The “Christmas Present” Corner Fold: A Clean Diagonal Seam That Looks Professional

This finish separates the amateurs from the pros.

The Technique:

1. Tuck the excess fabric point into the corner of the frame indentation.
2. Fold the top flap down flush.
3. Fold the side flap over it.
4. Pull tight to create a crisp 45-degree angle.
5. Staple the fold. Ensure the staple legs catch both layers of the fold to lock it down.






The “Why” Behind the Method: Fabric Tension, Drift, and Why Even Pull Beats Strong Pull

Why does this method work? It respects the grain line of the fabric.

When you pull canvas, you are stretching a woven grid.

• Drift: Occurs when you pull diagonally.
• Puckering: Occurs when the fabric is tighter at the staples than between them.

By stapling the centers first and working outward, you essentially push the excess fabric toward the corners, where it can be tucked away. By using the spare frame to keep the stapler flat, you ensure the staple enters perpendicular to the wood, providing maximum holding power without tearing the fiber.

Quick Decision Tree: Stabilizer and Backing Choices for Canvas Keepsakes

The tutorial uses the "trim" method, but your choice of stabilizer (backing) dictates the quality of the finish.

Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix You Can Do Immediately

Even with a plan, physics happens. Here is how to save the piece.

The Upgrade Path (When You Start Making These for Sale): Speed, Consistency, and Tool ROI Without Overbuying

If you are framing one picture for your grandmother, this manual method is perfect. But if you are doing this commercially—or simply value your wrists—you need to look at your pain points to decide when to upgrade your gear.

Pain Point 1: Hoop Burn & Alignment Stress Standard hoops require you to crush the fabric between plastic rings. On canvas, this can leave permanent "burn" circles.

• The Upgrade: A magnetic embroidery hoop.
• Why: Magnets hold the fabric firmly without the crushing friction of inner/outer rings. This eliminates hoop burn and makes sliding the canvas to find "true center" instant. If you are fighting to hoop thick canvas, a magnetic embroidery frame saves your fingers and your fabric.

Pain Point 2: Repetition Fatigue If you have an order for 20 framed quotes, measuring 1.25" on every single one will kill your profitability.

• The Upgrade: A template jig. Cut a piece of cardboard to the exact 1.25" border size. Lay it down, trace, cut.
• Further Upgrade: If the hooping is the bottleneck, a hoopmaster hooping station ensures the design is in the exact same spot on every piece of canvas, so you don't even have to remeasure center lines for framing.

Pain Point 3: Production Speed Are you stopping every 2 minutes to change thread colors?

• The Upgrade: This is where you move from a domestic single-needle to a SEWTECH multi-needle machine. The ability to set 10 colors and walk away allows you to prep the frames while the machine works.

Warning: Magnet Safety
If you upgrade to Magnetic Hoops, be aware they use industrial-strength neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with deliberate care.
* Medical Devices: Keep them at least 6 inches away from pacemakers.
* Electronics: Do not place them directly on laptops or verify embroidery cards.

One Last Pro Habit: Photograph the Back Before You Deliver or Gift It

This is a gallery standard. Before you wrap it or hand it over, take a photo of the back of the frame.

1. It proves the craftsmanship is clean (no loose threads, neat staples).
2. It logs your staple pattern for future reference.

Framing is the handshake at the end of the job. A weak handshake ruins a great introduction. A firm, clean, centered mount tells the world (and your customer) that a professional was here.

If you find yourself constantly fighting the fabric during the initial embroidery stage, consider looking into how a magnetic embroidery hoop might smooth out your workflow before you even get to the staple gun. But for today? Trust your measurements, lock your wrists, and enjoy that satisfying "thud" of a perfectly mounted canvas.

FAQ

• Q: How do I center an 8x10 wooden canvas frame on an embroidery piece using center crosshair lines on stabilizer?
  A: Use measured center marks on the wood (5" and 4") and align them to extended crosshair lines—do not eyeball placement.
  • Extend the design center crosshair lines on the backing all the way to the stabilizer edge using a ruler and pen.
  • Mark the frame centers: 5" on both 10" rails and 4" on both 8" rails.
  • Place the frame face-down and align the wood center marks to the extended crosshair lines.
  • Success check: When the marks and crosshair lines intersect cleanly, the frame cannot “look centered” while actually being off-center.
  • If it still fails: Remove the frame and re-extend the crosshair lines with higher-contrast ink so the alignment is unambiguous.
• Q: How do I stop an embroidery canvas mount from looking tilted on an 8x10 frame due to fabric torque during stapling?
  A: Reset and staple in a North–South–East–West center-first sequence to balance tension and prevent diagonal drift.
  • Remove staples and fully re-align the frame to the center marks before restapling.
  • Staple one staple at the top center, then bottom center, then left center, then right center.
  • Add staples working outward from the centers toward corners, not the other way around.
  • Success check: Tap the front—canvas should sound like a low drum “thud,” and the design should visually sit square without twist lines.
  • If it still fails: Check the traced line on the back—if it drifted off the wood edge, re-pull with less force to avoid torque.
• Q: How do I prevent bulky, lumpy corners when wrapping embroidered canvas around an 8x10 wooden frame?
  A: Debulk the corners by snipping a small fabric triangle wedge, then fold corners like a “Christmas present” seam.
  • Mark and cut the canvas to a consistent 1.25" wrap allowance before folding.
  • Snip a small triangle wedge at each corner to remove hidden bulk (leave about 1/8" clearance from the frame corner).
  • Fold: tuck the point in, fold the top flap down, fold the side flap over, then staple to lock both layers.
  • Success check: The back corners lie flat without a hard lump, and the front edge shows no corner bumps or distortion.
  • If it still fails: Undo just that corner, trim a slightly larger wedge, and refold—don’t over-tighten the diagonal seam.
• Q: How do I stop staples from sticking up (“shiners”) when using a lightweight staple gun on an 8x10 canvas frame?
  A: Level the staple gun using a second frame (or same-thickness book) as a platform so the staple drives straight.
  • Place a spare 8x10 frame directly next to the work frame.
  • Rest the heel of the stapler on the spare frame while the nose sits on the active frame rail.
  • Press the stapler down firmly before firing to keep it perpendicular to the wood.
  • Success check: Staples sit flush with no raised crown, and the canvas is not torn around staple legs.
  • If it still fails: Pull the problem staples with pliers and re-staple with a locked wrist and flatter support surface.
• Q: How do I trim stabilizer correctly for framing embroidered canvas on an 8x10 wooden frame without creating a lumpy back?
  A: Trace the frame perimeter, then cut only the stabilizer on that outline so raw canvas—not stacked stabilizer—wraps over the rails.
  • Trace the exact outer perimeter of the frame onto the back using disappearing or heat-erasable ink.
  • Gently lift the stabilizer away from the fabric and cut only the stabilizer along the traced line.
  • Keep stabilizer inside the frame area for stitch support; remove it from the wrap zone to reduce bulk.
  • Success check: The back wraps smoothly and the frame sits flush without a raised ridge around the edges.
  • If it still fails: Confirm the stabilizer was separated before cutting—if canvas was cut by mistake, stop and reassess wrap allowance before stapling.
• Q: What is the safest way to use a lightweight staple gun when mounting embroidered canvas on a wooden 8x10 frame?
  A: Treat the stapler like a piercing tool and keep hands out of the firing line while fully seating the stapler on the wood.
  • Keep the non-dominant hand away from the opposite side of the rail where the staple could exit or the tool could slip.
  • Seat the stapler flat against the wood before touching the trigger; fire only when stable.
  • Work on a clear table to prevent slips from snips, oil spots, or unstable footing.
  • Success check: Every staple fires cleanly without tool bounce, and hands never cross in front of the stapler nose or behind the target rail.
  • If it still fails: Stop and reposition the work height/support (use the spare-frame leveling trick) before continuing.
• Q: When making embroidered canvas frames for sale, how do I decide between technique optimization, upgrading to magnetic embroidery hoops, or moving to a SEWTECH multi-needle machine?
  A: Upgrade in levels based on the bottleneck: fix process first, then reduce hooping stress with magnetic hoops, then increase throughput with a multi-needle machine.
  • Level 1 (Technique): Standardize marking (5"/4" centers), trace perimeter, cut stabilizer-only, and staple N/S/E/W centers first.
  • Level 2 (Tool): If thick canvas hooping causes hoop burn or alignment stress, magnetic embroidery hoops often reduce fabric crushing and speed centering.
  • Level 3 (Capacity): If thread color changes and stop-start time limit output, a SEWTECH multi-needle machine reduces downtime by keeping multiple colors loaded.
  • Success check: The chosen upgrade removes the real pain point (less rework, faster repeatability, fewer ruined mounts) rather than just adding new steps.
  • If it still fails: Track where time/defects occur (hooping vs. framing vs. color changes) and upgrade only the stage that consistently causes rework.
