From SVG to a Perfect Left-Chest Logo: Dialing In Chroma Digitizing + a Magnetic Hooping Station (and a Clean Sleeve Re-Hoop)

If you have ever tried to sell—or even just gift—a "team" run of shirts, you already know the silent killer of profit isn’t the stitching time. It is inconsistency.

One logo rides too high near the collarbone; the next drift towards the armpit. Suddenly, your "simple" 10-shirt order turns into a remake marathon. The machine doesn't care about placement; that burden rests entirely on your hands and eyes.

This guide breaks down a workflow built for repeatability: digitize cleanly, hoop fast, trace before you commit, and finish in a way that looks retail-ready. We are analyzing a workflow using a multi-needle machine and Chroma software, but the real hero here is the process—specifically using a hooping station with magnetic hoops to lock placement in.

The Calm-Down Moment: Why Left-Chest "Fear" is Real (And How to Fix It)

Left-chest embroidery is technically simple, yet it causes the most anxiety for beginners. Why? Because on a black cotton tee, even a 1/4-inch alignment error screams "amateur" from across the room.

The shift in mindset: Stop trying to "eyeball" every shirt. The goal of production embroidery is to remove variables. Once you build a repeatable hooping routine, left-chest becomes one of the most profitable, lowest-drama placements you can offer because customers love it, and you can batch it efficiently.

If you are running (or planning) a small custom apparel business, this is exactly why professionals invest in a machine embroidery hooping station: not because they lack the skill to hoop by hand, but because they need the 50th shirt to look exactly like the 1st without measuring it with a ruler every single time.

Chroma Digitizing: The "Pre-Flight" Adjustments That Save Your Fabric

The video starts at the desktop with an SVG created in Illustrator, then moves into Chroma to convert the vector shapes into embroidery stitches.

Here is the reality of auto-digitizing: "Default" settings are designed for medium-weight woven fabric (like denim). If you run default settings on a stretchy knit T-shirt, you will get a bulletproof patch that puckers. You must intervene.

What to Copy (The "Safety" Settings)

1. Import the SVG into Chroma.
2. Select the vector elements (the rings).
3. Convert to Steil Stitch (Satin Column).
4. Set Design Width to 3.0 inches. This is the "Industry Standard" size for adult left chest. Anything larger than 3.5" risks entering the armpit area.
5. Zero out X and Y. This ensures your design is centered mathematically, not just visually.
6. Adjust Steil Width to 2.0mm.
   • The "Why": A default satin stitch can be too fat, looking chunky and increasing the pull on the fabric. 2.0mm is refined and crisp.


Pro Tip: Always save separate files for different locations. A "Left Chest" file and a "Shatterproof Hat" file might look the same on screen, but they need different pull compensation and start/stop coordinates.

Text That Breathes: Fixing the "Squeezed" Lettering Issue

After the rings, the host adds “USA” and “2024” using the text tool. This is where most beginners fail.

The "25% Rule" for Knit Fabrics

• The Problem: When you embroider on a T-shirt, the stitches pull the fabric inward. This causes letters to "pinch" together. "USA" ends up looking like a single blob.
• The Fix: The video increases Character Spacing by 25%.
• The Visual Check: On your screen, the letters should look slightly too far apart. Once stitched on the stretchy fabric, the pull will draw them together into perfect spacing.

Also, note the color choice: 1801 Super White. On black substrates, you need a high-contrast brightness. Standard white can sometimes look gray/translucent against black cotton without a heavy underlay.

The "Hidden" Prep Pros Do: Stabilizer, Hoops, and Hidden Consumables

Before you touch the machine, you must gather your "Mise en place" (setup). In production mode, you don't hunt for scissors; they are right there.

The Physics of T-Shirts (Read This First)

A T-shirt is a knit structure—it wants to stretch. Your embroidery puts thousands of stitches into it, which creates tension.

• If you use Tearaway: The stitches will eventually pull through the paper, and the design will distort after one wash.
• If you use Cutaway: The stabilizer becomes the permanent "skeleton" of the embroidery.

Decision Tree: The "Safe" Combination for Beginners

This is where magnetic embroidery hoops shine in real shops. Unlike traditional screw-tighten hoops, which require considerable wrist torque and often stretch the fabric unevenly ("hoop burn"), magnetic hoops sandwich the layered fabric and stabilizer vertically. This reduces the "push-pull" distortion during the hooping process.

The "Hidden" Consumables Checklist

The video doesn't show everything. Here is what you likely need but don't see:

• Temporary Spray Adhesive (e.g., 505): To lightly bond the stabilizer to the shirt back so it doesn't slide during hooping.
• Water Soluble Pen: For marking center points if you aren't using a station.
• New Needles: If you are starting a batch of 10 shirts, put in a fresh 75/11 Ballpoint needle.

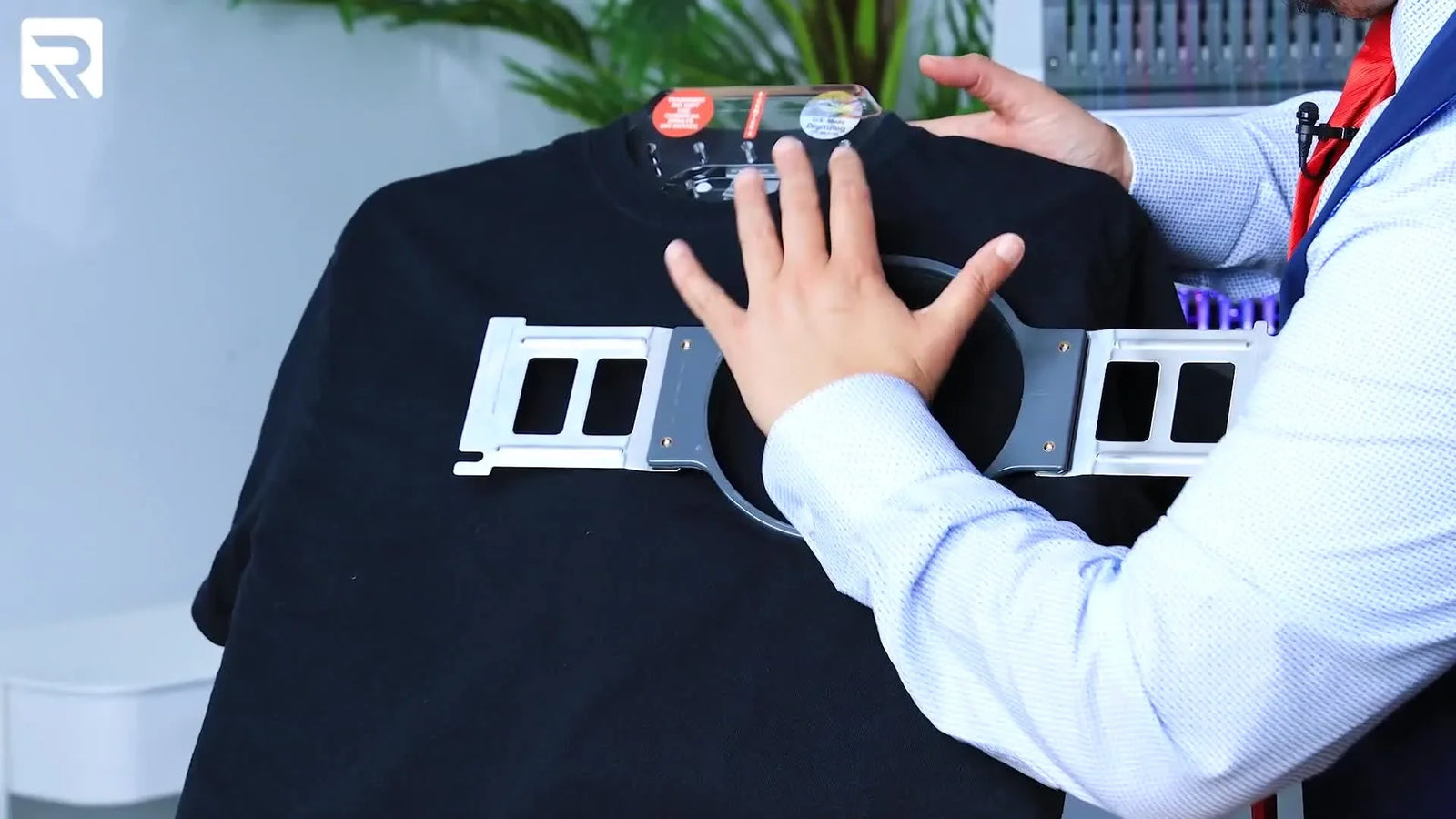

Hooper Pro + Magnetic C-Hoop: The "Make the Station Wear the Shirt" Method

This is the heart of the workflow. The station provides the geometry; the magnetic hoop provides the grip.

Step-by-Step Sensory Guide

1. Load the Inner Ring: Place the bottom metal frame into the station fixture. It should click or sit flush.
2. Backing First: Clip your two layers of cutaway to the top of the station.
3. Dress the Station: Pull the shirt over the board. This is the "Aha!" moment—the station acts like a mannequin torso.
4. Align the Landmarks:
   • Visual Check: Align shoulder seams with the station's top marks.
   • Tactile Check: Smooth the fabric down. It should feel relaxed, not pulled taut like a drum skin yet.
5. The Magnetic Snap:
   • Hold the top magnetic frame.
   • Align the notches.
   • Listen for the "Snap."


The "Pinch" Warning

Warning (Safety): Magnetic hoops use industrial-strength magnets (often neodymium). They snap together with enough force to pinch skin severely. Keep fingers strictly on the handle or outer rim. Never place your finger between the rings. If you have a pacemaker, consult your doctor before using high-strength magnetic hoops.

Why this fixes placement anxiety

If you align the neck to the red line on the station, and the station is fixed, your placement is mathematically identical every time. You are no longer "guessing" where the left chest includes; the magnetic hooping station has standardized it.

Machine Setup: 600 SPM and the "Trace" Ritual

On the Ricoma (or any multi-needle machine like SEWTECH), you load the file and set the colors.

Speed Limit: The Beginner's Sweet Spot

The video sets the speed to 600 SPM (Stitches Per Minute).

• Expert Opinion: Can the machine go faster? Yes (often 1000+). Should you? Not yet.
• The Sound of Quality: At 600 SPM, the machine should hum rhythmically. At 1000 SPM on a T-shirt, you might hear aggressive slapping or vibration. Speed introduces friction and thread breakage. Stick to 600-700 SPM until you trust your stabilizer setup.

The Trace: Your Last Line of Defense

Never press "Start" without a trace.

1. Visual Trace: Watch the laser or needle #1 hover over the fabric.
2. The "Thumb Rule": Does the trace path come within a thumb's width of the hoop edge? If yes, stop. You are too close to the metal frame, which leads to broken needles.

Pro Tip: If you are upgrading from a single-needle home machine, you are used to the foot being down. On multi-needle machines, the foot hovers. Ensure the trace doesn't hit the plastic clips of your magnetic hoop.

Production Rhythm: How to Actually Make Money

The video shows a critical pro move: Hooping Shirt #2 while Shirt #1 stitches.

This is "Parallel Processing."

• Hobbyist: Hoops shirt -> Watches machine sew (0 output) -> Unhoops -> Hoops next.
• Professional: Machine sews (Money making) -> Human hoops next shirt (Prep) -> Swap immediately.

The Upgrade Path: When to Buy What?

If you find yourself bottlenecked, diagnose the pain point:

• Pain: "I spend 5 minutes fighting the hoop and my wrists hurt."
  • Solution: Upgrade to magnetic hoops for embroidery machines. They stick instantly and reduce wrist strain.
• Pain: "I have to change thread spools for every color."
  • Solution: Upgrade to a Multi-Needle Machine (like SEWTECH or Ricoma). The efficiency of having 10-15 colors ready to go changes your business economics.

For those searching for ricoma embroidery machines or similar industrial models, remember that the machine is only as good as the hoop holding the fabric. The two must work in unison.

Clean Finishing: The Difference Between "Homemade" and "Retail"

The stitch-out is done. Now for the trim.

The Proper Trimming Sequence

1. Remove Hoop.
2. Turn Inside Out.
3. Trim Backing: Cut the cutaway stabilizer nicely around the design.
   • Note: Leave about 1/4 inch to 1/2 inch of stabilizer. Don't cut into the stitches! Rounded corners are better than sharp corners (sharp corners itch).
4. Turn Right Side Out.
5. Trim Jump Stitches: Use curved snips to cut any connecting threads.

Warning (Damage Control): When trimming simple jump stitches on the front surface, always slide your finger underneath the jump stitch to lift it away from the fabric before cutting. It is heartbreakingly easy to snip a tiny hole in the T-shirt right at the finish line.

Operation Checklist (The "Did I Ruin It?" Check)

• No puckering around the borders (Good stabilization).
• No white bobbin thread showing on top (Tension is good).
• Backing trimmed smooth, no sharp "daggers" against the skin.
• All jump stitches removed.


The Hoop Burn Fix

You remove the magnetic hoop and see a rectangular "ghost" outline on the black shirt. Panic? No. This is Hoop Burn (compressed fibers).

The Magic Eraser Technique

1. Take a microfiber cloth.
2. Dampen it slightly with water (not soaking).
3. Lightly rub the mark in a circular motion.
4. Standard steam (from a garment steamer) also vanishes this instantly.

Prevention: If you get deep burns, your magnetic hoop might be clamping too hard, or you are stretching the fabric too aggresively during hooping.

Unlike standard hoops that rely on friction (and can grind "shiny" rings into dark fabric), a magnetic hoop generally leaves less permanent marks because the pressure is vertical, not twisting.

Bonus: The Sleeve "Tunnel" Trick

Sleeves are notoriously difficult because they are narrow tubes.

The video demonstrates the "Through the Neck" method:

1. Switch to the smaller B-Hoop on the station.
2. Clip backing.
3. Feed the sleeve through the neck hole of the shirt.
4. Align the shoulder seam to the station guide.




This keeps the bulk of the shirt out of the way. If you try to feed the sleeve from the bottom hem up, you will be fighting 20 inches of fabric bunched up on the hooping board.

Terms like sleeve hoop strategies often intimidate new users, but with a B-sized magnetic frame and a station, a sleeve is just a "small left chest."

Summary: The Formula for Repeatability

The difference between a stressed hobbyist and a calm professional isn't talent—it's the system.

1. Digitize specifically for the fabric (Open up that spacing!).
2. Stabilize for structure (Cutaway is non-negotiable on knits).
3. Hoop with mechanics, not muscle (Use a station + magnets).
4. Upgrade your bottlenecks (Better hoops -> Faster machines).


If you are comparing equipment and see mentions of ricoma hoops or generic alternatives, focus on the holding power. Can you hoop fast, trace confidently, and get the same placement ten times in a row without fighting the garment? That consistency is what you are actually selling.

FAQ

• Q: What stabilizer should be used for left-chest embroidery on a cotton/poly T-shirt when using a SEWTECH multi-needle embroidery machine?
  A: Use cutaway stabilizer as the safe starting point for knit T-shirts, and use two layers when the design density is medium/high.
  • Choose 2.5oz cutaway for cotton/poly blend tees and keep it with the garment as the “skeleton.”
  • Clip or secure two layers to prevent shifting before hooping.
  • Run the design at a controlled speed (around 600–700 SPM is a beginner-friendly range) to reduce distortion risks.
  • Success check: The stitched area lies flat with no border puckering after unhooping.
  • If it still fails… reduce design density/spacing issues in digitizing and re-check hooping tension (avoid stretching the knit like a drum).
• Q: What is the “25% character spacing rule” in Chroma digitizing for knit T-shirts, and how does it prevent squeezed lettering on left-chest embroidery?
  A: Increase character spacing by about 25% so knit pull-in does not squeeze letters into a blob.
  • Edit text spacing so the on-screen letters look slightly too far apart before stitching.
  • Keep the design size within common left-chest expectations (3.0" width was used as the standard reference in this workflow).
  • Stitch a test on the same T-shirt type and stabilizer stack you will use in production.
  • Success check: After stitching, letters look evenly separated (not pinched) without needing to stretch the fabric to “read” them.
  • If it still fails… revisit stitch density/underlay choices (auto settings may be too heavy for knits) and re-test.
• Q: How do you prevent needle strikes on a magnetic hoop when tracing a left-chest design on a SEWTECH-style multi-needle embroidery machine?
  A: Always run a trace before pressing Start, and stop if the trace comes within a thumb’s width of the hoop edge.
  • Load the design, select needle/color, and run a visual trace with the laser/needle hovering over the garment.
  • Check clearance around metal frames and any hoop clips before stitching.
  • Reposition the hoop or re-center the design if the trace path is too close to the frame.
  • Success check: The full trace path stays safely inside the hoop boundary with comfortable clearance and no contact points.
  • If it still fails… reduce the design size slightly or re-zero X/Y in software to ensure true centering before sending the file.
• Q: What are the hidden consumables needed for a 10-shirt left-chest embroidery batch on a multi-needle machine (SEWTECH/Ricoma workflow)?
  A: Prep a small “batch kit” before hooping so production does not stall mid-run.
  • Install a fresh 75/11 ballpoint needle at the start of the run.
  • Keep temporary spray adhesive available to lightly bond stabilizer to the shirt back if shifting is a risk.
  • Keep a water-soluble pen on hand for center marks when a station is not used.
  • Success check: The next shirt can be hooped immediately while the current shirt stitches, with no searching for tools.
  • If it still fails… slow down the workflow and standardize one station setup so every shirt is prepped the same way.
• Q: What safety steps should be followed to avoid finger pinch injuries when using industrial-strength magnetic embroidery hoops?
  A: Keep fingers on the handle/outer rim only and never place skin between the rings during the snap.
  • Align the notches first, then lower the top frame in a controlled motion.
  • Listen for the snap and immediately remove hands from the joining area.
  • Keep bystanders’ hands away during hoop closing, especially in a shop setting.
  • Success check: The hoop closes cleanly with no “re-grabbing” or repositioning that puts fingers near the pinch zone.
  • If it still fails… pause and re-train the motion; magnetic hoops can snap hard, and a slower, deliberate close is safer.
• Q: How do you remove hoop burn marks on black cotton T-shirts after using a magnetic hoop for left-chest embroidery?
  A: Treat hoop burn as compressed fibers and remove it with light moisture and friction, or steam.
  • Rub the outline gently with a slightly damp microfiber cloth in small circles.
  • Use a garment steamer to relax fibers if the mark is stubborn.
  • Adjust hooping technique to avoid stretching the shirt aggressively during hooping.
  • Success check: The rectangular “ghost” outline fades and the fabric surface looks uniform under normal light.
  • If it still fails… reduce clamping pressure if possible and focus on dressing the garment relaxed on the station rather than pulling it tight.
• Q: When left-chest placement keeps drifting across a 10-shirt batch, should you upgrade technique, upgrade to magnetic hoops, or upgrade to a SEWTECH multi-needle embroidery machine?
  A: Diagnose the bottleneck first: fix the repeatable process (Level 1), then upgrade holding (Level 2), then upgrade production capacity (Level 3).
  • Level 1 (Technique): Standardize a hooping routine with a station-style alignment (shoulder seams/neck landmarks) and always trace before stitching.
  • Level 2 (Tool): Switch to magnetic hoops to reduce uneven fabric stretching and speed up hooping when wrist torque and inconsistent tension are the problem.
  • Level 3 (Capacity): Move to a multi-needle setup when thread/color changes are the time sink and you need true batch efficiency.
  • Success check: Shirt #10 matches shirt #1 in placement without re-measuring or “eyeballing” corrections.
  • If it still fails… verify the design is mathematically centered (zero X/Y) and confirm the same stabilizer layers and garment alignment are used every time.
