From USB to a Clean 2-Color Logo: A HappyJapan HCH Plus Setup Workflow That Won’t Bite You Mid-Run

Small corporate logos look “easy” until you’re the one standing in front of a running head at 800–1000 SPM, praying the design won’t clip the hoop, the fill won’t pucker, and the fine script won’t turn into a fuzzy blob.

In this workflow, we’re recreating a real stitch-out on a HappyJapan HCH Plus 7-needle machine: importing a customer logo from USB, selecting the PTA-15 (15 cm / 140 mm field) hoop, assigning two needles (light blue then dark blue), using the laser cross marker trace to confirm placement, and dialing speed down from 1000 SPM max to a controlled 800 SPM for better control.

This guide moves beyond the manual to the "tribal knowledge" required for commercial consistency. We will execute a standard logo run ("APTV APP") while diagnosing the hidden variables—fabric tension, speed physics, and stabilization—that actually determine pass or fail.

The “Don’t Panic” Moment: What the HappyJapan HCH Plus Is Really Doing When You Start a Logo Job

A multi-needle head can feel intimidating because it’s fast, loud, and unforgiving—but the machine is also predictable if you execute the setup in the correct order. The fear usually stems from the "Black Box" effect: not knowing exactly where the needle will land relative to the plastic frame.

Here’s the calm truth: on the HappyJapan HCH Plus, most "scary" problems during a small logo run come from three preventable places:

1. Wrong boundary assumptions: The digital design ignores the physical reality of the hoop clips.
2. Hooping tension instability: The fabric is tight in the X-axis but loose in the Y-axis, causing the text to "swim."
3. Aggressive Speed: Running 1000 SPM on a design digitized for 750 SPM.

The video operator even has a quick “what is this… okay never mind” moment right as stitching begins—classic. That’s usually a tiny loop, a sound change, or a brief visual snag that self-clears. The key is knowing what to check without overreacting and losing your registration.

The “Hidden” Prep Before You Touch the Screen: Bobbin, Thread Path, and Stabilizer Choices That Save the Run

Before you import anything, do the prep that experienced operators do automatically. Once you hit Start, you are managing motion, tension, and placement simultaneously; you cannot troubleshoot basic physics while the pantograph is flying.

Stabilizer reality check (what the video shows)

In the hoop, you can clearly see cutaway stabilizer under the white fabric. That’s a solid, non-negotiable choice for a logo with a fill area plus fine text.

The "Why": Why not tearaway? Because every time the needle penetrations form a dense fill, they cut the fibers of the stabilizer. Tearaway is designed to disintegrate; if it disintegrates during the run, your fine text will float and distort. Cutaway remains structural.

The Sensory Check: When you hoop the fabric and cutaway together, run your fingers across the surface. It should feel like a skin, tight but not stretched out of shape. If you pull the fabric and it creates a "V" wrinkle at the hoop screw, it is too tight or uneven.

Hidden Consumables

Don't start without these often-forgotten items:

• Fresh Needle (75/11 Sharp or Ballpoint depending on fabric): A burred needle will shred thread at 800 SPM.
• Spare Pre-wound Bobbins: Don't play "bobbin chicken" on a commercial run.
• Small curved snips: For precise trimming without cutting the garment.

Prep Checklist (do this before USB import)

• Bobbin Case Check: Remove the bobbin case. Blow out any lint. Check for the "Insert click" when re-seating it.
• Thread Path Audit: Floss the thread through the upper tension discs. You should feel smooth, consistent resistance, not "jerky" pulls.
• Hoop Physical Inspection: Run your finger along the inner ring of the hoop. Feel for any plastic burrs or nicks that could snag the fabric.
• Needle Verification: Confirm Needle 7 (your start needle) is actually threaded and the foot is not bent.

Warning: Keep fingers, tools, and snips away from the needle area once you’re about to trace or stitch. A fast-moving pantograph and reciprocating needles can injure you or damage the machine if anything gets caught.

Importing “APTV APP” via USB on the HappyJapan HCH Plus Control Panel (No Guesswork)

The video shows a straightforward import via the control panel side port. While this seems basic, standardization here prevents rework.

The Protocol:

1. Insert USB into the side port.
2. Navigate to the Read menu.
3. Select file “APTV APP” and confirm import.

Expert Note on File Hygiene: Commercial machines often truncate long filenames. Stop naming files Client_Logo_New_Final_Final_v3.dst. Rename them on your PC to Client_Logo_v3.dst before transferring. This ensures you can actually read the version number on the machine screen.

If you’re attempting to master the digital workflow of a happy japan embroidery machine, strict file naming conventions are the backbone of efficiency—simple, repeatable, and preventing the disaster of stitching the "wrong final version."

Locking in the PTA-15 Tubular Hoop (15 cm) So the Sewing Field Limit Doesn’t Surprise You

On the main screen, the operator verifies the hoop selection as PTA-15. The machine uses that selection to enforce a 140 mm sewing field limit.

This matters because the machine isn’t just “displaying a hoop icon”—it is engaging software limit switches.

The Physics of Hoop Selection

Why use a 15cm hoop for a 10cm design? Why not the huge jacket back hoop? Answer: Flagging. If the hoop is too large relative to the design, the fabric in the center bounces up and down (flags) with the needle movement. This bouncing causes skipped stitches and birdnests.

Rule of Thumb: Always use the smallest hoop that fits the design plus a safety margin for the presser foot.

If you are evaluating different happy japan hoops for your inventory, think in terms of fabric control first. A closer fit equals sharper text.

Needle Assignment on the HappyJapan HCH Plus: Why “Needle 7 Then Needle 3” Is More Than a Color Choice

In the needle assignment menu, the operator sets the sequence:

• Needle 7 = Light Blue (Fill)
• Needle 3 = Dark Blue (Text)

That’s not just cosmetic. It’s a production load-balancing decision.

Why sequence affects quality (especially on small text)

On a 7-needle machine, your "favorite" needles (usually 1, 2, or 3) get the most wear on their tension springs and check springs.

Expert Tip: If you have a critical, fine-detail text element (like the "Apparel" script in this logo), assign it to a needle position that you know has a pristine needle and perfectly dialed tension. Avoid using your "fill stitch" needle for "fine satin text" if you can avoid it, as fill stitch needles often run slightly looser tensions.

The Laser Trace “Seatbelt”: Using the HappyJapan Cross Marker to Avoid Hoop Strikes and Bad Placement

The operator enters the Trace menu and uses the laser cross marker while the pantograph moves around the design boundary.

This is your "Insurance Policy." Do not skip it.

The Sensory Check: What are you actually looking for?

Don't just watch the laser moving. You are looking for Vertical Clearance.

1. Watch the Presser Foot: As the frame moves to the extreme corners of the design, check: Is the metal presser foot coming within 5mm of the plastic hoop ring?
2. Watch the Garment: Is the movement causing the garment to bunch up against the machine arm?

If the presser foot hits the plastic hoop while running at 800 SPM, you risk breaking the needle bar reciprocator—a repair that costs hundreds of dollars and days of downtime.

Setup That Actually Holds: Hooping Tension, Fabric Distortion, and When Magnetic Hoops Make Sense

The video uses a standard tubular hoop. That works—but it is the single biggest variable in embroidery quality.

The Physics: Hooping is controlled tension. You need the fabric to be taut (like a drum skin) but not stretched (you shouldn't distort the weave). If you stretch a knit shirt while hooping, the embroidery will pucker the moment you un-hoop it.

The "Hoop Burn" & Fatigue Problem

Standard tubular hoops require significant hand strength to clamp thick fabrics, and they leave crushed fiber marks ("hoop burn") on sensitive items like performance polos or velvet.

The Upgrade Path: When to Switch? If you encounter these "Pain Points", your equipment is the bottleneck, not your skill:

• Pain Point: You are producing 50+ shirts and your wrists ache from clamping.
• Pain Point: You struggle to hoop thick jackets or hoodies without the inner ring popping out.
• Pain Point: You see permanent shiny rings on customer garments (Hoop Burn).

In these scenarios, upgrading to heavy-duty magnetic embroidery hoops changes the physics. Instead of friction scraping the fabric, magnets clamp vertically. This eliminates hoop burn and significantly speeds up the workflow for production runs. For industrial multi-needle work, magnetic frames are the standard for consistency and operator health.

Warning: Magnetic frames are powerful. Keep them away from pacemakers/medical implants, and avoid pinching fingers during closure. Store magnets with spacers so they can’t snap together unexpectedly.

The Start Sequence on the HappyJapan HCH Plus: Bobbin Check, Green Button, and What “Normal” Looks Like at Speed

In the video, after tracing, the operator:

1. Confirms bobbin is ready.
2. Hits the green Start button.
3. Begins stitching the light blue fill.

Sensory Checkpoints: The "Thump-Thump" Rhythm

Stop looking at the needle—it moves too fast. Listen.

• Healthy Sound: A rhythmic, low-pitched thump-thump-thump. It should sound solid.
• Unhealthy Sound: A high-pitched click-click (needle hitting something) or a grinding noise (thread jamming).
• Visual Check: Watch the thread cone on top. It should be unspooling smoothly. If it's jerking or vibrating wildly, your tension is too tight or the cone is caught.


Speed Control on the HappyJapan Touchscreen: Why Dropping from 1000 SPM to 800 SPM Protects Stitch Quality

The machine shows a max speed limit of 1000 SPM, but the operator chooses to run this thread type at 800 SPM.

The Science of Friction: Thread moving through the eye of a needle at 1000 SPM generates significant heat. Polyester melts. Rayon shreds.

Why 800 SPM is the "Commercial Sweet Spot"

• Corners: At lower speeds, the pantograph (X-Y movement) can synchronize better with the needle bar (Z movement), resulting in sharper corners on letters.
• Tension: Consistent speed equals consistent tension.
• Safety: If a break happens at 800 SPM, the birdnest is usually smaller than one created at 1000 SPM.

If you are optimizing your fleet of commercial embroidery machines, establish "800 SPM" as your shop standard for logos. Use 1000 SPM only for large, low-detail fill areas on canvas or denim.

Watching the Fill Area Like a Pro: Coverage, Density, and the First Signs of Puckering

During the light blue “APTV” fill, the camera shows the tatami coverage building.

What to watch for (The "Push/Pull" Effect)

Embroidery stitches pull the fabric in the direction the thread runs and push the fabric out perpendicular to the stitch.

• Look at the borders: Is the fill shrinking inward, leaving a gap between the fill and the eventual outline?
• Look for "Waving": If the fabric in front of the foot starts to wave or bubble, your stabilization is too weak for the density of the design.

The Fix: You cannot fix this mid-run. You must note it, and for the next run, switch to a heavier cutaway stabilizer or use a magnetic hoop to hold the surface tension better.

The Mid-Run Quality Check: Stop Early or Let It Ride?

The video shows a mid-process look at density and coverage.

Decision Rule: The 3-Second Rule If you see a loop, a loose thread, or a skipped stitch, pause the machine.

• If it's a "Poker Chip" sized loop: Trim it manually, back up 10 stitches, and restart.
• If it's microscopic fuzz: Let it ride. Trying to fix tiny imperfections often causes more damage than the imperfection itself.


Automatic Color Change to Needle 3: Getting Crisp “Apparel” Script Without Fuzz

After the fill, the machine automatically cuts and switches to Needle 3 (dark blue) for the fine script.

Fine text (under 5mm) is the ultimate stress test.

The Physics of Small Text

Small satin columns have very few needle penetrations. If the fabric shifts even 0.5mm, the letter becomes illegible.

• Speed: Maintain 800 SPM or even drop to 700 SPM for very small text.
• Thread type: If standard 40wt thread makes the text look bold/clumpy, consider switching Needle 3 to a thinner 60wt thread and a smaller 65/9 needle. This creates much sharper definition for small letters.


Operation Checklist: The Three Things to Monitor Until the “End” Message Pops Up

Once the second color starts, don’t walk away. Small text finishes fast, and problems happen quickly.

Operation Checklist (The "live" monitor)

1. Watch the Bobbin Counter/Core: Ensure you aren't about to run out of bobbin thread mid-letter.
2. Listen to the Trims: When the machine moves between letters, listen for the snip. A missed trim often means the picker didn't catch the thread, leading to a "wiper error" or a pull-out on the next stitch.
3. Check Registration: Is the dark blue text centered on the light blue background? If it starts drifting South-East, your hoop tension is failing.

If you find yourself constantly battling registration drift, upgrading your holding method to professional machine embroidery hoops can provide the uniform tension needed to keep layers aligned.

Troubleshooting the “What Is This?” Moment: Symptoms → Likely Causes → Safe Fixes

The video includes a brief hesitation early in the run. This is normal. Here is the rigorous troubleshooting hierarchy (Low Cost → High Cost).

Symptom: Tiny thread loop on top of the design

• Level 1 Check: Is the thread path clear? (Often the thread jumped out of the tension disc).
• Level 2 Check: Is the needle burred? (Run your fingernail down the needle tip; if it catches, replace it).
• Level 3 Check (Software): Is the tension setting too low in the settings?

Symptom: Design outline is "Off" (Registration Loss)

• Level 1 Check: Is the hoop screw tight?
• Level 2 Check: Is the stabilizer appropriate? (Tearaway on a polo shirt = guaranteed registration loss).
• Level 3 Check: Are you using a specific hoop that is slipping? (Consider magnetic framing for better grip).

Symptom: Thread shredding / Fraying

• Level 1 Check: Replace the needle. (90% of issues).
• Level 2 Check: Check the bobbin tension (is it too tight, dragging the top thread down?).
• Level 3 Check: Slow down the SPM.


A Simple Stabilizer Decision Tree for Logo Work (Fabric → Backing → Risk Level)

Use this as a starting point. Stabilizer is the foundation of your house; don't build on sand.

Decision Tree

1. Is the fabric Stretchy (Knit, Polo, T-Shirt) OR Unstable?
   • YES: Cutaway Stabilizer (Must use). 2.5oz or 3.0oz.
   • NO: Go to Step 2.
2. Is the design dense (high stitch count) or does it contain fine text?
   • YES: Cutaway Stabilizer is still preferred for sharpness.
   • NO: Go to Step 3.
3. Is it a stable woven (Denim, Canvas, Twill) with a light design?
   • YES: You may use Tearaway Stabilizer.
   • Outcome: Easy clean up, but less wash durability.

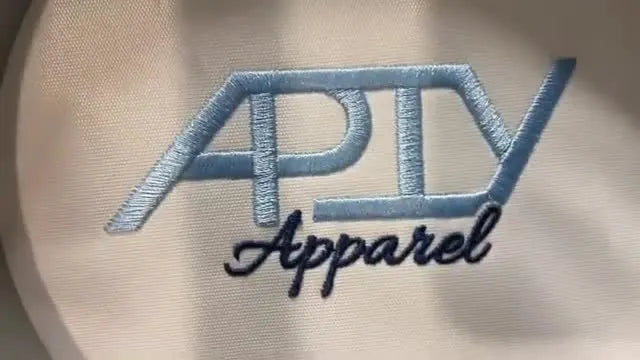

The “End” Screen and the Reveal: What a Clean 2-Color HappyJapan Stitch-Out Should Look Like

The machine finishes, displays the “End” message, and the operator unhoops to show the final two-color “APTV Apparel” logo.

A clean result is defined by:

• Sharp Edges: No fuzzy loops on the small text.
• Flatness: The designs sits in the fabric, not on a pucker.
• Registration: The blue text is perfectly centered.

The Production Scaling Path

If you are doing one-off samples, the standard hoop workflow is fine. However, if your business is scaling to 50+ units a day, the manual screw-tightening of standard hoops becomes a liability.

• Production Level 2: To solve hoop burn and speed up frame changes, investigate happy embroidery frames compatible with your machine arm spacing.
• Production Level 3: For maximum efficiency, pairing magnetic hoops with a dedicated hooping station for machine embroidery ensures every single logo is placed in the exact same spot on the shirt—eliminating the "measure twice" phase and doubling your output.

Setup Checklist (for repeatable next runs)

• Save the baseline: Document "Speed: 800, Hoop: PTA-15, Needles: 7/3".
• Version Control: Verify the file matches the approved artwork proof.
• Physical Reset: Clean the bobbin area and check needle sharpness before the next batch starts.

When you can repeat this exact result on the first try, ten times in a row, you have graduated from an operator to a professional.

FAQ

• Q: What should be checked on a HappyJapan HCH Plus 7-needle embroidery machine before importing a small logo file from USB?
  A: Do the bobbin/needle/thread-path/stabilizer prep first—once stitching starts, basic physics issues are hard to fix.
  • Remove and re-seat the bobbin case, clean lint, and confirm the “insert click.”
  • Floss the upper thread through the tension discs to confirm smooth, consistent resistance (not jerky).
  • Install a fresh needle (75/11 is a safe starting point for many logo jobs; match sharp/ballpoint to fabric per the manual).
  • Hoop fabric with cutaway stabilizer for logo + fine text work.
  • Success check: Hand-pull the top thread and feel steady resistance, and the hooped surface feels tight like a skin (taut, not stretched).
  • If it still fails… replace the needle again and re-audit the entire thread path for a missed guide or thread popped out of the tension discs.
• Q: How can HappyJapan HCH Plus operators tell if PTA-15 tubular hooping tension is correct for small text logos?
  A: Aim for “taut, not stretched”—uneven hoop tension is a main cause of text swimming and registration drift.
  • Hoop the fabric and cutaway together so the surface is tight like a drum skin, but do not distort the knit/weave.
  • Run fingers across the hooped area and correct any soft zones (often one axis is tight and the other is loose).
  • Watch for a “V” wrinkle near the hoop screw; treat that as a warning sign of uneven/over-tension.
  • Success check: The hooped fabric feels uniformly tight in all directions and looks flat without edge-wrinkles near the screw.
  • If it still fails… switch to a smaller hoop that still safely fits the design, or upgrade holding method (magnetic hoop) to improve uniform surface tension.
• Q: How does the HappyJapan HCH Plus laser cross marker trace prevent hoop strikes when using a PTA-15 hoop?
  A: Always trace before stitching—trace is the “seatbelt” that confirms clearance at the design extremes.
  • Enter Trace and run the boundary with the laser cross marker.
  • Watch the presser foot at the extreme corners and confirm at least ~5 mm clearance from the plastic hoop ring.
  • Watch the garment during travel to ensure it is not bunching against the machine arm.
  • Success check: The frame completes the full trace with no near-contact moments and the garment stays free and flat during movement.
  • If it still fails… re-position the design, re-hoop, or change hoop selection so the sewing field limit and physical hoop reality match.
• Q: What speed should be used on a HappyJapan HCH Plus for small corporate logos to avoid fuzz and puckering?
  A: Use 800 SPM as a controlled baseline for logos; drop further for very small text if needed.
  • Set speed to 800 SPM for better corner control and more consistent tension.
  • For fine script under ~5 mm, reduce speed further (often 700–800 SPM) to protect definition.
  • Listen during stitching and react to sound changes instead of staring at the needle.
  • Success check: The machine maintains a solid, low-pitched “thump-thump” rhythm and the thread cone unspools smoothly without jerking.
  • If it still fails… slow down more and replace the needle; thread shredding at higher speed is commonly needle- or heat-related.
• Q: How should HappyJapan HCH Plus operators troubleshoot a tiny thread loop on top during a 2-color logo run?
  A: Pause calmly and start with the cheapest checks—tiny loops are common and usually fixable without losing registration.
  • Check the upper thread path first; re-seat thread in the tension discs if it jumped out.
  • Inspect/replace the needle if there is any burr (a fingernail catch is enough reason to swap).
  • Verify the tension setting is not too low if the loop repeats after rethreading.
  • Success check: After rethread/needle swap, the top stitches lay clean without “poker chip” sized loops forming again.
  • If it still fails… trim the loop, back up about 10 stitches, restart, and reassess bobbin and top tension balance.
• Q: What causes HappyJapan HCH Plus registration loss where the outline or second color looks “off,” and what is the safe fix order?
  A: Registration loss usually comes from hoop slip or weak stabilization—fix the holding system before blaming the file.
  • Tighten and verify the hoop screw and confirm the fabric is evenly tensioned in the hoop.
  • Use cutaway stabilizer for knits, polos, and any logo with dense fill + fine text (tearaway often fails mid-run).
  • Evaluate whether the specific hoop is slipping; consider magnetic hooping to improve grip consistency.
  • Success check: The dark text stays centered on the light fill and does not drift as the design progresses.
  • If it still fails… re-hoop with improved stabilization and run a trace again to confirm the design boundary and placement before restarting.
• Q: What safety precautions should be followed on a HappyJapan HCH Plus when tracing or stitching, and what extra precautions apply to magnetic embroidery hoops?
  A: Keep hands/tools away from motion areas, and treat magnetic hoops as pinch-hazard devices with medical considerations.
  • Remove snips and tools from the needle/presser-foot zone before trace or Start; keep fingers clear of the pantograph travel path.
  • Do not reach into the frame area while the machine is moving; pause/stop first if trimming is needed.
  • Keep magnetic hoops away from pacemakers/medical implants and close magnets carefully to avoid pinched fingers.
  • Success check: Trace and stitching run without any tool contact, snagged garments, or sudden stops caused by interference.
  • If it still fails… stop immediately, clear the area, re-run trace, and only restart after confirming full clearance and safe garment handling.
• Q: When should a shop switch from standard tubular hoops to magnetic embroidery hoops, and when does upgrading to a multi-needle SEWTECH machine make sense?
  A: Use a layered decision: optimize technique first, then upgrade holding (magnetic hoops) for consistency and operator strain, then upgrade machines for sustained volume.
  • Level 1 (Technique): Standardize on correct stabilizer (often cutaway for logos), smallest suitable hoop, laser trace, and a controlled speed (often 800 SPM).
  • Level 2 (Tool): Switch to magnetic hoops when hoop burn appears, hooping thick garments causes inner ring pop-outs, or operator fatigue slows production.
  • Level 3 (Capacity): Consider a dedicated multi-needle production setup (such as SEWTECH machines) when daily volume and repeatability demands exceed what manual screw-hooping can support.
  • Success check: Hoop marks reduce, hooping time drops, and registration stays consistent across repeated runs without constant re-hooping.
  • If it still fails… add a hooping station for repeat placement and document a baseline recipe (speed/hoop/needle sequence) so results are repeatable.
