If you’ve ever stood in front of a multi-needle machine with a customer deadline in your head and a “Frame Limit” pop-up on the screen, you already know the feeling: the sinking stomach. It’s not just an error code—it’s lost time, re-hooping frustration, and the looming fear of ruining a garment.

Machine embroidery is 20% software and 80% physical intuition. This post turns Hector’s technical A15 control panel walkthrough on the Meistergram GEM 1500 TC from a simple tutorial into a shop-floor survival guide you can repeat under pressure.

We will keep every on-screen action faithful to the standard procedure, but we are adding the “Master Embroiderer” layer: the sensory checks (what should it sound like?), the safety margins (why do we trace?), and the workflow protections that stop rookie mistakes from becoming expensive disasters.

Calm the Machine Down First: Releasing the Previous Job on the A15 Control Panel Saves You From “Phantom Settings”

The first move isn't about starting; it's about resetting. This prevents a surprising number of operator mistakes known as "ghost positioning."

On the A15 touchscreen, Hector navigates to the bottom-left button featuring a needle icon and yellow up/down arrows. A confirmation message appears asking “Cancel Emb?”. He taps the checkmark.

The Sensory Check:

• Visual: The old design silhouette must disappear from the screen.
• Status Icon: Watch the icon change from blue (locked/engaged) to red with a slash (disengaged).


Why this matters in real production: On many commercial systems, leftover job context can trick you. Your brain implies you are starting fresh, but the machine is still holding onto the last job's X/Y coordinates. Clearing the active memory is non-negotiable.

Warning: Physical Safety
Keep hands, hair, and loose sleeves away from the needle area and moving pantograph whenever you are jogging, tracing, or starting a job. Multi-needle heads move suddenly and with high torque. A "quick adjustment" while the machine is live is the fastest way to suffer a serious needle puncture or pinch injury.

Load a Design the Clean Way: USB Import on the Meistergram GEM 1500 TC Without Slot Confusion

Now you’ll import the new design. It sounds basic, but this is where file corruption or "wrong file" errors happen.

1. Open the Gate: Tap Step 1 (the top-left tab with the folder/flower icon).
2. Connect: Plug your USB flash drive into the right-side port on the control panel.
   • Pro Tip: Listen for the soft "chime" or watch for the USB indicator to light up before tapping.
3. Browse: Tap the USB icon on the screen to view files.
4. Select: Highlight the file you want. Ensure the preview matches your expectation.
5. Import: Press the import button (the orange flower with a red arrow).
6. Lock it in: In the “Import Pattern” window, confirm the slot number and file name, then tap the checkmark.




The Verbal Loop: If you are training staff on a meistergram embroidery machine, teach them to say the sequence out loud: “Imported... Confirmed Slot... Back to List.” This verbal rhythm prevents the most common fatigue error—thinking you imported a file when you only highlighted it.

Hidden Consumable Check: Do you have your job sheet printed? Never rely on filename abbreviations (e.g., "Logo_Final_v3_Real"). Always match the file size and stitch count on the screen against your printed work order.

Rotate With Confidence: Using 45° Direction Keys and 1° Angle Entry on the A15 Step 2 Screen

With the design loaded, we move to Step 2 to adjust design parameters. This isn't just about aesthetics; it's about physics.

On this page, Hector demonstrates rotation in two ways:

• Fast Rotation: Pressing the direction key rotates the design in 45-degree chunks. Ideal for caps or standard landscape-to-portrait shifts.
• Precise Rotation: Pressing the angle key (keyboard entry) allows you to type a specific angle (e.g., 23 degrees) and rotate in 1-degree increments.


Visual Confirmation: Watch the design preview rotate on the screen. The top of the design should align with the direction of the hat bill or the shirt collar.

Veteran Insight: The Physics of Rotation Rotating a design changes where the “widest” part of the stitch field lands relative to the pantograph arms. This directly affects whether you will trigger a Frame Limit error.

Furthermore, if you are operating a 15 needle embroidery machine, remember that rotation changes how the thread pulls against the needle eye. Extreme rotations (like 90 degrees) on dense satin columns can sometimes increase thread shredding if the stitch direction aligns perfectly with the fabric grain. Rule of Thumb: Always trace after you rotate. Never before.

Stop Color Chaos Before It Starts: Manual Needle Assignment in Step 3 Using a Digitizer Worksheet

Next is Step 3, the color selection window. This is the difference between a professional logo and a "clown suit" error.

Hector shows the layout:

• Left: Color sequence blocks (The steps in the design).
• Right: Needle numbers (The physical cones on your machine).

He manually taps needle numbers (1, 2, 3, etc.) to match the color worksheet provided by the digitizer. The cursor advances automatically to the next color slot.

The "Tap-Happy" Trap: Because the cursor auto-advances, it is incredibly easy to get into a rhythm and mistype a number. If your shop does names on uniforms, one wrong needle assignment can turn a corporate logo's brand color into a rejection.

The Fix: If you make a mistake, do not panic. Use the up/down arrows to return to the specific color slot, then tap the correct needle number to overwrite it.

Expert Standard:

• Look at the screen color block.
• Look at the physical thread cone on the machine.
• Verify against the printed run sheet.
• Only then tap the number.

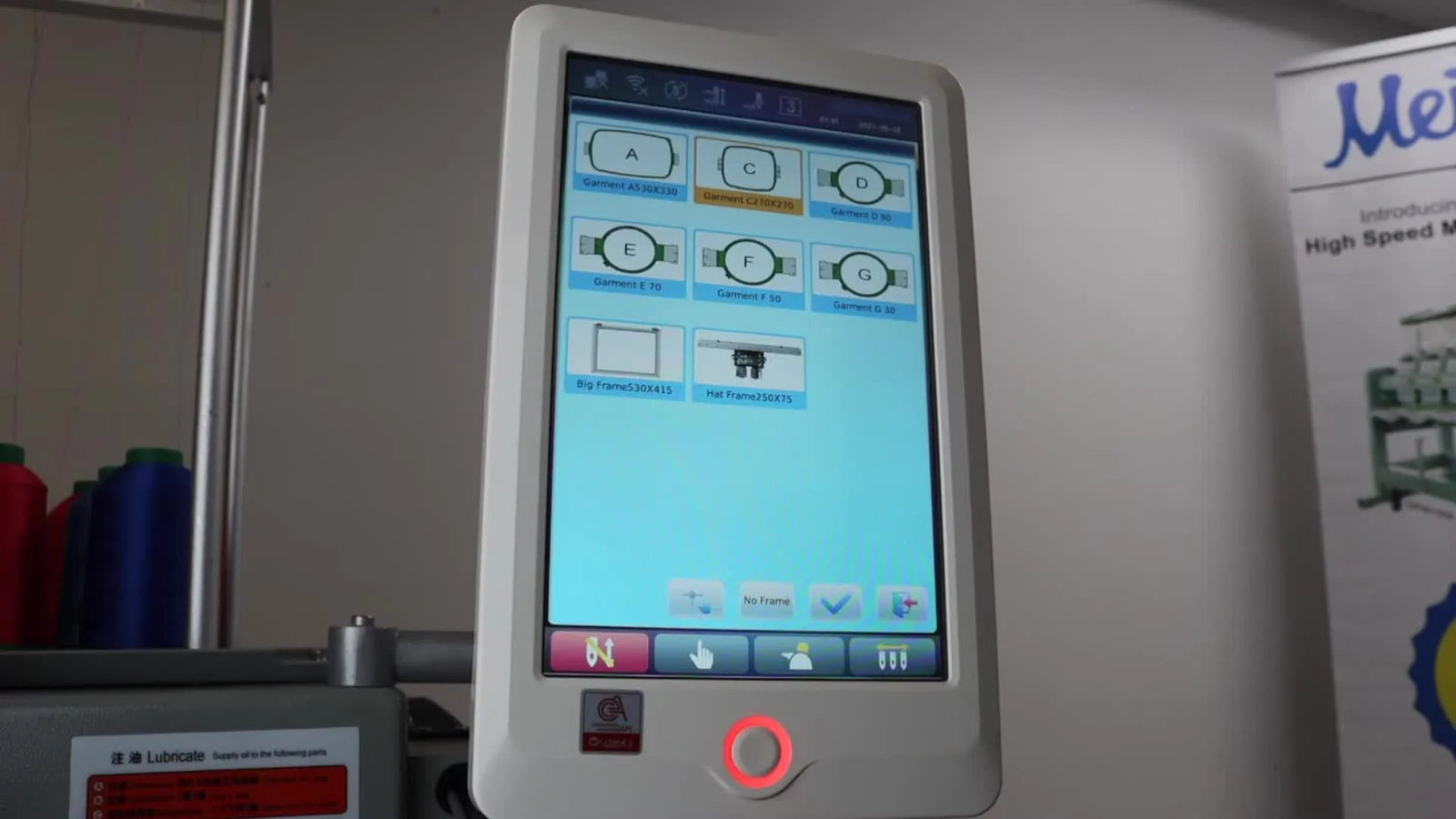

Make the Hoop Match Reality: Garment Menu Hoop Selection, Centering, and Speed Control on Step 4

Now Hector goes to Step 4 (top right). This is where the digital file meets the physical world.

1) Enter the Frame Menu

Tap the magnifying glass icon, then tap Garment to see the pre-programmed hoop list.

Critical Decision: You can choose “No Frame” for open field mode, but for novices, always select the hoop you are physically using. This enables the machine's safety features to prevent you from hitting the hoop arm. Confirm with the checkmark.

2) Center and Position

Once selected, the machine centers the frame logic. The screen shows the hoop boundary relative to the design.

3) Use the Two-Speed Jog

Hector demonstrates the speed toggle:

• Rapid (Two Arrows): For large movements to get to the general area.
• Slow (One Arrow): For micro-adjustments.


Sensory Detail: When using the slow movement mode, the machine will not zoom. You must press and hold the keys until you see the pantograph creep. It should move patiently, allowing you to align the needle laser exactly with your crosshairs.

Checklist: The Setup Pre-Flight

• Design: Is the correct file selected (check stitch count)?
• Geometry: Is rotation/scale finalized?
• Colors: Do Step 3 assignments match the thread cones?
• Hoop Safety: Did you select the actual hoop size in the Garment menu?
• Speed: Are you in "Slow Jog" for the final millimeter adjustments?

If your daily work involves complex hooping for embroidery machine tasks on shifting items like tote bags or stretchy polos, this screen is where you win the battle. A perfect trace relies entirely on an accurate hoop selection here.

Trace Like You Mean It: Square Trace vs Contour Trace on the A15 (and When Each One Saves a Garment)

Tracing is your insurance policy. The A15 offers two methods, and knowing which to use separates the pros from the amateurs.

Square Trace (The "Bounding Box")

He presses the Square Trace button. The machine moves the pantograph in a box around the design’s outer limits.

Use Case: When you have inches of clearance on all sides and just need a quick verify.

Contour Trace (The "Shape Follower")

He then demonstrates the Contour Trace using the round icon. This trace follows the exact jagged edges of the design.

Use Case: Hector calls this out for good reason. Use this when the design fits into a tight space. In real shops, this is mandatory for:

• Left-chest logos near a pocket.
• Designs close to the hoop ring.
• Back-of-cap designs near the brim.

The Physics of "Hoop creep": Fabric under tension behaves differently than the digital file. A Contour Trace shows you exactly where the needle bar will travel, helping you avoid hitting the hard plastic hoop frame—an event that breaks needles and throws the machine out of timing.

Beat the “Frame Limit” Pop-Up Fast: Recenter, Re-Trace, and Don’t Re-Hoop Unless You Must

During a trace, Hector shows the dreaded red error screen: Frame Limit (Error E-160). This simply means the design wants to go where the hoop physically cannot.

The Quick Fix Protocol:

1. Acknowledge: Clear the error message.
2. Move: Use the directional arrows to nudge the design away from the edge that triggered the error (usually perfectly centered).
3. Verify: Run the trace again.

Troubleshooting: The Frame Limit Decision Tree

The “Hidden” Prep That Prevents Rework: Thread, Backing, and Hooping Tension Checks Before You Ever Touch Step 4

The video shows a clean demo setup, but in the trenches, prep is where quality is predetermined. Before you even touch the screen, you must validate your physical setup.

1. The Stabilizer Decision Matrix Your backing must counteract the needle's force.

• Stretchy Knits (Polos/Tees): Must use Cutaway. If you use tearaway, the design will distort into a ball.
• Stable Wovens (Caps/Canvas): Tearaway is usually sufficient.
• Pile Fabrics (Towels/Fleece): Needs Solvy (Water Soluble Topping) on top to prevent stitches from sinking.

2. The "Drum Skin" Test Check your hooping tension.

• Too Loose: Fabric ripples ahead of the needle (puckering).
• Too Tight: Fabric is stretched white-knuckle tight, and will snap back (pucker) when removed.
• The Sweet Spot: It should feel taut like a drum skin, but the fabric grain should not be distorted.

Hidden Consumables:

• Adhesive Spray (505): Essential for keeping backing flat against the garment.
• Spare Needles (75/11): If you hear a "thump-thump" sound, change your needle immediately. A burred needle ruins fabric.

Checklist: The Physical Pre-Flight

• Backing: Is it the correct type (Cutaway vs Tearaway)?
• Tension: Is the fabric smooth but not over-stretched?
• Path: Are thread paths clear? No floss wrapped around the tension knobs?
• Obstructions: Is the back of the garment clear of the hoop arm?

Start Without Second-Guessing: Work Mode Confirmation on the A15 and the Physical Green Start Button

Trace complete? Satisfied with the placement? Hector returns using the door icon (back key) to the main screen.

He presses the bottom-left red key (red/white icon) to set the machine into Work Mode.

• Action: Confirm the "Start Embroidery?" prompt.
• Result: The design area turns into a silhouette/preview mode. The machine is now "Live."

Finally, he presses the physical green Start button on the machine bezel.

Sensory Success Metric: The machine should accelerate smoothly. Listen for a rhythmic, consistent stitching sound. If you hear a sharp "clack" or "grinding," hit the Red Stop Button immediately.

Checklist: Final Operation

• Trace: Did you trace after your last position change?
• Mode: Is the Status Icon Blue (Work Mode)?
• Clearance: Are scissors, spare bobbins, and fingers clear of the pantograph?
• Eyes On: Watch the first 100 stitches to ensure the bobbin catches.

The Upgrade Path That Pays You Back: Faster Hooping, Less Hoop Burn, and Better Throughput

The workflow above covers the A15 panel perfectly. However, if you are doing production runs, you will quickly find that the bottleneck isn't the software—it's the hooping.

Standard plastic hoops require hand strength to clamp, often leave "hoop burn" (shiny rings) on delicate fabrics, and are difficult to align consistently on thick garments like Carhartt jackets.

When should you upgrade? If the pain of re-hooping or the fatigue in your wrists is slowing you down, this is where magnetic embroidery hoops act as a force multiplier.

• Solve Hoop Burn: Magnetic hoops hold fabric with vertical force, not friction, eliminating the "ring" mark.
• Speed: They snap on almost instantly, reducing setup time by 30-40%.
• Thickness: They handle thick seams (like pockets or heavy canvas) without popping open mid-stitch.

Warning: Magnet Safety
Industrial magnetic hoops are extremely powerful.
* Pinch Hazard: Keep fingers clear of the mating surfaces; they snap together with crushing force.
* Medical: Keep them away from pacemakers and implanted devices.
* Electronics: Do not place them directly on credit cards or phone screens.

If you are scaling up, pairing your multi-needle machine with a dedicated hooping station for embroidery and a magnetic frame for embroidery machine system standardizes your placement. This means Operator A and Operator B produce the exact same chest placement every time, turning your shop from a hobby setup into a production line.

Master the panel steps above, but respect the physical limits of standard hoops. When you are ready for speed, let the magnets do the heavy lifting.

FAQ

• Q: On the Meistergram GEM 1500 TC A15 control panel, how do operators cancel the previous job to prevent “ghost positioning” and phantom X/Y settings?
  A: Cancel the prior embroidery job before importing anything so the machine truly starts from a clean state.
  • Tap the bottom-left needle icon with yellow up/down arrows, then confirm “Cancel Emb?” with the checkmark.
  • Verify the old design silhouette disappears from the screen.
  • Success check: the status icon changes from blue (engaged) to red with a slash (disengaged).
  • If it still fails… power-cycle only if your shop SOP allows it, then repeat the cancel step and confirm the status icon changes as expected.
• Q: On the Meistergram GEM 1500 TC A15 Step 1 screen, how do operators import a USB design without choosing the wrong file or wrong slot?
  A: Use the full import-confirm sequence, not just highlighting a file, to avoid “I thought it imported” mistakes.
  • Plug the USB into the right-side port and wait for the chime/USB indicator before tapping on-screen.
  • Tap Step 1 (folder/flower icon) → USB icon → highlight the design → tap the import button (orange flower with red arrow).
  • Confirm the “Import Pattern” window shows the correct slot number and file name, then tap the checkmark.
  • Success check: the design preview and stitch/file details on-screen match the printed job sheet (don’t trust abbreviated filenames).
  • If it still fails… re-check you are browsing the USB location (not internal memory) and re-confirm the slot before accepting.
• Q: On the Meistergram GEM 1500 TC A15 Step 2 screen, should operators rotate a design before tracing, and how do 45° keys vs 1° angle entry affect setup?
  A: Rotate first, then trace—rotation changes the stitch field geometry and can trigger Frame Limit if traced in the wrong order.
  • Use the direction key for fast 45-degree rotation, or use the angle key to type an exact angle for 1-degree precision.
  • Watch the on-screen preview rotate and align the design to the garment feature (hat bill, collar direction).
  • Run a trace after the final rotation (never before).
  • Success check: the traced path stays within the selected hoop boundary without alarms.
  • If it still fails… reduce extreme rotations on dense areas and re-check hoop selection in Step 4 before assuming the file is “bad.”
• Q: On the Meistergram GEM 1500 TC A15 Step 3 screen, how do operators fix wrong manual needle assignments caused by the auto-advancing cursor?
  A: Go back to the exact color slot and overwrite the needle number—don’t keep tapping forward hoping it “evens out.”
  • Use the up/down arrows to return to the incorrect color block.
  • Compare the on-screen color block to the physical thread cone and the digitizer’s worksheet/run sheet.
  • Tap the correct needle number to overwrite the wrong assignment.
  • Success check: each color block maps to the intended needle cone when you review the sequence top-to-bottom.
  • If it still fails… slow down and verify with the “look screen → look cone → verify sheet → tap number” routine to break the tap-rhythm error.
• Q: On the Meistergram GEM 1500 TC A15 Step 4 Garment menu, why should operators select the actual hoop instead of “No Frame,” and how does two-speed jog prevent placement mistakes?
  A: Select the real hoop in the Garment menu so the machine’s hoop safety logic can protect you from collisions and bad placement.
  • Tap the magnifying glass icon → Garment → choose the hoop you are physically using → confirm with the checkmark.
  • Use Rapid (two arrows) for big moves, then switch to Slow (one arrow) for final millimeter alignment.
  • Press-and-hold in Slow mode until you see the pantograph creep; don’t “tap” and assume it moved.
  • Success check: the hoop boundary shown on-screen matches the physical hoop clearance around the design.
  • If it still fails… re-check that the hoop size selected is not a similar-but-different preset, then re-center and trace again.
• Q: On the Meistergram GEM 1500 TC A15 control panel, when should operators use Square Trace vs Contour Trace to avoid hitting the hoop on tight placements?
  A: Use Square Trace for quick clearance checks, and switch to Contour Trace when placement is tight or near obstructions.
  • Run Square Trace to confirm the overall bounding box has safe space.
  • Run Contour Trace for tight jobs (near pockets, near hoop ring, back-of-cap near brim) because it follows the actual design edges.
  • Stop immediately if the trace path approaches hard hoop plastic or garment obstacles.
  • Success check: the full trace completes with visible clearance all around the intended stitch path.
  • If it still fails… re-position the design toward center and re-trace before attempting to stitch.
• Q: On the Meistergram GEM 1500 TC, how do operators clear “Frame Limit” Error E-160 during trace without immediately re-hooping?
  A: Clear the error, nudge the design away from the triggered edge, and re-trace—re-hooping is the last resort.
  • Acknowledge/clear the Frame Limit (E-160) message.
  • Use directional arrows to jog the design away from the side that caused the limit (often an edge after centering/rotation).
  • Trace again; switch to Contour Trace if the fit looks tight even when Square Trace passes.
  • Success check: the trace completes without E-160 and the design path stays inside the hoop boundary.
  • If it still fails… confirm the correct hoop was selected in Step 4; if the design truly cannot fit, stop and use a larger hoop or resize the design.
• Q: In production hooping on multi-needle machines, when should operators move from standard plastic hoops to magnetic embroidery hoops, and what magnetic hoop safety rules matter most?
  A: Upgrade to magnetic hoops when re-hooping time, hoop burn, and inconsistent alignment become the bottleneck, but handle magnets like a pinch hazard tool.
  • Diagnose: if standard hoops leave shiny rings (“hoop burn”), clamp inconsistently on thick seams, or slow setup, magnetic hoops often help.
  • Optimize first (Level 1): verify stabilizer choice and drum-skin hoop tension; confirm correct hoop selection and tracing workflow.
  • Upgrade tooling (Level 2): switch to magnetic hoops to speed hooping and reduce ring marks on delicate fabric.
  • Success check: hooping becomes repeatable across operators and the garment shows less or no hoop-ring marking after stitching.
  • If it still fails… treat it as a setup issue (stabilizer, tension, placement, trace) rather than forcing magnets; follow your machine manual and keep magnets away from fingers (pinch), pacemakers, and sensitive electronics.
