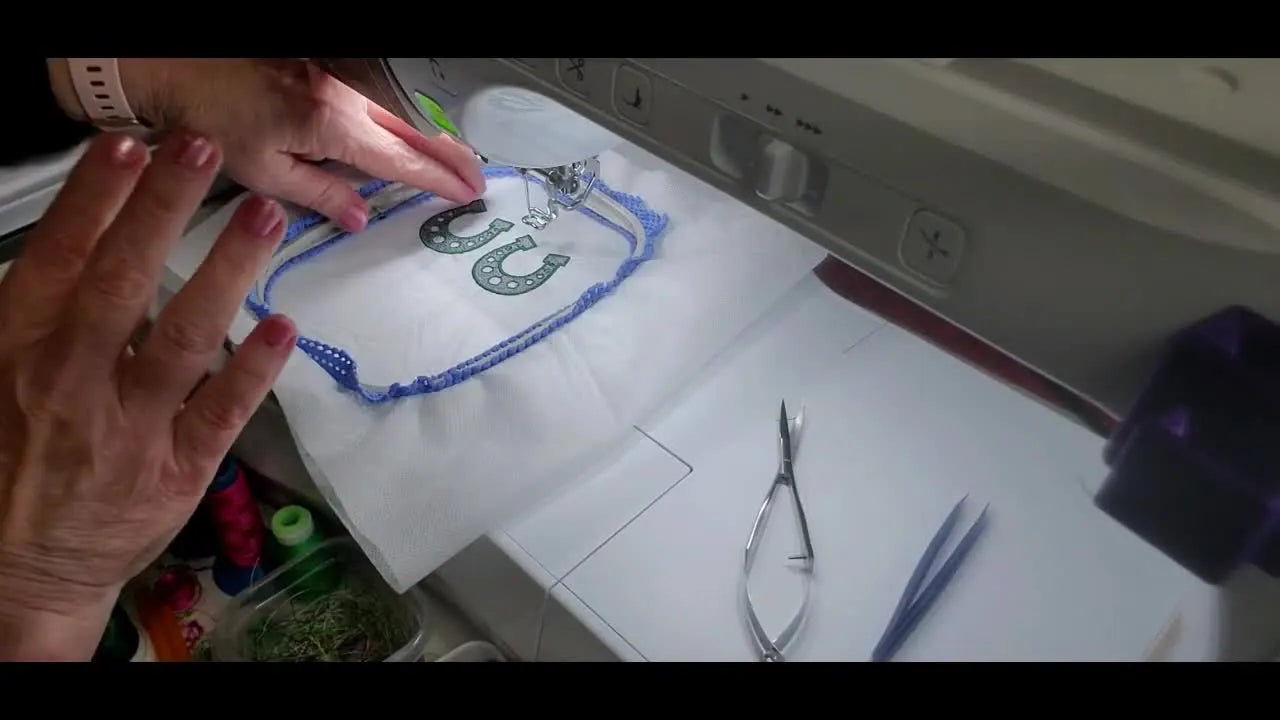

FSL Lucky Horseshoe Earrings on a Baby Lock: Clean Backs, Strong Loops, and Zero “Why Isn’t It Stitching?!” Moments

Master the Art of FSL Jewelry: A St. Patrick’s Day Project Guide

If you have ever watched your embroidery machine hum happily along—only to realize the needle is unthreaded—or pulled a Free Standing Lace (FSL) piece from the hoop to reveal a "bird's nest" of thread on the back, you are not alone. These are the growing pains of machine embroidery.

This guide reconstructs Regina’s St. Patrick’s Day horseshoe project into a professional-grade Standard Operating Procedure (SOP). We will move beyond simple steps and focus on the physics of FSL, the tactile habits of successful embroiderers, and the tool upgrades that transition you from "struggling hobbyist" to "efficient producer."

The "False Start": Why Your Machine Runs Without Stitching

The most heart-stopping moment for a beginner is pressing "Start" and seeing the machine move but leaving no thread behind. Regina encounters this during her pendant setup.

The Physiology of the Error: Often, the thread slips out of the needle eye during the automatic trim or tension release of the previous job. The machine's sensors may not detect this immediately if the thread is still engaged in the tension discs.

Immediate Action Protocol:

1. Listen: If the machine sounds "hollow" or lacks the rhythmic thump-thump of needle percolation, stop immediately.
2. Inspect: Do not assume the thread is correct just because it comes down from the guide. Look through the eye of the needle.
3. Reset: Raise the presser foot (to open tension discs), re-thread the path, and ensure the thread passes front-to-back through the eye.

Warning: Never reach your hands into the needle area while the machine is paused without engaging the "Lock" mode (if available). A stray tap on the start button can result in serious injury.

Foundation Engineering: Stabilizer Science for FSL

In Free Standing Lace, the stabilizer is the fabric. If your foundation fails, your jewelry will warp, cup, or fall apart.

The Golden Rule: Use two layers of water-soluble stabilizer (WSS), such as Pellon Wash-N-Gone.

• One layer: Too weak. The pull of the satin stitches will perforate the film, causing the lace to detach mid-print.
• Two layers: The industry sweet spot. It provides enough rigidity to support high stitch density without adding permanent bulk.

Hooping Technique (The "Drum Skin" Myth): Unlike cotton, you cannot crank WSS until it rings like a drum. It stretches.

• Goal: The stabilizer should be taut and smooth, with zero wrinkles.
• Sensory Check: Press your finger gently on the hooped stabilizer. It should have the resistance of a ripe peach—firm, but with slight give. It should not sag.

If you struggle with slippery WSS shifting while tightening the screw, this is a mechanical limitation of traditional hoops. Many professionals switch to a hooping for embroidery machine setup involving magnetic frames, which clamp straight down rather than pulling the material sideways, eliminating the "WSS stretch" effect.

Thread Architecture:

• Top Thread: 40wt Viscose or Polyester (Silver/Green).
• Bobbin Thread: MATCHING 40wt thread (Silver).
• Why: FSL is visible from both sides. Standard white bobbin thread will ruin the aesthetic.


Pre-Flight Checklist (Critical Pass/Fail)

• Foundation: 2 layers of Wash-Away stabilizer hooped. Surface is smooth and flat.
• Bobbin: Loaded with matching Silver thread (not white pre-wound).
• Needle: New 75/11 Embroidery Needle (a dull needle punches holes in WSS rather than piercing it).
• Workspace: Small trimming scissors and a "trash bowl" placed within 6 inches of your right hand.
• Clearance: Hoop area is clear of walls or obstructions.

The Setup: Treating Stabilizer Like Fabric

Regina uses a standard 5x7 hoop. Whether you are using a Baby Lock, Brother, or Janome, the physics remain the same.

Even Tension Distribution: When tightening the hoop screw, the outer ring tends to drag the stabilizer, potentially causing a "ripple" effect near the edges.

• The Fix: Tighten the screw slightly, pull the stabilizer gently from all four corners to smooth it, then perform the final tighten.
• Visual Check: Hold the hoop at eye level. The two layers of stabilizer should look like a single, unified sheet. If you see air pockets between them, re-hoop.

For those running a small business, a magnetic hooping station can ensure perfect tension repeatability, which is critical when making matching pairs of earrings.

Startup Checklist

• Design is centered in the hoop on the LCD screen.
• Color #1 (Silver Base) is selected.
• Presser foot is down.
• Speed is set to a "Safe Zone" (start at 600 SPM for FSL until you trust the design).

Phase 1: The Silver Base & The "Clean Back" Philosophy

The first stitches lay the groundwork. Regina creates the base of the horseshoe.

Observation Mode: Watch the first 100 stitches.

• Look for: "Looping" on top. This indicates low top tension.
• Look for: The stabilizer lifting up and down with the needle (flagging). If this happens, your hoop is too loose.

By using silver thread in the bobbin, the underside of the lace begins to form a mirror image of the top. This is the hallmark of high-quality FSL.

Phase 2: The Tactical Trim (The Secret to Pro Results)

This is the step that separates amateurs from professionals. Between color changes, Regina removes the hoop to trim jump threads and tails.

Why You Must Do This:

1. Entanglement: If you leave a tail, the next layer of satin stitching will sew over it, trapping a stray thread forever.
2. Structural Integrity: On FSL, you cannot hide tails inside the batting/fabric. There is no batting. Every mistake is visible.

The Workflow:

1. Machine stops.
2. Raise presser foot.
3. Remove hoop (do not un-hoop the stabilizer!).
4. Flip hoop.
5. Trim tails flush against the lace (careful not to cut the knot).
6. Return hoop.

For users tired of the constant "clip-in, clip-out" motion, embroidery machine hoops with magnetic attachments make this removal process instant and wear-free on your wrists.

Warning: When trimming the back, keep your scissors parallel to the stabilizer. Angling the tips down risks puncturing your foundation, which will cause the lace to disintegrate during the wash stage.

Phase 3: Satin Highlights & Material Control

Regina switches to Dark Green for the details. This involves satin stitches—dense zig-zags that pull the material inward.

The Pull Compensation Factor: Satin stitches exert significant force. If your stabilizer is loose, the horseshoe will shrink, and the start/end points won't meet perfectly.

• Visual Check: Watch the perimeter. Is the green outline landing exactly on the silver edge? If it drifts, your stabilizer has slipped.

This is a common scenario where stitchers search for how to use magnetic embroidery hoop videos, as the continuous, even clamping pressure of magnets prevents the "creeping" that screw hoops often allow under satin-stitch tension.

Phase 4: The Hardware Loop (Critical Structural Integrity)

The final step is the loop where the earring hook attaches. Regina advises a critical safety measure here: Do NOT cut the knot.

The Mechanics of the Knot: In FSL, the lock stitches at the end of an element are the only thing holding the thread together once the stabilizer is washed away.

• The Mistake: Trimming too close to the tie-off point.
• The Consequence: When you soak the piece in water, the thread swells, gets slippery, and the loop unravels.
• The Fix: Leave a tiny 1-2mm tail on the final knot. A drop of Fray Check (fabric sealant) here is an excellent insurance policy.


Scaling Up: The Pendant & Density Hazards

Regina demonstrates resizing the design for a pendant. She notes that she must "adjust the sides" after resizing.

Expert Insight on Resizing: You cannot simply shrink or expand an FSL design by 20% and expect it to work.

• Shrinking: Increases density. Stitches overlap, needles deflect, and thread breaks occur.
• Expanding: Decreases density. The lace becomes floppy and won't hold its shape.
• The Rule: Only resize FSL by +/- 10% on the machine. Any more requires software recalculation of density.


The "Empty Needle" Diagnosis

Regina catches a mis-thread during the pendant setup.

Routine for Prevention: Create a "tug test" habit.

1. Thread the needle.
2. Pull the thread tail gently toward the back left.
3. Sensory Check: You should feel smooth, consistent resistance (like flossing teeth).
   • No resistance? You missed the tension discs.
   • Can't pull? Thread is caught or tension is too high.


Efficiency Engineering: Reducing Trims

Regina mentions adding running stitches to connect objects, reducing the number of automatic cuts.

The Economics of Trimming: Every trim cycle takes 7-10 seconds (slow down, cut, tie off, speed up).

• Hobbyist: Trims make the back cleaner automatically.
• Production: 20 trims per design x 50 items = Hours of lost production time.

If you plan to sell these, minimizing trims in digitizing saves time. If you cannot edit the file, upgrading your hardware is the alternative. magnetic hoops for babylock embroidery machines allow you to re-hoop faster, recouping the time lost to the machine's slow trim cycles.

Consistency is King: batch Production

When stitching the second item (the pendant), the steps must be identical.

1. Silver Base
2. Trim (Top and Bottom)
3. Green Satin
4. Trim (Top and Bottom)
5. Loop

If you notice the second item looks different (e.g., gaps in the satin stitch), check your needle. FSL dulls needles quickly. A dull needle pushes the stabilizer down, creating slack. Change your needle every 8 hours of stitch time.

Users of domestic machines often look for baby lock magnetic embroidery hoops to assist in batch production, as they reduce the physical strain of screw-tightening over repeated runs.

Troubleshooting Matrix: FSL Earrings

Diagnose your issue based on the symptom.

Decision Tree: Fabric & Stabilizer Selection

Follow this logic to ensure your foundation matches your project.

START: What is the Project Type?

1. Free Standing Lace (FSL)
   • Stabilizer: 2 Layers Water-Soluble (Mesh/Film).
   • Hoop: Standard or Magnetic (tight grip essential).
   • Result: Jewelry, ornaments.
2. Standard Embroidery on T-Shirt (Knit)
   • Stabilizer: Cut-Away (1-2 layers) + Spray Adhesive.
   • Warning: Never use Tear-Away on knits; stitches will distort.
3. Standard Embroidery on Towel (Terry Cloth)
   • Stabilizer: Tear-Away (Bottom) + Water-Soluble Topping (Top).
   • Why: Topping prevents stitches from sinking into the pile.

The Upgrade Path: When to Scale

Starting with a single-needle machine and a screw hoop is the correct way to learn. However, specific pain points indicate it is time to upgrade your toolkit.

Pain Point 1: "Hooping Burn" & Wrist Fatigue

If you are spending more time fighting the inner ring of your hoop than stitching, or if you are leaving "hoop burn" marks on delicate fabrics because you have to tighten the screw so hard, consider embroidery hoops magnetic.

• The Level Up: Magnetic hoops clamp instantly without friction. This saves your wrists and eliminates ring marks on fabric (or distortion on stabilizer).

Pain Point 2: The "Thread Change" Bottleneck

If you are making 50 pairs of earrings for a craft fair, a single-needle machine requires you to change thread 4 times per earring. That is 200 thread changes manually.

• The Level Up: A Multi-Needle Machine (like the SEWTECH series). You load Silver, Green, and Gold once. The machine stitches the entire batch without interruption.

ROI Check: If you spend >20% of your embroidery time changing threads, a multi-needle machine pays for itself in labor savings.

Warning: Magnet Safety
Magnetic hoops use industrial-grade neodymium magnets.
* Pinch Hazard: They can snap together with enough force to bruise fingers. Handle with care.
* Medical Safety: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards and hard drives.

Final Operation Checklist

Execute this sequence for every single earring to guarantee quality.

• Load: 2 Layers WSS, drum-tight.
• Check: Bobsbin is Silver. Needle is threaded.
• Run Step 1 (Base): Watch for smooth feeding.
• STOP & TRIM: Remove hoop, trim jump stitches on the back.
• Run Step 2 (Green): Verify alignment with base.
• STOP & TRIM: Remove hoop, trim jump stitches.
• Run Step 3 (Loop): Ensure knot ties off securely.
• Un-hoop: Cut away excess stabilizer roughly with scissors.
• Rinse: Warm water soak to dissolve remaining stabilizer.
• Dry: Lay flat to dry (shape while wet if necessary).






FAQ

• Q: Why does a Brother embroidery machine run but leave no stitches during Free Standing Lace (FSL) embroidery?
  A: Stop immediately and re-thread the needle—most of the time the top thread has slipped out of the needle eye during trim or the previous stop.
  • Raise the presser foot to open the tension discs, then re-thread the full upper path and re-thread the needle front-to-back.
  • Inspect the needle eye visually (do not assume it is threaded just because thread is in the guides).
  • Do a gentle “tug test” on the thread tail toward the back-left to confirm it is seated in the tension system.
  • Success check: the machine sound returns to a normal rhythmic “thump-thump,” and stitches appear within the first few needle penetrations.
  • If it still fails: replace the needle (75/11 embroidery needle) and re-thread again with the presser foot UP, then verify the presser foot is DOWN before starting.
• Q: How do I hoop two layers of water-soluble stabilizer correctly for Janome Free Standing Lace (FSL) so the lace does not warp or detach?
  A: Use two layers of water-soluble stabilizer and hoop it smooth and taut—but not “drum tight,” because the film can stretch.
  • Place 2 layers together and hoop as one unified sheet; tighten slightly, smooth from all four corners, then finish tightening.
  • Check for edge “ripples” and re-hoop if the outer ring dragged the stabilizer while tightening.
  • Success check: the hooped stabilizer feels like a ripe peach (firm with slight give), looks flat with zero wrinkles, and shows no air pockets between layers when held at eye level.
  • If it still fails: switch hooping method (magnetic clamping often prevents stabilizer creep) or re-hoop and reduce any slack before stitching dense satin areas.
• Q: What is the correct bobbin thread setup for Baby Lock Free Standing Lace (FSL) earrings so the back looks clean and not ruined by white bobbin thread?
  A: Use matching 40wt thread in the bobbin (not standard white pre-wound) because FSL is visible from both sides.
  • Wind/load bobbin with matching color (example: Silver bobbin for Silver top base).
  • Stitch the first 100 stitches in “observation mode” and confirm the underside is forming a neat mirror-like look, not harsh white lines.
  • Success check: the back of the lace looks aesthetically matching and intentional, not contrasting or “striped” with white bobbin.
  • If it still fails: re-thread the upper path (foot UP while threading) and watch for looping on top, which can indicate top tension is too low.
• Q: How do I fix a “bird’s nest” thread jam on the back when stitching FSL on a Brother embroidery machine?
  A: Re-thread the entire upper path—bird’s nests are commonly caused by missed threading points (often the take-up area) or too-low upper tension.
  • Stop the machine, remove the hoop if needed to clear the jam, then re-thread from spool to needle with the presser foot UP.
  • Confirm the thread is actually through the needle eye, not just near it.
  • Restart and watch the first stitches slowly to confirm stable formation.
  • Success check: the underside shows controlled, even stitching instead of a rapidly growing thread wad.
  • If it still fails: replace the needle (a dull needle can worsen formation on stabilizer) and verify the hoop is not loose (flagging can contribute to mess).
• Q: How can I tell if hooping tension is too loose during Brother Free Standing Lace (FSL) satin stitching, and what should I do when the outline drifts?
  A: If the green satin outline stops landing exactly on the base edge, the stabilizer has likely slipped—re-hoop tighter and prevent creep.
  • Watch the perimeter during satin stitches; drifting alignment is the early warning sign.
  • Re-hoop so the stabilizer is smooth and unified with no slack; avoid stretching the film while tightening.
  • Consider a magnetic hooping setup if repeated satin density keeps “walking” the stabilizer in screw hoops.
  • Success check: the highlight/outline stitches land precisely on the base edge with no visible offset around the perimeter.
  • If it still fails: verify you are using two layers of water-soluble stabilizer and slow to a safe starting speed (600 SPM) until stability is confirmed.
• Q: What is the safest way to trim jump threads on the back of FSL earrings when removing a hoop from a Baby Lock embroidery machine between color changes?
  A: Remove the hoop (do not un-hoop the stabilizer) and trim tails flush while keeping scissors parallel to the stabilizer to avoid puncturing the foundation.
  • Raise the presser foot, remove the hoop carefully, flip it, and trim tails flush without cutting the securing knot.
  • Keep scissor tips flat/parallel to the stabilizer—do not angle downward.
  • Use “Lock” mode (if available) and never place hands in the needle area if the machine could accidentally start.
  • Success check: no long tails are visible, and the stabilizer film remains unpunctured (no new holes/tears around trim points).
  • If it still fails: use smaller trimming scissors and reposition lighting so you can see knots clearly before cutting.
• Q: What magnetic hoop safety rules should home embroiderers follow when using neodymium magnetic embroidery hoops on domestic machines like Brother or Baby Lock?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive items.
  • Keep fingers clear when magnets snap together; separate and place magnets deliberately, not “letting them jump.”
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Store away from credit cards and hard drives.
  • Success check: magnets are handled without snapping onto skin, and hooping remains controlled and repeatable without sudden impact.
  • If it still fails: switch to slower, two-handed placement and set magnets down one at a time to reduce snap force.
• Q: For small-business batch production of FSL earrings, when should an embroiderer upgrade from a single-needle screw hoop workflow to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: optimize technique first, then upgrade hooping for repeatability, then upgrade the machine when thread changes dominate your time.
  • Level 1 (Technique): standardize a checklist (2-layer WSS, matching bobbin, new 75/11 needle, slow start at 600 SPM, trim between colors).
  • Level 2 (Tool): use magnetic hoops when hoop tightening causes hoop burn, wrist fatigue, or stabilizer creep during satin stitches.
  • Level 3 (Capacity): move to a SEWTECH multi-needle machine when repeated manual thread changes consume a large share of production time (the blog’s ROI trigger is >20% of embroidery time spent changing thread).
  • Success check: production runs become consistent from item #1 to item #50 with fewer re-hoops, fewer mis-thread stops, and predictable stitch alignment.
  • If it still fails: reduce trims in the design where possible (connecting runs) or reassess the workflow step where time is being lost (threading, trimming, hooping, or rework).
