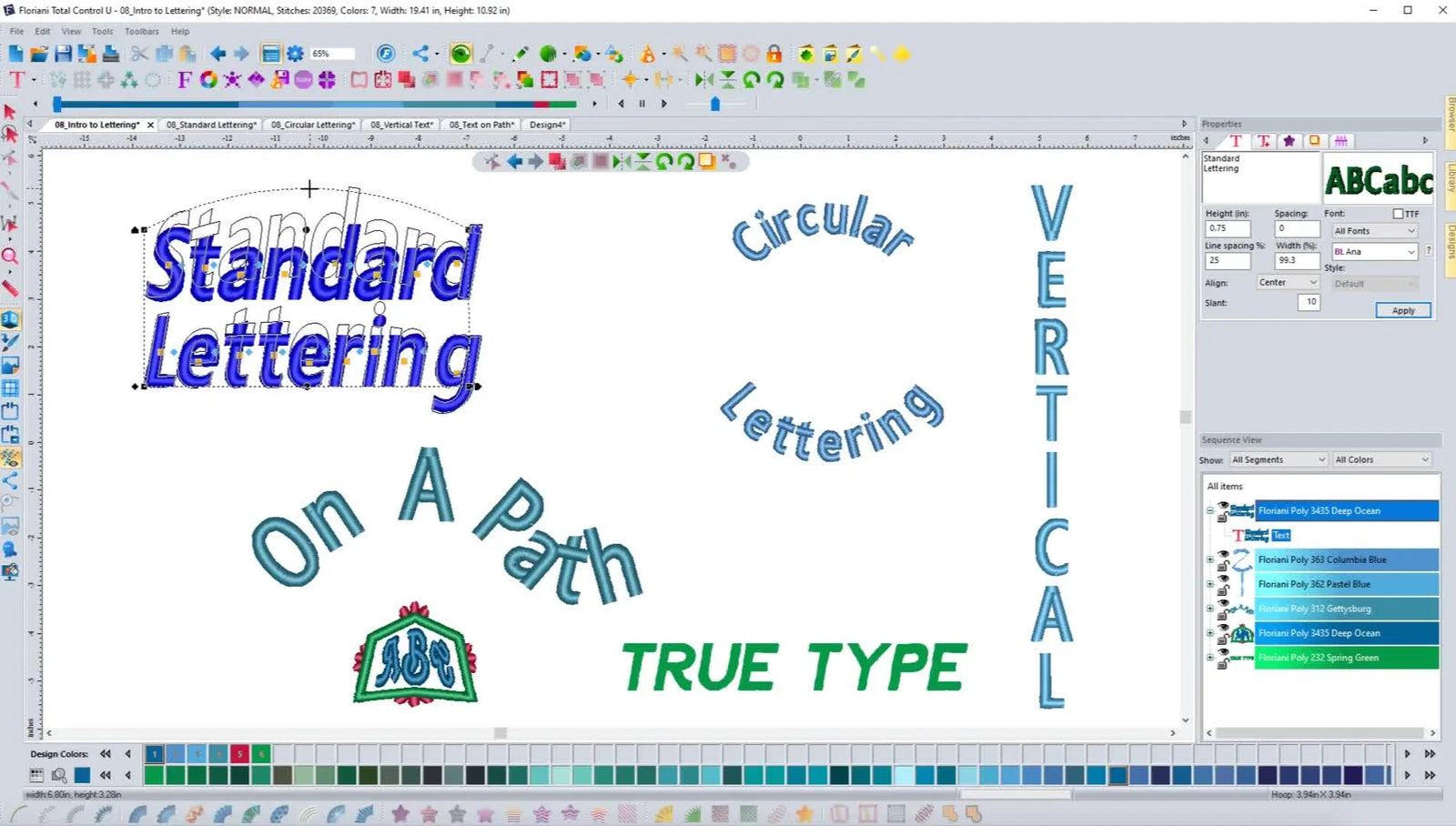

FTC-U Edit Text Mode: Curve, Slant, and Fix Kerning Without Wrecking Your Lettering

If you have ever stared at your screen in frustration, thinking, “Why won’t this word curve? Why is it just getting bigger?”, you are not alone. In the world of machine embroidery, this is a rite of passage. In FTC-U (Floriani Total Control U), text behaves like a sealed container until you explicitly unlock the right mode.

As embroidery professionals, we know that software is only half the battle. The perfect curve on screen means nothing if the fabric shifts in the hoop. This guide covers the software mechanics of FTC-U based on the provided video workflow, but I have overlaid it with the "Shop-Floor Reality"—the safety checks, the sensory details, and the hardware logic that turns a design into a sellable product.

We will cover exactly how to avoid irreversible clicks, how to keep lettering stitch-friendly after warping, and how to decide when to break text apart.

Calm the Panic: Why FTC-U Text Won’t Curve Until You Enter “Edit Text”

In standard selection mode, FTC-U treats lettering as a single, solid object. You will see the text tool in the Properties box and “Text” in the Sequence View, but the outside handles behave like any other basic embroidery shape—you can move, rotate, or resize the entire block, but you cannot shape it. That is why dragging a handle usually results in a giant word rather than a curved one.

The fix is a specific specific mode switch: Right-click the text object and choose “Edit Text.”

This is the psychological shift you need to make: Do not think, "I am editing letters." Think, "I am unlocking the internal skeleton of the object." Once you do this, the software reveals specific control points—blue diamonds and orange squares—that allow for kerned, professional-grade typography.

Warning: Mechanical Safety. When you transition from software design to testing on the machine, the environment changes. Keep hands clear of the needle bar area. Rotary cutters, snips, and needles are sharp hazards. Never reach near the needle/presser foot while the machine is running a test sample.

The “Hidden” Prep Pros Do First (So You Don’t Lose Work)

Before you touch a single spacing diamond, you must lock in the decisions that, if changed later, will reset all your hard work.

The Golden Rule of FTC-U: If you change the font family after manually moving letters, FTC-U usually resets those manual positions back to default.

The Physical Variable: Fabric & Hooping

Your software settings must match reality. A perfect arc on screen will distort into a wavy mess on a t-shirt if the stabilization is wrong.

• Wovens (Caps, Bags): Generally stable, requires less pull compensation.
• Knits (Polos, Tees): Unstable. Requires mesh stabilizer (Poly Mesh) and often a water-soluble topping to keep letters from sinking.

The Hooping Bottleneck: If you are doing text layouts for delicate garments, traditional screw-tightened hoops are the enemy. They cause "hoop burn" (shiny rings) that ruin the presentation. This is where professional shops upgrade their hardware. Using magnetic embroidery hoops allows you to hold the fabric firmly without crushing the fibers, making it much easier to achieve the professional look you designed on screen.

Hidden Consumables Checklist

Ensure you have these within arm's reach before starting your project:

• Temporary Spray Adhesive (odious-free): For floating backing.
• Water Soluble Topping: Essential for lettering on towels or fleece.
• New Needles: A sharp 75/11 is the standard starting point.

Prep Checklist (Pre-Flight):

• Confirm Font: Select the font family first (changing this later wipes your kerning).
• Set Rough Scale: Get the text close to the final size (e.g., 4 inches wide).
• Check Fabric: Identify if you need extra pull compensation (Knits = Yes).
• Save Backup: Save a "live" version of the file (.WAF) before doing any irreversible edits.

Flip the Switch: Entering FTC-U “Edit Text”

In the video, the moment you right-click and choose Edit Text, the visual feedback changes immediately. You must train your eye to look for these two specific anchors:

1. Blue Diamonds: Located between letters.
2. Orange Squares: Located on individual letters.

These are not decorations. They are your control surfaces.

Blue Diamonds: Kerning Control (The Pro’s Secret)

Kerning is the spacing between specific letter pairs. A font might look fine mathematically, but visually, a "T" next to an "A" often looks too far apart.

How to use it:

1. Locate the Blue Diamond between the problematic letters.
2. Click and drag left or right.

The Efficiency Secret: When you move a blue diamond, everything to the right of that diamond moves with it. You do not need to move every single letter individually. You are adjusting the gap, preserving the rest of the word's flow.

This step is critical for digitizing font spacing. Proper kerning makes the difference between "homemade" and "store-bought" quality.

Orange Squares: Individual Letter Manipulation

Sometimes, a specific letter just looks "low" or "wonky" due to the font's baseline.

How to use it:

1. Click the Orange Square on the specific letter.
2. Resize: Use the corner handles on the bounding box.
3. Rotate: Use the rotate handle (usually bottom-left or corner).
4. Move: Click inside the box and drag the letter freely.






Sensory Check: When you move a letter, visualize the baseline. Does it look like the letter is jumping? Unless that is the intent, keep the bottom edges optically aligned.

The Curve Controls You Missed: Frame Handles

Here is the solution to the "Why is it just getting bigger?" problem. Once you are in Edit Text mode, the outside frame handles change function.

• Top-Center Dot: The "Arc" handle. Drag this Up or Down to curve the text.
• Bottom-Right Arrow: Stretch width/height (Distortion).
• Bottom-Left Handle: Slant (Italicize).

The "Click" Moment:

• If you drag the top handle and the text stays straight but gets tall -> You are NOT in Edit Text mode.
• If you drag the top handle and the vertical bars of the letters fan out like a rainbow -> You ARE in Edit Text mode.




Learning how to curve text in FTC-U is about knowing which handle triggers the math.

Setup Checklist (Shaping):

• Verify Mode: Do you see the Blue Diamonds? If no, Right Click -> Edit Text.
• Zoom In: Ensure you are grabbing the black dot (curve), not the square (resize).
• Test Arc: Drag gently. Does it curve? If yes, proceed.

Envelope Presets: The "Fast Food" of Shaping

FTC-U includes preset shapes called "Envelopes" (Pennant, Bridge, Convex, Concave).

1. In Edit Text mode, Right-Click.
2. Select Envelope.
3. Choose your shape (e.g., Pennant Right).


The Trade-off: Envelopes are fast, but they can distort stitch density. If you squeeze letters too tightly (e.g., inside a sharp curve), the thread builds up and can cause needle breaks.

The Safety Valve: If the envelope looks terrible, Right-Click -> Reset Frame. This returns the text to its original straight line.

If you are running a business making team jerseys or caps, consistent placement of these enveloped designs is key. Manually marking every shirt is slow. Integrating a hooping station for embroidery into your workflow ensures that your perfectly curved text lands in the exact same spot on every garment, reducing rejects.

The Point of No Return: “Break Up Text”

Eventually, you may need to edit the actual stitches—removing a serif, changing a stitch angle, or cutting a connector. To do this, you must convert the "Text Object" into "Stitch Objects."

The Action:

1. Right-Click the text.
2. Select Break Up Text.

The Consequence: In Sequence View, the single "Text" object explodes into individual folders for each letter. You can no longer verify spelling or change the font.

This is the core concept behind break apart text in embroidery software. It is a finishing move.

Going Deeper: Breaking Apart a Single Letter

You can break a letter down further. For example, a "T" can be broken into a horizontal bar and a vertical bar.

Why do this?

• Stitch Angles: You want the top of the T to stitch horizontally and the stem vertically (to reflect light differently).
• Pull Comp: You need to widen just the vertical bar because it is sinking into the fleece.

Troubleshooting: The "Why Is It Doing That?" Guide

The Upgrade Path: From Software to Production

Mastering FTC-U is step one. Step two is physical execution. If you are digitizing perfectly but struggling with production speed or quality, assess your hardware constraints.

When to Upgrade:

• Pain Point: "I spend more time hooping than stitching."
  • Solution Level 1: Use a hooping station to standardize placement.
  • Solution Level 2: Use SEWTECH Magnetic Hoops. They snap on instantly, adjust automatically to fabric thickness (thick hoodies vs. thin tees), and eliminate the "screw-tightening" wrist fatigue.
• Pain Point: "I need to stitch 50 shirts, and my single-needle machine is too slow."
  • Solution Level 3: Move to a SEWTECH Multi-Needle Machine. This allows you to set up the next run while the current one stitches, doubling your throughput.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely if snapped together carelessly. People with pacemakers or sensitive medical implants should maintain a safe distance from strong magnetic fields. Always store them with the plastic spacers provided.

Operation Checklist (The Workflow):

1. Edit Text Mode: Enter mode, confirm Diamonds/Squares are visible.
2. Kerning First: Use Blue Diamonds to balance the visual rhythm.
3. Position Second: Use Orange Squares to dance individual letters.
4. Shape Third: Use the Top-Center dot to arc exactly.
5. Backup: Save the file.
6. Break Apart (Optional): Only if you need deep stitch surgery.
7. Test Stitch: Run a sample on similar fabric with the correct stabilizer.

Quick Decision Tree: Break it or Keep it?

• Question: Do I need to change the spelling or font later?
  • Yes: Keep as Text Object.
• Question: Do I need to change the stitch angle of part of a letter?
  • Yes: Break Up Text.
• Question: Am I doing a curve or envelope effect?
  • Yes: Keep as Text (use Edit Text handles).

By following this expert logic, you turn a frustrating software struggle into a precise, repeatable manufacturing process.

FAQ

• Q: In Floriani Total Control U (FTC-U), why does dragging the outside handle make the text bigger instead of curving the text object?
  A: This happens when the lettering is not in FTC-U “Edit Text” mode, so the handles only resize the whole object.
  • Right-click the text object and choose Edit Text.
  • Look for blue diamonds between letters and orange squares on letters to confirm the mode is active.
  • Drag the top-center dot (arc handle) up/down to create the curve (not the resize square).
  • Success check: dragging the top-center dot creates a visible arc (letters “fan” into a rainbow instead of just getting taller).
  • If it still fails: zoom in and re-grab the correct black dot arc handle; if blue diamonds are not visible, re-enter Edit Text.
• Q: In Floriani Total Control U (FTC-U), how do blue diamond controls change kerning without moving every letter one-by-one?
  A: Dragging a blue diamond adjusts the spacing at that point and shifts everything to the right together.
  • Enter Edit Text (right-click text → Edit Text).
  • Find the blue diamond between the problem letter pair (example: “T” and “A” gaps).
  • Drag left/right to tighten or open the spacing; let the rest of the word follow automatically.
  • Success check: the targeted gap changes while the word keeps a smooth, even rhythm (no random single-letter “jumps”).
  • If it still fails: confirm the font was chosen first—changing font after manual spacing can reset kerning.
• Q: In Floriani Total Control U (FTC-U), why did manual letter spacing reset after changing the font family on a text object?
  A: FTC-U often resets manual spacing when the font family is changed after letters have been moved.
  • Press Ctrl+Z immediately to undo the font change if possible.
  • Re-select the correct font family first, then do kerning and letter moves second.
  • Save a backup “live” file version (for example, a .WAF) before making major edits.
  • Success check: after changing nothing but spacing, the blue-diamond adjustments remain exactly where placed.
  • If it still fails: reload the last saved backup file and redo spacing after locking the font choice.
• Q: In Floriani Total Control U (FTC-U), why can’t the spelling be edited after using “Break Up Text” in Sequence View?
  A: “Break Up Text” converts the text object into stitch objects, so spelling/font data is no longer editable.
  • Use Undo right away if the breakup was accidental.
  • Reopen your saved backup (the editable “live” file) if Undo is not available.
  • Only use Break Up Text when deep stitch surgery is required (like stitch-angle edits or removing small elements).
  • Success check: the design shows as a single editable text object again (not separate letter folders), and typing/spelling changes work.
  • If it still fails: keep the design as text for shaping/curving work, and postpone breakup until final stitch-only edits.
• Q: For curved lettering test stitching, what fabric stabilization combination is recommended for knit polos/tees versus woven caps/bags in machine embroidery?
  A: Knits generally need stronger stabilization (often mesh backing plus topping) because the fabric is unstable; wovens are usually more stable and need less compensation.
  • Identify the fabric type first: knit (polo/tee) vs woven (cap/bag).
  • For knits, use mesh stabilizer (Poly Mesh) and often add a water-soluble topping to prevent letters from sinking.
  • For wovens, start with a stable backing approach and avoid overcorrecting pull unless tests show distortion.
  • Success check: the stitched curve stays smooth on the garment (no wavy baseline, no “sunken” satin letters on knits).
  • If it still fails: run a second test sample on similar fabric and revisit hooping stability and text density after shaping/envelope effects.
• Q: What pre-flight consumables should be within reach before editing and stitching Floriani Total Control U (FTC-U) lettering on towels or fleece?
  A: Set up the consumables before editing so the first test stitch matches real production conditions.
  • Keep temporary spray adhesive (odor-free) ready for floating backing.
  • Use water-soluble topping for towels/fleece to stop lettering from sinking into pile.
  • Start with a new needle (a 75/11 is a safe starting point in many cases; follow the machine manual for final choice).
  • Success check: the test stitch has clean letter edges on textured fabric without buried stitches or excessive fuzzing.
  • If it still fails: re-check stabilization coverage and confirm the fabric is held firmly without distortion in the hoop.
• Q: What machine-embroidery safety rules should be followed when moving from Floriani Total Control U (FTC-U) lettering edits to a live test stitch on an embroidery machine needle area?
  A: Treat the test stitch like production—keep hands clear and manage sharp tools to prevent injury.
  • Keep hands away from the needle bar/presser foot area while the machine is running.
  • Stage snips/rotary cutters safely; assume tools and needles are sharp hazards at all times.
  • Run a controlled test stitch on similar fabric/stabilizer before committing to customer garments.
  • Success check: the operator never reaches into the needle area during motion, and trimming is done only when the machine is stopped.
  • If it still fails: stop the machine, reset the work area, and only resume when visibility and tool placement are safe.
• Q: What magnet safety precautions are required when using SEWTECH magnetic embroidery hoops for garment hooping to reduce hoop burn and speed up production?
  A: Use magnetic hoops carefully—strong magnets can pinch fingers, and people with pacemakers or sensitive implants must keep a safe distance.
  • Snap the hoop together slowly and keep fingers out of pinch points.
  • Store hoops with the plastic spacers provided to prevent accidental clamping.
  • Keep magnetic hoops away from pacemakers/medical implants and follow medical guidance for safe distance around strong magnetic fields.
  • Success check: the hoop holds fabric firmly without crushing fibers (reduced hoop-burn risk) and closes without finger pinches.
  • If it still fails: slow down the closing motion, confirm correct alignment, and consider adding a standardized hooping workflow (like consistent placement methods) before scaling production.
