FTCU Appliqué Update That Actually Saves Your Edges: Sew Underlay + Double Run Tack Down (and When to Skip Zigzag)

Appliqué is one of those techniques that looks “simple” until you’re the one trimming fabric at the machine, praying the edge doesn’t fray, and hoping the piece doesn’t creep before the satin border finally lands. We call this the "zone of anxiety"—that moment between the tack down stitch and the final satin cover where 90% of appliqué failures happen.

This FTCU update is a rare one that genuinely helps in real-world stitchouts—especially if you hand-cut your appliqué fabric instead of using a pre-cut laser file. Two additions matter significantly:

• Sew Underlay: adds a separate underlay layer specifically for the satin border architecture (preventing "tunneling").
• Double Run tack down: runs the tack down path twice to hold fabric more securely when the border comes later.

If you’ve ever had a beautiful digitized appliqué turn into a fuzzy edge or a slightly shifted piece, the fix is often not “better scissors”—it’s better stitch architecture and better stabilization/hooping discipline.

The Calm-Down Check: What FTCU Appliqué Is Really Doing (Placement → Tack Down → Border)

Before you change any settings, we need to strip away the confusion. You must confirm you are looking at the actual stitch order—because most appliqué problems are actually timing problems disguised as tension issues.

In the video workflow, the logic is linear:

1. Bring in artwork (a bird shape from Custom Shapes).
2. Convert it to appliqué (the software calculates the path).
3. Use Slow Redraw to watch the default sequence.

The default stitch order you must verify is:

1. Placement stitch: (The "Map") Tells you where to lay the fabric.
2. Tack down stitch: (The "Anchor") Holds the fabric so you can trim it.
3. Border stitch (Satin/E-Stitch): (The "Finish") Covers the raw edge.

That’s the baseline you’re improving.

Pro tip from the production floor: If your fabric shifts, it usually happens after placement (when you lay fabric and perhaps use too much/too little spray adhesive) and during tack down (when the foot pressure pushes the fabric). Any feature that improves the friction and hold between tack down and satin is worth your immediate attention.

The “Hidden” Prep Pros Do Before Touching the Appliqué Tool in FTCU

The software settings matter—but appliqué quality is a physical chain. The software cannot fix physics. If your hoop is loose, the best digitizing in the world will fail.

Here is the "Physical Foundation" required before you click a mouse:

• Fabric 1 (Base): Must be stable. If it's a knit, it must not stretch in the hoop.
• Fabric 2 (Appliqué): Pre-pressed with a fusible web (like HeatnBond Lite) if possible, to prevent fraying.
• Hooping: A "nylon-mesh" tight hoop.
• Tools: Double-curved appliqué scissors (duckbill) for clearance.

If you are doing frequent appliqué runs, a consistent hooping workflow is the difference between “one-off success” and repeatable results. Many shops move to a hooping station for machine embroidery because it creates a standard physical registration point, ensuring every shirt is hooped at the exact same tension and placement.

Warning: Project Safety First. never reach under the presser foot while the machine is armed or "ready to stitch." A 1000 SPM machine can cycle a needle through your finger faster than your reflex can pull it away. Always keep hands outside the "Red Zone" (the hoop area) when the green light is on.

Stabilizer Decision Tree (Base Fabric → Backing Choice)

Choosing the wrong stabilizer is the #1 cause of "gapping" (where the satin stitch misses the fabric edge).

1) Is the base fabric stretchy (T-shirts, hoodies, performance wear)?

• Decision: You MUST use Cutaway (2.5oz minimum).
• The Why: Knits stretch. Tearaway eventually breaks down during the satin stitching, causing the shirt to expand and the stitches to distort. Cutaway holds the shape forever.
• Action: Spray the stabilizer with temporary adhesive (like KK100) and smooth the shirt on top.

2) Is the base fabric a stable woven (Denim, Canvas, Twill)?

• Decision: Tearaway is usually acceptable.
• Caveat: If the design is dense (>15,000 stitches), float a sheet of medium tearaway under the hoop for extra support.

3) Is the fabric high-pile (Terry cloth, Minky, Fleece)?

• Decision: You need a Water Soluble Topper (Solvy) on top.
• The Why: Without a topper, the satin stitches will sink into the loops, disappearing and looking "ragged."

Hidden Consumables List (Don't start without these)

• Temporary Spray Adhesive: To keep the appliqué fabric flat before the tack down.
• New Needle: Start fresh. 75/11 Sharp for wovens; 75/11 Ballpoint for knits.
• Bobbin: Ensure you have at least 50% left. Running out mid-satin border is a nightmare.

Prep Checklist (Do not proceed until all checked)

• Base fabric is hooped evenly (TAP TEST: Finger-tap the fabric; it should sound like a dull drum).
• Stabilizer matches the "Decision Tree" above (Stretchy = Cutaway).
• Appliqué fabric is ironed flat (wrinkles are permanent once stitched).
• You have verified the machine speed (Slow down to 600 SPM for the Satin Border to prevent deflection).
• Trimming scissors are sharp (dull scissors pull fabric threads, causing fraying).


Convert Vector Art to Appliqué in FTCU Without Guessing (Custom Shapes → Convert to Appliqué)

Inside FTCU, the video uses a simple, repeatable path to generate the architecture:

1. Open Custom Shapes.
2. Select a bird shape and place it on the canvas.
3. Click the Convert to Appliqué icon in the bottom toolbar.

You’ll see the solid shape convert into stitch outlines.

Why this matters: This creates the "Stitch Stack" (Placement/Tack/Cover). If you don't start with a clean appliqué object, you are just drawing lines manually, which disconnects the logic. We want the software to "know" this is appliqué so it can apply the intelligent features like Sew Underlay.

Slow Redraw Is Your Lie Detector: Verify the Stitch Sequence Before You Edit Anything

Trust, but verify. After conversion, use Slow Redraw to watch the stitchout order.

Visual Check:

• Color 1 (Placement): usually a simple run stitch.
• Stop Command: (Machine stops for you to lay fabric).
• Color 2 (Tack Down): usually a run or zigzag.
• Stop Command: (Machine stops for you to trim).
• Color 3 (Border): The final Satin.

When you later enable Sew Underlay, Slow Redraw is the only way to confirm the new layer appears before the satin border (and not confused with tack down).

If you’re digitizing for real garments—not just screen tests—this is where you prevent expensive mistakes. A design that looks fine in 3D view can still fail if the "hold" stitches happen at the wrong time.

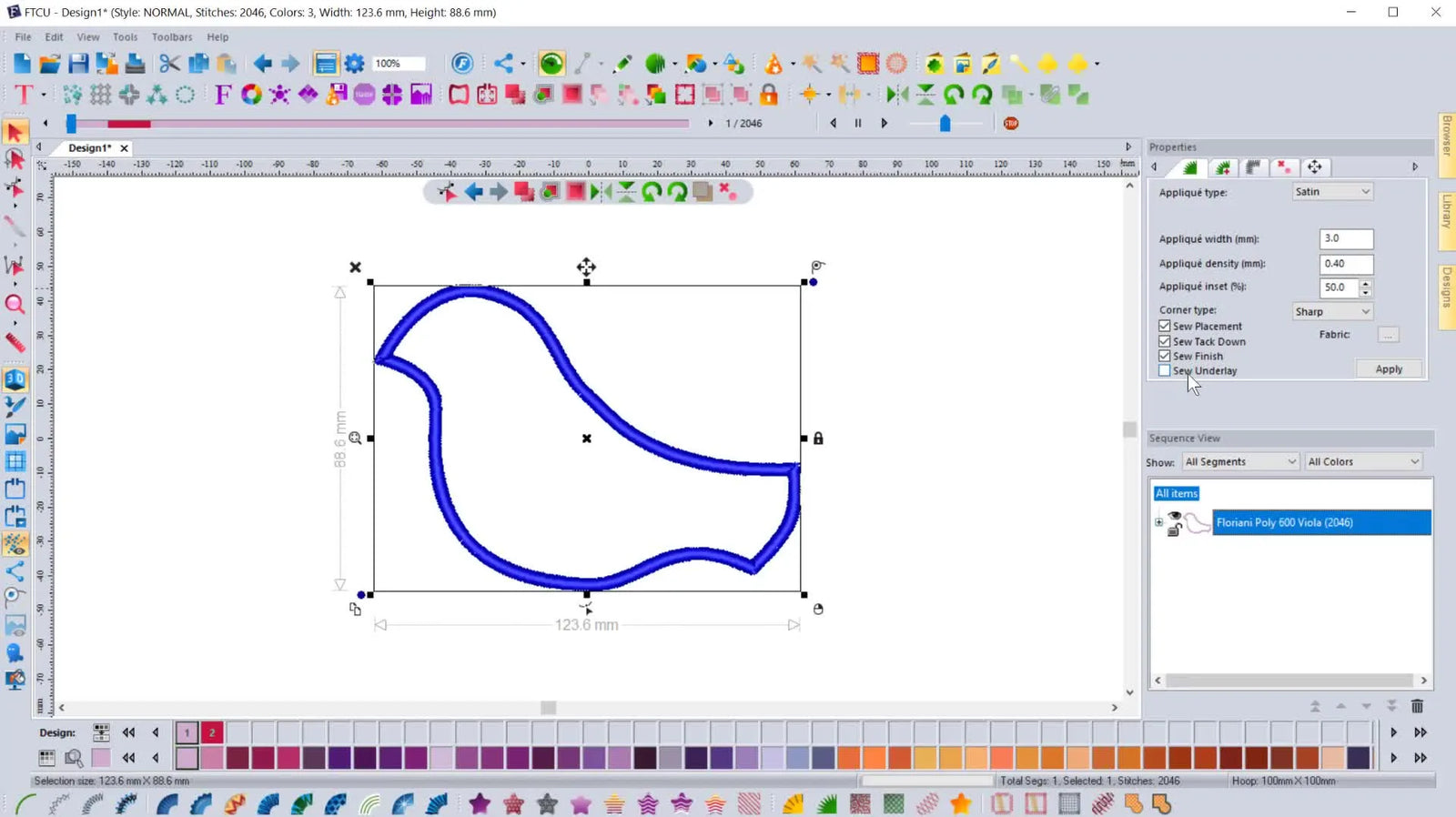

Sew Underlay in FTCU: The One Checkbox That Makes Hand-Cut Appliqué Edges Behave

Here’s the exact move shown to upgrade your edge quality:

1. Select the appliqué object.
2. Go to the Properties panel.
3. Find Sew Underlay.
4. Check it and click Apply.

The Mechanism: In the video, enabling Sew Underlay injects a distinct underlay layer inside the satin border object. When you run Slow Redraw afterward, you now see:

1. Placement
2. Tack down
3. Underlay (New Layer)
4. Satin border

Why this helps (The Physics): When you hand-cut fabric after the tack down, the raw edge is "floating." When the heavy satin column hits it, the needle penetration can push that raw edge outward (poking out) or pull it inward (gapping). The Sew Underlay creates a "rail track" for the satin stitch to sit on, binding the raw edge down before the visible satin is stitched.

If you are researching techniques for machine embroidery applique, this is one of those small software toggles that manifests as a massive jump in professional finish quality.

Tack Down Type in FTCU Appliqué Extra: When Zigzag Makes Your Trimming Look Messy

The video calls out a common rookie trap: using a Zigzag tack down when you plan to hand-cut.

In FTCU:

1. Select the appliqué object.
2. Go to Appliqué Extra tab in Properties.
3. Find the Tack Down dropdown.

Options shown include Run, Zigzag, E-Stitch, and Double Run.

The Expert Perspective:

• The Trap: A Zigzag tack down feels secure, but it is wide. When you try to trim fabric against a zigzag, it is difficult to get close to the stitch line without cutting a thread. This leaves "whiskers" of fabric that the satin border might not cover.
• The Fix: If you are trimming close (Hand-Cut Workflow), a Run or Double Run is superior. It provides a single, clean line that acts as a perforated guide for your scissors, allowing a tighter trim.




Double Run Tack Down (2.5 mm) in FTCU: The Clean Way to Stop Fabric Creep

Now the second feature: Double Run tack down.

In the video:

• Tack Down Type is set to Double run.
• Stitch length shown is 2.5 mm.

What Double Run does: It stitches the specific path twice (Forward and then Backward, or Loop).

The Production Benefit: In multi-piece appliqué (e.g., a flower with overlapping petals), pieces often butt against each other. If the fabric shifts even 1mm, you get a gap. A single run stitch is weak—fabric can pull away from it. A Double Run acts like a double-staple. It locks the grain of the fabric.

Sensory Check: When the machine stitches a Double Run at 2.5mm length, it should sound like a consistent, rapid "purr." If it sounds like it's hammering in place, your stitch length is too short (below 1.5mm) and you risk cutting the fabric. 2.5mm is the safe "sweet spot."

If you’re building a standardized workflow for applique digitizing, this setting (Double Run / 2.5mm) should be your default template for hand-cut jobs.

The Stitch-Architecture “Why”: Underlay vs Tack Down Timing

A lot of users lump all “extra stitches” together. You need to distinguish them to troubleshoot effectively.

• Tack Down = Position Control. It happens before the trim. Its job is to stop X/Y movement.
• Underlay = Surface Engineering. It happens after the trim. Its job is to provide loft and edge stability for the Satin.

The video demonstrates this difference by toggling settings and using Slow Redraw to show separate phases.

The Hoop Factor: Even perfect architecture fails if the hoop tension is uneven. If you are fighting hoop burn (shiny marks on dark fabric) or inconsistent tension on tricky items like bags or heavy jackets, magnetic embroidery hoops are often used. Magnetic frames provide uniform clamping pressure around the entire perimeter, unlike thumbscrew hoops which tighten from one point. This reduces the "fabric pull" that distorts appliqué shapes.

Zigzag Tack Down + Sew Underlay in FTCU: Reading the Screen

The video intentionally sets:

• Tack down = Zigzag
• Sew Underlay = enabled

Then Slow Redraw shows:

1. Placement
2. Zigzag tack down (Wide, for holding).
3. Zigzag underlay (Narrower, specifically for the border).
4. Satin border available.

The Aha Moment: Sew Underlay is not just "making the tack down a zigzag." It is an independent layer.

Caution: If you use a Zigzag Tack Down AND a generic Zigzag Underlay AND a dense Satin Border, you are putting a lot of thread into one spot. On thin geometric points of the bird wing, this can cause a "Bird's Nest" (thread jamming under the throat plate).

• Fix: If you see bunching at sharp points, switch Tack Down back to Run.




Setup That Prevents Appliqué Misalignment: Hooping Tension, Stabilizer Grip, and Repeatability

We have covered the software; now let's secure the physical world.

The "Hoop Burn" Dilemma: Traditional hoops require you to shove an inner ring into an outer ring. This friction burns delicate fibers (velvet, performance polos). Plus, aligning the grain is hard.

• The Upgrade: This is why professionals search for terms like magnetic embroidery hoop. These frames snap together vertically. No friction burn. No "pushing" the fabric out of alignment.

The "Alignment" Dilemma: If you are doing a Left Chest logo on 50 shirts, and you hoop them manually on a table, they will all be slightly different heights.

• The Upgrade: A hooping station for embroidery allows you to place the hoop in a fixed jig. You pull the shirt over, align it to a laser or grid, and hoop it. Repeatability goes from 80% to 99%.

Warning: Magnet Safety. Magnetic frames are industrial tools with clamping force up to 30kg. Keep them away from pacemakers, implanted medical devices, and credit cards. Never place your finger between the magnets when snapping them shut. Use the provided leverage tabs.

Setup Checklist (Ready to Stitch?)

• Slow Redraw confirms the stitch order: Placement -> Tack -> Underlay -> Border.
• You have selected Run or Double Run Tack Down for clean trimming.
• Stitch length is verified at 2.5 mm.
• Bobbin is checked (White bobbin thread for standard work).
• Machine is threaded with the correct color for the Tack Down (usually matches the fabric color to blend in).


Troubleshooting Appliqué in FTCU: Symptom → Diagnosis → Cure

When things go wrong, don't guess. Use this diagnostic matrix.

1) Symptom: "The Satin Stitch missed the edge of the fabric."

Likely Cause: The fabric shrank during the stitching process. The Fix:

• Software: Increase Pull Compensation in the satin border settings (try 0.4mm).
• Physical: Switch stabilizer to Cutaway. If using a traditional hoop, tighten it until the fabric is taut.

2) Symptom: "Fraying / Fuzzy threads poking out."

Likely Cause: Trimming wasn't close enough, or the border lacks density. The Fix:

• Software: Enable Sew Underlay to bind the edge down.
• Physical: Use sharp curved scissors. Trim within 1-2mm of the tack down.

3) Symptom: "Fabric shifting in multi-piece appliqué."

Likely Cause: The first piece moved before the second piece was placed. The Fix:

• Software: Switch to Double Run tack down for a stronger hold.
• Physical: Apply a light mist of temporary adhesive spray to the back of the appliqué fabric before placing it.


The Upgrade Path: Moving from Hobby to Production

Once you dial in Sew Underlay and Double Run, your software is ready for professional work. Now, look at your hardware bottlenecks.

Scenario A: "I spend more time hooping than stitching."

• Diagnosis: Manual hooping is slow and inaccurate.
• Solution Level 1: Use a grid on your worktable.
• Solution Level 2: Invest in a magnetic hooping station. This aligns the hoop automatically, cutting setup time by 50%.

Scenario B: "My hands hurt, and I leave marks on shirts."

• Diagnosis: Traditional hoops require high hand strength.
• Solution: Magnetic frames. They use magnetic force to hold fabric, saving your wrists and saving the garment from ring marks.

Scenario C: "I can't keep up with orders."

• Diagnosis: Single-needle machines require a manual thread change for every color step in appliqué (Placement, Tack, Border).
• Solution: A Multi-Needle Machine (like the SEWTECH 1501 or similar).
  • Why: You program Needle 1 (Placement), Needle 2 (Tack), Needle 3 (Border). The machine does the entire sequence automatically (pausing only for the trim). This creates a "Set it and Forget it" workflow that doubles your daily output.

Operation Checklist (The Final Flight Check)

• Placement stitch printed exactly where expected?
• Appliqué fabric covers the placement line by at least 5mm margin?
• Tack down executed without fabric bubbling?
• Trimming completed carefully without snipping the tack down stitches?
• Machine speed reduced (600-800 SPM) for the final satin border?
• Final visual check: No gap between fabric and border.

By combining the structural power of FTCU's Sew Underlay with the holding power of Double Run—and backing it up with solid hooping mechanics—you move from "hoping it works" to "knowing it will."

FAQ

• Q: What is the correct stitch order to verify in FTCU appliqué using Slow Redraw (Placement → Tack Down → Underlay → Satin Border)?
  A: Confirm the stitch sequence in Slow Redraw before changing any settings, because most appliqué failures are timing/sequence problems.
  • Use Slow Redraw and watch for: Placement stitch → Stop → Tack down stitch → Stop → (Sew Underlay if enabled) → Satin border.
  • Re-check after enabling FTCU “Sew Underlay” to confirm the new underlay layer appears before the satin border (not mixed into tack down).
  • Success check: Slow Redraw clearly shows two stop points (place fabric, trim fabric) and the border stitches last.
  • If it still fails: Rebuild the appliqué object by converting the shape to appliqué again (instead of manually drawing lines) so FTCU keeps the correct stitch stack.
• Q: How do I use FTCU “Sew Underlay” to stop satin border gapping or raw edges poking out on hand-cut machine embroidery appliqué?
  A: Enable FTCU “Sew Underlay” on the appliqué object to add a dedicated underlay layer that stabilizes the edge before the satin border lands.
  • Select the appliqué object → Properties → check “Sew Underlay” → Apply.
  • Run Slow Redraw to confirm the new sequence includes an underlay layer between tack down and satin border.
  • Success check: The finished border covers the raw edge evenly with no gaps and fewer fuzzy fibers showing.
  • If it still fails: Improve the physical foundation—switch to cutaway on stretchy garments, and trim closer (about 1–2 mm from the tack down) with sharp curved appliqué scissors.
• Q: Which FTCU Appliqué Extra “Tack Down Type” should be used for clean trimming: Run, Zigzag, or Double Run?
  A: For hand-cut appliqué, use Run or Double Run because Zigzag tack down is wide and makes close trimming messy.
  • Set Tack Down Type in FTCU Appliqué Extra to Run (clean guide) or Double Run (stronger hold).
  • Avoid Zigzag tack down when you need to trim tight, because it is easier to clip threads and leave fabric “whiskers.”
  • Success check: Scissors can ride right along the tack down line without snagging threads, and the satin border fully covers the trimmed edge.
  • If it still fails: If fabric creep is the real issue, switch from Run to Double Run and add a light mist of temporary spray adhesive to the appliqué fabric before placement.
• Q: What is the safe starting point for FTCU “Double Run” tack down stitch length to reduce appliqué fabric creep?
  A: A safe starting point shown is Double Run tack down at 2.5 mm stitch length to lock the fabric before the border stitches.
  • Set Tack Down Type to Double Run and confirm stitch length is 2.5 mm.
  • Listen during stitching and keep the machine steady (avoid ultra-short lengths that can cut fabric).
  • Success check: The stitchout sounds like a consistent rapid “purr,” and the appliqué piece does not shift (even ~1 mm) before the satin border.
  • If it still fails: Add temporary spray adhesive to the appliqué fabric back, and slow the machine down for the satin border (about 600 SPM is a practical target).
• Q: Which stabilizer should be used for machine embroidery appliqué on stretchy T-shirts vs denim/canvas vs terry/minky, and how does the choice affect satin border gapping?
  A: Match stabilizer to fabric type first, because wrong stabilizer is a common reason the satin stitch misses the appliqué edge.
  • Use cutaway (2.5 oz minimum) for stretchy knits like T-shirts/hoodies; spray stabilizer lightly and smooth the garment on top.
  • Use tearaway for stable wovens like denim/canvas/twill (often), and consider extra support if the design is dense.
  • Add water-soluble topper on high-pile fabrics (terry, minky, fleece) so satin stitches do not sink and look ragged.
  • Success check: The satin border lands consistently on the fabric edge with no widening gaps as the design progresses.
  • If it still fails: Increase satin pull compensation (a common trial value is 0.4 mm) and re-check hoop tension.
• Q: What is the “tap test” success standard for hooping tension before stitching machine embroidery appliqué, and what other prep consumables should be checked?
  A: Hoop the base fabric evenly and confirm tension with the tap test before starting, because software cannot fix a loose or uneven hoop.
  • Tap-test the hooped fabric: finger-tap should sound like a dull drum (even tension, no slack zones).
  • Start with a new needle (75/11 Sharp for wovens; 75/11 Ballpoint for knits) and confirm bobbin has at least ~50% thread left.
  • Use temporary spray adhesive to keep appliqué fabric flat before tack down, and use sharp double-curved (duckbill) appliqué scissors for clean trimming.
  • Success check: Fabric stays flat through tack down with no bubbling, and trimming does not pull threads or fray the edge.
  • If it still fails: Slow down to about 600 SPM for the satin border and re-check stabilizer choice (stretchy garments should not be on tearaway).
• Q: What safety rules should be followed around the presser foot during appliqué stops, and what magnet safety rules apply when using magnetic embroidery frames?
  A: Keep hands out of the hoop area when the machine is ready to stitch, and treat magnetic frames as high-force tools that can pinch and affect medical devices.
  • Never reach under the presser foot while the machine is armed/ready; only place fabric and trim when the machine is fully stopped and safe.
  • Keep fingers outside the hoop “red zone” when the machine light indicates it can run, especially on high-speed machines.
  • If using magnetic embroidery frames, keep them away from pacemakers/implanted medical devices and credit cards, and never place fingers between magnets when snapping closed.
  • Success check: Fabric placement and trimming are done with the machine fully stopped, and magnets are closed using leverage tabs without any pinch points.
  • If it still fails: If the workflow feels unsafe or rushed, reduce speed, add a consistent hooping method (often a hooping station), and do not continue until handling feels controlled and repeatable.
• Q: If appliqué misalignment and slow setup keep happening on garment runs, when should a shop upgrade from technique tweaks to magnetic hoops or a multi-needle SEWTECH machine?
  A: Start with workflow discipline, then upgrade tools when repeatability or throughput is the real bottleneck.
  • Level 1 (Technique): Standardize stitch architecture (Sew Underlay + Double Run 2.5 mm), slow satin border to 600–800 SPM, and enforce the prep checklist (needle, bobbin, stabilizer, tap test).
  • Level 2 (Tool): Move to magnetic embroidery frames if hoop burn, wrist strain, or uneven clamp pressure is causing distortion or marks on garments.
  • Level 3 (Capacity): Move to a multi-needle machine (for example, SEWTECH 1501 class) if frequent color steps and thread changes are limiting daily output; assign separate needles for placement, tack, and border to reduce interruptions.
  • Success check: Hooping time drops, placement becomes consistent across batches, and appliqué edges stay aligned from first to last garment.
  • If it still fails: Add a hooping station for repeatable registration and re-check stabilizer/fabric pairing before investing further.
