The "Spaghetti Satin" Nightmare: Mastering the Side-By-Side Tool in Generations

If you’ve ever hit Enter on a design and watched your beautiful shape explode into a chaos of random stitches, you aren't alone. In my 20 years of teaching machine embroidery, this is the #1 reason students rage-quit digitizing.

We call it the "Spaghetti Satin" effect. It happens when the software doesn't understand the boundaries you set, so it guesses—badly.

Holly Pike’s approach to the Side-By-Side Satin Tool is the antidote. It’s not just about clicking buttons; it’s about understanding the "physics" of the digital object. This guide will take you from "guessing and praying" to engineering satin stitches that run smoothly on your machine—whether it's a home single-needle or a commercial multi-head.

The Mental Model: Building a Bridge, Not a Blob

To stop the chaos, you need to understand what the Side-By-Side Satin Tool is actually asking for.

Think of a satin column like a suspension bridge.

1. The Banks: You need two solid edges (Side A and Side B).
2. The Planks: The software needs to know which angle to lay the stitches (Stitch Angles).

If you don't define the banks clearly, or if you twist the map, the software panics. The tool is designed specifically for odd, non-uniform shapes (like tapering ribbons or hearts) that standard tools can't handle.

The Golden Rule: The Directional Flow

Here is the single most important rule in this entire guide. If you ignore this, your design will fail.

> The Rule: You must draw Side B in the EXACT same direction as Side A.

• Linear Shapes: If you draw the left side from Top $\rightarrow$ Bottom, you must draw the right side from Top $\rightarrow$ Bottom.
• Closed Shapes: If you trace the outer edge Clockwise, you must trace the inner edge Clockwise.

When beginners break this rule, they twist the data. The software tries to connect the start of Line A with the end of Line B, creating a twisted bow-tie mess.

Pre-Flight Check: Setting the Stage (Grid & Math)

Before you click a single tool, we need to set up the workspace. Digitizing is an engineering task; we need precision so the machine doesn't jam later.

The "9mm Danger Zone" Standard embroidery machines generally cannot stitch a single satin jump wider than 9mm (approx. 0.35 inches).

• Why? The little hook assembly under your needle plate can snag on loops that are too long/loose.
• The Sweet Spot: Aim for a maximum width of 7mm - 8mm. This ensures tight, durable coverage without risking a "bird's nest" jam.

Holly’s Workspace Setup:

• Grid: Set to 12.5mm (roughly 1/2 inch). This gives you an instant visual reference for size.
• Zoom: Crank it to 200%. You cannot place precise nodes if you are looking at the design from "outer space."
• Tool: Keyboard shortcut R (Ruler). Measure twice, digitize once.

Prep Checklist: Is Your Workspace Safe?

• Tool Check: Selected Side-By-Side Satin (Confirm it's not Side-To-Side).
• Visual Check: Grid is visible and set to 12.5mm.
• Zoom Level: Set to at least 200%.
• Mental Plan: "I will digitize Top-to-Bottom." (Say it out loud).
• Hidden Consumables: Do you have your fabric marker or vanishing pen ready to mark the real fabric later?


Step-by-Step: The Perfect Satin Column

Let's build a simple column to lock in the muscle memory.

1. Define Side A (The First Bank)

• Action: Left-click to start at the top.
• Action: Left-click to end at the bottom.
• Trigger: Press Enter.
• Sensory Check: You should see a Purple Line.

2. Define Side B (The Parallel Bank)

• Action: Move to the right. Left-click at the top (matching Side A's start).
• Action: Left-click at the bottom (matching Side A's end).
• Trigger: Press Enter.
• Sensory Check: You now have two parallel Purple Lines.


3. Lay the Planks (Stitch Angles)

• Action: Click and drag lines across the two purple boundaries.
• Action: Press Enter to generate.
• Sensory Check: The purple lines should convert into a Solid Green Block of stitches.

Setup Checklist: The "Green Light" Audit

• Color Check: Did the lines turn Green? (If they stayed purple or vanished, Undo and check directions).
• Sound Check: Did you hear the "thump-thump" of the mouse clicks in the same rhythm for both sides?
• Visual Check: Are the stitch angles perpendicular to the sides?

Troubleshooting: The "Center Split Line" (Too Wide!)

If you generate your satin and see a distinct line cutting through the center, stop immediately.

This is the software's safety mechanism. You exceeded the 9mm limit. The software automatically split the long satin stitch into two shorter stitches to prevent machine damage.

The Fix:

1. Select the object.
2. Use the side handles to squeeze it narrower.
3. Measurement: Use the Ruler tool. Holly recommends aiming for 7.84mm or roughly 8mm.
4. Result: The center line disappears, returning to a smooth satin surface.


Warning: Mechanical Safety
Never force a machine to stitch a satin column wider than its specs (usually 9mm-12mm maximum).
Risk: Excessive width causes loose loops ("snaggers") that will ruin the garment in the wash, or worse, catch the presser foot and shatter the needle. Always check your specific machine manual.

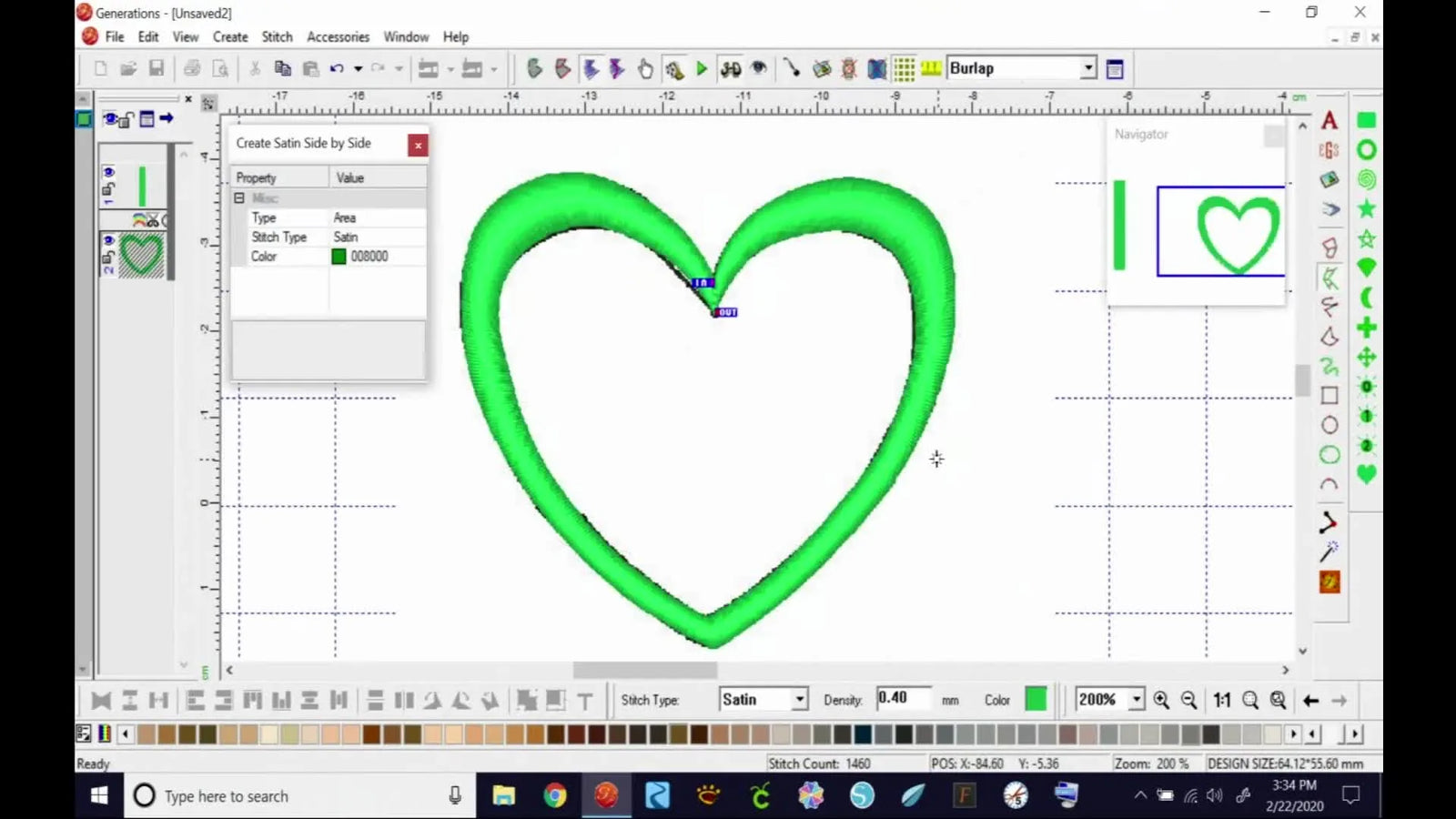

Advanced Shape: The Satin Heart (Curves & Templates)

Now we apply the tools to a real shape.

• Import: Load your artwork (Heart).
• Key Action: Hold Shift to dim/darken the artwork so your digitizing lines pop.


1. Trace Outer Path (Clockwise)

• Technique: Left-click for sharp points (the divot and bottom tip). Right-click for smooth curves (the lobes).
• Action: Trace top-to-bottom, clockwise.
• Trigger: Press Enter.


2. Trace Inner Path (Clockwise - Critical!)

• Technique: Trace the inner hole of the heart.
• Constraint: You MUST travel in the same clockwise direction as step 1.
• Trigger: Press Enter.


3. Add Flow (Stitch Angles)

• Technique: Drag angle lines through the heart like spokes on a wheel.
• Goal: Guide the thread to turn smoothly around the curves.
• Trigger: Press Enter to generate green stitches.


Operation Checklist: Quality Control

• Sheen Check: Do the virtual stitches simulate light reflecting smoothly around the curve?
• Constraint Check: Are all areas narrower than 9mm? (Check the widest part of the heart lobe).
• Density: Does it look solid? (Standard density is usually 0.40mm - 0.45mm).

When It Fails: The "Refusal" Diagnosis

Holly shows us a deliberate failure. If you try to place Stitch Angles and the software simply refuses to let you draw them, or the cursor behaves erratically:

Diagnosis: You violated the Direction Rule. The Fix: Don't fight it. Delete the lines. Redraw Side B ensuring it flows the same way as Side A.

Finesse: The "View Angle" Tool

Once the object is generated, it’s not set in stone.

• Tool: Click next to "View Outline" to find View Angle.
• Action: You will see Green Points (handles) and Red Lines (angles).
• Refinement: Drag the green points to smooth out the flow. Delete extra red lines that are causing "choppy" transitions.


From Digitizing to Production: The Hardware Reality

You can digitize the perfect file, but if your physical setup is poor, the result will still look amateur. This is where we bridge the gap between software and hardware.

1. Stabilization & Distortion

Satin stitches exert a lot of "pull" (tension) on the fabric. If your fabric isn't held drum-tight, the heart shape we just digitized will distort into a kidney bean.

• Standard Hoops: Require perfect tensioning screws and hand strength.
• The Upgrade: Many professionals search for magnetic embroidery hoops to solve this. These clamp fabric evenly without the "tug of war."

2. The Bottleneck of Volume

If you are stitching 50 of these hearts on left-chest polos, standard hooping becomes a nightmare of wrist pain and alignment errors.

• Efficiency: Using embroidery hoops magnetic allows you to clamp thick garments (like hoodies) instantly without forcing the inner ring.
• Alignment: Pairing these frames with a machine embroidery hooping station ensures every heart lands in the exact same spot on every shirt.

Warning: Magnetic Safety
magnetic embroidery hoops for embroidery machines use industrial-strength magnets (neodymium).
* Pinch Hazard: They can snap together with crushing force. Keep fingers clear.
* Medical Safety: Keep away from pacemakers and sensitive electronics.

Decision Tree: Do You Need a Tool Upgrade?

Troubleshooting Guide: The "Why is it Ugly?" Table

Final Thoughts: The Ritual of Repetition

Holly ends with a repetition of the exercise. This is wisdom. Don't just watch—do.

1. Open Generations.
2. Draw parallel lines (Top $\rightarrow$ Bottom).
3. Break it on purpose (Top $\rightarrow$ Bottom vs Bottom $\rightarrow$ Top) to see the failure.
4. Fix it.

Once you master the Side-By-Side Satin Tool, you unlock the ability to create professional patches, intricate logos, and organic shapes that standard auto-digitizing can never achieve. And remember: a great file deserves great stability—hoop it right.

FAQ

• Q: In Generations Embroidery Software, why does the Side-By-Side Satin Tool create “Spaghetti Satin” chaos after pressing Enter?
  A: Redraw Side B in the exact same direction as Side A, because opposite directions twist the satin data.
  • Action: Delete the failed object (or Undo) and set a clear plan (e.g., Top→Bottom) before drawing.
  • Action: Draw Side A, press Enter, then draw Side B starting at the matching top point and ending at the matching bottom point, then press Enter.
  • Success check: Both boundaries appear as two parallel purple lines, and after adding stitch angles they convert into a solid green stitch block (not a bow-tie twist).
  • If it still fails: Zoom to 200% and redo the start/end points so Side B truly matches Side A’s start and end.
• Q: In Generations Embroidery Software, what is the fastest pre-flight setup to prevent Side-By-Side Satin Tool failures (grid, zoom, and tool selection)?
  A: Use the same “engineering” setup every time: Side-By-Side Satin selected, grid at 12.5mm, and zoom at 200%+.
  • Action: Confirm the tool is Side-By-Side Satin (not Side-To-Side).
  • Action: Turn on the grid and set it to 12.5mm, then zoom to at least 200% before placing nodes.
  • Action: Measure widths with the Ruler tool (keyboard shortcut R) before generating stitches.
  • Success check: Nodes land precisely on the artwork edges without “guessy” placement, and satin generates cleanly on the first try.
  • If it still fails: Slow down node placement and re-measure the widest part to confirm it stays under the safe width.
• Q: In Generations Embroidery Software, why does a satin column show a clear “center split line” down the middle after generating stitches?
  A: The satin is too wide and exceeded the typical 9mm limit, so the software auto-splits it for safety.
  • Action: Select the satin object and squeeze it narrower using the side handles.
  • Action: Measure with the Ruler tool and aim for about 7–8mm (Holly’s example target is ~7.84mm).
  • Success check: The center split line disappears and the satin surface looks smooth and continuous.
  • If it still fails: Re-check the widest area of the shape (often curves/lobes) and narrow that section specifically before regenerating.
• Q: In Generations Embroidery Software, how do you digitize a satin heart with the Side-By-Side Satin Tool without the software refusing stitch angles?
  A: Trace the outer heart path clockwise and trace the inner heart path clockwise as well—direction must match for closed shapes.
  • Action: Trace the outer edge clockwise (use left-click for sharp points and right-click for smooth curves), then press Enter.
  • Action: Trace the inner edge clockwise in the same travel direction, then press Enter.
  • Action: Add stitch angle lines like spokes, then press Enter to generate stitches.
  • Success check: The software allows stitch angles normally and the result becomes a clean green satin fill with smooth flow around curves.
  • If it still fails: Delete the boundaries and redraw the inner path—most “refusal” cases come from reversing direction on the inner line.
• Q: In Generations Embroidery Software, what is the quickest way to fix choppy or jagged satin edges using the View Angle tool?
  A: Use View Angle to smooth the flow by adjusting green handles and removing conflicting red angle lines.
  • Action: Enable View Angle (next to View Outline) to display green points (handles) and red lines (angles).
  • Action: Drag green points to guide smoother flow through curves and transitions.
  • Action: Delete extra or conflicting red angle lines that cause abrupt direction changes.
  • Success check: The simulated stitch “sheen” looks smooth across the curve, and edges look less lumpy/jagged.
  • If it still fails: Revisit stitch angles placement and simplify—fewer, cleaner angle guides often stitch more cleanly.
• Q: What mechanical safety rule should home single-needle embroidery machines and commercial multi-needle machines follow for wide satin columns (9mm danger zone)?
  A: Do not force a satin column beyond the machine’s safe satin width (often around 9mm), because wide jumps can create loose loops, needle strikes, or jams.
  • Action: Measure the widest satin area in software before stitching, and redesign narrower if needed.
  • Action: Stop immediately if the machine produces loose loops/snags or sounds strained while attempting a wide satin.
  • Success check: Satin stitches run tight and controlled without long loose loops forming on top.
  • If it still fails: Check the specific machine manual for its maximum satin width and redesign the object to stay within that spec.
• Q: What are the key safety rules for magnetic embroidery hoops when hooping thick garments like hoodies for high-volume production?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Action: Keep fingers clear when closing the magnetic frame—let it clamp down in a controlled way.
  • Action: Keep magnets away from pacemakers and electronics in the workspace.
  • Success check: Fabric clamps evenly without a “tug of war,” and hooping is repeatable without finger pinches or sudden snaps.
  • If it still fails: Slow the closing motion and re-position the garment so the magnets meet flat and evenly (not corner-first).
• Q: For stitching 10–50 left-chest logos per week, how should users choose between standard hoops, magnetic hoops, and upgrading to a multi-needle embroidery machine?
  A: Use a tiered approach: optimize technique first, upgrade hooping tools second, and upgrade machine capacity last when volume makes hooping and color changes the bottleneck.
  • Action: Level 1 (Technique): Improve stabilization and hooping tension to reduce distortion, hoop burn, and slipping.
  • Action: Level 2 (Tool): Switch to magnetic hoops to clamp fabric evenly, reduce hoop burn, and speed hooping on thick garments.
  • Action: Level 3 (Capacity): Move to a multi-needle setup when weekly volume makes manual hooping and color changes the limiting factor.
  • Success check: Registration stays consistent (logos land in the same spot), hooping time drops, and rework from distortion/misalignment decreases.
  • If it still fails: Add an alignment routine (trace/check placement before stitching) and standardize your workflow so every garment is hooped and positioned the same way.
