Green Screw vs Purple Dot Brother Bobbin Case: The One Tiny Spring That Decides Your Tension (and Your Sanity)

If you have ever stared at your machine screen in horror because a design that looked perfect in software is currently stitching out with white bobbin thread exploding onto the top of your fabric, you know the feeling: Pure Panic.

Your brain immediately cycles through the "Catastrophe List": Did I break the timing? Is the tension unit dead? Do I need to pack this heavy machine up and drive two hours to a service center?

Take a deep breath. Stop looking up repair shop hours.

In 20 years of embroidery diagnostics, I have found that 90% of "broken tension" issues on Brother single-needle machines are not mechanical failures. They are expectation failures. You are asking a specific mechanical component to do a job it wasn't designed for, and it is silently screaming for help.

This guide is your translation manual. Based on expert teardowns of the hardware (like the excellent insights from Mel's embroidery lab) and reinforced with decades of production floor experience, we are going to demystify the two small metal cylinders that control your embroidery destiny: The Green Screw Case and The Purple Dot Case.

By the end of this guide, you will not only know which one to use; you will understand the physics of tension well enough to troubleshoot with your eyes closed.

The “Don’t Panic” Primer: What the Green Screw and Purple Dot Brother Bobbin Cases Really Are

In the world of Brother embroidery, the bobbin case is the "Gatekeeper." It applies a precise amount of drag (friction) to the bobbin thread. If that drag is too weak, the strong top thread pulls the bobbin thread right up to the surface (the dreaded "white lice" look). If it's too strong, the bobbin thread snaps or pulls the top thread underneath, causing puckering.

Confusion arises because dealers often oversimplify the advice. Let's look at the hardware reality.

Visual Identification

Before you touch a screwdriver or change a setting, verify what is currently sitting in your machine:

• The Green Screw Case: Look at the flat-head screw on the side. It has a dab of green paint (impervious to oil). This is the Standard/Factory case.
• The Purple Dot Case: Look inside the hollow black plastic shell. You will see a distinct purple dot marking. This is the High-Tension/Adjustable case.

If you are operating a brother embroidery machine and fighting tension ghosts, your first diagnostic step isn't to turn dials—it is to identify which Gatekeeper is currently on duty.

The “Hidden” Prep Pros Use: Set Yourself Up So You Don’t Lose Screws (or Your Weekend)

Embroidery machines are precision instruments, not lawnmowers. The screws inside a bobbin case are smaller than a grain of rice. If you decide to inspect or clean one, and a component bounces onto a shag carpet, your machine is down for a week until a replacement part arrives.

Mel's video shows a complete teardown to explain the mechanics. However, as your Safety Officer, I must clarify: You do not need to disassemble your bobbin case to fix tension. In fact, you shouldn't unless you are trained.

But you do need to handle these cases during swaps and cleaning. Here is the "Surgeon's Prep" to ensure zero accidents.

Required "Hidden" Consumables

Most manuals forget to tell you what you actually need on your desk:

1. Canned Air or a Soft Brush: To remove lint before swapping cases.
2. A Magnetic Dish or Tray: To hold the spare case.
3. White Paper Towel: Work over this. If a screw falls, it won't bounce, and high contrast makes it visible.

Warning (Mechanical Safety): Never use a knife or sharp blade to clear lint from the bobbin case or tension spring. A microscopic scratch on the metal tension plate creates a "burr" that will shred thread instantly. Use only wooden toothpicks, plastic tools, or soft brushes.

Prep Checklist: The "Zero-Risk" Swap Protocol

Before you even remove the needle plate cover:

• Power Off: Electrical spikes can occur if you drop a screwdriver into the bobbin area while the machine is on.
• Surface Prep: Lay down your white towel or paper under the needle area.
• Lint Check: Use your brush to clear the cutter area. Accumulated lint prevents the bobbin case from seating flat (a major cause of "birdnesting").
• Visual Orientation: Take a photo of how the case sits before you pull it out. Specifically, look at where the "stopper" tabs align.


Inside the Green Screw Bobbin Case: Factory-Set Tension, Loctite, and a “Hands Off” Logic

Why is there green paint on the screw? It is not just for decoration.

In engineering terms, that paint (often Loctite or similar) classifies the component as "Tamper-Resistant." The manufacturer has set this tension using precise digital gauges at the factory.

The Physics of the "Green" Setting

This case is calibrated for Standard 60wt Bobbin Thread.

• Tension Rating: Approx. 100g - 120g (Standard Sewing/Light Embroidery).
• Behavior: It applies moderate resistance.

It is designed as the "Golden Mean"—it works okay for regular sewing thread and okay for standard embroidery thread. It is the "Jack of all trades." If you own a combo machine (sewing + embroidery), this is likely the default case installed because it allows you to switch modes without changing hardware.

The limitation: Because it relies on a simple screw-against-plate friction mechanism (without complex internal springs), loosening it too much can cause the screw to vibrate out. Tightening it too much can strip the plastic threads. It is meant to be left alone.

The Purple Dot Bobbin Case Reveal: The "Secret Weapon" for Embroidery

When you buy a specialized embroidery package or a higher-end machine, you often find the Purple Dot Case included as an accessory. Many users leave it in the plastic bag for years, unaware that it is the solution to their headache.

Visually, the shell is identical. The tension plate looks identical. But inside, there is a ghost in the machine.

The One-Part Difference That Matters: The Purple Dot Tension Spring

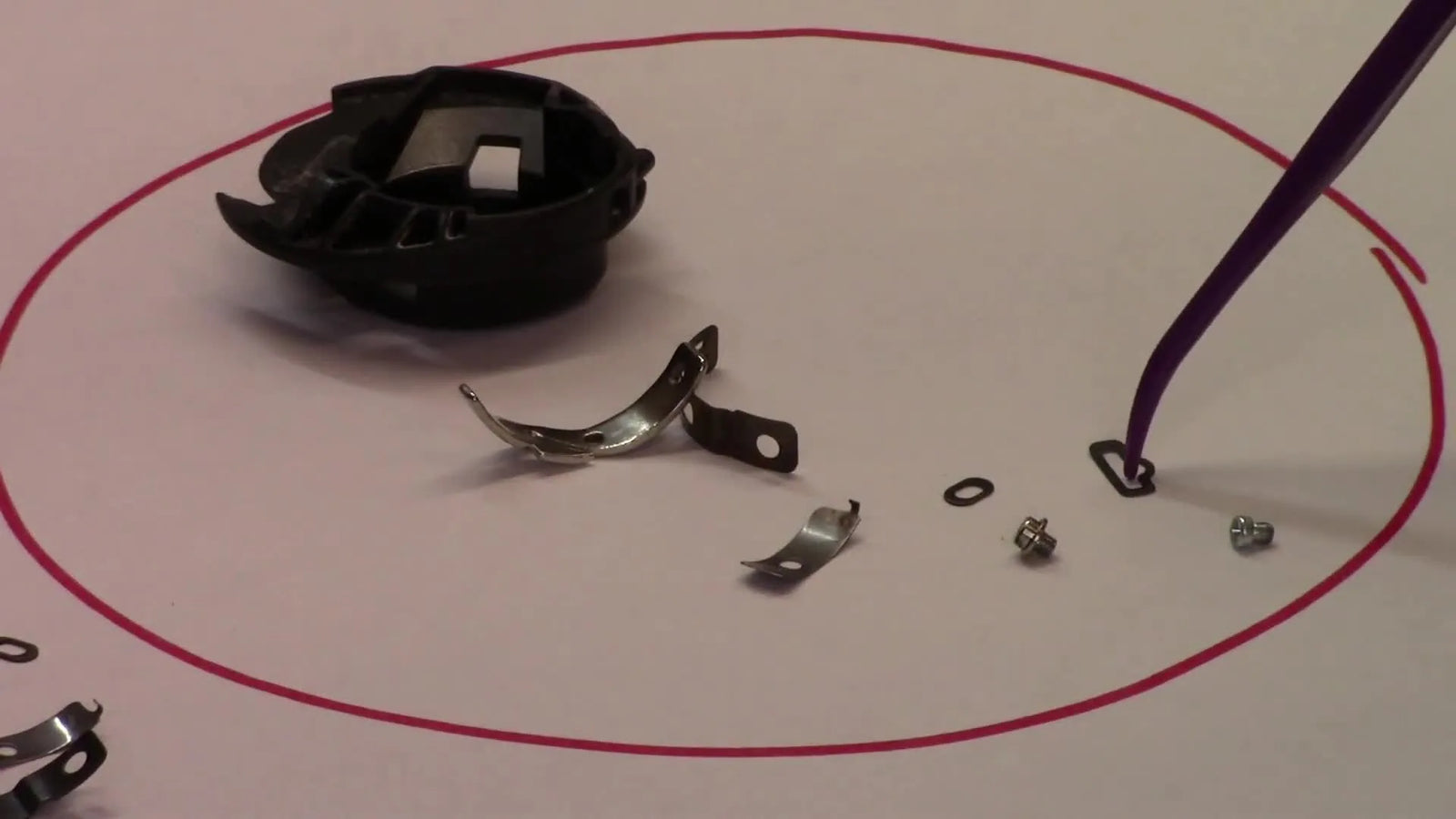

Mel’s teardown reveals the critical engineering difference: The Internal Spring.

The Purple Dot case (and the specialized Gray "Bobbin Work" case) contains a small, reactive metal spring behind the tension screw. The Green Screw case does not.

Why does the spring matter?

1. Tunability: The spring provides "push-back" against the screw. This allows you to tighten or loosen the tension with much finer control (micro-adjustments).
2. Stability: The spring pressure prevents the screw from vibrating loose during high-speed stitching (800+ SPM).
3. Range: It allows the case to clamp down much harder on the thread without damaging the thread itself.

This makes the Purple Dot case a Professional Grade component compared to the "Consumer Grade" Green Screw case.

60wt vs 90wt Bobbin Thread: The "Rope vs. Wire" Analogy

To understand why we swap cases, we must understand the thread.

• 60wt Thread (Standard): Thicker. Like a climbing rope. It creates friction easily just by passing through the slot. The Green Case handles this well.
• 90wt Thread (Pre-wound/Commercial): Thinner. Like a piano wire. It is slippery and takes up less space.

If you put thin, slippery 90wt thread into a loose Green Screw case, it will slide through with almost zero resistance. Result: The top thread pulls the bobbin thread up. White loops everywhere.

The Dealer's Myth vs. Reality

Dealers often tell beginners: "Green is for Sewing, Purple is for Embroidery." This is a "White Lie" for safety. Technically, you can embroider with the Green case if you use thick bobbin thread. But dealers know that most pre-wound embroidery bobbins are thin (90wt). Therefore, telling you to "use Purple for embroidery" is the easiest way to ensure you have enough tension for those thin commercial bobbins.

The Fix That Stops Bobbin Thread from Showing on Top: When to Swap

Here is the scenario: You are stitching a navy blue name on a white shirt. The satin stitches look "salt and peppered" with white specks.

Do NOT touch the top tension dial yet. Top tension is rarely the culprit if it was working yesterday.

The "Drop Test" (Sensory Calibration)

Before you start stitching, perform this tactile test to check your bobbin tension:

1. Insert the bobbin into the case.
2. Hold the thread end, letting the case hang down (over a soft surface like a bed/sofa).
3. The Test: Gently jerk your wrist once, like a yo-yo.
   • Too Loose (Green/Weak): The case falls instantly to the floor. (Resistance is futile).
   • The Sweet Spot (Purple/Stitch-Ready): The case drops 2-3 inches and stops. It feels "braked."
   • Too Tight: The case doesn't move at all, even with a hard jerk.

If you fail the Drop Test with the Green case, swap to the Purple Dot case. It is calibrated from the factory to grip tighter (~150g tension compared to the Green's ~110g), which perfectly counterbalances the strong pull of the top thread during embroidery.

What to Expect After the Swap

• Immediate Improvement: The extra drag on the bobbin holds it down on the underside of the fabric.
• The "H" Column: Look at the back of a satin column. Ideally, you want to see 1/3 white (bobbin) in the center, and 1/3 color (top thread) wrapping around each side. The Purple case makes this ratio much easier to achieve.


The "System" View: It’s Not Just the Bobbin (The Commercial Reality)

If swapping the case fixes 80% of the problem, the other 20% comes from the Physical Environment, specifically how your fabric is behaving.

Tension requires resistance. If your fabric is loose, bouncy, or "flagging" (lifting up with the needle), the machine cannot form a tight knot, no matter which bobbin case you use.

The Hooping Pain Point

Many users blame their tension when the real culprit is a loose hoop. But I understand the struggle—traditional hoops are hard to use. Tightening that screw requires grip strength, and pushing the inner ring can cause "hoop burn" (permanent friction marks) on delicate velvet or performance polos.

If you are struggling with hooping for embroidery machine technique—especially on slippery knits—your tension will never be consistent because the canvas itself is moving.

The Professional Solution: The Magnetic Ecosystem

When I manage production floors, we don't rely on wrist strength. We rely on physics. Upgrading to a brother magnetic embroidery hoop changes the tension game entirely.

1. Uniform Grip: Magnets clamp the fabric with even pressure all the way around—no "loose corners."
2. No Friction: Because you aren't shoving a ring inside a ring, you eliminate hoop burn.
3. Speed: You can hoop a shirt in 5 seconds versus 30 seconds.

If you own a standard machine, specifically check for model-compatible options like a brother se1900 magnetic hoop or a brother pe800 magnetic hoop. These are often the "unlock" that allows intermediate hobbyists to achieve commercial-looking flatness in their embroidery.

Warning (Magnetic Safety): Commercial-grade magnetic hoops are extremely powerful.
* Pinch Hazard: They can snap together with enough force to bruise fingers or break nails. Handle the top/bottom frames separately.
* Medical Devices: Keep strong magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on top of your laptop or LED screens.

Decision Tree: The "30-Second Diagnostic"

Stop guessing. Follow this logic path when you see tension issues.

START: White Bobbin Thread is Visible on Top of Design.

1. Check Physical Path:
   • Is the top thread seated in the tension disks? (Rethread with presser foot UP).
   • Is there lint under the bobbin case? (Clean it).
   • If yes, fix and test. If problem persists -> Go to 2.
2. Check Hardware:
   • Which case is installed?
   • If Green: SWAP TO PURPLE DOT. This is 90% likely to be your fix.
   • If Purple: Perform the "Drop Test." Is it too loose?
   • If yes, adjust screw. Think of the screw as a clock face. Turn it only 15 minutes (righty-tighty) at a time. Test.
3. Check Stability:
   • Is the fabric lifting?
   • If yes: Re-hoop tight (drum skin tight). Consider using a hooping station for embroidery to ensure consistent, tight hooping without the struggle.

Setup Habits That Prevent "Tension Drama"

The specific bobbin case matters, but your daily habits preserve the machine's precision.

1. The "Click" Audit (Auditory): When you put the bobbin into the machine (top load), listen. It doesn't "click" like a front-loader, but the thread must "snap" into the tension guide. If you don't feel that tiny resistance when pulling the tail, you aren't in the tension slot.
2. The Needle Rule: A dull needle punches the fabric rather than piercing it, causing the fabric to deflect and mess up tension. Change your needle every 8 hours of stitching or every new project. Organ 75/11 is the universal "safe" choice for standard embroidery.
3. Spray & Pray? No. Use temporary adhesive spray lightly. If your needle gets gummy, tension goes haywire.

Setup Checklist (Pre-Flight)

• Hardware: Purple Dot Case installed (for embroidery).
• Consumables: Fresh Needle (75/11) confirmed secure.
• Bobbin: Wound evenly (spongy bobbins = bad tension).
• Threading: Presser foot was UP during threading.
• Hooping: Fabric is taut; using magnetic hoop if available for consistency.

Operation: What to Watch While It Stitches

Do not walk away during the first color. The machine tells you everything in the first 60 seconds.

Sensory Cues:

• Sound: A rhythmic "thump-thump" is good. A grinding noise or a "slap" sound usually means the thread has jumped out of the take-up lever.
• Sight: Watch the thread flowing off the spool. Is it catching on a nick in the spool cap?

Operation Checklist (The First Minute)

• Top Check: Are loops forming? (Stop Immediately).
• Sound Check: Is the sound smooth and rhythmic?
• Tail Check: Did the machine trim the start tail, or do you need to snip it so it doesn't get sewn in?

Quick Troubleshooting Table

The Upgrade Path: When Tools Beat Tweaking

Sometimes, the limitation isn't you—it's the equipment.

If you are a hobbyist doing one towel a week, the Purple Dot Case + careful hooping is your answer.

But if you are running a small business, "tweaking" is the enemy of profit.

• The Bottleneck: If you spend 5 minutes hooping a shirt to avoid burns, and another 5 minutes trimming jump stitches on a single-needle machine, you are losing money.
• The Unlock: This is why professionals obsess over tools.
  • Magnetic Hoops remove the physical strain and variability of hooping.
  • Multi-Needle Machines (like the brother pr680w or SEWTECH commercial models): These machines use a fundamentally different bobbin system (Vertical Rotary Hook) that is far more stable, holds tension better at high speeds, and doesn't require constant case-swapping.

Final Verdict: Treat your bobbin case with respect. It is a calibrated instrument.

1. Use the Green Screw case for Sewing (60wt thread).
2. Use the Purple Dot case for Embroidery (90wt thread).
3. If you are still struggling, stop fighting the thread and look at your Hoop.

By controlling these variables, you move from "Hope Embroidery" to "Precision Embroidery." Now, go make something beautiful.

FAQ

• Q: How do I identify the Brother Green Screw bobbin case vs the Brother Purple Dot bobbin case before changing tension settings?
  A: Identify the bobbin case first—most “tension problems” start with the wrong case installed, not a broken machine.
  • Look for the green paint dab on the flat-head screw: this is the Brother standard/factory Green Screw bobbin case.
  • Look inside the black plastic shell for a purple dot: this is the Brother high-tension/adjustable Purple Dot bobbin case.
  • Clean lint off the area before swapping so the case seats flat.
  • Success check: after reinstalling, the bobbin case sits flush and stable (no rocking), and the thread tail “snaps” into the tension guide when pulled.
  • If it still fails: re-check for lint under the case and rethread the top thread with the presser foot up.
• Q: What is the fastest fix when white bobbin thread shows on top on a Brother single-needle embroidery machine?
  A: Swap to the Brother Purple Dot bobbin case before touching the top tension dial.
  • Verify the machine is threaded correctly (rethread with the presser foot UP so the thread seats in the tension disks).
  • Remove lint around the bobbin area so the bobbin case can seat properly.
  • Install the Purple Dot bobbin case, then run a short test stitch-out.
  • Success check: on the back of a satin column, the bobbin thread forms a centered “H” look (about 1/3 bobbin showing in the middle, with top thread wrapping the sides).
  • If it still fails: perform the bobbin case Drop Test to confirm the bobbin tension is not too loose.
• Q: How do I do the Brother bobbin case “Drop Test” to judge bobbin tension before an embroidery stitch-out?
  A: Use the Drop Test to feel bobbin drag—this quickly tells whether the bobbin tension is too loose, stitch-ready, or too tight.
  • Insert the bobbin into the bobbin case and hold the thread tail so the case can hang over a soft surface.
  • Jerk your wrist once like a yo-yo.
  • Interpret the result: falls instantly = too loose; drops 2–3 inches and stops = stitch-ready; doesn’t move = too tight.
  • Success check: the case drops a short distance and stops with a “braked” feeling.
  • If it still fails: if using the Purple Dot case and it feels too loose, tighten the screw in very small increments (about 15 minutes on a clock face), then retest.
• Q: What prep items should I set up before swapping a Brother bobbin case so I don’t lose screws or cause downtime?
  A: Set up a “zero-risk swap station” so small parts don’t disappear and the bobbin case seats correctly.
  • Power off the Brother machine before opening the needle plate area.
  • Lay a white paper towel under the needle area to stop tiny parts from bouncing and make them easy to see.
  • Use canned air or a soft brush to remove lint before swapping cases.
  • Use a magnetic dish/tray to hold the spare bobbin case safely.
  • Success check: the swap is completed with no dropped parts, and the bobbin area is visibly lint-free before stitching.
  • If it still fails: take a photo of the bobbin case orientation and confirm the stopper tabs align the same way when reinstalling.
• Q: Is it safe to scrape lint out of a Brother bobbin case with a knife or metal pick during tension troubleshooting?
  A: Do not use sharp metal tools—use a soft brush or a wooden/plastic tool to avoid damaging the tension surfaces.
  • Brush lint away from the bobbin case and surrounding area instead of scraping.
  • Use a wooden toothpick or plastic tool if you must lift packed lint.
  • Avoid touching or scratching the metal tension plate/tension spring area.
  • Success check: the bobbin thread pulls smoothly through the slot without catching or shredding.
  • If it still fails: stop and inspect for thread shredding or rough spots; consider replacing the bobbin case rather than digging deeper.
• Q: What magnetic hoop safety rules should Brother magnetic embroidery hoop users follow to avoid finger injuries and device damage?
  A: Treat magnetic hoops as high-force tools—handle top and bottom frames separately and keep magnets away from medical devices and electronics.
  • Separate the top and bottom frames before positioning fabric to prevent sudden snapping.
  • Keep fingers clear of closing edges to prevent pinching/bruising.
  • Keep strong magnets at least 6 inches away from pacemakers or insulin pumps.
  • Do not place magnetic hoops directly on laptops or LED screens.
  • Success check: the hoop closes under control (no snap impact), and fabric is uniformly clamped with no loose corners.
  • If it still fails: if hooping is still inconsistent, slow down the process and re-seat the fabric—uniform grip matters more than force.
• Q: If Brother embroidery tension problems keep coming back on stretchy or slippery fabric, what is the step-by-step upgrade path from technique to magnetic hoops to multi-needle machines?
  A: Fix the process first, then upgrade tools—recurring issues often come from unstable fabric (flagging), not just thread tension.
  • Level 1 (technique): re-hoop “drum-skin tight,” add stabilizer, and rethread with presser foot up; change to a fresh embroidery needle regularly.
  • Level 2 (tool): use a magnetic embroidery hoop to clamp fabric evenly and reduce hoop burn and loose corners.
  • Level 3 (capacity/stability): if production speed and repeatability matter, consider a multi-needle system with a more stable commercial-style bobbin/hook setup rather than constant tweaking.
  • Success check: the first minute of stitching runs smoothly (no loops forming, no grinding/slapping sounds), and the design stays flat without puckering.
  • If it still fails: stop blaming the top tension dial—re-check fabric flagging, hoop tightness, and bobbin case seating/cleanliness before any deeper mechanical assumptions.
