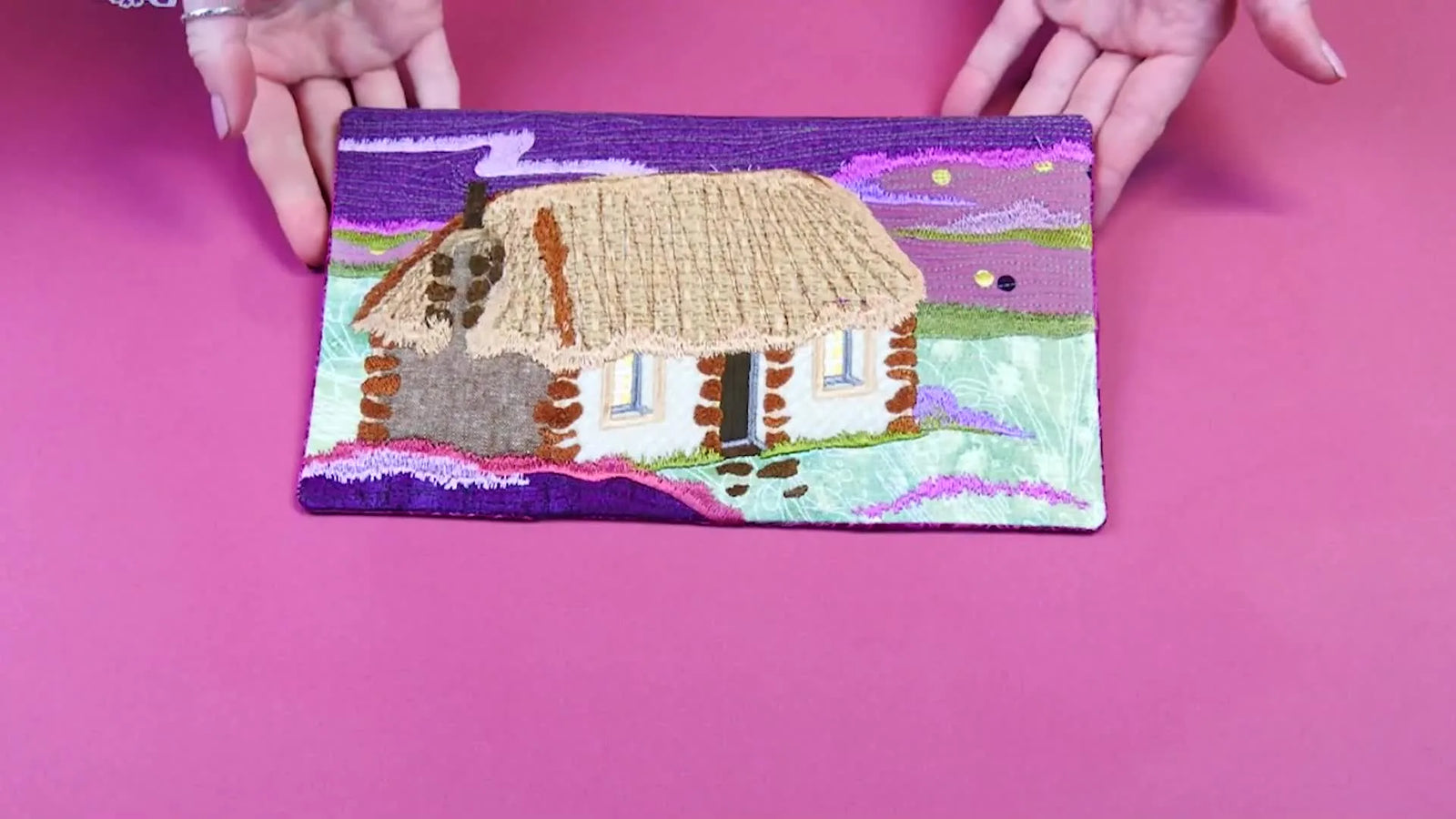

Highland Cottage ITH Mug Rug: The No-Bulk Appliqué Workflow (and the 2 Spots Most People Mess Up)

You are not alone if an ITH (In-The-Hoop) mug rug feels “easy… until it suddenly isn’t.” Theoretically, it’s a simple specific sequence. In reality, this Highland Cottage project acts as a stress test for your precision. It is a deceptively calm design that hides a rigorous stop-and-trim workflow: multiple fabric placements, critical blind turns, and one final perimeter seam that can either look professionally sharp or puffy and uneven.

What follows is the same build shown in the video, but reconstructed as a shop-floor standard operating procedure (SOP). We are moving beyond "hope for the best" and into engineering your success with clear checkpoints, expected sensory feedback, and the small habits that keep your corners crisp and your seam allowances flat.

The Hook-Butterflies Moment: Why This ITH Mug Rug Feels Tricky (and Why You’re Still Fine)

If you are midway through the Highland Cottage mug rug and get that sinking feeling that something “doesn’t seem to stitch where it should,” take a breath. In the comments of similar tutorials, newer embroiderers often report confusing moments where stitching appears to land on wadding/batting instead of catching the intended fabric piece.

This usually happens because of "Drift"—the cumulative error of millimeters. Two realities can be true at once:

1. The File Logic: ITH files alternate between placement lines (where to put it), tack-down lines (securing it), and detail stitching. If you miss the placement line by 2mm, the tack-down might miss the edge entirely.
2. The Physical Reality: Fabric is fluid. It shifts, stretches, and frays.

If you are stitching in a smaller workspace, such as a brother 5x7 hoop, your margin for error is razor-thin. A 3mm shift in a 5x7 hoop is a catastrophe; the same shift in a larger hoop is often forgiving. Therefore, your “coverage discipline”—making sure each fabric piece extends at least 5mm past the placement line—is your primary safety net.

The Hidden Prep Pros Do First: Stabilizer + Batting Choices That Prevent Puffy Seams

The video correctly starts with medium weight cutaway stabilizer hooped, followed by batting placement.

Why Cutaway? Never use tearaway for an ITH mug rug. When you turn the project inside out at the end, the stress on the seams is immense. Tearaway will disintegrate, leaving your corners weak. Cutaway provides the permanent skeleton the project needs.

The "Quilt Sandwich" Principle: You are building a quilt inside the hoop. Every extra millimeter of batting left near the perimeter seam becomes "bulk" that fights you during the final pressing.

Stabilizer + batting workflow (The "Zero-Bulk" Method)

1. Hoop the Stabilizer: Hoop your medium weight cutaway stabilizer drum-tight. Tap it—it should sound like a taut drumskin, not a dull thud.
2. Run Stitch 1: Stitch the batting placement line.
3. Place Batting: Float the batting over the line.
4. Run Stitch 2: Stitch to secure the batting.
5. The Critical Trim: Trim the batting 1–2 mm away from the stitching line.
   • Sensory Check: You should feel your curved appliqué scissors sliding flat against the fabric. Do not cut into the stitches, but get as close as you safely can.

Expected Outcome: The batting ends exactly where the design begins. There is no "fuzzy overhang" that will get trapped in the final seam allowance, ensuring your edges remain thin and crisp.

Warning: Curved appliqué scissors are sharp instruments of precision, but they are also dangerous. Keep the lower blade flat (parallel) to the stabilizer. Angle the tip up slightly. One accidental snip through the stabilizer can ruin the hoop tension instantly.

Prep Checklist (Do not proceed until checked)

• Hoop Tension: Stabilizer is smooth with no ripples; sounds taut when tapped.
• Batting Trim: Batting is cut 1-2mm from the stitch line; no bulk in the seam allowance.
• Tools Staged: Curved appliqué scissors, straight rotary cutter, and a stylus/pointer tool are within arm's reach.
• Hidden Consumables: You have temporary spray adhesive (like Odif 505) or embroidery tape ready for the floating stages.


The “Don’t Trim the Outside Yet” Rule: Background Appliqué That Leaves You Seam Allowance to Work With

After the batting is secured, the design runs an outline stitch to show where the background fabric goes. Here is where beginners often panic and over-trim.

Background placement (The "Safety Margin" Sequence)

1. Run the outline/placement stitch on the batting.
2. Place the background fabric strip over the lines. Ensure it covers the side and bottom perimeter completely.
3. Stitch the tack-down.
4. Selective Trimming: Trim only the top edge of that fabric (where it meets the sky/hill).
5. LEAVE THE OUTSIDE EDGES ALONE.

Expected Outcome: The internal seam (the horizon line) is clean and shaped, but the outer edges look "messy" and extend beyond the batting. This is correct. This excess fabric is your Seam Allowance. If you trim it now, your mug rug will fall apart when you try to sew it shut later.

Raw-Edge Appliqué Layering in an ITH File: The Placement–Tack–Trim Rhythm That Stops Fabric Drift

From here, the project enters the "Appliqué Rhythm": Sky -> Hills -> Foreground.

• Step A: Placement Stitch. (Shows you where to go).
• Step B: Coverage. (Place fabric).
• Step C: Tack-down Stitch. (Locks it in).
• Step D: Trim. (Cuts away excess).
  The video calls out a key habit: verify coverage before stitching.

The “Coverage Discipline” Checkpoint

Before you press the "Start" button for any tack-down stitch, perform the "Shadow Test":

1. Look closely at the fabric you just placed.
2. Can you see the placement stitches underneath?
3. Does the fabric extend at least 5mm (1/4 inch) past the line on all sides?

If you are learning proper hooping for embroidery machine technique, you catch mistakes before the needle moves. Coverage discipline prevents the "Step 17 Panic" where a detail stitch lands on empty stabilizer because the fabric shifted 2mm to the left.

Loosely Woven Fabric + Appliqué: Stabilize It Before It Pulls Away From Stitching

The tutorial specifically warns about using loosely woven fabrics (like linens or loose cottons). These fabrics are unstable; under the tension of a satin stitch, the fibers pull apart, causing the fabric to "retreat" from the stitch line.

The Fix: Fusible Interfacing. Apply a light-to-medium weight iron-on interfacing (like Shape-Flex) to the back of your appliqué fabric before you cut it to size.

Why it works (Shop Physics): The interfacing glues the fibers together, creating a solid substrate. When the needle penetrates, the fabric cannot distort or fray. This transforms a "difficult" fabric into a stable, paper-like material that is easy to cut and stitch.

Expected Outcome: Razor-sharp raw edges after trimming, with zero "hairy" threads poking out from the satin stitching.

The Stylus Trick Near the Needle: Control Tiny Appliqué Pieces Without Risking Your Fingers

The video demonstrates using a stylus tool to hold fabric in place while stitching. This is mandatory safety protocol in professional shops.

When working with small pieces, your fingers want to get close to the needle to prevent the foot from pushing the fabric. Do not do this. The presser foot can lift, travel, and slam down faster than your reaction time.

Warning: Needle Strike Hazard. Never place your fingers inside the "Red Zone" (within 1 inch of the needle bar). Use a dedicated stylus, a chopstick, or the eraser end of a pencil to hold fabric corners down. If a needle breaks while your hand is close, metal shards can fly into your skin or eyes.

Hessian/Burlap Roof Texture: How to Get the “Thatched” Look Without See-Through Gaps

This is the signature moment of the design: the roof uses hessian (burlap) for tactile texture. However, burlap is full of holes. If you place it directly on white batting, it looks cheap and muddy.

Roof layering (The "under-layer" technique)

1. Base Layer: Place a solid woven fabric (like Calico or a matching tan cotton) first. This provides the color.
2. Texture Layer: Place the Hessian/Burlap on top.
3. Stitch: The machine runs a wide satin stitch or motif fill that encapsulates the messy burlap edge.

Expected Outcome: A roof that looks dimensional and rustic, but solid. The color is consistent, and the loose burlap threads are trapped permanently under the satin stitching.

If you produce these items in volume, handling thick, textured layers is where magnetic embroidery hoops shine. Unlike screw-tightened hoops that struggle to clamp over variable thickness (like burlap + quilting cotton), magnetic systems self-adjust to hold the sandwich firmly without distorting the background fabric.

The Backing Fabric Moment: Right Sides Together, No Fullness, and a Turning Gap You Can Actually Close

Once the cottage scene is complete, the backing goes on. This is the "Point of No Return."

Backing attachment (Critical Failure Point)

1. Placement: Place the backing fabric Right Sides Together (RST) on top of the hoop. The pretty side of the backing should face the pretty side of your cottage.
2. Smooth: Smooth it out from the center to the edges.
3. Tape: Tape the corners securely to the stabilizer.

Sensory Check: Gently run your flat hand over the backing. If you feel a "bubble" or loose air pocket in the center, you have "Fullness". If you stitch now, that bubble will become a permanent crease or pucker on the back of your rug. It must be perfectly flat.

Setup Checklist (Before the Final Perimeter Run)

• Orientation: Backing is RST (Right Sides Together).
• Tension: Backing is smooth with zero trapped slack or ripples.
• Clearance: Verify the turning gap opening on the screen (usually on the side).
• Hardware: Remove all pins. A needle hitting a pin can throw the timing of your machine. Use tape instead.


Trimming Like a Quilter, Not Like a Crafter: 1/4" Seam Allowance (and the 1/2" Tab That Saves You)

After stitching the perimeter, remove the project from the hoop. Do not use scissors for the long straight cuts; they are too inconsistent. Use a rotary cutter and an acrylic ruler.

Trimming measurements

• Standard Sides: Trim to 1/4 inch (6mm) seam allowance.
• The Turning Gap: Identify the opening. Leave a wider 1/2 inch to 3/4 inch tab of fabric here.
• Corners: Clip the corners at a 45-degree angle. Get close to the stitch (about 2mm away) but do not cut the knot.

Why the Tab? That extra fabric at the opening naturally folds inward when you turn the rug right side out, making it effortless to close firmly. Without it, you are fighting to tuck in a tiny fraying edge.

Expected Outcome: A tidy rectangle with clear corner clips and a visible "flap" at the opening.

Crisp Corners Aren’t Luck: Turning, “Scrunching,” and Using a Point Turner the Right Way

Turning a stiff ITH project feels like turning a stiff cardboard box inside out. Be patient.

Corner-forming workflow

1. Turn: Turn the mug rug right side out through the opening.
2. Roll: Roll the seams between your thumb and fingers to break the stiffness of the stabilizer.
3. Poke: Insert a Point Turner (or a chopstick, never scissors) into the corners.
4. Push: Push gently against the seam allowance—not the stitch itself.

Diagnostic: If your corners look "blobby" or rounded, you did not clip enough bulk away in the previous step, or you haven't pushed hard enough with the tool. They should be 90-degree angles.

Pressing + Invisible Closing: Steam It Flat, Then Slip Stitch So It Looks Machine-Finished

The project will look "puffy" right now. It needs heat to set the memory of the fibers.

Pressing and closing

1. Steam: Steam press the rug flat. Use plenty of steam to relax the stabilizer and batting.
2. Gap Management: Fold the raw edges of the opening inward using that extra tab you left. Press this fold with the iron so it stays shut.
3. Ladder Stitch: Close the opening with a hand-sewn slip stitch (ladder stitch).

While you can use fusible web tape (like Stitch Witchery), a ladder stitch is superior for longevity. It is invisible and moves with the fabric.

Expected Outcome: You cannot tell where the opening was. The edge looks continuous.

The Comment-Section Fix for “It Didn’t Catch My Fabric”: What to Check Before You Unpick Anything

A viewer asked why a later step stitched on the wadding but missed the fabric piece. This is the classic "Drift" we discussed in the beginning.

Troubleshooting Matrix (Low Cost to High Cost):

If you are consistently struggling with fabric slipping in standard hoops, or if you find yourself needing more area to stabilize your work, upgrading to an embroidery machine 6x10 hoop can provide the extra real estate needed to float fabrics safely without crowding the edges.

Decision Tree: Fabric Type → Stabilizer/Support Choice for Cleaner Appliqué and Flatter Mug Rugs

Use this logic flow to make decisions before you cut your first piece of fabric.

1) Is your appliqué fabric loosely woven (Linen, Burlap, Loose Cotton)?

• YES: Apply Fusible Interfacing to back of fabric + Cutaway Stabilizer in hoop.
• NO: Standard Cutaway Stabilizer is sufficient.

2) Are you using Hessian/Burlap for a visual element (Roof/Ground)?

• YES: You MUST use an under-layer (Calico/Cotton) to block transparency.
• NO: Single layer is fine.

3) Is this a display piece or a daily-use coaster?

• DISPLAY: You can use lighter fusible fleece for a flatter look.
• DAILY USE: Adhere to the Medium Weight Batting instructions for absorbency and durability.

The Upgrade Path That Actually Makes Sense: When Magnetic Hoops Save Time (and When They Don’t)

This project highlights a specific embroidery pain point: the fatigue of precision. You are constantly stopping, placing, smoothing, and trimming.

If you are making one mug rug for a grandmother, your standard hoop is adequate. However, if you are moving into production—making 20 of these for a craft fair or holiday gifts—the standard hoop becomes a bottleneck. The constant screwing, unscrewing, and wrestling with thick layers (stabilizer + batting + fabric + backing) causes "Hoop Burn" on the fabric and physical strain on your wrists.

Efficiency Upgrade Logic:

• Level 1 (Technique): Use spray adhesive and floating techniques to minimize hooping.
• Level 2 (Tooling): Switch to an embroidery magnetic hoop. These clamp fabric instantly without screws, eliminating hoop burn and handling thick ITH sandwiches effortlessly.
• Level 3 (Workflow): If you are running a multi-needle machine or serious production, a magnetic hooping station ensures every single rug is hooped square and identical, cutting your setup time by 50%.

Professionals often invest in a hooping station for machine embroidery not just for speed, but for consistency. It turns the "art" of hooping into a repeatable manufacturing step.

Warning: Magnetic Safety. High-quality magnetic hoops use industrial N52 neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They will snap together with crushing force. Keep fingers clear.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place phones or credit cards directly on the magnets.

Operation Checklist (Final Quality Control)

• Flatness: The rug lies perfectly flat on the table (no curling corners).
• Closure: The turning gap is sealed invisibly; no raw edges poking out.
• Texture: The burlap/hessian is fully trapped under the satin stitch; no fraying edges.
• Cleanliness: All jump stitches are trimmed; no stabilizer visible on the front.

FAQ

• Q: Why does an ITH Highland Cottage mug rug stitch land on batting/wadding instead of catching the appliqué fabric piece?
  A: This is usually cumulative “drift” plus not enough fabric coverage, and it is common—fix it by increasing coverage before the tack-down stitch runs.
  • Re-place the appliqué fabric so it extends at least 5 mm (1/4 in) past the placement line on all sides.
  • Run the “Shadow Test”: confirm the placement stitches are fully hidden under the fabric before pressing Start.
  • Secure floating layers with temporary spray adhesive or embroidery tape so the fabric cannot walk during stitching.
  • Success check: after tack-down, the stitch line sits fully on fabric with no exposed batting at the edge.
  • If it still fails: check for hoop loosening or a hoop bump that shifted the whole project.
• Q: How can a Brother 5x7 hoop workspace cause placement drift problems on an ITH Highland Cottage mug rug?
  A: A smaller Brother 5x7 hoop leaves less margin for error, so tiny placement shifts become visible misses—use stricter coverage discipline and stabilization.
  • Oversize every fabric piece so it clears the placement line by at least 5 mm all around.
  • Smooth and secure each fabric placement before sewing any tack-down line.
  • Avoid crowding the hoop edge when floating layers; keep fabric fully supported and taped where needed.
  • Success check: the tack-down and detail stitches consistently land inside the fabric field, not on stabilizer/batting.
  • If it still fails: consider moving the project to a larger hoop size when available to gain more working margin.
• Q: What is the correct hoop tension standard for medium weight cutaway stabilizer on an ITH mug rug?
  A: Hoop medium weight cutaway stabilizer drum-tight before stitch 1 to prevent slack-driven puckers and shifting.
  • Tighten and smooth the stabilizer until there are no ripples anywhere in the hoop.
  • Tap the hooped stabilizer to verify it sounds like a taut drumskin (not a dull thud).
  • Stage tools (curved appliqué scissors, stylus/pointer, tape/spray) so the hoop is not disturbed mid-run.
  • Success check: the surface stays smooth and tight from start to finish with no new waves forming during stitching.
  • If it still fails: re-hoop and inspect for any accidental snips or damage that can destroy hoop tension.
• Q: Why should medium weight cutaway stabilizer be used instead of tearaway stabilizer for an ITH Highland Cottage mug rug?
  A: Do not use tearaway for an ITH mug rug—the turning and seam stress can make tearaway disintegrate, while cutaway provides permanent support.
  • Hoop medium weight cutaway stabilizer as the project “skeleton” before adding batting.
  • Follow the trim-close workflow so the final perimeter seam is supported during turning and pressing.
  • Keep the stabilizer intact while trimming; avoid nicking it with scissors.
  • Success check: corners and perimeter seams stay strong after turning right side out and steaming flat.
  • If it still fails: check whether the stabilizer was accidentally cut, weakened, or not hooped tightly enough.
• Q: How close should batting be trimmed on an ITH Highland Cottage mug rug to prevent puffy seams?
  A: Trim batting 1–2 mm away from the stitching line after it is secured to remove bulk from the seam allowance.
  • Stitch the batting placement line, place batting, then stitch the securing line.
  • Trim batting 1–2 mm away from the stitched outline (close, but never into the stitches).
  • Keep the lower blade of curved appliqué scissors flat against the surface for control.
  • Success check: there is no fuzzy batting overhang near the perimeter; edges feel thin rather than bulky.
  • If it still fails: re-check whether any batting was left extending into the final perimeter seam area.
• Q: What is the safety rule for holding appliqué pieces near the needle during ITH embroidery using a stylus tool?
  A: Never place fingers within 1 inch of the needle bar—use a stylus (or similar tool) to control fabric corners safely.
  • Hold small fabric pieces down with a stylus, chopstick, or pencil eraser end instead of fingertips.
  • Keep hands outside the “red zone” while the machine is stitching, especially during tack-down runs.
  • Pause the machine if repositioning is needed rather than reaching in while moving.
  • Success check: fabric stays controlled without hands approaching the needle area during stitching.
  • If it still fails: slow down the workflow and rely more on tape/spray to reduce last-second hand corrections.
• Q: What magnetic hoop safety precautions are required when using N52 neodymium magnetic embroidery hoops for thick ITH fabric sandwiches?
  A: Treat magnetic embroidery hoops as industrial tools—prevent pinch injuries and keep magnets away from pacemakers and sensitive electronics.
  • Keep fingers clear when magnets snap together; close the hoop slowly and deliberately.
  • Maintain at least 6 inches of separation from pacemakers.
  • Keep phones and credit cards off the magnets to avoid damage.
  • Success check: the hoop clamps securely without fabric distortion, and hands never enter the pinch zone during closure.
  • If it still fails: switch back to a standard hoop for that setup or adjust handling so magnets are aligned before contact.
• Q: When should an ITH mug rug maker upgrade from standard screw hoops to magnetic embroidery hoops or a hooping station for production efficiency?
  A: Upgrade only when repeated setup pain (slipping, hoop burn, slow clamping on thick layers) is limiting output—solve technique first, then tooling, then workflow.
  • Level 1 (Technique): use spray adhesive and controlled floating to reduce repeated hooping and shifting.
  • Level 2 (Tool): use magnetic hoops when thick layer stacks (stabilizer + batting + fabric + backing) are hard to clamp evenly or cause hoop burn.
  • Level 3 (Workflow): add a hooping station when consistent, square, repeatable hooping is needed for batches.
  • Success check: setup becomes repeatable and flat with fewer restarts, less fabric marking, and consistent perimeter results.
  • If it still fails: diagnose whether the core issue is coverage discipline or hoop disturbance before investing in more equipment.
