In-the-Hoop (ITH) Embroidery Without the Confusion: Pick the Right Files, Hoop Size, and Materials Before You Waste a Stitch

If you clicked an “In-the-Hoop” video hoping for a full sew-along and instead got a tour of design websites, I get the frustration. The gap between seeing a cute picture and actually holding the finished item is filled with technical landmines.

But here’s the truth after 20 years around embroidery machines: choosing the right ITH file (and matching it to your hoop size and materials) is the part that saves you the most time and money. A bad file choice can waste expensive stabilizer, specialty vinyl, and your patience—before the needle even has a chance to impress you.

This manual rebuilds the video concept into a clear, do-this-next workflow. We will cover the physics of ITH construction, how to decode design listings, and how to avoid the "hoop burn" and alignment errors that plague beginners.

Calm the Panic: What “In The Hoop (ITH) Embroidery” Actually Produces (and Why It Feels Different Than Appliqué)

“In the hoop” means you’re building a standalone item inside the embroidery hoop, utilizing the machine’s precision to perform construction handling. You aren't just decorating fabric; you are manufacturing a product. Think key fobs, pencil toppers, zipper pouches, and stuffed toys.

Traditional machine appliqué is usually decorating something that already exists (a towel, shirt) by applying fabric shapes onto it. ITH is different because the file dictates the structure.

The Mental Shift: When you run an ITH file, your machine is acting as a sewing machine, pattern cutter, and embroiderer simultaneously.

• Visual Check: Does the design have a satin stitch edge that goes all the way around? That is your structural seam.
• Tactile Check: The finished object should feel substantial and sealed, not flimsy.

One expectation-setting note: The source video is a “chat” and resource tour. If you are looking for a hands-on tutorial, pause here. If you want to understand the strategy of buying and setting up ITH files so you don't break needles, read on.

The “Hidden” Prep Pros Do Before Buying Any ITH File: Hoop Size Reality, Materials, and a Quick Sanity Check

Before you spend even $1 on a design, do three checks: hoop size, material stack, and finish method.

1) Hoop size reality check (4x4 vs 5x7)

The video calls out a hard limit: if you only have a 4x4 hoop, you are physically limited. Some designs (like larger cases, bags, or full doll sets) are digitized specifically for 5x7 or bigger fields.

The Physics of the Limit: Do not try to "shrink" a 5x7 ITH design to fit a 4x4 hoop using software.

• Why? Shrinking the design increases stitch density (SD). If you shrink a design by 20%, the stitches get 20% closer together. On vinyl or felt, this leads to perforation—the needle will cut your material like a stamp, and the item will fall apart.

2) Material stack check (felt/vinyl/stabilizer/backing)

In real stitching, your stack thickness affects how clean your satin edges look.

• Felt: Forgiving, grabs the thread well.
• Vinyl (Marine/Glitter): Unforgiving. Needles leave permanent holes.
• The Stabilizer Factor: For almost all ITH projects, you need Cutaway or Tearaway depending on the edge finish.

Experienced Insight: If you use a standard hoop on thick vinyl, you risk "hoop burn"—permanent ring marks on the material. This is where researching a machine embroidery hooping station or specialized framing systems becomes relevant for repeated success, as they help you float materials or clamp them without crushing the grain.

3) Finish method check (turning openings, hardware insertion)

ITH files often leave an intentional gap in the stitching. This is not a mistake. It is the "turning hole" to flip the bag right-side out, or the slot to insert hardware.

Prep Checklist (Pre-Flight):

• Hoop Match: Does the file fit comfortably within your actual safe stitching area (not just the physical hoop size)?
• Density Check: If resizing, is the density adjusted? (Keep between 4.5mm - 5.0mm spacing for satin edges on vinyl).
• Hardware: Do you have the D-rings, snaps, or zippers required?
• Consumables: Do you have Appliqué Scissors (Duckbill) for trimming close to the tack-down line?
• Needle: Is your needle fresh? (Use a 75/11 Sharp for woven/vinyl; Ballpoint for knits).


The ITH Stitch Sequence You Must Recognize: Die Line → Place Material → Tack-Down → Details → Add Backing → Final Stitch

The video gives a clean verbal breakdown. Here is the sensory experience of that sequence so you know exactly what is happening in real-time.

1. Die line / Placement line (The Map)

• Visual: A single straight stitch running the outline of the shape on the stabilizer only.
• Action: Spray the back of your material with temporary adhesive (like KK100) or use painter's tape.

2. Place your material (The Foundation)

• Action: Place your vinyl/felt over the die line. It must cover the line by at least 5mm on all sides.
• Tactile: Ensure it is perfectly flat. Any bubble here becomes a pucker later.

3. Tack-down stitch (The Anchor)

• Auditory: This runs fast. Listen for a clean sewing sound.
• Action: Stop the machine. Remove the hoop (or slide it out). Trim the excess material close to the stitching using your duckbill scissors. Do not cut the stitches.

4. Detail stitching (The Decoration)

• Action: The machine embroiders the face, text, or patterns.

5. The "Sandwich" Step (Adding Backing)

• Critical Moment: The machine will stop before the final satin run.
• Action: Remove the hoop. Flip it over. Tape your backing material (felt/vinyl) to the underside of the hoop, covering the stitch area.
• Security: Use strong painter's tape or medical tape on the corners.

6. The Final Satin Stitch (The Seal)

• Visual: A dense zigzag stitch (Satin) seals the raw edges of top and bottom materials together.
• Auditory: The sound will change to a deeper "thrum" as the needle penetrates multiple layers.

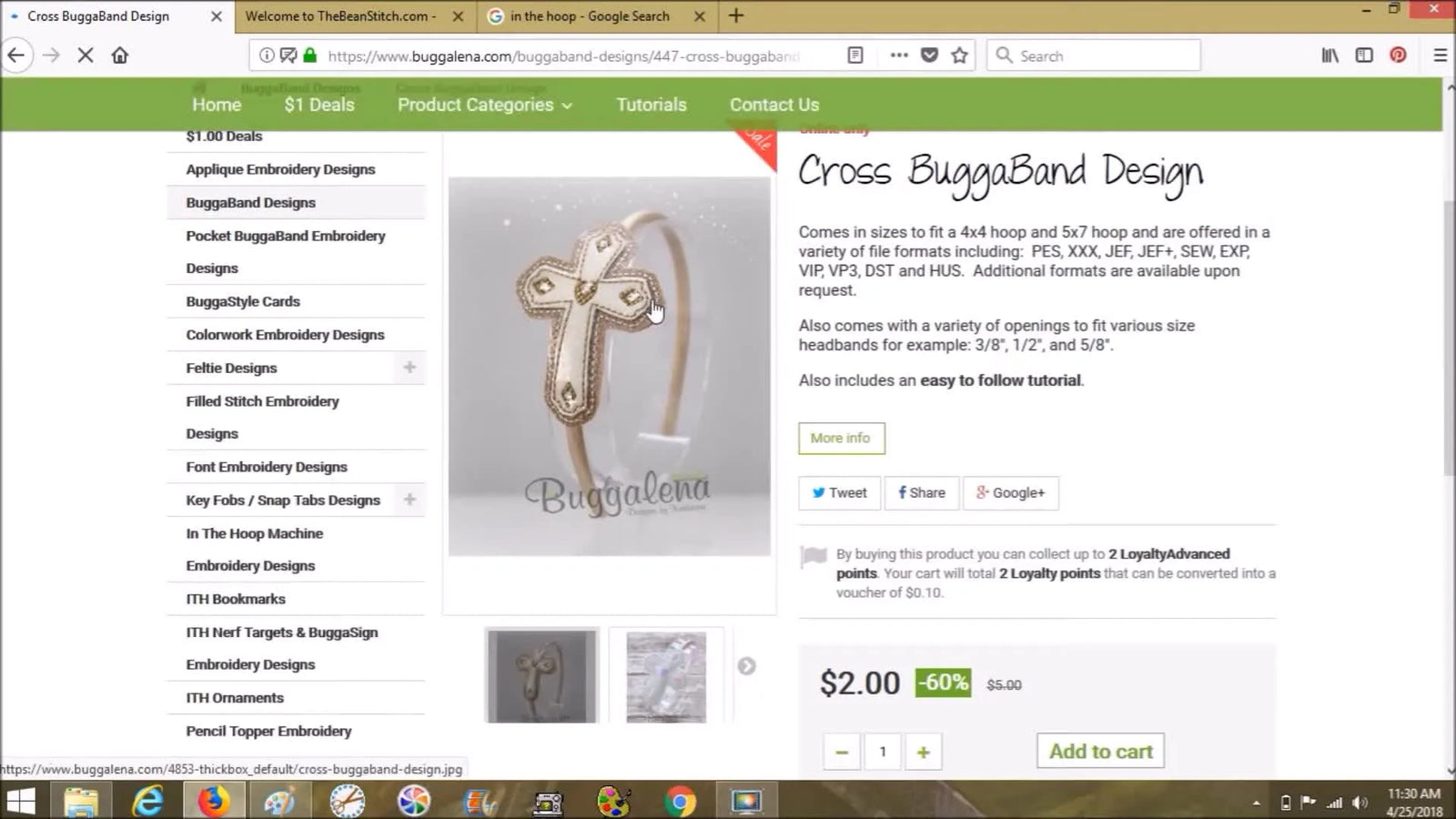

Shopping ITH Designs Like a Pro: What Buggalena and The Bean Stitch Listings Reveal (Even Before You Stitch)

The creator highlights sources like Buggalena and The Bean Stitch. What matters is learning how to read the "technical specs" of a listing.

The "Top-Down" Proof

A listing photo must show the item in use. Side views hide thickness issues. If a key fob looks bulky or twisted in the photo, it will be worse in real life.

• Red Flag: Rendered images (computer-generated) instead of photos of actual stitched items. This means the digitizer may not have test-stitched the file.

Price vs. Integration

Digital designs are cheap ($1–$4). The cost is not the money; it is your time. If you are doing repeated small items (key fobs, cord keepers), the bottleneck is hooping time. That’s where mastering hooping for embroidery machine becomes the skill that separates "fun hobby" from "consistent output."

Recommendation: Look for listings that offer "Sorted" files—this allows you to stitch 4 or 5 items in one big hoop run without changing thread colors for every single individual item.

Hoop Size Isn’t a Detail—It’s the Business Model: 4x4 Hoop Projects vs 5x7 Hoop Projects

The video uses examples to explain why bigger hoops unlock more ITH fun. Here is the commercial reality.

The 4x4 Reality (The Hobbyist Zone)

If you are using a standard brother 4x4 embroidery hoop, you are in the high-efficiency small goods category:

• Snap tabs / Key fobs
• Lip balm holders
• Small felties/patches
• Strategy: These items are fast and low-risk. Perfect for learning tension and cutting skills.

The 5x7+ Reality (The Pro Zone)

Bigger hoops allow for:

• Zipper bags (lined and unlined)
• In-the-Hoop plush toys
• Full notebook covers

When you upgrade to a larger field, the physics of the hoop change. The center of a large hoop can "bounce" (flagging), causing registration errors. This is often when users look for a brother 5x7 magnetic hoop, as the strong magnetic clamping force keeps the stabilizer taut across the entire wider surface area.

Warning: Mechanical Safety.
Needles can deflect and break when hitting thick seams, zippers, or multiple layers of vinyl.
* Safety Rule: Always wear eye protection when stitching thick ITH projects.
* Speed Limit: Reduce machine speed to 600 SPM (Stitches Per Minute) or lower for the final satin stitch on thick stacks.

The “Why” Behind Clean ITH Results: Hooping Physics, Stabilizer Choices, and Why Small Shifts Ruin Satin Edges

The video is conceptual; here is the engineering breakdown of why files fail.

Hooping Physics: The "Drum" Effect

ITH projects rely on the exact alignment of the placement line (Step 1) and the final satin stitch (Step 6).

• If your stabilizer loosens by even 1mm during the 10-minute stitch-out, the final border will not cover the raw edge of your fabric.
• The Fix: Your stabilizer must be "drum tight." Tap it. It should sound distinct.

This is where magnetic embroidery hoops offer a significant advantage over traditional screw-tightened hoops. They eliminate the "tug and pull" struggle that warps stabilizer. The magnets simply snap the stabilizer flat, maintaining consistent tension without distortion.

Decision Tree: Stabilizer & Material Logic

Use this guide to prevent puckering and ruined projects:

• IF Project is FELT (NO Stretch):
  • Stabilizer: Tearaway is usually acceptable.
  • Needle: 75/11 Universal or Sharp.
• IF Project is VINYL (Heavy, No Stretch):
  • Stabilizer: Medium Weight Cutaway (2.5oz). Tearaway can perforate and rip out during the satin stitch.
  • Hooping: Float the vinyl (do not hoop it directly) OR use embroidery hoops magnetic to clamp it without leaving ring marks.
• IF Project is T-SHIRT (High Stretch):
  • Stabilizer: Heavy Cutaway + Fusible Web.
  • Pre-Treat: Stabilize the fabric before it even touches the hoop.


“It Looked Easy Online…” Fix the Two Most Common ITH Shopping Mistakes

Mistake #1: The "Eye-Ball" Error

Symptom: You bought a cute bag design, but it doesn't fit your machine. Technical fix: Check the "Stitch Count" and "Dimensions" in the listing description. A "5x7" design might actually be 5.02" x 7.02", which will not fit a strict 5x7 machine limit. Solution: Always check the millimeter sizing in the PDF spec sheet before buying.

Mistake #2: The Hidden Joining Method

Symptom: You stitch a toy, and it comes out in three separate pieces with no instructions on how to join them. Cause: Some "Doll Sets" generally require a sewing machine to assemble the final limbs. Solution: Look for "Fully ITH" in the description if you do not own a sewing machine or dislike hand-sewing.

Setup That Makes ITH Feel Effortless: A Repeatable Workflow for Small Goods

ITH is fun when your setup is boring and repeatable. If you are constantly fighting the hoop, you are doing it wrong.

The "Mise-en-place" Setup

• Pre-Cut: Cut your felt/vinyl squares 1 inch larger than the design before you start.
• Tape Station: Have pre-torn strips of tape ready on the edge of your table.
• Backing Bin: Keep your backings separate so you don't accidentally grab a piece that is too small for the final step.

The Tool Upgrade Path (Triggered by Pain)

1. Pain: "I hate tightening the screw and hurting my wrist."
   • Solution Level 1: Use a rubber jar opener to grip the hoop screw.
   • Solution Level 2: Upgrade to Magnetic Hoops. The snap-on action saves your wrists and is 3x faster.
2. Pain: "I can't get the logo straight on the pocket."
   • Solution Level 1: Print paper templates and measure twice.
   • Solution Level 2: Use a hoopmaster hooping station or similar jig system to guarantee placement accuracy for batch orders.
3. Pain: "I'm spending all day changing threads."
   • Solution Level 3: If you are producing 50+ key fobs a week, you have graduated from hobbyist. A SEWTECH multi-needle machine allows you to set up 12+ colors and walk away, turning labor time into profit.

Warning: Magnetic Safety.
Magnetic hoops use strong industrial neodymium magnets.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut with force.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place directly on top of computerized machine screens or credit cards.

Setup Checklist (The "Go/No-Go" Gauge):

• Bobbin: Is the bobbin at least 50% full? (Running out of bobbin in the middle of a dense satin stitch is a nightmare to fix).
• Thread Path: Is the thread feeding freely?
• Clearance: Is the area behind the machine clear? (The hoop will travel backward; don't let it hit the wall).
• Design Orientation: Is the design rotated correctly so the "opening" is at the top/bottom as needed?


Operation Rhythm at the Machine: The Checkpoints That Prevent “I Ruined It at the Last Stitch”

ITL failures often happen at Step 5—right before the final stitch—because that is when the machine is moving fastest over the thickest stack of material.

The Auditory & Tactile Monitoring Protocol

• Listen: A rhythmic "thump-thump" is normal. A sharp "crack" or "slap" means the thread is shredding or the needle is dull.
• Watch: Keep your hand near the "Stop" button. If the vinyl starts to lift/bubble during the tack-down, stop immediately and tape it down.

Efficiency Tip: If you are stitching small items repeatedly, magnetic hoops drastically reduce lag time. You pop the finished item out, slide new stabilizer in, and snap it shut. You don't have to unscrew, re-tighten, and tug fabric every single time.

Operation Checklist (In-Flight):

• Placement: Did the vinyl cover the entire die line?
• Tack-Down: Is the material flat? (If not, restart now. It won't get better).
• Trimming: Did you trim close enough (1-2mm) to the tack-down stitch? (Too much excess creates "hairy" edges).
• Underside: Did you tape the backing securely so it didn't fold over under the hoop?


The Upgrade Result: More ITH Fun, Less Wasted Time

The video’s message is that ITH "opens up your brain" with possibilities. My veteran takeaway is more practical: ITH becomes addictive when your workflow is predictable.

Start with small, 4x4-friendly projects to learn the sequence. Use standard felt. When you are consistently getting clean edges and you are no longer fighting the hoop screw, that is the moment to consider your infrastructure:

• Magnetic Hoops/Frames: For speed, safety, and saving your wrists.
• Larger Hoops (5x7+): For product variety.
• Multi-Needle Machines: For scaling a business.


Quick Reference: Where the Video Says to Look for ITH Inspiration (and How to Use It Efficiently)

Use vendor sites like Buggalena, The Bean Stitch, or Etsy with one goal: match the file to your actual equipment capability.

If you respect the physics of the hoop and the material, ITH stops being a gamble and starts being a production line.

FAQ

• Q: Why does resizing a 5x7 In-the-Hoop (ITH) embroidery design to fit a Brother 4x4 hoop cause perforation on vinyl or felt?
  A: Avoid shrinking a 5x7 ITH file into a Brother 4x4 hoop because the stitch density increases and the needle can “stamp-cut” vinyl/felt until it tears.
  • Check the design’s stated dimensions and confirm it fits inside the machine’s actual safe stitch field (not just the hoop label).
  • Choose an ITH file digitized specifically for 4x4 if only a 4x4 hoop is available.
  • Keep satin edge spacing in the safe range given in the file/workflow (the blog notes 4.5–5.0 mm spacing on vinyl as the target).
  • Success check: The vinyl edge looks sealed, not “hole-punched,” and the piece does not split along the satin border when flexed gently.
  • If it still fails: Stop resizing and switch to a smaller design or run the original size in a larger hoop.
• Q: How can a Brother embroidery user prevent hoop burn ring marks on thick vinyl during In-the-Hoop (ITH) projects with a standard screw hoop?
  A: Do not clamp thick vinyl directly in a standard Brother screw hoop; float the vinyl or use a clamping method that avoids crushing the surface to prevent permanent ring marks.
  • Hoop only the stabilizer “drum tight,” then place vinyl on top using temporary adhesive spray or tape at the edges.
  • Reduce handling between steps so the vinyl surface is not repeatedly pressed and shifted.
  • Use backing tape on the underside during the sandwich step so the hoop does not need extra pressure to hold layers.
  • Success check: After unhooping, the vinyl shows no circular compression mark and the surface grain is not flattened.
  • If it still fails: Consider a magnetic hoop setup for clamping without screw-pressure distortion, especially for repeat runs.
• Q: What is the correct In-the-Hoop (ITH) stitch sequence on a SEWTECH multi-needle embroidery machine so the final satin stitch covers the raw edge?
  A: Follow the exact ITH order—placement line → place material → tack-down → details → add backing (sandwich) → final satin—because the final satin is the structural seam that must land precisely.
  • Stitch the die/placement line on stabilizer only, then cover it with material by at least 5 mm on all sides.
  • Stop after tack-down, remove the hoop, and trim close without cutting stitches.
  • At the sandwich step, flip the hoop and tape the backing securely on the underside before the final run.
  • Success check: The final satin stitch fully wraps the edge with no fabric/vinyl peeking out anywhere around the perimeter.
  • If it still fails: Re-check stabilizer tension (it must stay “drum tight”) and confirm the material never shifted between tack-down and final satin.
• Q: What stabilizer should a Brother embroidery user choose for ITH vinyl vs felt so the satin edge does not pucker or rip out?
  A: Match stabilizer to material: felt often tolerates tearaway, but vinyl commonly needs medium cutaway so the satin stitch does not tear the foundation during the final seal.
  • Use tearaway for non-stretch felt when the design is not overly dense.
  • Use medium-weight cutaway (the blog references 2.5 oz) for heavy, no-stretch vinyl to prevent rip-out during the final satin.
  • Hoop stabilizer drum tight; float vinyl instead of hooping it whenever ring marks or shifting are risks.
  • Success check: The border lies flat and smooth, and the stabilizer does not rip away from the satin edge when the piece is handled.
  • If it still fails: Slow down for the final satin and verify the needle is fresh and appropriate for vinyl.
• Q: How can a Brother embroidery user tell if stabilizer tension is “drum tight” enough for ITH alignment so the satin border does not miss the edge?
  A: Treat stabilizer like a drum head—if it loosens even slightly during the run, placement and final satin won’t register and raw edges will show.
  • Hoop stabilizer so it is taut before stitching; avoid tugging that distorts the grain.
  • Tap the hooped stabilizer to confirm a distinct “drum” sound rather than a dull, loose sound.
  • Avoid re-hooping mid-run; secure materials with spray/tape so the hoop tension does not change.
  • Success check: The placement line and final satin stitch align so the satin covers the entire raw edge with even width.
  • If it still fails: Switch to a hooping method that maintains consistent tension (many users move to magnetic hoops for this reason).
• Q: What should a Brother embroidery user do if an ITH project bubbles or lifts during the tack-down stitch and later causes puckers at the final satin edge?
  A: Stop immediately when bubbling starts, because the tack-down locks the distortion in and the final satin will magnify it.
  • Stop the machine and secure the material flat with tape before continuing (do not “hope it stitches out”).
  • Ensure the material covered the placement line by at least 5 mm on all sides before tack-down begins.
  • Trim only after tack-down, and trim close (about 1–2 mm) so excess does not force a bulky edge.
  • Success check: The surface stays flat through tack-down, and the finished edge is smooth without ripples or gaps.
  • If it still fails: Reassess stabilizer choice and hoop tension, and confirm the backing was taped firmly during the sandwich step.
• Q: What needle-break safety steps should a SEWTECH multi-needle machine operator follow when stitching thick ITH stacks with zippers or multiple vinyl layers?
  A: Treat thick ITH runs as a needle-deflection risk: wear eye protection and slow the machine down before the final satin stitch penetrates the thickest stack.
  • Wear eye protection, especially when stitching over seams, hardware zones, or dense satin borders.
  • Reduce speed to 600 SPM or lower for the final satin stitch on thick stacks, as recommended in the workflow.
  • Keep a hand near Stop and listen—sharp “cracks/slaps” can signal needle or thread trouble before a break happens.
  • Success check: The final satin run sounds like a steady, deeper “thrum,” and completes without sudden snaps or deflection.
  • If it still fails: Re-evaluate stack thickness at the seam area and adjust the project choice/materials to avoid stitching through hardware-heavy zones.
• Q: What magnetic hoop safety rules should Brother embroidery users follow when using industrial-strength magnetic embroidery hoops for ITH production?
  A: Handle magnetic hoops like a pinch-force tool—keep fingers clear, keep distance from pacemakers, and avoid placing magnets on sensitive electronics.
  • Keep fingertips away from the mating surfaces; magnets can snap shut hard enough to pinch.
  • Maintain at least 6 inches of distance from pacemakers and similar medical devices.
  • Do not set magnetic hoops directly on top of computerized screens or near credit cards.
  • Success check: The hoop closes cleanly without finger contact and holds stabilizer flat without screw-tightening strain.
  • If it still fails: Use a controlled closing technique (set one side down first, then lower the rest) and confirm the work area is clear before snapping shut.
