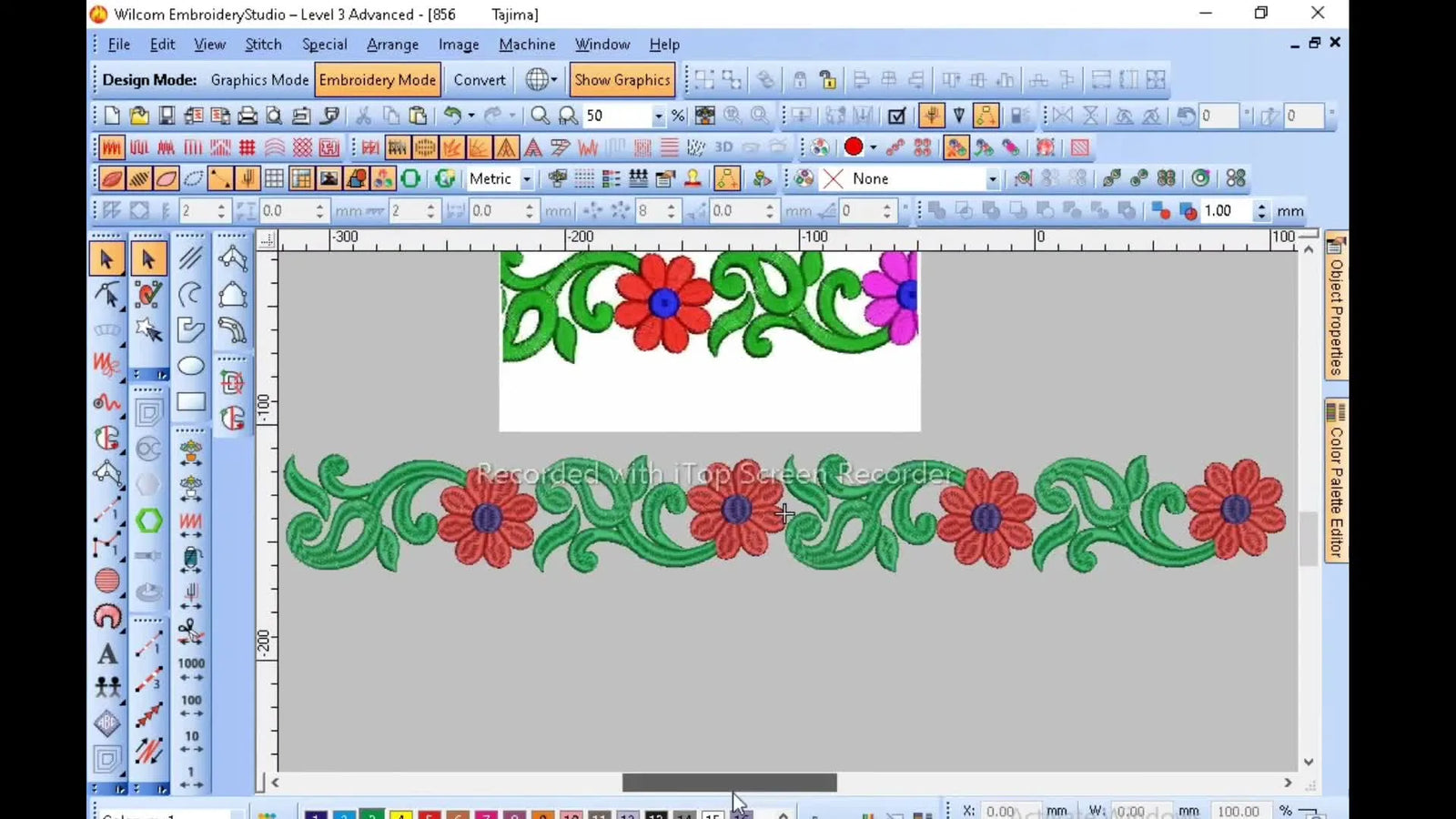

Input A vs. Complex Fill in Wilcom EmbroideryStudio: Digitize a Floral Border That Actually Stitches Clean

The Wilcom Workflow That Stops Thread Breaks: A Veteran’s Guide to Production-Safe Digitizing

If you have ever watched a border design look crisp and perfect on your computer monitor—only to have your machine chew a hole through the fabric, leave gaps in the design, or create satin stitches that snag on a button—you are not alone. This is the "Screen vs. Reality" Gap, and it is where 90% of beginners quit.

The good news: The workflow demonstrated in this Wilcom EmbroideryStudio Level 3 tutorial is solid. However, as an embroidery educator, I know that a clean file is only 50% of the battle. The rest is physics.

This guide takes the raw digitization steps and calibrates them with 20 years of production floor experience. We will move beyond "how to click the buttons" and focus on "how to make sure this runs at 750 SPM without snapping a needle."

The Calm-Down Moment: Wilcom EmbroideryStudio Level 3 Is Not “Hard”—It’s Just Unforgiving

Digitizing isn’t difficult because the software is confusing; it is difficult because embroidery is an engineering discipline disguised as art. Wilcom is a powerful engine that will happily generate stitches based on your input, even if that input is physically impossible for a machine to execute.

When you see a design on screen, you see pixels. When your machine sees it, it deals with Push and Pull Compensation, friction, and material density.

If you are transitioning from hobbyist to professional, or if you plan to sell these designs, you must treat digitizing as a blueprint for construction. Your goal is not just a pretty picture; it is a file that runs smoothly on the machine without operator intervention. Stability starts with the file, but it ends with your physical setup.

Hidden Consumibles for Success: Before you start, ensure you have fresh needles (Ballpoint 75/11 for knits, Sharp 75/11 for wovens), temporary spray adhesive (like 505), and a clean bobbin case free of lint. These $5 investments save $500 mistakes.

The “Hidden” Prep in Wilcom: Artwork, Zoom Discipline, and a Plan for Satin vs. Fill

Before you click a single node, you must make the most critical architectural decision in embroidery: Satin Stitch vs. Complex Fill.

In the video, the separation is clear:

• Input A is used for Satin Columns (vines, leaves, stems).
• Complex Fill is used for larger, closed areas.

The Physics of the Decision

Why not make everything Satin? Because satin stitches are "floating" threads anchored only at two points. If a satin stitch exceeds 7mm–10mm, it becomes loose. It will snag on jewelry, wash poorly, and look sloppy. Conversely, why not make everything Fill? Because fill stitches (Tatami) add massive stitch counts and create a "cardboard" stiffness that ruins drape.

The Golden Rule: If the shape is narrow like a worm or a ribbon (under 7mm width), use Satin (Input A). If it is a wide playground (over 10mm width), use Complex Fill.

If you are building patterns for uniforms or bulk orders, you must also consider hooping consistency. Even a perfect file will distort if the fabric is hooped loosely. This is where tools like professional machine embroidery hoops transition from accessories to essential quality control systems. A rigid hoop prevents the fabric from "flagging" (bouncing up and down), which causes registration errors in your carefully plotted files.

Prep Checklist: The Pre-Flight Routine

• Action: Verify Software Version. Check: Ensure you are in Wilcom EmbroideryStudio Level 3 (or equivalent) to access Input A.
• Action: Analyze the Artwork. Check: mentally map out "Narrow = Satin" and "Wide = Fill."
• Action: Zoom Level Check. Check: Zoom in until the pixelation of the background image is just visible. If you are too zoomed out, your points will be sloppy.
• Action: Plan Stitch Direction. Metric: Imagine water flowing through a pipe. Your stitch angles should follow the natural flow of the shape.
• Action: Select Stabilizer. Decision: If knitting (stretchy), use Cutaway. If woven (stable), use Tearaway.

The Input A “Click Language”: Left-Click Corners, Right-Click Curves, and Paired Points That Don’t Fight You

This is the "muscle memory" section of digitizing. In the leaf demo (02:12–02:40), the instructor demonstrates the binary language of Wilcom:

• Left-Click: Creates a hard, sharp geometric corner (Dead stop).
• Right-Click: Creates a soft, flowing organic curve (Gentle turn).

The "Bridge" Analogy

Think of a Satin Column (Input A) as building a bridge. You are placing pylons (nodes) on the left bank and the right bank of a river.

• The Rule of Pairs: You must place a node on side A, then immediately place its partner on side B.
• The Sensory Check: If you place points randomly, the "bridge" twists. The stitches will look like a twisted towel. When you click in pairs, the "bridge" stays flat.

Expected Outcome:

• Visual: You see a yellow outline skeleton as you work.
• Action: Pressing Enter converts it to deep red satin stitches.
• Tactile Check: If you were to stitch this now, run your finger over the satin. It should feel smooth and slightly raised, like a relief map.

Warning: Mechanical Hazard. When test-stitching wide satin columns, keep your hands clear of the needle bar. If a wider satin stitch causes a "bird's nest" (thread jam) underneath, the needle can deflect and shatter. Always stop the machine instantly if you hear a rhythmic "thumping" sound rather than a smooth "hum."

Color and Object Sanity Checks: Change the Leaf Color Now, Not After You’ve Duplicated Everything

Around 03:19, the video shows a color change. This is not just artistic; it is cognitive organization.

In a production environment, we use color breaks to force the machine to stop (on single-needle machines) or to force a needle change (on multi-needle machines). Changing the color of your object early separates it logically in the software's "Object List."

Why this matters: If you leave everything the same color, selecting one leaf might accidentally select 50 other items. By color-coding early, you simplify your edit path. It minimizes the risk of ruining your design 20 minutes from now.

Build the Flower Once, Then Multiply It: Group + Duplicate + Rotate Without Losing the Center

The flower center segment (03:40–04:00) demonstrates the power of the "Master Object."

1. Digitize one perfect petal.
2. Group it.
3. Duplicate and Rotate around a center axis.

Expert Nuance: The rotation point is critical. If your specific geometric center is off by even 0.5mm, your flower will look "wobbly" or drunk when stitched.

• Solution: Zoom in to 600% when placing your rotation anchor point.

The Production Reality: If you are running 50 shirts, you cannot afford to redigitize mistakes. This "Master Object" workflow means if the petal is too thin, you fix one, delete the rest, and re-spin the flower. It is about scalability.

The Flower Center Circle: Don’t Let a Small Object Become a Thread-Break Factory

Small circles (04:55) are notorious "Thread Break Factories." Why? Because you are asking the needle to penetrate the exact same small area of fabric 50 times in 3 seconds. This destroys the fabric fibers (cookie-cutter effect) and shreds the thread.

The Fix:

• Underlay: Use a light "Center Run" or "Edge Run" underlay to lift the satin off the fabric.
• Density: decrease density slightly (make spacing 0.45mm instead of 0.40mm) for very small circles (<5mm).
• Sensory Anchor: When stitching small dots, the machine should sound distinct and sharp (tat-tat-tat), not bogged down or grinding.

The Vine Scroll That Separates Pros from Hobbyists: Smooth Curves Need Fewer, Smarter Points

The vine scroll (06:20–07:45) is a masterclass in "Less is More." The instructor traces a long curve using mostly Right-Clicks.

The Novice Mistake: The Fear of Losing Control. Beginners click every 2 millimeters. The Consequence: Every click creates a "node." The machine stutters at nodes. A line with 100 nodes looks jagged and shaky. A line with 5 nodes looks like liquid mercury.

The Discipline: Trust the software's math. Place a point, move an inch, place another. If the curve misses the artwork slightly, fix it later with the Reshape tool. Do not try to force it with 100 clicks now.

Closing the Vine Cleanly: The Last Point Is Where Satin Columns Go to Die (or Live)

At 07:44, the shape is closed. The tip of a vine is a high-stress point. If the satin stitches at the tip are too clear or "pointy," they can clump up into a hard knot of thread.

Visual Inspection:

• Zoom into the tip in TrueView.
• Does it look like a smooth taper? Or does it look like a crushed bug?
• If it looks crushed on screen, it will break a needle on the machine. Open the shape slightly or blunt the tip to give the needle room to breathe.

When Satin Stops Making Sense: Switching a Closed Shape to Complex Fill Without Regret

At 08:10, the instructor switches to Complex Fill. The texture changes from shiny rails (Satin) to a woven basket look (Tatami).

This is your Decision Tree for durability:

If you are creating workwear or uniforms that will be washed 50 times, lean towards Fills. Your customers will thank you when the logo still looks new a year later.

Keep Momentum Without Losing Accuracy: Digitize Secondary Elements Like You’ll Have to Edit Them Later

Around 08:58, secondary elements are added. The key here is editability.

Imagine a client says, "I love the border, but can you make it 10% thicker?"

• If you digitized sloppy shapes, you have to redraw the whole thing.
• If you kept your objects separate and clean, you can use the "Offset" tool or resize globally.

Commercial Context: In a professional shop, adaptability is profit. Similarly, your hardware should adapt to your volume. If you find yourself spending 50% of your time changing thread colors on a single-needle machine, your labor cost is eating your profit. This is the Criteria for upgrading: When color-change downtime costs more than a monthly payment, it is time to look at a SEWTECH multi-needle machine. Efficiency in software must be matched by efficiency in hardware.

Real Life Happens: Pause, Resume, and Still Keep Your File Organized

The video interruption (10:59) is real life. When you return to the screen, do not just click.

The "Where Was I?" Protocol:

1. Check the Object Properties box on the right. Are you still set to Input A?
2. Check the Color Palette. Are you on the right green?
3. Check the Sequence View. Are you adding to the end of the design or inserting in the middle?

The Production Settings That Prevent Snags: Stitch Spacing 0.40 mm, Auto Spacing, and Auto Split 7.00 mm

This section (13:02) is the most technically important part of the article. These numbers are not random; they are industry standards for 40wt Rayon or Polyester thread.

• Stitch Spacing (Density): 0.40 mm. This is the "Sweet Spot."
  • Lower (0.30mm): Too dense. Causes bulletproof stiffness, puckering, and thread breaks.
  • Higher (0.50mm): Too loose. Fabric shows through (the "screen door" effect).
• Auto Spacing: Checked. This intelligently opens up the density on tight inside curves to prevent bunching.

Setup Checklist: The "Safety Settings"

• Action: Open Object Properties. Check: Verify Spacing is 0.38mm - 0.42mm.
• Action: Enable Auto Spacing. check: Ensure the box is ticked.
• Action: Check Underlay. Check: Ensure "Edge Run" or "Center Run" is selected for stabilization.
• Action: Review Thread Path. Metric: Ensure start/stop points logically flow to minimize jump stitches.

The 7.00 mm Auto Split Moment: Small Checkbox, Big Difference in Wear Resistance

The setting of Auto Split to 7.00 mm (13:30) is a specific countermeasure against "Looping."

Standard satin stitches can technically span up to 12mm. However, a 12mm loop of thread is a hook waiting to catch on a door handle, a ring, or a washing machine agitator. By setting Auto Split to 7mm, the software forces a needle penetration in the middle of any long stitch.

The Visual Result: It looks like a split-satin or a very smooth texture. It breaks the light differently, often looking more sophisticated.

Commercial Context: If you are producing large batches of garments, consistency is king. Just as Auto Split protects the garment, upgrading your workflow protects your schedule. Moving from manual hooping to a consistent embroidery hooping system standardizes tension. If one operator hoops tight and another hoops loose, your Auto Split settings won't matter—the design will distort. Eliminating variables is the key to scaling.

Group Like a Pro: Lock the Motif Before You Try to Build a Seamless Border Repeat

At 13:58, the instructor Groups the elements. Never duplicate raw objects for a border. Always Group first.

Why: If you miss one tiny stem when selecting raw objects, your next 20 copies will all be missing that stem. You will not notice until the machine is running, and you will have ruined the garment. Grouping is your safety container.

The Seamless Border Trick: Ctrl-Constrained Duplicate to the Right (and How to Verify Alignment)

The "Ctrl-Drag" move (14:10) creates the repeat. This must be precise.

Troubleshooting the "Seamless" Join:

• Symptom: A visible white gap between repeats.
  • Cause: We call this the "Red Sea Parting." It is usually Pull Compensation. The stitches pull in as they sew.
  • Fix: Overlap the join by 1mm in the software. The pull will open it up to a perfect "touching" kiss.
• Symptom: A hard, dense line at the join.
  • Cause: Too much overlap results in double density.
  • Fix: Remove underlay stiches just at the overlap points to reduce bulk.

If you struggle with alignment on the physical garment (e.g., the border is crooked), this is rarely a software issue—it is a hooping issue. Simple aids like a hooping station for embroidery machine provide a grid and a jig to ensure every shirt is loaded at the exact same angle, eliminating the "crooked logo" returns.

TrueView Reality Check: What to Inspect Before You Hand This File to a Machine (or a Customer)

The final review (Hero Frame). Stop and look.

Operation Checklist: The Go/No-Go Decision

• Action: Toggle TrueView (3D Mode). Check: Do the satin columns look smooth or chopped?
• Action: Check the "Travel Runs." Check: Are the connection lines hidden under the satin? Or will they peek out?
• Action: Verify Auto Split. Check: Look at the widest parts of the vine. Do you see the split texture?
• Action: Pinch Test (Mental). Metric: If this design was on a baby onesie, would it scratch?
• Action: Safe Export. Save as the native .EMB file first, THEN export your machine format (.DST, .PES, etc.).

Warning: Magnetic Safety. If you opt to use a magnetic embroidery hoop to speed up your production of these borders, be aware of the pinch hazard. These magnets are industrial strength clamps. Keep fingers clear of the snap zone, and keep them away from pacemakers. They are incredible for preventing "hoop burn" on delicate fabrics, but they demand respect.

The Upgrade Path That Actually Makes Sense: Fix the File First, Then Fix the Workflow

A perfect Wilcom file is the foundation. But if you execute a perfect file on an unstable machine setup, you still get a bad result.

Once you master this Level 3 workflow:

1. Level 1 (Skill): Use the settings here (0.40mm density, 7mm split) to ensure your files are "sew-friendly."
2. Level 2 (Tooling): If you notice hoop marks (burn) or struggle to hoop thick items, consider an embroidery magnetic hoop. The "Trigger" for this upgrade is when you ruin expensive stock due to hoop marks.
3. Level 3 (Capacity): When you are turning down orders because you can't stitch fast enough, or dreading designs with 6+ colors, that is the "Trigger" to investigate the SEWTECH multi-needle ecosystem.

Digitizing is the software. The machine is the hardware. The hoop is the interface. Make sure all three are professional grade.

FAQ

• Q: What “hidden consumables” should be checked before running a Wilcom EmbroideryStudio Level 3 satin-and-fill border design to prevent thread breaks?
  A: Start with fresh needles, clean the bobbin area, and use light temporary spray adhesive—these small prep steps prevent many “mystery” breaks.
  • Replace needle: Use Ballpoint 75/11 for knits and Sharp 75/11 for wovens, and do not start a production run with a questionable needle.
  • Clean: Remove lint and debris from the bobbin case area before test-stitching.
  • Stabilize setup: Apply temporary spray adhesive (like 505) to reduce fabric shifting inside the hoop.
  • Success check: The machine sound stays a smooth “hum” with no rhythmic thumping and no sudden tension spikes.
  • If it still fails… Re-check fabric + stabilizer match (cutaway for knits, tearaway for wovens) and re-run a small test sample.
• Q: In Wilcom EmbroideryStudio Level 3, how should satin stitch vs. complex fill be chosen for vines and leaves to avoid snagging and “cardboard-stiff” embroidery?
  A: Use Satin (Input A) for narrow shapes and Complex Fill for wider areas—this prevents loose snags and excessive stiffness.
  • Measure mentally: Choose Satin when the shape width is under about 7 mm; choose Complex Fill when the width is over about 8–10 mm.
  • Reserve Fill: Use Complex Fill in high-friction wear areas where satin would often snag or wear faster.
  • Success check: Satin areas look smooth and slightly raised, while fill areas look evenly woven without the fabric showing through.
  • If it still fails… Reduce overly wide satin usage and re-check hooping firmness, because loose hooping can distort even a correct stitch type choice.
• Q: In Wilcom EmbroideryStudio Level 3, what settings prevent thread breaks and puckering when stitching satin columns at 750 SPM (0.40 mm density and 7.00 mm Auto Split)?
  A: Keep stitch spacing around 0.40 mm with Auto Spacing enabled, and use Auto Split at 7.00 mm to reduce long snag-prone loops.
  • Set density: Verify spacing is in the 0.38–0.42 mm range for typical 40wt rayon/poly thread.
  • Enable Auto Spacing: Turn it on so tight inside curves open up slightly instead of bunching.
  • Apply Auto Split: Set Auto Split to 7.00 mm so long satin spans get a penetration point in the middle.
  • Success check: Wide satin areas show a controlled split texture and do not form long “hooks” that can catch later.
  • If it still fails… Check underlay selection (Edge Run or Center Run) and confirm start/stop path is not forcing unnecessary travel stitches.
• Q: How can small satin circles in Wilcom EmbroideryStudio Level 3 be digitized to stop “thread-break factory” behavior and fabric cutting in areas under 5 mm?
  A: Lighten the build: use light underlay and slightly reduce density for very small circles to avoid the cookie-cutter effect.
  • Switch underlay: Use a light Center Run or Edge Run to lift satin off the fabric.
  • Reduce density slightly: For circles under 5 mm, open spacing a bit (example given: 0.45 mm instead of 0.40 mm).
  • Slow down decisions: Treat tiny circles as high-stress objects and test-stitch them early.
  • Success check: The stitch sound is a clean “tat-tat-tat,” not a bogged-down grind, and the fabric is not perforated into a hole.
  • If it still fails… Revisit object size and consider simplifying the detail so the needle is not hitting the same spot repeatedly.
• Q: What causes a visible gap or a hard line at a Wilcom EmbroideryStudio border repeat seam after Ctrl-Drag duplication, and how should the repeat be corrected?
  A: Gaps usually come from pull compensation, while hard lines come from double density—adjust overlap and reduce bulk at the join.
  • Fix gaps: Overlap the repeat join by about 1 mm in software to counter the pull-in during sewing.
  • Fix hard lines: Reduce overlap and remove underlay stitches only at the overlap zone to avoid stacking density.
  • Verify alignment: Inspect the join in TrueView before exporting to confirm the seam visually “disappears.”
  • Success check: In TrueView, the repeat edge looks continuous with no white “parting” line and no visibly darker ridge.
  • If it still fails… Treat it as a hooping consistency issue and standardize garment loading angle and tension (a hooping station can help keep angle repeatable).
• Q: What needle-related safety steps should be followed when test-stitching wide satin columns that can cause bird’s nests and needle deflection?
  A: Keep hands clear and stop immediately on abnormal impact sounds—wide satin plus a thread jam can snap needles.
  • Position safely: Keep fingers away from the needle bar area during test runs.
  • Listen actively: Stop the machine instantly if the sound becomes rhythmic “thumping” instead of a steady hum.
  • Inspect underside: Check for bird’s nest jamming underneath before restarting.
  • Success check: The machine runs smoothly with no needle strike sounds and the underside shows no thread wad forming.
  • If it still fails… Re-check density/Auto Spacing and confirm the hoop is holding fabric firmly to reduce flagging.
• Q: What magnetic hoop safety rules should be followed when using a magnetic embroidery hoop to reduce hoop burn on delicate fabric?
  A: Treat magnetic hoops like industrial clamps—avoid the snap zone and keep magnets away from pacemakers.
  • Control pinch risk: Keep fingers clear when bringing the magnetic ring sections together.
  • Manage medical risk: Keep magnetic hoops away from pacemakers and similar medical devices.
  • Use for the right trigger: Consider magnetic hoops when hoop marks (hoop burn) are ruining delicate or expensive stock.
  • Success check: Fabric is held evenly with fewer hoop marks while loading/unloading remains controlled and pinch-free.
  • If it still fails… Re-check the fabric/stabilizer combo and confirm hooping consistency, because stabilization errors can mimic “hoop burn” problems.
