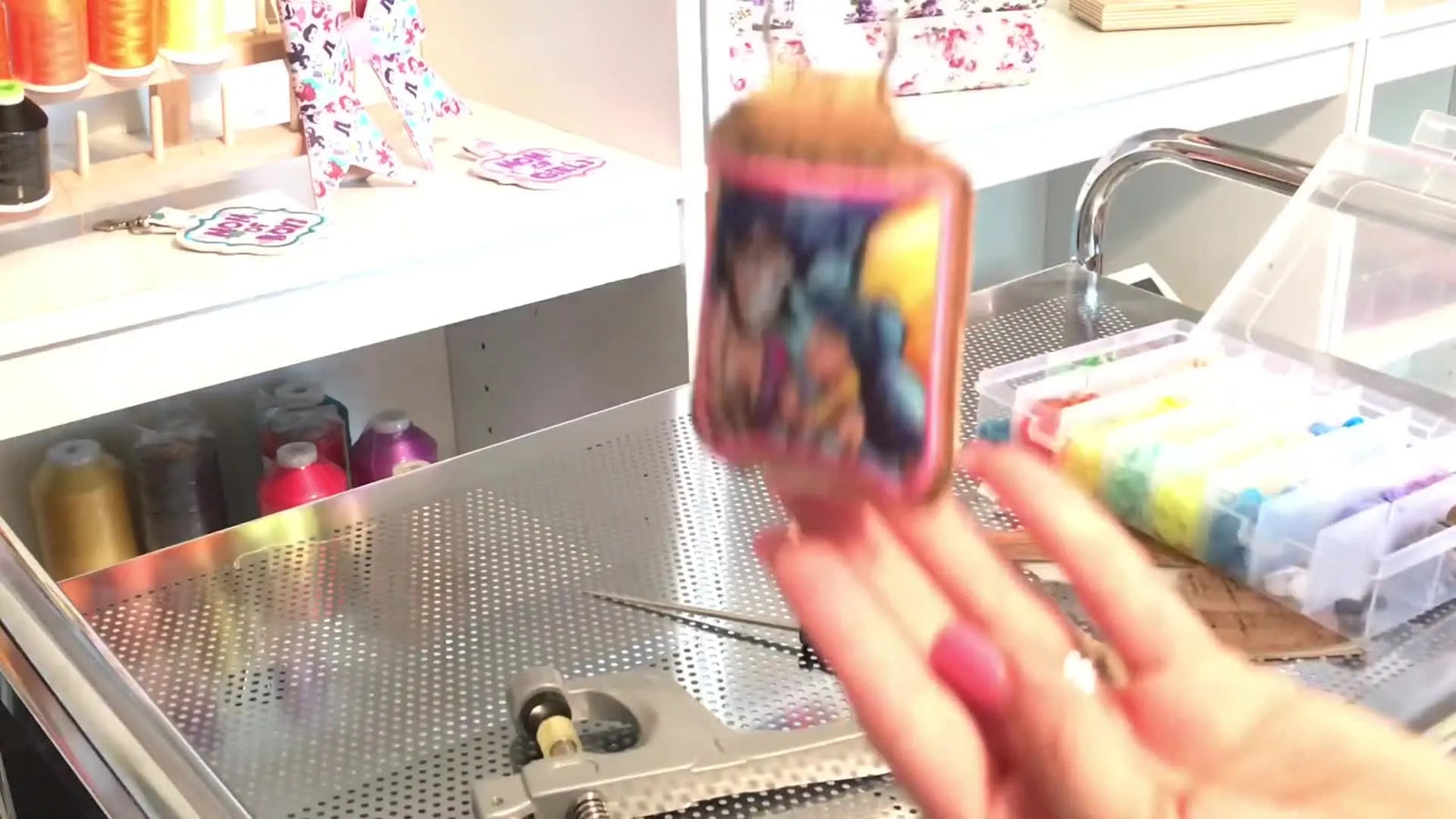

ITH Cork Hand Sanitizer Holder with Kam Snaps: The 7-Step Stitch-Out That Won’t Bust at the Pocket

If you’ve ever thought, “Who needs instructions?” and then immediately sacrificed your first stitch-out to the embroidery gods—you’re not alone. ITH (In-The-Hoop) projects like this hand sanitizer holder look deceptively simple. However, they contain two classic failure points: stretchy applique that creeps, destroying your satin finish, and pocket edges that burst because of aggressive trimming.

In this guide, I’m rebuilding the workflow from the source video into an industry-grade Standard Operating Procedure (SOP). We are moving beyond "hoping it works" to "knowing it will work." I will also provide the specific definitions, speed limits, and tool calibrations that turn a "homemade" craft into a "professional" product.

Don’t Panic: Calibrating for Cork (The "scary" material)

The video uses cork fabric, and skepticism is common. Beginners fear it will perforate like paper. The truth: Cork is actually easier than cotton because it doesn't fray, provided you respect its physics.

The Physics of Cork: Unlike woven cotton, cork has no grain. It is stable but intolerant of high-density stitching at high speeds.

• Speed Limit: If your machine allows, cap your speed at 500-600 SPM (Stitches Per Minute) for this project. Running at 800+ SPM heats the needle and can melt the adhesive binders in synthetic cork, causing thread breaks.
• Needle Choice: Use a Size 75/11 or 80/12 Sharp (not Ballpoint). You need a clean penetration through the cork and stabilizer layers.


The “Hidden” Prep: Consumables & Setup

An ITH project is 90% preparation and 10% stitching. The video uses standard supplies, but we need to refine the list to prevent mid-stitch disasters.

The Refined Material List:

• Stabilizer: Medium Weight Tearaway (2.0 - 2.5 oz). Do not use Cutaway for this; it leaves bulky edges.
• Adhesion: 505 Temporary Spray Adhesive OR Masking Tape (Painter’s Tape is safer for machine beds than Scotch tape).
• Hardware: Kam Snaps (Size T20 is the industry standard for this thickness).
• Hidden Consumables:
  • New Needle: (Start fresh to avoid burrs ruining the satin stitch).
  • Applique Scissors: (Double-curved/Duckbill).
  • Awl: For punching snap holes.

Pro Tip on Hooping: Hoop burn (permanent rings on fabric) is a major risk with cork. If using a standard hoop, do not overtighten the screw after the inner ring is inserted.

Phase 1: Prep Checklist (Pre-Flight)

• Bobbin Check: Ensure you have at least 50% bobbin remaining (white 60wt or 90wt recommended).
• Needle Inspection: Run your fingernail down the needle tip. If it catches, throw it away.
• Hooping: Hoop the medium tearaway stabilizer perfectly flat. Tap it—it should sound like a drum skin, but not be stretched so tight it warps the outer frame.
• Cut Oversized: Cut your cork pieces 1 inch larger than the design requirement to reduce placement anxiety.
• Adhesive Choice: Shake your spray glue can well if using 505; have tape strips pre-cut if using tape.


Step 1: Placement Stitch (The Foundation)

Action: Run Step 1 directly onto the stabilizer. Sensory Check: Listen for the machine. It should be a quiet, rhythmic hum. Outcome: A visible outline on the white stabilizer. This acts as your "Drop Zone."

If you rely on precision, a hooping station for embroidery machine allows you to align your stabilizer grid perfectly within the hoop before you even touch the machine, ensuring the pattern isn't tilted.

Step 2: Cork Body Placement & lockdown

Action: Place the cork sheet over the placement line. Cover the lines by at least 1/2 inch on all sides. Technique: Smooth it gently. Do not push or stretch. Cork has high friction; it grips the stabilizer well. Action: Run the tack-down stitch. Expert Note: Keep your fingers away from the needle bar!

Step 3: Tack Down the Knit Applique (The "Creep" Risk)

The Variable: Knit fabric wants to move. It is fluid. Action: Mist the back of your knit scrap with spray adhesive (lightly!) or use tape at the very corners. Placement: Float the knit over the window area. Crucial Rule: Do NOT pull it tight. If you stretch it now, it will snap back later, creating puckers called "tunneling" under your satin stitch. It should lie flat and relaxed.

Step 4: Trimming the Applique (Surgeon’s Hands)

Action: Remove the hoop from the machine, but NEVER un-hoop the stabilizer. Place it on a flat table. Technique: Lift the excess knit slightly and slide your curved scissors flat against the cork. Cut smoothly. Safety Margin: Aim to leave 1mm - 2mm of fabric. If you cut the tack-down thread, the knit will roll back and leave a hole in your final product.

Warning: Mechanical Safety. When trimming, keep your non-cutting hand behind the direction of the scissors. One slip can gouge the cork or cut the tack-down stitches, requiring you to restart the entire project.

Step 5: The Satin Stitch (Quality Control)

Action: Reattach hoop. Run the Satin Stitch (Border). Sound Check: This is the most dense stitching. The sound will change from a "tap-tap" to a duller "thud-thud" as it penetrates multiple layers. This is normal. Visual Check: Watch the edges. Is the pink thread covering the raw knit edge completely? Upgrade Path: If you see the cork "bouncing" (flagging) during this step, your stabilization is too loose.

Step 6: Floating the Back (The "Blind" Layer)

The Challenge: You need to attach cork to the bottom of the hoop, underneath the stabilizer, without seeing it. Action: Spray the wrong side of your backing cork with 505. Stick it to the underside of the hoop, covering the stitch area. Secure corners with tape for insurance. Action: Run the tack-down stitch. This seals the back.

Constraint: Standard hoops make this awkward. You have to lift the hoop while keeping the inner ring secure. This is where tools like magnetic embroidery hoops for brother machines shine—they engage the stabilizer firmly but allow you to slide backing materials underneath with less friction or risking "hoop pop-out."

Step 7: Pocket Guide & Placement

Action: The machine stitches two horizontal lines. These are guides, not decorative. Decision: Check the gap between the guide lines. This determines your snap strap width.

Step 8: Attaching the Pocket (The Critical Joint)

Action: Align your pocket cork piece. The Rule: The top edge of the pocket must sit BELOW the guide lines stitched in Step 6. Secure: Tape the top edge of the pocket down securely. Why? As the needle arm moves, it can catch the lip of the pocket and fold it over. Tape prevents this collision.

Phase 2: Setup Checklist (The "Point of No Return")

• Pocket Alignment: Is the pocket edge perfectly parallel to the guide lines?
• Tape Security: Is the tape firmly holding the pocket lip down, out of the needle's path?
• Bobbin Check: Do you have enough thread for the heavy triple-stitch final pass?
• Clearance: Is the back of the hoop clear of stray tape that might drag on the feed dogs?


Step 9: Final Construction Stitch (The "Bean" Stitch)

Action: Run the final perimeter stitch. This is usually a "Bean Stitch" (Forward-Back-Forward) which is 3x stronger than a standard running stitch. Outcome: This stitch cuts through Front Cork, Stabilizer, and Back Cork. It is permanent.

Step 10: Finishing & Hardware

Action: Unhoop. Tear away the stabilizer. Cutting: Use sharp scissors to cut around the shape. The Golden Rule of Trimming: Leave at least 3mm (1/8 inch) of cork outside the stitch line. If you cut too close, the cork structure will collapse, and the pocket will separate after a few uses.

Installing Snaps:

1. Use the Awl to punch a hole through the marked dots.
2. Safety: Put a piece of scrap cardboard inside the pocket so you don't punch through the front layer!
3. Install T20 Snaps using pliers. Squeeze firmly until you feel a definitive "crunch" of the prong flattening.

Warning: Magnet Safety. If you upgrade to a magnetic frame later, be aware they use N52 Neodymium magnets. These are industrial strength. Keep them away from pacemakers, and never let them snap together with your skin in between—they can cause severe pinch blisters or blood blisters instantly.

A Simple Decision Tree: Managing Layers

Use this logic flow to ensure your materials don't shift.

Decision Tree: Stabilizer & Security

1. Is the Applique Stretchy (Knit/Jersey)?
   • YES: Use Spray Adhesive + Tape Corners. Do not pull tight.
   • NO (Cotton/Woven): Iron first, then float. Standard tack-down is sufficient.
2. Is the Hoop Leaving Marks (Hoop Burn) on the Cork?
   • YES: Wrap your hoop's inner ring with pre-wrap or bias tape to soften the grip.
   • STILL YES: This is a hardware limitation. Consider a clamping system or magnetic hoop.
3. Are you making 50+ units for a craft fair?
   • YES: Standard hooping is too slow. A brother 5x7 magnetic hoop will cut your changeover time by 40%.

The Upgrade Path: From Hobby to Production

If you enjoy this project and want to scale, you will hit specific bottlenecks. Here is how to solve them commercially:

1. The Bottleneck: "My wrists hurt from re-hooping."
   • The Fix: Magnetic Hoops.
   • Why: Traditional screw-hoops require force. Magnetic hoops use magnets to auto-clamp. For PE800 owners, finding a specifically compatible magnetic hoop for brother pe800 drastically reduces operator fatigue and eliminates "hoop burn" on sensitive leather/cork.
2. The Bottleneck: "Alignment takes too long."
   • The Fix: Hooping Stations.
   • Why: Eyeballing placement leads to crooked products. A hoop master embroidery hooping station allows you to jig up the product consistently every single time, standardizing your quality
3. The Bottleneck: "I need to make money, not just gifts."
   • The Fix: Multi-Needle Machines (SEWTECH).
   • Why: A single-needle machine requires you to stop and change threads manually. A multi-needle machine handles color changes automatically and runs significantly faster with higher stability, allowing you to walk away while it works.

Quick Troubleshooting: Symptom → Fix

Mastering these small details on a simple project builds the muscle memory required for complex bags, garments, and commercial orders. Measure twice, cut once, and respect the physics of your materials.

FAQ

• Q: For a Brother PE800 single-needle embroidery machine, what needle type and stitching speed help prevent thread breaks when embroidering synthetic cork fabric in ITH projects?
  A: Use a fresh 75/11 or 80/12 Sharp needle and slow the Brother PE800 down to about 500–600 SPM for cork-heavy ITH steps.
  • Install: Start the project with a brand-new Sharp needle (not ballpoint) to avoid burr-related shredding.
  • Set: Reduce speed before dense border stitches so the needle does not overheat and soften cork binders.
  • Watch: Pause if repeated breaks start during dense stitching and let the needle cool, then restart slower.
  • Success check: Stitching sounds steady and rhythmic, and the thread does not fray or snap during satin stitch passes.
  • If it still fails… Re-thread the machine and verify the backing/stabilizer stack is not flagging or bouncing during dense stitches.
• Q: For ITH cork projects on a Brother embroidery machine, what stabilizer weight prevents bulky edges while still keeping the design stable?
  A: Use medium-weight tearaway stabilizer (about 2.0–2.5 oz) and avoid cutaway for this ITH cork build to keep edges from becoming bulky.
  • Hoop: Hoop the tearaway perfectly flat before any stitching.
  • Avoid: Skip cutaway here because it tends to leave thicker, harder-to-finish edges on small ITH items.
  • Prep: Cut cork pieces oversized (about 1 inch larger than needed) to reduce shifting during placement.
  • Success check: The hooped stabilizer feels “drum-tight” when tapped, but the hoop frame is not warped from overstretching.
  • If it still fails… Tighten the process by using stronger corner taping on floated layers and re-check that the stabilizer is not skewed in the hoop.
• Q: On a Brother embroidery machine using a standard screw hoop, how can hoop burn (permanent rings) be reduced on cork fabric during ITH stitching?
  A: Do not overtighten the screw hoop, and soften the inner ring surface if marks still appear on cork.
  • Adjust: Tighten only enough to hold the stabilizer flat—over-tightening increases permanent ring marks on cork.
  • Wrap: Wrap the inner ring with pre-wrap or bias tape to reduce pressure points.
  • Re-check: Confirm the cork is floated/secured without being stretched or forced into the hoop.
  • Success check: After stitching, the cork shows minimal or no visible compression ring where the hoop contacted the material.
  • If it still fails… Treat it as a hardware limitation and switch to a clamping-style solution such as a magnetic hoop system for consistent holding with less marking.
• Q: For Brother ITH applique with stretchy knit fabric, how can knit applique “creep” and satin stitch tunneling be prevented?
  A: Lightly bond the knit with temporary adhesive (or tape corners) and place the knit relaxed—never stretched—before the tack-down.
  • Mist: Apply a light coat of temporary spray adhesive to the back of the knit, or tape only the corners.
  • Place: Float the knit over the window area without pulling it tight.
  • Trim: After tack-down, trim carefully leaving about 1–2 mm so the edge cannot roll back under satin stitching.
  • Success check: The satin stitch fully covers the raw knit edge with no puckers/tunnels forming around the border.
  • If it still fails… Re-do the placement step with less adhesive and zero stretching; verify stabilization is firm enough to prevent fabric bounce during satin stitch.
• Q: On a Brother embroidery machine ITH pocket project, why does the pocket seam “bust open” after trimming, and what trimming margin prevents it?
  A: The pocket seam usually bursts because the final cut was too close; leave at least 3 mm (1/8 inch) outside the stitch line when cutting the finished shape.
  • Cut: Trim the outer shape with sharp scissors but keep a consistent 3–4 mm safety margin.
  • Inspect: Check that the construction stitch fully captured all layers (front cork, stabilizer, back cork) before cutting.
  • Reinforce: Keep the pocket top edge taped down during stitching so it cannot fold into the needle path.
  • Success check: The pocket withstands a firm finger pull without the perimeter separating or the cork collapsing at the edge.
  • If it still fails… Re-run the final perimeter stitch on a new piece and confirm the margin was not reduced at corners and tight curves.
• Q: On a Brother embroidery machine, what is the safest way to trim knit applique in-the-hoop without cutting the tack-down stitches or gouging cork?
  A: Remove the hoop from the machine (without unhooping), trim on a flat table with curved applique scissors, and keep a 1–2 mm buffer beyond the tack-down line.
  • Remove: Detach the hoop from the machine but do not unhoop the stabilizer.
  • Slide: Keep curved/duckbill scissors flat against the cork and cut smoothly around the shape.
  • Protect: Keep the non-cutting hand behind the scissors’ path to avoid slips into the cork or stitches.
  • Success check: The tack-down thread remains intact all the way around, and the applique edge stays captured under the satin stitch path.
  • If it still fails… Slow down and improve lighting; if the tack-down was cut, restart that piece because the knit will roll back and leave a hole.
• Q: For magnetic embroidery hoops/frames used on Brother-compatible setups, what N52 neodymium magnet safety rules prevent pinch injuries and medical-device risks?
  A: Treat magnetic embroidery hoops as industrial magnets: keep them away from pacemakers and never let magnets snap together with skin between them.
  • Separate: Slide magnets apart instead of pulling straight up to reduce sudden snap-back.
  • Control: Keep fingers clear of mating surfaces when closing the frame.
  • Store: Keep magnets isolated from metal tools and electronics when not in use.
  • Success check: The magnetic frame closes without sudden impact, and no pinched skin or blistering occurs during handling.
  • If it still fails… Stop using the frame until handling technique is corrected; consider gloves and a slower, two-hand closing method for better control.
• Q: For scaling ITH cork pocket products from hobby to small-batch production, when should embroidery users upgrade techniques, then magnetic hoops, then a SEWTECH multi-needle embroidery machine?
  A: Follow a tiered path: optimize setup first, upgrade to magnetic hoops when hooping causes fatigue/marks, and move to a SEWTECH multi-needle machine when manual thread changes become the main bottleneck.
  • Level 1 (Technique): Standardize prep (fresh needle, bobbin check, correct tearaway, careful trimming margins) to eliminate rework.
  • Level 2 (Tooling): Choose magnetic hoops if re-hooping hurts wrists, hoop burn persists, or backing layers are hard to slide/tape under the hoop reliably.
  • Level 3 (Capacity): Choose a SEWTECH multi-needle embroidery machine if production is limited by stopping for manual color changes and slower single-needle operation.
  • Success check: Changeover time drops, repeatability improves (straighter placement, fewer restarts), and daily output increases without quality loss.
  • If it still fails… Track the top recurring failure (hoop burn, shifting, or thread breaks) and solve that single constraint before buying the next upgrade.
