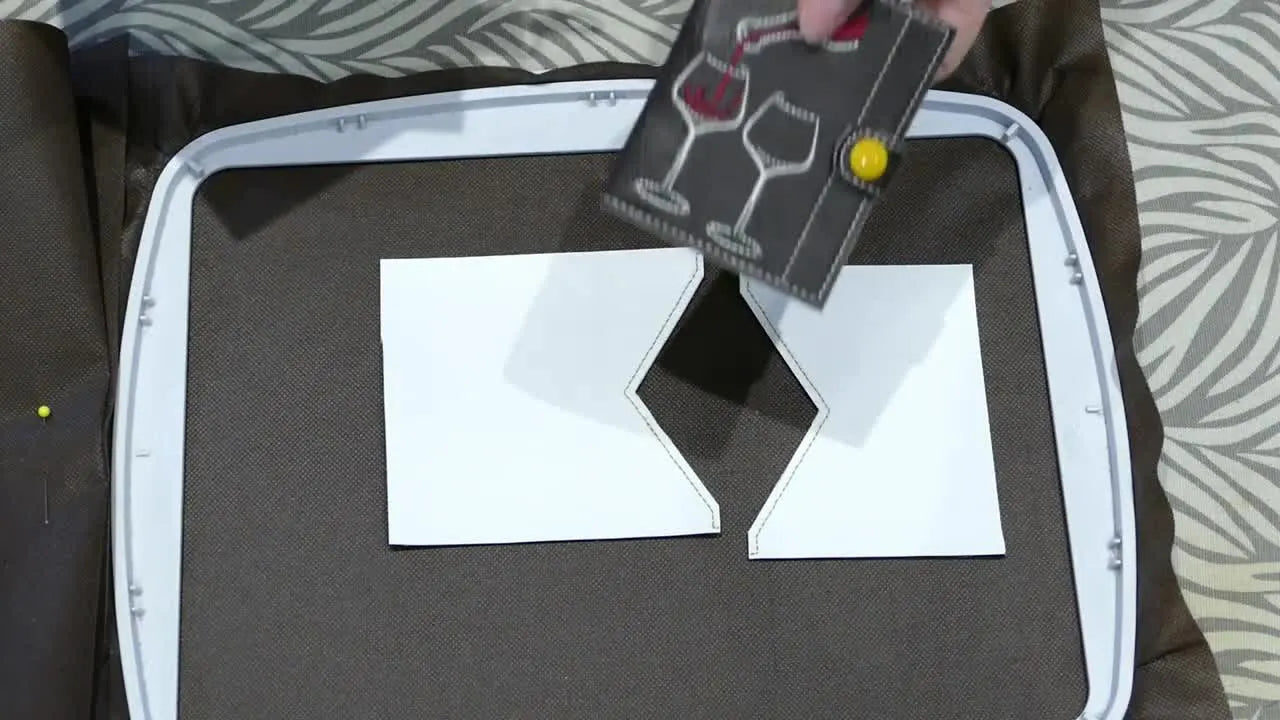

ITH Double Snap Tab Wallet in a 5x7 Hoop: The Clean-Lining Method That Actually Closes Flat (No More Crooked Flaps)

When an ITH (In-The-Hoop) wallet turns out “almost right,” it is rarely a software failure. It is a physics failure. If your wallet won’t close flat, if the inside flaps look crooked by a millimeter, or if the vinyl makes your underside stitches look like a bird’s nest, you are fighting friction and alignment, not the design file.

This project is the ITH Double Snap Tab Wallet. The file typically includes three variations:

• Dual snap version (Structure: Snap tabs on both sides; tightest clearance).
• Snap tab version (Structure: Single closure; standard difficulty).
• Eyelet version (Structure: Includes hardware hole; distinct aesthetic).

As your Chief Embroidery Education Officer, I’m going to walk you through this using sensory cues and industry tolerances. We aren't just following steps; we are managing material behavior. Stitching vinyl requires slower speeds (think 600 SPM, not 1000) and specific handling to prevent "drag"—the enemy of clean satin stitches.

Choose Your Wallet Version First: Dual Snap vs Snap Tab vs Eyelet (and Why It Changes Your Hardware Plan)

Before you hoop, you must commit to a version because the hardware dictates the internal structure.

• The Dual Snap: This version is unforgiving on "real estate." Because you have snaps on both sides, the internal pocket depth is often shallower. Decision Criteria: Use this if you have precise 9mm rivets and low-profile snaps. If your snaps have long posts, they will bruise the opposing vinyl.
• The Snap Tab: The classic choice. It allows for more "forgiveness" in the spine area.
• The Eyelet: Requires a specific tool (Crop-A-Dile or hole punch) and hardware.

Commercial Reality Check: If you plan to sell these, the Snap Tab version usually has the highest customer success rate because it’s easier to open/close one-handed. If you are building for efficiency, standardizing on one hardware type (e.g., all 9mm rivets) reduces your setup time.

The “Hidden Prep” That Makes ITH Wallets Look Store-Bought: Materials, Blades, and a No-Drag Plan

The vast majority of ITH failures happen before the "Start" button is pressed. We are using a 5x7 hoop.

The "Hidden Consumables" List

Beginners often miss these, but pros rely on them:

1. Needles: Use a size 75/11 Sharp or Embroidery needle. Do not use a Ballpoint needle on vinyl; it tears the material rather than piercing it cleanly.
2. Thread: 40wt Polyester is standard.
3. Adhesive: Spray adhesive (like 77 or 505). Tip: Spray the paper template, not the hoop, to avoid gumming up your machine.
4. Tape: Painter's tape or dedicated embroidery tape (low residue).

Why experienced makers prep differently

With vinyl projects, two physical forces ruin your day:

1. Shift: Layers creeping 1mm off-center during the rapid movement of the hoop.
2. Drag: The rubbery friction of vinyl grabbing your machine’s needle plate, causing the hoop to stutter. This creates "loops" on the bottom.

Your goal is Controlled Glide.

Warning: Cutting vinyl with an Exacto knife requires significant downward pressure. This is a slip hazard. Always cut away from your body on a self-healing mat. Keep your non-cutting hand behind the blade's path perfectly parallel to the ruler.

Prep Checklist (Do this before stitching)

• Hoop Check: Ensure your 5x7 hoop is clean. Any sticky residue on the bottom of the inner ring will act like a brake pad against your machine arm.
• Blade Check: Snap off a fresh segment on your Exacto knife. A dull blade drags vinyl; a sharp blade glides.
• Adhesive Test: Spray a scrap of Oly-Fun. It should feel "tacky like a Post-it note," not wet or gummy.
• Needle/Thread: Install a fresh 75/11 needle. Check that your bobbin is at least 50% full (you do not want to change bobbins mid-wallet).
• Consumable: Pre-cut a sheet of tracing paper (or tear-away stabilizer) slightly larger than your hoop. We will need this for the friction hack later.


Inside Flaps First: Placement Stitch + Vinyl + “No-Thread” Perforation for a Perfect Diamond Cutout

We start with the inside flaps. These pockets are the "finish" of the wallet.

What happens in the hoop

1. Placement: Run the placement stitch on your base (Oly-Fun or Tearaway).
2. Adhesion: Place your vinyl. Sensory Check: Rub your hand over the vinyl. It should feel completely flat with zero air bubbles.
3. Tacking: The machine stitches the pockets.
4. Perforation: The machine runs a "no-thread" or non-stitching needle penetration sequence to mark the diamond cutout.

Expert Nuance: When placing your vinyl, ensure it extends at least 1/2 inch (12mm) past the top placement line. Why? Because later, when the snap tab is cut, if you are short on material here, you will have a raw, unfinished edge on your tab. It’s better to waste 10 cents of vinyl than ruin a $20 finished product.

The Cleanest Diamond Opening: Use the Center Dots, a Ruler, and One Confident Cut

The perforation holes are your map. The diamond shape allows the credit cards to be accessible.

The Commitment Technique

Cutting vinyl is not about sawing; it is about pressure navigation.

1. Align your ruler with the center dots created by the needle penetrations.
2. The Sensory Anchor: Press the blade down until you feel it click through the vinyl but stop before it gouges your mat too deeply.
3. Pull the blade in one continuous, confident motion.
   • Hesitant cut: Looks jagged, like a saw blade.
   • Confident cut: Looks buttery smooth and reflects light on the edge.

If you are selling these, the diamond cutout is the focal point. A jagged edge here screams "homemade." A smooth edge says "handcrafted."

Cardstock Structure Without a Stiff Tab: Where Paper Belongs (and Where It Will Ruin the Fold)

To make the wallet feel premium (rigid) rather than cheap (floppy), we introduce cardstock. This is your "skeleton."

The Golden Rule of Stiffness:

• Body Panels: YES to cardstock. It provides a platform for the vinyl.
• Spine/Fold: NO to cardstock. It causes cracking.
• Tabs: NO to cardstock. It creates bulk that snaps cannot close over.

Use standard 65lb cardstock (like scrapbooking paper). 110lb cover stock can be too thick for some domestic machines to penetrate cleanly without skipping stitches. Secure the cardstock to the stabilizer side (inside the sandwich), keeping it strictly within the main body boundaries.

The One Alignment Trick That Saves the Whole Wallet: Extend the Notches into Real Placement Lines

Most beginners skip this. Do not skip this. This is the difference between a wallet that folds square and one that twists.

The design file stitches small "notch marks" at the top and bottom of the placement line.

1. Flip your hoop over.
2. Take a ruler and a pencil/pen.
3. Draw a physical line connecting the top notch to the bottom notch. Extend this line all the way across the stabilizer.

Why: Once you start taping Oly-Fun and lining fabrics on the back, you will cover the original stitches. You need these extended "guidelines" visible outside the fabric area so you can align your pockets blindly.

Back-Side Assembly in a 5x7 Hoop: Tape the Lining, Align the Flaps, and Protect the Stitch Path

We are now working "blind" on the underside of the hoop. This is the highest risk point for failure.

The Protocol

1. Lining: Tape your lining (Oly-Fun) to cover the center back.
2. Flaps: Align your pre-made flaps to your drawn pencil lines.
3. The Spine Gap: You must leave a physical gap between the left and right pockets. measurement: Usually 2mm to 4mm depending on vinyl thickness. If they touch, the wallet won't close.
4. Tape: Secure the edges vigorously.

The Workflow Bottleneck: If you are doing this once, tape is fine. If you are doing a production run of 20 wallets, taping and re-taping is a nightmare. It leaves residue on the hoop, and tape can detach during hi-speed stitching. This is where serious hobbyists often upgrade their infrastructure. Consider a magnetic hooping station or specifically, magnetic hoops for embroidery machines. These tools clamp the backing materials instantly without the sticky mess of tape, ensuring the layers don't shift when you flip the hoop.

Warning: Magnet Safety.
If you upgrade to magnetic frames/hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with a "slide-on" motion, not a "snap-down" motion.
* Medical Device: Keep at least 6 inches away from pacemakers.

Setup Checklist (Pre-Final Stitch)

• Visual: Are the flaps equal distance from the center spine?
• Tactile: Press on the tape. Is it secure?
• Clearance: Is your tape outside the stitch path? If the needle hits the tape, it gums up the eye and causes shredding.
• Orientation: Is the right pocket on the right, and left on the left? (It sounds silly, but check it).


The Tracing Paper Hack for Vinyl: Stop Machine Drag Before It Creates Loopy Bottom Stitches

If you hear your machine making a rhythmic thud-thud sound, or if the hoop seems to "stutter" as it moves, you have Vinyl Drag. The rubbery texture of the vinyl is gripping the smooth plastic of your machine bed.

The Symptom: "Bird nesting" or loose loops on the underside (bobbin side) of the embroidery. The Fix: Reduce the Friction Coefficient.

1. Flip the hoop to the back (after everything is taped in place).
2. Tape a sheet of Tracing Paper (or sheer Tearaway stabilizer) over the entire back assembly.
3. The Result: The paper slides effortlessly over the machine bed.
4. After stitching, simply tear the paper away.

This is cheaper than buying a Teflon sheet and more effective for hooped projects.

One-Hooping vs Two-Hooping: The Production Decision (and a Simple Decision Tree)

You have two ways to execute this. Choose based on your volume and patient level.

Decision Tree: Which method is for you?

Production Tip: If you choose Method A (Two-Hooping), batch your work. Make 20 flaps in a row, then assemble 10 wallets.

Trimming Like a Pro: Long Cuts with Kai Scissors, Curves by Turning the Wallet (Not the Blades)

The stitching is done. Now we create the silhouette.

The Tool: Use high-leverage scissors (like Kai 5-inch double curves or serrated shears). The Technique:

1. Open the scissors wide (use the back of the jaw, near the screw).
2. Sensory Anchor: Do not "nibble" with the tips of the scissors. This creates jagged steps.
3. The Turntable: Hold the scissors at a fixed angle comfortably in your hand. Rotate the wallet into the blades. Your cutting hand stays still; your holding hand drives the curve.

Gap: Leave about 1/8th inch (3mm) of vinyl outside the satin stitch. Too close, and the vinyl stitches might pop off. Too far, and it looks sloppy.

Hardware Time: Japanese Screw Punch, 9mm Rivets, and Why KAM Snaps Can Feel Tight in a 5x7 Design

You need to punch holes through multiple layers of vinyl, stabilizer, and cardstock.

The Tool: A Japanese Screw Punch is superior to a squeeze punch here because it applies downward rotary pressure, cutting a clean cylinder rather than crushing the layers.

The Hardware:

• Rivets: 9mm Double Cap Rivets are the sweet spot. 8mm is often too short for dual layers of marine vinyl.
• Snaps: If using plastic KAM snaps, ensure you have "Long Prong" caps (size 20 extra long). Standard prongs may not pass through the thickness to mushroom correctly, causing the snap to pop off later.


Troubleshooting the Two Problems That Make People Quit ITH Wallets (and the Fast Fixes)

We troubleshoot based on cost: fix the free things first, then the cheap things, then the tools.

1. Symptom: "Loops on the Bottom / Messy Bobbin"

• Level 1 Check (Free): Is the machine correctly threaded? Did you miss the tension disc?
• Level 2 Check (Physics): Is the vinyl dragging? Apply the Tracing Paper Hack (Fig 09).
• Level 3 Check (Settings): Is the speed too high? Slow down to 600 SPM.

2. Symptom: "Wallet won’t stay closed / Pops open"

• Cause: The "Spine Gap" between pockets is too narrow, or cardstock was placed in the fold area.
• Fix: You cannot fix this post-stitch. Next time, widen the gap between pockets by 2mm and ensure cardstock is strictly in the body panels.

3. Symptom: "The outline stitch doesn't match the pocket edge"

• Cause: The layers shifted during the hoop flip.
• Fix: Use stronger tape, or upgrade to a brother 5x7 magnetic hoop to clamp layers instantly without shifting.


The Upgrade Path (Without the Hype): When Tape Becomes the Bottleneck and What to Do Next

If you are making one wallet a week, your current setup is perfect. But if you find yourself spending 20 minutes taping and only 5 minutes stitching, your workflow is upside down.

The Professional Evolution:

1. Optimization: Start with the right needles (75/11), proper spray adhesive, and the Tracing Paper hack.
2. Tooling Upgrade: If "Hoop Burn" (ring marks on vinyl) or shifting backing is your main frustration, magnetic hoops for embroidery machines are the industry solution. They allow you to float materials without crushing them and make back-of-hoop assembly 3x faster.
3. Capacity Upgrade: If you have orders for 50 wallets, a single-needle machine requires 50 bobbin changes and constant babysitting. This is when small businesses evaluate SEWTECH multi-needle solutions to regain their time.

Operation Checklist (Final Quality Control)

• Closure: Does the wallet snap shut with a satisfying click without forcing the vinyl?
• Spine: Is the fold smooth, with no cardstock crunching inside?
• Edges: Run your finger along the trim. Is it smooth (no sharp vinyl points)?
• Stitching: Are the top stitches tight and the bobbin thread hidden?
• Hardware: Pull firmly on the snap. Does it hold? (Better it fails now than with a customer).


Mastering the ITH wallet is a rite of passage. It teaches you to respect the thickness of materials and the importance of friction control. Once you nail the Extended Alignment Line trick and the Tracing Paper Glide hack, you can confidently produce these in batches. And when the taping gets too tedious, you know where to look for embroidery magnetic hoops to take the friction out of your workflow.

FAQ

• Q: What needle size and needle type should a Brother embroidery machine use for stitching vinyl ITH wallets to avoid skipped stitches and tearing?
  A: Use a fresh 75/11 Sharp or Embroidery needle and avoid ballpoint needles on vinyl.
  • Install: Replace the needle before starting the wallet (vinyl shows needle issues fast).
  • Avoid: Do not use a ballpoint needle on vinyl because it can tear rather than pierce cleanly.
  • Pair: Use standard 40wt polyester thread as a stable baseline.
  • Success check: Satin stitches look clean on top and the vinyl shows neat punctures (not ragged tears).
  • If it still fails: Slow the machine down toward 600 SPM and re-check the machine threading path for a missed tension point.
• Q: How can a Brother 5x7 hoop embroidery machine prevent vinyl “drag” that causes loopy bottom stitches (bird nesting) during an ITH wallet stitch-out?
  A: Tape tracing paper (or sheer tear-away) over the back of the hooped assembly to make the hoop glide smoothly.
  • Flip: Turn the hoop to the back after the layers are secured.
  • Cover: Tape a full sheet of tracing paper across the entire back so it slides on the machine bed.
  • Stitch: Run the next steps at a slower speed (a safe starting point is around 600 SPM for vinyl).
  • Success check: The hoop motion sounds smooth (no thud-thud stutter) and the bobbin side shows no loose loops.
  • If it still fails: Confirm the hoop bottom ring is clean—sticky residue can act like a brake and worsen drag.
• Q: How do you know a Brother 5x7 hoop is clean enough for vinyl ITH projects, and what causes “brake pad” stuttering during embroidery?
  A: Clean the bottom of the inner hoop ring—any sticky residue can create stutter and alignment issues on vinyl.
  • Inspect: Feel the bottom of the inner ring for tackiness or adhesive buildup.
  • Clean: Remove residue before hooping so the hoop can move freely on the machine arm/bed.
  • Prepare: Spray adhesive on the paper template (not the hoop) to reduce future buildup.
  • Success check: The hoop travels smoothly without rhythmic thudding and placement stays consistent.
  • If it still fails: Add the tracing-paper glide layer to reduce friction between vinyl and the machine bed.
• Q: How can a Brother embroidery machine user keep ITH wallet inside flaps aligned when flipping the hoop, so the outline stitch matches the pocket edge?
  A: Extend the design’s notch marks into full-length alignment lines before back-side assembly.
  • Flip: Turn the hoop over after the notch marks stitch.
  • Draw: Use a ruler to connect the top notch to the bottom notch and extend the line across the stabilizer.
  • Align: Place/tape the flaps using the drawn lines, not the covered placement stitches.
  • Success check: Left and right pockets sit equally spaced from the spine line and the final outline lands evenly on both pocket edges.
  • If it still fails: Increase holding strength (stronger tape), or consider magnetic clamping to reduce layer shift during hoop flips.
• Q: Why does a Brother-machine ITH snap tab wallet pop open after stitching, and what spine-gap and cardstock placement prevents the closure problem?
  A: The wallet usually pops open when the spine gap is too narrow or cardstock is placed in the fold/tab area.
  • Leave: Maintain a physical spine gap between left and right pockets (often 2–4 mm depending on vinyl thickness).
  • Place: Put cardstock only in the body panels, not in the spine/fold and not in the tabs.
  • Choose: Use a reasonable cardstock weight (65lb is commonly manageable); very thick stock may cause penetration issues.
  • Success check: The wallet snaps shut with a clean click without forcing the fold or bulging at the spine.
  • If it still fails: Rebuild with a wider pocket gap; this issue is typically not fixable after stitching.
• Q: What is the safest way to cut the ITH wallet diamond opening after a Brother embroidery machine makes the no-thread perforation marks on vinyl?
  A: Use a ruler on the center dots and make one confident cut away from the body to prevent slips and jagged edges.
  • Align: Match the ruler to the perforation center dots created by the needle penetrations.
  • Cut: Press down firmly, then pull the blade in one continuous motion—do not saw back and forth.
  • Protect: Cut away from the body on a self-healing mat and keep the non-cutting hand behind the blade path.
  • Success check: The diamond edge looks smooth and clean, not serrated or “stepped.”
  • If it still fails: Replace the blade segment—dull blades drag vinyl and create jagged cuts.
• Q: What magnetic hoop safety rules should a Brother embroidery machine user follow when switching from tape to magnetic hoops for ITH wallet back-side assembly?
  A: Handle magnetic hoops with a slide-on motion to avoid finger pinches and keep magnets away from pacemakers.
  • Slide: Bring magnets together by sliding into place, not snapping straight down.
  • Protect: Keep fingertips out of the closing path—neodymium magnets can bruise.
  • Separate: Store and separate frames carefully to prevent sudden attraction on the workbench.
  • Success check: The backing layers clamp flat without shifting, and fingers never feel a “snap” impact.
  • If it still fails: Return to tape for tight-clearance setups and re-check that all holding methods stay outside the stitch path to avoid needle strikes and thread shredding.
