Master Class: The Zero-Error Guide to ITH Mesh Zipper Pockets

From "Scary Stitching" to Production Precision

If you have ever heard the sickening CRUNCH of an embroidery needle striking a metal zipper pull, you know the specific type of adrenaline spike that follows. It is the sound of a project ruined and a machine potentially knocked out of timing.

In-The-Hoop (ITH) zipper pockets, particularly those with delicate mesh windows, are often viewed as "advanced" projects. However, they are not actually difficult; they are simply intolerant of clearance errors.

As someone who has overseen thousands of hours of production embroidery, I can tell you that success isn't about luck. It is about Clearance Management and Tension Physics. This guide will deconstruct the mesh zipper pocket workflow (demonstrated on a Janome setup but applicable universally) into a fail-proof system.

We will cover the "Beginner Sweet Spot" settings, the sensory cues you need to watch for, and the specific tools that bridge the gap between hobbyist frustration and professional consistency.

The Physics of Failure: Why Needles Break on Zippers

The number one reason for needle breaks in ITH projects is Bulk Lift.

In a standard hoop, as you add layers (zipper, mesh, lining, batting, backing), the fabric "sandwich" becomes thicker. A traditional screw-tightened inner ring often cannot clamp this variable thickness evenly. The fabric pushes up in the center—sometimes only 2-3mm—but that lift is enough to turn a safe zipper pull into a hard obstacle for the presser foot.

The Solution exists in two parts:

1. Process Control: We tape the zipper pull to the safe zone (hoop edge) initially, then move it to the "eye of the storm" (center) for the final pass.
2. Tooling Geometry: This is why professionals often transition to magnetic embroidery hoops. Unlike screw hoops that pinch fabric at the edges and allow bowing in the middle, magnetic frames apply vertical, even pressure across the entire perimeter. They flatten the "sandwich," maintaining the safe clearance your machine needs.


Phase 1: The "Hidden" Consumables & Setup

A pocket with a mesh window requires structural integrity. If you use the wrong stabilizer, your rectangle window will turn into a wavy oval.

The "Must-Have" List

• Stabilizer: Cutaway (2.5 - 3.0 oz). Do not use Tearaway. Tearaway provides zero support for the stitches once the window is cut. Cutaway acts as the permanent skeleton.
• Adhesive: Washi Tape or Medical Paper Tape. Avoid standard undetected Scotch tape or duct tape, which leave gummy residue on your needle, causing shredding later.
• The Hardware: Nylon Coil Zipper (Size #3 is standard). Avoid metal teeth zippers for ITH projects unless you are extremely experienced.
• Scissors: Double-Curved Applique Scissors. These are non-negotiable for cutting the window inside the hoop.

The "Hidden" Items Beginners Miss

• Needle: 75/11 Sharp. (Ballpoint is for knits, but here we are piercing multiple layers of stabilizer and zipper tape; a Sharp point deflects less).
• Spray Adhesive (Optional): Temporary spray (like Odif 505) can prevent lining shift better than tape alone.


Prep Checklist: The Pre-Flight Safety Scan

Before you even power on the machine, perform this 6-point check:

• Hoop Check: Is the inner ring screw tightened to "finger tight plus one turn," or are you using a magnetic frame? (Loose hoops causes registration loss).
• Stabilizer Drum Test: Flick the hooped cutaway stabilizer. It should sound like a drum skin (thump-thump), not loose paper (flap-flap).
• Clearance Zone: Ensure your machine arm has clearance. Large ITH bags can hit the wall of the machine if the hoop travels too far left.
• Bobbin Match: Wind a bobbin that matches your top thread. The inside of this pocket effectively becomes the lining; a white bobbin will look glaringly cheap against dark fabric.
• Speed Limit: Set your machine speed to the Beginner Sweet Spot: 400 - 600 SPM. High speed (800+) on bulky layers increases the chance of the foot catching onto the zipper pull.
• Tools Ready: Place your curved scissors and tape within arm's reach. You will need them quickly.

Create a Safety Zone: Never use standard straight scissors for the internal window cut. You risking snipping your hoop or the stabilizer foundation. Only use curved tips that point up and away from the work.

Phase 2: The Zipper Foundation (The "Railroad Tracks")

The machine will first stitch placement lines (the "railroad tracks") onto the stabilizer. This is your map.

The Sensory Check: When placing the zipper between these lines, run your finger along the coil. It should be perfectly centered. If the zipper is crooked here, the entire pocket will be twisted.

The Tape Method:

1. Tape across the top and bottom zipper tape.
2. Crucial Step: Tape the zipper pull to the hard plastic/frame of the hoop, far outside the sewing field. Do not just tape it to the stabilizer; vibration can shake it loose.

If you are using a standard Janome 500E or similar single-needle machine, you might find the hoop jumping slightly as it sews over the zipper teeth. This is normal. However, if the hoop "pops" out, it means your screw tension was too loose. This is a common frustration point where users search for magnetic embroidery hoops for janome 500e to eliminate the risk of hoop-popping during these high-stress passes.

Phase 3: The Surgical Cut (Stabilizer Window)

Once the zipper is tacked down, you must cut a rectangular window in the stabilizer behind the zipper.

Why? This ITH design uses a specific turning technique. If you leave the stabilizer solid, you won't be able to turn the bag right-side out effectively, and the mesh will have an opaque backing rather than being see-thru.

Technique:

• Lift the hoop off the machine (do not unhoop the fabric).
• From the back side, pinch the stabilizer to separate it from the zipper tape.
• Snip a hole, then insert your curved scissors.
• The Sound: Listen for the clean snip-snip of the stabilizer. If you hear a grinding noise, you are likely cutting into the zipper fabric itself. Stop immediately.


Phase 4: The Fold & Flip (Registration Mastery)

We now attach the outer fabric and lining. The technique relies on placing fabric "Right Sides Down" and flipping it up.

The 1/4 Inch Rule: When tamping the fabric down for the seam stitch, overlap the stitching line by 1/4 inch. This is your safety margin. Beginners often line it up exactly on the stitch line, which results in the fabric pulling away when flipped, leaving a gap.

Production Tip: If you are doing this repeatedly, holding the fabric in place while trying to tape it can be fiddly, leading to crooked seams. A hooping station for embroidery machine acts as a third hand, stabilizing the hoop on a non-slip surface so you can align straight edges with precision.

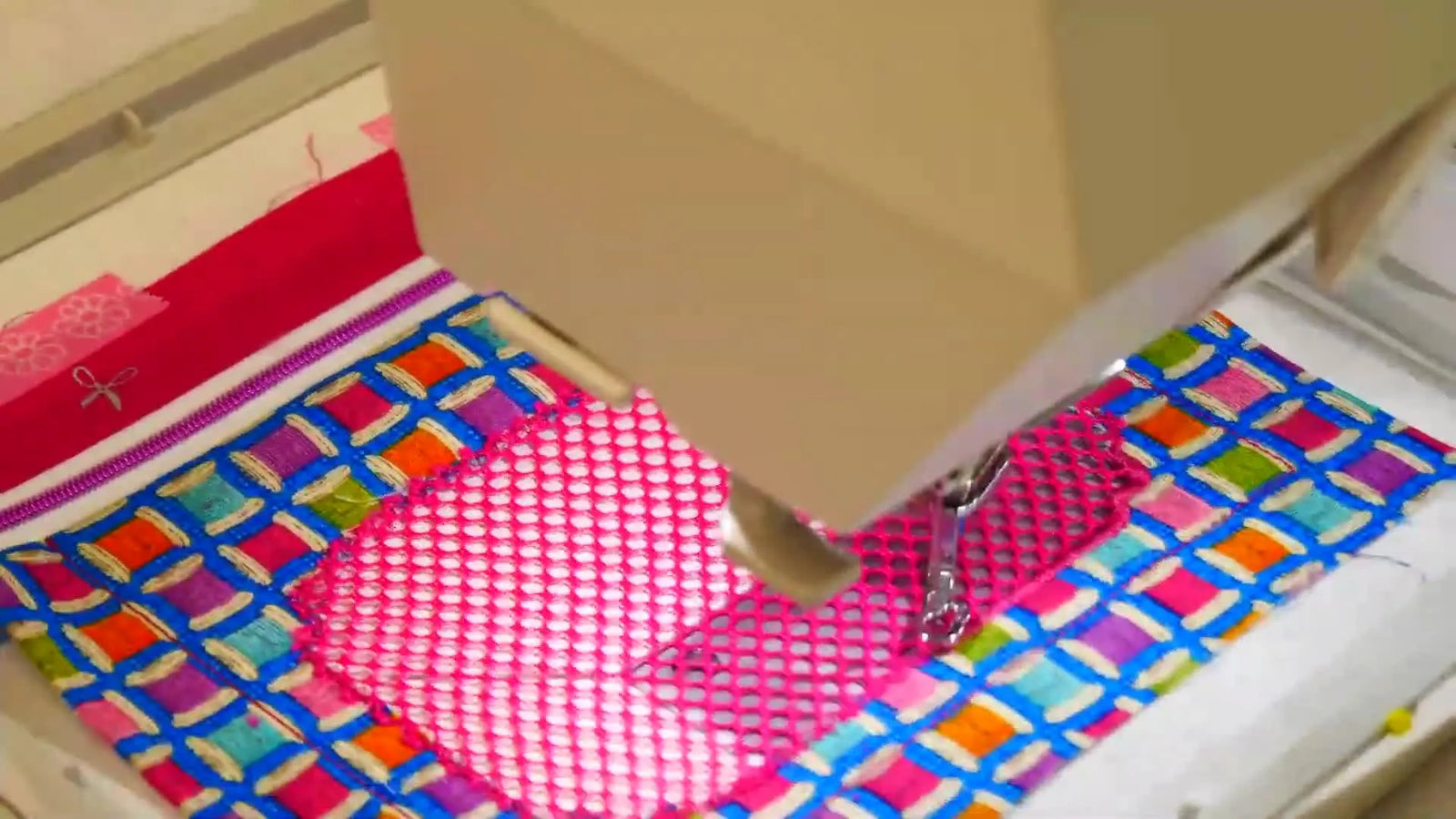

Phase 5: The Mesh Window (The Tension Trap)

You are now ready to cut the window in the front fabric and apply the mesh. This is where most people fail.

The Failure Mode: You cut the fabric window, lay down the mesh, and apply it tight like a drum. The Result: When you unhoop, the stabilizer relaxes, but the stretched mesh contracts. Your beautiful pocket now looks like a puckered hammock.

The Expert Fix:

1. Cut the Window: Trim the fabric 1-2mm from the tack-down line.
2. Apply Mesh: Lay the mesh over the hole with Zero Tension. It should essentially "float" there.
3. Tape Corners: Secure corners lightly.
4. Tack Down: Sew the tack-down stitch.

The Physics: Mesh is a knitted structure; it wants to shrink. By laying it flat without pulling, you ensure it stays flat when the hoop tension is released.

Phase 6: The Satin Finish (Covering the Crimes)

The machine will now run a satin stitch (zigzag column) over the raw edges of your mesh and fabric window.

Critical Setting - Density: If you digitized this yourself, ensure the density is not too high. A density of 0.40mm - 0.45mm is ideal. If it's too dense (e.g., 0.30mm), it will distort the pocket.

Critical Setting - Speed: Slow down. Satin stitches generate significant friction. Drop your speed to 400-500 SPM. You want the stitches to lay down smooth and glossy to look expensive. Fast stitching here creates a messy, matte finish.

Setup Checklist: The High-Stakes Transition

Perform this check before the final assembly steps.

• Bobbin Check: Do you have enough thread to finish? Running out of bobbin thread during the final perimeter stitch is a nightmare to fix.
• Mesh Tension: Gently poke the mesh window. It should have a tiny bit of give, not be rigid.
• Fuzz Check: Use tweezers to pull away any stray threads or fabric whiskers from the window edge before the satin stitch covers them. Once sewn over, they are there forever.
• Clearance: Double-check that your tape isn't covering the path where the satin stitch needs to go.

Warning: Magnet Safety
If you have upgraded to magnetic embroidery hoops, handle them with extreme care during these steps. Strong neodymium magnets can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens. Always slide the magnets off the frame; do not try to pry them straight up.

Phase 7: The "Zipper Logic" (Avoiding the Collision)

STOP. Before you add the backing fabric for the final enclosure, you MUST open the zipper halfway.

The Mechanics:

1. Move the zipper pull to the exact center of the window.
2. Why? The final stitch goes around the perimeter. If the pull is at the top/edge (where we taped it earlier), the needle will hit it. By centering it, the pull sits safely in the "void" of the pocket while the needle traces the outside border.
3. Bonus: If you forget to open the zipper, you literally cannot turn the bag right side out. You will have to cut the zipper tape to salvage the project.


Phase 8: Backing & Batting (Reducing the "Bump")

Lay your backing fabric Right Side Down over the pocket. Layer batting on top.

The Pro Trimming Trick: Before the final stitch, trim the batting back 1-2mm inside where the seam will be.

• Why? It reduces the bulk inside the seam allowance.
• Result: Your corners will turn out sharper, and the presser foot glides smoother.

For those running a small business, consistency here is key. Using a machine embroidery hooping station ensures that every backing layer is applied at the same tension and alignment, which is critical when selling sets of matching items.

Phase 9: Perimeter Stitch & The "Triple"

The machine will sew the final shape.

• Stitch Type: It usually ends with a "Triple Stitch" (Bean Stitch)—forward-back-forward. This creates a reinforced seam that won't burst when you shove your hand inside to turn the bag.
• The Gap: Watch for the turning gap at the bottom. Do not sew this shut.


Phase 10: The Turn & Shape (The Professional Finish)

Unhoop the project. It looks like a mess of stabilizer and tape. Don't panic.

1. Trim: Cut excess fabric 1/4 inch from the seam.
2. The Notch: Clip your corners at a 45-degree angle (don't cut the stitch!). This reduces bulk in the point.
3. Turn: Turn through the gap. Use a "Point Turner" or a chopstick (not a screwdriver/sharp object) to gently push the corners out.
4. Press: Iron the pocket flat (use a pressing cloth over the vinyl zipper/mesh to avoid melting).
5. Close: Hand-stitch the turning gap or use a fabric fuse tape.


Operation Checklist: Final Quality Control

• Zipper Glide: Does the zipper open smoothly without catching on the internal batting?
• Mesh Flatness: Is the mesh window taut but not pulling the bag sides inward?
• Satin Coverage: Are there any raw fabric edges peeking out from the satin border? (If so, use a permanent fabric marker in a matching color to disguise them).
• Shape: Is the pocket square, or is it twisted? (Twisting indicates poor hooping tension).


Troubleshooting: The Symptom-Fix Matrix

Don't guess. Diagnose based on physical evidence.

Decision Tree: Fabric vs. Stabilizer

Choose your path based on your materials.

Scenario A: Standard Cotton Pocket

• Stabilizer: Medium Weight Cutaway (2.5oz).
• Hooping: Standard or Magnetic.
• Outcome: Crisp, structured.

Scenario B: Knit/Stretchy Fabric (Jersey)

• Stabilizer: Heavy Cutaway or Poly-Mesh (No Show Mesh).
• Decision: You MUST use fusible interfacing (like shape-flex) on the knit fabric before embroidery.
• Hooping: hoop master embroidery hooping station is highly recommended here to prevent stretching the knit while hooping.

Scenario C: Production Run (50+ units)

• Tooling: Move to Magnetic Hoops to save wrists from strain.
• Workflow: Pre-cut all fabric/stabilizer. Assembly line style.


The Commercial Upgrade Logic: When to Buy What

As you transition from "making one for fun" to "production," your pain points will change. Here is how to address them logically.

Pain Point 1: "Hooping takes longer than sewing."

If you spend more time fighting screw tension than stitching, you are losing money (or patience).

• The Upgrade: janome memory craft 500e hoops (Magnetic).
• The Gain: Snap-and-go speed; zero hoop burn on sensitive fabrics; automatic tension leveling.

Pain Point 2: "I keep changing threads."

Janome 500E is a workhorse, but it is a single-needle machine. Stop/Start every color change adds up.

• The Upgrade: SEWTECH Multi-Needle Machines.
• The Gain: Set 10-15 colors at once. Walk away. The machine handles the zipper stops, the colors, and the trims automatically.

Pain Point 3: "My alignment varies from bag to bag."

• The Upgrade: A dedicated Hooping Station.
• The Gain: Repeatability. Every pocket lands in the exact same spot on the hoop, which is essential for uniform team gifts or inventory.


Final Thoughts: The "Pro" Difference

A professional ITH zipper pocket isn't identified by the design—it is identified by the finish.

• The mesh is flat.
• The satin is dense and smooth.
• The lining doesn't catch in the zipper.

By respecting the physics of layer clearance and using tools like magnetic hoops to manage tension, you move from "hoping it works" to "knowing it will work." Now, go stitch that zipper without fear.

FAQ

• Q: For a Janome Memory Craft 500E ITH mesh zipper pocket, what stabilizer type and weight prevents a wavy window after cutting the opening?
  A: Use medium-weight cutaway stabilizer (about 2.5–3.0 oz) and avoid tearaway for mesh windows.
  • Choose: Hoop only cutaway as the “skeleton” under the entire pocket; do not substitute tearaway for this project.
  • Add: Use washi tape or medical paper tape for positioning to avoid needle gum-up later.
  • Success check: After hooping, flick the stabilizer— it should sound like a drum skin (“thump-thump”), not loose paper (“flap-flap”).
  • If it still fails: Re-hoop with tighter, even tension (or consider switching from a screw hoop to a magnetic frame to reduce center lift on thick layer stacks).
• Q: For Janome 500E ITH zipper pocket sewing, what needle type and size reduces zipper deflection and skipped penetration through stabilizer and zipper tape?
  A: Install a 75/11 Sharp needle as the safe starting point for piercing stabilizer + zipper tape cleanly.
  • Replace: Put in a fresh 75/11 Sharp before the zipper pass; dull needles deflect more and shred thread.
  • Avoid: Do not use a ballpoint needle here; it’s more likely to push/deflect on dense layers.
  • Success check: The zipper pass should sound steady and clean, without “punchy” impacts or sudden ticking as the needle rides up.
  • If it still fails: Slow the machine to the 400–600 SPM range and re-check zipper pull positioning so the needle path stays clear of hardware.
• Q: On a Janome 500E screw hoop during an ITH zipper pass, how can zipper pull placement prevent needle strikes and broken needles?
  A: Tape the zipper pull to the hard hoop frame outside the sewing field first, then move the pull to the center (and open the zipper halfway) before the final perimeter stitch.
  • Tape: Secure the pull to the plastic hoop/frame—not to stabilizer—so vibration can’t shake it into the stitch path.
  • Stop: Before final enclosure stitching, open the zipper halfway and place the pull at the exact center “void” of the pocket.
  • Success check: The presser foot and needle can travel the full perimeter without contacting the pull, and there is no “CRUNCH” impact sound.
  • If it still fails: Replace the needle and verify machine timing if a strike occurred; then re-run the perimeter only after confirming the pull is centered and clear.
• Q: For an ITH mesh window on a Janome embroidery setup, how can stretched mesh be prevented from puckering after unhooping?
  A: Apply mesh with zero tension—let the mesh float over the opening and tape only the corners lightly.
  • Cut: Trim the fabric window 1–2 mm from the tack-down line before placing mesh.
  • Place: Lay mesh flat without pulling it tight like a drum.
  • Secure: Tape corners lightly, then run the tack-down stitch.
  • Success check: After unhooping, the mesh window stays flat (not pulled inward like a hammock) and has a slight, natural “give” when gently poked.
  • If it still fails: Hover-steam gently to relax minor ripples, then re-evaluate whether the mesh was tensioned during placement.
• Q: For a Janome-style satin border around an ITH mesh window, what stitch density and speed reduce distortion and improve a smooth glossy finish?
  A: Use a satin density around 0.40–0.45 mm and slow the machine to about 400–500 SPM for the satin pass.
  • Set: Keep density moderate (too dense, such as 0.30 mm, can distort the pocket).
  • Slow: Reduce speed for satin; friction is high and fast runs can look messy/matte.
  • Clean: Remove fuzz/whiskers with tweezers before the satin covers them permanently.
  • Success check: Satin columns look smooth and even with full edge coverage, and the fabric window stays square rather than pulling into waves.
  • If it still fails: Check top tension if the satin looks “pockmarked” or bobbin thread shows through.
• Q: For ITH zipper pocket hooping, how can a Janome screw hoop be tightened correctly without causing hoop burn or registration loss?
  A: Tighten the inner ring to “finger tight plus one turn” (not over-cranked) and verify hoop tension with the drum-skin test.
  • Tighten: Stop at finger tight + one turn; over-tightening increases hoop burn risk while still not fixing uneven bulk.
  • Test: Flick the hooped stabilizer to confirm firm, even tension before stitching.
  • Match: Use a bobbin thread color that matches the top thread for a clean-looking interior.
  • Success check: Placement stitches land consistently (no drifting), and fabric shows no shiny clamp marks after unhooping.
  • If it still fails: If thick layers keep lifting in the center or the hoop “pops,” a magnetic hoop is often the next-level fix for more even clamping.
• Q: For repeated ITH zipper pocket production on a Janome 500E, when should a user move from technique tweaks to a magnetic hoop, a hooping station, or a multi-needle machine?
  A: Use a tiered approach: optimize process first, then upgrade tooling (magnetic hoop/hooping station), then upgrade capacity (multi-needle) if thread changes and consistency limit output.
  • Level 1 (technique): Slow to 400–600 SPM on bulky zipper passes; tape zipper pull to the hoop frame; follow the 1/4-inch overlap rule when placing fabrics.
  • Level 2 (tooling): Choose a magnetic hoop if screw-hoop tension is inconsistent, causes hoop burn, or the hoop pops on zipper teeth; add a hooping station if alignment varies bag-to-bag.
  • Level 3 (capacity): Move to a multi-needle machine when constant stop/start thread changes are the main bottleneck in batch work.
  • Success check: Hooping time drops, alignment becomes repeatable, and needle strikes on hardware stop happening across multiple units.
  • If it still fails: Standardize a pre-flight checklist (hoop tension, clearance, bobbin match, tools within reach) before every run to isolate the remaining variable.
