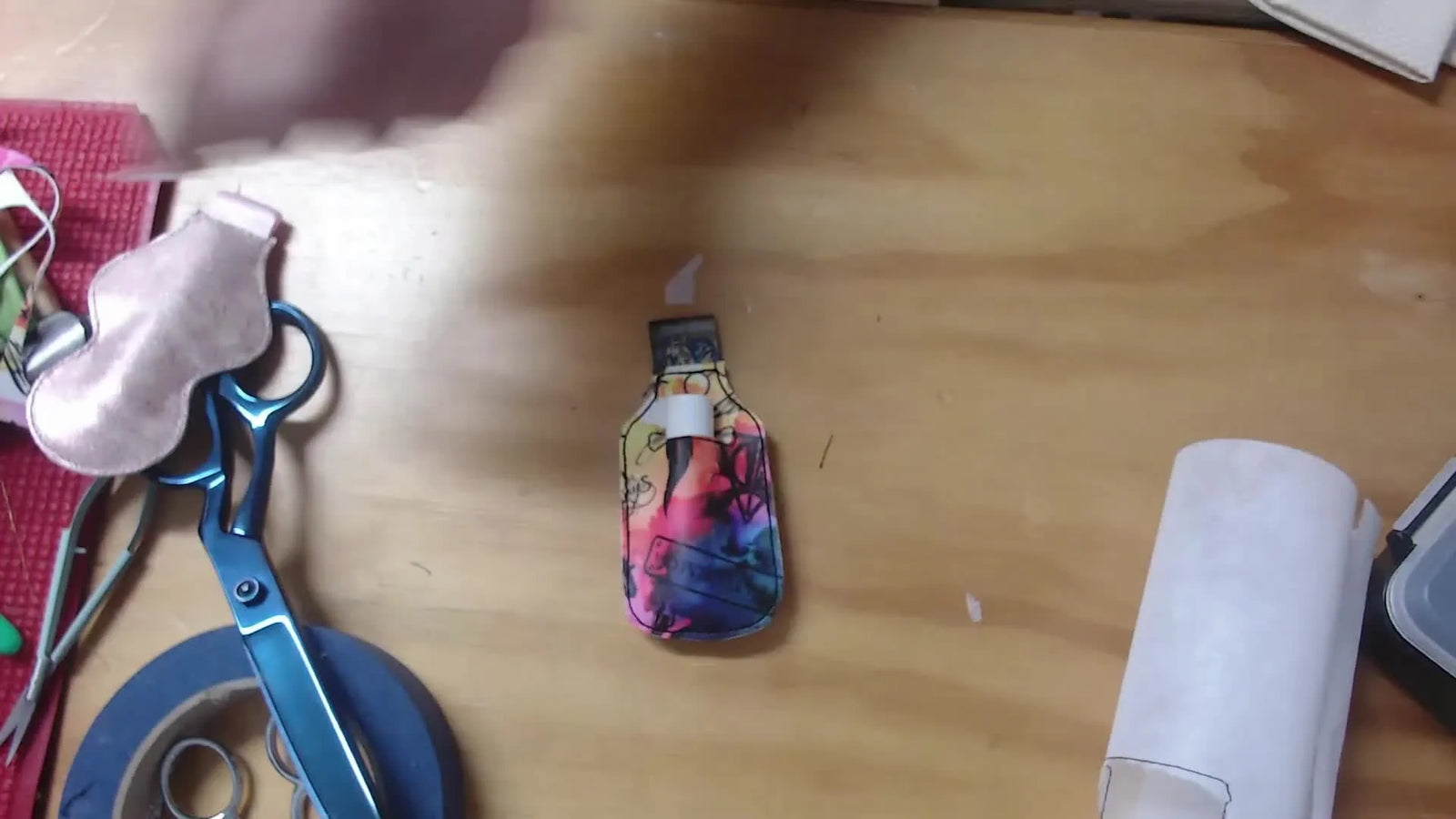

ITH Vinyl Lip Balm Holder on a Single-Needle Embroidery Machine: The Fast “Float-and-Flip” Method That Actually Stays Neat

Master the ITH Vinyl Lip Balm Holder: A "Zero-Friction" Guide to Floating Materials

If you have ever wanted a project that delivers "instant gratification" while teaching you a fundamental production skill, the In-The-Hoop (ITH) vinyl lip balm holder is your perfect training ground. It is quick, scrap-friendly, and more importantly, it teaches the core technique behind professional patch-making and appliqué: floating materials on stabilizer.

As someone who has managed production floors and taught hundreds of beginners, I know that vinyl can be intimidating. It doesn't forgive needle perforations, and it shows every slip in tension. However, once you master the "float and flip" technique here, you are not just making a keychain holder—you are learning the mechanics required for profitable, high-volume embroidery.

I will walk you through the exact four-colorway sequence. More importantly, we will apply shop-floor protocols to ensure your vinyl doesn't ripple, your pockets don't tear, and your machine stays happy.

1. Mise en Place: The Materials & Hidden Consumables

The video demonstration keeps it simple, using basics you likely have. However, to guarantee a professional result (and avoid frustration), we need to refine the list with specific parameters.

The Essentials (Video Specs):

• Vinyl: Two pieces cut to 9.5 cm × 10 cm (approx. 3.75" x 4"). Pro Tip: Ensure this is marine-grade or embroidery vinyl (approx. 0.6mm - 1.0mm thick). Upholstery vinyl is often too thick for standard home needles.
• Ribbon: 3/8" or 1/2" grosgrain ribbon (cut to approx. 3 inches).
• Stabilizer: Tear-away stabilizer (Medium Weight, approx. 1.5 - 1.8 oz).
• Hoop: Standard 5x7 plastic hoop (or equivalent for your machine).

The "Hidden" Consumables (The Safety Net):

• Needles: Use a 75/11 Sharp or Embroidery needle. Avoid Ballpoint needles on vinyl; they push the material rather than piercing it, causing drag.
• Tape: Blue painter’s tape or dedicated embroidery tape. Do not use clear office tape; it leaves gummy residue on your needle.
• Correction Tools: Small curved scissors (double-curved are best) and fine-point tweezers.


Two Vinyl Pitfalls to Avoid:

1. The "Scrap Trap": Cutting vinyl too small to save money. In ITH projects, the material must extend at least 1/2 inch past the stitch line. If you cut it too close, the foot will catch the edge and flip it up.
2. The "Fabric Mindset": Woven cotton "heals" around a needle hole. Vinyl does not. Once the needle penetrates, that hole is permanent. Therefore, placement accuracy is absolute.

When we talk about floating techniques, you might see terms like floating embroidery hoop methods. In this context, "floating" simply means the stabilizer is the only thing clamped in the hoop, while the vinyl "floats" on top. This prevents "hoop burn" (permanent crush marks) on delicate vinyl surfaces.

2. The Setup: Engineering the Perfect Foundation

Julie, the instructor in the video, mentions being "stingy" with stabilizer. While thrift is good, stability is paramount. The stabilizer is your canvas; if it moves, the design fails.

The Tactile Check: Hoop your tear-away stabilizer. Before placing it on the machine, tap the stabilizer with your fingernail.

• Success Metric: It should sound like a drum skin—tight and resonant.
• Fail Metric: If it feels spongy or sags when you press the center, re-hoop. Vinyl is heavy; a loose stabilizer will cause the outline to misalign with the pocket.


Warning: Mechanical Safety
When floating materials, your hands will be closer to the needle bar than usual. Keep fingers, tweezers, and scissors outside the "Red Zone" (the presser foot area) whenever the machine is live. A 1000 SPM (stitches per minute) needle does not discriminate between vinyl and fingertips.

Prep Checklist (Pre-Flight)

• Stabilizer Tension: Drum-tight test passed.
• Bobbin: Check that you have at least 50% bobbin thread remaining. Running out mid-seam on a vinyl ITH project is a disaster because re-aligning needle penetrations is nearly impossible.
• Speed Control: Reduce your machine speed to 400–600 SPM. Vinyl creates friction; high speeds generate heat, which can cause the needle to gum up or the thread to shred.
• Tape Ready: Pre-tear 4 strips of blue tape and stick them to the edge of your table for quick access.


3. Colorway 1: The Placement Map

Load your design. The first step (Colorway 1) stitches a simple rectangle directly onto the bare stabilizer.

Action: Run Colorway 1. Purpose: This provides the "map" for where your materials must live.

Checkpoint: Inspect the stitch quality.

• Visual Check: Are the corners square? Even slight distortion here suggests your stabilizer is too loose or your hoop is obstructed.

4. Colorway 2 & 3: Anchoring the Front

This is the moment of truth. You are placing loose materials onto the stabilizer and trusting the machine to secure them without shifting.

The Sequence

1. Ribbon: Fold your ribbon in half. Place the raw cut ends at the top center of the placement box.
   • Spacing: Ensure about 1 inch (2.5 cm) hangs inside the box.
   • Tape: Tape the loop (the top part) to the stabilizer above the stitch area so it doesn't flop under the needle.
2. Front Vinyl: Place the first vinyl piece Face Up, completely covering the placement rectangle. Tape the corners.




Action: Run Colorway 2 (Ribbon Tack-down) and Colorway 3 (Inner Opening Guide).

• Observation: Watch the machine. If the foot drags the vinyl, pause immediately. This often happens if the vinyl is "sticky."
  • Quick Fix: Place a layer of water-soluble topping or even a piece of wax paper over the vinyl to reduce friction.


Setup Checklist (Before Colorway 3 finishes)

• Ribbon loop is centered and vertical (not skewed).
• Vinyl covers the placement lines by at least 1/2 inch on all sides.
• No tape is under the stitch path (tape gums up needles).
• Sensory Check: Listen for a rhythmic "thump-thump." A sharp, slashing sound indicates the needle is dull or the vinyl is too dense.

In high-production garment shops, operators might use a hoop master embroidery hooping station to align logos perfectly on shirts. For ITH vinyl objects, your "station" is the placement stitch itself. Trust the map you stitched in Step 1.

5. Colorway 4: The Flip, The Tape, and The Sandwich

This step differentiates the amateurs from the pros. We are creating a functional pocket by adding a backing layer underneath the hoop.

The Prep: Remove the hoop from the machine, but DO NOT remove the stabilizer from the hoop. Flip the hoop over so you are looking at the bottom (the bobbin side).

The Cleanup:

• Symptom: "Bird's nests" or long thread tails on the back.
• Action: Trim these flush. If you leave lumps of thread, they will create bumps in your final vinyl layers.

The Placement:

1. Take the second piece of vinyl.
2. Place it Face Out (pretty side facing you) over the placement area on the underside of the hoop.
3. Tape Securely: Use blue tape on all four corners. Gravity is fighting you here; if the tape fails, the vinyl falls, and the project is ruined.




Action: Re-attach the hoop to the machine. Run Colorway 4 (The Final Contour).

• Critical: Watch the hoop as it slides back onto the arm. Ensure the vinyl taped underneath doesn't snag on the machine bed or feed dogs.


The Efficiency & Ergonomics Upgrade

If you are making one of these, a standard plastic hoop is fine. However, if you are making 50 for a craft fair, the constant clamping and unscrewing of plastic hoops leads to wrist fatigue (Carpal Tunnel is a real risk in this industry).

This is where magnetic embroidery hoops become a game-changer. They allow you to "slap" the stabilizer and vinyl together instantly without adjusting screws. The magnetic force holds thick vinyl sandwiches firmly without leaving the "hoop burn" marks common with plastic rings.

Warning: Magnetic Force Safety
Magnetic frames are incredibly powerful.
1. Pinch Hazard: Never place your fingers between the magnets. They snap together with enough force to cause blood blisters or severe pinching.
2. Medical Safety: Keep strong magnets away from pacemakers and insulin pumps.
3. Electronics: Store them away from computerized machine screens and credit cards.

6. teardown & The "Surgical" Cut

Remove the project from the hoop. Gently tear away the stabilizer.

Technique: Hold the vinyl stitches with your thumb and tear the paper away from the stitches horizontally to avoid distorting the thread.

The Lip Balm Slot (The High-Risk Step)

You need to cut an opening for the lip balm, but you must only cut the FRONT layer. If you cut through both, you have made a hole, not a pocket.

1. Separate: Pinch the front and back layers apart with your fingers. You should feel an air pocket between them.
2. Pierce: Use your small sharp scissors to pierce only the front layer in the center of the inner rectangle.
3. Cut: Carefully trim out the inner rectangle.


Checkpoint: Insert your finger into the slot. You should feel the smooth back of the rear vinyl piece.

7. Operational Troubleshooting & Decisions

Even with a perfect guide, variables change. Use this chart to diagnose issues.

Troubleshooting Matrix

Decision Tree: scaling Up

You’ve made one. Now you want to make profit. Here is how your toolset should evolve based on volume.

1. The Hobbyist (1–10 units/month):
   • Bottleneck: Trimming and cutting.
   • Upgrade: Invest in high-quality double-curved scissors (Havel's or similar). Stick with your single-needle machine.
2. The Side Hustler (10–50 units/batch):
   • Bottleneck: Hooping time and wrist pain.
   • Upgrade: This is the logic for buying accessories. Using an embroidery magnetic hoop drastically reduces setup time per unit and eliminates the need to adjust hoop screws for different vinyl thicknesses.
3. The Production Shop (100+ units):
   • Bottleneck: Thread changes and machine speed.
   • Upgrade: A single-needle machine requires you to sit and watch fast-moving needles. Moving to a multi-needle machine (like SEWTECH or similar commercial units) allows you to set up the next hoop while the first one runs, and handles thick vinyl with greater torque and precision.

Final Quality Control Checklist

• Backing Security: Flip the holder over. Is the back stitch line continuous with no gaps?
• Clean Edges: Is the stabilizer completely removed from the edges? (Use tweezers for stubborn bits).
• Slot Integrity: Is the back layer accidentally nicked?
• Retention Test: Insert a lip balm. Shake the holder upside down. It should stay snug.

By following these protocols, you aren't just crafting; you are manufacturing. That distinction is what separates a homemade look from a professional product.

FAQ

• Q: Which embroidery needle type and size should be used for an ITH vinyl lip balm holder on a home single-needle embroidery machine?
  A: Use a 75/11 Sharp (or 75/11 Embroidery) needle as the default, and only drop to 70/10 if perforation becomes a problem.
  • Install a fresh 75/11 Sharp/Embroidery needle before stitching vinyl (vinyl shows every needle issue).
  • Avoid ballpoint needles on vinyl because they tend to push and drag instead of piercing cleanly.
  • Slow the machine down to 400–600 SPM to reduce heat and friction at the needle.
  • Success check: The machine sound is steady and rhythmic (not a harsh “slashing” sound) and the stitch line looks clean without tearing.
  • If it still fails: Reduce stitch density in the design (vinyl can “cut out” when density is too high).
• Q: How tight should tear-away stabilizer be hooped for floating vinyl during an ITH vinyl lip balm holder project?
  A: Hoop only the tear-away stabilizer “drum-tight,” because loose stabilizer is the #1 cause of outline misalignment when vinyl is floated on top.
  • Hoop medium-weight tear-away stabilizer and re-hoop if the center sags or feels spongy.
  • Tap the hooped stabilizer with a fingernail before mounting it on the machine.
  • Keep the vinyl unhooped (floating) and tape vinyl corners so the foot cannot lift an edge.
  • Success check: The stabilizer sounds tight and resonant like a drum skin, and the first placement rectangle stitches with square corners.
  • If it still fails: Check for hoop obstruction or anything preventing the hoop from seating flat on the machine arm.
• Q: What should be checked on the bobbin before stitching an ITH vinyl lip balm holder to avoid irreversible alignment problems?
  A: Start only with a bobbin that is at least half full, because running out mid-seam on vinyl is extremely hard to recover cleanly.
  • Check bobbin fill level before Colorway 1 and replace the bobbin if it is below ~50% remaining.
  • Trim thread tails and remove back-side “bird’s nests” before taping the backing vinyl underneath the hoop.
  • Reduce speed to 400–600 SPM so the stitch-out is controlled and less likely to shred thread.
  • Success check: The final contour stitches as one continuous line with no gaps from a bobbin run-out.
  • If it still fails: Restart with a fresh bobbin and re-run from the beginning rather than trying to “jump back in” on existing needle holes.
• Q: How can sticky embroidery vinyl be prevented from dragging under the presser foot during ITH floating and taping steps?
  A: Add a temporary low-friction barrier on top of the vinyl so the presser foot glides instead of grabbing.
  • Pause immediately if the presser foot starts pulling the vinyl or the vinyl edge flips up.
  • Place a layer of water-soluble topping or a piece of wax paper over the vinyl while stitching the tack-down/guide steps.
  • Tape vinyl corners securely, and keep all tape outside the stitch path to avoid gummy needle buildup.
  • Success check: The vinyl stays flat with no ripples, and the foot travels smoothly without jerky “grabs.”
  • If it still fails: Re-check that the vinyl extends at least 1/2 inch past the stitch line so the foot cannot catch the edge.
• Q: How should top thread tension be adjusted when an embroidery machine shows loops on top while stitching vinyl for an ITH lip balm holder?
  A: Slightly increase top tension, because vinyl drag can require higher top tension than typical fabric.
  • Stop the machine and inspect the stitch formation as soon as loops appear on the top surface.
  • Tighten top tension in small steps and test again (vinyl does not hide tension errors).
  • Keep speed at 400–600 SPM to reduce friction-related thread issues while you dial tension in.
  • Success check: The top stitching looks smooth and balanced with no visible top-thread loops.
  • If it still fails: Confirm the needle is fresh and appropriate (75/11 Sharp) and verify the stabilizer is hooped drum-tight.
• Q: What causes an embroidery needle to break immediately on thick vinyl ITH “sandwich” stitching, and what is the safest fix?
  A: Immediate needle breaks usually come from needle deflection in thick layers or the hoop not being fully locked in place, causing the needle to hit the throat plate.
  • Stop and power down before touching the hoop area to avoid accidental starts.
  • Confirm the hoop is seated and locked correctly before restarting the final contour.
  • Reduce speed to 400–600 SPM and avoid forcing excessively thick vinyl stacks.
  • Success check: The needle clears the stitch plate cleanly for several stitches with no clicking/impact sounds.
  • If it still fails: Re-evaluate layer thickness and stabilizer/vinyl choice, because the stack may be too thick for the current setup.
• Q: What safety rules should be followed when floating vinyl close to the needle and when using magnetic embroidery hoops for ITH vinyl batches?
  A: Keep hands and tools out of the presser-foot “red zone” during stitching, and treat magnetic frames as pinch-hazard tools with strong medical/electronics restrictions.
  • Keep fingers, tweezers, and scissors outside the presser-foot area whenever the machine is running.
  • Remove the hoop from the machine for trimming and underside taping, then reattach only when everything is secured.
  • Keep fingers out from between magnetic parts when closing a magnetic hoop/frame because magnets can snap shut forcefully.
  • Success check: No hand reaches under the needle path during operation, and magnets are handled without any near-pinches.
  • If it still fails: Slow down workflow—rushing is the most common cause of needle-area injuries and magnetic pinches.
• Q: When making 10–50 ITH vinyl lip balm holders per batch, should production upgrade focus on magnetic embroidery hoops or a multi-needle embroidery machine like SEWTECH?
  A: Upgrade in layers: first reduce hooping time and wrist strain with magnetic hoops, then move to a multi-needle machine like SEWTECH when thread changes and throughput become the main bottleneck.
  • Diagnose the bottleneck: If wrist fatigue and screw-hoop clamping time dominate, prioritize magnetic hoops to speed “slap-and-go” hooping and reduce hoop-burn risk on vinyl.
  • Standardize the process: Pre-tear tape strips, keep speed at 400–600 SPM, and follow the same colorway sequence to avoid rework.
  • Step up capacity: When 100+ units and frequent thread changes are slowing output, consider a multi-needle platform like SEWTECH for higher production efficiency.
  • Success check: Setup time per unit drops noticeably and stitch-outs remain consistent without hoop popping or shifting.
  • If it still fails: Re-check stabilizer tension and material overhang first, because misalignment issues are often process-related, not machine-related.
