Mastering the Husqvarna Viking Designer Diamond: A Field Guide to Precision Embroidery

If you are new to machine embroidery, the first realization is often the most jarring: You are not the driver; you are the pit crew. Once the hoop clicks in and the design loads, your ability to steer minimizes. Your expertise is determined entirely by what happens before you press start: the physics of hooping, the chemistry of stabilization, and the geometry of placement.

Drawing from the classic demonstration by Carol Schut on the Husqvarna Viking Designer Diamond, this guide deconstructs the embroidery workflow into an industrial-grade standard operating procedure. We will move beyond "hope it works" into a realm of repeatable, professional precision.

1. The "Click" Methodology: Understanding Machine Autonomy

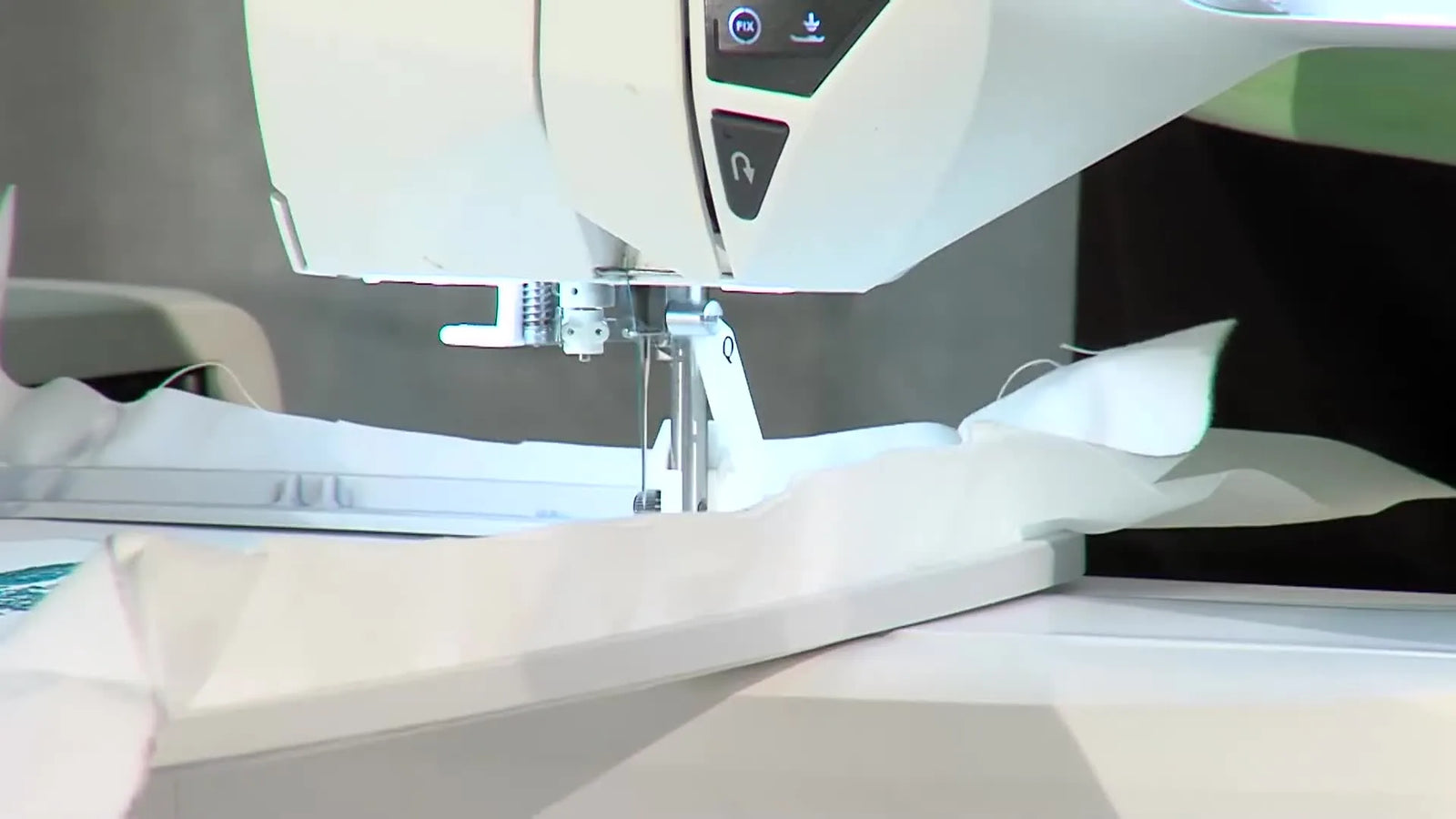

When you slide the hoop onto the embroidery arm, you are mechanically locking the fabric stage to the pantograph (the X-Y motor system).

The Sensory Check:

• Listen: You must hear a distinct, sharp mechanical click.
• Touch: Gently try to pull the hoop back toward you. It should not budge. If it slides, it is not engaged.

Once you press the Start/Stop button (located above the needle), the machine takes over. It will move the arm to the start coordinates, lower the presser foot automatically, and initiate the first stitch.

Psychological Safety Note: The first time the arm moves on its own, it can feel aggressive. This is normal. Do not try to hold the hoop or guide the fabric with your hands while it is moving. The motors are powerful; fighting them causes layer misalignment.

Warning: Needle Zone Safety. Once the machine enters "Stitch Mode," keep hands, loose sleeves, and threads at lest 6 inches away from the needle bar. The machine moves the hoop rapidly between jump stitches. A finger in the path of a moving hoop or a descending needle can result in severe injury.

2. Pre-Flight Analytics: Stitch Count as a Time Proxy

In the demo, Carol loads a design with 27,878 stitches. On a standard domestic machine, stitch count is your best predictor of "babysitting time."

The Math of Patience:

• Standard Speed: Most machines default to ~800-1000 Stitches Per Minute (SPM).
• Real Speed: Due to trims, color changes, and slowdowns for wide satin stitches, a realistic average is 400-500 SPM.
• Calculation: 27,000 stitches / 500 SPM = ~54 minutes of run time.

Before you commit to a design of this magnitude, perform three "Pre-Flight Checks":

A. The Hoop Clearance Check

The demo utilizes a large 8 x 14-inch (approx. 200x360mm) hoop. Does your design fit?

• The Trap: Just because a design looks like it fits on screen doesn't mean it stays within the safety margins.
• The Fix: Use the machine's "Trace" or "Corner Check" function. Watch the needle move to the four corners of the design design boundary. Ensure the presser foot does not hit the plastic edge of the hoop.

B. The Tension Simulation

Hooping is an art of tension.

• Visual: The fabric grain line must be perpendicular to the hoop.
• Tactile: Tap the fabric. It should sound like a dull drum—taut, but not stretched so tight that the weave distorts (which looks like an hourglass).
• Troubleshooting: If you struggle to get thick fabrics (like denim) or slippery fabrics (like silk) taut without "hoop burn" (friction marks), this is often where professionals upgrade their tooling. A magnetic embroidery hoop uses vertical magnetic force rather than friction to hold fabric, eliminating the "tug of war" that causes distortion.

C. Color Stop Strategy

The machine will stop when the file says "Color Change." However, the machine cannot see what thread you actually loaded.

• Pro Tip: If you are matching a specific company logo or home décor, ignore the screen colors. Use the screen only as a map for where the color goes. Choose your thread based on physical comparison under natural light.


3. Speed Control: The RPM of Quality

Carol demonstrates using the minus (-) button on the touch panel to throttle the machine down. This changes the estimated completion time from 1 hour to 2:43. Why would you do this?

The "Sweet Spot" Theory: Factory machines run at 1000+ SPM because time is money. For optimal quality on a home machine, your "Sweet Spot" is often lower.

Sensory Anchor: Listen to the machine. A rhythmic hum-hum-hum is good. A laborious thump... thump... thump suggests the needle is struggling to penetrate dense layers—slow down immediately or change to a sharp/topstitch needle.

4. Consumables Strategy: The Hidden Variables

Your machine is only as good as the thread you feed it. Carol emphasizes the use of pre-wound bobbins.

Bobbin Engineering (70wt vs. 40wt)

• The Problem: Winding your own bobbins with standard 40wt embroidery thread creates bulk. A standard bobbin holds ~25,000 stitches worth of 40wt thread.
• The Solution: A 70wt pre-wound bobbin is thinner. It holds 70,000–80,000 stitches.
• The Result: You can run that 27,000-stitch design without stopping to change the bobbin, which guarantees consistent tension from start to finish.

The "White Line" Check: Turn your finished embroidery over. You should see a focused column of white bobbin thread taking up the center 1/3 of the satin stitch width.

• Too much white? Top tension is too tight.
• No white? Top tension is too loose (or bobbin is too tight).

Hidden Consumables Checklist

Before starting, ensure you have these within arm's reach:

1. New Needle: Size 75/11 Embroidery for general use; 90/14 Topstitch for thick items. Change every 8 hours of stitching.
2. Curved Snips: For trimming jump threads close to the fabric.
3. Temporary Spray Adhesive (or Stick): Essential for floating fabric or securing appliqué.

5. Advanced Applications: Moving Beyond the Basics

Carol highlights projects that require strict structural integrity.

Quilt Blocks & In-The-Hoop (ITH)

When stitching quilt blocks (like the "Jacobian Journey" or Hoop Sisters designs), the embroidery machine acts as a piecing tool.

• Critical Factor: The stabilizer must act as the foundation. Mesh (No-Show) stabilizer is preferred here because it doesn't add bulk to the quilt seam allowances later.
• Precision: If your hooping is crooked, your quilt block will be a rhombus, not a square. Construction will fail.




Freestanding Lace (FSL)

FSL is "thread architecture." You are building a structure stroke by stroke on water-soluble stabilizer (WSS).

• The Risk: If the WSS tears mid-stitch, the design collapses into a bird's nest.
• The Fix: Use two layers of heavy microns WSS.
• The Rinse: Do not over-wash. Rinse until the stabilizer disappears, but the lace still feels slightly stiff (starchy). This residue helps the ornament hold its shape.


6. Garment Workflow: The "Sweatshirt Remix"

Embroidery isn't just surface decoration; it's reconstruction. Carol describes cutting apart a sweatshirt to insert embroidered panels.

The Decision Tree: Fabric vs. Stabilizer Using the wrong stabilizer is the #1 cause of puckering (the "bacon effect").

• IF Fabric Stretches (T-Shirt, Sweatshirt, Knit) THEN Use Cutaway Stabilizer.
  • Why: Knits have no structure. Tearaway tears, leaving the stitches unsupported. Cutaway stays forever to hold the design.
• IF Fabric is Stable (Denim, Woven Cotton/Canvas) THEN Use Tearaway Stabilizer.
  • Why: The fabric supports the stitches; the stabilizer is just temporary scaffolding.
• IF Fabric has Pile (Towel, Velvet, Fleece) THEN Add Water Soluble Topping.
  • Why: Prevents stitches from sinking into the loops.






7. The Continuous Border: Mastering Alignment

Creating endless borders (like on a skirt hem or sheet) is the ultimate test of alignment. You must connect the end of Design A to the start of Design B flawlessly.

The Pain Point: Standard hoops require you to un-hoop, re-measure, and re-hoop perfectly straight. This is slow and prone to error.

The Tool Upgrade: This is a scenario where specialized tools are required.

• Level 1: Use an endless embroidery hoop. These have cam-locks that allow you to slide the fabric forward without fully un-hooping.
• Level 2: For heavy production, magnetic frames allow for rapid repositioning without ring-burn.


8. Pant Legs & Tubular Difficulties

Embroidery on a finished pant leg is notoriously difficult because you are fighting physics—the hoop needs to go inside a narrow tube.

The Workflow:

1. Open the Seam: Unless you have a free-arm machine or a specialist cylinder arm, you often need to open the side seam of the pant leg to lay it flat.
2. Design Positioning: Use the machine's "Design Positioning" feature (aligning a cursor on screen with a chalk mark on fabric) to ensure the design lands exactly above the hem.
3. Hoop Burn: Traditional hoops can leave permanent shiny rings on dark pant fabrics.

The Commercial Solution: If you are doing production runs of uniforms or tubular items, standard home hoops become a bottleneck. This is the precise moment many users consider upgrading their infrastructure.

• Tool: A magnetic hooping station provides a third hand to hold the garment while you place the magnet.
• Compatibility: Ensure you select a magnetic hoop for husqvarna viking that clicks into your specific machine’s arm width.


Warning: Magnetic Safety. Newer commercial-grade magnetic hoops use Neodymium magnets (N52). They are incredibly strong.
* Pinch Hazard: Do not place fingers between the top and bottom frame. They snap together with enough force to cause blood blisters or bruising.
* Medical Safety: Keep magnets away from pacemakers and insulin pumps (maintain a 6+ inch distance).

9. Comprehensive Checklists

To move from amateur to professional, use these checklists every single time.

Phase 1: Preparation Checklist

• Design Fit: Does the design fit within the usable sewing field (not just the physical hoop size)?
• Consumables: Is the bobbin (70wt) full? Is the needle fresh?
• Stabilizer Match: Have I selected Cutaway for knits or Tearaway for wovens?
• Marking: Have I marked the "Crosshairs" (Center X/Y) on the fabric with a water-soluble pen or chalk?

Phase 2: Setup Checklist (At the Machine)

• Hoop seating: Push the hoop until you hear the mechanical CLICK. Tug to test.
• Clearance: Run the "Trace/Corner Check" to ensure the foot won't hit the frame.
• Thread Path: Is the top thread seated deep in the tension discs? (Floss checks).
• Fabric floating: Is the rest of the garment (sleeves, pant legs) cleared away from under the hoop?

Phase 3: Operation Checklist

• The First 100 Stitches: Watch the machine start. If you hear a "birds nest" sound (crunching/thumping), STOP immediately.
• Color Changes: Trim jump threads manually between color changes to keep the back clean.
• Bobbin Watch: On a Designer Diamond, listen for the low-bobbin warning. Don't play "bobbin chicken."

10. The Path to Scale

The techniques demonstrated by Carol—FSL, ITH bags, and massive stitch counts—eventually push the limits of what a single-needle machine is designed to do efficiently.

The "Upgrade" Trigger Points:

1. Thread Change Fatigue: If a design has 15 color changes, you are stopping work 15 times. A multi-needle machine automates this.
2. Hooping Bottlenecks: If you spend more time hooping than stitching, magnetic frames are the ROI leader.
3. Volume: If you need to produce 50 logos, a single-needle flatbed machine will take week.

Transitioning from a hobbyist to a production mindset isn't about working harder; it's about identifying where friction exists—be it a slipping hoop or a constant thread change—and applying the right tool or technique to eliminate it. Start with the checklist, respect the physics of the hoop, and let the machine do the heavy lifting.

FAQ

• Q: How do I confirm a Husqvarna Viking Designer Diamond embroidery hoop is fully engaged on the embroidery arm before pressing Start?
  A: Seat the hoop until the Designer Diamond makes a sharp mechanical “click,” then tug-test it—do not start stitching until the hoop will not slide.
  • Push the hoop straight onto the arm until the click is audible.
  • Pull the hoop gently back toward the operator; re-seat if there is any movement.
  • Keep hands and sleeves away once the machine enters stitch mode; do not try to guide the hoop while the arm moves.
  • Success check: A distinct click + the hoop does not budge when tugged.
  • If it still fails: Reinstall the hoop and run a trace/corner check to confirm the machine is tracking the expected boundary.
• Q: How do I use the Husqvarna Viking Designer Diamond Trace/Corner Check to prevent the presser foot from hitting a large hoop edge?
  A: Always run Trace/Corner Check after loading the design, especially in a large hoop, to verify clearance before stitching.
  • Activate the machine’s trace/corner check function and watch the needle travel to the design boundary corners.
  • Observe the presser foot path near the hoop edge; stop if any corner looks too close.
  • Reposition the design or re-hoop to restore safe margin before restarting.
  • Success check: The needle traces the full boundary without the presser foot contacting the hoop.
  • If it still fails: Choose a larger hoop/sewing field option or reduce/reposition the design to stay within the usable area.
• Q: What is the correct bobbin thread “white line” tension check for embroidery on a Husqvarna Viking Designer Diamond?
  A: Use the underside “white line” as the fastest tension indicator: the bobbin thread should sit as a focused column in about the center third of satin stitches.
  • Turn the embroidery over and inspect satin columns after a short test section.
  • Tighten/loosen top tension based on the result (too much white = top tension too tight; no white = top tension too loose, or bobbin too tight).
  • Keep thread path consistent and re-test after any change.
  • Success check: A clean, centered bobbin line visible through the middle of the satin stitch width.
  • If it still fails: Swap to a fresh needle and confirm the top thread is seated correctly in the tension discs before adjusting further.
• Q: Why does the Husqvarna Viking Designer Diamond make a crunching/thumping “bird’s nest” sound in the first 100 stitches, and what should I do?
  A: Stop immediately if the first stitches sound crunchy/thumpy—this commonly indicates a thread nest forming and continuing will jam the stitch-out.
  • Press stop as soon as the sound starts; do not “wait and see.”
  • Check the top thread path is correctly seated in the tension discs and rethread if unsure.
  • Verify the hoop is fully clicked in and the fabric is not shifting or snagging under the hoop.
  • Success check: Restart produces a steady rhythmic hum with clean stitches forming on top and no thread wad underneath.
  • If it still fails: Change to a new needle and re-check stabilization/hooping tension before attempting again.
• Q: Which stabilizer should I choose on a Husqvarna Viking Designer Diamond to prevent puckering on knits vs. wovens vs. towels?
  A: Match stabilizer to fabric behavior: cutaway for knits, tearaway for stable wovens, and add water-soluble topping for pile fabrics.
  • Use cutaway stabilizer for T-shirts, sweatshirts, and other knits to keep long-term support under the stitches.
  • Use tearaway stabilizer for stable denim or woven cotton/canvas when the fabric can support the design.
  • Add water-soluble topping for towels, velvet, fleece, or any pile to prevent stitches sinking.
  • Success check: After stitching, the design lies flat without a “bacon” ripple and details are not buried in pile.
  • If it still fails: Slow the stitch speed for dense areas and re-check hooping tension (taut like a dull drum, not stretched).
• Q: What sewing speed should I use on a Husqvarna Viking Designer Diamond for metallic thread or dense embroidery designs to reduce thread breaks and puckering?
  A: Slow down on purpose: metallic thread often runs best around 400–600 SPM, and dense designs often around 500–700 SPM to improve stitch formation.
  • Reduce speed using the on-screen minus control when switching to metallic or when density increases.
  • Listen for the machine sound; slow immediately if the needle sounds like it is laboring through layers.
  • Consider changing to a sharp/topstitch needle if penetration becomes difficult on thick or dense stacks.
  • Success check: The machine maintains a smooth “hum-hum-hum” rhythm with fewer breaks and less fabric distortion.
  • If it still fails: Re-check stabilization choice and reduce design stress (for example, reposition or avoid overly dense settings if the file allows).
• Q: What are the key safety rules for Husqvarna Viking Designer Diamond embroidery stitching mode, and what extra safety applies to strong magnetic embroidery hoops?
  A: Treat stitch mode like an active industrial zone and treat magnetic hoops like pinch tools—keep hands clear and respect magnet force.
  • Keep fingers, loose sleeves, and threads at least 6 inches away from the needle bar once stitching starts; never hold or guide the hoop during movement.
  • Pause the machine before trimming jump threads or adjusting anything near the hoop path.
  • If using a magnetic embroidery hoop, keep fingers out of the closing gap to avoid pinch injuries, and keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: No contact between hands and moving hoop/needle area, and magnetic frames close without finger placement between top and bottom.
  • If it still fails: Slow down the workflow and use a hooping station/third-hand method so fabric control happens before the magnet or stitch cycle begins.
