Magnetic Embroidery Hoops That Actually Earn Their Space: Picking the Right Size, Bracket, and Hooping Station (Without Wasting Garments)

The Ultimate Field Guide to Embroidery Hoops: From Setup to Production Scaling

If you’ve ever stared at a "wall of hoops" in an online catalog and felt a distinct wave of anxiety, you are not alone. That feeling—the fear of spending a small fortune on a tool that doesn't fit, doesn't work, or simply gathers dust—is the number one barrier to upgrading your embroidery game.

Magnetic hoops, in particular, often feel like a luxury purchase until the moment you ruin a $60 Carhartt jacket because the standard plastic hoop popped open mid-stitch. Or until you spend your Saturday fighting a thick hoodie seam that refuses to clamp down.

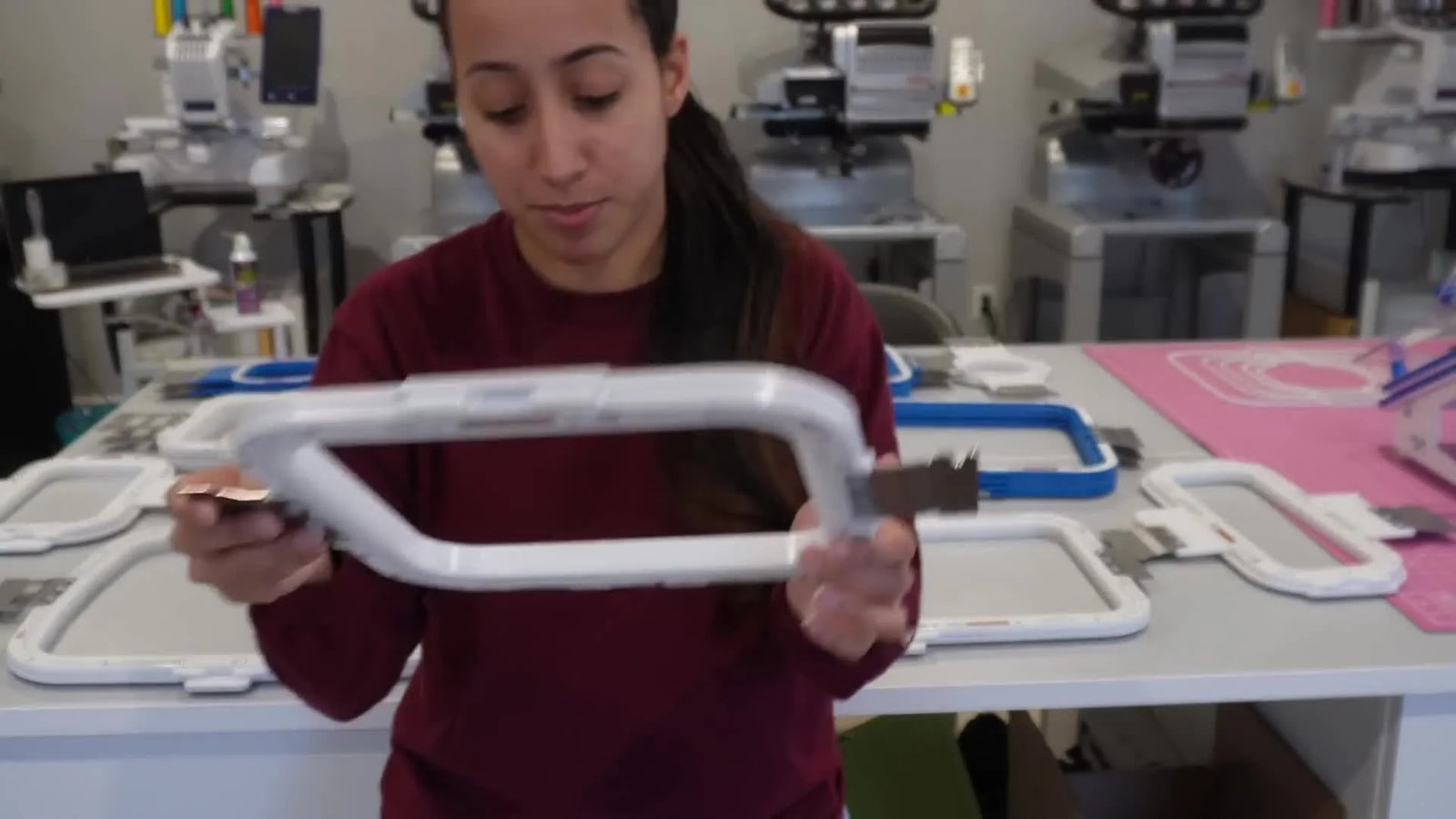

This guide takes the insights from Angela Jasmina’s extensive inventory tour and rebuilds them into a professional operating system. We aren't just looking at sizes; we are looking at physics, workflow, and profitability. Whether you are a hobbyist tired of "hoop burn" or a business owner looking to scale with SEWTECH multi-needle embroidery machines, this is your blueprint.

Magnetic Embroidery Hoops: The Safety and "Physics" Reality Check

Before we talk about sizes, we must address two non-negotiable constraints: Medical Safety and Machine Architecture.

1. The Medical Risk (Crucial)

Magnetic hoops do not rely on "light" magnetism. They use industrial-grade magnets designed to clamp through thick canvas and leather.

Warning: Pacemaker Safety Alert. Magnetic hoops generate powerful magnetic fields. If you or anyone in your workspace has a pacemaker or other implanted medical device, do not purchase or handle these hoops without consulting a physician. The magnetic force can disrupt medical device function.

2. The Machine Architecture Check

You must identify if your machine is a Flatbed or a Tubular (Free-arm) style.

• Tubular Machines: (e.g., Brother PR series, SEWTECH Multi-needle, Baby Lock Alliance). These have an open arm that allows the hoop to slide around it. Magnetic hoops were originally engineered for this class.
• Flatbed Machines: (e.g., Brother PE800, basic home units). Most industrial magnetic hoops will not fit these because the heavy magnet mechanism hits the bed of the machine.
  • The Solution: If you have a single-needle flatbed, you must look specifically for magnetic hoops for home single-needle machines (often called "magnetic frames" or "Snap-Hoops") designed with a flat profile. Do not buy industrial hoops for a flatbed runner.


The "Hidden" Prep: Preventing Hoop Burn and Fabric Shift

"Hoop burn"—those stubborn crushed rings left on fabric—is the nemesis of dark garments. While magnetic hoops reduce this significantly by distributing pressure, your preparation is the real cure.

The Problem: Friction vs. Pressure

Standard plastic hoops hold fabric by friction (wedging fabric between two rings). To hold tight, you have to tighten the screw, which crushes the fibers. Magnetic hoops hold by vertical pressure. They don't drag the fabric; they sandwich it.

The Prep Protocol (Experience Level: Expert)

Before you even touch a hoop, perform this sensory check on your materials:

1. The "Crush" Test: Press your thumbnail into the fabric. If the mark stays for more than 5 seconds (velocity velvet, thick fleece), you are at high risk for hoop burn. Action: Plan to steam this area immediately after stitching.
2. The Stabilizer Match:
   • Stretchy? (Performance wear/Knits) -> Cutaway Stabilizer. (Non-negotiable).
   • Stable? (Denim/Canvas) -> Tearaway Stabilizer.
3. The "Ghost" Essential: Temporary Spray Adhesive or a Running Stitch Basting Box. Beginners often skip spray, but it prevents the "bubble" that forms in the middle of a large hoop.

Prep Checklist: The "No-Fail" Sequence

• Machine Limits: Verify your machine's max sewing field (e.g., 200x300mm). A 12x15" hoop will physically click onto a smaller machine, but the pantograph will hit the limits and ruin your machine's motor.
• Garment Audit: Check zippers and pockets. If a zipper pull falls under the hoop line, it will break your needle.
• Stabilizer Pre-Cut: Cut your backing/stabilizer 1 inch larger than the hoop on all sides. Skimping here causes "stabilizer drift."
• Marking: Use water-soluble pens or chalk to mark your center. Don't guess.


Why Physics Favors Magnets for Heavy Garments

Angela notes that magnetic hoops are superior for jackets and "fussy" blanks. Here is the Why:

When you hoop a thick Carhartt jacket with a standard hoop, you have to unscrew the outer ring almost all the way, force it over the seam, and then tighten it. This often stretches the fabric unevenly.

Magnetic hoops snap down with uniform pressure. They don't care if one side is a zipper seam and the other is single-ply cotton; the magnets self-adjust to the thickness variance.

Commercial Pivot Point:

• Trigger: You are rejecting orders for backpacks, heavy jackets, or leather because you can't hoop them.
• Criteria: If you spend more than 2 minutes hooping a single item.
• Option: Upgrade to magnetic hoops for industrial multi-needle machines. This turns a 5-minute struggle into a 10-second snap.


The 10x19 Hoop: Big Power, Big Constraints

This massive hoop is for full-back designs on oversize jackets, car mats, and horse blankets.

The Reality Check: Most standard multi-needle machines (6-needle or 10-needle) have a sewing field limit. Even if this hoop fits the bracket, your machine might only stitch the center 8x12 inches.

• Pro Tip: You may need "Extended Arms" or a specialized "Table Top" attachment to support the weight of a heavy rug or mat in this hoop. Without support, the weight can drag on the pantograph (the moving arm), causing registration errors (where the outline doesn't match the fill).


The 12x15 Magnetic Hoop: The Hoodie Specialist

Angela identifies this as her "Big Hoodie" hoop (3XL+).

The Weight Penalty: Large magnetic hoops are heavy. When a machine moves a heavy hoop + a heavy 3XL hoodie at 1000 stitches per minute (SPM), inertia becomes your enemy.

• Speed Limit: For this size, dial your speed down into the Beginner Sweet Spot (600-700 SPM). High speeds with heavy hoops cause the design to shift.
• Usage Rule: Do not use this for a Left Chest logo. The excess open fabric in the hoop will bounce (flagging), causing messy stitches and thread breaks.


The 11x13 Hoop: The "Goldilocks" Size

Slightly smaller than the 12x15, this is often the perfect balance for adult Large/XL sweatshirts and jacket backs. It is lighter, placing less strain on your machine's motors.

For everyday production, this is the versatile workhorse. If you are searching for your first large upgrade, terms like mighty hoop 11x13 appear frequently because this size bridges the gap between standard 5x7 fields and massive jacket back fields.

The 8x9 Hoop: The "Daily Driver" for Production

Angela uses this every single day for youth shirts (Size 4T to Adult Small/Medium) and large front graphics.

This size is critical because it fits the anatomy of standard garments without stretching the neck hole or distorting the sleeves.

• Efficiency Metric: In a production shop, 80% of jobs usually fit in this hoop.
• SEO Insight: Many professionals search for how to use magnetic embroidery hoop regarding this specific size simply because it is the default for "Etsy style" applique and text designs.

The Workflow Upgrade: If you own a SEWTECH multi-needle machine, keeping two of these hoops is a secret weapon. You hoop Garment B while Garment A is stitching. This cuts your downtime to zero.

Setup Checklist (Daily Driver Routine)

• Bracket Check: Ensure the hoop arms are screwed in tight. Vibration loosens screws over time.
• Clearance: Check underneath the hoop. Ensure the rest of the shirt isn't bunched up under the needle plate (fastest way to stitch a shirt to itself).
• Sound Check: Listen for the "Snap." A weak snap means fabric is too thick or caught on the edge.


The Bracket Compatibility Nightmare

Angela demonstrates the difference between Brother (long arm) and Melco (short stubby bracket) interfaces.

This is the #1 Return Reason for Magnetic Hoops. You cannot "make it fit." The spacing between the arms and the locking mechanism is proprietary.

• Action: When ordering, do not just say "Multi-needle." Specify "Brother PR680W," "Ricoma EM-1010," or "SEWTECH 15-Needle."
• If you are looking for mighty hoops for melco, verify if you have the "OS" (Operating System) update that recognizes the hoop specifically, or if you need to program a custom hoop size in your software.
• For owners of a brother pr680w or similar, ensure your arm width is compatible (360mm vs smaller spacing).


The 5.5-Inch Hoop + Hooping Station: The "Profit Maker"

Left Chest corporate logos are the bread and butter of the industry. The 5.5-inch square hoop is the standard here.

The Real Value: The Hooping Station Angela pairs this with a "HoopMaster" style station. Why?

• Manual Hooping: You eyeball it. Result: Logo is crooked 20% of the time.
• Station Hooping: You pull the shirt over a fixture. The placement is mathematically identical every time.

If you are scaling a business, searching for a hoop master embroidery hooping station is the moment you move from "hobbyist" to "professional." Starter Kit Recommendation: If you can only afford one magnetic hoop, buy the mighty hoop 5.5 first. It solves the hardest problem (placement on small areas) instantly.

The Tiny Hoops: 7.25" and 4.25" (Onesies and Beanies)

Small items are deceptive. They seem easy, but they are hard to stabilize because you have very little fabric to damp with the hoop.

• 7.25" Hoop: Great for Onesies. It allows you to open the snap-bottom of a onesie and slide it over the arm without over-stretching the ribbing.
• 4.25" Hoop: The "Hat" alternative if you hate cappers. Also crucial for pockets and koozies.

Warning: When hooping beanies flat, you must use a topping (water soluble) to keep the stitches from sinking into the knit, and a strong cutaway backing to prevent the hat from shrinking as you stitch.

The Long Narrow Hoop: 4.25x13 (Sleeves & Legs)

The ability to embroider down a sleeve or a pant leg commands unqiue pricing.

• The Constraint: Can you physically slide the pant leg up the machine arm?
• The Usage: This hoop is long enough for text like "CHAMPION" or "VARSITY" down a leg.
• Tip: Rotate your design 90 degrees in software so it runs along the length of the hoop.


The Odd Shapes: 8.875x5.25 (Baby Gowns)

Some items are just... weird. Baby gowns are long tubes. Tote bags have thick handles. This intermediate rectangular size is designed for items that are too narrow for a square hoop but need more vertical space.

The "Hidden Consumable": Backing Holders

Angela highlights metal clips (Backing Holders) that snap onto the magnetic frame.

• The Pain Point: You lay down the stabilizer. You put the shirt on top. The stabilizer slides 1 inch to the left. You hoop it. You stitch. The design has no backing on the left side. Ruined garment.
• The Fix: These clips hold the embroidery stabilizer to the bottom ring before you load the shirt. It is a "third hand" for the operator.
• Cost vs. Value: These are inexpensive clips that save expensive garments. Essential for "floating" techniques.


The Operations Decision Tree: Fabric to Solution

Don't guess. Use this logic flow to select your tools.

Decision Tree: Stabilizer & Hoop Strategy

Structured Troubleshooting: The "Quick Fix" Guide

When things go wrong, do not change settings randomly. Follow this path.

1) Symptom: "Hoop Burn" (Ring marks)

• Likely Cause: Pressure crushed the fibers.
• Immediate Fix: Steam iron (hovering, not pressing) or a spritz of "Magic Sizing" spray.
• Prevention: Use a magnetic hoop; place a layer of scrap stabilizer between the hoop ring and the fabric as a buffer.

2) Symptom: "The Hoop Won't Click" / Design is Off-Center

• Likely Cause: Physical obstruction or Wrong Bracket.
• Immediate Fix: Check if the garment seam is sitting exactly on the magnet ridge. Move the hoop location 1 inch.
• Prevention: Standardize your brackets. If you have mixed machines (e.g., Brother + Melco), color-code your hoops with tape so you don't grab the wrong one.

3) Symptom: "Design Registration is Off" (Outlines don't match fill)

• Likely Cause: Fabric shifting in the hoop OR Hoop is too heavy (Physics).
• Immediate Fix: Slow machine down. Add spray adhesive to stabilizer.
• Prevention: Do not use the 12x15 hoop for a small 3-inch design. Use the smallest hoop that fits the design comfortably.


The "System" Upgrade Path: From Struggle to Scale

You don't buy all of this at once. You upgrade based on pain points.

1. Level 1 (The Hobbyist Struggle):
   • Symptom: Hooping is hard, hands hurt, fabric slips.
   • Solution: Upgrade consumables (better embroidery thread, specific stabilizer) and consider magnetic hoops for home single-needle machines if you are on a flatbed.
2. Level 2 (The Side Hustle):
   • Symptom: Inconsistent placement, "Hoop burn" on customer orders.
   • Solution: 5.5" Magnetic Hoop + Hooping Station. This adds professional consistency.
3. Level 3 (The Production Shop):
   • Symptom: Single-needle is too slow; changing thread takes forever.
   • Solution: SEWTECH Multi-needle Machines + Full set of Magnetic Hoops (8x9, 11x13). This is where you trade money for time and volume.

Warning: Pinch Hazard. Magnetic hoops snap together with significant force. Keep fingers clear of the inner/outer ring interface. Never let children handle them. Keep credit cards and phones away from the magnets.

Operation Checklist: The "Run It Like a Shop" Routine

• 1. Hoop: Load fabric. Ensure backing holders are secure. Check for "Drum Skin" tension (taut, not stretched).
• 2. Check: Run a trace (design outline) on the machine to ensure the needle foot won't hit the hoop frame. Visual Confirmation required.
• 3. Clear: Ensure no sleeves or excess fabric are tucked under the needle plate.
• 4. Run: Start the machine. Watch the first 500 stitches.
• 5. Listen: A rhythmic "thump-thump" is good. A sharp "slap" or grinding sound means stop immediately.

By standardizing your hoops and respecting the physics of the machine, you stop fighting the equipment and start producing professional results. Whether you need a simple magnetic frame for your home machine or a full industrial setup, the right tool is the one that removes the friction from your workflow.

FAQ

• Q: Are SEWTECH magnetic embroidery hoops safe for users with pacemakers or implanted medical devices?
  A: Do not purchase or handle industrial magnetic embroidery hoops around pacemakers or implanted medical devices until a physician confirms it is safe.
  • Stop: Keep magnetic hoops out of the workspace if anyone nearby has an implanted device.
  • Separate: Store magnetic hoops away from phones, credit cards, and sensitive electronics.
  • Train: Treat magnetic hoops as a pinch hazard and keep fingers clear when snapping rings together.
  • Success check: The shop can handle and store hoops without anyone needing to “test” magnet strength near their body.
  • If it still fails: Choose non-magnetic hooping methods or consult your device manufacturer and physician for clearance guidance.
• Q: How do I know whether a home flatbed single-needle embroidery machine can use a magnetic embroidery hoop or magnetic frame?
  A: Most industrial magnetic hoops will not fit a flatbed single-needle machine, so use a low-profile magnetic frame specifically made for home flatbed machines.
  • Identify: Confirm the machine style is Flatbed (bed under the needle) vs Tubular/Free-arm (open arm).
  • Avoid: Do not buy industrial multi-needle magnetic hoops for a flatbed because the magnet mechanism can hit the machine bed.
  • Verify: Match the hoop/frame to the exact machine architecture before ordering.
  • Success check: The magnetic frame mounts without contacting the machine bed and the machine can trace the design without interference.
  • If it still fails: Switch to a home-machine magnetic frame (“Snap-Hoop” style) or use a standard hoop with proper stabilizer and basting.
• Q: How can SEWTECH multi-needle embroidery machine owners prevent hoop burn ring marks on dark garments when using standard hoops or magnetic hoops?
  A: Reduce crushing pressure and add a buffer layer; magnetic hoops help, but preparation and post-steam usually solve hoop burn.
  • Add: Place a layer of scrap stabilizer between the hoop ring and fabric as a buffer.
  • Prep: Use temporary spray adhesive or a running-stitch basting box to prevent bubbling and friction shift.
  • Recover: Steam iron by hovering (not pressing) or use a light spritz of sizing spray after stitching.
  • Success check: After steaming, the crushed ring fades and the fabric surface rebounds with no permanent circle.
  • If it still fails: Re-evaluate fabric sensitivity with the thumbnail “crush test” and switch to a less aggressive hooping method (float delicate fabric on hooped stabilizer).
• Q: Why won’t a magnetic embroidery hoop “click” onto a Brother PR-series style bracket (or why is the design off-center after mounting)?
  A: A hoop that won’t click or mounts off-center is usually blocked by a seam on the magnet ridge or is the wrong bracket interface—do not force it.
  • Inspect: Check whether a thick seam/zipper area is sitting directly on the magnet ridge; reposition the hoop about 1 inch.
  • Confirm: Verify the bracket type matches the exact machine model interface (arm spacing and locking style are proprietary).
  • Standardize: If multiple machine brands are in the shop, label/color-code hoops to prevent grabbing the wrong bracket style.
  • Success check: The hoop snaps on with a clear, firm “snap,” sits square, and the design traces centered where marked.
  • If it still fails: Stop and re-check bracket compatibility for the exact machine model before stitching to avoid returns and damage.
• Q: What is a safe starting speed on a SEWTECH multi-needle embroidery machine when using a large 12x15 magnetic hoop on a heavy hoodie?
  A: Slow down to a safer starting point around 600–700 SPM for large, heavy hoop + garment combinations to reduce shifting from inertia.
  • Reduce: Dial speed down before the run, especially on 3XL+ hoodies and heavy magnetic hoops.
  • Choose: Use the smallest hoop that comfortably fits the design; avoid using a 12x15 hoop for a small left-chest logo.
  • Stabilize: Use spray adhesive on the stabilizer to reduce fabric creep under high mass movement.
  • Success check: During the first 500 stitches, the fabric does not “bounce/flag,” and registration stays aligned (outline matches fill).
  • If it still fails: Switch to a smaller hoop (such as an 11x13 or 8x9 when appropriate) and re-run a trace to confirm clearance.
• Q: How do SEWTECH multi-needle embroidery machine operators fix “design registration is off” (outlines don’t match fill) when using heavy magnetic hoops?
  A: Treat registration issues as fabric shift or hoop weight physics—slow down and increase stabilization before changing the design.
  • Slow: Reduce machine speed immediately to limit inertia-driven drift.
  • Stick: Add temporary spray adhesive to bond fabric to stabilizer and prevent sliding.
  • Downsize: Use a smaller hoop when the design is small; oversized hoops increase movement and flagging.
  • Success check: After adjustments, the next run shows consistent alignment between outline and fill with no creeping.
  • If it still fails: Run a trace to verify the hoop/garment is not dragging or catching, and add better support under heavy items to prevent pantograph strain.
• Q: When should an embroidery business upgrade from technique tweaks to SEWTECH magnetic hoops or a SEWTECH multi-needle embroidery machine for production scaling?
  A: Upgrade based on the bottleneck: first fix consumables and prep, then add magnetic hoops for repeatability, then move to a multi-needle machine when single-needle time loss is the limiting factor.
  • Level 1 (Technique): Improve stabilizer match (cutaway for knits; tearaway for stable fabrics) and use spray adhesive/basting for shift control.
  • Level 2 (Tool): Add a 5.5" magnetic hoop plus a hooping station when placement consistency and hoop burn start affecting paid orders.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle setup when single-needle speed and thread-change time are blocking order volume.
  • Success check: Downtime drops (hoop the next garment while one stitches), placement becomes repeatable, and rework rate decreases.
  • If it still fails: Track where minutes are lost (hooping time vs thread changes vs fixes) and upgrade the step that is consistently over 2 minutes per item.
