Mastering Stitch Angles: Turn "Flat" Designs into 3D Masterpieces

A Hatch Embroidery Field Guide for Beginners

If you’ve ever stared at a perfectly “correct” fill stitch on your finished garment and thought, “Why does this look flat and lifeless?”—you are experiencing the disconnect between pixels and thread.

As a digitizer, your screen shows you color. But as an embroiderer, your machine deals in light and physics. Thread is a three-dimensional cylinder that reflects light. If every stitch runs the same direction, your eye perceives it as a single, flat slab of color—like a sticker.

In this deep-dive tutorial based onSue from OML Embroidery’s workflow, we will move beyond basic digitizing. We will use the Hatch Reshape Tool to manipulate light, create "virtual texture," and troubleshoot the physical reality of getting these designs onto fabric without gaps or puckering.

The Physics of Shine: Why "Good" Fills Often Look Wrong

Before we touch a single setting, you need to understand the "Light Direction Rule."

Standard embroidery software, including Hatch, defaults fill stitches to 45°. This is a safe, middle-of-the-road angle that stitches reasonably well on most fabrics. However, when you rely on this default for every object—leaves, petals, logos—the light hits them all identically. The result is a visual "blob."

By changing the angle, you aren’t adding stitches; you are redirecting the reflection.

• Vertical stitches (90°): Catch overhead light strongly.
• Horizontal stitches (0°): Often appear darker as they fall in the shadow of the thread twist.

The Pro Insight: You don’t need to digitize intricate details (like veins in a leaf) to create depth. You simply need to oppose the angles of adjacent shapes.

Pre-Flight Check: Setting Up Your Digital Workspace

Before you start rotating lines, we need to optimize your view. A computer screen is flat; it simulates thread but cannot simulate light reflection perfectly.

The "High-Contrast" Setup:

1. Isolate the Object: Sue recommends working with simple shapes (rectangles or leaves) first.
2. Color Hack: Change your object to a high-contrast color (like bright yellow or cyan) in the software. Dark colors (navy/black) make it nearly impossible to see the black angle lines and direction markers on screen.

Pre-Digitizing Checklist

• Object Type: Confirm you are using a Filled Object (Tatami or Satin), not a running stitch.
• Visual Aid: Turn off "TrueView" (3D view) momentarily if you struggle to see the angle lines; sometimes the wireframe view is clearer for editing.
• Grid: Enable the background grid. This is your anchor for straight lines.


The Core Move: Using the Hatch Reshape Tool

Here is the precise, action-first workflow to take control of your stitch direction.

1. Digitize a Closed Shape:
   • Select Digitize Closed Shape.
   • Left-click for straight corners; Right-click for curves.
   • Press Enter to generate the standard 45° fill.
2. Activate Reshape:
   • Select your object.
   • Click the Reshape icon (or press H on your keyboard).
   • Look for: The Angle Line. It is a straight line distinct from the outline nodes, passing through the center of the shape with squares at both ends.
3. Rotate the Angle:
   • Click and Drag one of the orange squares on the angle line.
   • Observe: As you rotate, the stitch simulation updates instantly.

Beginner Sweet Spot:

• 45°: The safe default.
• 90° (Vertical): Good for stems or "lifting" an object visually.
• 135° (Opposing): The perfect contrast to a 45° fill.






Warning: Mechanical Safety.
When testing new angles on your machine, never assume the path is safe just because the software says so. Extreme angles on narrow shapes can cause the machine to make very short, jerky movements. Keep your fingers outside the hoop area. If you hear a loud, rhythmic "thumping" sound, stop immediately—you are likely creating a "bird's nest" or hitting the needle plate.

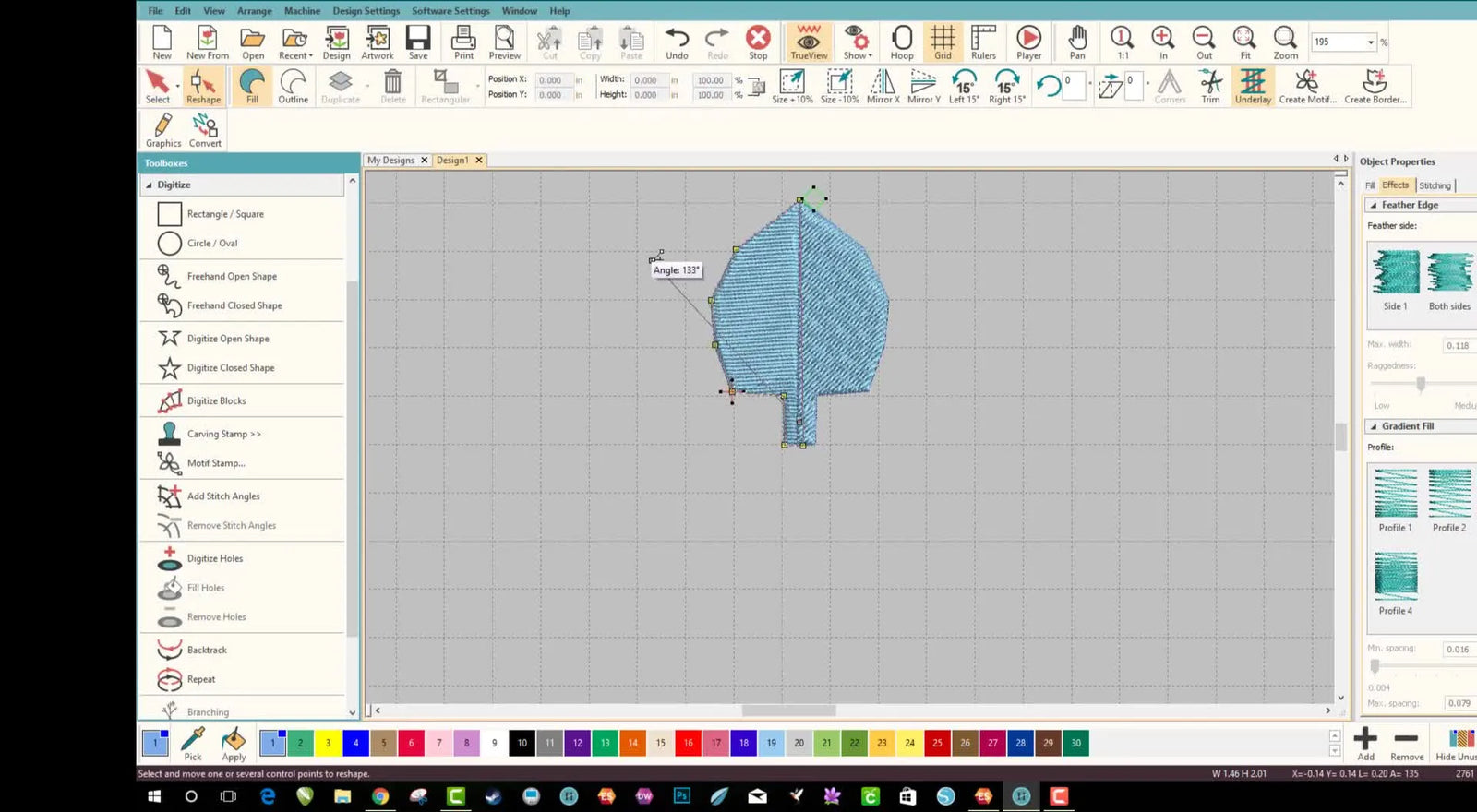

The Leaf Trick: Creating "Phantom Structure"

This is the most valuable technique for beginners. We will create a leaf with a central vein without actually digitizing a vein.

The "Wrong" Way (The Flat Leaf)

Novices digitize a leaf as one solid blob. Even with a split down the middle, if the angle (45°) is the same on both sides, it looks like a single sticker.

The "Right" Way (The 3D Leaf)

Using digitizing stitch angles effectively requires separating the object.

1. Digitize Half: Create the left side of the leaf.
2. Mirror: Use Layout > Mirror Copy Horizontal to create the right side.
3. Do NOT Merge: Keep them as two separate objects.
4. Oppose the Angles:
   • Set the Left Half to ~57°.
   • Set the Right Half to ~127°.

The Result: The light hits the left side differently than the right side. Your eye creates a "ridge" in the center where the light shifts. This is how professional logos look expensive without high stitch counts.

The Reality Gap: When Physics Fights Your Design

Software is perfect; fabric is not. When you stitch two leaf halves with opposing angles, the thread tension will pull the fabric in different directions.

The Risk: The two halves might pull apart, leaving a gap (fabric showing) in the middle, or overlap too much, creating a hard ridge.

The "Pull Compensation" Fix

You cannot just rely on angles; you must account for the "Push and Pull" of embroidery.

• Action: In Hatch, look for Pull Compensation settings.
• Empirical Data: For standard cotton/twill, set Pull Comp to 0.35mm - 0.40mm. For knits (t-shirts), you may need 0.40mm+. This slightly "over-digitizes" the edges so they shrink back to the perfect size.

Troubleshooting: Why Your Angles Look Bad on Real Fabric

If your Hatch Embroidery tutorial result looks great on screen but terrible on the hoop, use this diagnostic table.

Decision Tree: Fabric & Stabilizer Pairing

Your angle changes rely on a stable foundation. If the fabric moves, the light reflection effect is ruined.

Fabric Selection Guide:

1. Stretchy Knits (Performance Wear, Polos):
   • Stabilizer: Cutaway (2.5oz). No exceptions. Tearaway will distort the angles.
   • Hooping: Must be neutral (do not stretch while hooping).
2. Stable Woven (Denim, Canvas, Caps):
   • Stabilizer: Tearaway is usually fine.
   • Hooping: Tight is right.
3. Textured (Towels, Fleece):
   • Stabilizer: Cutaway Backing + Water Soluble Topping (Solvy).
   • Why: Without topping, your beautiful angle work will sink into the pile and disappear.

Upgrade Path: Solving the "Hooping Bottleneck"

You have mastered the Hatch reshape tool and your designs are beautiful. But now you face a new problem: Mechanical consistency.

Digitizing opposing angles requires precise alignment. If you are struggling to hoop your garment perfectly straight—or if you are getting "hoop burn" (shiny rings) on sensitive fabrics—your software skills can't save you.

This is the typical "Trigger Moment" for upgrading your toolkit:

1. Scenario: You are stitching 20 polo shirts with your new 3D leaf logo.
2. Pain Point: Re-hooping takes 5 minutes per shirt, and traditional screw-hoops are leaving marks that steam won't remove. Fingers are sore.
3. The Solution:
   • Level 1 (Technique): Try "Floating" the fabric (sticking it to hoop-less stabilizer). Risk: Alignment errors.
   • Level 2 (Tool Upgrade): Switch to a magnetic embroidery hoop. These clamp fabric instantly without forcing it into an inner ring. This prevents hoop burn and keeps the grainline perfectly straight—essential for the light-reflection tricks we just learned.
   • Level 3 (Scaling Up): If you are consistently running orders of 50+ items, hooping is your enemy. A SEWTECH Multi-Needle Machine combined with a hooping station for machine embroidery allows you to prep the next garment while the current one is stitching, doubling your output.

Warning: Magnet Safety Hazards.
Magnetic hoops are incredibly strong industrial tools. They pose a severe pinch hazard—keep fingers clear of the snapping zone.
Critical: Keep strong magnets away from pacemakers, insulin pumps, and magnetic storage media (credit cards, hard drives).

Operations Checklist: The Final Run

Before you commit to the final garment, perform this "Pilot Run":

• Visual Check: Are the leaf halves separate objects in the object list?
• Angle Check: Is there at least a 45° difference between the two halves (e.g., 45° vs 90°)?
• Consumables: Fresh needle (75/11 Sharp for woven, Ballpoint for knits)?
• Adhesion: If floating, did you use temporary spray adhesive (like 505) to prevent shifting?
• Test Sew: Run one sample on scrap fabric.
  • Audit: Hold it up to the light. Does it "pop"?
  • Audit: Rub your finger over the center seam. Is it rough (gap) or smooth?

Sue’s lesson proves that great embroidery isn’t about more stitches—it’s about smarter stitches. By mastering angle lines and securing your fabric properly, you turn flat colors into tactile art.

FAQ

• Q: In Hatch Embroidery, how do I change the stitch angle using the Reshape Tool without distorting a filled object?
  A: Use Hatch Reshape on the filled object and rotate only the center Angle Line handles (not the outline nodes).
  • Select the filled object, then click Reshape (or press H).
  • Locate the straight Angle Line running through the object center with square handles at both ends.
  • Drag one square handle to rotate the angle and watch the stitch preview update.
  • Success check: the stitch direction changes while the object boundary stays the same size and shape.
  • If it still fails: confirm the object is a Filled Object (Tatami/Satin) and temporarily switch views (turn off 3D/TrueView or use a clearer wireframe) so the angle line is visible.
• Q: In Hatch Embroidery, what stitch angles are safe beginner starting points for creating shine contrast on fill stitches?
  A: Start with 45° as the baseline, then contrast with 90° or 135° on adjacent shapes to create visible “light shift.”
  • Keep one area at 45° (default) and set a neighboring area to 90° (vertical) or 135° (opposing).
  • Apply the contrast to separate parts (for example, left/right halves), not the entire design as one block.
  • Success check: the two areas look like different “shades” of the same thread color under the same light, not one flat blob.
  • If it still fails: change the object to a high-contrast on-screen color (yellow/cyan) so angle markers are easier to see while editing.
• Q: In Hatch Embroidery, how do I digitize a leaf that looks 3D without adding a center vein object?
  A: Create the leaf as two separate halves and oppose the stitch angles so the “vein” appears from light reflection.
  • Digitize one half of the leaf, then Mirror Copy Horizontal to create the other half.
  • Do not merge the halves; keep them as two objects.
  • Set opposing angles as a starting point: left about 57°, right about 127°.
  • Success check: a visible “ridge” appears down the center due to the angle change, even though no vein was digitized.
  • If it still fails: increase stabilization and re-check hooping alignment so the two halves don’t shift during stitching.
• Q: In Hatch Embroidery, what Pull Compensation values should I start with to prevent a gap between two opposing-angle fill halves on cotton, twill, or knit?
  A: Use Pull Compensation to counter push/pull: start around 0.35–0.40 mm for cotton/twill and 0.40 mm+ for knits.
  • Increase Pull Compensation when the center seam opens and fabric shows between halves.
  • Re-hoop with firm, even tension and avoid fabric skew so both halves stitch where intended.
  • Success check: the center join closes cleanly with no fabric showing when viewed in normal light.
  • If it still fails: treat the fabric as more stretchy than expected and upgrade backing to cutaway (especially for shirts/knits).
• Q: When machine embroidery shows puckering around dense fills after changing stitch angles, which stabilizer choice fixes it: tearaway vs cutaway?
  A: If puckering appears, switch to cutaway when the current stabilizer is too weak for the stitch density (especially on knits).
  • Replace tearaway with cutaway for stretchy garments and keep hooping neutral (do not stretch the knit while hooping).
  • For textured fabrics like towels/fleece, add water-soluble topping plus cutaway backing so stitches don’t sink.
  • Success check: the fabric lies flatter after stitching, with reduced rippling at the fill edges.
  • If it still fails: reduce fabric movement further by improving hooping consistency or using a firmer backing setup for the same design.
• Q: During stitch-angle tests, what machine-embroidery safety steps prevent finger injury and help stop a bird’s nest when the machine starts “thumping”?
  A: Stop immediately if loud rhythmic thumping starts, keep fingers out of the hoop area, and re-test with safer angles on narrow shapes.
  • Keep hands clear of the hoop opening during any trial sew—do not “steady” fabric near the needle path.
  • Pause/stop the machine at the first sign of thumping or jerky micro-movements on narrow columns.
  • Run a controlled test on scrap before committing to a garment.
  • Success check: stitching runs smoothly without repeated thumps and without thread piling underneath.
  • If it still fails: simplify extreme angles on narrow objects and re-check hooping stability to reduce sudden fabric drag.
• Q: For preventing hoop burn marks and speeding up re-hooping on polo shirts, what is the upgrade path from floating to magnetic hoops to a SEWTECH multi-needle setup?
  A: Use a staged fix: optimize technique first, then upgrade clamping consistency with magnetic hoops, then scale output with multi-needle + hooping station when volume demands it.
  • Level 1 (Technique): Float the fabric on hooped stabilizer (often works, but alignment risk increases).
  • Level 2 (Tool): Use a magnetic embroidery hoop to clamp quickly and reduce hoop burn on sensitive fabrics.
  • Level 3 (Production): For repeat orders (often 50+ items), pair a SEWTECH multi-needle machine with a hooping station so the next garment is prepped while stitching runs.
  • Success check: hooping time drops and designs stay aligned (grainline stays straight), with fewer visible hoop rings after stitching.
  • If it still fails: review magnet safety and handling technique—mis-seating a magnetic frame can still cause misalignment even if clamping is strong.
• Q: What magnetic embroidery hoop safety rules reduce pinch hazards and protect people with pacemakers or insulin pumps?
  A: Treat magnetic hoops as industrial pinch tools and keep strong magnets away from medical implants and magnetic storage.
  • Keep fingers out of the snapping zone when the magnetic frame closes.
  • Keep magnetic hoops away from pacemakers and insulin pumps (do not use around affected operators).
  • Store magnets away from credit cards and hard drives to prevent damage.
  • Success check: the hoop closes without finger contact and is handled in a controlled, two-handed motion.
  • If it still fails: switch to a safer handling routine (set the hoop on a stable surface before closing) and follow the machine and hoop manufacturer safety guidance.
