The "Stop" Paradox: Mastering Appliqué on Brother PR Multi-Needle Machines Without Losing Your Mind

If you have ever stared at a Brother PR screen in sheer panic, asking, "Why won’t this machine stop where the appliqué needs to stop?", you are not alone. I have spent over two decades on factory floors and in home studios, watching capable, intelligent stitchers lose hours of production time—and significant confidence—because their machine marches blindly into the next color block while their hands are still reaching for the fabric.

The anxiety is real. Appliqué requires a rhythm: Stitch, Stop, Place, Stitch, Stop, Trim. When the machine breaks that rhythm, you risk ruined garments and broken needles.

The good news: On almost all Brother PR multi-needle models (from the classic PR600 to the modern PR1055X), you can achieve a flawless, Kimberbell-style appliqué workflow. You just need to master Manual Color Sequence and accept one counterintuitive rule that defies standard logic:

You place the Hand (Stop) on the NEXT color block, because the logic engine stops before executing that block.

That single cognitive shift turns "I’m losing my mind" into "I finally have total control."

The "Next Exit" Rule: Why Brother PR Stop Logic Confuses Everyone

On single-needle machines, we are used to the machine stopping after every color change. Multi-needle machines display a fundamentally different behavior: they are built for speed and continuous flow. Their default state is "Go."

The stop logic on these machines is not "Stop after I finish this." It is "Stop before I enter that." Think of it like a highway exit. You don't put the sign after the exit ramp; you need the warning before you get there.

When reading appliqué instructions, you typically see:

1. Placement Line (Stitch the outline on the stabilizer).
2. Stop (Place your appliqué fabric).
3. Tack-down (Secure the fabric).

Your instinct is to attach the Hand icon to the Placement Line. Resist this instinct.

If you attach the Hand to the Placement Line, the machine interprets this as "Pause before starting the Placement Line." That is useless to you.

The Golden Rule:

• If you want the machine to halt after the Placement Line...
• You must attach the Hand icon to the Tack-down block (the next block in the list).

Treat the Hand icon like a "Do Not Enter" sign hanging on the door of the next step.

Step 1: Physical Orientation (The 90° Reality Check)

Before we touch the settings, we must align the digital world with physical reality. Most multi-needle hoops, including the standard frames and the specific brother pr 650 hoops, mount vertically onto the machine arm.

If your design loads horizontally, you must rotate it.

1. Select the design from your USB.
2. Tap Set.
3. Rotate 90 degrees until the design orientation matches your physical hoop.

Sensory Check: Look at the screen. Does the top of the design point toward the back of the machine? Now look at your hoop. Does the top of the garment point toward the back of the machine? If these don't match, no amount of programming will save you.

Warning: Mechanical Safety Danger. Keep fingers, snips, and tweezers away from the needle bar area when the machine is running. Appliqué workflows tempt you to "just reach in quickly" to smooth a wrinkle. Don't. Multi-needle heads can jump to a new position instantly. Always wait for the green "Start" button to turn red (stopped) and the presser foot to lift before your hands enter the "Kill Zone."

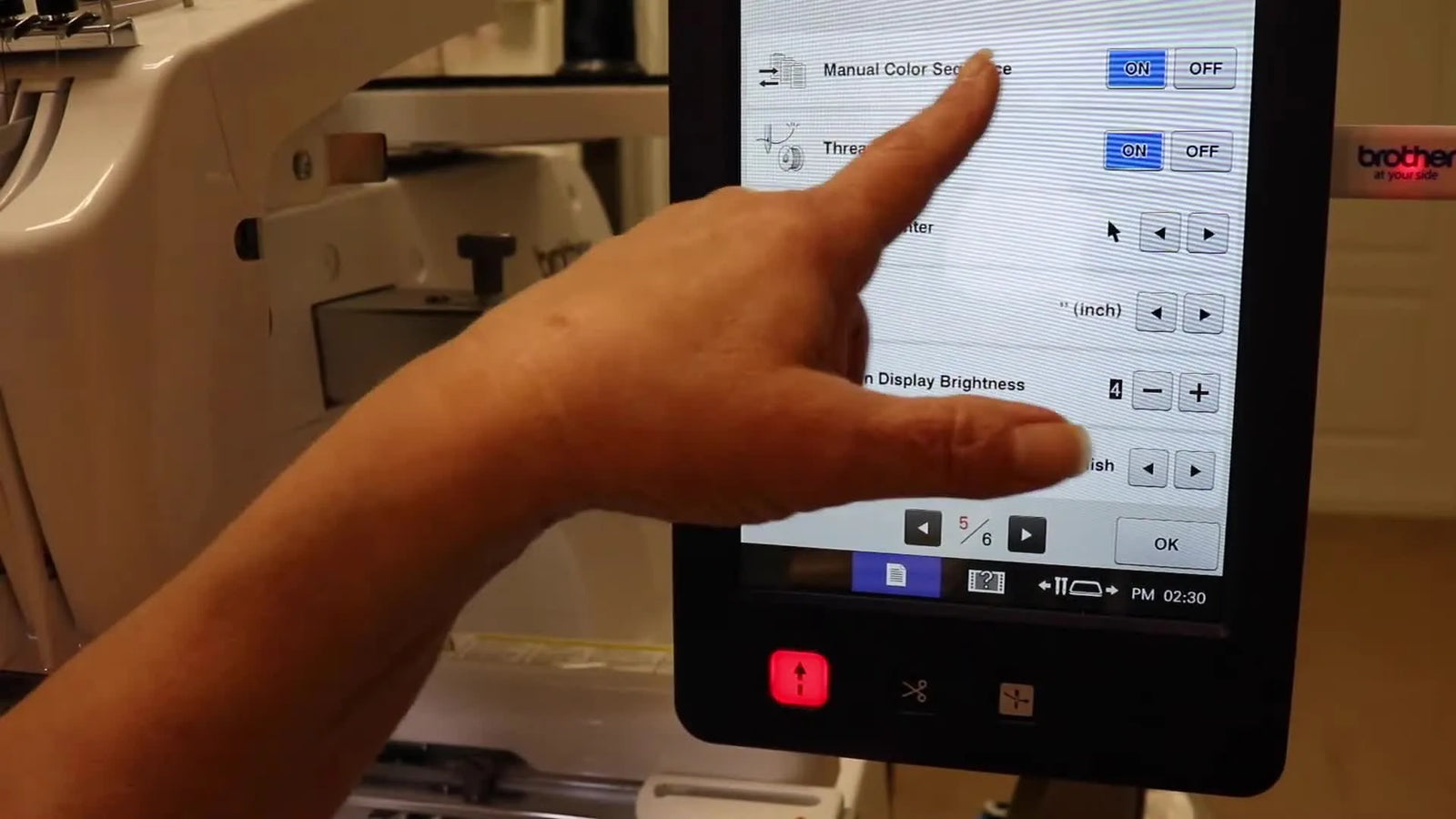

Step 2: The Gatekeeper Setting (Turning on Manual Color Sequence)

This is the step most manuals bury. Without enabling this feature, the machine will ignore your attempts to program stops.

Action Steps:

1. Press the Settings icon (usually a paper or gear symbol).
2. Navigate through the pages (on older models like the PR600/620/650, this is often on Page 2 of 8).
3. Locate Manual Color Sequence.
4. Toggle it to ON.
5. Sensory Check: Look at the main screen. You should now see a specific icon (often a needle with a small hand or color bar) indicating that manual sequencing is active.

If you do not see this icon, the machine is still in "Automatic/Production" mode, and it will run all colors associated with the same needle continuously.

Prep Checklist: The "Pre-Flight" Safety Scan

• Design Orientation: Visually confirm the screen rotation matches the physical hoop mounted on the arm.
• Mode Verification: Confirm the "Manual Color Sequence" icon is visible on the top status bar.
• Thread Mapping: Write down which needle number holds which color (e.g., Needle 1 = White, Needle 2 = Navy). Do not rely on memory.
• Fabric Prep: Have your appliqué fabric pre-cut or rough-cut and backed with Lite Steam-A-Seam 2 or a light spray adhesive if required.
• Hidden Consumable Check: Ensure you have small, double-curved appliqué scissors (duckbill scissors) within reach. Trying to trim with straight scissors invites disaster.

Step 3: Programming the Stops (The "Money Move")

Now that the machine is in Manual Mode, we enter the Embroidery Edit screen (the spool/needle icon). This is where we tell the machine exactly how to behave.

Part A: Assigning Needles

You must explicitly tell the machine which needle to use for each step.

• Placement Line: Assign to Needle 1 (e.g., White).
• Tack-down: Assign to Needle 1 again (if you want the thread to match).
• Satin Border: Assign to Needle 2 (e.g., Navy).


Part B: Inserting the Stops

This is where we apply the "Next Exit" rule.

1. Scroll through your color list.
2. Identify the Placement Line. Do not touch the Hand icon yet.
3. Scroll down to select the Tack-down (the step after placement).
4. Action: With the Tack-down highlighted, press the Hand (Stop) icon.
5. Result: A small hand symbol appears next to the Tack-down color bar.

The logic: The machine will sew the Placement Line, then see the "Stop" sign attached to the Tack-down, and halt before taking that first Tack-down stitch.

Setup Checklist: The Programming Sanity Check

• Needle Check: Do the needle numbers on the screen match the actual thread cones on top of your machine?
• Stop Placement: Are the Hand icons located on the steps following the pauses? (Hand on Step 2 to stop after Step 1).
• Visual Confirmation: Do you see the Hand symbol next to the correct color bars in the list?
• Satin Check: Ensure you haven't accidentally placed a stop in the middle of a continuous satin stitch, which would leave an ugly tie-off knot.

The Appliqué Rhythm: Flow and Physics

Once programmed, the machine enters a predictable cycle. This is where the physical reality of embroidery takes over.

The Cycle:

1. Placement Line (Machine Stitching).
2. STOP (Machine Halts).
3. Operator Action: Spray the back of your fabric lightly implies adhesive, place it inside the placement line. Tip: Smooth it from the center out to avoid air bubbles.
4. Tack-down (Machine Stitching - often a running stitch or zigzag).
5. STOP (Machine Halts).
6. Operator Action: Remove hoop (optional/risky) or trim in the hoop. Trimming in the hoop is safer for alignment. Use curved scissors to trim close to the stitching line (1-2mm).
7. Satin Stitch (Machine Finishes the edge).

If you are running a classic pr600 embroidery machine or a newer 6-needle model, this rhythm is your production heartbeat. However, this stop-and-go action introduces a physical variable: Fabric Shift.

The Hidden Enemy: Hoop Burn and Fabric Shift

When the machine stops and you press on the fabric to trim or place appliqué, you are applying pressure to the hoop. If your hooping is weak, the fabric will slip. When the machine restarts, the satin stitch won't cover the raw edge.

Symptoms of Bad Hooping in Appliqué:

• Gapping: The satin stitch misses the fabric edge entirely.
• Puckering: Waves appear around the appliqué after unhooping.
• Hoop Burn: Permanent rings crushed into delicate fabrics (velvet, performance wear) from tightening the standard hoop too much.

This is where beginners often blame the digitizing or the stop settings, when the culprit is actually the physics of the hoop.

The Upgrade Path: Tools vs. Technique

If you are doing one-off gifts, standard hoops are fine. But if you are doing production runs (50+ team jerseys), the constant unscrewing and re-screwing of standard hoops leads to wrist fatigue and inconsistent tension.

Many professionals dealing with these issues search for magnetic embroidery hoops as a solution. Why? Because magnetic frames clamp the fabric instantly without forcing it into a distorted inner ring. This prevents the "creep" that happens during appliqué stops.

Decision Tree: Choosing the Right Stabilizer & Hoop Strategy

Warning: Magnetic Safety. Powerful magnetic hoops (like the MaggieFrame or Sewtech output) are industrial tools. Keep them away from pacemakers, insulin pumps, and credit cards. Do not let the two frame parts snap together without fabric in between—they can pinch fingers severely. Store them separately.

Recovery Mode: The "Reserve Stop" Lifeline

We all make mistakes. You hit "Start," and suddenly remember you forgot to program the stop for the tack-down. Panic sets in.

Do not turn off the machine.

Use the Reserve Stop feature:

1. While the machine is stitching the step before the missed stop (e.g., the Placement Line).
2. Press the Reserve Stop button (usually near the Start/Stop button or on screen).
3. Visual Cue: The button often lights up or turns blue/cyan.
4. Result: The machine will finish the current color block and then pause, even though no stop was programmed.

This gives you a chance to breathe, grab your fabric, and trim without ruining the sequence.

Scaling Up: The 6-Needle Production Mindset

A viewer asked about managing designs with more than 6 colors on a 6-needle machine. The principle remains: Map the blocks, not the colors.

You are the conductor. If your design has 12 generic colors but you only have 6 needles:

• Group similar colors.
• Keep a neutral (White/Black) on Needle 1 for all placement lines.
• Keep a "Trash Can" needle for colors you can swap out mid-run.

Efficient shops use an embroidery hooping station to ensure that while the machine is running one shirt, the operator is hooping the next one perfectly. This minimizes "machine down time."

Operation Checklist: The Finish Line

Stop programming gets you accuracy, but discipline gets you quality.

• The "Click" Check: When placing the hoop back on the machine after trimming (if you removed it), listen for the distinct double-click of the hoop arms locking in. If it's loose, your registration will be off.
• Speed Limit: For the Tack-down stitch, lower your machine speed. If usually at 1000 SPM, drop to 600 SPM. This prevents the foot from pushing the appliqué fabric piece around before it's sewn down.
• The Trim Test: After trimming, run your finger over the edge. If you feel a "lip" of fabric higher than 2mm, trim closer. If the satin stitch has to "climb" over a high fabric wall, it will look gaps and unprofessional.
• Restart Watch: After pressing start, hover your finger over the Stop button for the first 5 seconds to ensure the fabric doesn't flip up.


Final Thoughts: It’s About Control

Mastering the appliqué stop on a Brother PR machine is a rite of passage. It marks the transition from "hoping it works" to "knowing it will work."

By understanding the "Next Exit" logic of the Hand icon, utilizing the safety net of Reserve Stop, and upgrading your physical workflow with better stabilizers or magnetic embroidery hoops, you stop fighting the machine and start producing professional-grade work. The machine is a tool; you are the artist. Take control.

FAQ

• Q: Why does a Brother PR600/PR650/PR1055X multi-needle embroidery machine not stop after the appliqué placement line when using the Hand (Stop) icon?
  A: Put the Hand (Stop) icon on the NEXT color block (the tack-down), because Brother PR stop logic pauses before the selected block runs.
  • Enable Manual Color Sequence first, then open the Embroidery Edit/color list.
  • Identify the Placement Line block, then move to the Tack-down block directly after it.
  • Press the Hand (Stop) icon while the Tack-down block is highlighted.
  • Success check: a small hand symbol appears next to the Tack-down bar, and the machine sews the placement line then halts before tack-down starts.
  • If it still fails: confirm Manual Color Sequence is ON; if the machine is in automatic/production mode, programmed stops may be ignored.
• Q: Where is the Manual Color Sequence setting on Brother PR multi-needle embroidery machines, and how can the Manual Color Sequence icon be verified on screen?
  A: Turn Manual Color Sequence ON in Settings, then verify the manual sequencing icon appears on the main status bar.
  • Press the Settings icon (paper/gear), then page through the settings screens (older PR models often show it around Page 2 of 8).
  • Toggle Manual Color Sequence to ON.
  • Return to the main embroidery screen.
  • Success check: the specific Manual Color Sequence indicator icon is visible on the top status/status bar area (if it is not visible, the machine is still not in manual sequencing).
  • If it still fails: re-check that the setting was saved/applied, and confirm the machine is not continuing same-needle color blocks without pausing.
• Q: How do I fix incorrect design orientation on Brother PR multi-needle embroidery machines when the hoop mounts vertically and the design loads horizontally?
  A: Rotate the design 90° during setup until the screen orientation matches the physical hoop direction on the machine arm.
  • Select the design from USB and tap Set.
  • Rotate 90 degrees as needed before stitching.
  • Compare “top of design” on screen to the garment/hoop “top” pointing toward the back of the machine.
  • Success check: the top of the on-screen design points the same direction as the top of the hooped garment when mounted on the machine arm.
  • If it still fails: stop and re-check before stitching—programming stops will not compensate for a rotated/incorrectly oriented design.
• Q: How can Brother PR appliqué trimming be done safely around the needle bar area during stop-and-go stitching on a multi-needle head?
  A: Only place hands near the needle area after the Brother PR machine is fully stopped and the presser foot has lifted—never “reach in quickly” while it is running.
  • Wait for the green Start button to turn red (stopped) before moving hands, snips, or tweezers into the needle bar zone.
  • Keep tools staged (especially small double-curved appliqué scissors) so trimming is quick and controlled during stops.
  • Resume only after hands are completely clear of the head area.
  • Success check: the machine is visibly stopped and the presser foot is up before fingers cross into the needle/bar space.
  • If it still fails: slow the workflow down—multi-needle heads can jump positions instantly, so treat every restart as a hazard moment.
• Q: How do I use the Brother PR “Reserve Stop” feature to pause an appliqué sequence if the tack-down stop was not programmed?
  A: Press Reserve Stop while the Brother PR machine is stitching the step BEFORE the missed stop so it pauses after finishing the current block.
  • Let the machine continue stitching the current block (for example, the placement line).
  • Press the Reserve Stop button during that block.
  • Watch for the Reserve Stop visual cue (often a light or a blue/cyan indication).
  • Success check: the machine finishes the current color block and then pauses automatically even without a programmed Hand stop.
  • If it still fails: do not power off; stop the machine normally, then return to the color list to add the correct Hand stop on the next block.
• Q: Why does Brother PR appliqué show gapping, puckering, or hoop burn after stops, and what is the fastest way to stabilize hoop tension without over-tightening?
  A: These symptoms usually come from hoop physics (fabric slip or over-clamping) during stop-and-trim—improve hooping technique first, then consider magnetic hoops if production volume makes consistency hard.
  • Re-hoop with firm, even tension without stretching knits (aim for “neutral” on T-shirts/knits, not pulled tight).
  • Match stabilizer to fabric type (for knits, use fusible cutaway; for towels/fleece, add water-soluble topper; for stable cotton, medium tearaway or cutaway).
  • Minimize pushing on the hooped fabric during placement/trim to reduce shift.
  • Success check: after restart, satin stitching fully covers the raw edge without gaps, and the fabric surface shows minimal ring marks after unhooping.
  • If it still fails: for frequent appliqué stops or thick/awkward items, magnetic frames often reduce creep and hoop burn by clamping without forcing fabric into an inner ring.
• Q: What magnetic hoop safety rules should be followed when using powerful magnetic embroidery hoops with Brother PR multi-needle embroidery machines?
  A: Treat magnetic hoops as industrial-strength magnets: keep them away from medical implants and prevent the frame halves from snapping together on bare fingers.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Separate and store the two frame parts apart; do not let them slam together without fabric between them.
  • Lower the halves together in a controlled way to avoid pinching.
  • Success check: the frame closes smoothly without a “snap” impact, and fingers are never between the closing surfaces.
  • If it still fails: stop using the frame until handling is controlled—pinch injuries happen fast with high-strength magnets.
