Make Single-Needle ITH Files Behave on a Baby Lock Enterprise: The Hand-Icon Stop Trick That Saves Spools (and Sanity)

The "Single-Needle" Mindset on a Multi-Needle Beast: Mastering ITH Stops Safe and Fast

If you’ve ever loaded a single-needle "In-The-Hoop" (ITH) file into a multi-needle machine and watched in horror as it refused to pause—stitching the tack-down line right over the placement line without letting you put the fabric down—you know the specific flavor of panic that induces.

You aren't doing anything wrong. Your machine is just doing exactly what it was programmed to do: Production.

Single-needle machines use color changes as "fake stops" to force you to change thread. Multi-needle machines see a color change, say "Okay, moving to Needle 2," and keep running at 1,000 stitches per minute (SPM).

This guide is your experience-calibrated manual for taming this behavior on Baby Lock/Brother multi-needle interfaces (Enterprise, Entrepreneur Pro, etc.). We will convert that "runaway train" into a precise, obedient tool for profitable ITH projects like snap tabs and key fobs.

The Core Conflict: Why Your Machine Won't Stop

To a multi-needle machine, a Color Block is a Routing Command, not a Pause Command. It tells the head to move, not to wait. This is why successful ITH on these machines requires a mental shift from "Color Management" to "Stop Management."

The fix involves three specific moves:

1. Monochrome Conversion: Force the machine to stay on one needle (efficiency).
2. Reserve Stops (The Hand Icon): manually programming the pause.
3. Physical Workflow: Managing the hoop without unhooping.

If you are operating a baby lock 10 needle embroidery machine or similar high-capacity rig, mastering this workflow turns the ITH process from a stressful babysitting gig into a predictable production cycle.

Phase 1: The "Hidden" Prep (Physical & Safety)

Before touching the screen, we must secure the physical environment. In production embroidery, 80% of failures happen before the start button is pressed.

The "Zero-Movement" Goal

You need to intervene three times:

1. Post-Placement: To lay down appliqué fabric or vinyl.
2. Pre-Tackdown: To tape or secure the layer.
3. Pre-Finish: To add backing or flip the item.

Critical Supply Check:

• Low-Tack Tape: Painter's tape or specific embroidery tape (medical tape often leaves residue).
• Curved Scissors: For trimming threads close to the vinyl without nicking it.
• Consumables: Have your spray adhesive and a new needle ready. Check your bobbin now—running out mid-ITH is a nightmare.

The Stabilizer Decision Tree

Using the wrong backing causes "hoop shifting"—where the design misaligns after you handle it during a stop.

Decision Tree: Stabilizer × Material

• IF working with Vinyl/Faux Leather (Heavy/Non-stretch):
  • Recommendation: Medium-weight Tearaway. It tears clean and the vinyl provides its own stability.
• IF working with Knits/Stretchy Fabrics:
  • Recommendation: Cutaway. You must prevent the fabric from retracting when you press on the hoop during stops.
• IF working with Standard Cotton (Snap Tabs):
  • Recommendation: Tearaway is usually sufficient. Sensory Check: It should feel like crisp cardstock, not tissue paper.

If you are new to standard hooping for embroidery machine technique, remember: the stabilizer must be drum-tight, but the fabric should be neutral—neither loose nor stretched.

Prep Checklist

• Bobbin Check: Is the bobbin case free of lint? Is the bobbin at least 50% full?
• Step ID: Identify the 3 critical steps in your PDF guide: Placement, Tackdown, Final Seam.
• Needle Clearance: Ensure the needle bar area is clear of loose threads that could snag during a color change.


Phase 2: Design Surgery (The Edit Screen)

We will now perform "surgery" on the digital file to stop the machine from jumping needles.

Step A: Load and Check Margins

Load your design. The example design is 4.75" x 9.04".

• Rule of Thumb: Ensure you have at least 1-inch clearance from the metal hoop frame. If the foot strikes the frame at 800 SPM, you risk breaking the reciprocal shaft.

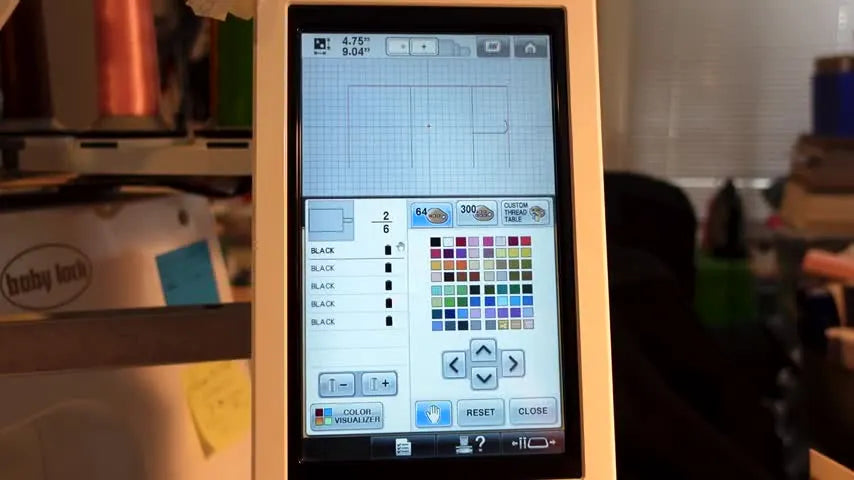

Step B: The "Monochrome" Hack

We don't want the machine moving between needles. It wastes time and increases vibration.

1. Tap the Multi-Color Spool Icon.
2. Change Every Single Step to the same color (e.g., Black).
3. Assign that color to One Needle (e.g., Needle 6).

Now, the machine sees one long operation on Needle 6. It will not stop... yet.

Note: This reductionist mindset is similar to using a specific hooping station for machine embroidery; you are stripping away variables to ensure consistency.

Setup Checklist

• Color Unification: Are all bars showing the same color (e.g., Black)?
• Needle Assignment: Is the correct needle (with the correct thread) selected?
• Speed Limit: Set max speed to 600-700 SPM.
  • Expert Note: While pro machines can go faster, ITH involves thick vinyl layers. 600 SPM prevents needle deflection (bending) which causes skipped stitches.

Warning: Mechanical Safety
Never put your hands near the needle bar area while the machine is "paused" unless you have visually confirmed the green "Start" button is NOT flashing or you are in a safe stop mode. A loose sleeve or finger can be caught if the machine accidentally resumes.

Phase 3: The "Hand Icon" (Reserve Stop)

This is the critical programming step. The Golden Rule: The machine stops BEFORE it stitches the step with the Hand icon.

Programming the Stops

1. Locate Step 2: This is usually the Tackdown. You need the machine to stop after Step 1 (Placement) but before Step 2 starts so you can place your fabric.
2. Action: Apply the Hand Icon (Reserve Stop) to Step 2.
3. Locate Step 5: (In this specific example) This is likely the back piece placement.
4. Action: Apply the Hand Icon to Step 5.
5. Locate Step 6: The final satin stitch.
6. Action: Apply the Hand Icon to Step 6 (for a final alignment check).

Visual Check: You should see the Hand icon appear next to the step number on the screen.

Note regarding other models: If you are using a brother 10 needle embroidery machine, the interface may look slightly different, but the "Reserve Stop" logic is identical.

Phase 4: Finalizing and Sewing

You must "bake" these settings into the machine's current session.

1. Tap Close (Exit Color Edit).
2. Tap Edit End.
3. Tap Sewing.








You are now in the stitch-out screen. Your Total Stitch Count (e.g., 1187 stitches) and Time (e.g., 8 minutes) should be visible.

The Sensory Experience of a Good Run

• Visual: The presser foot should just barely kiss the vinyl. If it's squashing it deep, raise the foot height (usually a dial or on-screen setting) to avoid "foot drag."
• Auditory: Listen for the "Click-Clack-Silence." The machine should stitch Step 1, trim (Click-Clack), and then go Silent (Stop).
• Tactile: When you apply tape during the stop, press firmly. If the hoop bounces, support it from underneath with your other hand to prevent popping the hoop out of the carriage.

Tools for Efficiency: The Case for Magnetic Hoops

In standard hoops, the repeated "pop-pop" of clamping thick vinyl can cause "Hoop Burn" (permanent rings on the fabric) or wrist strain (Carpal Tunnel is real in this industry). Many professionals switch to magnetic embroidery hoops for ITH work.

• Why? You can adjust the fabric without un-hooping the bottom frame.
• Speed: It reduces the "hooping time" from 45 seconds to 5 seconds.
• Quality: Zero hoop burn on delicate vinyls.

Warning: Magnet Safety
Magnetic hoops are industrial-grade tools. They can snap together with over 30 lbs of force.
* Pinch Hazard: Keep fingers clear of the mating surface.
* Health: Individuals with pacemakers or ICDs should maintain a safe distance (usually 6-12 inches) as the magnetic field is powerful.

Operation Checklist (The "Pre-Flight" at Every Stop)

• Stop 1: Did it stop? Good. Place fabric. Check: Is fabric covering the entire placement line?
• Stop 2: Add backing. Check: Is tape secured outside the stitch path? Sewing through tape gums up needles.
• Final Stop: Check: Is the bobbin thread running low? (Look for the "candy cane" look on the back).

Troubleshooting: When It Doesn't Stop (or Stops Too Much)

The Upgrade Path: Scaling from Hobby to Production

If you are consistently running batches of these snap tabs (50+ units), your bottleneck is no longer the machine speed—it is the Human Handling Time.

Here is a logical path for upgrading your toolset to clear that bottleneck:

1. Level 1 (Ergonomics): If your wrists hurt, look into a stabilizer/hooping aid or simply upgrade to a babylock magnetic embroidery hoop. The reduction in physical force required to hoop is a career-saver.
2. Level 2 (Consistency): Use a dedicated station like a hoop master embroidery hooping station to ensure every single logo or tab is placed in the exact same spot, eliminating the "measured by eye" error.
3. Level 3 (Capacity): If single-head output isn't enough, moving to a modular multi-head setup (like SEWTECH production lines) allows you to scale linear output.


By following this protocol, you stop fighting your machine's programming and start leveraging its power. You aren't just "pushing buttons"—you are managing a manufacturing process.

FAQ

• Q: How can a Baby Lock/Brother multi-needle embroidery machine (Enterprise/Entrepreneur Pro style interface) be forced to stop during an ITH design instead of running through color changes?
  A: Convert the design to one needle and add Reserve Stops (Hand icon) to the next steps that must pause.
  • Unify all color blocks to a single color and assign that color to one needle so needle changes do not act as “fake stops.”
  • Add the Hand icon to the step that should start only after a pause (example: put the Hand icon on the tackdown step so the machine stops after placement).
  • Exit the color edit and return to the sewing screen so the stop programming is active for the current session.
  • Success check: the machine stitches Step 1, trims (“click-clack”), then goes silent before the next Hand-marked step begins.
  • If it still fails: confirm the Hand icon is visible next to the correct step number (not the step you want to stop after).
• Q: What stabilizer should be used for ITH vinyl, knit, or cotton snap tabs on a Baby Lock/Brother multi-needle embroidery machine to prevent shifting during stops?
  A: Match stabilizer to material so handling at stops does not let the design creep or retract.
  • Choose medium-weight tearaway for vinyl/faux leather because the material is already stable and tearaway removes cleanly.
  • Choose cutaway for knits/stretch fabrics to prevent retraction when pressing/taping during stops.
  • Choose tearaway for standard cotton snap tabs when it feels like crisp cardstock (not tissue-thin).
  • Success check: after a stop and re-start, the next stitching lands exactly on the prior placement/tackdown line with no visible offset.
  • If it still fails: re-hoop drum-tight and upgrade to cutaway when any shift appears after handling.
• Q: What pre-flight prep should be checked on a Baby Lock/Brother multi-needle embroidery machine before starting an ITH stitch-out to avoid mid-run failure?
  A: Do the bobbin/needle/tools check before pressing Start, because most ITH failures begin with setup, not sewing.
  • Check the bobbin case for lint and confirm the bobbin is at least half full to avoid running out mid-ITH.
  • Stage low-tack tape (not residue-prone tape), curved scissors, and any spray adhesive so stops are fast and controlled.
  • Clear loose threads around the needle bar area so nothing snags during trims or needle moves.
  • Success check: stops feel “calm”—no scrambling for supplies, no surprise bobbin alarms, and no thread tails getting pulled into the stitch path.
  • If it still fails: restart with a fresh needle as a safe starting point and re-check bobbin thread path per the machine manual.
• Q: What sewing speed is a safe starting point for ITH vinyl on a Baby Lock/Brother multi-needle embroidery machine to reduce needle deflection and skipped stitches?
  A: Limit speed to about 600–700 SPM for thick ITH stacks, then adjust only after a clean test run.
  • Set the machine’s max speed to 600–700 SPM before sewing the unified-color design.
  • Slow further (often around 500 SPM) if the material is very sticky or dense and needle breakage begins.
  • Combine speed reduction with the correct needle choice for vinyl when needed (a sharper/stronger needle often helps).
  • Success check: stitches form cleanly with no audible “punching” struggle and no skipped segments on satin borders.
  • If it still fails: reduce speed again and verify the presser foot is not dragging or squashing the vinyl.
• Q: How can hoop popping-out be prevented on a Baby Lock/Brother multi-needle embroidery machine when pressing tape or placing layers during an ITH stop?
  A: Stabilize the hoop physically during each stop so downward pressure does not unseat the hoop from the carriage.
  • Support the hoop from underneath with one hand while applying tape or placing the next layer with the other hand.
  • Press tape firmly but keep the hoop “zero-movement” by bracing it instead of pushing the frame downward.
  • Keep tape outside the stitch path to avoid needle gumming that can increase drag and vibration.
  • Success check: the hoop does not bounce, lift, or click out of the carriage when pressure is applied at a stop.
  • If it still fails: reduce how much force is used, and re-check that stabilizer is drum-tight to reduce flex.
• Q: What needle-bar safety rule should be followed on a Baby Lock/Brother multi-needle embroidery machine when the machine is paused at an ITH Reserve Stop?
  A: Keep hands away from the needle bar unless the machine is confirmed in a safe stop state and cannot unexpectedly resume.
  • Visually confirm the Start button is not flashing before reaching near the needle area.
  • Manage fabric placement and taping from the hoop edges whenever possible, not near the needle bar.
  • Keep loose sleeves and long thread tails controlled so they cannot be caught if motion resumes.
  • Success check: hands never enter the needle bar zone while the machine is capable of restarting, and fabric handling happens without “near-miss” contact.
  • If it still fails: pause again and step back—re-check the screen state and follow the specific safety guidance in the machine manual.
• Q: What magnetic-hoop safety precautions should be used when using magnetic embroidery hoops for ITH work on a multi-needle embroidery machine?
  A: Treat magnetic hoops as high-force industrial tools and prevent pinch injuries and medical-device risks.
  • Keep fingers clear of the mating surfaces because magnets can snap together with high force.
  • Bring parts together in a controlled way—do not let the top frame “jump” onto the bottom frame.
  • Keep magnetic hoops at a safe distance if the operator has a pacemaker or ICD (follow the medical device guidance).
  • Success check: hooping happens without sudden snapping, pinched skin, or uncontrolled frame movement.
  • If it still fails: switch back to standard hoops for the task until handling technique is fully controlled.
