Make the Brother PRS100 (Brother VR) Accept the PRPCF1 Wide Cap Frame: The Magnet Removal + Hoop Sensor Trick That Unlocks 7"×5"

If you own a Brother PRS100 Persona (often marketed as the brother vr in European and Asian markets), you’ve likely experienced a specific type of frustration: staring at a wide cap frame that should be compatible, yet your machine refuses to acknowledge it.

You bought a single-needle machine for its versatility, but when it comes to caps, the standard sewing field often feels claustrophobic. The video you just watched reveals a "shop-floor hack" that bridges this gap—allowing you to run the PRPCF1 Wide Cap Frame (originally engineered for 6 and 10-needle industrial beasts) on your compact PRS100.

However, as a technician with two years of shop-floor experience, I need to frame this correctly: This is not a standard feature; it is a calculated modification. The creator successfully demonstrates how to trick the machine's sensors into seeing a 7" × 5" (180mm × 130mm) field. This allows for bold, ear-to-ear designs on caps that would otherwise be impossible on this model.

But "possible" doesn't always mean "safe" unless you understand the mechanics. This guide will take you from "blindly following a video" to "understanding the engineering," ensuring you protect your machine while expanding your business.

Warning: Mechanical Collision Risk
This modification overrides the machine's safety zones. The firmware no longer "knows" exactly where the metal frame is.
* Do not walk away while the machine is running this setup.
* Keep hands clear of the moving driver.
* Stop immediately if you hear a grinding noise or a metallic "clack."

Why the PRPCF1 Wide Cap Frame on a Brother PRS100 Persona Is Worth the Risk (and When It Isn’t)

The allure of this hack is improved real estate. The standard PRS100 cap frame restricts you to the front panels' center. By spoofing the sensor to recognize a 7" × 5" (180 × 130mm) field, you unlock the ability to embroider significantly wider logos or long text strings (like "SECURITY" or "STAFF") that wrap slightly around the curve.

The Trade-Off Analysis

Before you grab your screwdriver, assess your situation using this professional criteria from the shop floor:

1. The "Sweet Spot" for this Hack:
   • Short Runs: You are doing 1-10 custom caps.
   • Design Width: You need that extra 1-2 inches of width that the standard frame rejects.
   • Control: You have the patience to run the machine at 400 stitches per minute (SPM).
2. The "Red Zone" (Do NOT do this):
   • High Volume: If you have an order for 50+ caps, this hack is not efficient. The manual setup time per cap will kill your profit margins. This is the trigger point where you should consider upgrading to a dedicated multi-needle machine (like a SEWTECH 10-needle or similar) designed for high-speed cap production.
   • Design Density: If your design is a dense, shield-style patch with 20,000+ stitches, the friction and curvature on a "hacked" setup can lead to registration errors.

The Bottom Line: This is a brilliant bridge technique for customizers, but it requires operator discipline. Treat it like driving a car in "manual mode"—you have more control, but you can also stall the engine if you aren't paying attention.

The “Hidden” Prep That Saves Caps: Needle, Thread, Backing, and a Quick Machine Health Check

The video focuses heavily on the sensor trick, but let's be honest: 90% of embroidery failures happen before you press "Start." When you are embroidering on a curve (caps), physics is working against you. The fabric wants to flag (bounce), and the needle wants to deflect.

1. The Needle: Sharpness is Non-Negotiable

A viewer in the comments rightly asked about needle specifics. The consensus—and my recommendation—is the Organ HAx130 EBBR (75/11).

• The "Sensory Check": Run your fingernail lightly down the front of the needle. If you feel even a microscopic catch or "tick," throw it away. A burred needle on a cap will shred thread instantly due to the high tension required for rotary frames.
• Why "EBBR"? These are reinforced flat-shank needles designed to resist bending. When a needle hits a center seam on a structured cap, standard home needles often flex and strike the needle plate.

2. Thread Tension: The "Flossing" Standard

Cap embroidery requires slightly tighter top tension than flat garments to pull the thread deep into the stiff fabric/buckram.

• The "Tactile Check": Pull the top thread through the needle eye (presser foot down). It should feel like the resistance of pulling dental floss between tight teeth. If it pulls freely, it's too loose (looping risks). If it snaps or feels like dragging a fishing line over a rock, it's too tight.

3. "Hidden" Consumables (The Stuff Newbies Forget)

You need more than just the frame. Have these ready:

• Temporary Adhesive Spray (e.g., 505 or KK100): Essential for bonding the backing to the cap interior to prevent shifting.
• Lighter/Heat Tool: For cleaning up polymer thread tails.
• New Bobbin: Never start a risky cap hack with a 10% full bobbin. Running out of bobbin thread on a cap driver is a nightmare to reload without un-hooping.

Decision Tree: Choose Cap Backing/Stabilizer

Caps are unforgiving. Use this logic flow to select the right support:

• Scenario A: Structured Cap (Stiff Mesh or Buckram Front)
  • Solution: Cap Tearaway (Heavyweight / 3.0 oz).
  • Why: The cap effectively stabilizes itself; the backing just provides a smooth surface for the needle plate.
• Scenario B: Unstructured "Dad Hat" (Limp Cotton/Chino)
  • Solution: Cutaway Stabilizer (2.5 - 3.0 oz).
  • Why: Without stiff backing, the hat will distort under the stitches, creating a pucker or "bird bath" effect around the logo.
• Scenario C: Cap with Center Seam
  • Solution: Same as above + Solvy Topping.
  • Why: The perceived gap in the seam can swallow stitches. Water-soluble topping keeps the thread floating above the fabric trench.

Prep Checklist (do this before the hack)

• Needle Inspect: Installed a fresh Organ HAx130 (75/11).
• Bobbin Check: Full bobbin of 60wt or 90wt bobbin thread installed.
• Clean House: Remove the needle plate and brush out any lint. (Caps create dust; dust creates thread breaks).
• Physical Clearance: Rotate the handwheel manually to ensure the needle drops comfortably into the center of the PRPCF1 frame before turning the machine on.


The Magnet Removal on the Cap Driver: The One Piece You Must Take Out

The video states this bluntly, but I cannot emphasize it enough: The machine communicates via magnets. The white plastic magnet housing on your cap driver is sending a signal that says, "I am a standard cap frame."

To execute this hack, you must silence that signal so you can manually override it later.

How to execute safely:

1. Locate: Identify the white plastic component on the driver ring.
2. Extract: Use a correctly sized Phillips microscrewdriver.
   • Sensory Tip: If the screw fights you, stop. Do not strip the head. Apply firm downward pressure before turning.
3. Secure: Immediately tape the screw to the magnet piece, and place both in a Ziploc bag labeled "PRS100 CAP MAGNET." Do not put this on your workbench; it will vanish.

Why this is critical: If you leave the magnet in, the machine's firmware will fight the manual sensor override we are about to perform, leading to "Check Hoop" errors or erratic frame movements.

Warning: When working with drivers near the needle plate, unplug the machine or lock the screen. An accidental tap on the "Start" button while your fingers are removing screws could result in severe injury.

The Hoop Sensor Trick on the Brother PRS100: How the Machine “Sees” 7"×5" (180×130mm)

This is the "magic trick" moment. The PRS100 has a physical lever (switch) in the back left of the embroidery arm connection point. This switch tells the brain what hoop is attached based on physical depression.

• The Action: You need to manually depress this lever and hold it there (usually with strong painter's tape or a small clamp—though the video shows a hand, tape is safer for production).
• The Result: Watch the LCD screen. You are looking for the sewing field indicator to change to 7" × 5" (180mm × 130mm).

The Cognitive Shift: Normally, the machine restricts you to a small area to prevent the hoop from hitting the needle bar. By forcing it into "180x130" mode (which is typically for flat hoops), you have told the machine, "I am using a medium-sized flat hoop." Crucial: The machine now thinks it is flat. It does not know it is rotating a cylindrical object. You are now the safety sensor.

Rotate the Design 180° on the PRS100 Screen So the Cap Feeds the Right Way

This step catches almost every beginner. Because you have spoofed the machine into thinking it's using a flat hoop, but you are physically using a cap driver, the coordinate system is effectively inverted concerning the cap's bill.

The Action:

1. Load your design.
2. Go to the Edit screen.
3. Hit the Rotate icon.
4. Select 90° twice (or 180° once, depending on firmware).
5. Visual Confirmation: Look at the screen preview. If your design reads "MILO," it must appear upside down on the screen to stitch right-side up on the cap.

Why? The cap driver generally presents the cap "bill away" or "bill towards" in a way that opposes the standard flat hoop orientation. Failing to do this means you will embroider a perfect logo... upside down on the forehead.

Slow the Machine Down: Why 400 SPM Is the Smart Move for This Non-Standard Setup

The video demonstrates reducing the speed from 600 SPM to 400 SPM. As an expert, I verify this as the absolute Maximum Safe Velocity for this hack.

The Physics of Speed on a Hack: When a machine runs a standard hoop, it calculates acceleration curves based on a known weight. Here, we have added a heavy industrial frame (PRPCF1) that the machine doesn't "know" is there.

• Inertia: The heavier frame takes more energy to stop. At 600+ SPM, the stepper motors may skip steps, causing your design outline to drift.
• Vibration: High speeds on a spoofed setup can cause the cap to vibrate, leading to skipped stitches or broken needles.

Action: Tap the minus (-) key until you see 400.

• It will sound slow.
• It will feel tedious.
• It will produce a clean, registered embroidery.

Setup Checklist (right before you stitch)

• Magnet Status: White magnet removed and bagged.
• Sensor Status: Sensor depressed; screen confirms 180x130mm field.
• Orientation: Design appears UPSIDE DOWN on the LCD screen.
• Velocity: Speed capped at 400 SPM.
• Physical check: Cap is seated tightly; bill is cleared back.


Stitching on the Wide Cap Frame: What “Wide Open Sewing Field” Really Means in Practice

The term "Wide Open" is exciting to sales teams but terrifying to technicians. It means the machine will allow the needle to travel to coordinates that might be physically occupied by the metal frame of the cap driver.

The "Hover" Technique: During the first minute of stitching:

1. Do not look at the needle. Look at the edges of the frame.
2. Keep your finger hovering over the Stop/Start button.
3. Listen: You want to hear a rhythmic, steady thump-thump-thump.
   • If you hear a sharp click or slap, STOP immediately. The frame might be grazing the presser foot lifting lever or the needle plate edge.

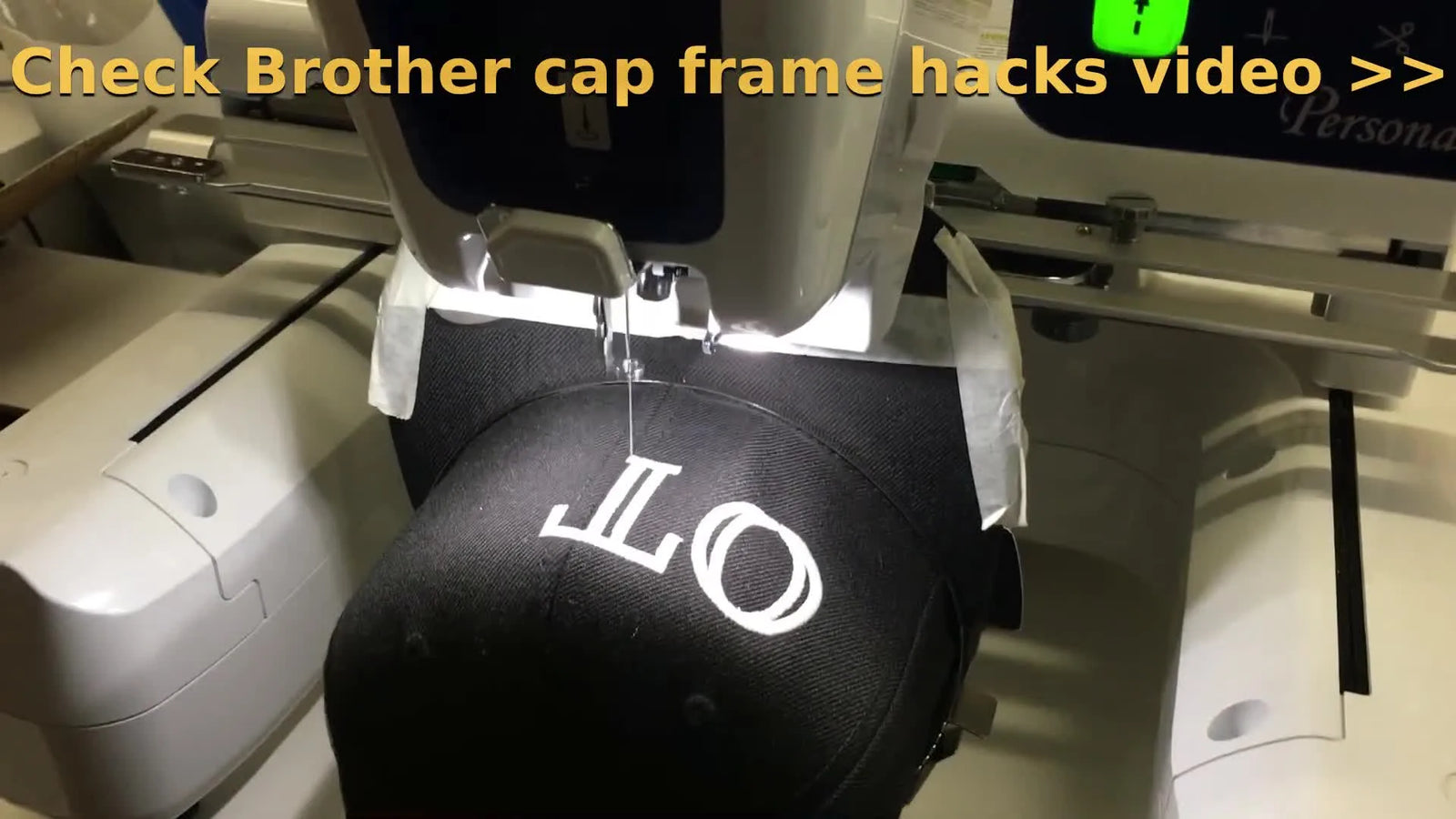

The video shows beautiful white satin stitches on a black cap. Notice how the operator monitors the process. This vigilance is the "cost" of using the hack.

Hooping Physics on Caps: Prevent Slippage, Wrinkles, and “Hoop Burn” Before They Start

The number one reason beginners fail at caps isn't the machine—it's the hooping.

• Hoop Burn: Those shiny rings left on the fabric from clamping too hard.
• Slippage: The design looks warped because the cap moved 1mm during sewing.

Refining Your Tooling: If you find yourself struggling with traditional clamps—wrist pain from snapping them shut, or frustration with marks left on delicate caps—this is a "Trigger Moment" for a tool upgrade. Many professionals eventually migrate to a brother prs100 magnetic hoop compatible system (if available for their specific driver class) or utilize specialized magnetic frames for their flat work.

While this specific hack uses a mechanical clamp frame (PRPCF1), understanding magnetic physics is relevant. Magnetic systems provide even, vertical pressure that eliminates "burn" marks. Terms like magnetic embroidery hoop are worth researching if you plan to move into higher-end, burn-sensitive fabrics like performance polyester or velvet.

“Did You Have to Do Anything Special?”—Yes, and Here’s the Exact Sequence That Works

A commenter asked if "anything special" was needed. The honest answer is Precision Sequence. You cannot improvise the order of operations.

The Golden Sequence:

1. Prep: Remove magnet from driver.
2. Mount: Click the PRPCF1 driver onto the machine.
3. Spoof: Engage the sensor (tape or hold) -> Machine beeps/updates field.
4. Load: Import design -> Rotate 180°.
5. Limit: Drop speed to 400 SPM.
6. Trace: (Optional but recommended) Run a "Trace" function if capable, to visually confirm the needle doesn't hit the hoop.
7. Sew.

Skipping step 6 (Trace) is where 80% of accidents happen. Always trace your perimeter.

Troubleshooting the PRPCF1-on-PRS100 Hack: Symptoms → Likely Cause → Fix

When things go wrong, don't panic. Use this diagnostic table to isolate the variable.

The Shop-Owner Angle: When This Hack Becomes a Business Workflow (and When You Should Upgrade)

This hack is brilliant for the "Pro-sumer" (Professional Consumer). But let's talk business reality.

The "50 Hat" Rule: If a local baseball team orders 50 caps, using this hack involves:

• Taping sensors.
• Monitoring every stitch at slow speeds (400 SPM).
• High anxiety regarding collisions.

This friction kills profitability. If you find yourself consistently needing to use industrial frames like the PRPCF1, or if you are searching for a machine embroidery hooping station to speed up your loading times, the market is telling you to level up.

The Logic of Upgrade:

• Level 1 (The Hack): Uses current gear, high labor, high risk. Good for <10 caps.
• Level 2 (Tooling): Investing in better frames or hooping stations to reduce prep time.
• Level 3 (The Platform): Moving to a multi-needle machine (like SEWTECH models). These machines accept wide cap frames natively with no hacks, run at 1000 SPM, and allow you to queue up 10 colors without changing thread.


Magnetic Frames and Cap Work: Where They Help, and the Safety Rules You Don’t Get to Ignore

We briefly touched on magnets earlier, but if you are looking to modernize your shop, magnetic frames are the current industry standard for efficiency.

Why Pros Use Them: A magnetic embroidery hoop allows for "floating" material without the wrist-strain of friction hoops. For flat items (bags, backs of jackets), they are superior. For caps, specific magnetic cap drivers exist that grip the bill firmly without crushing the structure.

Warning: Magnetic Safety
Modern embroidery magnets (Rare Earth/Neodymium) are incredibly powerful.
* Pinch Hazard: They can snap together with enough force to break skin or blood blisters.
* Pacemakers: Keep these magnets away from anyone with a pacemaker or ICD.
* Electronics: Do not place them on your phone, credit cards, or the machine's LCD screen.

Pro Tips Pulled from Real Comments (De-Identified): Small Details That Prevent Big Mistakes

Tip 1: The "Trace" Religion

• Commenter: "I broke a needle immediately."
• Correction: Always run a trace operation. If the foot hits the frame during the trace, it costs you nothing. If it hits while sewing, it costs you a timing belt repair.

Tip 2: Starch is your Friend

• Commenter: "My letters look thin."
• Correction: Unstructured caps (dad hats) soak up stitches. Use a water-soluble topping (Solvy) to keep the stitches sitting high and proud on top of the fabric.

Tip 3: The Tape Matters

• Commenter: " Sensor kept erroring out."
• Correction: Use strong Painter's Tape or Gaffer Tape to hold the sensor lever. weak Scotch tape will slip due to the machine's vibration.


Operation Checklist: The “First 60 Seconds” Routine That Saves the Most Caps

This is your pilot's pre-flight check. Do not stitch until you say "Yes" to all three.

• 1. The Sound Check: Press start. Listen for the first 10 seconds. Is the sound smooth and rhythmic? (Any clicking = STOP).
• 2. The Travel Check: Watch the pantograph (arm) movement. Is the frame getting dangerously close to the plastic housing of the machine body?
• 3. The Flagging Check: Watch the cap fabric. Is it bouncing up and down wildly (flagging)? If yes, pause and raise the presser foot height slightly in the settings (if available) or check your backing tightness.


The Finish Screen Is Not the Finish Line: Quick Quality Checks Before You Hand the Cap to a Customer

The screen says "Finished Embroidering," but your job isn't done.

1. Trim: Remove the cap and trim jump stitches. Burn the ends of the thread carefully.
2. Inspect: Look inside the cap. Is the bobbin thread width consistent (about 1/3 of the satin column)?
   • If you see white bobbin thread on top: Top tension was too tight.
   • If loops are on the bottom: Top tension was too loose.
3. Tear: Carefully tear away the stabilizer. Support stitches with your thumb so you don't distort the letters while tearing.

This hack is a powerful tool in your arsenal. It allows your PRS100 to punch above its weight class. Use it wisely, respect the brother prs100 hoops limitations, and when the volume gets too high—remember that better industrial tooling is ready when you are.

FAQ

• Q: What consumables and quick machine checks are required before running a PRPCF1 Wide Cap Frame hack on a Brother PRS100 Persona?
  A: Prepare the needle, bobbin, backing, and clearance first—most cap failures start before you press Start.
  • Install a fresh Organ HAx130 EBBR (75/11) needle and replace a low bobbin with a full one before hooping.
  • Clean lint under the needle plate (caps create dust that often leads to thread breaks).
  • Choose stabilizer correctly: heavy tearaway for structured caps; cutaway (2.5–3.0 oz) for unstructured caps; add water-soluble topping for center seams.
  • Manually rotate the handwheel to confirm the needle drops cleanly into the center of the PRPCF1 setup before powering into the hack.
  • Success check: the needle clears the frame during handwheel rotation with no rubbing, scraping, or “tight” spots.
  • If it still fails… stop and re-check physical clearance and stabilizer choice before attempting the sensor override.
• Q: How do I stop a Brother PRS100 Persona from showing a “Check Hoop” error when using a PRPCF1 Wide Cap Frame hack?
  A: Remove the cap-driver magnet and re-do the hoop sensor spoof—those two items usually cause the error.
  • Remove the white plastic magnet housing from the cap driver and bag the screw/magnet so it doesn’t get lost.
  • Depress and hold the PRS100 hoop-sensor lever (back-left of the arm connection point) using strong painter’s tape or a clamp.
  • Watch the LCD and confirm the sewing field changes to 180 × 130 mm (7" × 5") before loading the job.
  • Success check: the PRS100 screen clearly displays the 180 × 130 mm field and allows selection without re-throwing “Check Hoop.”
  • If it still fails… re-seat the driver and re-apply stronger tape (weak tape often slips from vibration).
• Q: How do I prevent a Brother PRS100 Persona from embroidering a cap design upside down when using a PRPCF1 Wide Cap Frame?
  A: Rotate the design 180° on the PRS100 screen—this hack inverts orientation compared to normal cap framing.
  • Load the design, enter the Edit screen, and use Rotate 180° (or 90° twice depending on firmware).
  • Confirm the design preview appears upside down on the LCD so it stitches right-side up on the cap.
  • Run a trace/perimeter check if available before stitching.
  • Success check: text that must read correctly on the cap front (“MILO” example) appears upside down on-screen before you start sewing.
  • If it still fails… stop after the first few stitches and re-check rotation before continuing (don’t “hope it fixes itself”).
• Q: Why is 400 SPM the maximum safe speed for a Brother PRS100 Persona running a PRPCF1 Wide Cap Frame hack, and how do I set it?
  A: Cap the speed at 400 SPM to reduce skipped steps, vibration, and registration drift with a frame the machine firmware doesn’t expect.
  • Tap the speed minus (-) key until the display reads 400 SPM.
  • Stay at the machine for the entire run because the safety zone is overridden in this setup.
  • Watch the frame edges (not just the needle) during the first minute for near-contact areas.
  • Success check: stitching sounds like a steady, rhythmic “thump-thump,” with no sharp click, slap, or grinding.
  • If it still fails… reduce density/size, and stop immediately if any metallic contact sound appears.
• Q: What should I do if a Brother PRS100 Persona needle hits the PRPCF1 Wide Cap Frame (loud bang) during the wide-field hack?
  A: Stop immediately and reduce the design to fit physical limits—digital 7" width can still collide with real metal.
  • Press Stop/Start right away; do not continue “to see if it clears.”
  • Scale the design down (the guide recommends a safer maximum of about 6.5" width to avoid frame contact).
  • Use a trace function (if available) after resizing to verify the travel path before sewing again.
  • Success check: the trace completes without the presser foot or needle path grazing the metal frame at any point.
  • If it still fails… choose a narrower design or abandon the hack for that layout (collision risk stays high at the edges).
• Q: How do I fix thread shredding on a Brother PRS100 Persona during cap embroidery using a PRPCF1 Wide Cap Frame hack?
  A: Replace the needle first and check for adhesive contamination—caps + tight tension make needle issues show up fast.
  • Swap to a new Organ HAx130 EBBR (75/11); discard any needle that “ticks” when you run a fingernail down it.
  • Check whether temporary adhesive spray has gummed up the needle eye and re-apply spray more carefully if needed.
  • Re-check top thread tension using the “dental floss” feel with presser foot down (too loose loops; too tight snaps/shreds).
  • Success check: thread runs cleanly with no fraying at the needle eye and no repeated breaks in the same area.
  • If it still fails… slow down, re-check cap stabilization and flagging, and inspect for any contact points that could be cutting thread.
• Q: What safety rules must be followed when running the PRPCF1 Wide Cap Frame hack on a Brother PRS100 Persona, and when removing cap-driver parts?
  A: Treat the setup as collision-prone—unplug/lock controls during hardware work and never walk away while stitching.
  • Unplug the machine (or lock the screen) before removing the cap-driver magnet screw to prevent accidental start.
  • Keep hands clear of the moving driver and stop immediately if you hear grinding, a metallic clack, or a sharp click.
  • Perform the “first 60 seconds” watch: monitor frame edges, pantograph travel, and fabric flagging with your finger ready on Stop/Start.
  • Success check: the frame never approaches the body dangerously, and sound remains smooth with no metal-to-metal contact.
  • If it still fails… stop and revert to a standard, firmware-supported hoop setup rather than forcing continued operation.
• Q: When does the PRPCF1 Wide Cap Frame hack on a Brother PRS100 Persona stop being efficient for cap orders, and what is a practical upgrade path?
  A: Use the hack for short runs, but for 50+ caps it becomes labor-heavy and risky—upgrade in levels based on the bottleneck.
  • Diagnose the trigger: repeated sensor taping, slow 400 SPM runs, and constant collision monitoring killing throughput.
  • Level 1: keep the hack for 1–10 caps where setup time is acceptable and you can supervise every stitch.
  • Level 2: improve tooling (often better frames/hooping workflow) if hooping time, slippage, or hoop burn is the main pain point.
  • Level 3: move to a multi-needle machine platform that accepts wide cap frames natively when volume and speed become the priority.
  • Success check: the chosen level reduces rework (less slippage/registration loss) and cuts per-cap handling time without increasing risk.
  • If it still fails… treat recurring high-volume cap work as a platform mismatch and stop relying on non-standard overrides.
