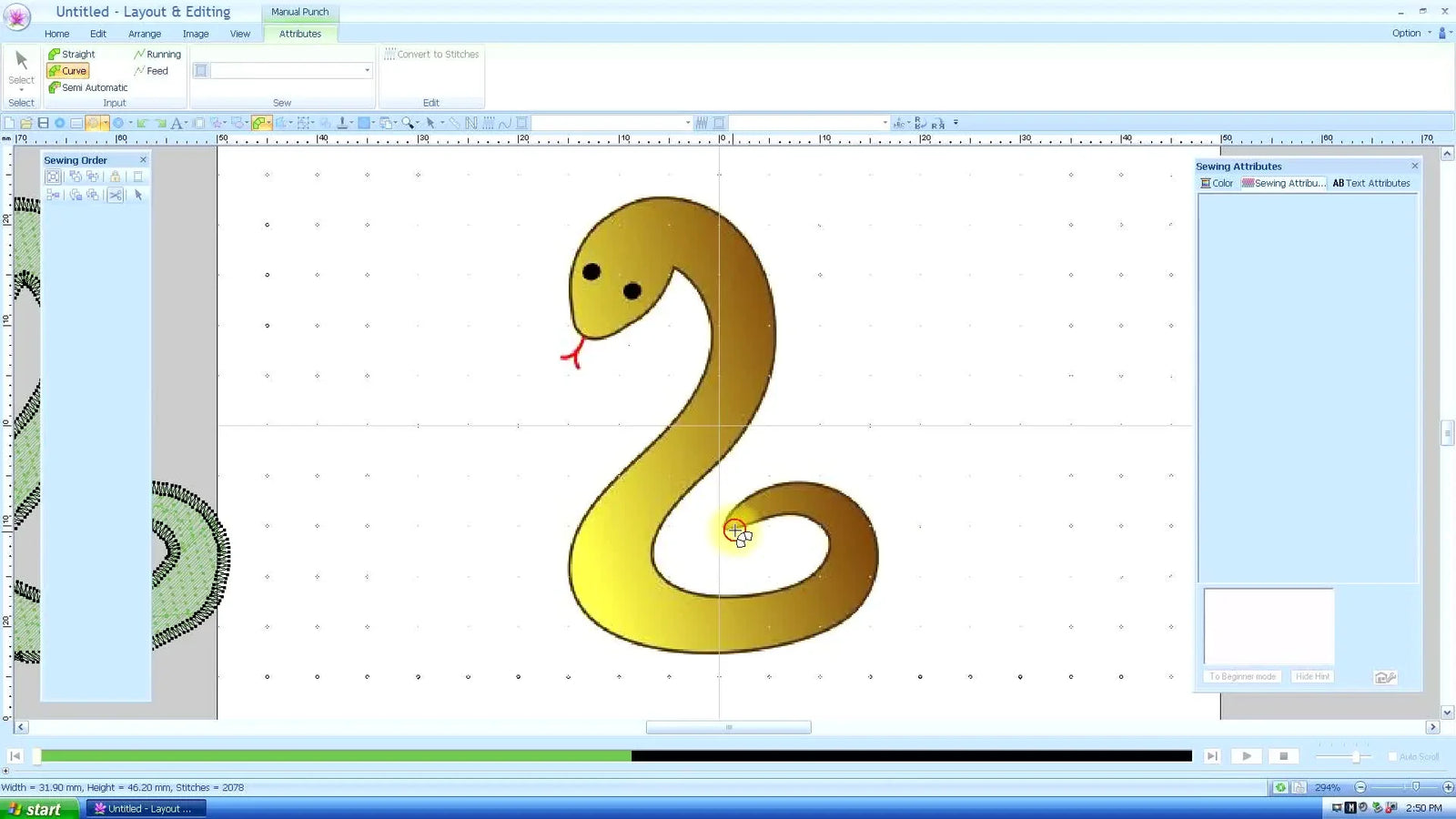

Manual Punch in Brother PE-Design: The “Top-Bottom” Trick That Makes Curves Look Expensive (and Stops Thread Breaks)

If you’ve ever auto-digitized a curvy shape and thought, “Why does this look flat, cheap, and lifeless?”—you’re not imagining it. You are seeing the limitations of an algorithm trying to do an artist's job. Curves are where digitizing skill is exposed.

In this lesson, we break down Kathleen McKee’s demonstration of a simple snake graphic. She uses this creature to prove a critical point: semi-automatic tools might be fast, but Manual Punch is how you make stitches behave—especially when the design needs to flow like liquid rather than sit like a sticker.

And if you’re already hearing her voice in your head saying the mantra “TOP, BOTTOM, TOP, BOTTOM,” you’re in good company. That rhythm isn’t just a catchy phrase; it’s the heartbeat of controlled digitizing.

The Calm-Down Primer: Manual Punch vs Line Region Fill Tool (and why your curve looks “stuck at 45°”)

To understand why your designs feel "stiff," we first need to look at how Brother PE-Design (Layout & Editing) "thinks" versus how you think. The video compares digitizing the same snake in two distinct ways.

• Line Region Fill Tool (The "Cookie Cutter"): This is semi-automatic. You trace the shape, and the software fills it with a single-direction pattern (usually a standard 45-degree angle). It looks flat because light hits all the threads the exact same way.
• Manual Punch (The "Sculptor"): This creates a Curved Block. It takes longer, but you control the angle of the thread at every millimeter. The stitches turn with the snake's body.

Why does this matter physically? When stitches fight the curve, they create tension drag. This is often when beginners start blaming their hardware. While high-quality machine embroidery hoops are essential for stability, even the best magnetic hoop cannot save a file that forces stitches to fight the geometry of the fabric. If the digitizing direction is wrong, the fabric will buckle.

The “Hidden” Prep Inside Brother PE-Design: set yourself up so stitches actually populate

Before you click a single node, you need to perform a "Pre-Flight Check." Skipping this is why beginners end up with the two most common panic moments: “Why is the screen blank?” and “Why did my machine eat the shirt?”

Prep Checklist: The Physical & Digital Bridge

1. Module Check: Confirm you are in Layout & Editing. You cannot create outlines in the basic database view.
2. Visual Anchor: Import your reference graphic via Image Tab → Open from file. Ensure the opacity allows you to see your node points clearly.
3. The "Canvas" Reality Check: Stop looking at the screen. Look at your fabric.
   • T-Shirt/Knit: You will need Cutaway stabilizer.
   • Twill/Denim: Tearaway might suffice.
   • High Pile (Towel): You need a water-soluble topping.
4. Consumable Scan: Do you have temporary spray adhesive? Is your needle fresh? (A burred needle on a satin curve will cut the thread instantly).

This is where I recommend a "real-world" mindset shift: The software assumes you are stitching on a steel plate. You are not. You are stitching on flexible material. Your stabilizer choice validates your digitizing work.

Make the Line Region Fill Tool behave: trace cleanly or your fill stitches won’t populate

Kathleen begins with the "Quick" method using the Line Region Fill Tool. Even though this is the "inferior" aesthetic choice for this specific design, it is a necessary tool for backgrounds.

1. Select Curved line option (Crucial: Using "Straight" on a snake creates a blocky, 8-bit look).
2. Engage Semi-automatic mode. This allows the tool to "magnetize" to the high-contrast edges of the image.
3. The Click Strategy: Click around the perimeter. Do not rush.
4. The Close: Double-click to seal the shape.

Troubleshooting "The Invisible Shape":

• The Cross-Over Error: If you accidentally cross your outline (create a figure-8), the software gets confused and refuses to generate stitches. The shape must remain an open loop until you close it.
• The Property Void: If you see an outline but no color inside, select the object → Right Click → Sewing Attributes. Ensure the "Fill Stitch" box is actually checked.


The “Top-Bottom” Manual Punch rhythm: Curved Block stitches that actually flow with the snake

Now we graduate to professional control: Manual Punch → Curved Block. This is how you create the "Satin Column" look that reflects light beautifully.

Kathleen’s method is a rhythmic discipline:

1. Select Manual Punch → Curved Block.
2. The Rhythm: Click across the width of the shape. Top bank, Bottom bank. Top, Bottom.
3. Sensory Guide: Imagine you are driving a car down the snake's body. Your "axle" (the line between your clicks) must always be perpendicular (90 degrees) to the road.
   • Don't: Angle your clicks forward to "gain ground." This creates long, loose stitches.
   • Do: Keep clicks straight across.

The Visual Feedback: You will see yellow guide lines connecting your clicks. These lines represent the precise angle the thread will lay. If the yellow lines look parallel and smooth, your embroidery will look like liquid gold. If the lines crisscross like a messy shoelace, your machine will jam.

The Half Stitch save: stop inner-curve jamming before it becomes thread breaks

This is the single most important safety tip in the lesson. When a satin column goes around a tight curve (like the inside bend of a snake), the inner stitches bunch up.

The Physical Consequence: If the inner density is too high, you are forcing the needle to penetrate the exact same hole 50 times in 10 seconds.

• Sound Check: Listen for a heavy "thud-thud-thud" sound.
• Result: The needle heats up, the thread shreds, or worse—the needle deflects and hits the bobbin case.

The Fix:

1. Select the object.
2. Open Sewing Attributes.
3. Check Half Stitch (ON).

What it does: It tells the software, "On the tight inside corners, stop the needle halfway so we don't drill a hole in the fabric."

Warning: Mechanical Danger Zone
Tight-curve stitch jamming is the #1 cause of "Bird Nests" (a tangle of thread under the throat plate). If you hear your machine punching hard or struggling on a curve, PAUSE IMMEDIATELY. Do not push through. Check your file for Half Stitch settings. Continuing can bend your needle bar or damage the timing.

This becomes critical if you are running a generic or entry-level brother embroidery machine. While industrial machines have more tolerance, home machines require this software safety net to run at speeds over 600 SPM.

Realistic Preview doesn’t lie: why the auto-digitized snake looks “lifeless”

Kathleen shifts to Realistic Preview mode. This is your "Digital Twin."

• Auto-Digitized: The fill stitches are static. They look like a texture map applied to a 3D model.
• Manual Punch: The light dances. Because the stitch angles change, the thread sheen changes. This is what differentiates a $10 patch from a $50 custom embroidery.

Pro-Tip: Zoom in on the preview. If you see white gaps between the stitches in the preview, you will see fabric showing through in the real world. Fix density now, not after ruining a garment.

Build a clean border the manual way: Manual Punch outline around the fill (and how to undo fast)

A fill without a border often looks unfinished. The video demonstrates creating a black satin border manually.

Workflow:

1. Tool: Manual Punch → Curved Block.
2. Technique: Trace the exterior edge, maintaining a consistent width visualized in your mind.
3. The "Oops" Button: If you misplace a node, Right-Click to undo the last point instantly. Do not stop to hunt for the "Undo" icon.

Expert Insight on "The Tongue": A common question arises: "How do I do tiny details like the tongue?"

• Rule: If the width is under 1mm, Satin is dangerous.
• Solution: Switch to a Running Stitch or Triple Bean Stitch. Satin columns narrower than 1mm tend to sink into the fabric and disappear, or cause thread breaks because the needle cuts the previous thread.


The width rules you can’t ignore: Measure Tool + satin limits (1 mm to 10 mm)

Here is the engineering limit of embroidery. You cannot cheat physics.

Kathleen uses the Measure Tool to verify safety zones:

1. Maximum Width (10mm - 12mm):
   • If a satin stitch is longer than 10-12mm, it becomes a "snag hazard." It’s loose and loops out.
   • Fix: If your design is wider than 10mm, you must switch stitch type to "Tatami Fill" or use "Split Satin."
2. Minimum Width (1mm):
   • As mentioned, anything under 1mm is structurally unsound for a satin column.
   • Sensory Check: If the column looks like a thin hairline on screen, it will look like a mistake on fabric.

Success Metric: Your satin columns should hover in the "Sweet Spot" of 3mm to 7mm for maximum impact and sheen.

The density setting that keeps outlines from turning “bulletproof”: 3.7 lines/mm for the border

Default settings are for average conditions. They are rarely perfect. Brother software often defaults to a density of 4.5 or 5.0 lines/mm.

The Problem: A satin border with 5.0 density is like sewing a wire onto your shirt. It makes the design stiff ("bulletproof") and causes puckering because it squeezes the fabric too hard.

The Fix: Kathleen lowers the Density (Outline) to 3.7 lines/mm.

• Result: The border still covers the fabric, but it is flexible. It drapes with the shirt.
• Tactile Check: After stitching, bend the design. If it feels like cardboard, your density is too high.


“I only want ONE line, not two”: choosing Running / Triple / Stem instead of a satin outline

One of the most frustrating moments for a beginner is wanting a thin black outline and getting a weird double-border or a thick wormy line.

The Decision Matrix:

• Use Satin: When you want a bold, raised border (like a patch).
• Use Line Stitch: When you want a "sketched" or "inked" look.

In the Attributes tab, change the stitch type from Satin to:

• Running Stitch: Subtle, single pass.
• Triple Stitch (Bean): Bold, hand-stitched look (goes back and forth 3 times).
• Stem Stitch: Rope-like texture.

The Stability Factor: If you choose a simple Running Stitch, your stabilization must be perfect. A satin border hides a mild gap between the fill and the outline. A running stitch hides nothing. This is where users often upgrade to professional brother embroidery hoops or magnetic systems, as any fabric slippage will result in the dreaded "white gap" between your color and your outline.

Setup that prevents the real-world failures: fabric + stabilizer + hooping choices that protect your curves

You have a perfect file. Now, don't ruin it with bad mechanics. The #1 enemy of Manual Punch curves is fabric distortion (flagging).

Decision Tree: The Fabric-Stabilizer Matrix

• Scenario A: The Stretchy Knit (T-shirt/Polo)
  • Risk: The snake stitches pull the fabric in, creating a pucker.
  • Solution: No-Show Mesh Cutaway Stabilizer + light spray adhesive. Do not use Tearaway.
• Scenario B: The Standard Woven (Tote Bag/Apron)
  • Risk: Low risk, but outline alignment matters.
  • Solution: Medium Tearaway.
  • Hooping: must be tight like a drum skin. Use the "Tap Test"—thump the hooped fabric. It should sound like a drum.

The Tool Upgrade Path: If you find yourself struggling to get curves to line up, or you are getting "Hoop Burn" (shiny ring marks) on delicate fabrics, this is a hardware limitation.

• Level 1 Fix: Wrap your inner hoop frames with fabric tape (bias binding) to grip better without marking.
• Level 2 Fix: Upgrade to a magnetic embroidery hoop. These use vertical magnetic force rather than friction jamming to hold fabric. They eliminate hoop burn and allow for faster adjustments if the grain isn't straight.
• Level 3 Fix: For repetitive placement (e.g., left chest logos), a hooping station for embroidery ensures your beautiful manual punch lands in the exact same spot on every shirt, reducing operator fatigue.

Warning: Magnetic Safety
Professional magnetic hoops utilize high-strength Neodymium magnets. They can pinch fingers severely (blood blister risk) and must be kept away from pacemakers and sensitive electronics. Always slide the magnets off the frame; never pry them straight up.

Operation checklist: the “test sew-out” routine that saves hours (and customer refunds)

Do not stitch on the final garment first. Ever.

Operation Checklist (Pre-Flight Control)

1. Software Preview: Run the simulator. Did you see any jump stitches in weird places?
2. Density Check: Is the outline set to 3.7 lines/mm?
3. Safety Check: Is Half Stitch ON for those tight inner curves?
4. Hardware Check: Is the bobbin full? (Running out in the middle of a satin column is a nightmare to fix invisibly).
5. Test Run: Stitch on a scrap piece of similar fabric. A snake on denim behaves differently than a snake on jersey knit.

If you are consistently seeing outlines that don't match the fill despite perfect digitizing, your hoop is likely slipping. Many Brother users eventually migrate to specialized embroidery hoops for brother machines that offer deeper walls or magnetic locking to secure the "sandwich" (Fabric + Stabilizer) without movement.

The upgrade moment: when better digitizing is only half the battle (and how shops scale)

Mastering the "Manual Punch" gives you the quality of a pro. But to earn the income of a pro, you need efficiency.

If you are spending 10 minutes digitizing a perfect file, but 15 minutes wrestling with hooping and thread changes, your business is losing money.

• The Workflow Upgrade: A brother magnetic hoop can cut hooping time by 50%. It saves your wrists and saves the fabric.
• The Machine Upgrade: If your single-needle machine is taking 45 minutes to stitch a 4-color snake because you have to stop and re-thread, consider the leap to a SEWTECH Multi-Needle platform. The ability to set 10 colors and walk away allows you to digitize the next design while the machine does the work.

Setup checklist: the small settings that prevent big headaches

Lock in your success with this final configuration review.

Setup Checklist (Final Save State)

• [ ] Structure: Curved Block used (Top/Bottom method confirmed).
• [ ] Physics: Satin widths measure between 1.5mm and 9mm.
• [ ] Safety: Half Stitch enabled on all acute angles.
• [ ] Aesthetics: Outline density lowered to ~3.7 lines/mm.
• [ ] Stitch Order: Fill layers stitch before the Satin Border (Always inside-out or bottom-up).
• [ ] Tie-ins/Tie-offs: Ensure "Lock Stitches" are enabled at the start and end of every object so the snake doesn't unravel in the wash.

Smart digitizing combined with smart tools—like a consistent brother pe800 magnetic hoop—turns a frustrating hobby into a reliable craft. Master the Manual Punch, trust the math, and respect the fabric limits.

FAQ

• Q: In Brother PE-Design (Layout & Editing), why does the screen look blank or prevent creating outlines when importing a reference graphic?
  A: Switch to the correct module and re-import the image so PE-Design can display and anchor the artwork for digitizing.
  • Confirm Layout & Editing is active (not the database view).
  • Import the graphic via Image Tab → Open from file and adjust opacity so nodes are easy to see.
  • Start digitizing only after the artwork is visibly placed on the workspace.
  • Success check: The reference image is clearly visible and node points show up exactly where clicks land.
  • If it still fails: Re-open the file and verify the image actually loaded (not a broken path or unsupported file).
• Q: In Brother PE-Design Line Region Fill Tool, why does a traced shape turn “invisible” or refuse to generate fill stitches after closing the outline?
  A: Avoid outline cross-overs and confirm Fill Stitch is enabled in Sewing Attributes.
  • Re-trace the perimeter without crossing the outline (no figure-8 or self-intersections).
  • Double-click to close the shape cleanly.
  • Select the object → Right Click → Sewing Attributes and ensure Fill Stitch is checked.
  • Success check: The region shows a filled color area (not only an outline) and stitches appear in preview.
  • If it still fails: Zoom in and look for tiny accidental cross-overs; redraw the outline more slowly.
• Q: In Brother PE-Design Manual Punch Curved Block, how does the “Top, Bottom, Top, Bottom” clicking rhythm prevent twisted satin stitches on curves?
  A: Click straight across the column width in a consistent top-bank/bottom-bank pattern so stitch angles stay controlled.
  • Select Manual Punch → Curved Block.
  • Click Top edge, then Bottom edge, repeating down the shape without angling forward to “gain ground.”
  • Watch the yellow guide lines and keep them smooth and non-crisscrossed.
  • Success check: Yellow guide lines look parallel/smooth, and the satin preview “flows” with the curve instead of looking kinked.
  • If it still fails: Delete and re-punch that section with shorter, more consistent spacing between click pairs.
• Q: On a Brother home embroidery machine, how does PE-Design “Half Stitch” stop tight inner-curve satin columns from causing thread breaks and bird nests?
  A: Turn Half Stitch ON for tight inside bends to reduce needle over-penetration and jamming.
  • Select the curved satin object and open Sewing Attributes.
  • Enable Half Stitch specifically to protect tight inner corners.
  • Pause immediately during stitching if the machine starts “thud-thud-thud” punching on a curve.
  • Success check: The curve runs with a normal, lighter sound and no shredding/breaking as the column turns inward.
  • If it still fails: Slow down and re-check the file for inner-curve density buildup; do not force the stitch-out through heavy punching.
• Q: What satin stitch width limits should Brother PE-Design users follow to avoid snagging, sinking details, or unstable columns?
  A: Keep satin columns within safe physical limits: avoid very narrow under-1 mm details and overly wide 10–12 mm spans.
  • Use the Measure Tool to confirm column widths before stitching.
  • Switch under-1 mm details (like tiny tongues) to Running Stitch or Triple Bean Stitch instead of satin.
  • Convert wide areas beyond ~10–12 mm to Tatami Fill or Split Satin rather than a single long satin.
  • Success check: Satin columns look solid and dimensional without disappearing into fabric or forming loose loop hazards.
  • If it still fails: Re-check the smallest and widest sections first—those are where physics fails earliest.
• Q: In Brother PE-Design, how does lowering satin border density to 3.7 lines/mm prevent a “bulletproof” outline and puckering on shirts?
  A: Reduce outline density to about 3.7 lines/mm so the border stays flexible while still covering the fabric.
  • Open the border object’s Sewing Attributes.
  • Lower Density (Outline) from heavy defaults (often 4.5–5.0) down to 3.7 lines/mm.
  • Test sew on similar fabric before stitching the final garment.
  • Success check: The stitched border bends with the shirt (not cardboard-stiff) and the fabric around it stays flatter.
  • If it still fails: Re-evaluate stabilizer and hooping tightness, because over-tensioned fabric can still pucker even with correct density.
• Q: How do magnetic embroidery hoops reduce hoop burn and hooping time, and what are the safety rules for high-strength neodymium magnets?
  A: Use magnetic hoops to hold fabric with vertical magnetic force (less friction marking), but handle magnets like a pinch hazard tool.
  • Upgrade when hoop burn, slow re-hooping, or curve misalignment keeps happening despite good digitizing.
  • Slide magnets off to remove them; never pry straight up.
  • Keep magnets away from pacemakers and sensitive electronics, and keep fingers out of pinch zones.
  • Success check: Fabric holds securely without shiny ring marks, and repositioning/hooping becomes noticeably faster and repeatable.
  • If it still fails: Treat it as a mechanics issue—confirm stabilizer choice and perform a scrap test sew-out before blaming the file.
