Manual Punch Script in Tajima DG/ML by Pulse: The “Backbone + Curve Block” Method That Stops Sloppy Logos

The "Unforgiving" Art of Script: Why Auto-Digitizing Fails & How Manual Punching Saves Your Reputation

Script logos are where "pretty good" digitizing gets exposed fast. Unlike block text, which is forgiving and geometric, script mimics the fluidity of the human hand. When a customer expects the embroidery to match their artwork exactly—down to the pressure of the pen stroke—you are entering a minefield of physics and friction.

If you’ve ever scrolled through every font in your software and still couldn’t match that flowing script, relax. You aren’t doing anything wrong. You’ve simply hit the limit of pre-set algorithms.

Kathleen McKee’s "old-school" approach (Manual Punch + smart pathing) remains the industry gold standard. It is the only way to digitize script that actually stitches like handwriting, rather than a robotic approximation.

When the Tajima DG/ML Font List Betrays You: Why Script Logos Usually Need Manual Digitizing

In the video, Kathleen starts with a reality check that most digitizers learn after ruining a few polo shirts: you will almost never match a corporate logo’s script perfectly using built-in fonts. Script has infinite variations—stroke weight changes, entry/exit curls, and tiny "imperfections" that make a brand recognizable.

When you rely on auto-digitizing or standard fonts for a custom logo, you surrender control over the three physical forces that dictate embroidery quality:

1. Pathing (The Flow): Controlling where the machine travels prevents ugly jump stitches and trims that interrupt the "ink flow" illusion.
2. Column Width (The Texture): Managing how satin columns curve ensures the script looks written, not like a bent PVC pipe ("tubed").
3. Corner Density (The Safety): Controlling tight corners prevents thread build-up (bird nests) that can snap needles or shred fabric.

One commenter asked why not just import a JPEG and let the wizard auto-digitize. Kathleen’s reply is blunt but scientifically accurate: Automated results are inconsistent. Even high-end software struggles to interpret the "intent" of a pixel. It sees contrast, not structure.

If you are building files for production—or selling your digitizing services—treat auto-digitizing as a drafting assistant, never a finisher.

The “Hidden” Prep in Tajima DG/ML by Pulse: Set Yourself Up Before You Touch Manual Punch

Manual digitizing goes faster when you prep like a pro. Kathleen’s screen workflow implies a series of "invisible" habits that prevent rework later. This is similar to a chef creating a mise-en-place; if your ingredients aren't ready, the cooking fails.

Before you drop a single node, you must stabilize your digital environment.

Prep checklist (Do this before you start punching)

• Scale Verification: Confirm the artwork is placed and scaled to the exact final stitch size.
  • Why? Script digitized at 3 inches cannot simply be shrunk to 1 inch later; the density physics change completely.
• Visual Clarity: Zoom in enough to see the pixel edges of the stroke clearly.
  • Sensory Check: You should be able to distinguish the "fuzzy" edge of the image from the solid center.
• Path Planning: Mentalize the route. Decide where you want to start and end so the script stays continuous.
  • Action: Trace the path with your finger on the screen. If your finger has to lift, the machine will have to trim. We want to minimize lifts.
• Panel Access: Keep the properties panel open.
• Hidden Consumables Check: Ensure you have temporary spray adhesive or the correct stabilizer on hand for the test run later—script demands stability.

Pro Tip: If you’re digitizing for a customer, always save a "Checkpoint 1" file before you start refining nodes. Manual script work is easy to over-edit, and sometimes you need to revert to the rough draft.

Manual Punch Tool in Tajima DG/ML by Pulse: Start With a Running Stitch Backbone (Not Satin)

Kathleen selects the Manual Punch tool and immediately starts with a running stitch. This is the core move that makes script behave: you create a thin "backbone" path that lets you travel between segments without unnecessary trims.

Here is the mindset shift required for mastery: You are not building letters as isolated objects; you are building a continuous highway.

Think of the running stitch as the "skeleton." A skeleton connects the body parts underneath the muscle. If you try to build the satin (the muscle) without the running stitch (the skeleton), your design will fall apart—literally disconnecting or requiring a trim after every stroke.

Setup checklist (So your backbone doesn’t create problems later)

• Intentional Travel: Use running stitch strictly for travel and connectivity.
  • Success Metric: The travel line should always be covered by the final satin stitch or hidden in a natural join.
• Natural Entry: Start where the script naturally begins (like handwriting), typically on the left, not where it’s convenient for the software.
• Inside-Out Logic: When ending on the outside edge of a letter, begin your approach from the inside (Kathleen calls this out while connecting the "R").
• Stealth Mode: Keep travel lines short and logical.
  • Sensory Check: On a test sew-out, hold it up to the light. If you see dark travel threads shadowing through light fabric, your travel path was too aggressive.

If you’re building files for garments that will be stretched in a hoop, travel planning matters even more. Unplanned trims create "release points" where the fabric can relax and shift, distorting the next letter.

Digitizing the Script “R” With Curve Block: Alternate Points, Keep the Flow, Avoid Jump/Trim Chaos

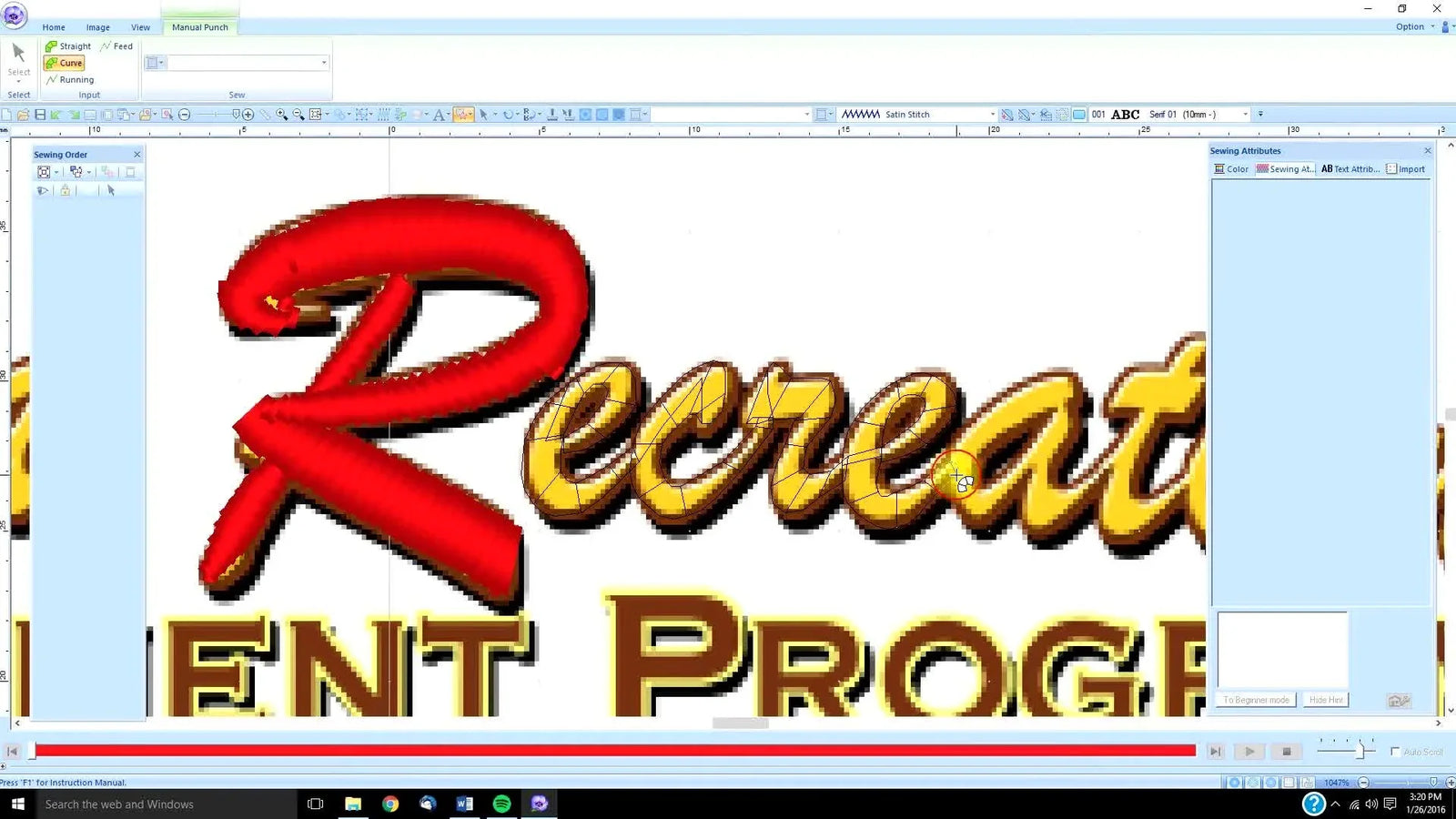

Kathleen demonstrates the letter “R” by laying a running stitch first, then switching to Curve Block to create the satin body.

The key visual cue in the video is the way the satin column is defined. She places input points along the top and bottom edges of the stroke in an alternating rhythm. You are essentially telling the software, "This is the left rail, this is the right rail," and the satin stitches fill the space between them.

The connectivity trick that prevents ugly trims

When she needs to move from the inner part of the "R" to the outer leg, she sends a running stitch bridge underneath where the satin will eventually go. This allows the machine to travel cleanly without stopping.

That one decision is the difference between:

1. A Pro File: The machine sounds like a continuous "hummmm."
2. An Amateur File: The machine sounds like "chk-chk... zzzzt... chk-chk... zzzzt." (Trim, Jump, Lock, Sew).

Commercial Insight: If you are running high-volume orders—say, 50 hats a day—those stops add up. A file with 20 unnecessary trims can add 2-3 minutes per run. Over a week, that’s hours of lost production. This is where advanced tools like SEWTECH multi-needle machines shine, but even the best machine cannot fix a file filled with unnecessary stops.

If you’re digitizing logos for hats, bags, or stiff fabrics, utilizing this connectivity planning helps avoid thread nests (bird nesting) which often occur after a trim cycle.

Thin Script Columns Under 2mm: When Underlay Isn’t “Required,” But Running Stitch Still Saves You

Kathleen calls out a measurement decision: for small letters like “e,” if the column width is less than 2mm, heavy underlay (the foundation stitching) may not be mechanically necessary. However, she still uses a running stitch for travel and control.

This is a subtle but critical lesson in Experience Science.

• Theory says: "You don't need underlay for narrow columns."
• Experience says: "I still need a travel path to get from point A to point B without a trim."

So, the running stitch serves a dual purpose: it acts as a lightweight underlay and a transportation highway.

Beginner Sweet Spot:

• > 3mm wide: Use Edge Run + Center Run underlay.
• 1.5mm - 3mm: Use Center Run only.
• < 1.5mm: No specific underlay settings; use your travel running stitch as the only foundation.

Warning: Be extremely careful with script narrower than 1mm. At this width, a standard #40 thread and #75/11 needle may physically struggle to form a satin stitch, leading to thread breaks or holes in the fabric. Consider switching to #60 weight thread and a #65/9 needle for micro-script.

One sentence I tell new digitizers: Small script fails from density and corner build-up more often than from lack of underlay.

The Left-Hand-on-Keyboard Habit: Z, X, and V Hotkeys That Make Manual Punch Feel Fast

Kathleen’s speed comes from not chasing toolbar icons. She hovers to reveal the shortcuts and then keeps her left hand on the keyboard. This is how you achieve "Flow State."

• Z = Straight block (Hard angles)
• X = Curve block (Fluid shapes)
• V = Running stitch (Travel/Backbone)


This matters because script digitizing is a constant toggle: Travel... Curve... Travel... Curve. If you mouse back and forth to the toolbar, you break your visual focus. You will feel slow, frustrations will mount, and your node placement will become sloppy.

If you are setting up a professional station, terms like machine embroidery hooping station often come up as ways to standardize physical workflow. Treat your digitizing setup the same way: standardize your inputs (hotkeys) to reduce fatigue and increase consistency.

“Write It Like a Pen”: Planning the T Intersection So Script Stays Natural

Near the “t,” Kathleen explains a decision point: you can approach the intersection in more than one order (up the stem first, then cross; or cross first, then stem). Her rule is simple: Follow the logic of a pen.

This "Pen Logic" is not just artistic—it is mechanical engineering for thread:

1. Reduces Trims: A pen doesn't lift off the paper in the middle of a letter; neither should your needle.
2. Smoother Direction Changes: Thread hates 180-degree turns. Organic curves reduce friction.
3. Prevents Build-up: It stops awkward overlaps that create hard lumps of thread (bulletproof corners).


If you’re digitizing for production, this is a profit preserver: Fewer trims = fewer stops = fewer chances for the thread to shred or the bobbin to catch.

The Final Polish in Tajima DG/ML by Pulse: Pull Compensation + Half Stitch to Stop Bunching

Once the shapes are in place, the job isn't done. You must apply the "Real World Physics" filter. Kathleen does a global edit: Select All → Properties.

Pull Compensation (0.1–0.2 mm as a visual estimate)

Embroidery shrinks the fabric. As the satin stitches tighten (like a corset), the column narrows.

• The Fix: Increase Pull Compensation.
• Sweet Spot: 0.17mm - 0.20mm is a safe starting range for standard cotton or pique knits.
• Sensory Check: On screen, the letters should look slightly "chunky" or fat. If they look perfect on screen, they will sew out too thin.

Half Stitch (A "Must" for Script Corners)

Kathleen enables Half Stitch (also called Short Stitch in other software). In tight curves of script (like the loop of an 'e' or 'l'), the inner needle points bunch together rapidly.

• The Risk: Without Half Stitch, you might pack 600 stitches into a 2mm space. This can cut the fabric.
• The Solution: Half Stitch forces every other stitch to fall short of the inner edge, reducing density without losing coverage.


This is one of those settings that feels "optional" to a novice until they hold a stiff, bulletproof logo in their hands.

Warning: Mechanical Safety Risk. Always test script settings on scrap fabric before running a customer garment. Tight script corners without Half Stitch can create needle penetrations so dense they deflect the needle, causing it to strike the needle plate and shatter. Shards of metal can fly at high speed. Wear eye protection during test runs.

The Comment-Section Problem: When Script Gets Wider Than 10 mm and Satin Turns Loose

A great question from the comments: What happens when parts of the script get too wide (over 10 mm) and satin starts looking loose, snaggy, or unstable—like the fat part of a big "B" in "Bride"?

Kathleen’s reply offers a practical fix: Draw an emboss/engrave line stitched through the widest part. This "tacks down" the long satin threads.

Here is the operational breakdown:

• The Physics: A satin stitch longer than ~7mm (standard) to 12mm (max) is prone to snagging on jewelry or washing machines. Ideally, keep satin under 7mm.
• Option A (Kathleen’s Approach): Keep the satin look but add a decorative "split" line (emboss) down the middle. This breaks one long stitch into two shorter, safer stitches.
• Option B (Texture Change): Convert the widest area to a Fill Stitch (Tatami).

A Practical Decision Tree: Satin vs Fill vs “Split Satin” for Script Width Changes

Use this decision tree when you hit the "Too Wide" moment.

Decision Tree (Script Stroke Width → Stitch Type Choice)

1. Is the stroke under ~2 mm?
   • YES: Curve Block Satin. Keep it light. Use Center Run underlay only.
   • NO: Go to Step 2.
2. Is the stroke 2 mm – 7 mm?
   • YES: Standard Satin. This is the "Sweet Spot." Use Edge Run + Double Zigzag underlay for a premium lift (3D effect).
   • NO: Go to Step 3.
3. Is the stroke > 7 mm?
   • YES: Danger Zone. Long stitches will snag.
     • Choice A: Keep Satin but enable Auto-Split or add an Emboss Line.
     • Choice B: Convert to Fill Stitch (Tatami) if the design style allows. Manage the transition carefully so it doesn't look like a patch.

Troubleshooting Script Digitizing in Tajima DG/ML by Pulse: Symptoms → Causes → Fixes

The Real-World Sew-Out Reality: Fabric, Stabilizer, and Hooping Determine Premium Results

Digitizing is only 50% of the battle. The other 50% is physics. Script is unforgiving on unstable fabric—if the garment shifts even a millimeter, your beautiful curves turn into wobbles, and outlines miss their mark.

If you are stitching script on tricky items (stretch knits, thin performance polos, structured caps), your hooping choice is often the hidden culprit.

The "Hoop Burn" Pain Point: Traditional hoops require you to jam an inner ring into an outer ring. This friction creates "hoop burn" (permanent shiny rings) on delicate fabrics. Worse, the struggle to tighten the hoop often stretches the fabric. When you un-hoop later, the fabric snaps back, and your perfect script puckers.

The Solution: A practical upgrade path many shops take is moving from standard clamping to magnetic embroidery hoops.

• Why? They use magnetic force rather than friction. You float the stabilizer and fabric, snap the magnet down, and the fabric stays neutral—no stretching, no burn.
• Result: Script stays crisp because the fabric grain wasn't distorted during hooping.

Warning: Magnetic Safety. Magnetic frames are industrial-strength. Keep them away from pacemakers and implanted medical devices. Never let your fingers get caught between the magnets; the snapping force is a serious pinch hazard.

A simple “tool upgrade” logic (No hype, just math)

• Level 1 (Hobby): If you hoop 5 items a week, standard hoops + careful technique + time is fine.
• Level 2 (Pro): If you hoop 20+ items a day, the time saved by Magnetic Hoops (faster hooping) and the money saved (zero ruined shirts from hoop burn) pays for the upgrade in weeks.
• Level 3 (Scale): If you are running a tajima embroidery machine or scaling up into SEWTECH multi-needle machines, your bottleneck is no longer the machine speed—it is the human loading time. Magnetic systems solve this.

Operation Checklist: The “Fast and Clean” Script Workflow You Can Repeat on Every Logo

This is the repeatable sequence Kathleen demonstrates—written as an operator’s Go/No-Go checklist.

Operation checklist (Run this every time you digitize script)

• [ ] Decision: Confirm no system font matches. Commit to Manual Punch.
• [ ] Foundation: Select Manual Punch tool. Lay down the running stitch backbone first.
• [ ] Body: Switch to Curve Block. Build satin along the stroke.
• [ ] Connection: Bridge gaps with running stitches to kill trims.
• [ ] Refine High: Hotkey toggle V (Run), X (Curve), Z (Straight) to stay in flow.
• [ ] Logic Check: Did I follow "Pen Logic" at the T-intersection?
• [ ] Global Safety: Select All → Properties.
  • Pull Comp: Set to 0.17mm - 0.20mm.
  • Density: Enable Half Stitch.
• [ ] Visual Check: Toggle background image off. Does the script look readable without the artwork?

If you are optimizing a production workflow with hooping for embroidery machine setups, treat digitizing and hooping as one ecosystem. Clean pathing reduces trims (software), and magnetic hooping reduces distortion (hardware).

The Upgrade Result: Faster Digitizing, Cleaner Sew-Outs, and Fewer “Why Did It Do That?” Moments

Manual script digitizing isn’t about being "old-fashioned"—it’s about being predictable. Kathleen’s method gives you control where auto-digitizing gives you chaos.

Once you are producing script logos regularly, your next bottlenecks won't be software—they will be physical: hooping speed, garment stability, and repeatability.

• If you are fighting hoop marks or slow loading times on delicate script jobs, consider adding how to use magnetic embroidery hoop videos to your training playlist and upgrading your frames. It is the single fastest way to improve quality on difficult fabrics.
• If you are scaling beyond hobby volume, evaluate if your single-needle machine is holding you back. Many shops eventually move toward multi-needle efficiency to keep turnaround times profitable while maintaining that "hand-stitched" quality.

The goal is simple: Script that looks like it was written with a fountain pen—and stitches like it was engineered by a pro.

FAQ

• Q: Why does Tajima DG/ML by Pulse auto-digitizing fail to match a corporate script logo exactly when importing a JPEG?
  A: Tajima DG/ML by Pulse auto-digitizing is inconsistent for script logos because it reads pixel contrast, not handwriting “flow,” so use Manual Punch for the final file.
  • Convert the script to a manual workflow: lay a Running Stitch backbone first, then build Curve Block satin on top.
  • Plan start/end points like handwriting to reduce trims and keep the word continuous.
  • Save a “Checkpoint 1” file before heavy node edits so it’s easy to revert.
  • Success check: the stitch plan looks like one continuous pen path (few trims/jumps) instead of many disconnected letter pieces.
  • If it still fails: treat auto-digitizing only as a rough draft and manually move nodes to restore smooth entry/exit curves.
• Q: What “hidden prep” must be done in Tajima DG/ML by Pulse before using Manual Punch for script digitizing?
  A: Do the prep first—correct size, clear view, and a planned stitch route—because script cannot be safely resized or “fixed later.”
  • Verify final stitch size before punching; do not digitize at 3" and expect a clean shrink to 1".
  • Zoom until stroke edges are readable and you can separate fuzzy pixel edge from the solid center.
  • Trace the stitch route with a finger and choose start/end points to minimize lifts (every lift usually becomes a trim).
  • Confirm stabilizer and temporary spray adhesive are ready for the test sew-out.
  • Success check: the planned route can be traced without “lifting the finger” often; that usually predicts fewer trims in the machine.
  • If it still fails: restart from the correctly scaled artwork and re-plan pathing before adding satin.
• Q: How do Tajima DG/ML by Pulse running-stitch travel lines prevent bird nesting after trims in script embroidery?
  A: Reduce trims by using running-stitch bridges under future satin so the machine travels continuously instead of stop–trim–jump cycles that trigger nests.
  • Add a running-stitch backbone first to connect script segments like a “highway,” not isolated letters.
  • Keep travel lines short and place them where the final satin will cover them.
  • Use inside-out approaches when connecting strokes so travel stays hidden in natural joins.
  • Success check: during a sew-out, the machine sounds more like a continuous run and less like repeated trim/jump sequences.
  • If it still fails: check bobbin tension with a drop test and re-evaluate pathing to remove remaining unnecessary trims inside the word.
• Q: Why do tight script corners in Tajima DG/ML by Pulse cause needle breaks and loud thumping, and how does Half Stitch fix it?
  A: Needle breaks and “thumping” usually come from extreme density in tight corners, so enable Half Stitch (Short Stitch) to reduce inner-corner stitch pile-up.
  • Turn on Half Stitch globally (Select All → Properties) after shapes are built.
  • Test sew the script corners on scrap fabric before running customer garments.
  • Replace with a fresh #75/11 needle if breakage already happened during testing.
  • Success check: corners feel less “bulletproof,” and the machine runs through curves without heavy punching sounds or needle deflection.
  • If it still fails: reduce corner buildup by revisiting the curve geometry and re-check density behavior in the tightest loops.
• Q: What pull compensation range should be used in Tajima DG/ML by Pulse for script satin to avoid thin, pinched letters after stitching?
  A: A safe starting point for script satin in Tajima DG/ML by Pulse is about 0.17–0.20 mm pull compensation on standard cotton/pique, then confirm with a test sew-out.
  • Apply pull compensation in a global edit (Select All → Properties) near the end of digitizing.
  • Expect the on-screen script to look slightly “chunky” before sewing; embroidery typically narrows columns.
  • Stitch a sample on the actual fabric/stabilizer combo you will run in production.
  • Success check: the sewn script matches intended stroke thickness and does not look visibly skinnier than the artwork.
  • If it still fails: adjust pull compensation in small steps and re-test; fabric stability and hooping can also be the limiting factor.
• Q: How should Tajima DG/ML by Pulse underlay be chosen for script columns under 2 mm to prevent bulky, distorted small lettering?
  A: For narrow script, keep underlay light—often Center Run only from about 1.5–3 mm, and for very thin strokes rely mainly on the travel running stitch for control.
  • Use Edge Run + Center Run generally for wider columns (>3 mm) where lift and coverage matter.
  • Use Center Run only for mid-narrow columns (about 1.5–3 mm) to avoid over-building.
  • For very thin columns (<1.5 mm), avoid heavy underlay settings and use the travel running stitch as the foundation.
  • Success check: small script does not look “puffy” or warped, and the strokes stay readable instead of filling in.
  • If it still fails: consider finer thread (#60wt) and avoid micro-script under 1 mm unless the full setup (needle/thread/fabric) supports it.
• Q: How do magnetic embroidery hoops reduce hoop burn and script distortion compared with standard hoops, and what magnetic safety rules must be followed?
  A: Magnetic embroidery hoops reduce hoop burn and fabric stretch by clamping with magnetic force instead of friction, but they must be handled carefully to avoid pinch injuries and medical-device risk.
  • Float fabric and stabilizer neutrally, then let the magnet clamp—do not over-stretch the garment to “make it tight.”
  • Use magnetic clamping to avoid shiny ring marks on delicate fabrics that traditional hoops can create.
  • Keep magnetic frames away from pacemakers and implanted medical devices, and never place fingers between snapping magnets.
  • Success check: after un-hooping, the fabric shows no shiny ring and the stitched script curves remain crisp (no wobbles from fabric rebound).
  • If it still fails: re-check stabilizer choice and reduce trims in the file—script quality is a combined result of digitizing pathing and physical stability.
