MAYA Classic Series Industrial Embroidery Machines: What the MY-FK 927, MY-FK 923, MY-FU 920, and MY/FHQ-206 Really Mean for Production Speed (and Stitch Quality)

The "Speed Trap": Why Real Embroidery Profit Comes from Stability, Not Just SPM

If you run an embroidery floor for more than a month, you learn a hard truth: most "new machine" videos sell you on speed (SPM), but your actual bottlenecks are physics. It's the wasted minutes spent re-hooping slippery fabric, the anxiety of a needle break on a thick seam, and the frustration of trimming "bird's nests" from the bobbin case.

This analysis of the MAYA Classic Series isn't just a spec-sheet review. I’m going to use their engineering choices to teach you the three pillars of industrial embroidery: Stability, Consistency, and Recovery. Whether you run a single-head machine in a spare room or a row of industrial multi-heads, the physics are identical.

Below is a field manual for translating machine specs into a workflow that actually makes money—including when to upgrade your technique, and when you simply need better tools.

1. Calm the Panic: Decoding the "MAYA Classic Series" for the Pragmatic Shop Owner

The video introduces four configurations. Instead of memorizing model numbers, look at what problem each machine tries to solve. This helps you diagnose your own production gaps.

• The Problem: Fabric bouncing at high speeds.
  • The Solution (MY-FK 927): A high-speed flat machine with a separately motorized presser foot. It isolates the fabric hold-down from the needle drive.
• The Problem: Formatting complex mixed-media (sequins/beads).
  • The Solution (MY-FK 923): A specialty setup for 6-color sequins and delicate bead feeding.
• The Problem: "Fuzzy" edges and slow color changes.
  • The Solution (MY-FU 920): An "Ultra High-Speed" unit boasting closed-loop motor trimming (for clean cuts) and a screw rod color change (for speed).
• The Problem: Thick jackets or puffy quilting foam.
  • The Solution (MY/FHQ-206): A specialized quilting presser foot system designed to compress distinct layers ("sandwiches") before the needle ever strikes.

The Reality Check on Speed: The video shows speeds up to 1200 SPM (Stitches Per Minute).

• Rookie Mistake: Running your machine at 100% max speed (1200 SPM). This creates heat, friction, and thread breaks.
• Pro "Sweet Spot": Run at 750–950 SPM. You might lose 2 minutes per hour in raw speed, but you gain it back by having zero thread breaks. The winning shop isn't the fastest; it’s the one that never stops.


2. The "Hidden" Prep: Physical Consistency Before You Press Start

High-performance machines like the MY-FK 927 are useless if your prep work is sloppy. A Ferrari won't drive straight on flat tires. In embroidery, your "tires" are your Hooping, Needles, and Bobbins.

The "Senses" of Preparation

Don't just look; use your hands and ears.

• The Bobbin Click (Sound): When inserting a bobbin case, listen for a sharp, metallic "CLICK." If it feels mushy or silent, the case isn't seated. It will fly out at 1000 RPM.
• The "Spiderweb" Tension (Touch): Pull your top thread through the needle eye. It should feel smooth but offer resistance—like pulling a spiderweb without breaking it (approx. 100-120g of force). If it pulls freely, you'll get loops (bird's nests). If it snaps, it's too tight.
• The Drum Skin (Touch): When investigating hoop tension, tap the fabric. It should sound taut, but not stretched so tight that the weave distorts.

The Hooping Variable

The #1 cause of "registration drift" (where the outline doesn't match the fill) is poor hooping. If you process more than 20 shirts a day, manual hooping fatigue sets in. Your wrists get tired, and the 21st shirt is looser than the 1st. This is where professionals invest in a hooping station for embroidery. It mechanizes the alignment, ensuring every garment is prepped with identical tension, regardless of operator fatigue.

Prep Checklist (The "Save Your Sanity" List):

• Needle Check: Run a fingernail down the needle tip. Feel a burr? Replace it. (Cost: $0.50. Cost of ruined shirt: $25).
• Bobbin Audit: Are you using the same weight bobbin thread (usually 60wt) as your tension is set for?
• Hook Hygiene: Remove the needle plate. Is there lint packed in the feed dogs or hook knife? Brush it out.
• Consumables: Do you have temporary spray adhesive and a fresh water-soluble pen handy for marking?
• Safety Zone: Verify the hoop path is clear of obstructions.


3. The Science of the Motorized Presser Foot: Why Timing Matters

The MY-FK 927 highlights a digitally controlled presser foot. Why should you care?

The Physics of "Flagging": When a needle pulls up out of the fabric, the fabric tries to lift with it. This is called "flagging." If the fabric lifts 2mm, the next stitch loop can't form properly, leading to skipped stitches or shredded thread. Standard machines use a spring. Advanced machines (and high-end commercial models) use a motor or specific cam timing to hold the fabric down hard at the exact moment the needle exits.

Pro Tip for Heavy Fabrics: If you hear a rhythmic "Thump-Thump" that sounds like a hammer, your presser foot might be set too low, impacting the hoop or fabric too aggressively. Raise it 0.5mm. Conversely, if you hear a "Slap-Slap" sound, the fabric is lifting and slapping back down. Lower the foot or increase hoop tension.

Warning: Mechanical Safety
Never adjust presser foot height or change needles while the machine is powered in "Ready" mode. Independent motorized feet can move unexpectedly during trim cycles. Keep fingers clear of the needle bar area—pneumatic and motorized actuators have enough force to crush bone.

4. Lubrication & Bobbins: The Boring Systems That Print Money

The video showcases a Smart Oil Mist System for the hook and an Auto Bobbin Changer.

The "Why": Friction creates heat. Heat melts polyester thread. If your machine runs fast (over 900 SPM) without oil, your thread will snap mysteriously every 5 minutes.

• Manual Users: You are the "Smart Oil System." Add one drop of clear sewing machine oil to the rotary hook race every 4-8 hours of running time. Do not over-oil, or you will stain your fabric yellow.

The "Auto Bobbin" Lesson: Changing a bobbin takes 45 seconds manually. If you do it 20 times a day, that’s 15 minutes of lost production. More importantly, it breaks your flow. While you may not have an auto-changer robot, you can optimize:

• Pre-wind 50 bobbins on Monday morning.
• Keep them in a case next to the machine.
• Don't wait for run-out; swap bobbins during a natural color change break if the current one looks low (less than 1/4 full).


5. Mixed Media (Sequins & Beads): The Danger Zone of Stability

The MY-FK 923 demonstrates 6-color sequins and loose bead devices. This is high-profit work, but it is a nightmare for stability.

The Risk: Heavy attachments add weight to the head, and the act of sewing hard beads creates "shockwaves" in the fabric. If your fabric shifts 1mm, the needle hits a bead, shatters it, and potentially breaks the needle eye.

The Solution: Extreme Stabilization

1. Slow Down: Cap these runs at 600 SPM.
2. Backing: Use a heavy Cutaway stabilizer (2.5oz or 3.0oz). Tearaway is dangerous here because the perforations can give way under the weight.
3. Hooping: This is where standard plastic hoops fail. They rely on friction and a screw. Under the vibration of bead attachment, fabric slips.
   Professionals often search for a magnetic hooping station setup for these jobs. Why? The magnets provide vertical clamping force that doesn't rely solely on side-wall friction, keeping slippery silks or tulles (common for beading) absolutely frozen in place without "hoop burn."

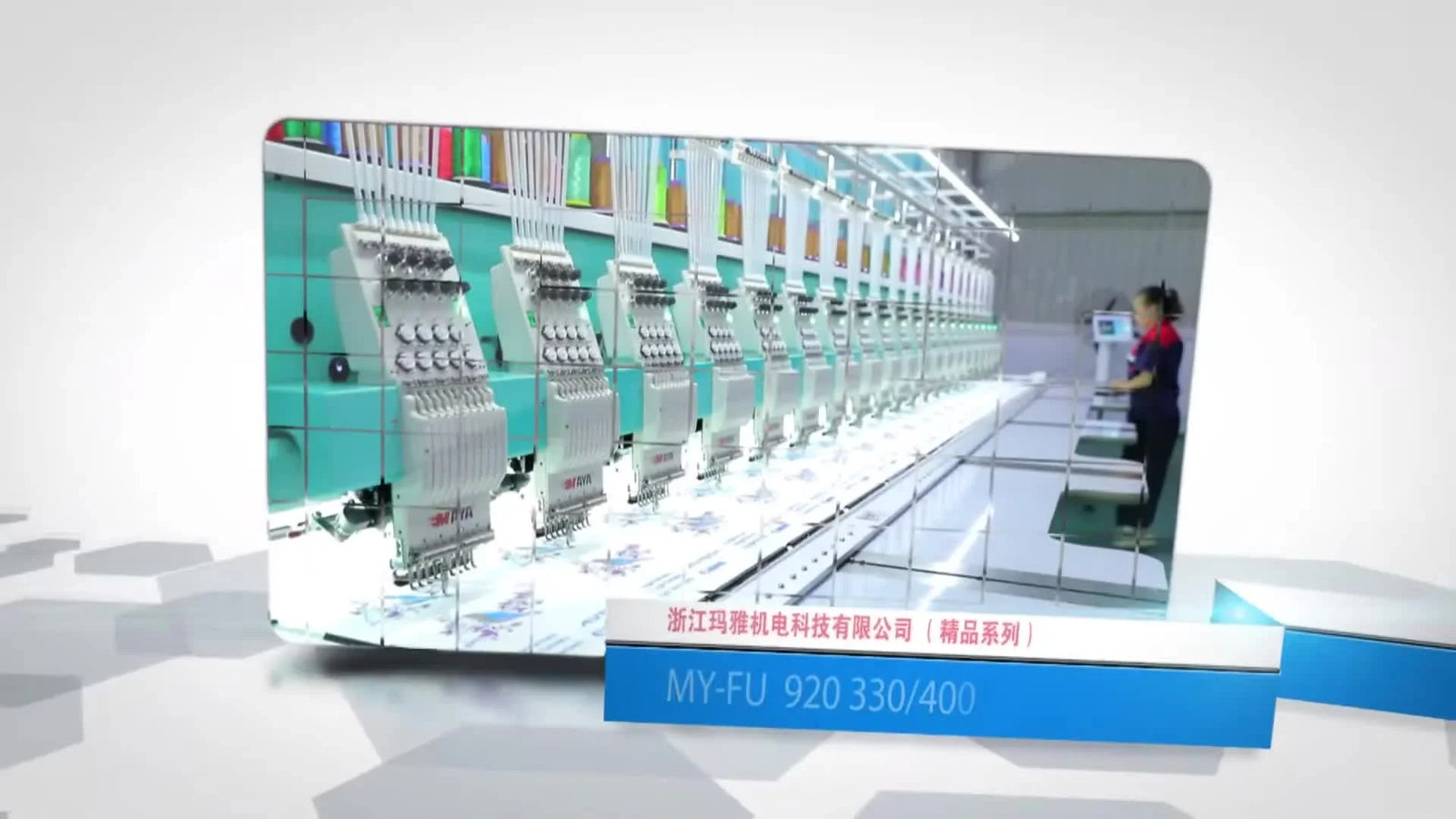

6. Precision Trimming & Color Changes: Watching the MY-FU 920

The MY-FU 920 focuses on closed-loop motor trimming. In older machines, trimmers were mechanical knives that sometimes failed to cut, leaving a "tail" that gets sewn over in the next block, ruining the design.

The "Tail" Diagnostic: Look at the back of your embroidery.

• Good Trim: Tail is about 3-5mm long.
• Bad Trim: Tail is 20mm+ or missing (thread pulled out of needle).
• Fix: If your tails are too long, your "Trim Cam" timing is late. If thread pulls out of the needle after a trim, your "Tension Release" is opening too soon.

To maintain this precision on tricky items (like bags or thick seams), you must eliminate the variable of "hoop distortion." High-volume shops often upgrade to a magnetic embroidery hoop. The magnetic force self-levels over thick seams (like the placket of a polo shirt), whereas a manual thumbscrew hoop struggles to close evenly, causing the fabric to distort and the trim to fail.

7. The Quality Audit: Running Stitch, Satin, and Tatami

The video makes bold claims: "No floating stitches on Tatami," "No zigzag on Satin edges." Let's translate these defects so you can spot them in your own work.

Visual Diagnostics (The "Three Glances"):

1. The Running Stitch Glance: Look at a thin outline. Does it line up perfectly with the color block it surrounds? If it has gaps (white fabric showing), your fabric shifted. Solution: Better stabilizer or lower hoop tension.
2. The Satin Glance: Rub your finger along the edge of a satin column. Is it smooth like a ribbon? Or does it feel "sawtoothed"? Sawtooth = loose tension or dull needle.
3. The Tatami Glance: Look at a large fill area at an angle. Do you see loose loops popping up ("floating")? Floating = Top tension too loose or insufficient underlay stitching.

The Upgrade Path: If you can't get rid of fabric shifting despite perfect technique, your equipment might be the mismatch. Users often ask about zsk hoops or specific German-engineered frames because they want rigidity. The modern universal answer is high-quality magnetic framing systems that fit your specific machine, whether it's a Maya, a Tajima, or a Sewtech.

8. Decision Tree: Fabric, Stabilizer, and Hooping Strategy

Don't guess. Use this logic flow for every job.

Step 1: Determine Fabric Elasticity

• Stretchy (T-shirts, Polos, Knits): You MUST use Cutaway stabilizer. No exceptions.
• Stable (Denim, Canvas, Twill): You can use Tearaway stabilizer to keep the back clean.

Step 2: Determine Thickness/Texture

• Flat (Cotton Shirt): Standard hoop pressure.
• Texture/Pile (Towels, Velvet): Use Water Soluble Topping (Solvy) on top so stitches don't sink.
• Thick/Uneven (Carhartt Jackets, Bags): Standard hoops will "pop" off or leave burn marks. Overtightening screw hoops leads to wrist pain.
  • Decision: If you struggle to hoop it, switch to magnetic embroidery frames. They clamp over zippers and seams without forcing the inner ring to slide inside the outer ring.

Step 3: Select Your Machine Mode

• Standard: Most garments.
• Cap Mode: Hats (requires cap driver).
• Flat/Quilt: For uncut fabric yardage (requires table).

Setup Checklist (Pre-Flight):

• Stabilizer matches fabric type (Cutaway vs Tearaway).
• Topping applied if fabric is fluffy.
• Needle is distinct (Ballpoint for knits, Sharp for wovens).
• Screen orientation matches manual hoop orientation (avoid sewing upside down!).


9. The Quilting "Sandwich": Controlling the Squish (MY/FHQ-206)

The quilting segment shows a presser foot compressing distinct layers (fabric + batting + backing). Embroidery pushes fabric; quilting compresses it.

The "Puckering" Nightmare: If you sew a dense logo onto a puffy jacket without enough compression, the foot pushes a "wave" of fabric ahead of the needle. By the time the design finishes, you have a permanent wrinkle (pucker) around the logo. The Fix:

1. Visual: Use a "Quilting Foot" or adjust your standard presser foot to its lowest possible setting without hitting the hoop.
2. Design: Increase "Pull Compensation" in your software (0.4mm or more).
3. Tactile: When hooping puffy items, ensure the backing is tight, but the top fabric is "floating" slightly rather than stretched deathly tight. Compression comes from the foot, not the hoop stretching the life out of the jacket.

[FIG-10] [FIG-11]

10. Troubleshooting: The "Symptom -> Cure" Quick Reference

Why is your machine misbehaving? It's rarely a "computer error." It's usually physics.

Warning: Magnet Safety
Magnetic hoops are industrial tools. They snap together with upwards of 10-20 lbs of force.
* Pinch Hazard: Keep fingers away from the mating surfaces.
* Medical Risk: Do not use if you have a pacemaker.
* Electronics: Keep away from credit cards and screens.

11. The Upgrade Path: From "Getting By" to "Scaling Up"

The video comments are full of people asking "Price?". But asking about price before performance is how you lose money. You need to ask: "Where is my bottleneck?"

Level 1: The "Hobbyist" Wall

You are spending 50% of your time hooping and fixing mistakes.

• Solution: Don't buy a new machine yet. Buy a hooping station for machine embroidery and a set of magnetic hoops. This standardizes your prep. You will instantly gain 30% more production time just by loading faster and failing less.

Level 2: The "Side Hustle" Struggle

You are turning away orders because your single-needle machine takes too long to change colors (stopping to re-thread).

• Solution: You need Multi-Needle capability. You don't necessarily need the $20,000 industrial giant yet. Look for reliable 10-15 needle entry-level commercial machines (like the SEWTECH ecosystem or similar compact multi-heads). The ability to set 12 colors and walk away is the difference between a hobby and a business.

Level 3: The "Production" Scale

You are running 500+ pieces. Consistency is king.

• Solution: This is where machines like the MAYA Classic Series (or established lines like a tajima embroidery machine) come in. High mechanical weight, oil baths, and 24/7 motors.

Operation Checklist (End of Shift):

• Clear current design from memory.
• Oil the hook (1 drop) if running full production tomorrow.
• Cover the machine (dust is the enemy of electronics).
• Design Review: Did a specific design break thread constantly? Mark it for "Digitizing Review" – no machine can fix a bad file.


Final Take: The Machine Is Only 50% of the Equation

The MAYA video shows impressive hardware: motorized feet, precision cams, and bead droppers. But machines don't make embroidery; systems do.

If you struggle with quality:

1. Stabilize aggressively.
2. Slow Down to the sweet spot (850 SPM).
3. Standardize your hooping pressure (consider magnetic tools).

Once you control the variables, the machine becomes exactly what it should be: a tireless employee that prints profit while you sleep.

FAQ

• Q: On a MAYA Classic Series multi-needle embroidery machine, what SPM range reduces thread breaks while keeping production efficient?
  A: Use 750–950 SPM as the practical “sweet spot” instead of running 1200 SPM max.
  • Reduce speed first when heat/friction-related thread shredding starts (especially above ~900 SPM).
  • Stabilize the workflow before chasing speed: re-check threading path and needle condition.
  • Success check: run a full design hour with no thread breaks and no “mystery” snaps every few minutes.
  • If it still fails, inspect for needle burrs and re-check tension/hooping variables before increasing speed again.
• Q: How do I know a rotary hook bobbin case is seated correctly on an industrial embroidery machine like the MAYA Classic Series?
  A: Insert the bobbin case until you hear and feel a sharp metallic “CLICK.”
  • Remove and re-insert the case if it feels mushy, silent, or not fully locked.
  • Stop immediately if the case looks tilted or unstable—do not run at high speed.
  • Success check: the bobbin case sits flush and stable, and the “CLICK” is repeatable every insertion.
  • If it still fails, clean lint around the hook area and re-check the fit before restarting.
• Q: What top-thread tension “feel test” helps prevent bird’s nests on an industrial embroidery machine (upper-thread has no tension symptom)?
  A: Re-thread and confirm the top thread has smooth resistance—like pulling a spiderweb without breaking it (about 100–120g).
  • Re-thread the top path with the thread fully seated in the tension discs.
  • Floss/clean the tension discs to remove lint that can prevent proper tensioning.
  • Success check: the thread pulls smoothly with noticeable resistance, and the bobbin-side “bird’s nest” stops forming.
  • If it still fails, re-check for incorrect threading points or a tension setting that is far off for the thread you are using.
• Q: How can I stop hoop burn (ring marks) on garments when using screw hoops on an industrial embroidery machine?
  A: Reduce crushing pressure first; only tighten enough to hold fabric without distorting fibers.
  • Loosen the hoop screw slightly and avoid “over-cranking” to force stability.
  • Steam the fabric after embroidery to help relax ring marks.
  • Success check: the fabric shows minimal to no ring imprint after steaming, and the weave is not visibly crushed.
  • If it still fails, consider switching to magnetic embroidery frames to distribute pressure more evenly instead of concentrating force at the hoop edges.
• Q: What is the safest way to adjust presser foot height on a machine with a motorized/digitally controlled presser foot like the MAYA MY-FK 927?
  A: Power down or exit “Ready” state before touching adjustments—motorized feet can move during trim cycles.
  • Keep fingers clear of the needle bar and presser-foot mechanism during any trim/actuation.
  • Adjust in small increments (for example, 0.5mm) based on the sound: “thump-thump” may indicate the foot is too low; “slap-slap” may indicate fabric is lifting.
  • Success check: the machine runs without rhythmic impact sounds and without fabric lifting/flagging-related stitch issues.
  • If it still fails, stop and follow the machine manual’s adjustment procedure for that presser-foot system.
• Q: What safety rules should operators follow when using magnetic embroidery hoops/frames in a production shop?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive medical devices.
  • Keep fingers away from mating surfaces; magnets can snap together with strong force (often 10–20 lbs).
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnets away from credit cards and screens/electronics.
  • Success check: operators can open/close hoops without finger pinches and the work area stays clear of affected items.
  • If it still fails, switch to a controlled handling routine (two-hand placement, slow alignment) and re-train staff before continuing production.
• Q: If an embroidery shop keeps losing time to re-hooping, thread breaks, and registration drift, what upgrade path makes sense before buying a faster multi-needle machine?
  A: Fix stability first: optimize technique (Level 1), then standardize hooping with better tools (Level 2), then scale machine capacity (Level 3).
  • Level 1 (technique): tighten prep discipline—needle burr checks, bobbin consistency, hook-area lint cleaning, correct stabilizer choice.
  • Level 2 (tools): add a hooping station and/or magnetic hoops to reduce operator fatigue and fabric slip on difficult items.
  • Level 3 (capacity): move to multi-needle capability when color changes and stop-start time—not stitch speed—are the real bottleneck.
  • Success check: measurable reduction in stoppages (fewer re-hoops, fewer thread breaks) before investing in higher-speed equipment.
  • If it still fails, audit problem designs for digitizing issues—no machine upgrade can fully compensate for a bad file.
