Melco EMT16X Maintenance That Actually Prevents Thread Breaks: Daily, Weekly, and Monthly Tasks (With the “Don’t-Ruin-Your-Needle-Plate” Trick)

The Definitive Melco EMT16X Maintenance Bible: From "Fear of Breaking It" to Factory Precision

If you are staring at your Melco screen thinking, "I bought this expensive machine... what if the previous owner treated it like a rental car?"—take a breath. The EMT16X is a commercial tank, designed for high-speed production. But like any high-performance vehicle, it relies on a specific rhythm of care.

The on-screen Melco maintenance guide is good, but it lacks the tactile nuance of a veteran operator. It tells you what to do, but not how it should feel or what it should sound like. The difference between "routine maintenance" and "bending a needle bar" lies in the micro-details: the exact viscosity of the grease, the auditory "click" of a seated bobbin, and the visual alignment of the needle plate.

This guide rebuilds the standard procedure into a Master Class shop-floor protocol. We will strip away the guesswork, providing sensory anchors (sight, sound, touch) and safety boundaries to ensure your machine runs not just "fine," but profitably.

The Philosophy of "Preventative Rhythm"

Commercial machines rarely fail dramatically without warning. They fail in whispers first: a slight increase in thread breaks, a rougher sound on the X-carriage, a hesitation in the trim.

We operate on three time horizons to silence these whispers:

• Daily (The "Quick Lube"): Keeping the rotary hook—the heart of the stitch—lubricated to prevent friction burns.
• Weekly (The "Deep Tissue"): Lubricating the needle drive and rails to ensure smooth travel.
• Monthly (The "System Reset"): Refreshing heavy grease reserves and verifying cable tension.

The Golden Rule: A "good enough" maintenance habit executed perfectly on schedule is infinitely better than a "perfect" deep clean performed randomly. Consistency is your profit margin.

Phase 1: The "Mise-en-place" (Preparation)

Before you touch a screw, prepare your workspace. Hunting for tools mid-process is how mistakes happen.

The Operator's Kit & Hidden Consumables

You need the standard Machine Operator’s Kit, but we are going to add a few pros-only items to your arsenal:

Standard Kit:

• Oiling pen (precision applicator)
• Allen wrench set (Metric)
• Flat head screwdriver
• Red Grease + wooden applicator stick (Do not confuse with White Lithium or Yellow grease)
• X-cable tension gauge

The "Hidden" Consumables (Add these):

• Lint-free Microfiber Cloths: Paper towels leave dust; old t-shirt cutoffs are better.
• Canned Air or Low-PSI Compressor: For blowing out the hook assembly.
• Headlamp or Magnetic Light: You need to see into dark crevices.
• Timer: You will need this for the "wicking" period.

Warning: Never mix Red Grease (for rails/cams) with Yellow Grease (often for annual sealed bearings). They have different melting points and viscosities. Mixing them can create a gummy sludge that seizes parts.

Prep Checklist: The "Pre-Flight" Safety Protocol

• Tools Deployed: Layout the oiling pen, Allen keys, and Red Grease.
• Contamination Check: Ensure your rags are absolutely clean. Grit on a rag becomes sandpaper on a rail.
• Air Ready: Compressor on or canned air ready.
• Time Block: Confirm you have a 15-minute window where the machine effectively "sleeps" (for the 10-minute oil wicking step).
• Machine State: If you have large attachments installed, prepare to remove them.

Phase 2: The Daily 60-Second Ritual (Rotary Hook)

The rotary hook spins at thousands of RPM. Friction here equals heat, and heat kills synthetic thread.

The Procedure

1. Remove Bobbin Case: Pull the release tab. Listen for the metallic click as it releases.
2. The "Air Sweep": Blast the hook assembly. Look for "lint cement"—compressed dust that air won't move. You may need a soft brush for this.
3. The Precision Drop: Place exactly one drop of oil into the hook race (the ridge where the inner basket rides on the outer hook).
   • Sensory Check: The metal should look glazed, not wet. If it looks like a puddle, you used too much.
4. Reinstall: Snap the bobbin case back in.
   • Auditory Anchor: You must hear a sharp SNAP. A soft thud means it’s not seated, and you will break a needle instantly upon starting.

Phase 3: The Weekly Core Maintenance

This is where we secure the longevity of the machine.

Safety First: Clear the Deck

The machine will move automatically during this process.

Warning: Collision Hazard. Remove all hoop arms and cap drivers before initiating the Weekly Maintenance sequence on the screen. If the machine sweeps closer to the housing, a mounted cap driver can crush the needle plate assembly.

Commercial Context: If removing hoop arms feels like a massive chore that slows down your day, your workflow is the bottleneck. High-volume shops often switch to specific melco embroidery hoops or magnetic systems that require less hardware reconfiguration. If you spend more time wrenching than stitching, it’s time to evaluate your tooling.

Step A: Needle Drive Oiling (The Patience Test)

1. Follow the OS prompts to shift the needle case.
2. Locate the circular oil port on the needle drive track.
3. The Count: Deposit 25 drops of oil. Yes, twenty-five.
4. The "Wicking" Pause: The screen will tell you to wait. Wait 10 full minutes.
   • The "Why": The oil needs gravity and capillary action to seep down into the felt pad and coat the intricate drive reciprocating mechanism. If you hit "Next" immediately, the oil sits on top, spins off when you start, and leaves the drive dry.


Step B: V-Rail Cleaning (Tactile Inspection)

1. Wipe: Clean the V-rail (the upper track) on both the inside and outside angled surfaces.
   • Sensory Anchor: Run your clean finger along the rail. It should feel smooth like glass. If you feel "grit" or a "bump," scrub it again.
2. Lube: Apply a thin line of oil to both surfaces.
3. Repeat on the other side of the head when prompted.


Step C: Needle Bar Oiling (The Hidden target)

This requires aim. Turn on your headlamp.

1. Lower Bars (1-16): Locate the small access holes on the lower front cover. Insert the oil pen tip. You are aiming for the needle bar visible inside the hole.
   • Action: One drop per bar. Touch the metal, release the oil, retract.
2. Upper Guide Rods: Through the top gaps of the head, identify the silver reciprocating rods.
   • Action: One drop on each rod.

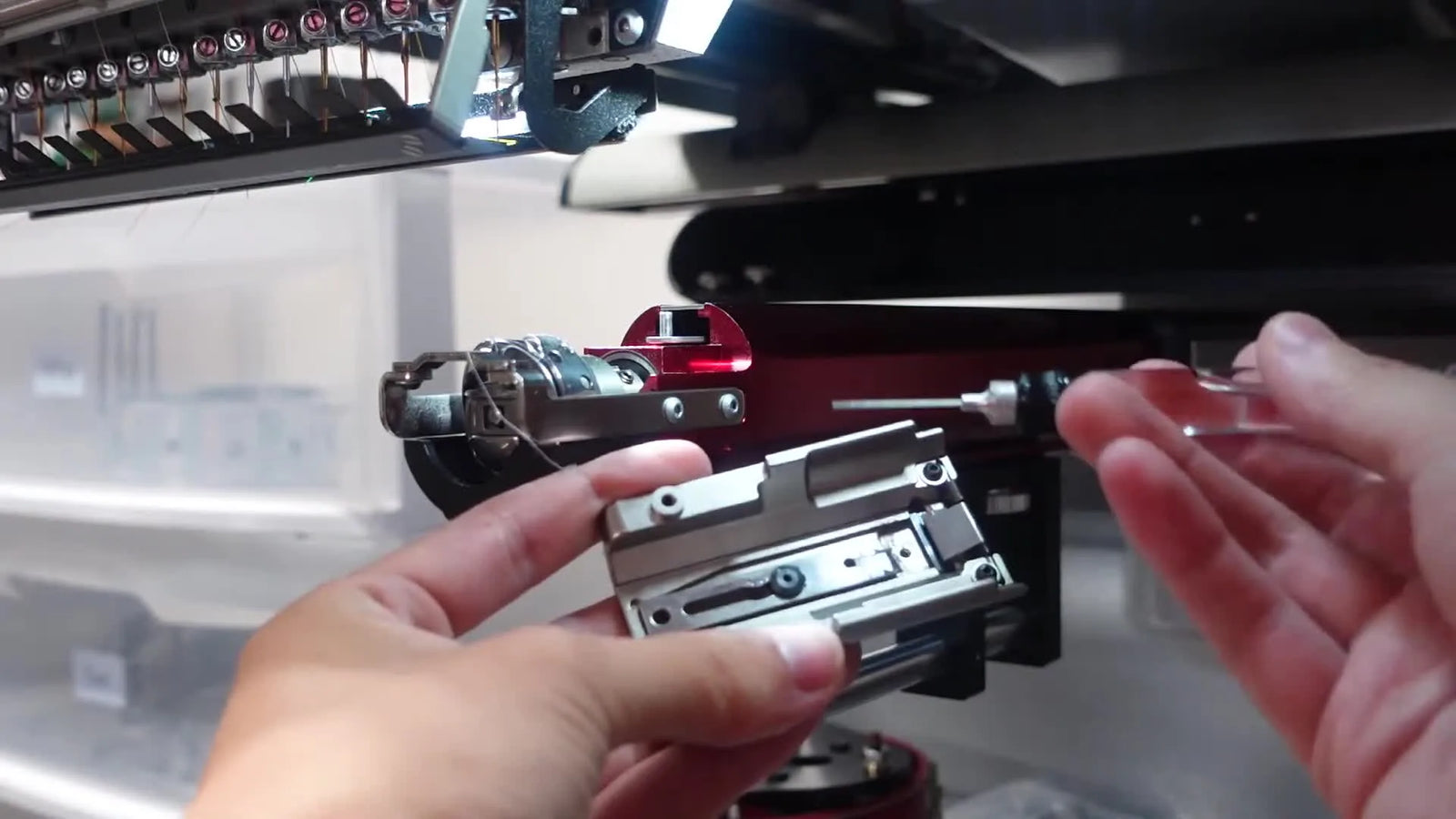

Step D: The Critical Cutter & Plate Maintenance

Stop. This requires high precision. A mistake here causes the dreaded "Needle Strike."

1. Disassemble: Use the 2.5mm Allen wrench. Remove the two bolts, the needle plate, and the magnetic lint cover.
2. Clean: This area collects "thread mulch." Blow it out thoroughly.
3. Pivot Point: Apply one drop of oil to the black rivet on the selector knife.
4. Work it in: Manually move the knife back and forth 10 times. It should glide with zero resistance.

The Reassembly (The "Master" Technique)

Most beginners tighten the screws immediately. Do not do this.

The Centering Protocol:

1. Reinstall the lint cover and place the needle plate loosely. Install screws but do not tighten.
2. Engage the E-Stop.
3. Reach behind the head for the Z-shaft (the silver vertical shaft). Rotate it manually to lower the needle.
4. Visual Anchor: Bring the needle all the way down into the needle plate hole. Look straight down. There should be an equidistant halo of space around the needle. It must not touch the metal plate.
5. Lock it: While holding the plate centered (if necessary), tighten the Allen screws firmly.
6. Release E-Stop. The needle will retract.

Failure to center causes the needle to deflect off the plate, leading to snapped needles and burred plates that shred thread.

Phase 4: Monthly Red Grease & Tension

This happens once a month—mark it on your calendar.

Rail Channel Greasing

1. Remove end caps.
2. Excavate: Use a clean rag to wipe old grease out of the channel. Old grease holds abrasive dust.
3. Apply: Use the wooden stick to lay a fresh bead of Red Grease. Do not overfill; we want lubrication, not a lasagna.


Color Change Cam Block

1. Remove side covers (Keep track of the Long Screw—it goes in the back!).
2. Locate the oil port on the block.
3. The "Slow Feed": Add 25 drops. If it overflows, PAUSE. Let it sink in. Do not force it.
   • Visual Anchor: The block should look hydrated, but oil shouldn't be running down the side of the machine casting.


X-Cable Tension Verification

An under-tensioned cable causes registration errors (designs not lining up).

1. Mount the gauge behind the X-cable.
2. The Gap Check: The cable must sit between the nubs and under the tab.
3. The Window: Look at the cutout. The cable line must fall within the cutout zone.
   • If it is outside, refer to your Melco manual for the tensioning nut adjustment procedure (usually a 10-minute fix).


Rear Cam Greasing

1. Identify the lifting cam assembly on the rear shaft.
2. Slide the small follower piece to the left.
3. The "Dab": Apply a tiny amount of Red Grease (size of a grain of rice) on the shaft.
4. Precise Warning: Do not get grease on the black "grabber flag" or optical sensors nearby. Grease on a sensor causes "False Stop" errors.

Troubleshooting: The "Quick Fix" Matrix

If the machine acts up, check these physical causes before changing software settings.

The "Production Bottleneck" Decision Tree

Maintenance keeps the machine running, but workflow makes you money. If you are maintaining the machine perfectly but still struggling with efficiency, the problem is likely your tooling.

Scenario A: "My wrists hurt and hooping takes forever."

• The Issue: Traditional screw-tension hoops require manual force and constant adjustment.
• The Fix: Upgrade to Magnetic Hoops.
  • Why? They clamp instantly. No screws. This reduces load/unload time by 40-50%.
  • Search Strategy: Pros often look for magnetic embroidery hoop solutions compatible with Melco to solve ergonomic fatigue.

Scenario B: "I’m getting 'Hoop Burn' on sensitive fabrics."

• The Issue: To hold fabric tight, you are over-tightening standard hoops, crushing the fibers.
• The Fix: Magnetic frames distribute pressure evenly across the perimeter rather than crushing the inner ring.
  • Option: Explore melco mighty hoops or similar magnetic systems designed to hold Piqué knits and performance wear gently but firmly.

Scenario C: "I need to run 500 shirts by Friday."

• The Issue: A single-head machine (like the EMT16X) is a beast, but it has limits.
• The Fix: Scale OUT.
  • Strategic Upgrade: If you are maxing out one head, consider adding a cost-effective workhorse like a SEWTECH Multi-Needle Machine to handle the bulk runs while your Melco handles the specialized/complex jobs.

Warning: Magnetic Field Safety. Magnetic Hoops use powerful Neodymium magnets.
* Pinch Hazard: They snap shut with immense force. Keep fingers clear of the edge.
* Medical Device Safety: Keep magnets at least 6-10 inches away from pacemakers and insulin pumps.

Final Checkout: The "Green Light" Protocol

Do not run a design until you check these boxes:

Operation Checklist

• Daily: Bobbin hook cleaned + 1 drop oil.
• Weekly: Needle drive oiled (25 drops + 10 min wait verified).
• Weekly: Needle plate centered (Visual Halo Check passed) & screws tight.
• Monthly: X-Cable tension is "In the Window".
• Safety: All rags/tools removed from the sewing field.
• Setup: Cap driver/Hoop arms reinstalled securely.

By explicitly following this rhythm—respecting the wait times, measuring the drops, and trusting your fingers to feel the rails—you transform maintenance from a source of anxiety into your competitive advantage. A smooth machine yields a perfect stitch, every time.

FAQ

• Q: What hidden consumables should be added to a Melco EMT16X maintenance kit to prevent rail scratches and hook lint buildup?
  A: Add lint-free cloths, controlled air, and proper lighting so cleaning does not introduce grit or miss debris.
  • Use lint-free microfiber cloths instead of paper towels to avoid leaving dust on rails.
  • Use canned air or a low-PSI compressor to blow out the rotary hook area before oiling.
  • Use a headlamp or magnetic light to clearly see needle bar oil points and cutter/plate areas.
  • Success check: A wiped V-rail feels “smooth like glass” with a fingertip, not gritty.
  • If it still fails: Replace any rag that touched the floor or feels gritty—dirty cloths can create scratches fast.
• Q: How much oil should be used on the Melco EMT16X rotary hook race during daily maintenance, and what does “too much” look like?
  A: Use exactly one drop of oil on the rotary hook race; more than that can look like a puddle and attract lint.
  • Remove the bobbin case and blow out lint from the hook assembly before oiling.
  • Place one precise drop into the hook race (the ridge where the inner basket rides).
  • Reinstall the bobbin case firmly.
  • Success check: The hook race metal looks “glazed,” not wet, and the bobbin case snaps in with a sharp SNAP.
  • If it still fails: If thread breaks spike after oiling, re-check for “lint cement” that air did not remove and inspect the needle plate hole for scratch marks.
• Q: Why does the Melco EMT16X weekly needle drive oiling require 25 drops and a full 10-minute wait, and what happens if the wait is skipped?
  A: The 25 drops and 10-minute wait let oil wick into the felt pad and drive mechanism; skipping the wait can leave the drive effectively dry.
  • Follow the on-screen weekly prompts to shift the needle case and locate the circular oil port on the needle drive track.
  • Deposit 25 drops, then wait 10 full minutes before pressing “Next.”
  • Resume only after the wicking time is completed.
  • Success check: After the full wait, the machine runs without “Needle Up”/jamming behavior tied to lubrication failure.
  • If it still fails: Re-run the weekly oiling sequence and verify the full 10-minute pause was actually completed.
• Q: How do you correctly clean and oil the Melco EMT16X V-rails during weekly maintenance to stop loud or rough X-carriage travel?
  A: Clean both angled surfaces of the V-rails and apply a thin line of oil; rough travel is often just dirty rails.
  • Wipe the V-rail on the inside and outside angled surfaces with a truly clean cloth.
  • Run a fingertip along the rail to find any grit or bumps, then re-clean until smooth.
  • Apply a thin line of oil to both surfaces when prompted and repeat on the other side.
  • Success check: The rail feels smooth like glass to the touch and travel sounds noticeably smoother.
  • If it still fails: Confirm the cloth was lint-free/clean and re-check weekly lubrication steps (needle drive oiling + full wait).
• Q: How do you prevent Melco EMT16X needle breaking on start caused by needle plate misalignment after cutter/plate maintenance?
  A: Center the needle plate before fully tightening screws using the manual Z-shaft lowering method to avoid a needle strike.
  • Reinstall the lint cover and needle plate, install screws loosely, and engage E-Stop.
  • Rotate the Z-shaft by hand to bring the needle all the way down into the needle plate hole.
  • Visually center the plate so the needle has an even “halo of space,” then tighten screws firmly and release E-Stop.
  • Success check: The needle lowers into the hole without touching metal, and startup does not snap needles.
  • If it still fails: Inspect the needle plate hole for burrs/scratch marks from prior strikes and address the damage before running production.
• Q: What safety step is mandatory before running the Melco EMT16X weekly maintenance sequence to avoid collision damage with hoop arms or cap drivers?
  A: Remove all hoop arms and cap drivers before initiating the weekly maintenance sequence because the machine moves automatically.
  • Clear the sewing field completely before starting the on-screen weekly routine.
  • Verify no attachments remain that could be swept into the housing during automatic movement.
  • Only begin the sequence after the area is physically clear.
  • Success check: The head completes its automatic movements with no contact, scraping, or sudden stops.
  • If it still fails: Stop immediately and re-check for any mounted hardware—do not continue the sequence until cleared.
• Q: What magnetic hoop safety rules should be followed when using powerful neodymium magnetic embroidery hoops to reduce hoop burn and speed up loading?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices; they clamp fast and hard.
  • Keep fingers clear of the closing edge because magnets can snap shut with significant force.
  • Keep magnetic hoops at least 6–10 inches away from pacemakers and insulin pumps.
  • Use magnetic hoops to distribute pressure more evenly when hoop burn happens from over-tightening screw hoops.
  • Success check: Fabric is held firmly without crushed fibers/marks, and loading/unloading feels fast without forcing a screw.
  • If it still fails: If fabric still shows damage, reduce handling force and reassess hooping approach—over-tightening traditional hoops is a common cause of hoop burn.
