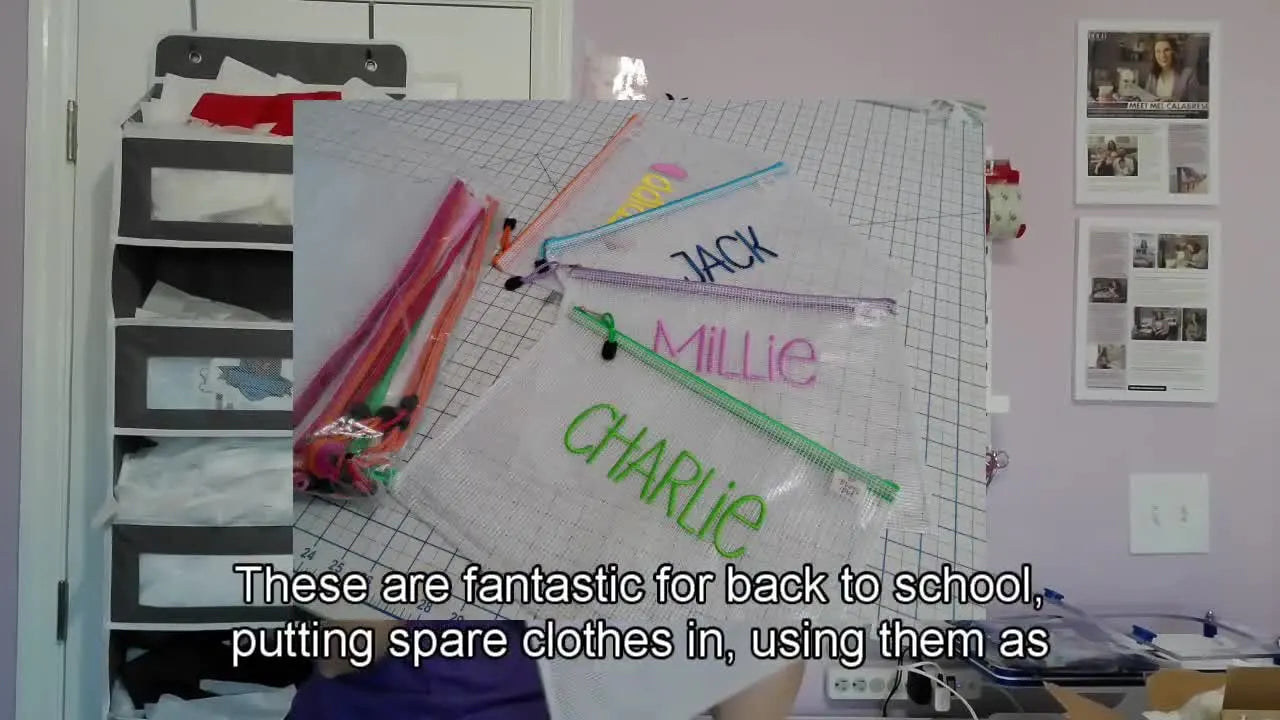

Mesh PVC Zipper Pouch Embroidery Without Sewing It Shut: The SmartStitch S1201 + Mighty Hoop “Floating” Method That Actually Works

If you’ve ever hooped a slippery mesh pouch, hit start, and immediately felt that sinking feeling—“I’m about to stitch this thing shut, aren’t I?”—take a breath. We have all been there. This project is absolutely beginner-friendly, but it rewards a specific, discipline-based workflow: stabilize inside the pouch, clamp only the front layer, and load it onto the machine like a tube.

In this guide, we are analyzing Mama Mel’s video method on the SmartStitch S1201 using a 6.25" x 8.25" Mighty Hoop, but we are going to elevate it. We will rebuild it into a shop-ready "Standard Operating Procedure" (SOP) that you can repeat for one pouch—or a hundred—without the common mistakes that ruin inventory.

The “Don’t Panic” Primer: Why Mesh PVC Zipper Pouches Feel Tricky (and Why They’re Not)

These trendy mesh PVC zipper pouches look intimidating because they present a "Triple Threat" to the novice embroiderer: Transparency, Slippage, and Layers.

However, from an engineering perspective, PVC mesh is actually quite cooperative. It doesn't stretch like a knit, and it holds needle punctures well—if you control the environment. The secret lies in treating the pouch not as fabric, but as a "structured tube." The good news is the material is stable enough for simple name personalization when you follow these three rules:

• Hide the mechanics: Keep the stabilizer hidden inside the pouch.
• Visual Hygiene: Avoid permanent backing (Cutaway) that shows through the holes.
• Tunnel Vision: Treat the pouch like a sleeve; the back layer must never enter the "Danger Zone" under the needle.

If you’re new, this is exactly the kind of project that builds confidence fast—because the results look “pro” even with basic lettering.

Materials for SmartStitch S1201 Mesh Pouch Embroidery (What Matters, What Doesn’t)

Here is the loadout used in the tutorial, along with my specific "shop-floor" recommendations to prevent failure.

From the video (core kit):

• Machine: SmartStitch S1201 (12-Needle Commercial Machine).
• Software: Embrilliance Essentials (Laptop).
• Transfer: USB flash drive.
• Substrate: Mesh PVC zipper pouch (approx. 13" x 9").
• Stabilizer: One sheet of Tearaway (this is non-negotiable for mesh).
• Thread: 40wt Polyester Embroidery thread.
• Hooping: Mighty Hoop 6.25" x 8.25" (Magnetic).

The "Operational Safety" Additions (Don't start without these):

• Needles: Size 90/14 Sharp or Topstitch. Why? PVC is tough. A thin 75/11 needle might deflect (bend) when hitting the plastic grid at high speeds, causing breaks. A 90/14 provides the stiffness needed for accurate penetration.
• Fine-Point Snips: curved tip scissors for trimming jump stitches inside the bag.
• Sewing Machine Oil: For the hook assembly.
• Painter's Tape: Useful for temporarily taping back zipper pulls so they don't rattle against the hoop.

One keyword you’ll see people search for is smartstitch mighty hoop, and yes—this exact pairing is the reason the hooping portion feels almost unfairly easy. The magnetic force eliminates the need to "crank" a screw, which is the #1 cause of slippage on PVC materials.

The “Hidden” Prep Pros Do First: Clean, Oil, and Check Bobbin Before You Touch the Pouch

The video includes a quick maintenance moment that many beginners skip. In a professional shop, we call this the "Pre-Flight Check." Neglecting this is why 80% of thread breaks happen.

1) Wipe the bobbin area: Use a small flannel scrap or brush. Sensory Check: Look for "lint bunnies" hiding in the tension spring of the bobbin case. 2) Oil the Hook: Add a single drop of clear sewing machine oil to the rotary hook assembly. Why? Friction creates heat; heat melts high-speed thread. Oil is your coolant. 3) The "Full Bobbin" Rule: Check your bobbin supply. Running out of bobbin thread mid-letter on a clear pouch leaves a visible "tie-off" knot that is hard to hide.

This matters because mesh projects show everything. Stray lint, tension hiccups, and distinct thread nests are visible through the clear material.

Warning: (Physical Safety) Keep fingers, loose sleeves, and snips away from the needle area when the machine is powered and especially when tracing or stitching. A multi-needle machine does not stop instantly—needle strikes happen in milliseconds.

Prep Checklist (Do this *before* you open software)

• Bobbin area wiped clean (no visible lint in the race).
• One drop of oil applied to the hook assembly.
• Bobbin thread supply checked (visual confirmation: >50% full).
• Fresh Needle Installed: Size 90/14 recommended for PVC.
• Tearaway stabilizer sheet cut to size (approx. 10" x 10").
• Workspace Clear: Remove loose items (rulers, pins) from the machine table to prevent jamming.

Embrilliance Essentials Text Setup: Black Cherry Font, 6-Inch Width, and Spacing That Looks Expensive

In the video, the design process is handled in Embrilliance Essentials using the StitchTopia font Black Cherry.

The Digital Workflow: 1) Selection: Choose the Black Cherry font. 2) Glyph Mixing: Mix uppercase and lowercase as the font intends. Expert Tip: Don't rely on auto-spacing. Manually drag letters closer until they slightly overlap (if it's a script font) to ensure the embroidery flows continuously without excessive trims. 3) Sizing: Resize to fit about 6 inches of width. This leaves a healthy margin on a 9-inch bag. 4) Format: Save as DST. Context: DST is the industry standard for commercial machines like the SmartStitch. It tells the machine where to move, but not what colors to use (you set colors on the screen). 5) Export: Save to USB.

A common friction point for beginners is over-complicating the software. The key takeaway: Type → Size → Save. If you spend more than 5 minutes here, you are overthinking it.

Placement That Looks “Store-Bought”: Fold to Find Center, Then Measure 4 Inches Down from the Zipper

Placement consistency is what separates "homemade" from "professional." On a flat pouch, the optical center is rarely the mathematical center.

The "Golden Ratio" for Pouches: 1) Center Line: Fold the pouch vertically (hotdog style) to find the center line. Mark it with a straight pin. 2) Height: Measure 4 inches down from the zipper. 3) Why 4 Inches? This places the design slightly above the true vertical center. Visually, items placed exactly in the center often look like they are "falling." Placing them higher lifts the eye.

She specifically avoids markers because they can be unreliable or bleed on mesh. The pin method is clean and leaves no residue.

Stabilizer Choice for Clear Mesh: Why Tearaway Wins (and Cutaway Will Betray You)

This is a critical decision point. The video is crystal clear: use one sheet of standard medium-weight Tearaway stabilizer.

The Logic:

• Sliding: Slide the sheet inside the pouch. It must lay flat between the front and back layers.
• Removal: Tearaway removes cleanly after stitching, leaving only the thread behind.
• The Cutaway Trap: If you use Cutaway (Mesh/Poly-mesh) stabilizer, you will have to trim it with scissors after stitching. Because the bag is clear, you will see a messy "halo" of stabilizer around the letters forever.

If you are shopping for magnetic embroidery hoops to make your workflow faster, you must pair them with a stabilizer that disappears. The best hoop in the world cannot fix the ugly visual of cutaway stabilizer showing through a transparent bag.

The Magnetic Hooping Move: Clamping the Front Layer Without Crushing the Pouch

Here is the hooping sequence from the video, rebuilt into a safer, repeatable method. This technique is often called "Floating" inside the hoop.

1) Insert Bottom Ring: Slip the bottom magnetic ring of the Mighty Hoop inside the pouch, underneath the stabilizer sheet you just inserted. 2) Align: Position the top ring using the pouch’s grid. (The grid on the mesh acts like built-in graph paper—use it!). 3) The Snap: Let the magnets snap together, sandwiching the front layer + stabilizer. 4) Verify: Flip it over or look inside. Ensure the stabilizer completely covers the hoop area.

Why Magnetic Hoops dominate this sector: Magnetic hoops clamp vertically. Traditional screw-hoops require you to pull and tug the fabric to get it tight, which distorts the mesh grid. With a magnet, you lay it flat, snap it, and the geometry remains perfect.

If you’re researching how to use mighty hoop techniques, this pouch method is the perfect "Hello World" project because the alignment grid on the PVC makes it nearly impossible to hoop it crooked.

Warning: (Magnet Safety) Mighty Hoops contain powerful Neodymium magnets. They can pinch skin severely causing blood blisters. Keep magnets away from pacemakers, ICDs, and sensitive electronics. Never place your fingers between the rings as they close.

Loading the SmartStitch S1201 So You Don’t Stitch the Bag Shut (This Is the Whole Game)

This is the critical step that causes most "catastrophic" failures.

The "Tunnel" Visualization:

• Your machine has a "Free Arm" (the floating metal arm where the bobbin lives).
• You must dress the machine with the pouch.
• Slide the open zipper pouch over the bobbin arm.
• Crucial Check: The bottom layer of the bag must be under the metal arm. The hooped front layer must be above the needle plate.

If the back layer creeps onto the needle plate, you will embroider the front to the back, essentially sewing the pocket closed.

This is also where magnetic hoops shine in production: you can hoop quickly, load quickly, and keep the pouch body out of the way with less wrestling.

SmartStitch S1201 Settings That Keep Vinyl Mesh Calm: Hoop Selection, Trace First, 650 RPM “Safe Zone”

Now, we interface with the machine. On the S1201 (or similar multi-needle):

1) Hoop Assignment: Tell the machine you are using the 6.25" x 8.25" hoop. This prevents the pantograph from slamming the hoop into the needle bar. 2) Remove the Pin: Do not forget the marking pin used for centering! 3) Trace/Border Check: Run a trace (an outline without stitching). Sensory Check: Watch the needle #1 position. Does it enter the hoop clearance zone? Does the presser foot hit the zipper? 4) Speed Control: Set speed to 650 RPM.

Why 650 RPM? Beginners often crank machines to 1000 RPM. On PVC Mesh, friction generates heat. High speeds heat the needle, which can slightly melt the PVC as it retracts, causing "gummy" thread breaks. 650 RPM is your "Sweet Spot"—fast enough to be productive, slow enough to keep the needle cool and deflections low.

If you’re building a setup around mighty hoop for smartstitch configurations, speed discipline is the final variable that guarantees consistency.

Setup Checklist (Right before you press Start)

• Correct Hoop Size selected on screen (6.25" x 8.25").
• Pouch Loaded Correctly: Back layer is under the sewing arm; Front layer is on top.
• Centering Pin removed.
• Trace Completed: Verified that the design fits and does not hit the zipper.
• Speed limited to 600–650 RPM.


Finishing Without Fuzz or Paper Bits: Trim Jumps, Tear Clean, and Check the Inside Like a Customer Would

The job isn't done when the machine stops. Post-processing determines the perceived quality.

1) Un-hoop: Slide the magnets apart (slide, don't pry). 2) Trim Jumps: Use your curved snips. Trim the jump stitches on the front. Then, flip the bag inside out or reach in to trim any long tails on the back. 3) Tear Away: Grip the stabilizer near the stitches and tear gently. Support the stitches with your thumb to prevent distorting the letters. 4) De-Fuzz: Check the mesh holes. sometimes paper bits get stuck. Use tweezers or a piece of masking tape to lift them out.

She also shows the inside looking neat—no messy trails—because the pouch is loaded correctly and the stitchout stayed controlled.

Operation Checklist (Your “Quality Control” Protocol)

• Jump stitches trimmed flush (no "haircuts" left sticking up).
• Tearaway stabilizer fully removed (check inside mesh holes).
• Distortion Check: Lettering sits flat; no puckering around satin columns.
• Interior Check: No accidental stitching through the back layer.

Quick Decision Tree: Stabilizer + Hooping Choice for Clear Mesh vs “Everything Else”

Use this logic flow when deciding on consumables for future projects.

Start here: What is the opacity of the material?

• Scenario A: The item is Clear/Mesh (like this pouch).
  • Stabilizer: Tearaway (Must be removable).
  • Hooping: Magnetic Hoop (Preferred for even tension without "hoop burn").
  • Risk: High visibility of errors.
  • Tip: If hoop burn or slipping is a recurring issue, consider a magnetic hooping station workflow to standardize your placement.
• Scenario B: The item is Opaque (Canvas, Denim, Twill).
  • Stabilizer: Cutaway (Preferred for longevity).
  • Hooping: Standard Tubular Hoops OR Magnetic.
  • Risk: Fabric puckering. Cutaway prevents this better than Tearaway.

Troubleshooting the Two Most Common “Beginner Disasters” (and the Fast Fix)

The Upgrade Path That Saves Your Wrists (and Your Time): When Magnetic Hoops Stop Being a Luxury

If you are making one pouch for a family gift, mastering the standard hoop is a rite of passage. However, if you are fulfilling a back-to-school order for 50 pouches, manual hooping becomes a physical health hazard.

The "Pain Threshold" for upgrading:

1. Repetitive Strain: Screwing and unscrewing standard hoops 100 times a day leads to wrist fatigue/Carpal Tunnel issues.
2. Hoop Burn: Delicate items (like vinyl or velvet) get crushed by standard hoops.
3. Speed: Magnetic hoops reduce hooping time from ~60 seconds to ~10 seconds per item.

In the professional sector, we see two common upgrade paths:

• Home single-needle users who struggle with hoop marks often move to magnetic hoops/frames designed for home machines (like the "Snap Hoop" style).
• Production-focused users batching names all day often step up to industrial multi-needle platforms (like the SmartStitch or SEWTECH multi-needle ecosystems).

If you are comparing accessories like hoopmaster systems for repeatable placement, think in terms of consistency: the more identical your placement is, the fewer "almost centered" rejects you create.

Pricing Reality Check (From the Comments): What People Actually Charge for a Personalized Pouch

Value engineering is part of the job. Two commenters asked about pricing during the live stream, and the consensus was:

• $15–$18 per pouch (Personalized).
• $15 per bag (Base price).

The Profit Formula:

• Cost of Goods (Pouch + Thread + Stabilizer): ~$4.00
• Labor Time (Hooping + Trimming): 5 minutes
• Machine Run Time: 5 minutes
• Total Time: 10 mins.

If you charge $15, you are grossing roughly $11 profit per 10 minutes. This is a healthy margin, provided you don't make mistakes that force you to throw away bags.

To protect that profit, standardize your process: One hoop size, one placement rule (4 inches down), and one reliable font.

One Last Note on Connectivity: USB vs Wi-Fi on SmartStitch S1201

A technical note for buyers: Mama Mel explained that her specific machine does not have Wi-Fi (it was an older model). However, SmartStitch machines purchased after June 2025 generally include Wi-Fi capabilities.

From a production standpoint, USB is actually preferred by many high-volume shops because it is "Air Gapped"—it doesn't disconnect if your shop internet goes down. Don't fear the USB drive; it is the industry standard for a reason.

The Takeaway: A Clean Name on Clear Mesh Comes Down to Three Habits

To master the mesh pouch, you don't need magic; you need protocol:

1. Stabilize inside with Tearaway.
2. Magnetic Hooping (or very careful standard hooping) to clamp without crushing.
3. Tunnel Loading to keep the back layer safe.

Do those three things, and these pouches become one of the easiest “high wow-factor” items you can batch for gifts, organization, and corporate orders.

If you find yourself fighting hooping speed or hand fatigue, it is worth looking at smartstitch embroidery hoops options that reduce the wrestling match. The fastest stitchout in the world doesn't help if the hooping process is what slows you down.

FAQ

• Q: What stabilizer should be used for embroidering a clear PVC mesh zipper pouch on a SmartStitch S1201 so stabilizer does not show through?
  A: Use one sheet of medium-weight Tearaway stabilizer placed inside the pouch; Cutaway will remain visible through the mesh.
  • Insert: Slide the Tearaway sheet fully inside the pouch so it lies flat between front and back layers.
  • Hoop: Clamp only the front layer plus the Tearaway (not the back layer) in the 6.25" x 8.25" Mighty Hoop.
  • Tear: After stitching, tear the stabilizer away close to the stitches while supporting the letters with your thumb.
  • Success check: From the front, only thread is visible—no “halo” of backing around the lettering.
  • If it still fails: Pick out paper bits stuck in mesh holes with tweezers or masking tape, then re-check that no Cutaway was used.
• Q: How do I load a hooped PVC mesh zipper pouch onto the SmartStitch S1201 free arm so the pouch does not stitch shut?
  A: Load the pouch like a tube: the back layer must stay under the sewing arm while the hooped front layer stays on top of the needle plate.
  • Open: Unzip the pouch so the body can slide freely over the machine’s bobbin arm.
  • Slide: Pull the pouch over the free arm with the pouch “hanging” below the arm, not riding on the needle plate.
  • Clear: Run a “tunnel check” by feeling under the hooped area to confirm nothing from the back layer is in the stitch zone.
  • Success check: During trace and the first few stitches, the needle only penetrates the hooped front layer (the pouch pocket still opens normally).
  • If it still fails: Stop immediately, remove the hoop, and reload—continuing will sew the pocket closed.
• Q: What SmartStitch S1201 settings help prevent thread breaks and heat issues when embroidering PVC mesh at speed?
  A: Select the correct 6.25" x 8.25" hoop, run a trace, and keep the SmartStitch S1201 around 600–650 RPM as a safe zone for PVC mesh.
  • Set: Choose the 6.25" x 8.25" hoop size on the machine screen before stitching.
  • Trace: Run the outline/trace to confirm clearance from the zipper and hoop.
  • Limit: Reduce speed to about 650 RPM (often 600–650 RPM) to reduce needle heat and deflection.
  • Success check: Stitching sounds smooth with no repeated “pop” thread breaks, and PVC mesh does not look gummy around penetrations.
  • If it still fails: Install a fresh 90/14 Sharp needle and verify the needle path does not strike the zipper area.
• Q: Which needle should be used on a SmartStitch S1201 for PVC mesh zipper pouches to reduce needle deflection and breakage?
  A: Start with a fresh 90/14 Sharp (or Topstitch) needle; thinner needles may deflect on PVC mesh grids at higher speeds.
  • Replace: Install a new 90/14 Sharp needle before the run (especially if the current needle has unknown hours).
  • Avoid: Do not use a ballpoint needle on this PVC mesh application because it can behave unpredictably on plastic grids.
  • Slow: Reduce speed near zippers if the design runs close to thicker areas.
  • Success check: Letters stitch cleanly with fewer breaks and no visible needle “walk” or distortion in satin columns.
  • If it still fails: Re-trace to ensure the design path is not contacting the zipper or presser foot clearance area.
• Q: What “pre-flight check” should be done on a SmartStitch S1201 before stitching a clear mesh pouch to prevent thread breaks and nests?
  A: Clean the bobbin area, add one drop of oil to the hook assembly, and verify a sufficiently full bobbin before hooping the pouch.
  • Wipe: Brush/wipe lint from the bobbin area and check the bobbin case tension spring for trapped lint.
  • Oil: Add a single drop of clear sewing machine oil to the rotary hook assembly.
  • Check: Confirm bobbin thread is more than 50% full to avoid visible tie-offs mid-name on clear material.
  • Success check: The machine runs without sudden tension spikes, squeaks, or visible lint-induced snags in the stitchout.
  • If it still fails: Re-clean the bobbin area and re-thread per the machine’s manual (thread path errors often mimic tension problems).
• Q: What safety rules should beginners follow when tracing and stitching on a multi-needle machine like the SmartStitch S1201?
  A: Keep hands, sleeves, and tools away from the needle area any time the SmartStitch S1201 is powered—especially during trace and start-up.
  • Remove: Keep snips and tweezers off the needle plate while the machine is on.
  • Stand clear: Do not reach near the needle bar during trace/border check; watch from the side.
  • Pause first: Stop the machine before trimming or adjusting the pouch position.
  • Success check: No “near-miss” moments—nothing enters the moving needle zone during tracing or stitching.
  • If it still fails: Slow down the process and use the trace step as the mandatory “hands-off” verification phase.
• Q: What magnetic hoop safety precautions are required when using a 6.25" x 8.25" Mighty Hoop for PVC mesh pouch embroidery?
  A: Close Mighty Hoop rings by sliding and controlling the snap—never place fingers between the rings, and keep the magnets away from pacemakers/ICDs and sensitive electronics.
  • Slide: Separate rings by sliding apart rather than prying to reduce sudden releases.
  • Control: Let magnets close deliberately onto the front layer + stabilizer; do not “drop” the top ring.
  • Protect: Keep the hoop away from medical implants (pacemakers/ICDs) and electronics when handling or storing.
  • Success check: No pinched skin or uncontrolled snapping; hoop closes evenly with the mesh grid staying aligned.
  • If it still fails: Use a hooping station-style routine (consistent hand placement and closing motion) to prevent accidental finger placement near the pinch zone.
• Q: When should embroidery workflow upgrade from standard screw hoops to magnetic hoops or a multi-needle platform like SEWTECH for batching PVC mesh pouch names?
  A: Upgrade when repetitive hooping causes wrist fatigue, hoop burn, or slow throughput; start with technique fixes, then move to magnetic hoops, then consider a multi-needle machine for volume.
  • Level 1 (Technique): Standardize placement (fold center + measure 4" down) and enforce trace + 600–650 RPM to reduce rejects.
  • Level 2 (Tool): Switch to magnetic hoops to cut hooping time dramatically and reduce slippage/hoop burn on PVC materials.
  • Level 3 (Capacity): Consider a multi-needle system such as SEWTECH when order volume makes rethreading and manual hooping the true bottleneck.
  • Success check: You can repeat placement and hooping consistently across a batch without hand strain or “almost centered” rejects.
  • If it still fails: Time one full pouch from hooping to trimming; if hooping is dominating the cycle time, magnetic hoops are usually the next practical step.
