My First Brother SE1900 Embroidery “Crash” (and the Tiny Spool Insert That Saved My Needle, Fabric, and Sanity)

Mastering Your Brother SE1900: From "Critical Failure" to Production-Ready Precision

If your very first stitch-out on a Brother SE1900 feels like a collision between excitement and panic, you are in good company. In my 20 years of diagnostics, I’ve watched hundreds of "first projects" go sideways. The culprit is rarely "bad luck." It is almost always a failure in two invisible systems: thread delivery physics and fabric tension mechanics.

The good news is that embroidery is an empirical science. Once you replace "guessing" with calibrated routines, your results will become boringly predictable.

Below is a forensic rebuild of a real first project crash. We will walk through selecting Design #3 (a floral heart), bonding stabilizer with chemical adhesion, and—most critically—installing the one specific accessory that prevents catastrophic needle breaks.

The "It Just Popped!" Moment—Immediate Damage Control

That loud SNAP followed by a grinding noise is a visceral trauma for any machine owner. It makes beginners think, “Did I break my $1,000 investment?”

When a machine makes a loud popping sound immediately after pressing the green Start button, and the fabric tears, you are not dealing with a simple tension issue. You are experiencing a hard mechanical bind. This means the thread path has locked up with zero elasticity.

Here is your safety protocol for this exact scenario:

1. Stop immediately. Do not wait for the machine to "figure it out."
2. Audio Check: Did you hear a metallic clunk? If yes, power off to save the motor.
3. Visual Check: Do not keep pressing Start. Remove the hoop.
4. Physical Check: Inspect the needle plate. A bent needle often strikes the metal plate, creating a burr (sharp edge) that will shred every future thread you use.
5. Replace the needle. Never reuse a needle after a bind. Micro-fractures are invisible but fatal to quality.


Warning: Mechanical Safety Hazard. A shattered needle can eject fragments at high velocity. Always power off the machine before reaching into the needle bar area to clear a jam. Never force the handwheel if it feels stuck; you may strip internal timing gears.

The Root Cause: The Physics of Thread Delivery on the Brother SE1900

The crash in this project was caused by a single missing piece of plastic: the Mini King Thread Spool Insert.

To understand why, you must understand thread physics. Modern embroidery machines pull thread at speeds of 400 to 850 stitches per minute (SPM). If your thread spool has a "notch" on the rim (used to store the thread tail), and you do not lift the spool above that notch using the insert, the thread will snag.

When the thread snags at 600 SPM, the tension spikes from the standard 100g-130g to over 2000g in a millisecond. The needle is the weakest link, so it snaps.

What you are looking for (The Geometry of Flow)

• Cross-wound spools (King/Mini-King): These are designed to feed thread off the top. They require the spool cap or insert to prevent the thread from "whipping" under the spool base.
• Stacked spools (Standard Sewing): These feed from the side. They behave differently (and poorly) on horizontal pins without modification.


The "Reset" Protocol: Flawless Thread Delivery Setup

Once the proper insert is installed, the friction coefficient drops to near zero. The machine that sounded like a tractor will suddenly hum.

The Action Step:

1. Locate the gray mini king thread spool insert in your accessory bag.
2. Insert it into the core of your thread spool before placing it on the pin.
3. Ensure the thread unwinds counter-clockwise (usually preferred) or as directed by the arrow on the spool cap.


The "Floss Test" (Sensory Calibration)

Before you hit start, perform this tactile check:

1. Thread the machine completely through the needle eye.
2. Lower the presser foot (this engages the tension discs).
3. Gently pull the thread tail.
   • FAIL: It feels like pulling a rope through concrete, or it "jerks."
   • PASS: It feels like pulling dental floss—smooth, consistent resistance (approx. 100g-120g of drag).

Pro Tip: If you utilize specialized threads like metallic or heavy cotton, you may need to adjust your Top Tension dial. For standard 40wt polyester, the default setting (usually around 4.0) should feel firm but yield to a steady pull.

The Hidden Consumable: Chemical Bonding for Stabilizer

The stabilizer used here is tear-away non-fusible. In the hierarchy of embroidery supplies, non-fusible stabilizers introduce a risk: micro-shifting.

If you hoop fabric and stabilizer without bonding them, the needle execution causes the fabric to "flag" (lift up and down) independently of the stabilizer. This creates a trampoline effect, leading to registration errors (where outlines don't match the fill).

The Solution: Adhesion. We use a temporary adhesive spray (like Odif 505 or similar generic basting sprays) to fuse the layers mechanically.

The "Spray Zone" Technique

1. Protect: Lay down parchment paper (essential to protect your work surface from sticky residue).
2. Apply: Spray the stabilizer, not the fabric. This prevents oversaturating your garment and gumming up your needle.
3. Smooth: Press the fabric onto the tacky stabilizer.
4. Tactile Check: Run your hand across the surface. It should feel like a single, unified material. If you hear a "crackle" sound when you bend it, it's not bonded well enough.

Prep Checklist: The "Go/No-Go" Pre-Flight

• Fresh Needle: Installed a new 75/11 embroidery needle (flat side back).
• Bobbin Check: Bobbin is wound correctly (no loops) and inserted so it spins counter-clockwise ("P" shape).
• Bonding: Fabric is chemically bonded to the stabilizer (no bubbles).
• Clearance: Parchment paper used to keep the hoop outer ring clean (glue on the hoop = slip).
• Consumables: Basting spray and sharp scissors are within reach.

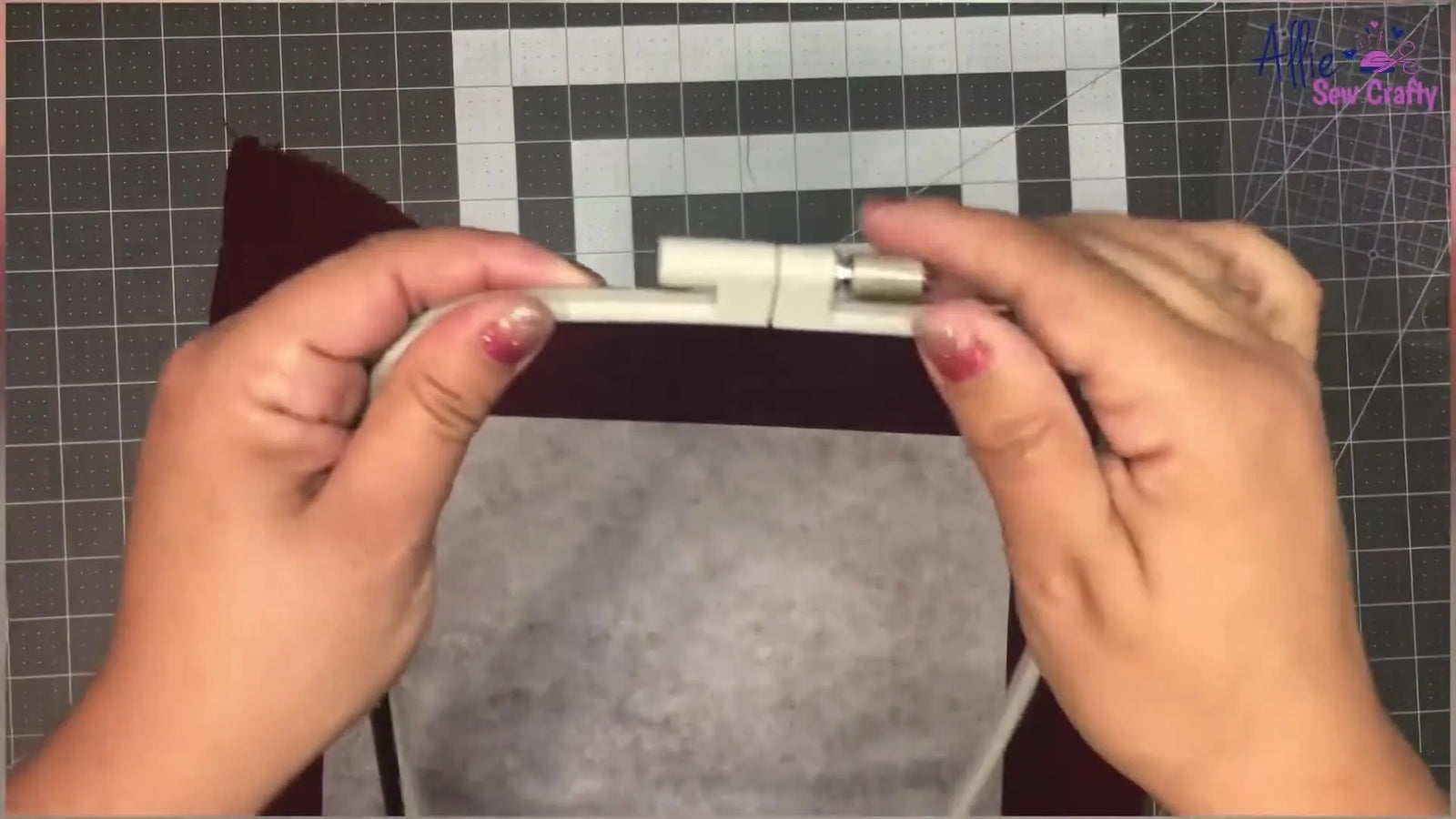

Hooping Dynamics: Tension, Orientation, and "Hoop Burn"

Hooping is the variable that separates hobbyists from professionals. The Brother SE1900 comes with a 5x7 hoop. Using it requires mechanical empathy.

Orientation: Locate the connector notches on the left side of the hoop. These must face the machine arm.

The Hooping Sequence:

1. Loosen the thumb screw until the inner ring sits loosely inside the outer ring.
2. Place the outer hoop on a hard, flat surface.
3. Lay your bonded fabric/stabilizer stack over it.
4. Press the inner hoop straight down. Listen for the "thump."
5. Critical Step: Verify alignment with the plastic grid template.




The "Drum Skin" Standard

How tight is tight enough?

• Too Loose: Fabric ripples when you trace the design. (Result: Shifted design).
• Too Tight: You stretched the fabric fibers open. (Result: "Puckering" when the fabric relaxes later).

The Tactile Test: Tap the fabric with your finger. It should sound like a dull drum—taut, but not distorted. The grain line of the fabric (the weave) should look straight, not curved like a banana.

Setup Checklist: Mechanical Verification

• Orientation: Hoop connector notches are on the correct side.
• Centering: The center mark on the fabric matches the grid template crosshair.
• Tension: Fabric is drum-tight; pulling firmly on the edges does not cause the fabric to slip.
• Clearance: Space under the needle bar is clear of gravity-fed obstructions (sleeves, straps).
• Lock: Thumb screw is tightened (finger tight + 1/4 turn).

Digital Setup: Resizing Design #3 on the SE1900

The video demonstrates selecting Design Selection: No. 3 (Floral Heart). The machine’s interface is your safety barrier.

When resizing, the SE1900 limits you to ±20% of the original size to preserve stitch density.

• Original Size: 72.4 mm x 74.2 mm
• Adjusted Size: 3.42 x 2.82 inches (maximized)


Expert Note on Density: Stitch count displayed: 2609 stitches. Time: 5 minutes.

This low stitch count makes it a safe "calibration print." If you were scaling a 50,000-stitch design, simply resizing heavily affects density (stitches per inch). Since this is a light floral pattern, resizing to the hoop limit is safe.

The Operation: Recognizing "Healthy" Synthesis

When you press start, you should enter a state of "monitored relaxation."

Auditory Cues of Success:

• Rhythmic Thump: A steady, low-frequency sound of the needle penetrating.
• No Clicking: High-pitched clicking usually means the needle is hitting the presser foot or plate.
• No Grinding: Grinding means the carriage is blocked.

Visual Cues:

• Top Thread: visible as a straight line entering the fabric.
• Bobbin Thread: Not visible on top (if you see white bobbin thread on top, your top tension is too high or the bobbin isn't seated).

Operation Checklist: The First Minute

• Green Light: Start button pressed, machine accelerates smoothly.
• Feed Hygiene: Thread is unspooling without "dancing" or jerking.
• Fabric Plane: Making sure the fabric isn't "flagging" (lifting up) when the needle pulls out.
• Stability: Hoop is not shaking violently (indicates loose connection).

Decision Tree: Stabilizer & Hooping Strategy

Correctly pairing your materials is 80% of the battle. Use this logic for future projects.

Variable 1: Fabric Elasticity

• Is the fabric Stable (Woven Cotton, Denim, Canvas)?
  • YES: Use Tear-Away Stabilizer.
    • Density Check: If stitch count > 10,000, switch to Cutaway for better support.
  • NO (T-Shirts, Jersey, Spandex): Use Cutaway Stabilizer (Mesh).
    • Why: Knits stretch. Tear-away will disintegrate, causing the design to distort.

Variable 2: Adhesion Method

• Is the stabilizer Fusible (shiny on one side)?
  • YES: Iron it on. No spray needed.
• Is the stabilizer Non-Fusible?
  • YES: Use Basting Spray (Target distance: 8-10 inches).

Symptom-Based Troubleshooting (The "Quick Fix" Table)

The Production Bottleneck: When to Upgrade Your Tools

As you transition from "testing" to "project making," you will encounter physical limitations. The standard Brother 5x7 hoop is excellent for learning, but it relies on a thumbscrew mechanism that depends entirely on your wrist strength and manual alignment skills.

Identify Your Pain Points:

1. Hoop Burn: Do you see a crushed ring on your fabric after unhooping? This is caused by over-tightening the inner ring to compensate for slippage.
2. Repetitive Strain: Does your wrist hurt after hooping 5 shirts?
3. Setup Time: Are you spending 5 minutes hooping for a 4-minute stitch-out?

The Logic of Tool Selection:

• Scenario A: Precision Difficulty. If you struggle to keep the fabric straight while tightening the screw, you are fighting friction. Many users find relief by researching brother se1900 hoops that offer alternative clamping mechanisms.
• Scenario B: Production Velocity. If you plan to embroider a batch of 20 towels or heavy jackets, the standard hoop is slow. Professionals often solve this by using a magnetic hoop for brother se1900. These tools use powerful magnets to clamp thick materials instantly without "unscrewing and rescrewing," eliminating hoop burn almost entirely.
• Scenario C: Alignment Fatigue. For those creating uniform products (like shop logos), standard tools lack registration marks. In this case, dedicated hooping stations act as a "third hand," ensuring every logo lands in the exact same spot.

For the standard user, the brother 5x7 hoop is sufficient. But precise tool upgrades are the secret to moving from "hobbyist frustration" to "commercial consistency."

Warning: Magnetic Safety. Industrial-strength magnetic hoops are extremely powerful. They can pinch fingers severely. Danger: Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.

The Final Verdict on Design #3

The floral heart project succeeded not because of luck, but because of a specific sequence:

1. Mechanical Clearance: The Mini King Insert allowed smooth flow.
2. Chemical bonding: Spray prevented shifting.
3. Digital Safety: We respected the hoop's 5x7 limit.

Your goal is to replicate this success. Do not just "hope" it works. Calibrate your inputs, and the Brother SE1900 will deliver professional outputs every time.

FAQ

• Q: What should Brother SE1900 owners do immediately after a loud pop/snap sound and fabric tearing right after pressing Start?
  A: Stop the Brother SE1900 immediately and treat the event as a mechanical bind, not a normal tension tweak.
  • Power off if a metallic clunk was heard, then remove the hoop and clear the jam with the machine off.
  • Inspect the needle plate for a burr where a bent needle may have struck the metal.
  • Replace the needle right away (do not reuse a needle after a bind).
  • Success check: The handwheel turns smoothly by hand and the machine runs without grinding after rethreading.
  • If it still fails… Do not force the handwheel; follow the Brother SE1900 manual safety guidance or have timing checked by service.
• Q: Why does the Brother SE1900 needle break immediately when using a mini-king thread spool with a notch, and how do you fix it?
  A: Install the Brother SE1900 Mini King Thread Spool Insert so the thread cannot snag on the spool notch at speed.
  • Insert the gray mini king thread spool insert into the spool core before placing the spool on the pin.
  • Confirm the thread unwinds counter-clockwise (or follow the direction indicated by the spool cap arrow).
  • Re-thread the machine fully before restarting.
  • Success check: The spool feeds smoothly without “dancing,” jerking, or sudden stops when stitching begins.
  • If it still fails… Inspect the spool rim for burrs/sharp edges that can catch thread.
• Q: How can Brother SE1900 users perform the “Floss Test” to confirm correct upper thread tension before starting embroidery?
  A: Use the Brother SE1900 “Floss Test” to verify smooth, consistent drag with the presser foot down.
  • Thread the machine completely through the needle eye.
  • Lower the presser foot to engage the tension discs.
  • Pull the thread tail gently and feel the resistance.
  • Success check: The pull feels like dental floss—smooth, steady resistance (not jerky or “stuck”).
  • If it still fails… Rethread with the presser foot up first, then repeat the test; adjust top tension only as needed (a safe starting point is the default for 40wt polyester, per machine guidance).
• Q: How do Brother SE1900 users prevent fabric shifting and registration errors when using non-fusible tear-away stabilizer?
  A: Chemically bond the Brother SE1900 fabric and non-fusible tear-away stabilizer with temporary adhesive spray to stop micro-shifting.
  • Protect the table with parchment paper.
  • Spray the stabilizer (not the fabric) from about 8–10 inches away.
  • Smooth the fabric onto the tacky stabilizer until it behaves like one layer.
  • Success check: The stack feels unified in the hand; if bent, it should not “crackle” like two separate layers sliding.
  • If it still fails… Re-spray lightly and re-smooth; confirm the fabric is not “flagging” during the first stitches.
• Q: What is the correct Brother SE1900 5x7 hooping standard to avoid puckering and hoop burn?
  A: Hoop to a “dull drum” tension on the Brother SE1900 5x7 hoop—taut without stretching the fabric grain.
  • Place the outer hoop on a hard flat surface and press the inner hoop straight down (avoid pulling the fabric tight like a trampoline).
  • Align center marks using the grid template before tightening the thumb screw.
  • Tighten finger-tight plus about a 1/4 turn; avoid over-tightening to “compensate” for slippage.
  • Success check: A tap sounds like a dull drum and the fabric weave lines look straight (not curved).
  • If it still fails… Use temporary adhesive spray to reduce slip, and confirm hoop connector notches face the correct side for the Brother SE1900 arm.
• Q: How do Brother SE1900 owners fix a bird’s nest (thread tangle under fabric) during embroidery?
  A: On the Brother SE1900, a bird’s nest is most often an upper-threading error—rethread completely with the presser foot raised.
  • Raise the presser foot before threading so the thread can seat between the tension discs.
  • Rethread the entire upper path (do not “patch” only the needle area).
  • Remove the hoop and clear the tangled thread before restarting.
  • Success check: The underside shows a clean stitch formation instead of a wad of loops, and the first minute runs without thread piling.
  • If it still fails… Confirm the bobbin is inserted correctly and wound cleanly (no loops) before re-testing.
• Q: When should Brother SE1900 users upgrade to a magnetic embroidery hoop, and what safety rules apply to magnetic hoops?
  A: Upgrade to a magnetic hoop when the Brother SE1900 thumb-screw hoop causes hoop burn, wrist strain, or slow setup—use magnets carefully because pinch injuries are common.
  • Level 1 (technique): Improve bonding and “dull drum” hooping to reduce over-tightening and slipping.
  • Level 2 (tool): Use a magnetic hoop to clamp thick materials quickly and reduce hoop burn from over-tightening.
  • Level 3 (capacity): If batch work time is dominated by hooping/alignment, consider production equipment upgrades for consistency.
  • Success check: Hooping time drops and the fabric shows minimal ring marks after unhooping while designs stay aligned.
  • If it still fails… Add a hooping station for repeat placement, and follow magnetic safety: keep strong magnetic hoops away from pacemakers/insulin pumps and watch finger pinch zones.
