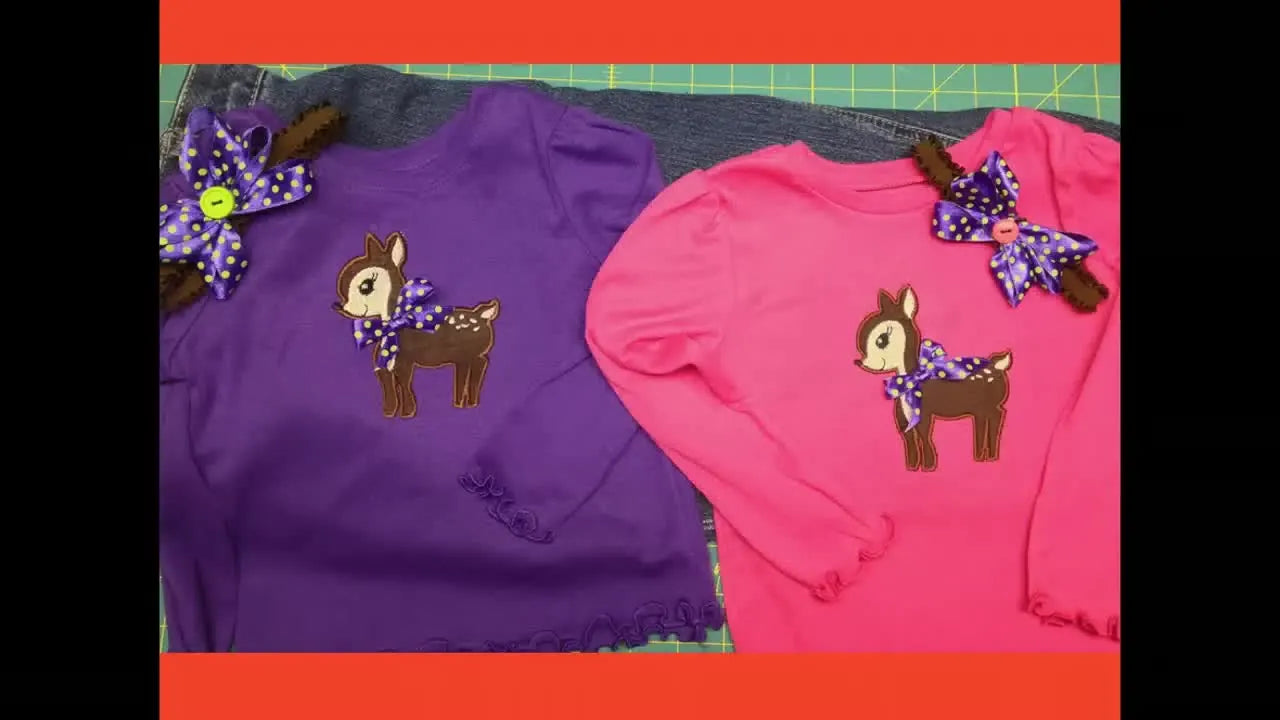

No Hoop Burn, No Stretched Neckline: Floating a Child’s T-Shirt Appliqué on a Single-Needle Embroidery Machine

The "Floating" Protocol: Mastering Toddler Tees Without Distortion (White Paper)

If you have ever tried to hoop a size 2T t-shirt and felt your patience evaporate—neckline stretching, fabric shifting, design landing crooked—you are not alone. Machine embroidery on small knits is an "extreme sport" for beginners. The fabric is lively, the opening is tiny, and the stakes are high (ruining a cute garment).

The good news: You do not have to clamp the shirt in the hoop at all.

This guide documents the "Float Method" standard operating procedure (SOP). Instead of fighting physics by forcing stretchy fabric into a rigid ring, we hoop the stabilizer alone and adhere the shirt on top. When executed correctly, this is the cleanest way to embroider knits without "hoop burn" (the permanent ring left by friction) or pattern distortion.

The Calm-Down Primer: Why a Child’s Knit T-Shirt Feels “Impossible” to Hoop (and Why Floating Works)

To master this connection, we must understand the material science. A child’s t-shirt combines three hostile factors: high elasticity (Lycra/Spandex content), small surface area, and a restrictive neckline.

When you traditional-hoop a knit:

1. Radial Tension: The outer ring pulls the fabric outward in all directions.
2. Column Distortion: The vertical knit columns (the "grain") warp.
3. Memory Failure: You stitch on stretched fabric. When you un-hoop, the fabric relaxes back to its original state, but the non-stretchy thread does not. Result: Puckering and rippling.

The Solution: Floating. Floating changes the physics. The stabilizer bears the tension (drum-tight), while the shirt lies chemically bonded (via spray or sticky backing) on top in its resting state. You are controlling the stretch before the first needle drop.

If you have been researching a floating embroidery hoop workflow, understand that "floating" is a technique, not just a product. It is the gold standard for maintaining the structural integrity of knitwear.

The “Hidden” Prep Pros Don’t Skip: Appliqué Fabric + Fusible Web + Template at 100%

Profitable embroidery starts at the cutting table, not the machine. This workflow begins with the appliqué piece. If your specific cut is sloppy, the satin stitch has to work twice as hard to cover it.

1) The Composite Material Strategy (Fuse First)

Never cut raw woven fabric for appliqué. It frays and shifts.

• Action: Iron a fusible web (like HeatnBond Lite) to the wrong side (back) of your appliqué fabric.
• Sensory Check: The fabric should feel stiffer, like cardstock, and no longer drape like a soft cloth.
• Why: This turns a floppy textile into a stable, cuttable material that won't lift when the machine runs at 600 stitches per minute (SPM).

2) The "Window" Template Method

• Action: Print your design template at 100% scale (Actual Size).
• Technique: Lightly spray the paper template with temporary adhesive and stick it to the front (right side) of the appliqué fabric. Cut exactly along the line.
• The "Mirror Trap": If you cut from the back (protector paper side), you must mirror the image. Cutting from the front with a template eliminates this mental math and the risk of error.

Hidden Consumables Checklist: Before starting, ensure you have these often-overlooked items:

• Temporary Spray Adhesive (e.g., Odif 505) – specific for fabric.
• Ballpoint Needles (75/11) – Sharp needles cut knit fibers; ballpoints slide between them.
• Precision Scissors – Curved tips help trim closer.


Knit Fabric Stabilizing That Actually Holds: Poly Mesh Cutaway on the Inside (Before You Touch the Hoop)

The Stabilizer Rule: "If you wear it, don't tear it." Tear-away stabilizer is forbidden on t-shirts. It provides zero support after the paper is removed, leading to a sagging design after one wash. We rely on No-Show Mesh (Poly Mesh) Cutaway. It is soft against the skin but structurally permanent.

The "Pre-Stabilization" Shield

We do not just put stabilizer in the hoop; we also add a layer to the shirt itself.

1. Turn the shirt inside out.
2. Cut a piece of Poly Mesh larger than your design area.
3. Lightly mist with spray adhesive (spray the stabilizer, never the air near the machine).
4. Smooth it onto the wrong side of the shirt front.

Physics Check: This layer acts as a "scaffold." When you handle the shirt to float it later, this adhered layer prevents the knit from elongating vertically. A ruined shirt costs $5-$10; a sheet of stabilizer costs pennies. Buy the stability.

Prep Checklist (Do not proceed until all are checked)

• Appliqué fabric fused with web and cut to shape.
• Paper template printed at 100% verified with ruler.
• Shirt turned inside out.
• Poly Mesh adhered to the inside of the shirt (smooth, no air pockets).
• Machine Needle changed to Ballpoint 75/11 or 80/12.


Placement That Doesn’t Look Like “Belly Art”: Center-Chest Marking with a Slit Template + Long Chalk Lines

Placement anxiety is real. On a customized size 18M shirt, a 0.5-inch error looks massive.

1) The Slit Template

Take your paper template and cut a small slit in the center where the crosshairs intersect. Fold back the corners. This creates a physical window to mark the fabric directly.

2) The "High Center" Rule

Standard: Design top edge should be 1.5 to 2 inches below the neckline seam. Reality: For toddlers, err on the side of higher. If placed too low (Standard adult placement logic), the design sits on the child's belly, distorting when they sit down.

• Action: Measure 1 inch down from the collar for the top of the design area.

3) The Anchor Lines

Turn the shirt right side out. Using a tailors' chalk or water-soluble pen:

• Draw a vertical center line from neck to hem.
• Draw a horizontal crosshair at your center point.
• Visual Check: These lines must be long—extending beyond where the hoop edges will be. They are your only visual reference for alignment later.


The Clean Float Setup: Hoop Mesh Stabilizer Only, Mark Center Lines, Then Make It Sticky (Without Gumming Your Hoop)

Now we build the "trap" that holds the shirt.

1) Drum-Tight Hooping

Hoop a second sheet of Poly Mesh stabilizer into your standard hoop.

• Sensory Check: Tap the stabilizer. It should sound like a drum skin (Thump-Thump). If it is loose, your registration will drift.

2) Transfer the Grid

Use the clear plastic grid that came with your hoop. Mark the center point and the horizontal/vertical axes onto the stabilizer. Extend these lines to the hoop frame.

3) The Sticky Surface

Spray the hooped stabilizer with temporary adhesive.

• Pro Tip: Use a file folder or cardboard box to shield the hoop's plastic rim. Sticky residue on the outer frame creates friction and can damage hoop clips over time.

This creates a surface similar to a commercial sticky hoop for embroidery machine, allowing you to adhere fabric without mechanical clamping.

Warning: Chemical Safety
Temporary adhesive sprays are flammable solvents. Use in a well-ventilated area away from heat sources. Never spray directly near the embroidery machine; the mist settles on the hook assembly and gears, acting as a magnet for lint, which leads to catastrophic jams.

The “Bottom-Hem Slide” Trick: Floating the Shirt Without Stretching the Neckline

This is the critical maneuver. Most beginners ruin the garment in this step by forcing the hoop through the neck.

The Entry Vector

1. Orient the hoop on the table (attachment bracket away from you).
2. Slide the shirt onto the hoop via the bottom hem, moving upwards.
3. Do not touch the neckline.
4. Align the shirt's chalk crosshairs with the stabilizer's marker lines.

The "Parallel" Priority: It is difficult to hit the exact center perfectly by hand. That is okay.

• Priority 1: Lines must be Parallel. (Vertical shirt line parallel to vertical hoop line).
• Priority 2: Centered.
• Why: You can adjust the X/Y position on your machine screen easily. However, adjusting Rotation (tilt) is messy and often results in a crooked final look. Get the lines straight; fix the center digitally.


Wonder Clips Without Regret: Securing Excess Fabric So the Machine Arm Never Hits a Clip

Floating relies on adhesion, but gravity fights you. The weight of the rest of the shirt hanging off the hoop can peel the bond.

The "Bunker" Technique

1. Roll or fold the excess fabric (sleeves, neck, hem) away from the center stitch field.
2. Use "Wonder Clips" (quilting clips) to secure these rolls to the rim of the hoop.
3. Safety Zone: Place clips only on the perimeter. ensure no clips are near the hoop attachment bracket or the path of the presser foot.

This setup offers the flexibility of a repositionable embroidery hoop mindset: you are securing the bulk without locking the fibers into a rigid frame, allowing for micro-adjustments if needed before the final lock-down.

Stitching the Appliqué on a Single-Needle Embroidery Machine: Placement Line → Fabric → Tack-Down (Safely)

1) The Placement Line (The Map)

Load the hoop.

• Pre-Flight Check: Use your machine's "Trace" or "Trial" function to ensure the needle doesn't hit a clip.
• Action: Run the first color stop (Placement Line). This stitches a single running stitch outline on the stabilizer/shirt combo.

2) The Material Drop

• Action: Apply a mist of spray to the back of your pre-cut appliqué fabric.
• Precision: Place the fabric exactly inside the stitched placement line. Since we pre-fused and pre-cut, it should fit like a puzzle piece.

3) The Tack-Down (The Danger Zone)

• Action: Run the next step (Zig-zag or tack-down stitch).
• Safety: The machine will move fast. Keep your hands clear. Use a stylus, chopstick, or the eraser end of a pencil to gently hold the appliqué fabric flat if it bubbles.

Warning: Physical Safety
Never use your fingers to hold fabric near a moving needle. A 600 SPM machine cycle is faster than human reaction time. If the needle hits bone, it can shatter, sending shrapnel into your eyes or machine mechanics. Use a tool.

Refining your hooping for embroidery machine habits to include "hands-off" stitching is the hallmark of a professional operator.

The Backside Matters on Kids’ Clothes: Trim Jump Stitches, Round Corners, Then Fuse a Soft Cover

A cute shirt that scratches a toddler will never be worn. The "hand" (feel) of the embroidery is part of the product quality.

1) The Surgical Clean-Up

Remove the hoop.

• Trim all jump stitches on the front.
• Flip to the back. Hold the shirt so the fabric faces YOU.
• Why: When trimming stabilizer, if the shirt is behind the stabilizer, you can't see if you've caught a fold of jersey knit in your scissors. One snip creates a hole. Always visualize the garment layer.




2) Rounding the Corners

Trim the Poly Mesh stabilizer close to the design (about 1/4 inch).

• Crucial Step: Cut the corners round. Sharp 90-degree stabilizer corners become sharp points after washing, irritating sensitive skin.


3) The Comfort Fuse

Apply a fusible tricot interfacing (e.g., Cloud Cover, Tender Touch) over the back of the embroidery.

• Action: Cut a patch with rounded corners approx 0.5 inch larger than the design. Press firmly using a press cloth.
• Troubleshooting Peeling: If the cover peels after washing, you likely used steam (don't) or didn't apply enough pressure. The adhesive needs pressure + heat + time to cure.




Setup Checklist (Pre-Start)

• Shirt floated via bottom hem.
• Vertical chalk line is Parallel to hoop grid.
• Excess fabric rolled and clipped (Clearance verified).
• Machine speed lowered (suggest 600 SPM max for beginners).
• New Bobbin loaded (running out mid-appliqué is painful).
• "Trace" function run to check boundaries.


Troubleshooting the Stuff That Makes People Quit: Crooked Designs, Thread Breaks, and “What Needle Do You Use?”

Decision Tree: Choosing Stabilizer + Backing for Kids’ Knit Shirts

Start: What is the Project Load?

1. Light Stitch Count (Name/Outline)
   • Stabilizer: 1 Layer Poly Mesh (Hooped).
   • Backing: Optional. If letters are rough, fuse Tender Touch.
2. Dense Applique / High Stitch Count
   • Stabilizer: 1 Layer Poly Mesh (Fused to Shirt) + 1 Layer Poly Mesh (Hooped).
   • Why: Heavy density cuts fibers. The fused layer adds fiber integrity.
3. Performance Wear (Slippery/Super Stretchy)
   • Stabilizer: Sticky Back Cutaway (Solvy) or Heavy Mesh.
   • Action: Do not stretch at all during application.

The Upgrade Path: When to Switch from Spray to Magnets

Floating with spray and clips is the "Gateway Skill." It works, but it is slow. If you are doing this commercially or even just for a large family, the setup time becomes your enemy.

Here is the professional progression model:

The Pain Point (Trigger): You are spending 7 minutes prepping a shirt (hooping mesh, spraying, aligning, clipping) and only 10 minutes stitching it. You notice "Hoop Burn" on delicate fabrics despite your best efforts.

The Level 2 Solution: Tool Upgrade Advanced hobbyists move to magnetic embroidery hoops.

• The Gain: These hoops hold strong without the "press-and-screw" distortion of standard hoops. You can float stabilizer and fabric incredibly fast. The magnets clamp straight down, eliminating the friction burn on velour or thick knits.
• Context: For continuous production, many professionals also look into jig systems like hoopmaster which pairs with magnetic frames for instant, perfect alignment every time.

The Level 3 Solution: Capacity Upgrade If you are consistently stitching batches (5+ shirts), the single-needle machine becomes the bottleneck (constant thread changes, slow speed).

• The Gain: A multi-needle machine (like the SEWTECH ecosystem) allows you to set up the next shirt while the current one stitches. Combined with magnetic frames, this is how you turn a hobby into a profit center.

Warning: Magnet Safety
Magnetic hoops use rare-earth magnets with industrial crushing force.
* Pinch Hazard: They can smash fingers instantly. Handle with extreme care.
* Electronics: Keep away from pacemakers, hard drives, and credit cards.

Operation Checklist (The Final 60 Seconds)

• Placement: Appliqué fabric fits exactly inside the placement line.
• Path: No clips are obstructing the embroidery arm travel.
• Tools: Chopstick/Stylus is in hand, fingers are away from the needle.
• Speed: Machine governed to safe speed for knits (approx 600 SPM).
• Post-Op: Jump stitches trimmed before fusing the comfort backing.

FAQ

• Q: How do I float a toddler knit t-shirt in a standard embroidery hoop without stretching the neckline?
  A: Slide the shirt onto the hooped stabilizer from the bottom hem, not through the neck, and align using long center lines.
  • Hoop: Hoop Poly Mesh cutaway stabilizer only (drum-tight), then make the surface tacky with temporary spray adhesive.
  • Insert: Feed the shirt upward via the bottom hem, keep hands off the neckline, and smooth the shirt onto the sticky stabilizer at rest (not stretched).
  • Align: Match the shirt crosshairs to the hoop/grid lines; prioritize parallel vertical lines before perfect centering.
  • Success check: The neckline seam stays relaxed (not wavy), and the marked vertical line stays straight/parallel to the hoop sides.
  • If it still fails… Re-do the float with less handling, and confirm the inside Poly Mesh “pre-stabilization” layer is adhered to the shirt before floating.
• Q: What stabilizer should be used for embroidering toddler knit t-shirts to prevent puckering and post-wash distortion?
  A: Use Poly Mesh (No-Show Mesh) cutaway—tear-away stabilizer is a common cause of puckering and sagging after washing.
  • Add: Adhere one Poly Mesh layer to the inside of the shirt (inside-out) with light spray before you ever touch the hoop.
  • Hoop: Hoop a second Poly Mesh layer separately, drum-tight, for the float surface.
  • Avoid: Skip tear-away for wearable knits because it removes support after stitching.
  • Success check: After unhooping, the design area lies flat without ripples, and the knit grain is not pulled into waves.
  • If it still fails… Reduce design density when possible and confirm the shirt was not stretched during adhesion.
• Q: How do I know Poly Mesh stabilizer is hooped correctly for the float method on knit t-shirts?
  A: Hoop the Poly Mesh so it is drum-tight; loose stabilizer is a direct cause of drifting registration and crooked results.
  • Tap: Tap the hooped stabilizer surface to test tension.
  • Adjust: Re-hoop until the stabilizer is evenly tight edge-to-edge.
  • Mark: Draw clear center and axis lines on the stabilizer for alignment reference.
  • Success check: The stabilizer makes a clear “thump-thump” drum sound and does not visibly sag when pressed lightly.
  • If it still fails… Re-check that spray adhesive did not contaminate the hoop rim (residue can prevent consistent seating).
• Q: What needle and prep supplies should be used for appliqué embroidery on toddler knit t-shirts to avoid skipped stitches and fabric damage?
  A: Start with a Ballpoint 75/11 or 80/12 needle and prep the appliqué fabric with fusible web plus a 100% scale template before stitching.
  • Change: Install a fresh ballpoint needle; avoid sharp needles that can cut knit fibers.
  • Fuse: Iron fusible web to the wrong side of the appliqué fabric before cutting.
  • Print: Print the template at 100% (Actual Size) and cut from the front using a paper template to avoid mirror mistakes.
  • Success check: The appliqué piece drops into the placement outline like a puzzle piece, and the knit surface shows no “runs” or needle cuts.
  • If it still fails… Slow the machine speed (a safe starting point is around 600 SPM for beginners) and confirm the appliqué fabric was fused and cut cleanly.
• Q: How can a single-needle embroidery machine operator avoid needle injuries during the appliqué tack-down step?
  A: Keep fingers away from the needle during tack-down and use a stylus/chopstick/pencil eraser to control the fabric if needed.
  • Trace: Run the machine “Trace/Trial” boundary check before stitching to confirm clearance.
  • Stitch: Let the machine run the placement line first, then place the appliqué fabric inside the outline.
  • Hold: Use a tool—not fingertips—if the appliqué bubbles during tack-down.
  • Success check: Hands remain outside the needle path for the entire tack-down, and the appliqué stays flat without sudden grabs.
  • If it still fails… Stop the machine, re-smooth and re-adhere the appliqué fabric, and lower speed before restarting.
• Q: Why does embroidery thread start shredding when floating knit t-shirts with temporary spray adhesive, and how do I fix it?
  A: Thread shredding often comes from too much spray adhesive transferring to the needle; use less spray and clean or replace the needle.
  • Reduce: Apply a light mist only; avoid soaking the surface.
  • Clean: Wipe the needle with rubbing alcohol (or replace the needle if residue is heavy).
  • Shield: Block the hoop rim when spraying so adhesive does not build up on plastic edges.
  • Success check: The needle comes out clean (not tacky), and thread runs smoothly without fuzzing or snapping during the next test stitches.
  • If it still fails… Re-check that spraying was done away from the machine (overspray can attract lint and contribute to jams).
• Q: When should an embroidery business upgrade from spray-floating and clips to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade when setup time and fabric marking/clipping become the bottleneck—optimize technique first, then upgrade tools, then upgrade capacity.
  • Level 1 (technique): Tighten the float workflow (drum-tight hooping, bottom-hem slide, parallel-line alignment, safe clipping on the perimeter).
  • Level 2 (tool): Move to magnetic embroidery hoops when hoop burn/friction and long setup time persist, and faster clamp-down would improve consistency.
  • Level 3 (capacity): Move to a multi-needle system like SEWTECH when batches (often 5+ shirts) are limited by constant thread changes and single-needle throughput.
  • Success check: Prep time drops noticeably while placement accuracy stays consistent and hoop burn complaints decrease.
  • If it still fails… Review magnet safety (pinch hazard, electronics risk) and confirm the production workflow (jigs/alignment habits) is stable before scaling output.
