No Hooping Station, No Panic: Clean Apron Embroidery on a Brother PR1055X with a 4.25" x 13" Magnetic Hoop

Custom apron work is the ultimate litmus test for an embroidery shop. It separates the hobbyists who cross their fingers from the professionals who understand physics.

A chef’s apron is a hostile environment for a needle. The fabric is thick and heavy, creating drag. The pockets are traps waiting to be stitched shut. The metal rivets are needle-destroyers. If you are staring at a heavy canvas apron thinking, "I don't have a professional hooping station—how do I do this without ruining the garment?"—take a breath.

In this "White Paper" style guide, we are breaking down a real stitch-out on a Brother PR1055X using a 4.25" x 13" Magnetic Hoop. We will tackle a large torso phrase (“#ONLYPANS”) and a precision placement job (“Chef Romeo”) between leather straps. But more importantly, I will teach you the sensory cues and safety protocols that prevent expensive mistakes.

The “Don’t-Panic” Primer for Brother PR1055X Apron Embroidery (Pockets, Rivets, Leather Straps)

Aprons trigger fear because the cost of failure is high. One slip, and you have stitched through a pocket liner, shattered a needle on a rivet, or warped the text because the heavy fabric dragged the hoop.

Here is the cognitive shift you need: Stop eyeballing. The Brother PR1055X offers a suite of verification tools—camera scanning, on-screen positioning, physical traces, and projection. When combined with a long rectangular magnetic hoop (a staple for thick items), you gain control.

Think of this like a pilot’s pre-flight check. We don't hope the landing gear is down; we check the indicator. Similarly, we don't hope the needle misses the rivet; we trace until we know.

The Hidden Prep That Makes a Magnetic Hoop Behave on Thick Apron Fabric

The video shows water-soluble stabilizer being used. While that keeps the back clean, the real secret to sharp text on an apron is managing Gravitational Drag.

A heavy apron hanging off your machine is not neutral; it is an anchor. As the pantograph moves the hoop, that hanging weight pulls against the motor. This creates:

• Registration loss: Outlines don't match fills.
• Distortion: Straight text lines curve like a banana.
• Hoop Burn: Friction marks from the clamp struggling to hold the fabric.

Proper preparation creates a "Neutral Tension Zone."

Prep Checklist (The "Save Your Sanity" Phase):

• Inspect the Terrain: Map out "Kill Zones"—rivets, thick leather seams, and pocket interiors.
• Choose Your Weapon: For heavy canvas, a sharp needle (75/11) punches cleaner than a ballpoint. Ensure you have fresh needles.
• Stabilizer Selection: Cut your stabilizer 1 inch larger than the hoop on all sides.
• Clear the Deck: Ensure you have a flat table surface for hooping.
• Support Plan: How will you support the apron's weight while stitching? (Extension table or holding it).

If you are setting up a workflow for repeated jobs like this, mastering hooping for embroidery machine protocols acts as your quality assurance baseline.

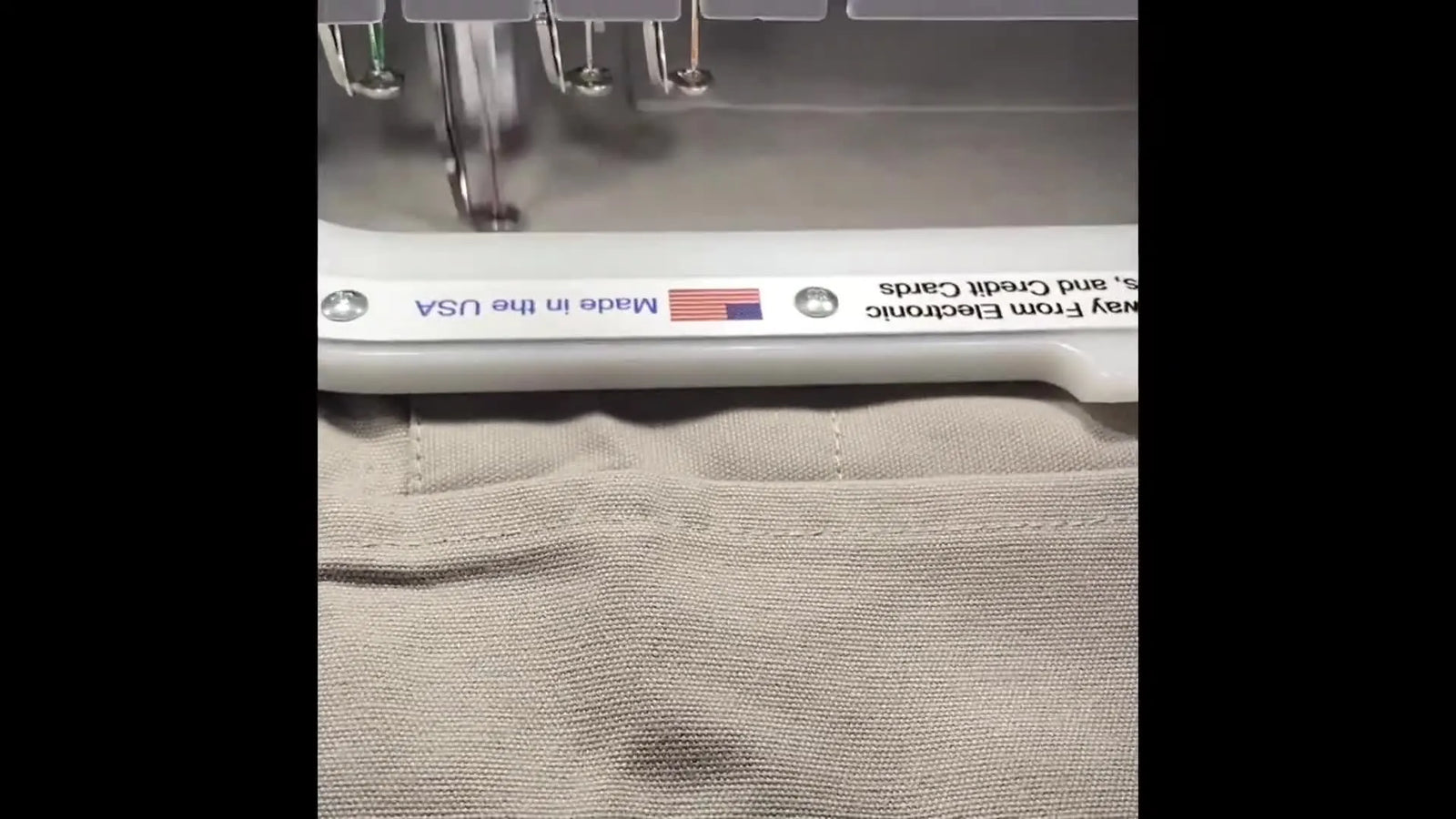

The Flat-Table Hooping Method with a 4.25" x 13" Mighty Hoop (No Hooping Station Needed)

You do not strictly need a $300 hooping station for this if you understand the mechanics. The video demonstrates the "Flat-Table Method": Bottom ring on table $\to$ Stabilizer $\to$ Garment $\to$ Top ring.

The Sensory Hooping Sequence:

1. Visual: Place the bottom magnetic ring on a flat surface.
2. Tactile: Lay your stabilizer and apron over it. Smooth the fabric away from the center until it feels flat, but not stretched tight.
3. Auditory: align the top frame (Warning tag UP) and drop it. Listen for the authoritative "CLACK".
4. The Drag Test: Gently tug the fabric outside the hoop. It should not slip. Inside the hoop, tap the fabric. It should sound like a dull drum—taut, but not screaming tight.

Warning: MAGNETIC PINCH HAZARD. Large magnetic hoops snap together with over 10 pounds of force instantly. Keep fingers on the outside of the frame handles, never between the rings. If you have a pacemaker, consult your doctor before using high-gauss magnets.

Why this works (and where rookies fail)

Beginners often pull heavy canvas too tight before clamping. When you remove the hoop later, the fabric relaxes, and your perfect lettering creates puckers. Magnetic hoops are superior here because they clamp vertically, reducing the "push-pull" distortion common with screw-tightened hoops.

• Level 1 Solution: Practice proper manual tensioning.
• Level 2 Solution: Upgrade to Magnetic Hoops/Frames. If you fight with thick seams or suffer from hand fatigue/arthritis, magnetic hoops are not a luxury; they are an ergonomic necessity that prevent "hoop burn" on delicate or thick items.


Lock the Apron Down on the Brother PR1055X: Using the Tubular Frame Table to Prevent Drag and “Stitched-Together” Folds

Once hooped, the apron is heavy. The video correctly emphasizes using the Tubular Frame Table (Extension Table) included with the PR1055X.

The Physics of Stability: If the apron hangs off the edge, the weight acts as a pendulum. At 800 stitches per minute, that pendulum swings, causing the hoop to drift. The table supports the fabric, neutralizing gravity.

Setup Checklist (The "No-Crash" Clearance):

• Click Check: Slide the hoop onto the drive arm arms. Listen for the double click to ensure it's locked.
• The "Sweep": Run your hand under the hoop. Ensure the apron isn't folded over itself (which would stitch the front to the back).
• Weight Management: Rest the bulk of the apron on the extension table.
• Strap Check: Tie back or tape down any loose leather straps so they don't get caught in the moving pantograph.

If you are scaling up production on a brother pr1055x, using the table is mandatory for registration accuracy.

Use Brother PR1055X Camera Scanning to Place “#ONLYPANS” Without Hitting Pockets or Rivets

Digital placement is your safety net. Using the built-in camera, scan the hooped area. The screen will show you the reality of where the pockets are versus where the machine thinks they are.

In the tutorial, the design is dragged downward on-screen to center it safely.

• Design Size: 1.76" x 10.79".
• Clearance: Ensure at least 0.5" (12mm) of clearance from any thick seam or rivet.


The “Hardware Clearance” Habit

Rivets are unforgiving. If a needle traveling at 600 SPM hits a steel rivet, the needle shatters, and a shard can fly into your eye or jam the rotary hook.

If you are using mighty hoops for brother pr1055x, the ease of hooping can make you complacent. Do not skip the visual check. The magnet holds the fabric, but you must hold the standard of safety.

The Trace Ritual on the Brother PR1055X: Edit → End → Trace Before You Stitch

Never press "Start" without a Trace. This is the "Dry Run."

1. Select Edit $\to$ End $\to$ Trace.
2. Watch the foot, not the screen. As the machine mocks up the perimeter, look at the physical gap between the needle bar and those metal rivets.
3. The "Pinky Rule": If you can't fit your pinky finger between the needle path and the rivet, you are too close. Move the design.

Expected Outcome: You visualize the exact "Safe Zone" where the needle will fire.

Warning: MECHANICAL HAZARD. Ensure the presser foot is up during the trace (most machines do this automatically) but stay ready to hit the emergency stop button if the hoop moves toward a collision.

Stitching the Torso Text at 800 SPM: What to Watch While the Apron Runs

The machine sets a max speed of 800 SPM (Stitches Per Minute).

Expert Calibration: While the machine can do 1000 SPM, and the video says 800, I recommend a "Sweet Spot" of 600-700 SPM for heavy, uneven aprons.

• Why? Slower speeds reduce the kinetic force if a needle deflection occurs. It also gives you more reaction time to pause if the fabric starts to bunch.

Sensory Monitoring:

• Sound: Listen for a rhythmic thump-thump. If you hear a sharp CLICK or a grinding noise, stop immediately—you likely hit a hidden hard spot.
• Sight: Watch the fabric feeding. If it starts to "flag" (bounce up and down with the needle), your stabilizer might be too loose.


Flip-and-Check the Backing: Why Water-Soluble Stabilizer Works for This Apron Lettering

The output shows a clean back using Water-Soluble Stabilizer (WSS).

• The Logic: WSS vanishes after a wash, leaving no scratchy backing against the chef's clothes.
• The Risk: WSS offers less support than Cutaway.
• The Verdict: For low-stitch-count lettering on rigid canvas? WSS is acceptable. For dense logos or stretchy aprons? You must use Cutaway Stabilizer.

Upgrade Path: Professional shops keep a library of stabilizer/backing. Don't force WSS to do a Cutaway's job just because it looks cleaner. The stability of the embroidery effectively dictates the lifespan of the garment.

Hooping Between Leather Straps: Centering the Bib Name with a 4.25" Magnetic Hoop

The "Bib" area ("Chef Romeo") is tricky because of the leather straps.

Tactics:

1. Switch to a smaller hoop (4.25" square or similar) that fits between the straps.
2. Sensory Check: When you drop the top magnetic frame, run your finger along the inside edge. Ensure no part of the thick leather strap is pinched under the magnet. If it is, the hoop will pop off mid-stitch.

This is where a magnetic embroidery hoop shines. Traditional screw hoops create "hoop burn" (crushed fibers) on thick straps that is impossible to steam out. Magnets eliminate this damage.

Fine-Tune “Chef Romeo” with PR1055X Camera + Projection So It Lands Perfectly Between Rivets

The video utilizes the Projector feature to beam the design onto the bib.

The Workflow:

1. Project: See the light on the fabric.
2. Nudge: Move the design to be equidistant from the left and right strap rivets.
3. Trace: Confirm the physical movement.

If you are looking for a magnetic hoop for brother setup, ensure your specific machine model's arm width is compatible with the hoop size you choose, as clearance near the machine head is critical for these small bib areas.

A Stabilizer Decision Tree for Aprons (So You Don’t Guess and Re-Stitch)

Stop guessing. Use this logic gate to choose the right consumable for the job.

Decision Tree: Apron Stabilizer Selection

1. Is the apron stretchy (Polyester/Jersey blends)?
   • YES: Use Cutaway. Period. Tearaway/WSS will cause the design to warp.
   • NO: Go to step 2.
2. Is the design very dense (high stitch count/complex fill)?
   • YES: Use Cutaway or Heavy Tearaway. You need structural integrity.
   • NO: Go to step 3.
3. Is the back texture critical (Chef doesn't want scratchy feel)?
   • YES: Use Water-Soluble (if canvas is stiff) OR Cutaway with a "Cover-the-Back" fusible interlining.
   • NO: Standard Tearaway is fine.


Troubleshooting Apron Embroidery Problems: Symptoms → Likely Cause → Fix (The Stuff That Wastes Your Day)

Keep this table near your machine.

The Upgrade Path: When Magnetic Hoops and Multi-Needle Efficiency Start Paying You Back

Doing one apron is a fun project. Doing 50 aprons for a local restaurant is a production challenge. Here is how you identify when it is time to upgrade your tools:

1. The "Hoop Burn" Bottleneck

• Pain Point: You spend more time steaming out hoop marks than stitching.
• The Fix: Upgrade to Magnetic Hoops. They clamp without crushing the fibers and are faster to load.

2. The "Changing Thread" Fatigue

• Pain Point: You are babysitting a single-needle machine, changing colors manually for every logo.
• The Fix: This is the signal to look at our SEWTECH multi-needle embroidery machines. Set up 10+ colors, hit start, and walk away to prep the next apron.

3. The "Stockout" Stress

• Pain Point: You run out of specific thread colors or backing mid-job.
• The Fix: Stock up on Embroidery Thread kits and bulk Stabilizer.

Operation Checklist (Final Go/No-Go):

• Hoop Secure: Double-clicked into the driver arm?
• Obstruction Free: Hand-sweep under hoop complete?
• Design Placed: Camera scan & Trace confirms clearance from rivets?
• Speed Set: Adjusted to safe zone (600-700 SPM)?
• Safety: Fingers clear of the sewing field?

Stitching on aprons doesn't have to be a gamble. With the right hoop, the right verification steps, and the right speed, it becomes a predictable, profitable service.

FAQ

• Q: How can Brother PR1055X users hoop a thick canvas chef apron with a 4.25" x 13" magnetic hoop without a hooping station?
  A: Use the flat-table hooping method so the magnetic frame clamps straight down without stretching the canvas.
  • Place the bottom magnetic ring on a flat table, then layer stabilizer, then the apron, then drop the top ring (warning tag up).
  • Smooth fabric flat from the center outward; do not pre-stretch heavy canvas before clamping.
  • Perform the drag test by gently tugging fabric outside the hoop to confirm it does not slip.
  • Success check: the hoop closes with a firm “CLACK,” and the fabric inside the hoop sounds like a dull drum when tapped (taut, not over-tight).
  • If it still fails, re-hoop with less pre-tension and confirm the stabilizer is cut at least 1 inch larger than the hoop on all sides.
• Q: What is the correct “success standard” for fabric tension when hooping an apron with a magnetic embroidery hoop to avoid puckers and hoop burn?
  A: Aim for “flat and supported,” not “stretched tight,” because over-tension relaxes after unhooping and causes puckers.
  • Smooth the apron until it lies flat over the stabilizer; avoid pulling canvas tight before the magnet clamps.
  • Tap-test the hooped area to confirm controlled tension rather than a “screaming tight” drum.
  • Gently tug outside the hoop to verify the fabric is locked and not creeping.
  • Success check: fabric stays put during the tug test and remains flat (no ripples) without looking stretched.
  • If it still fails, slow down stitching speed and confirm the apron’s hanging weight is fully supported on an extension table to reduce drag-related distortion.
• Q: How do Brother PR1055X owners prevent stitching apron pockets shut and avoid rivet collisions when placing “#ONLYPANS” with camera scanning?
  A: Use the PR1055X camera scan for reality-based placement, then keep a minimum clearance from seams and hardware.
  • Scan the hooped area and visually confirm where pockets and rivets actually sit relative to the design.
  • Reposition the design on-screen until it is centered in a safe zone.
  • Maintain at least 0.5" (12 mm) clearance from thick seams or rivets.
  • Success check: the on-screen image shows the full design boundary away from pockets/rivets before stitching starts.
  • If it still fails, run a full physical trace and move the design again until the needle path clearly avoids all metal and pocket interiors.
• Q: What is the safest trace procedure on a Brother PR1055X to verify needle clearance from apron rivets before pressing Start?
  A: Always run Edit → End → Trace and judge clearance by the moving needle path, not by the screen.
  • Select Edit → End → Trace to perform a dry-run perimeter.
  • Watch the presser foot/needle area physically as the machine traces, focusing on rivets and thick seams.
  • Apply the “Pinky Rule”: if a pinky finger cannot fit between the needle path and the rivet, move the design.
  • Success check: the trace completes with obvious physical clearance between the needle path and every rivet.
  • If it still fails, stop and reposition the design farther away, then trace again before stitching.
• Q: What stitch speed should Brother PR1055X users run for heavy, uneven chef aprons to reduce registration errors and needle deflection risk?
  A: A safe starting point for heavy aprons is 600–700 SPM even if the machine is capable of faster speeds.
  • Reduce speed before stitching if the apron has thick canvas, seams, straps, or hardware nearby.
  • Monitor sound and fabric behavior continuously during the run.
  • Pause immediately if a sharp click or grinding sound occurs.
  • Success check: stitching sounds rhythmic (no sharp impact sounds) and the fabric does not “flag” (bounce) under the needle.
  • If it still fails, improve stabilizer support and ensure the apron’s weight is resting on the extension table to eliminate gravitational drag.
• Q: How should Brother PR1055X users support a heavy apron on the tubular frame table (extension table) to stop wavy text and drag distortion?
  A: Rest the bulk of the apron on the extension table so the hoop is not fighting hanging weight during stitching.
  • Lock the hoop onto the drive arm and confirm engagement before starting.
  • Hand-sweep under the hoop to ensure the apron is not folded over itself (which can stitch front to back).
  • Lay the apron mass flat on the extension table to neutralize “pendulum” pulling.
  • Secure loose leather straps so they cannot snag the pantograph movement.
  • Success check: the apron stays level on the table and text lines stitch straight instead of curving.
  • If it still fails, re-hoop to improve grip and reduce speed to the 600–700 SPM range for better control.
• Q: What stabilizer should be used for apron lettering on canvas—water-soluble stabilizer vs cutaway stabilizer—and how do Brother PR1055X users decide?
  A: Water-soluble stabilizer can work for low-stitch-count lettering on rigid canvas, but cutaway is required for stretchy aprons or dense designs.
  • Choose cutaway immediately if the apron fabric is stretchy (poly/jersey blends).
  • Choose cutaway or heavy tearaway if the design is very dense/high stitch count.
  • Choose water-soluble only when the canvas is stiff and a clean-feel backing is critical.
  • Success check: the finished lettering stays flat with clean edges and no outline/fill shift after unhooping.
  • If it still fails, switch from water-soluble to cutaway to increase structural support before re-stitching.
• Q: What safety precautions should be followed when using large magnetic hoops on a Brother PR1055X to avoid magnetic pinch injuries and mid-stitch hoop pops?
  A: Treat magnetic hoops as a pinch hazard and confirm nothing thick (like leather straps) is trapped under the magnet seal.
  • Keep fingers on the outside handles only; never place fingers between the rings when closing the hoop.
  • Drop the top frame carefully and control the snap closure.
  • Run a finger along the inside edge after closing to confirm no leather strap or bulky layer is pinched.
  • Success check: the frame closes cleanly and remains fully seated (no gaps), and the hoop stays locked through the trace.
  • If it still fails, re-hoop with the strap fully outside the clamping zone; if the thickness prevents full engagement, move to a setup designed for thicker assemblies or use additional securing methods before stitching.
